Discontinued
LAT140 component-copyModelName

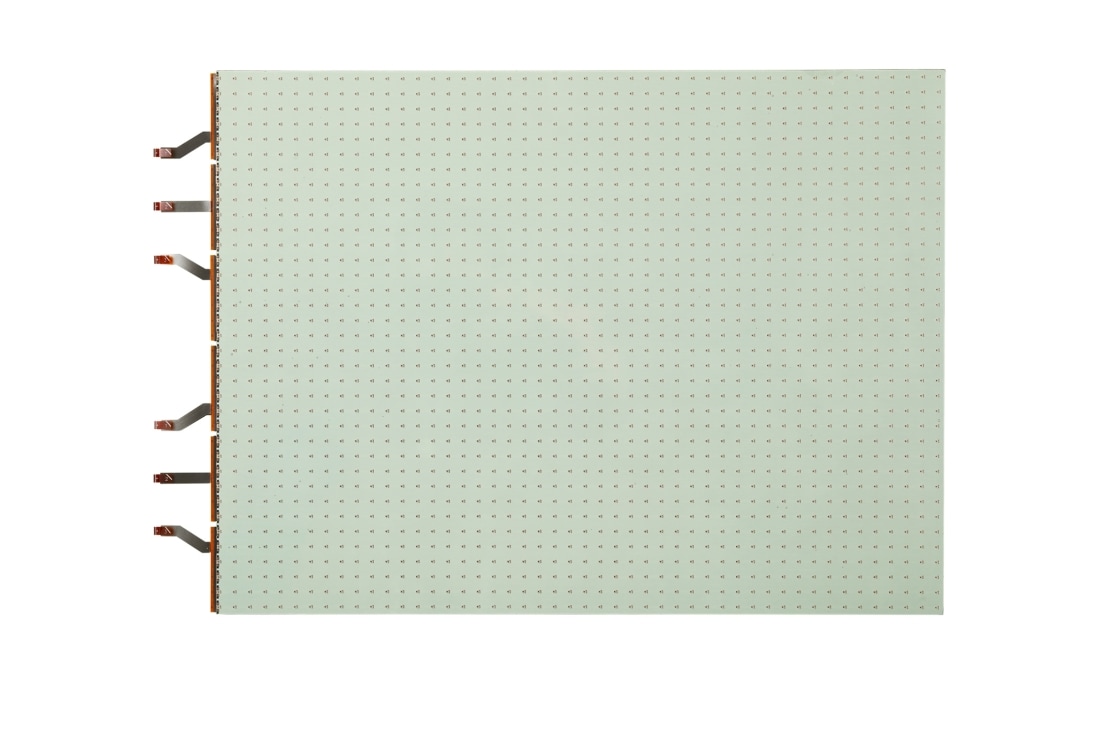

Transparent LED Film

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Transparent LED Film
Inquiry to Buy
Close
LED Film
(LAT140GT81)
  • Pixel Pitch(mm)
    13.7±0.2mm
    LED Type
    R, G, B 3in1 Color Package (SMD2020)
  • Resolution
    48 x 36
    Pixels per Panel
    1,728
  • Pixel Density (point/㎡)
    5,102
    Brightness (cd/㎡)
    Typ.2,100nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Viewing Angle (H x V)
    120 x 120
    Life Time (Duration of Half Brightness in Hours)
    50,000 Hrs
  • Daily Usage
    24h / 7days
    Warranty
    2 years
  • Transparency
    Typ 53%
    Operating Temperature
    0℃ ~ 45℃ (Indoor Glass Installation Only)
  • Curved Installation
    2,000 R (Concave, Convex with Glass Only)
    Film Trimming
    Yes (Parallel to the Bezel Side Only)
  • Color Processing
    (9bit) 500/500/500 Level (R, G, B)
    Colors
    125,000,000 Colors
  • Color Chromaticity
    Cx: 0.25±0.03, Cy : 0.34±0.03
    Dimension (W x H x D)
    655 x 492 x 2.9mm
    (with front & back protection film)
  • Weight
    1kg
    Power Consumption
    37W(Transparent panel 1EA + Common Bezel kit 2EA)
  • Accessory
    ESG, Regulation book, Warranty Card
1st Bezel
(ACC-14LATB1)
  • Dimension (W x H x D)
    69.4 x 492 x 25mm (Cover)
    Weight
    0.4Kg
Common Bezel
(ACC-14LATB2)
  • Dimension (W x H x D)
    51.4 x 492 x 25mm (Cover)
    Weight
    0.3Kg
Unit Controller
(LCLG140U)
  • Resolution
    960x540 (1/4 FHD)
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100m (Cable : CAT5E, CAT6)
    Dimension (W x H x D)
    293 x 188.7 x 37mm
  • Weight
    1.5Kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W
System Controller
(LCLG002)
  • Video (Max. Input Resolution)
    DP : 1920x1080@60Hz
    HDMI : 1920x1080@60Hz
    DVI-D : 1920x1080@60Hz
    Interface (Input)
    HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jacke Type), USB 3.0,
  • Interface (Output)
    DP, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), LVDS
    Dimension (W x H x D mm)
    293 x193.3 x 40.1mm
  • Weight (Head, Kg)
    1.6kg
    Temperature Sensor
    Yes
  • Light Sensor
    Yes
    Source Selection
    HDMI, DVI-D, DP
  • Power Consumption
    17W
    CMS S/W
    Yes (2.9)
  • Signage365care
    Yes (2.7)
    Accessory
    Power cord, IR+Bright Sensor (1.5m),
    4P Phone-to-RS232C Gender, ESG, Regulation book
    , Warranty Card
Power
(ACC-LATP1)
  • Dimension (W x H x D)
    183 x 86 x 28mm
    Weight
    769g
  • Input
    100~240V, 50~60Hz
    Output
    19.5V/10.8A (210W)
  • Color
    White
    DC output cable
    14AWG, 1.5m
  • Type
    L Type
One Box Controller
(CTAA-140G)
  • Video
    HDMI : 1920x1080@60Hz
    Input
    HDMI, RS232C (Phone Jack Type), RJ45, IR Receiver, USB 3.0
  • Output
    RS232C (Phone Jack Type), RJ45 (2)
    Dimension (W × H × D)
    333 x 186.8 x 40.1mm
  • Weight (Head)
    1.82 kg
    Temperature Sensor / Light Sensor
    O / O
  • TPC (Temporal Peak Luminance Control)
    Yes
    Power Consumption
    30 W
  • CMS S/W
    SuperSign CMS
    Accessory
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
Series
  • Series
    LAT
  • Dimension
    • Controller(CTAA)_2D.dwg
    • Controller(CTAA)_2D.pdf
  • Datasheet
    • LAT140_Datasheet(low)_Transparent LED Film_210108.pdf
