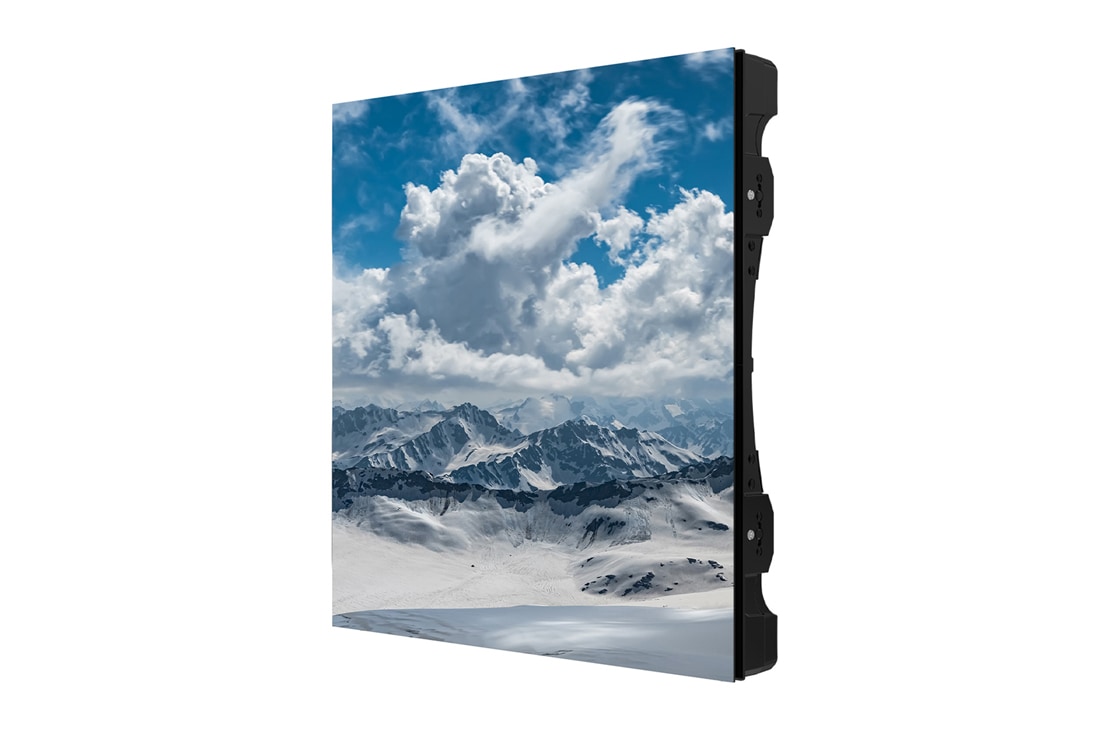

LED Display for Virtual Production
Inquiry to Buy

LED Display for Virtual Production

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery. A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery.
* All images in this page are for illustrative purposes only.

Easy Installation & Maintenance

The module can be easily removed using the suction tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.
The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-Handed Control' parts in the cabinet are enlarged. The 'Positioning Pins', 'Magnetic Assembly', 'Comfortable Handles', and 'Fast Lock & One-Handed Control' parts in the cabinet are enlarged.
Curved LED walls are installed in a studio. Curved LED walls are installed in a studio.

Curve Effect Available

The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas.
The part where the cabinet can be installed either as stacking or hanging is enlarged and shown. The part where the cabinet can be installed either as stacking or hanging is enlarged and shown.

Stacking & Hanging System Available

Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment.
In a comparison of an SDR screen and HDR-enabled screen, a conventional LED display screen with flickering and rolling image symptoms is being compared with a screen that shows colors accurately with a high refresh rate. In a comparison of an SDR screen and HDR-enabled screen, a conventional LED display screen with flickering and rolling image symptoms is being compared with a screen that shows colors accurately with a high refresh rate.

Broadcast Quality Available

Accurate color reproduction, low latency of video processing, and HDR capability.
A virtual production studio which has curved LED walls and ceiling and floor LEDs is being filmed, and a compatible controller is being displayed next to it. A virtual production studio which has curved LED walls and ceiling and floor LEDs is being filmed, and a compatible controller is being displayed next to it.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LBCJ series offers support for them.
Close
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch(mm)
    2.60
  • Module Resolution (WxH)
    96x96
    Module Dimensions(WxH,mm)
    250x250
  • Weight per Module (kg)
    0.59
    No. of Modules per Cabinet (WxH)
    2 x 2
  • Cabinet Resolution (WxH)
    192x192
    Cabinet Dimensions (W x H x D, mm)
    500x500x75.5
  • Cabinet Surface Area (㎡)
    0.250
    Weight per Cabinet (kg/unit)
    5.9
  • Weight per Square Meter (kg/m²)
    24.0
    Physical Pixel Density (pixels/m²)
    147,456
  • Flatness of Cabinet (mm)
    ±0.15
    Cabinet Material
    Die casting
    Magnesium alloy
  • Service Access
    Front or Rear
    (select one only)
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    1,500
    Color Temperature (K)
    2,000-11,000
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003CxCy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    16 (PQ, HLG)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    180
    Power Consumption (W/Cabinet, Avg.)
    60.00
  • Power Consumption (W/m², Max.)
    720
    Heat Dissipation (BTU/h/Cabinet, Max.)
    614
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    205
    Heat Dissipation (BTU/h/m², Max.)
    2,457
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    7,680
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10℃ to +45℃
  • Operating Humidity
    0~80%RH
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS,REACH
Controller
  • Controller
    Brompton SX40
Series
  • Series
    LBCJ
  • Dimension
    • LBCJ026-v1.0 (2).dwg
    • LBCJ026-v1.0.pdf
  • Datasheet
    • LBCJ-Series_Datasheet(low)_LG-Indoor-LED_220627.pdf
