Discontinued

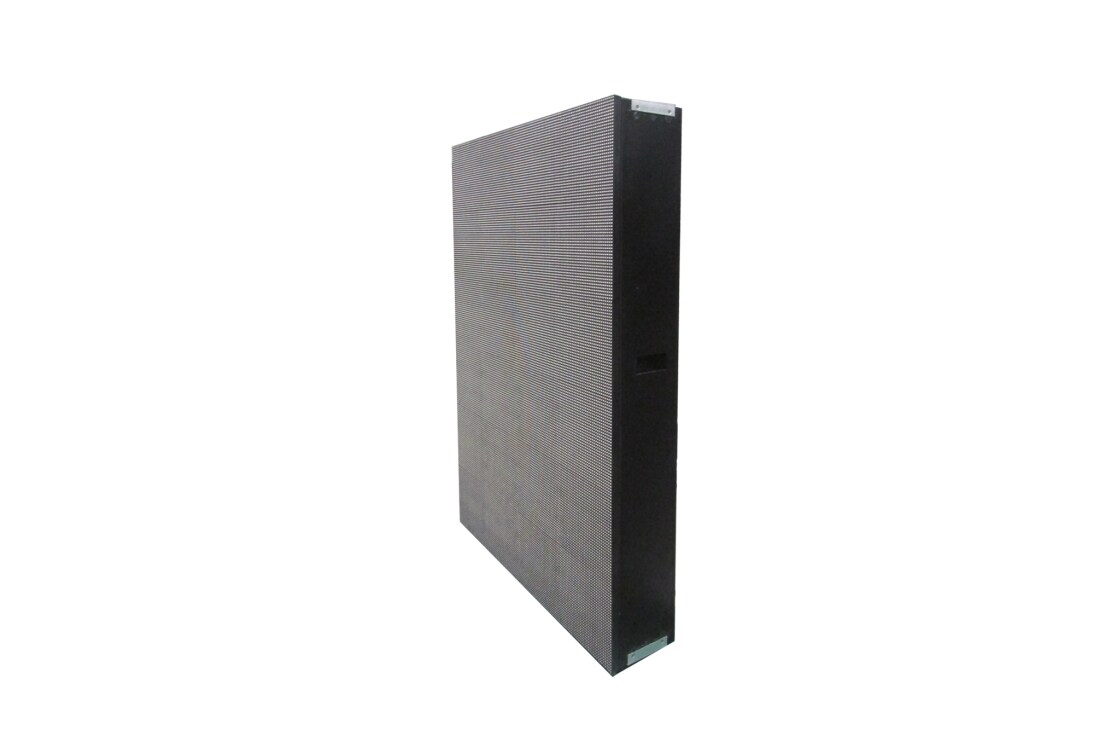

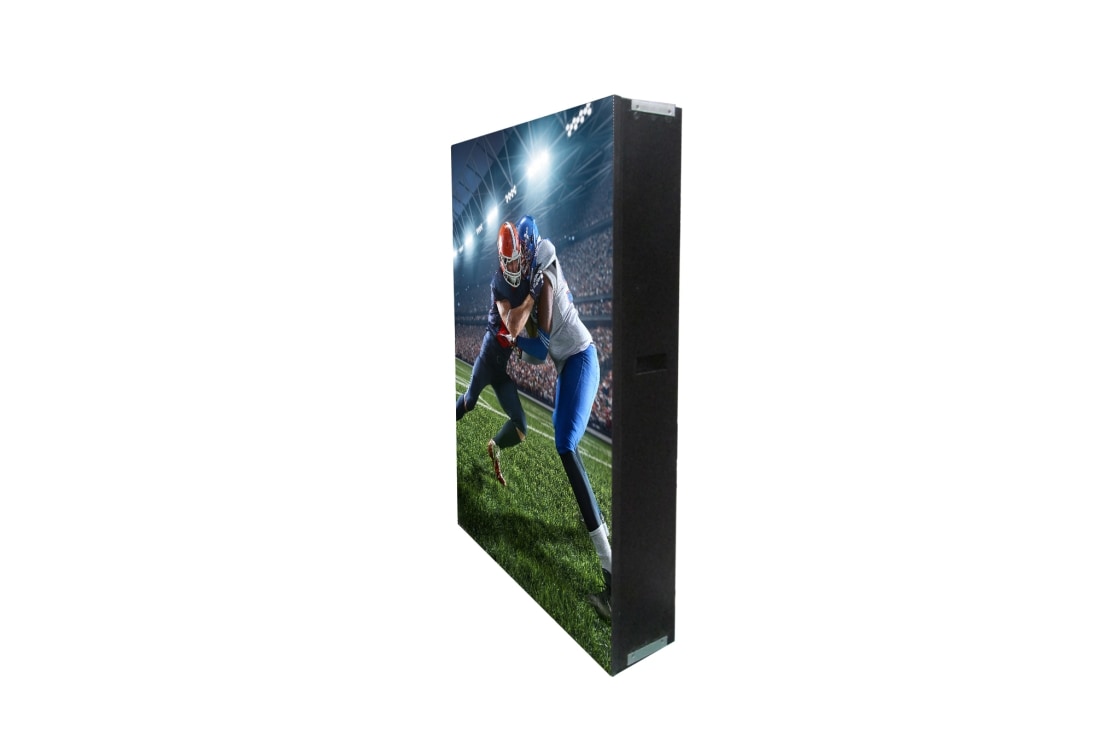

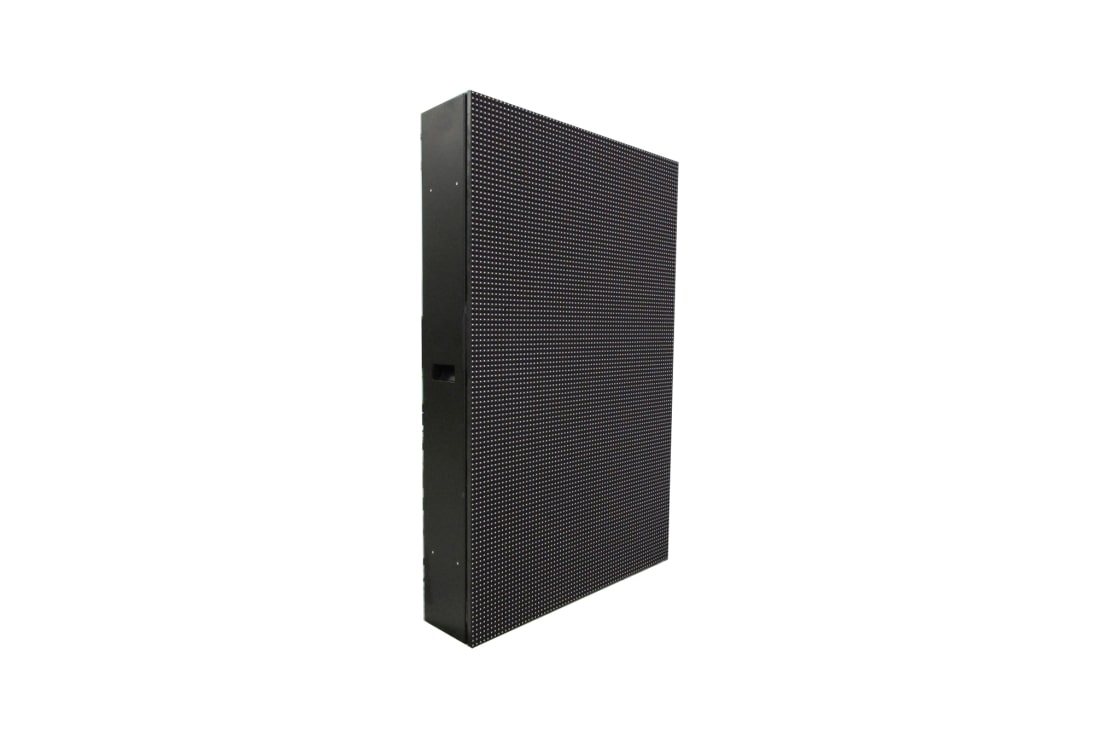

LBS060DA4D component-copyModelName
Premium Series

Key Features

Choose your Pitch

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

Premium Series
Inquiry to Buy
Close
Physical Parameters
  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    6.00
  • Module Resolution (W x H)
    32 × 32
    Module Dimensions (W x H, mm)
    192 × 192
  • Weight per Module (kg)
    0.54
    No. of Modules per Cabinet (W × H)
    6 × 4
  • Cabinet Resolution (W × H)
    192 × 128
    Cabinet Dimensions (W × H × D)
    1152 × 768 × 217
  • Cabinet Surface Area (m²)
    0.885
    Weight per Cabinet (kg/cabinet)
    42.0
  • Weight per Square Meter (kg/m²)
    47.5
    Physical Pixel Density (pixels/m²)
    27,777
  • Flatness of Cabinet
    ±1.0 mm
    Cabinet Material
    Aluminum Sheet
  • Service Access
    Front or Rear (One Option Only)
Optical Parameter
  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3500 ~ 8500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    130
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16
Electrical Parameter
  • Power Consumption (W/Cabinet, Max.)
    660
    Power Consumption (W/Cabinet, Avg.)
    288
  • Power Consumption (W/m², Max.)
    746
    Heat Dissipation (BTU/h/Cabinet, Max.)
    2,252
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    983
    Heat Dissipation (BTU/h/m², Max.)
    2,545
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    4,000
Operation Conditions
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -30° to +50°
  • Operating Humidity
    < 90%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP54
Certification
  • Certification
    CE,FCC,ETL
Environment
  • Environment
    RoHS, REACH
Controller
  • Controller
    LCLH001
  • Dimension
    • (2D Drawing)LG LBS060DAnD (6x4).dwg
    • (2D Drawing)LG LBS060DAnD (6x4).pdf
  • Datasheet
    • LG Premium LED_LBS series_Datasheet(web)_2009.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
