Limited Quantity Sale
-
Product Price(LBS062DA4-V)
$*rPrice*$*rPromoPrice**discountPDPMsg*LG Members Price(LBS062DA4-V)$*rMemberPrice*$*rMembershipPrice**discountPDPMsg*vip-price-message(LBS062DA4-V)$*rPrice*$*rVipPrice**discountPDPMsg*OBS_CHEAPERPRICE_MSG $*cheaperPrice*
LG Members Price$*rMembershipPrice**rWelcomePriceDescription**rWelcomePriceTooltip*
$*rWelcomePrice*
OBS_MEMBERSHIP_MSG $*recommendedMembershipPrice*
bundle-unable-text
OBS_LOWEST_PRICE_MARK_MSG
OBS_LOWEST_PRICE_MARK_MSG
-
- Pixel Configuration
- 3 in 1
- Pixel Pitch (mm)
- 6.25
-

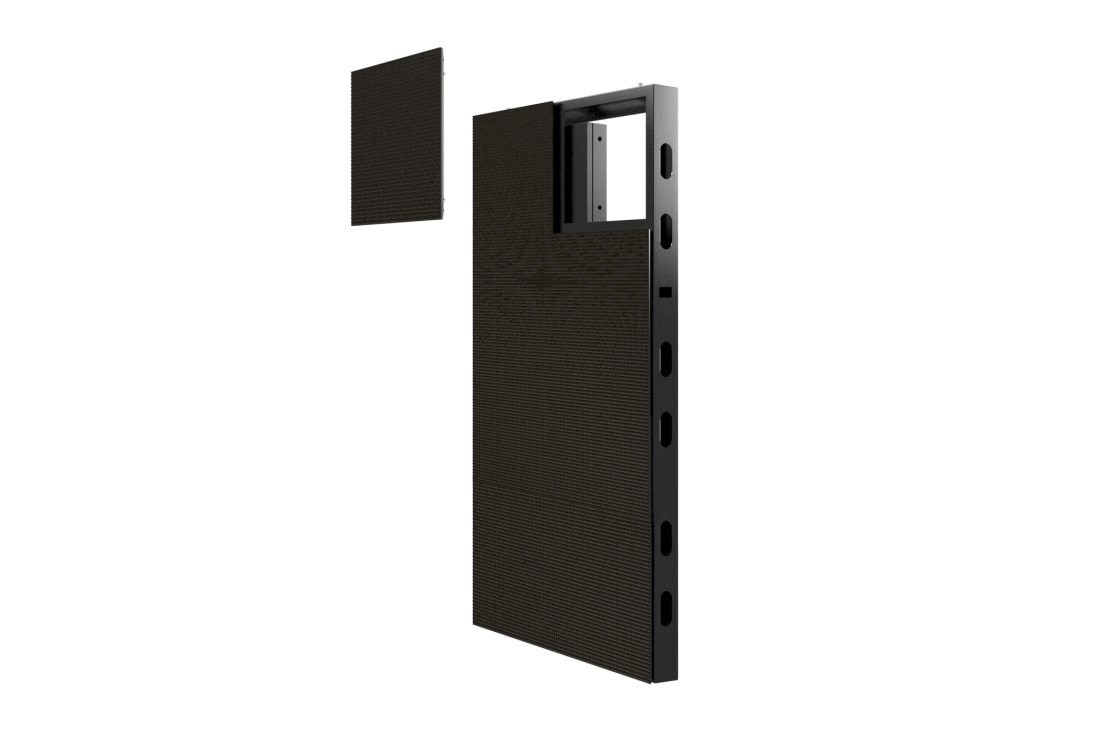

- Module Resolution (W x H)
- 64 × 64
- Module Dimensions (W x H, mm)
- 400 × 400
-
- Weight per Module (kg)
- 2.45

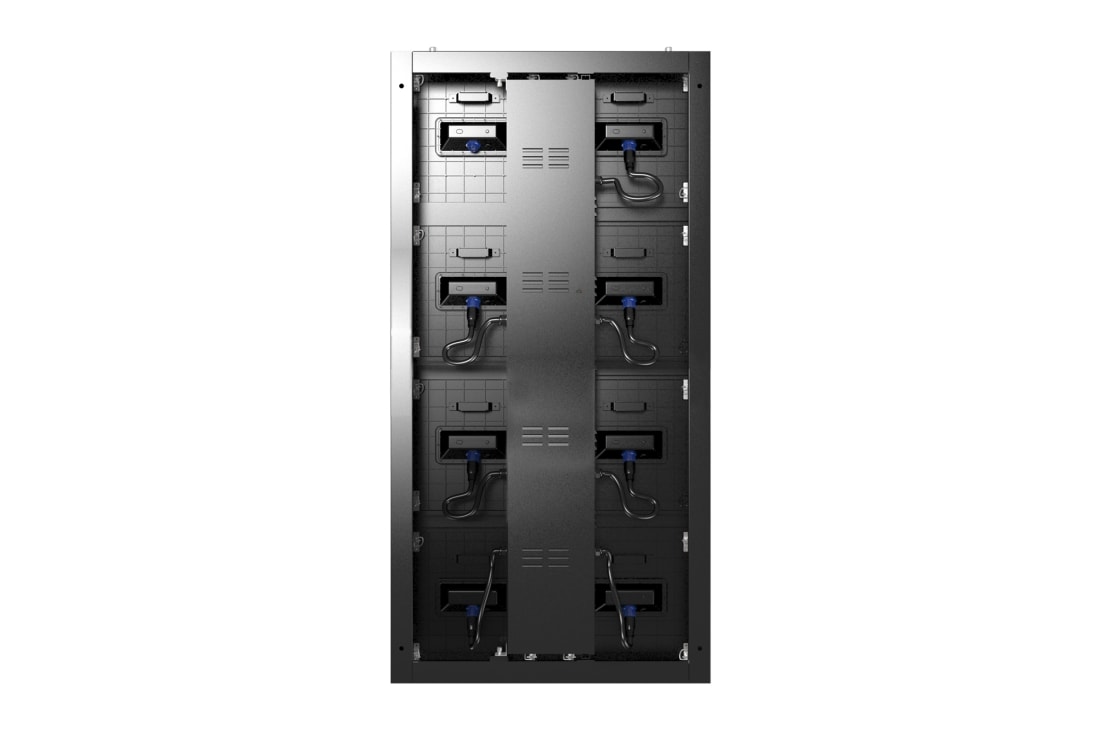

- No. of Modules per Cabinet (W × H)
- 2 × 4
-
- Cabinet Resolution (W × H)
- 128 × 256
- Cabinet Dimensions (W × H × D)
- 800 × 1600 × 143.5
-
- Cabinet Surface Area (m²)
- 1.280
- Weight per Cabinet (kg/cabinet)
- 40.0
-

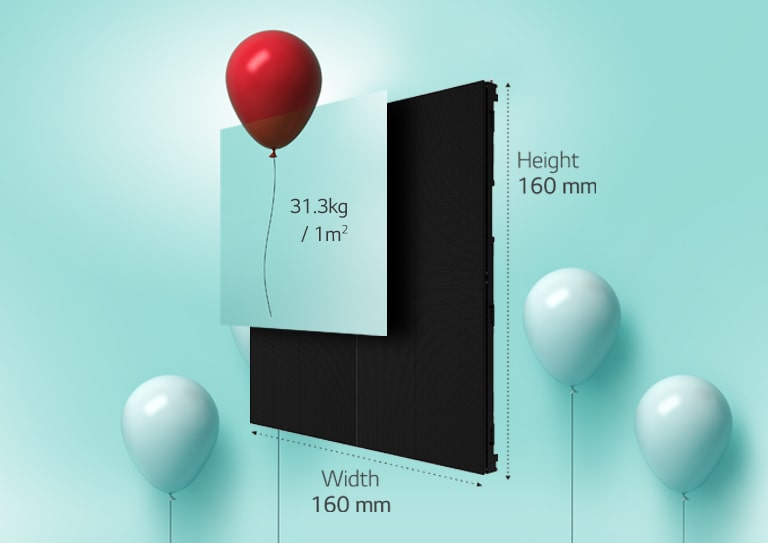

- Weight per Square Meter (kg/m²)
- 31.3
- Physical Pixel Density (pixels/m²)
- 25,600
-
- Flatness of Cabinet
- ±1.0 mm
- Cabinet Material
- Aluminum Sheet
-

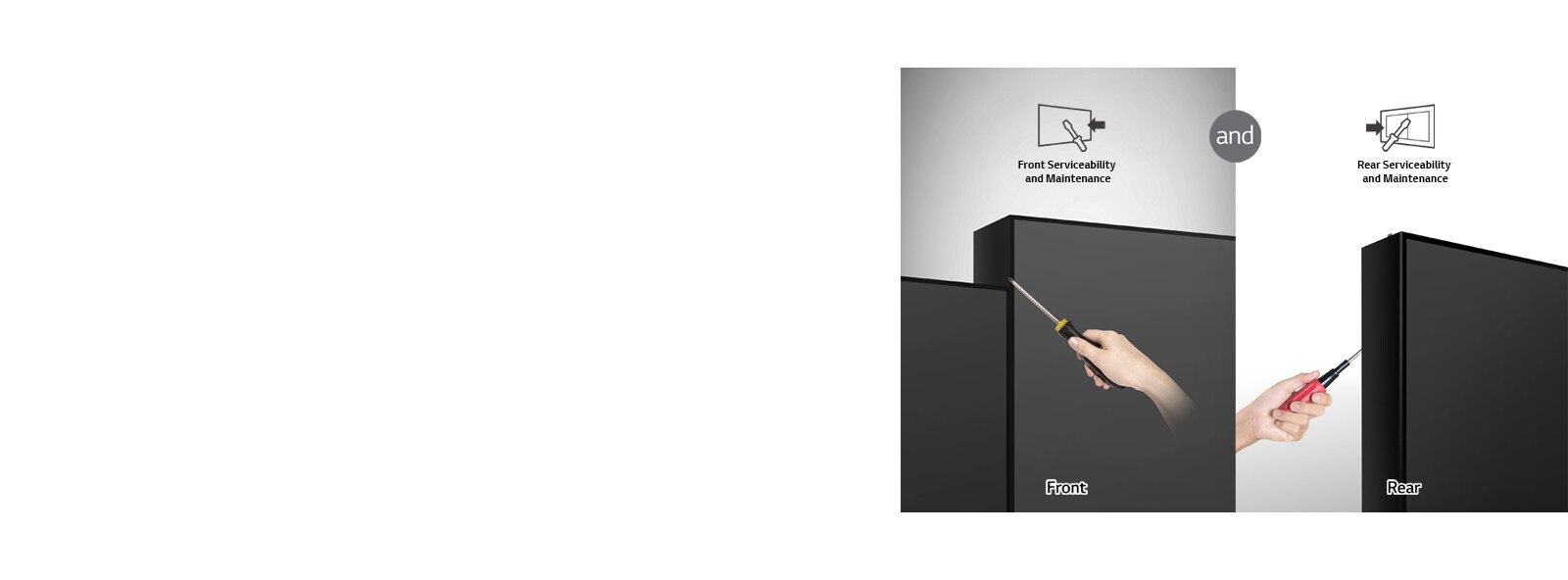

- Service Access
- Front and Rear
-
- Min. Brightness (After Calibration)
- 6,000
- Color Temperature
- 3500 ~ 8500
-
- Visual Viewing Angle (Horizontal)
- 160
- Visual Viewing Angle (Vertical)
- 130
-
- Brightness Uniformity
- 97%
- Color Uniformity
- ±0.05Cx,Cy
-
- Contrast Ratio
- 3,000

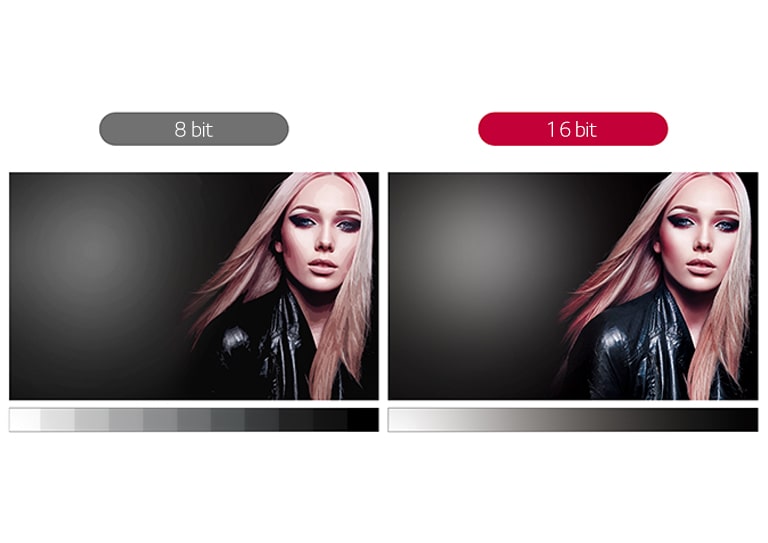

- Processing Depth (bit)
- 16
-
- Power Consumption (W/Cabinet, Max.)
- 940
- Power Consumption (W/Cabinet, Avg.)
- 376
-
- Power Consumption (W/m², Max.)
- 734
- Heat Dissipation (BTU/h/Cabinet, Max.)
- 3,207
-
- Heat Dissipation (BTU/h/Cabinet, Avg.)
- 1,283
- Heat Dissipation (BTU/h/m², Max.)
- 2,504
-
- Power Supply (V)
- 100 to 240
- Frame Rate (Hz)
- 50 / 60
-

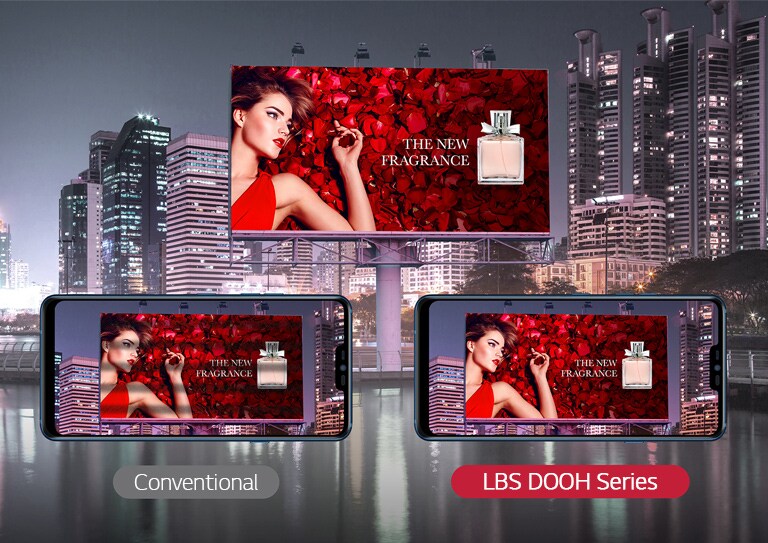

- Refresh Rate (Hz)
- 4,000
-
- Lifetime (Hours to Half Brightness)
- 100,000
- Operating Temperature (°C)
- -30° to +50°
-
- Operating Humidity
- < 90%RH
- IP Rating Front
- IP66
-
- IP Rating Rear
- IP66
-
- Certification
- CE,FCC,ETL
-
- Environment
- RoHS, REACH
-
- Controller
- LCLH001
To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
