Transparent LED Film with a Smaller LED Package Size

Key Features

component-OBScountrySelectDesc

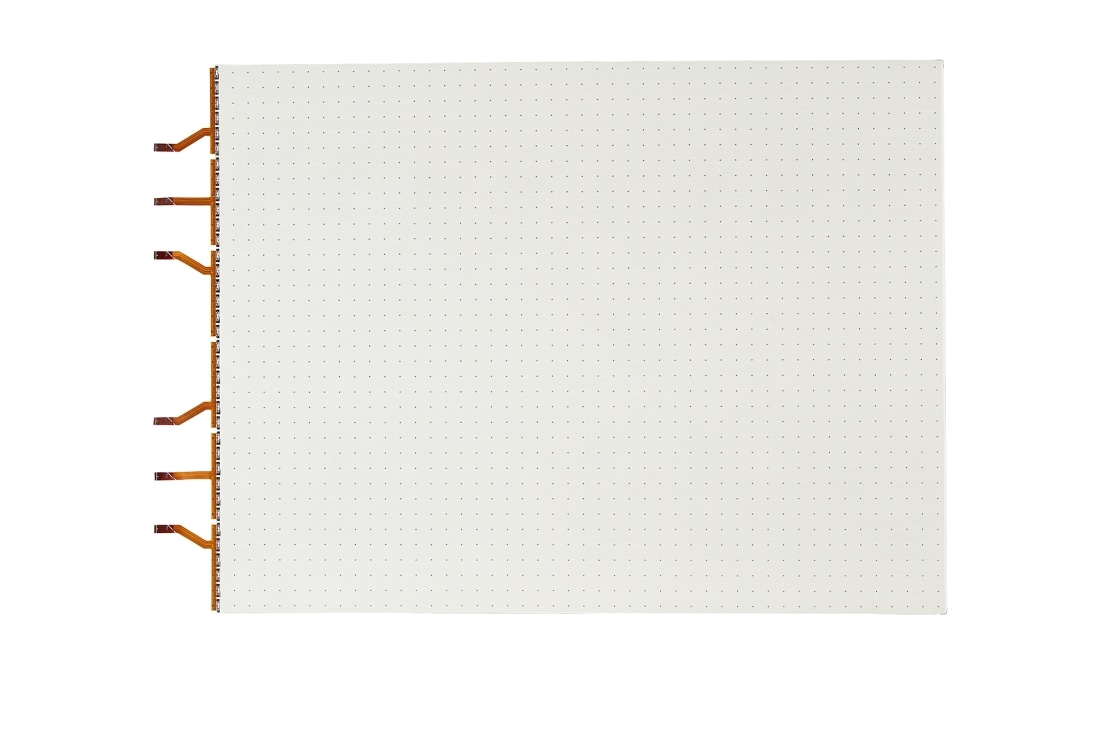

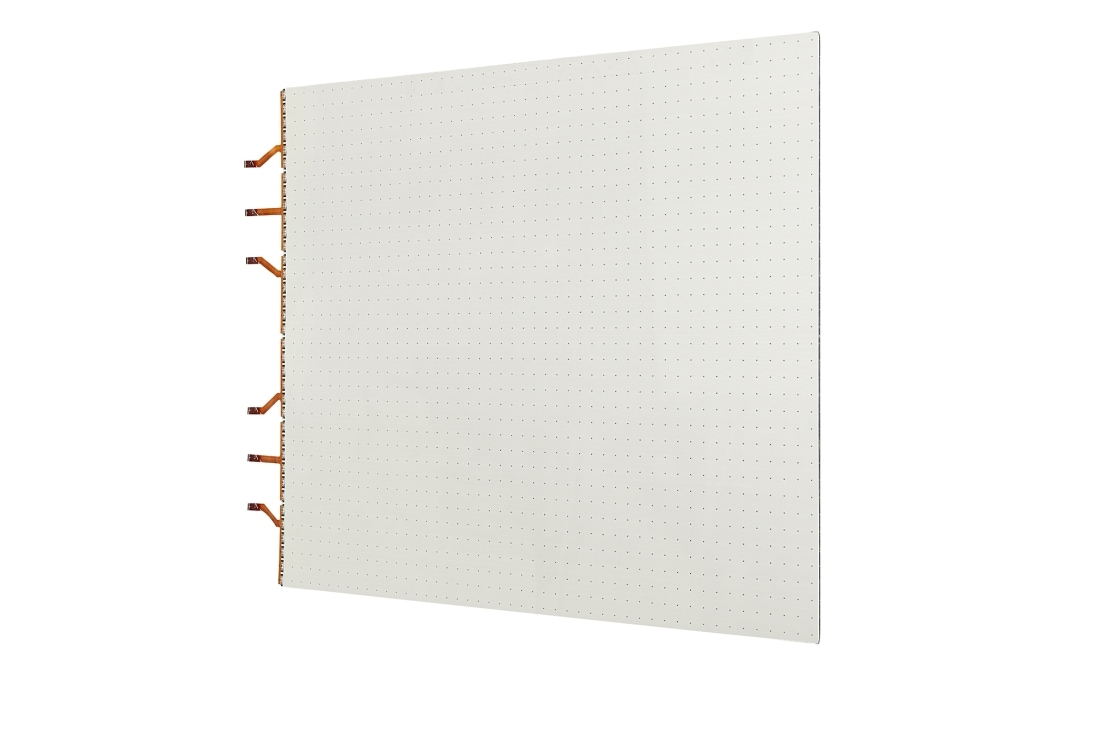

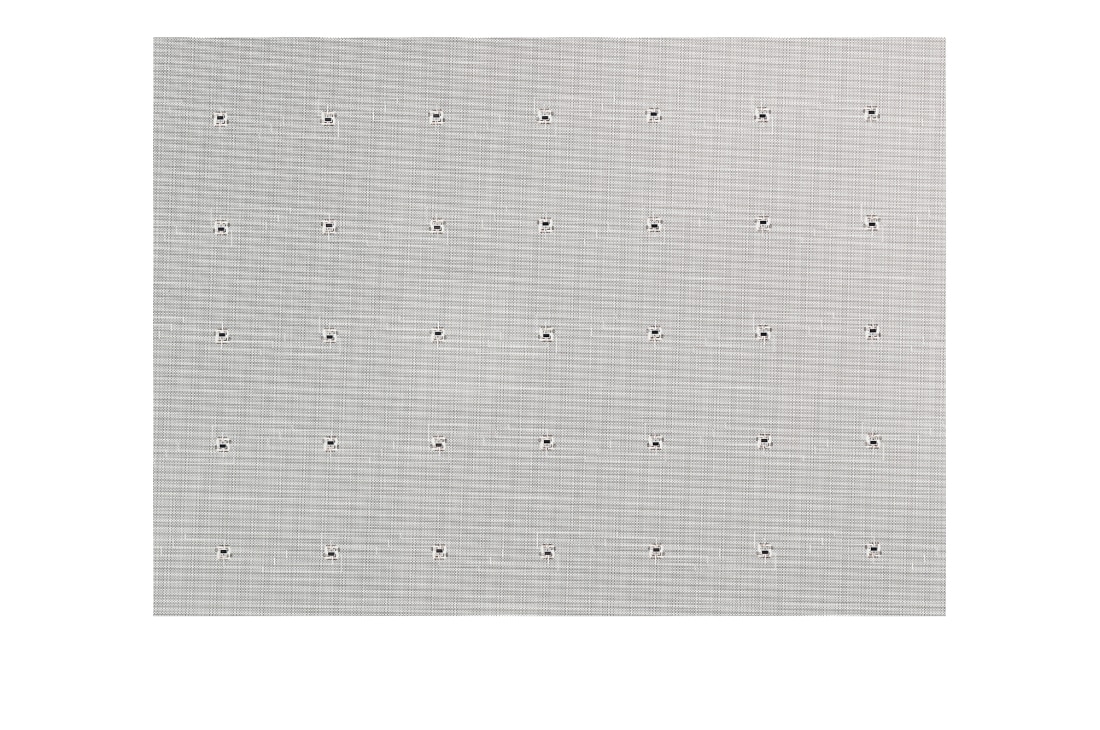

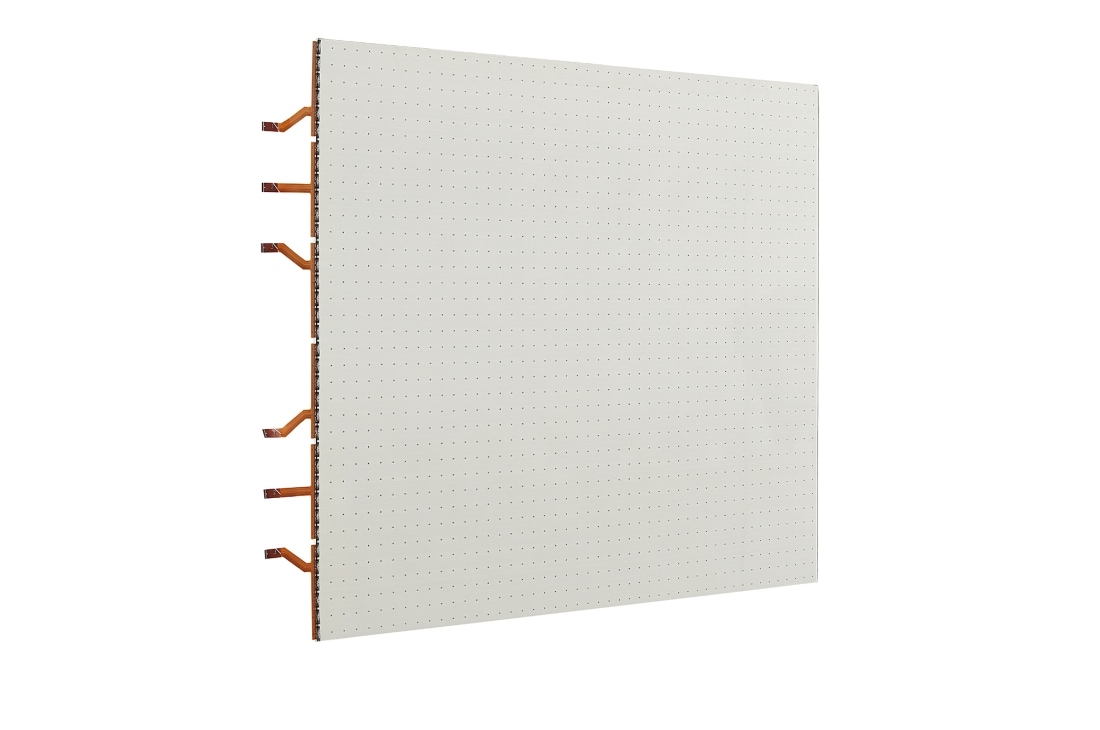

Transparent LED Film with a Smaller LED Package Size
LTAK140-GV
  • Pixel Pitch
    13.7±0.2mm (14)
    LED Type
    R, G, B 3in1 Color Package (SMD0909)
  • Resolution
    48 x 36
    Pixels per Film
    1,728
  • Physical Pixel Density(pixels/㎡)
    5,102
    Brightness
    Typ.2,100nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Viewing Angle (H x V)
    120 x 120
  • Life Time (Brightness 50%)
    50,000 Hrs
    Daily Usage
    24h / 7days
  • Warranty
    2 year

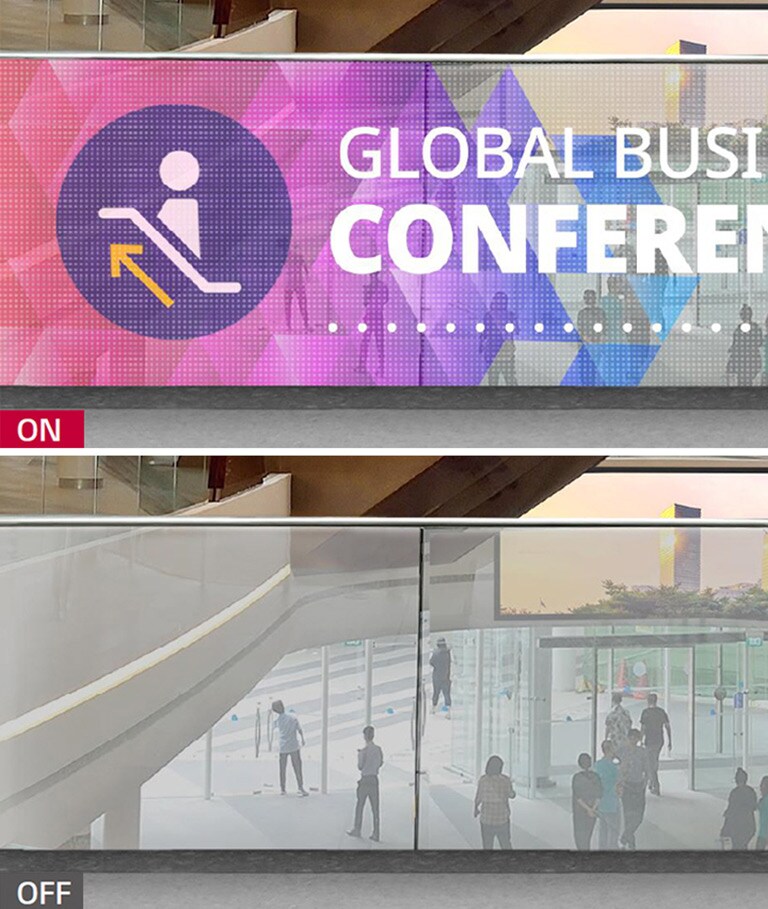

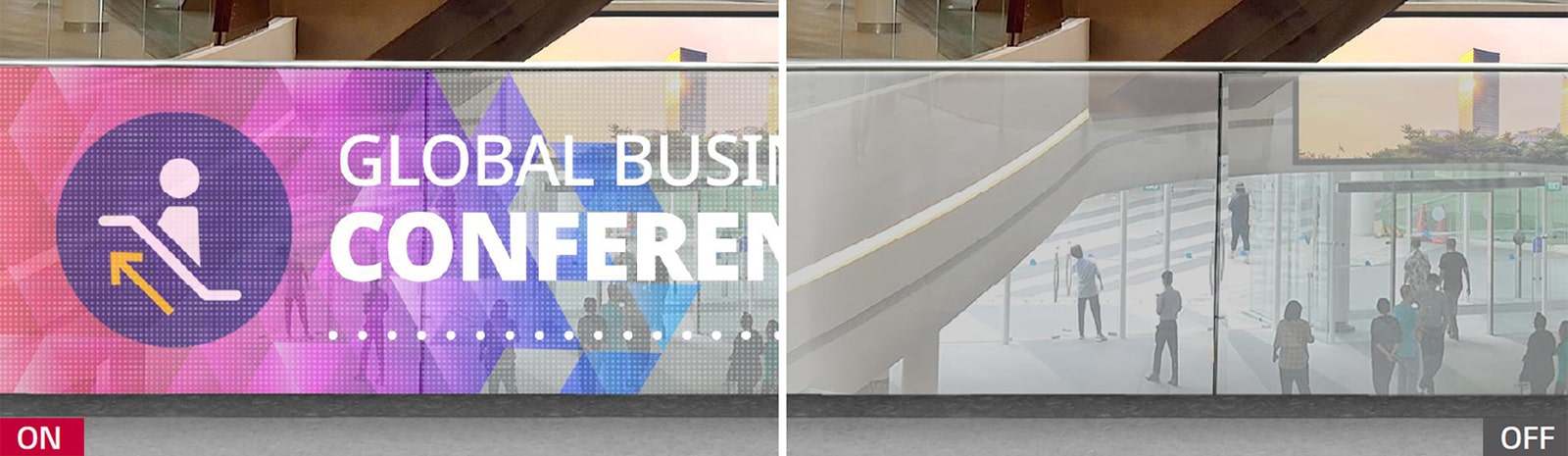

    Transparency
    Typ 60%
  • Operating Temperature
    0℃ ~ 45℃ (Instaliling at indoor glass)
    Curved Installation
    Not Available (Flat only)

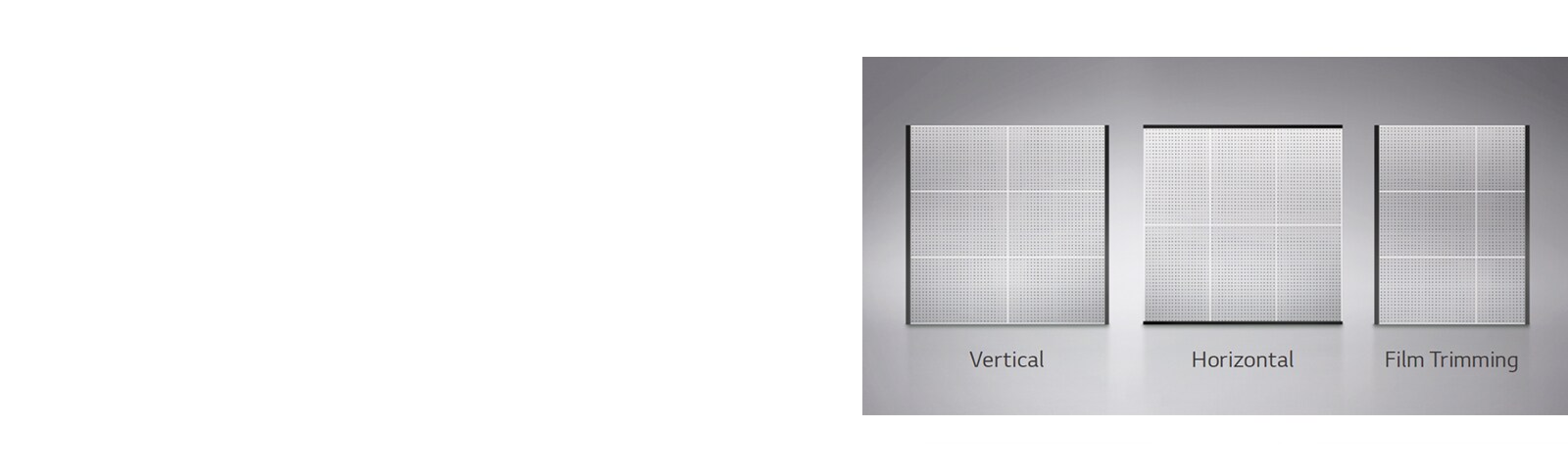

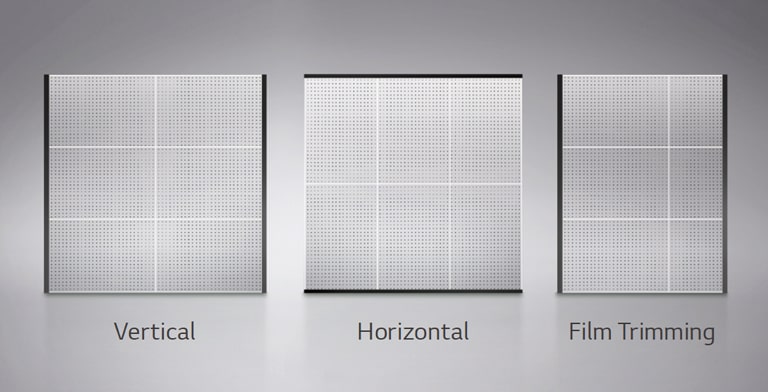

  • Film Trimming
    Yes (horizontal direction according to Bezel only)
    Color Processing
    (9bit) 500/500/500 Level ( R, G, B)
  • Colors
    125,000,000 Colors
    Color Chromaticity
    Cx: 0.25±0.03, Cy : 0.33±0.03
  • Dimension (W x H x D)
    655 X 492 X 2.6 mm
    (with front & back protection film)
    Weight
    0.97kg
  • Power Consumption
    37W per Film
1st Bezel
(ACC-LTAK14V1)
  • Interface
    Input : RGMII
    Output : Differential Serial
    Dimension (W x H x D)
    69.4 x 492 x 25mm
  • Weight
    0.4Kg
    Power Consumption
    37W per Film
  • Accessory
    DC Jack Connection cable(1100mm) 1ea,
    DC Jack Connection cable(240mm) 1ea
    Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type,
    ESG, Regulation book, Warranty Card
Common Bezel
(ACC-LTAK14V2)
  • Interface
    Input : Differential Serial
    Output : Differential Serial
    Dimension (W x H x D)
    51.4 x 492 x 25mm
  • Weight
    0.3Kg
    Power Consumption
    37W per Film
  • Accessory
    DC Jack Connection cable(240mm) 2ea, Screw 2 type,
    Gasket Rubber 2 type, Cable hole cover 2 type,
    ESG, Regulation book, Warranty Card
Adaptor
(ACC-LATP1)
  • Model No.
    ACC-LATP1
    Dimension (W x H x D)
    183*86*28mm
  • Weight
    769g
    Input
    100~240V, 50~60Hz
  • Output
    19.5V/10.8A (210W)
    Color
    White
  • DC output cable
    14AWG, 1.5m
    Type
    L Type
  • Accessory
    Power Cord, Regulation Book
Unit Controller
(LCLG141U)
  • Resolution
    960x540 (1/4 FHD)
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100m (Cable type: CAT5E, CAT6)
    Dimension (W x H x D)
    293 x 188.7 x 37mm
  • Weight
    1.5Kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W
    Accessory
    Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card
System Controller
(LCLG002-T)
  • Video - Max. Input Resolution
    DP : 1920x1080@60Hz
    HDMI : 1920x1080@60Hz
    DVI-D : 1920x1080@60Hz
    Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
  • Interface - Digital (w/ HDCP) - DP
    Input : 1EA
    Output : 1EA
    Interface - Digital (w/ HDCP) - DVI-D
    Input : 1EA
  • Interface - Comm. Port - RS-232C
    Input : 1EA (Phone Jack Type)
    Output : 1EA (Phone Jack Type)
    Interface - Comm. Port - RJ-45
    Input : 1EA
    Output : 2EA (1EA to connect film with LED Indicator)
  • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
    Interface - USB3.0
    1EA
  • Interface - LVDS
    Output : 1EA
    Dimension (W x H x D mm)
    293 x193.3 x 40.1mm
  • Weight (Head, Kg)
    1.6kg
    Temperature Sensor
    Yes
  • Light Sensor
    Yes
    Source Selection
    HDMI, DVI-D, DP
  • TPC (Temporal Peak luminance Control)
    Yes
    Motion Eye Care
    Yes
  • Power Consumption
    17W
    CMS S/W
    Yes (2.9)
  • LG ConnectedCare
    Yes (2.7)
    Accessory
    Power cord, IR+Bright Sensor (1.5m),
    4P Phone-to-RS232C Gender, ESG, Regulation book,
    Warranty Card
One-box controller(Unit + System Controller)
(CTAA-140G)
  • Resolution
    480x270 (1/16 FHD)
    Maximum Transmission Length
    100m (Cable type : CAT5E, CAT6)
  • Dimension (W x H x D)
    333 x186.8 x 40.1mm
    Weight
    1.8.2Kg
  • Video - Max. Input Resolution
    HDMI : 1920x1080@60Hz
    Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
  • Interface - Comm. Port - RS-232C
    Input : 1EA (3.5⌀ headphone jack type)
    Output : 1EA (3.5⌀ headphone jack type)
    Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
  • Interface - USB3.0
    1EA
    Interface - LVDS
    -
  • Temperature Sensor
    Yes
    Light Sensor
    Yes
  • TPC (Temporal Peak luminance Control)
    Yes
    Motion Eye Care
    Yes
  • Power Consumption
    30
    CMS S/W
    Yes (3.0)
  • Signage365care
    Yes (2.7)
    Accessory
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card
Series
  • Series
    LTAK-GV
