LTAK140-GW component-copyModelName

Transparent LED Film with High Brightness

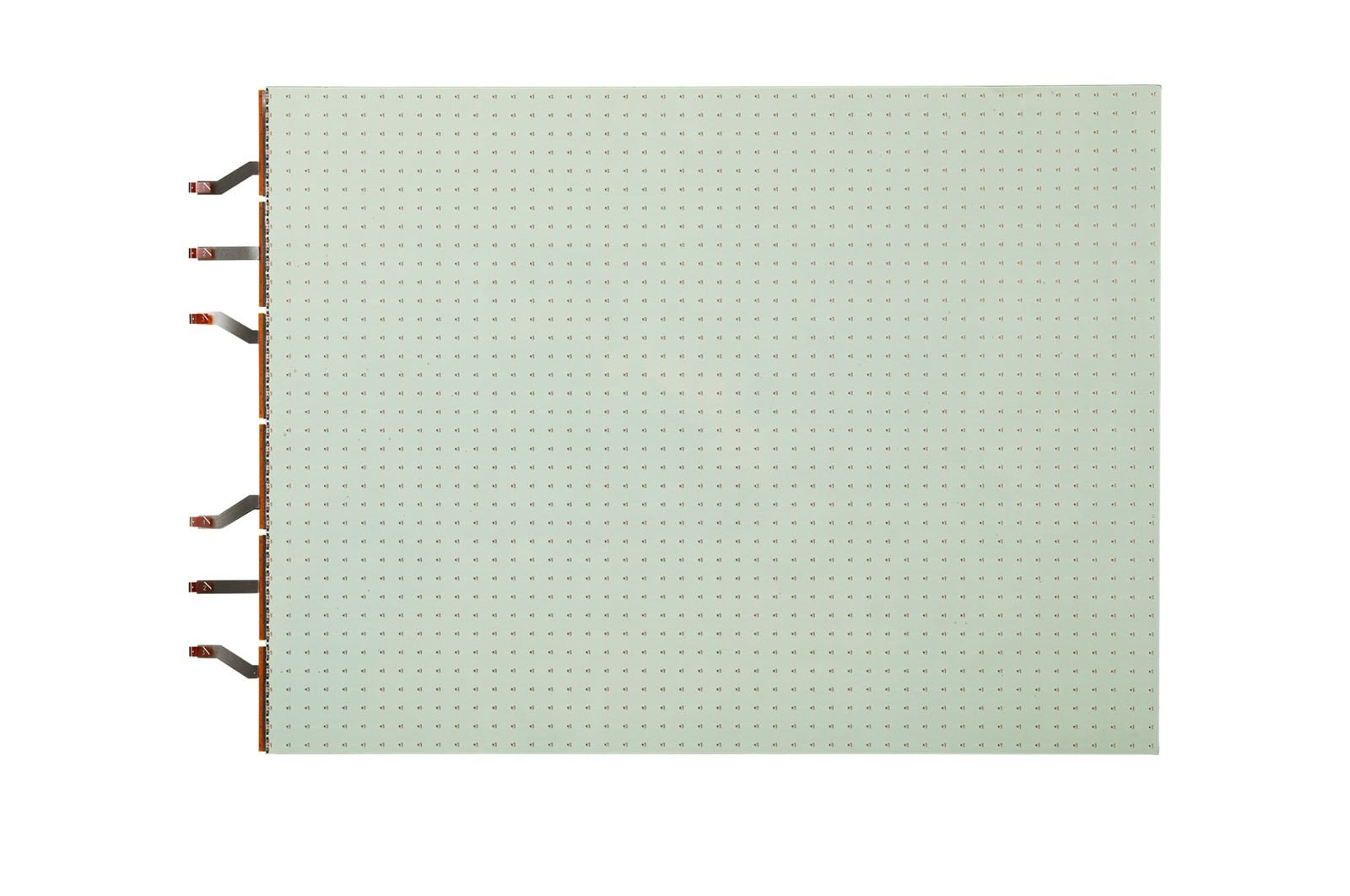

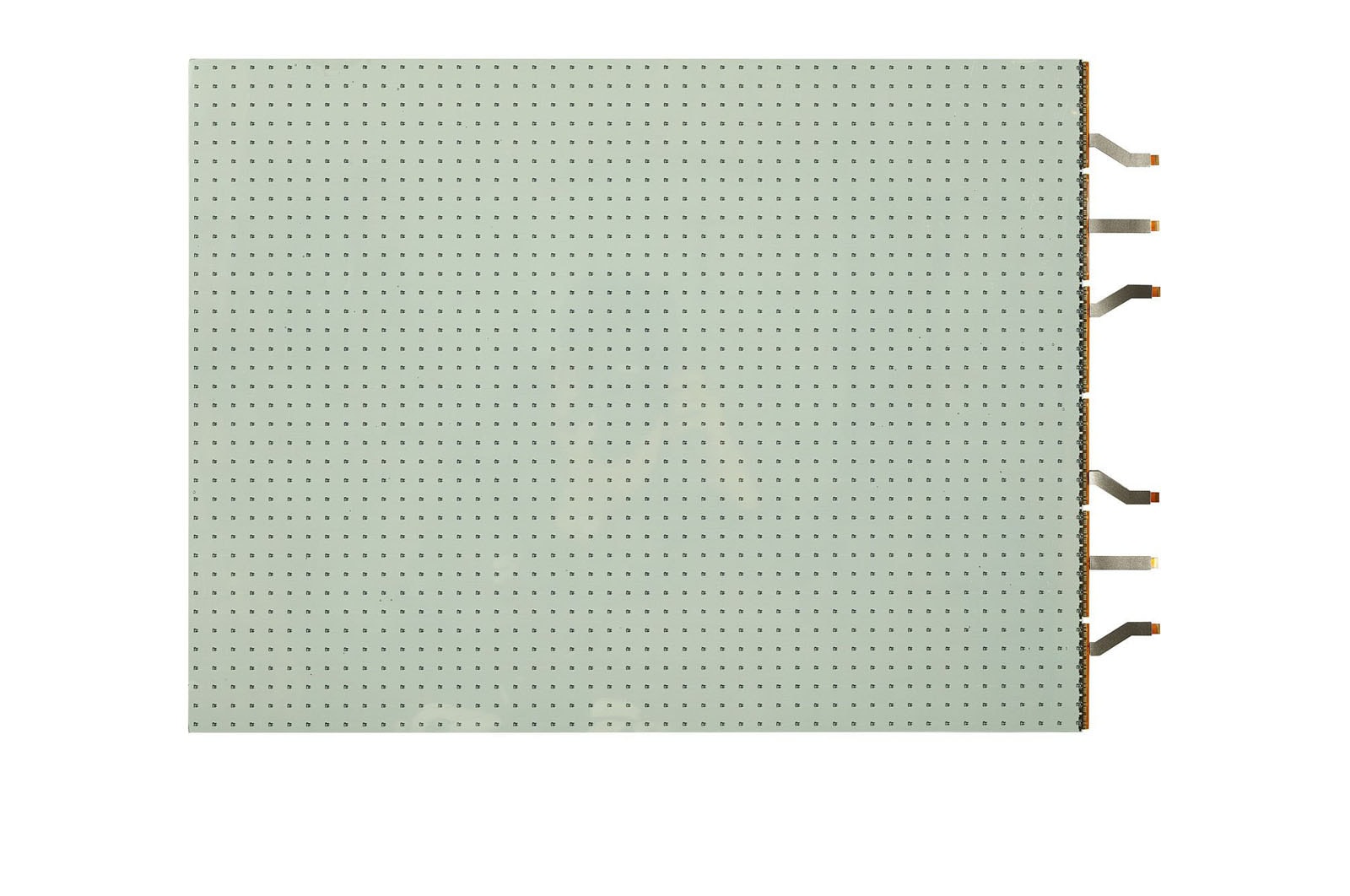

LG Transparent LED Film with High Brightness, Front view, LTAK140-GW, thumbnail 1

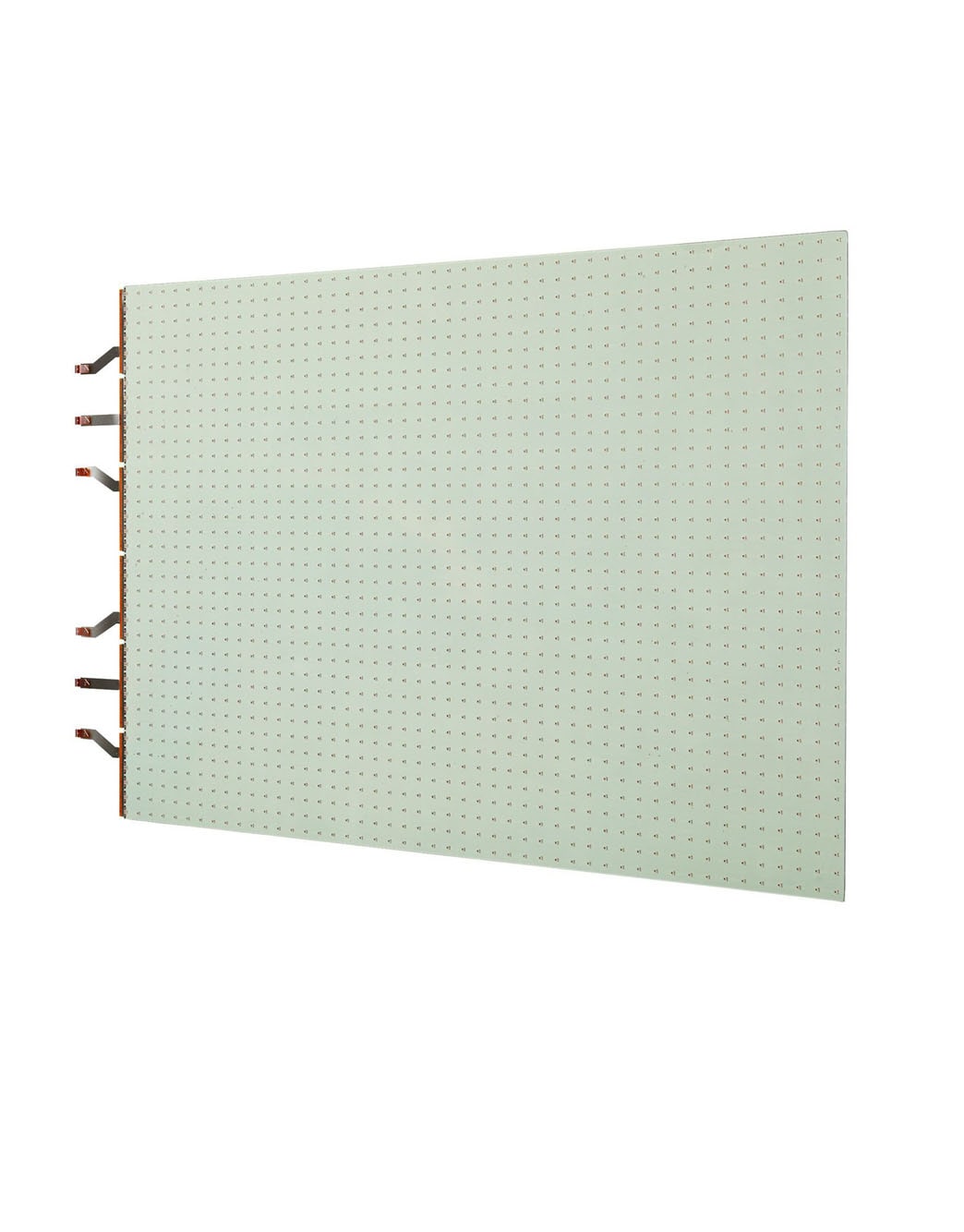

LG Transparent LED Film with High Brightness, -45 degree side view, LTAK140-GW, thumbnail 2

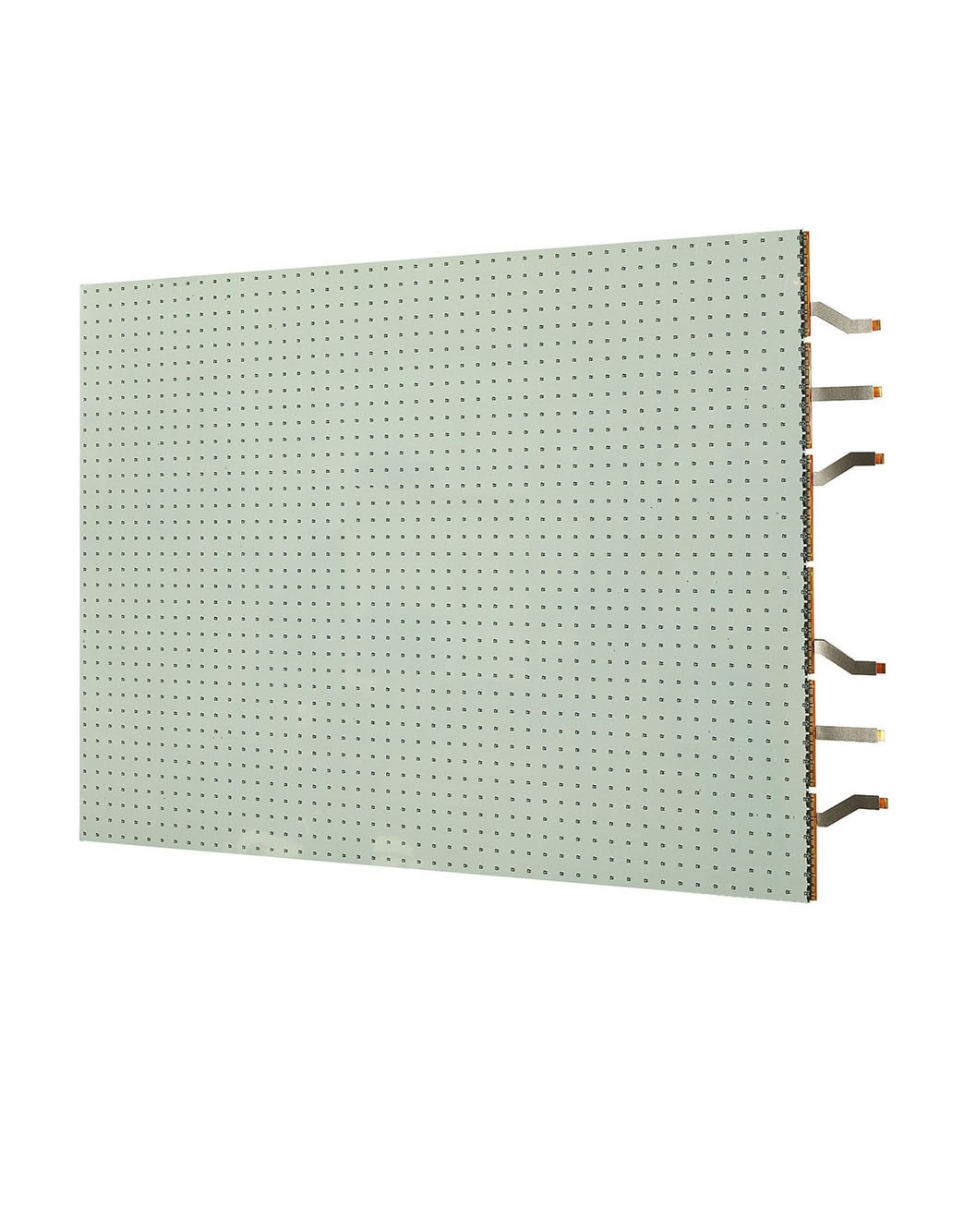

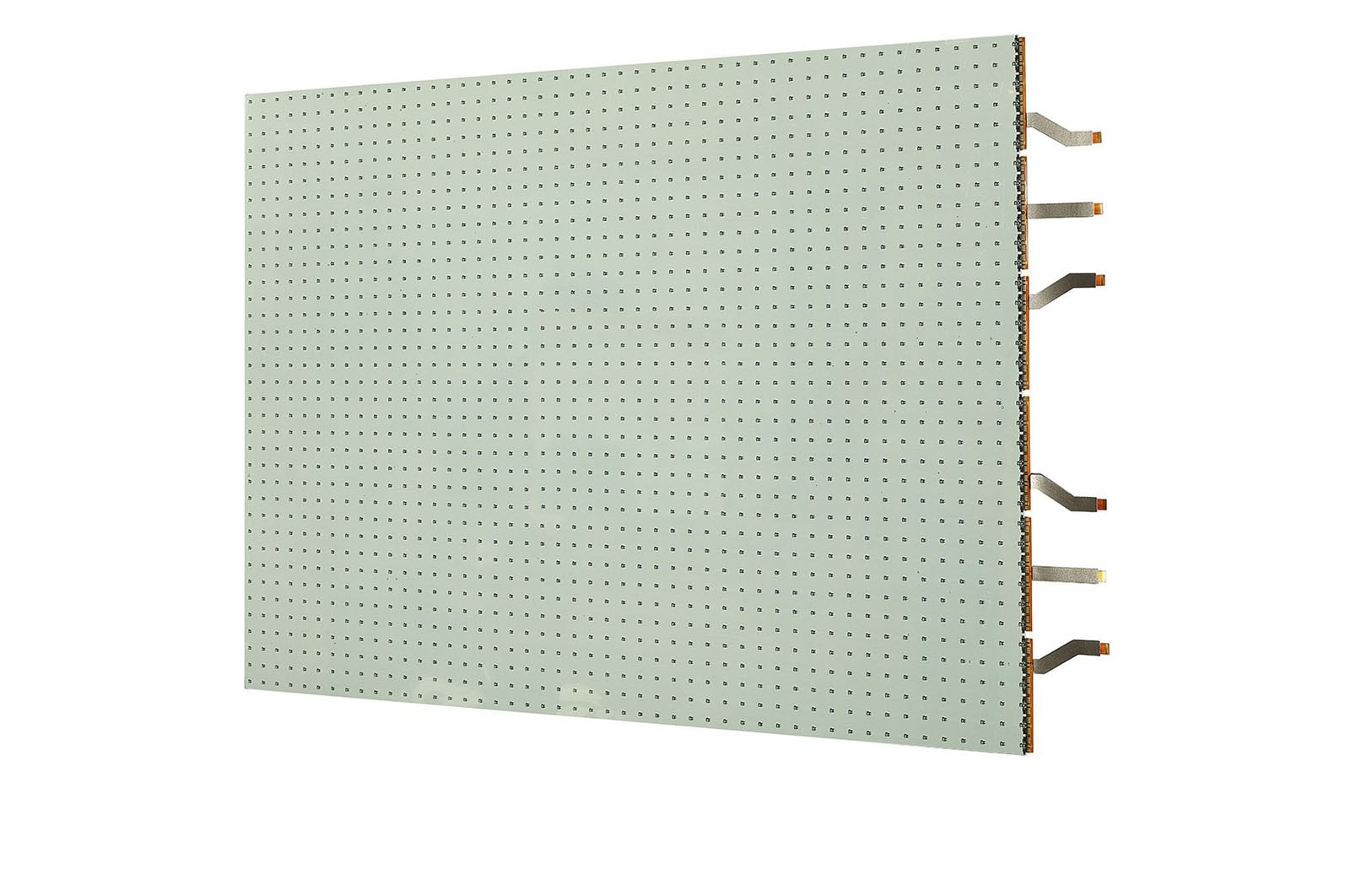

LG Transparent LED Film with High Brightness, +45 degree side view, LTAK140-GW, thumbnail 3

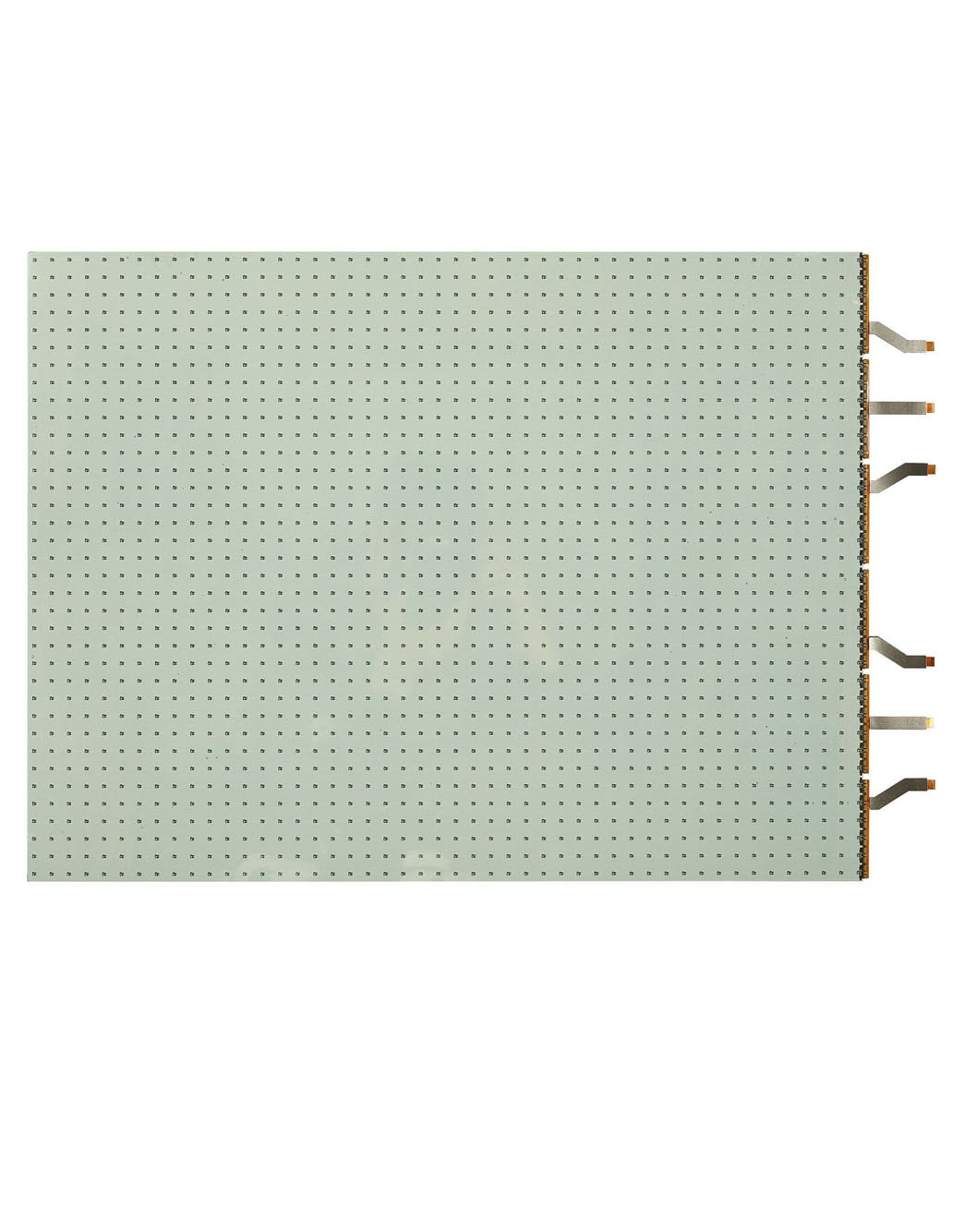

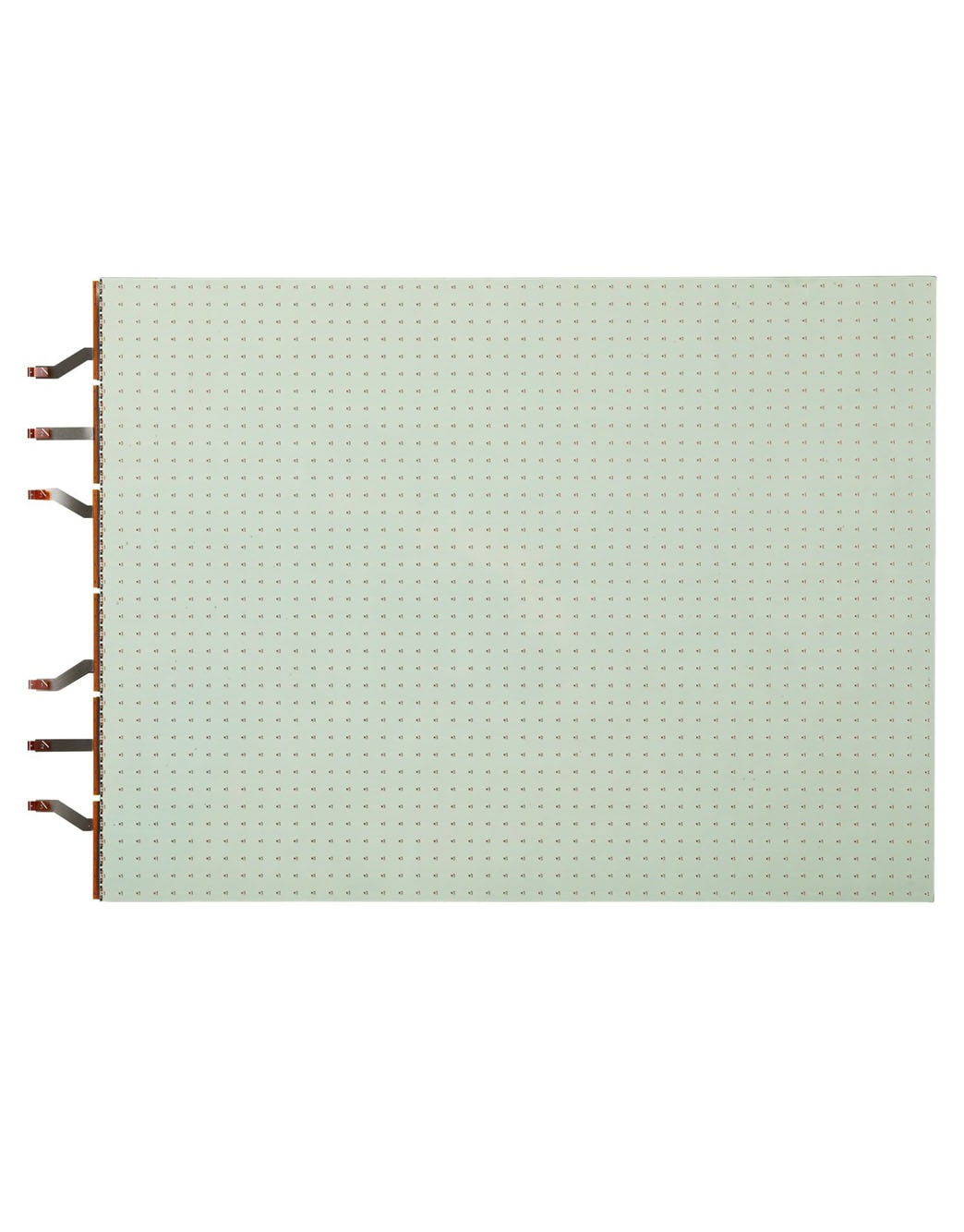

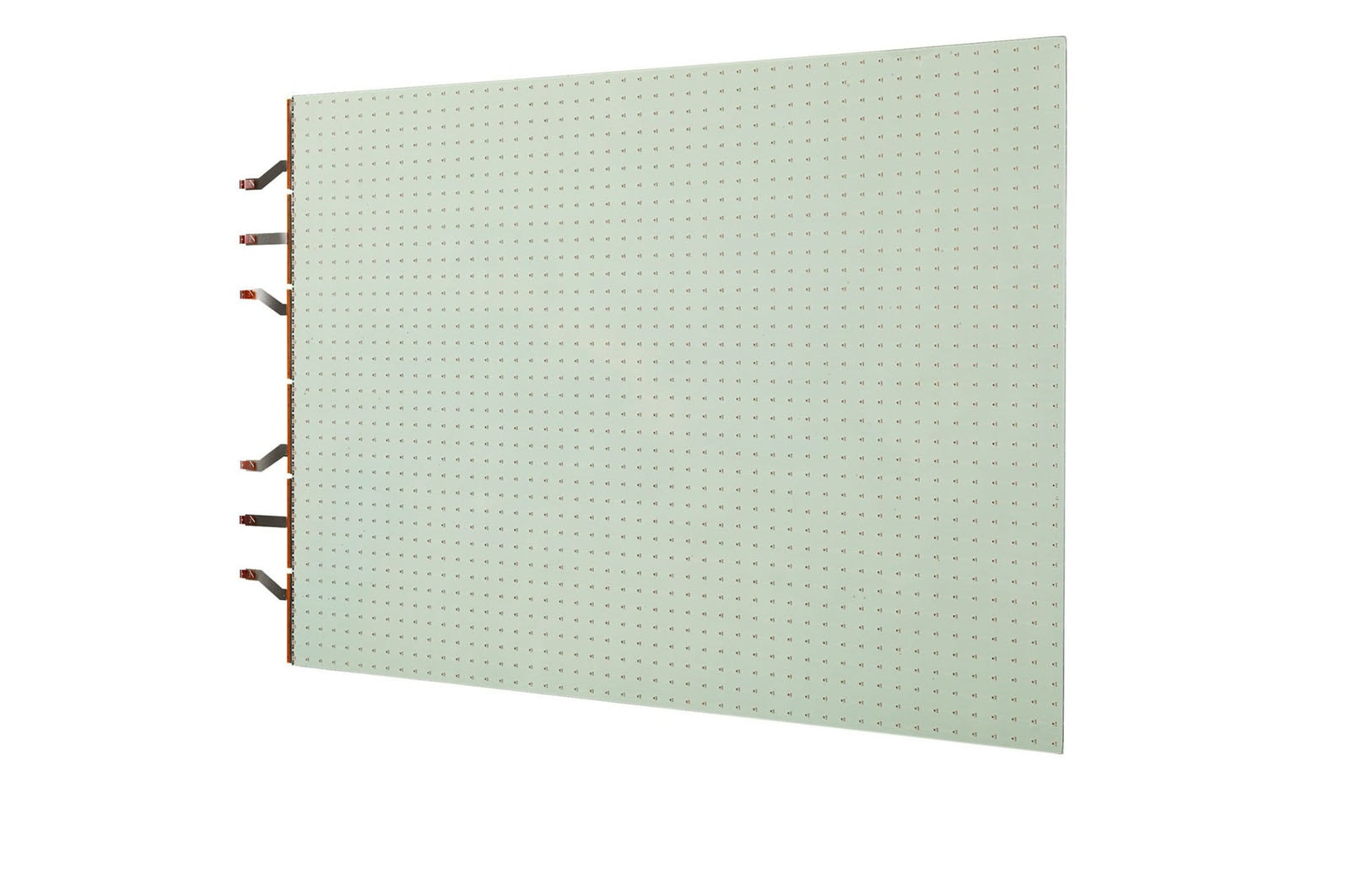

LG Transparent LED Film with High Brightness, Rear view, LTAK140-GW, thumbnail 4

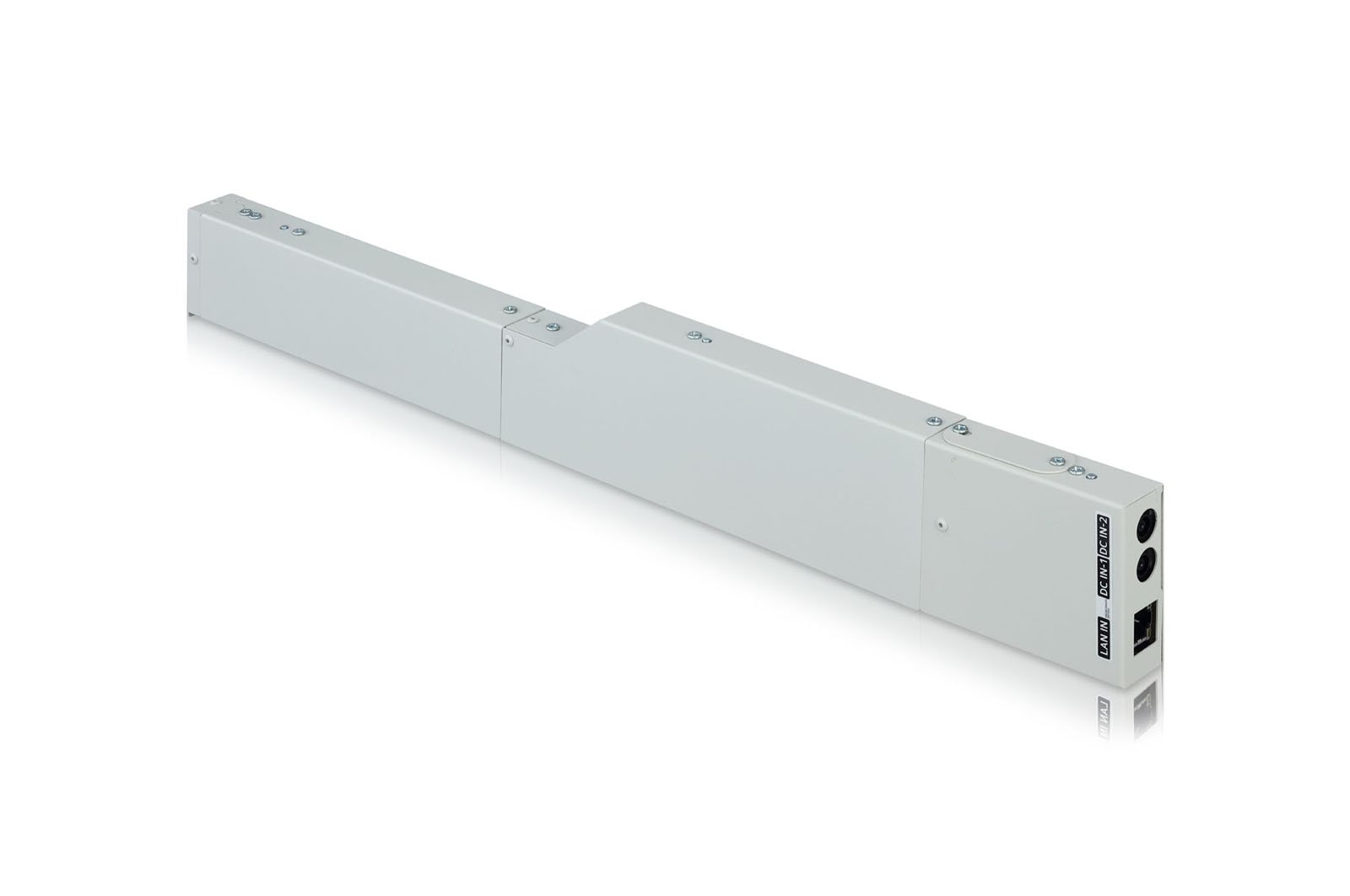

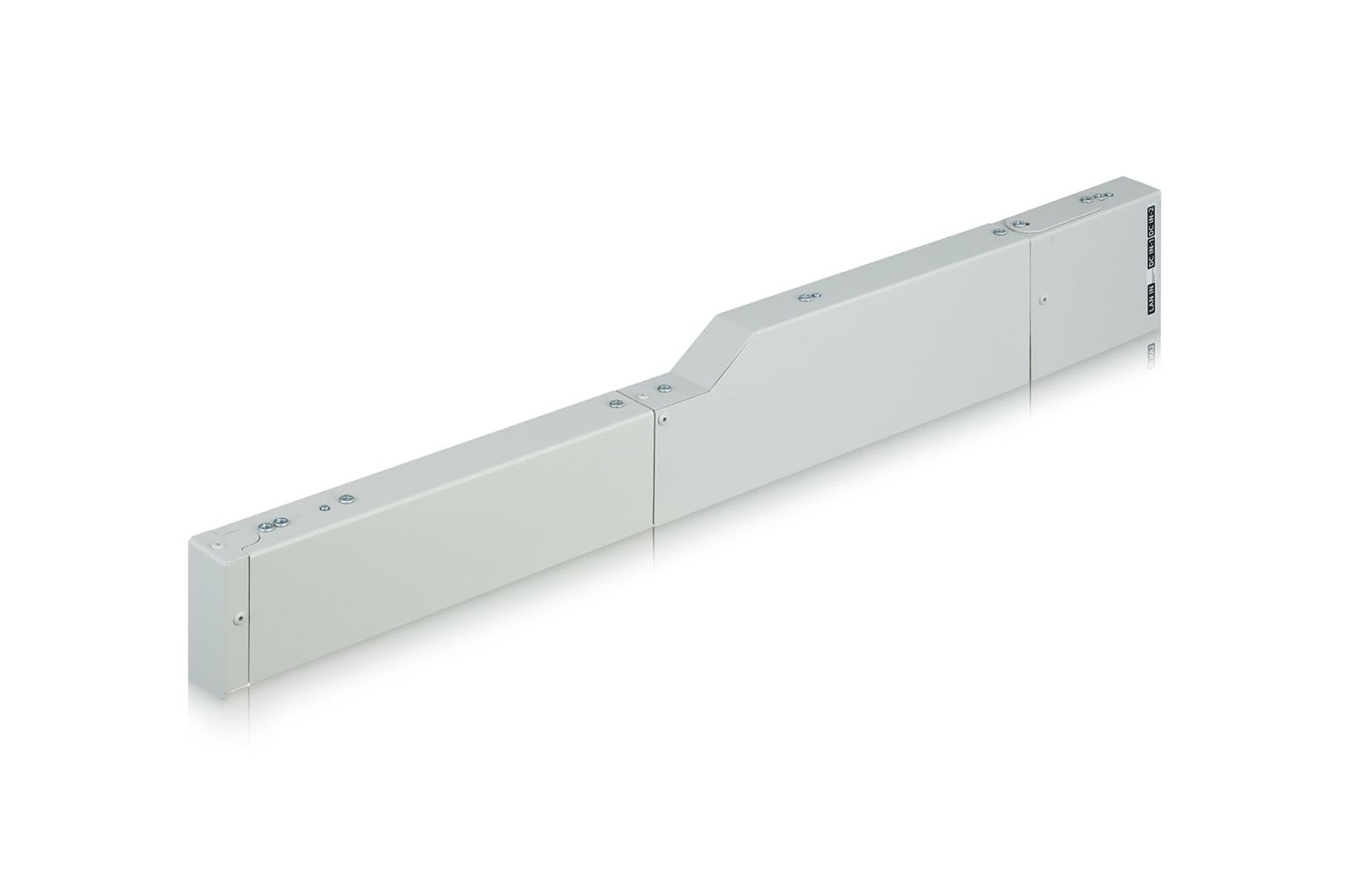

LG Transparent LED Film with High Brightness, +45 degree side view (1st Bezel), LTAK140-GW, thumbnail 5

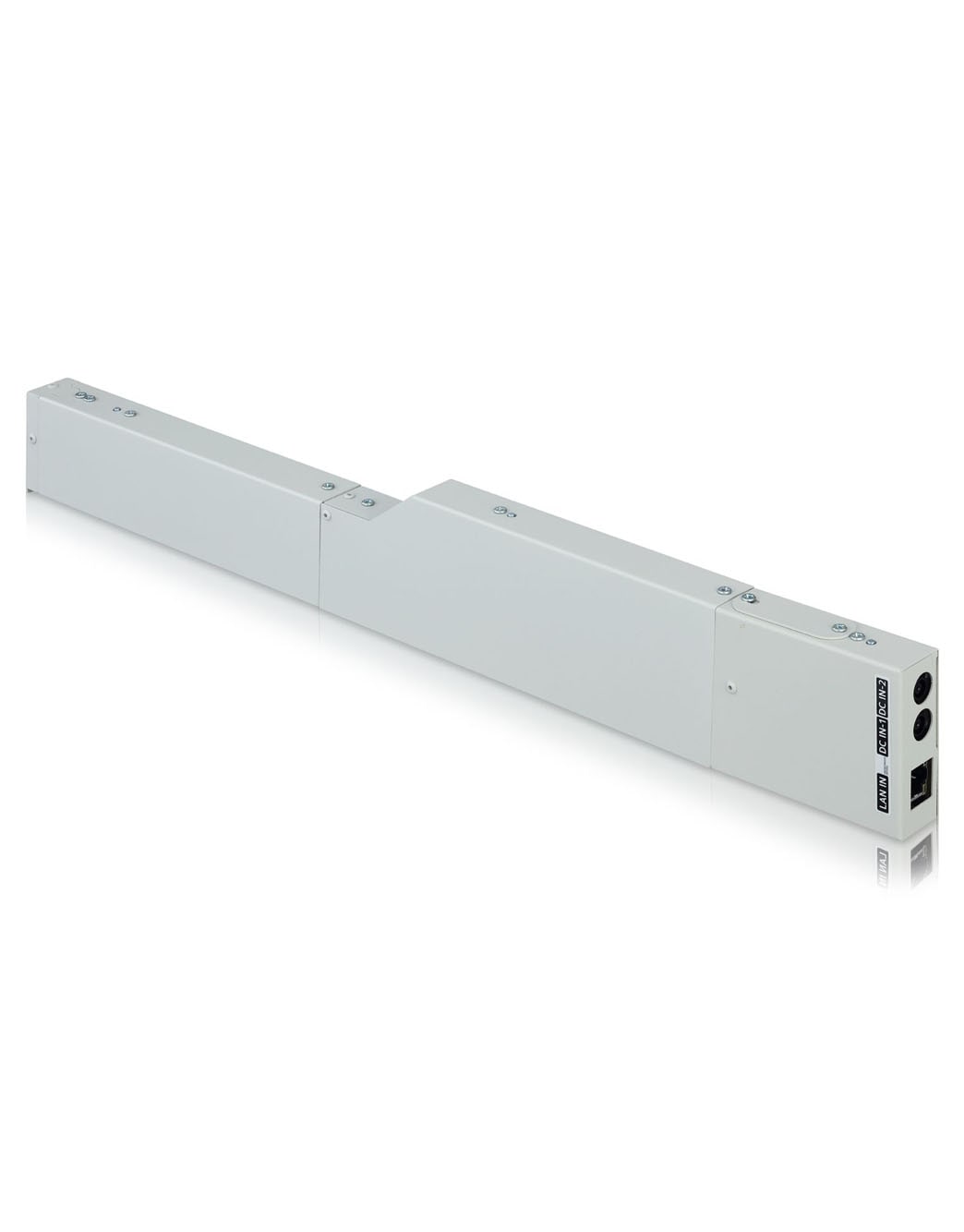

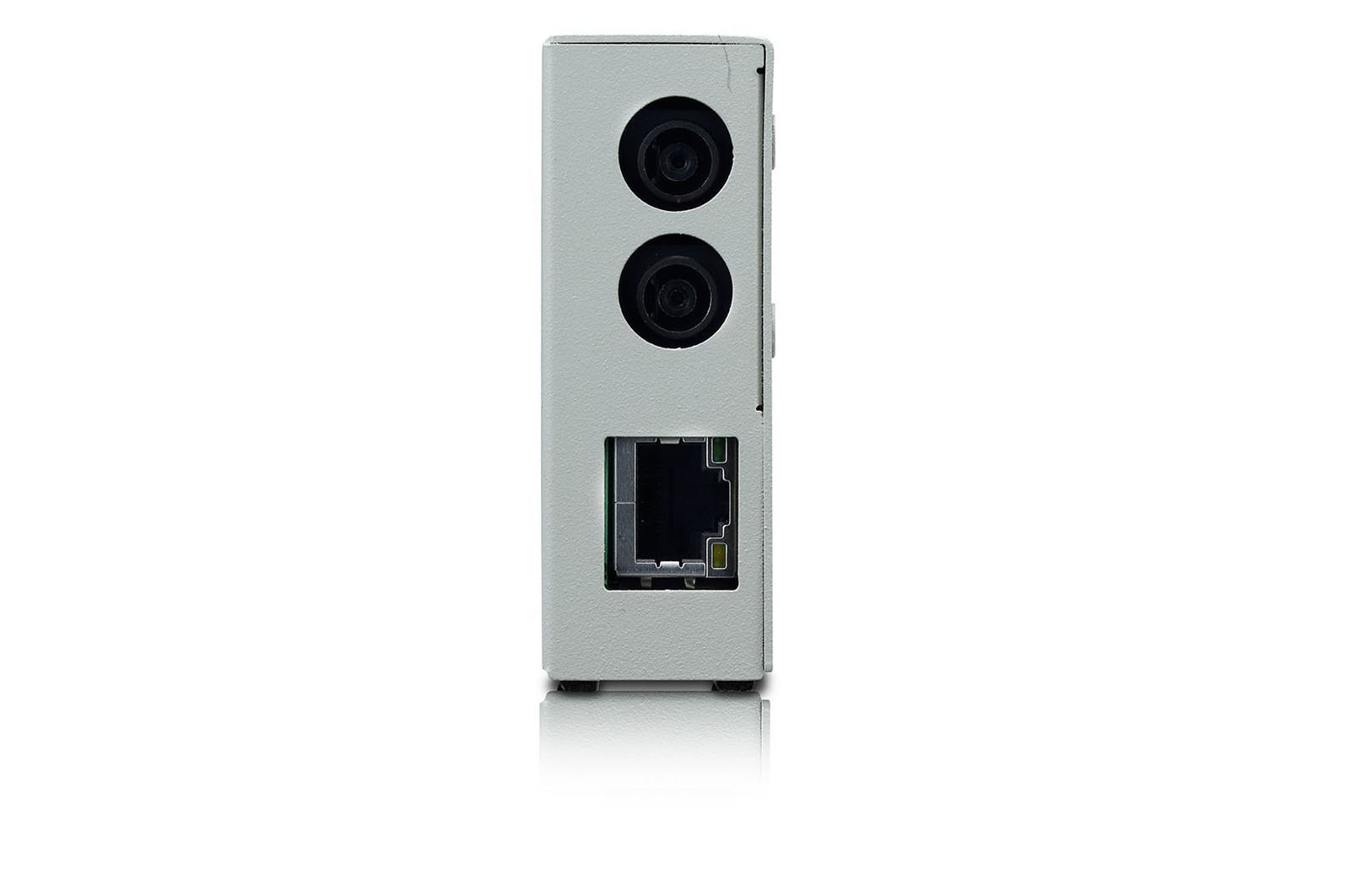

LG Transparent LED Film with High Brightness, -90 degree side view (1st Bezel), LTAK140-GW, thumbnail 6

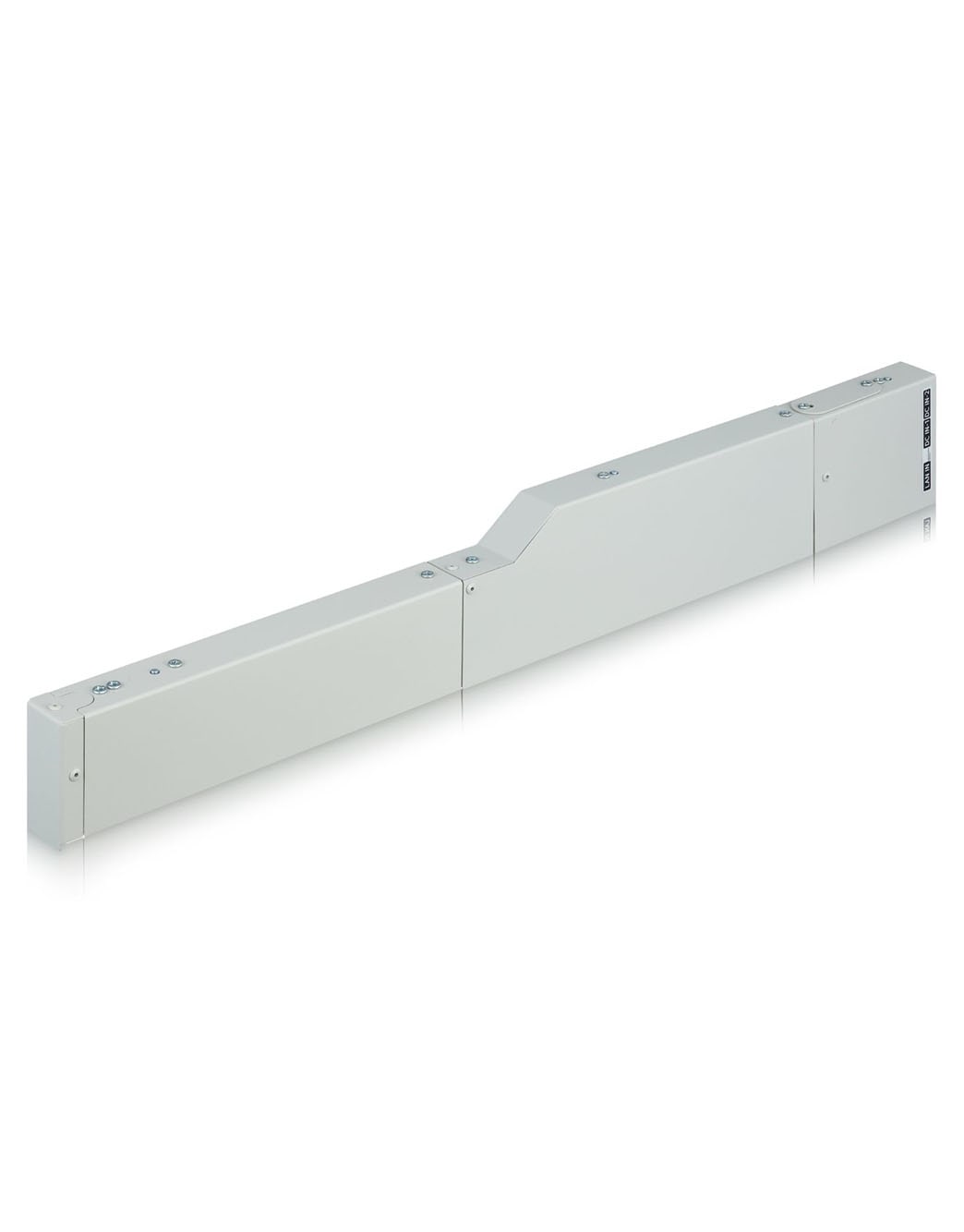

LG Transparent LED Film with High Brightness, -45 degree side view (1st Bezel) , LTAK140-GW, thumbnail 7

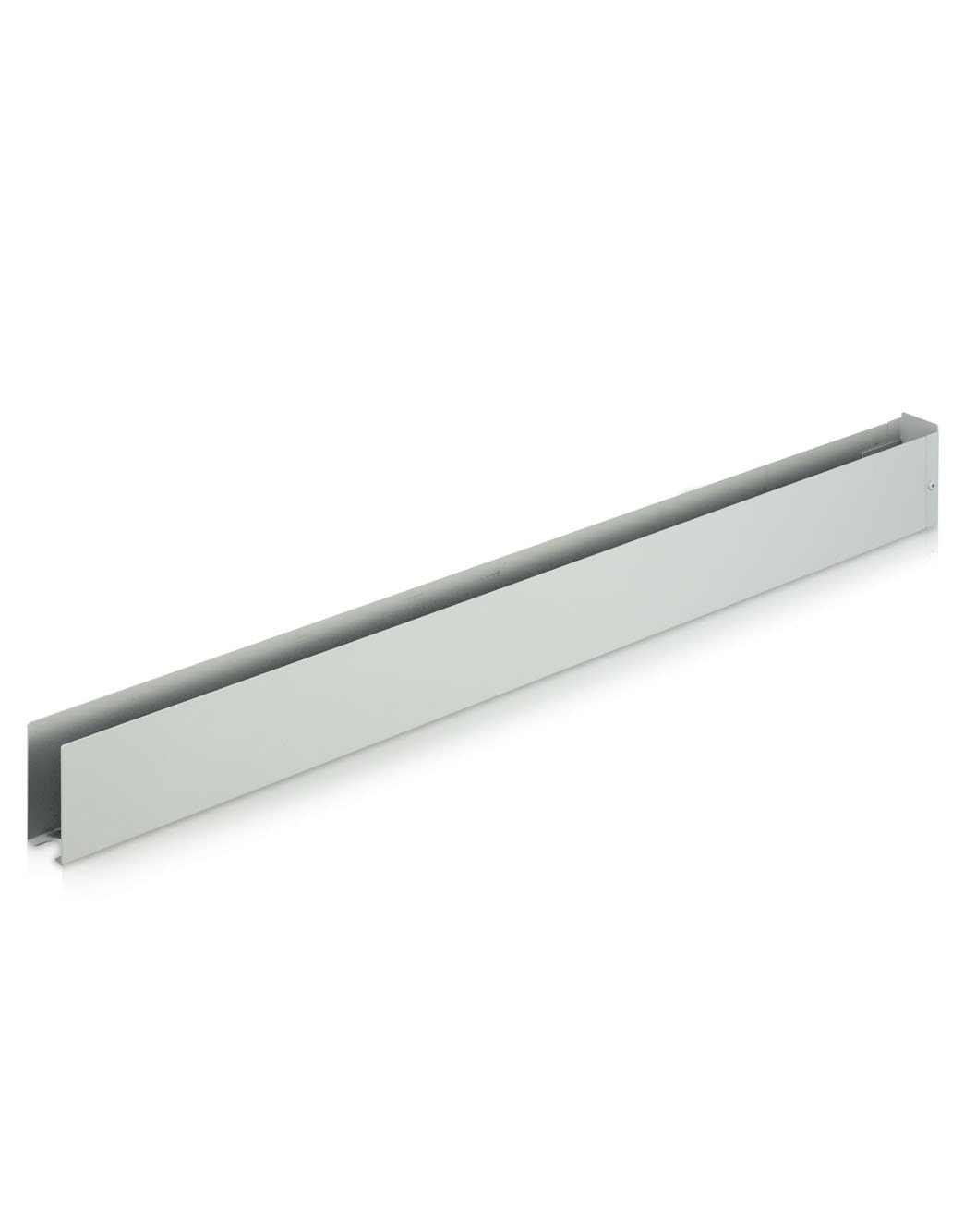

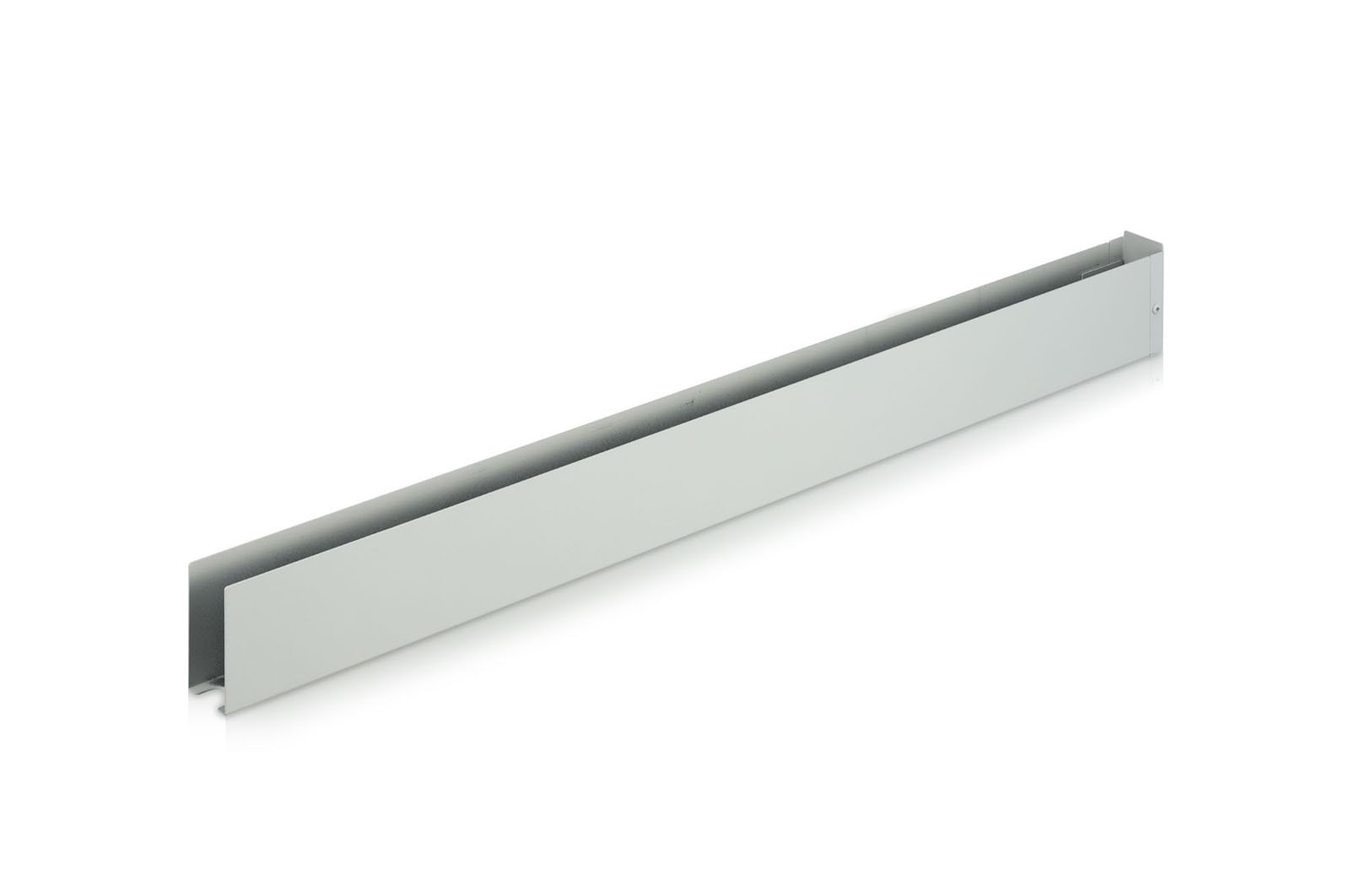

LG Transparent LED Film with High Brightness, +45 degree side view (Common Bezel), LTAK140-GW, thumbnail 8

Discontinued

LTAK140-GW component-copyModelName

Transparent LED Film with High Brightness

Key Features

Pixel Pitch : 13.7 ± 0.2 mm (14)
LED Type : R, G, B 3 in 1 Color Package (SMD2020)
Brightness : 4,000 nit (Typ.)
Transmittance : 53% (Typ.)
Curvature (Concave and Convex) : 2,000 R

Inquiry to Buy

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 13.7 ± 0.2 mm (14)
LED Type : R, G, B 3 in 1 Color Package (SMD2020)
Brightness : 4,000 nit (Typ.)
Transmittance : 53% (Typ.)
Curvature (Concave and Convex) : 2,000 R

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Transparent LED Film with High Brightness

Your Imaginative Space Discovered by Transparent Displays

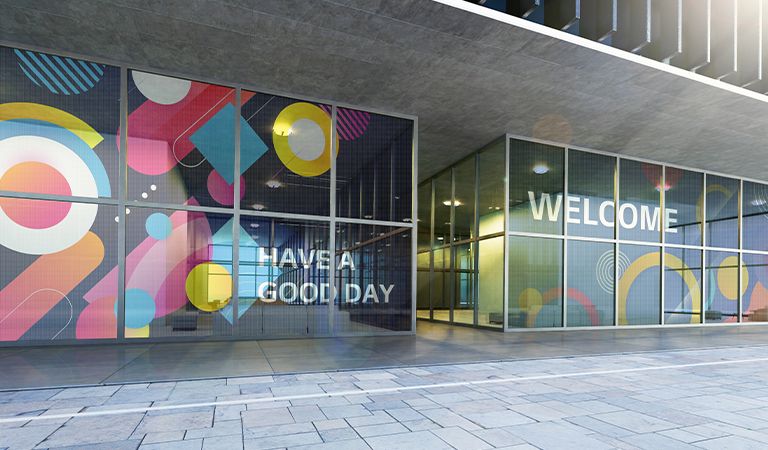

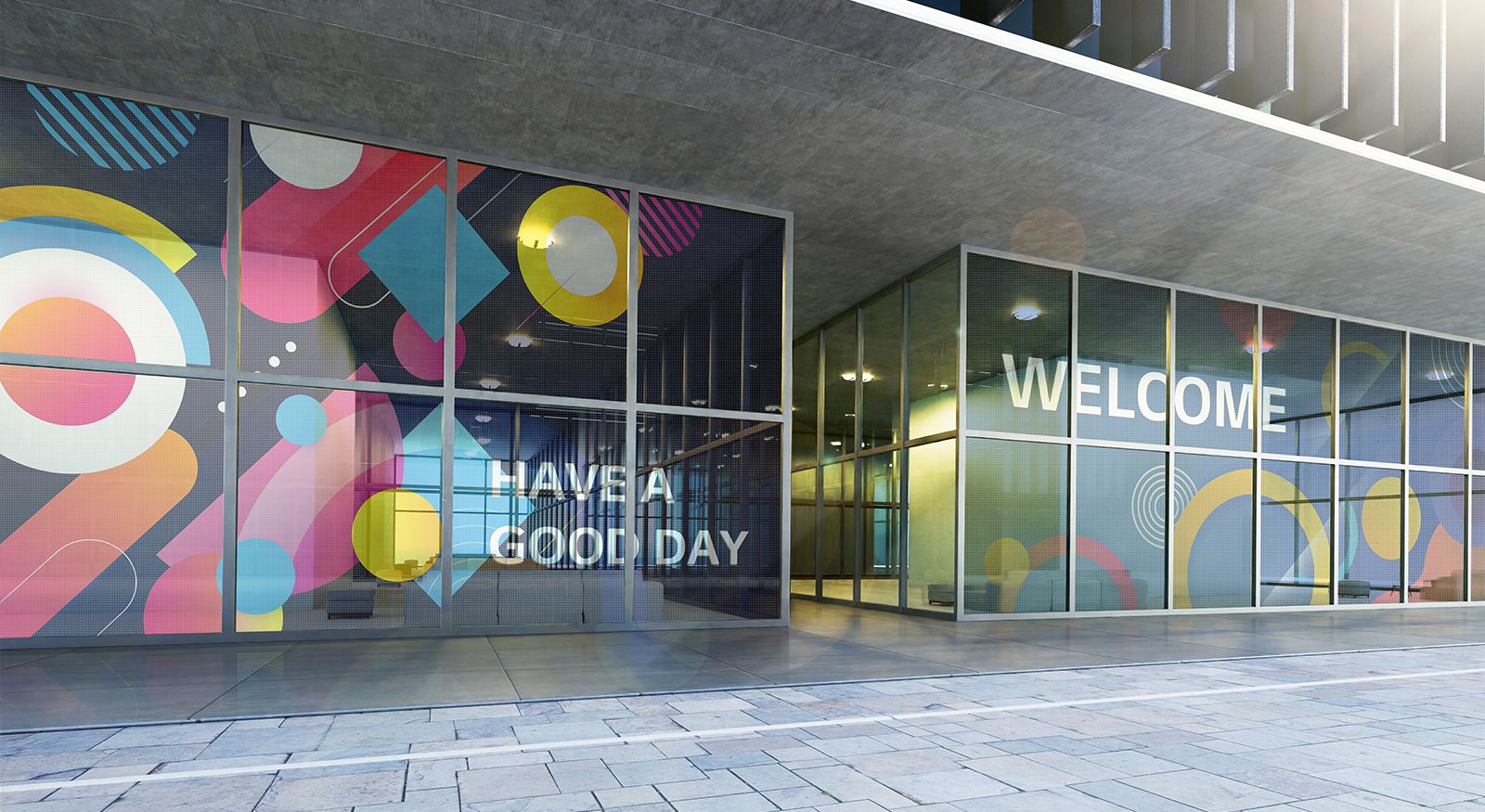

The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen.

* All images in this page are for illustrative purposes only.

Transformation to a Splendid Atmosphere

Transparent displays with high brightness enable the implementation of media art in space, transforming an ordinary space into a more artistic space, thereby allowing customers to increase the space’s value and arouse interest in it.

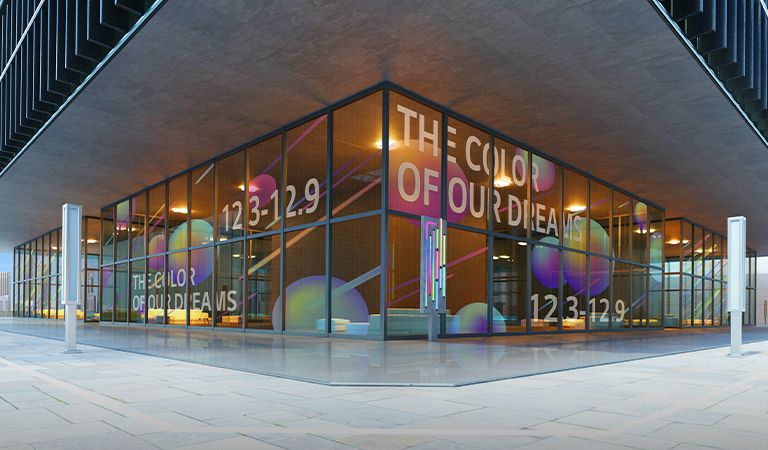

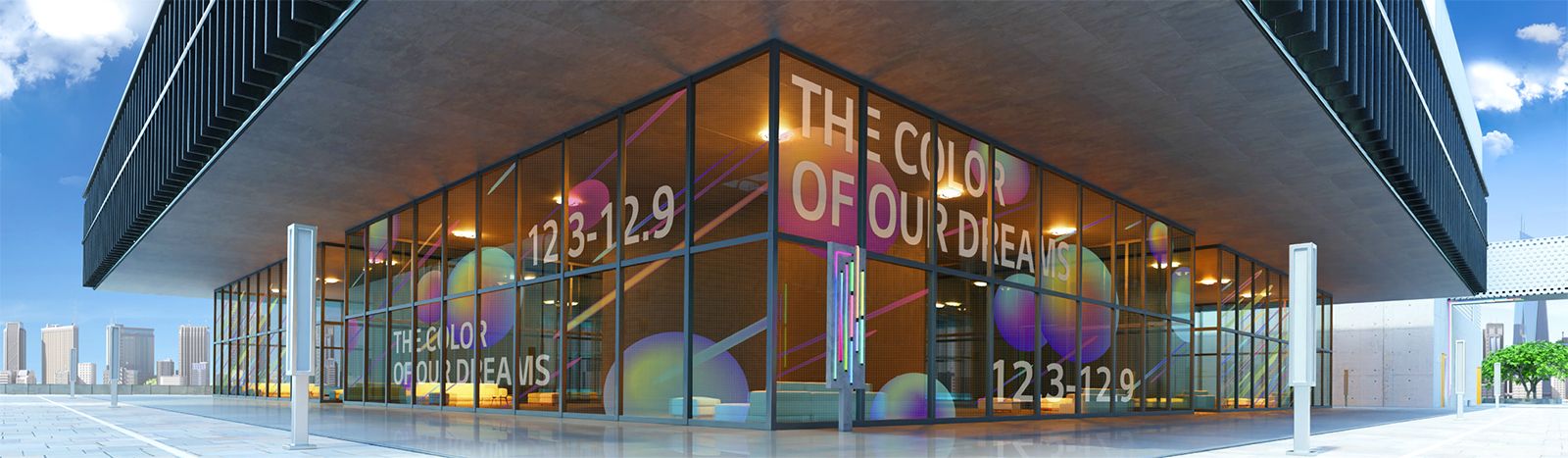

Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen.

Superb Transparency

The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

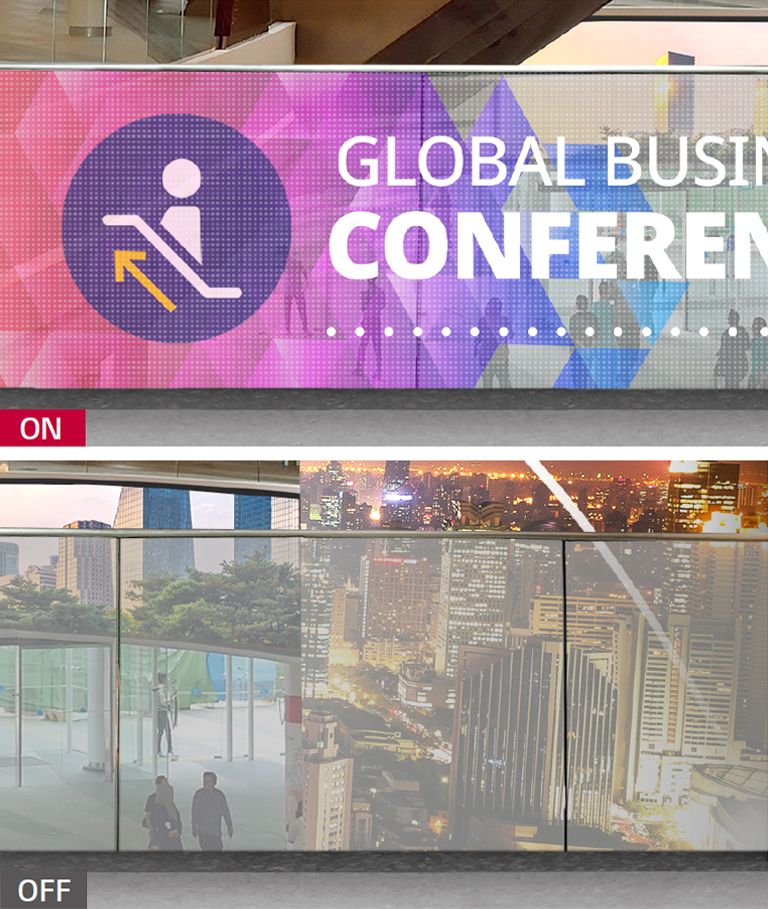

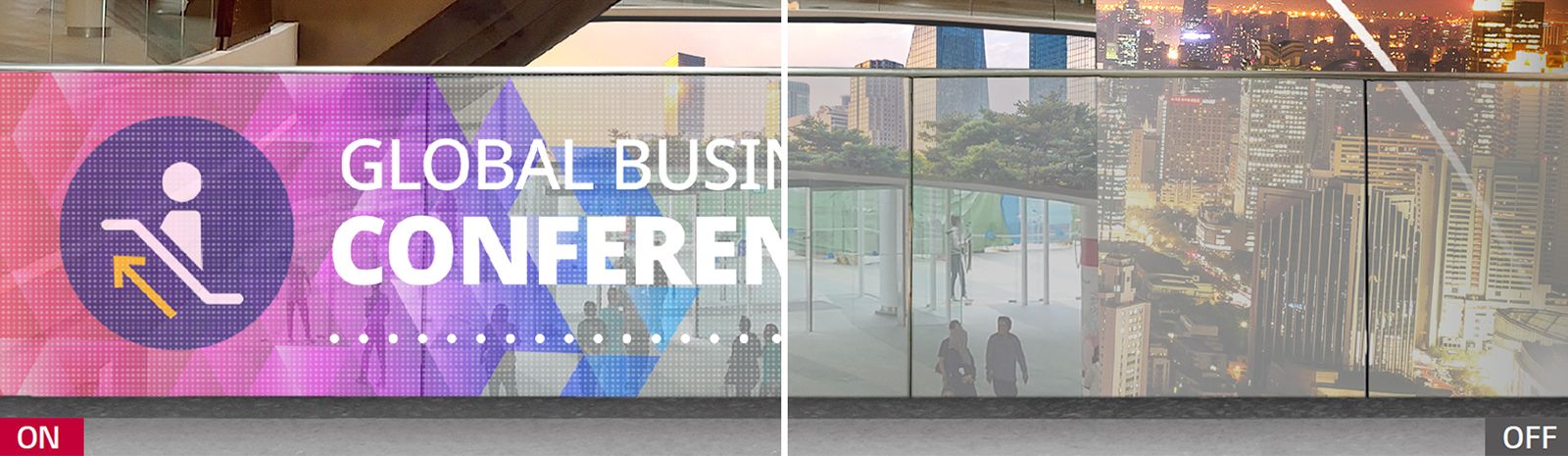

LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off.

* Transparency : Typ. 53%

Fitting in with Flats and Curves

The LG Transparent LED film supports curvatures up to 2,000R convex and concave for curved glass or window applications, and offers even surface by durable, transparent layers. This allows a wide range of venues to be redesigned with the LTAK140 as a landmark.

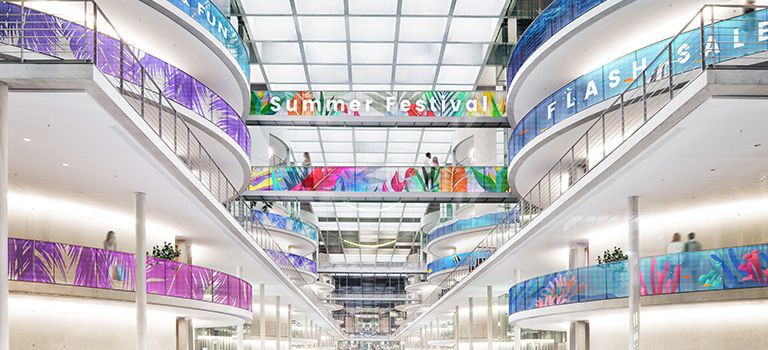

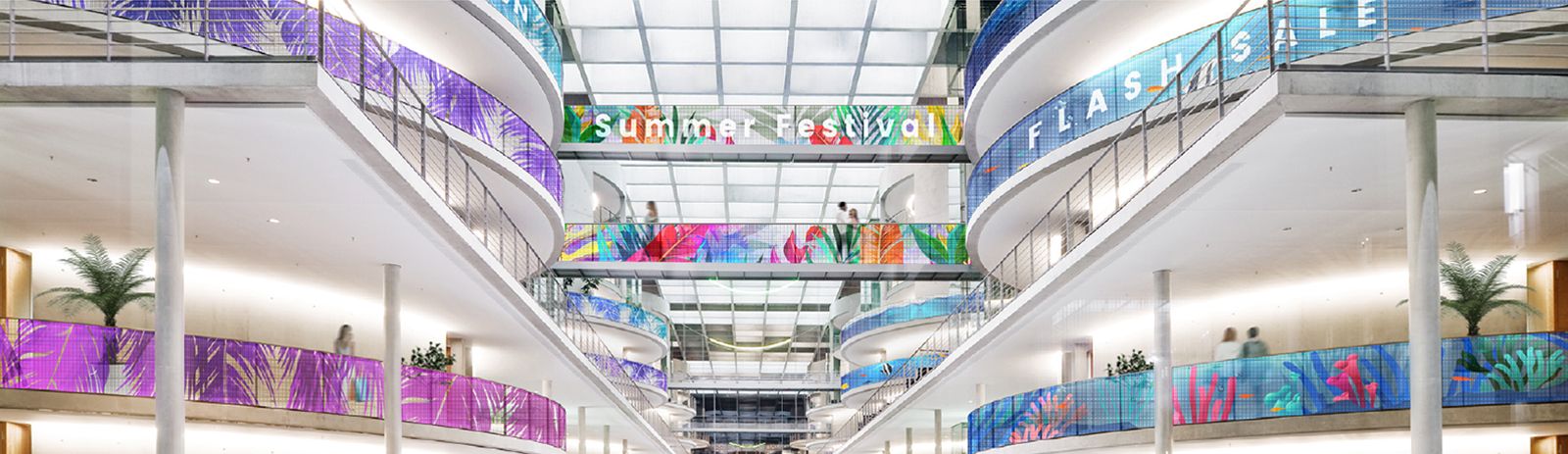

Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly.

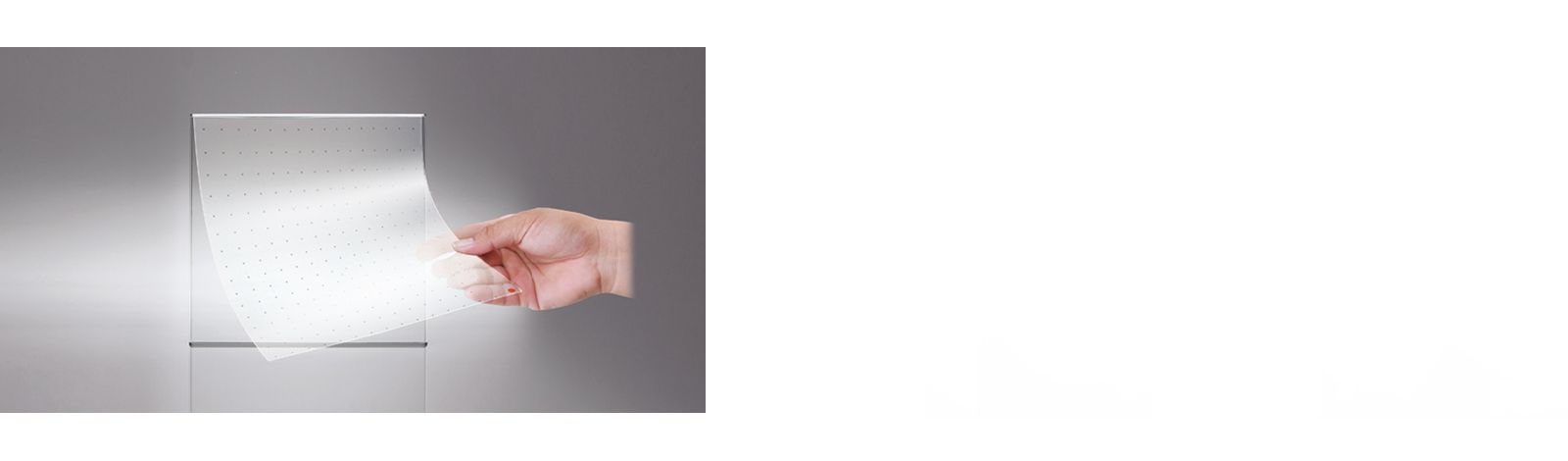

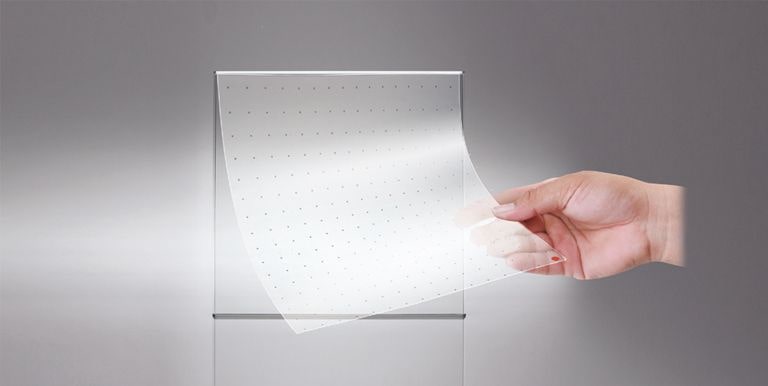

LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily.

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

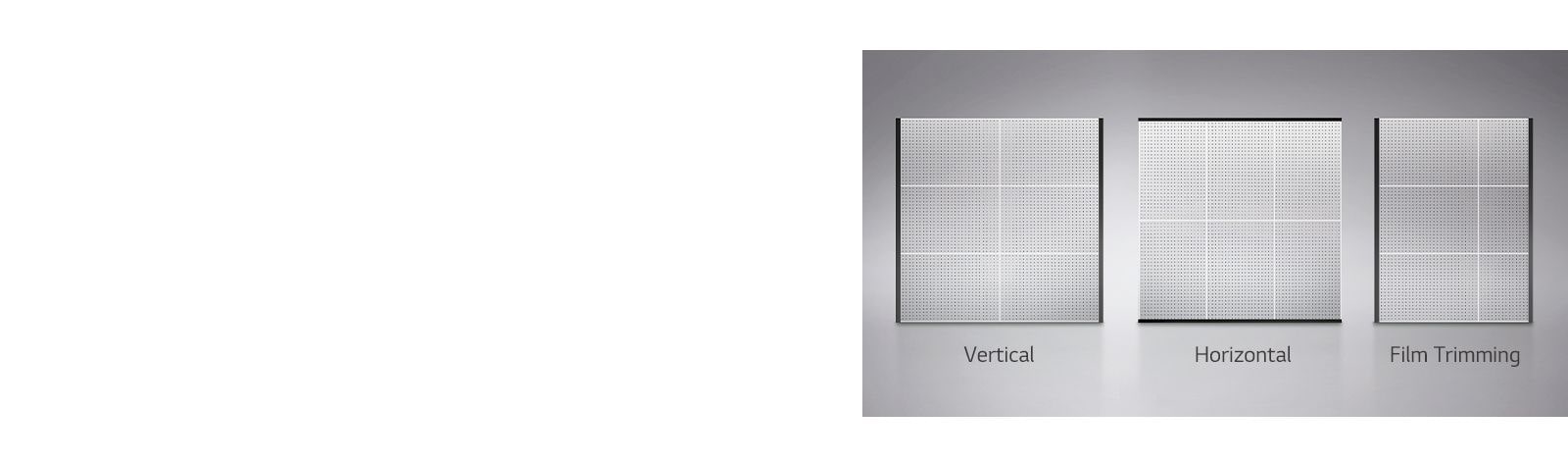

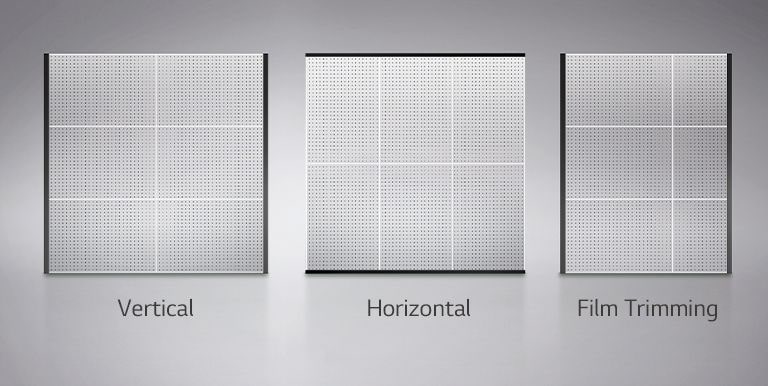

By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized.

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

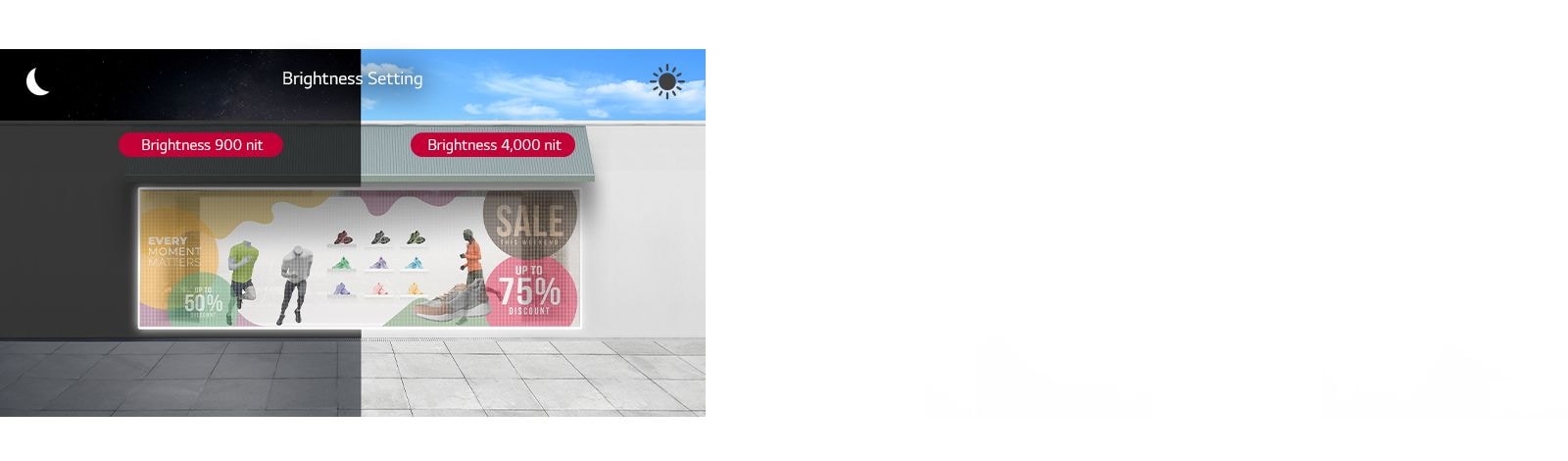

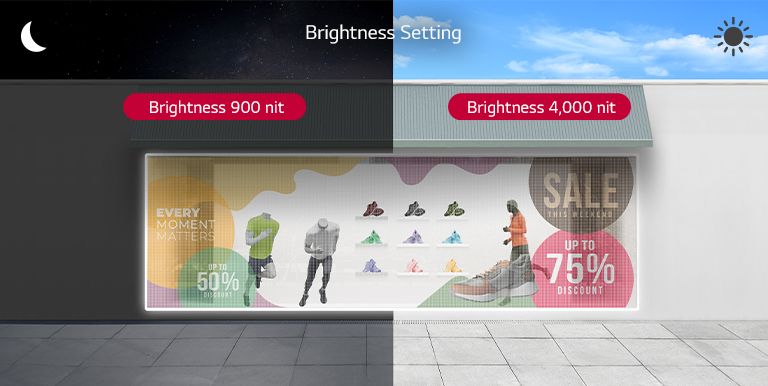

Transparent film of store window has been adjusted to 4,000 nits in bright day and 900 nits in dark night.

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 4,000nit(cd/m²)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

* The examined brightness may differ from testing environments including a photometer.

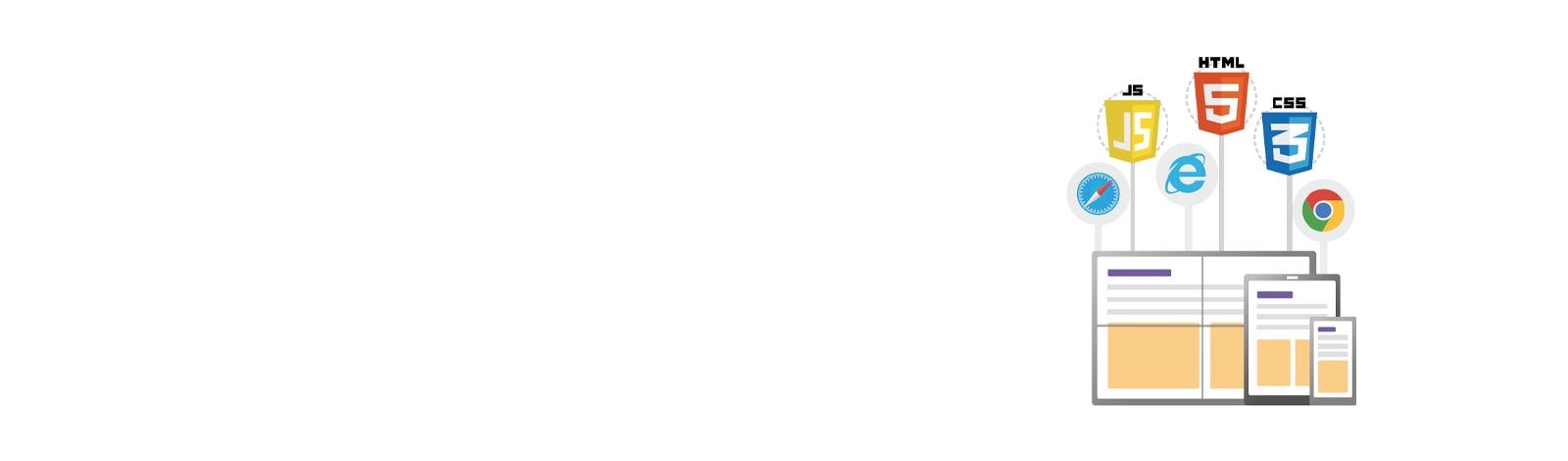

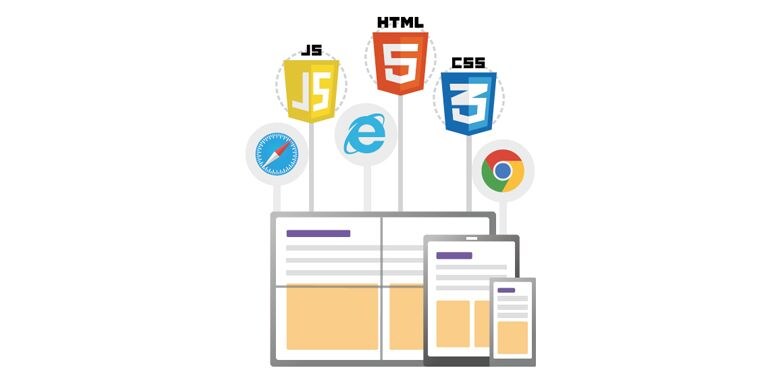

LG webOS is compatible with SCAP, HTML, CSS and JavaScript.

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

* webOS API will be provided to authorized SIs and developers.
* SCAP : Signage Common Application Platform. API interface service for SIs.
* CSS : Cascading Style Sheets

Control Manager

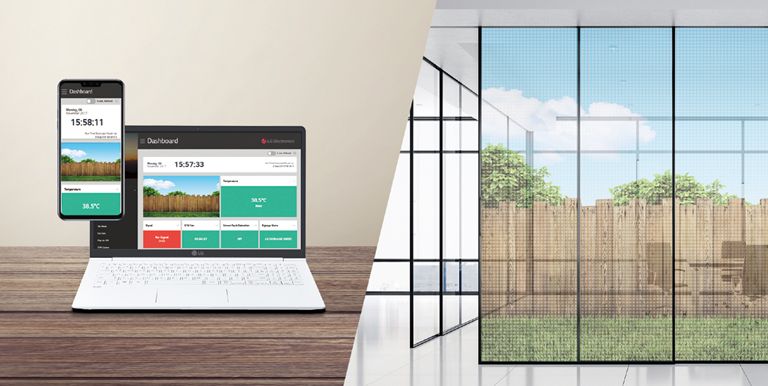

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.

Through ConnectedCare service, display status of the workplace can be managed remotely.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.

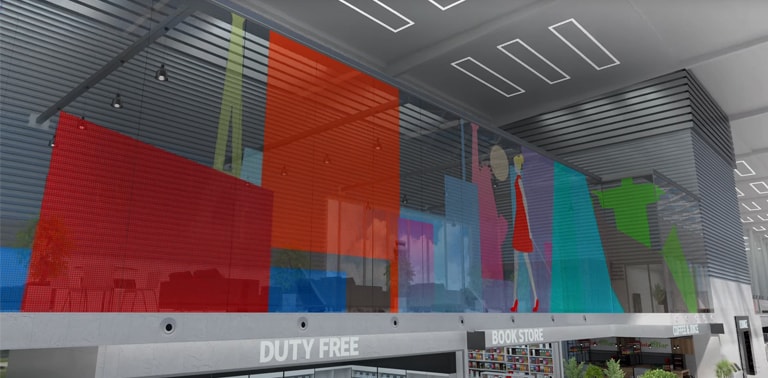

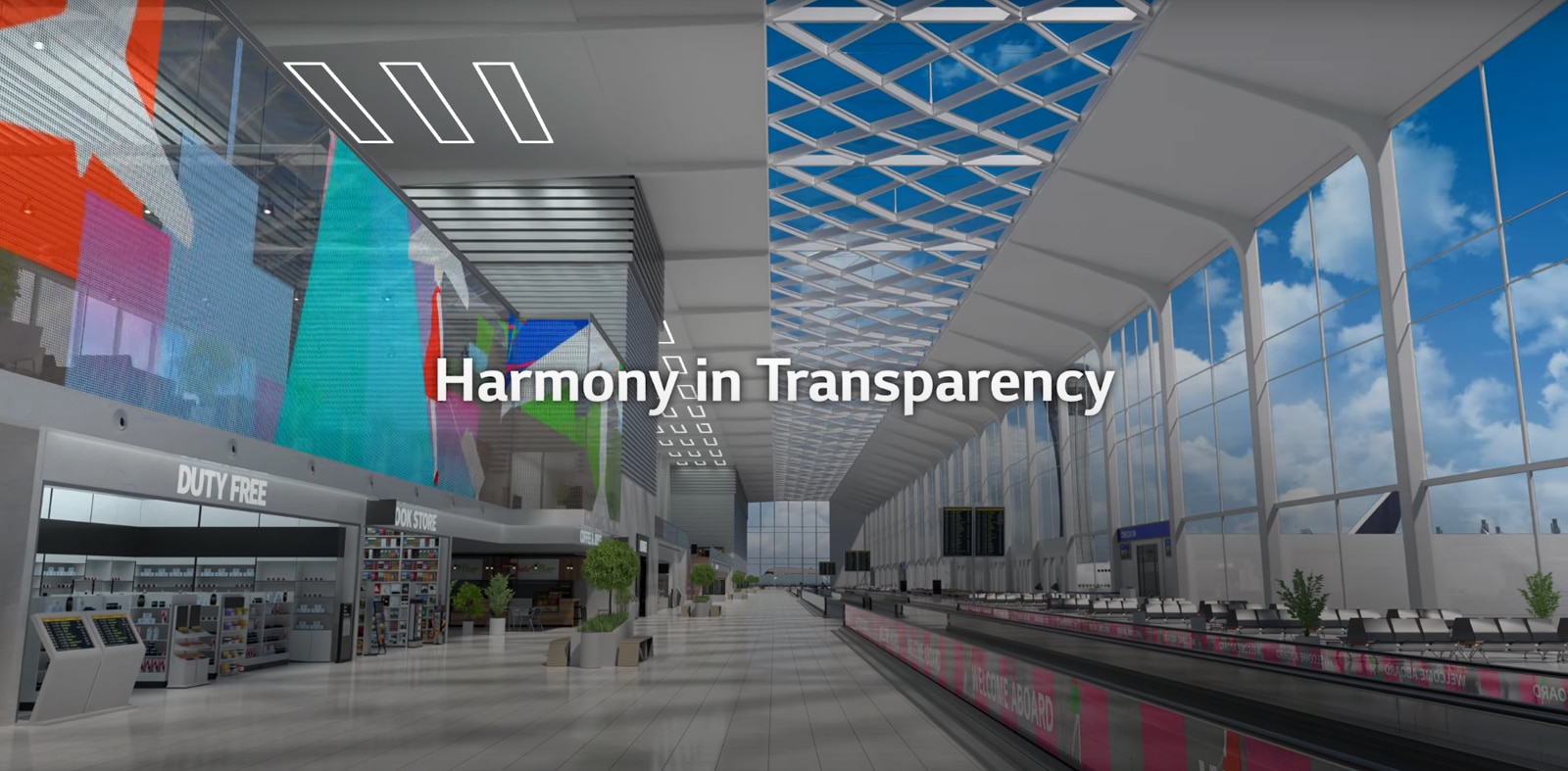

LG Transparent LED Film Introduction Video (LAT140)

Experience the Colors of Transparency

Watch now

Case Study [Public Space]

LG Transparent LED Film (LAT140)

Find a variety of business stories whose values are increased by LG Transparent Display

Watch the Full Movie

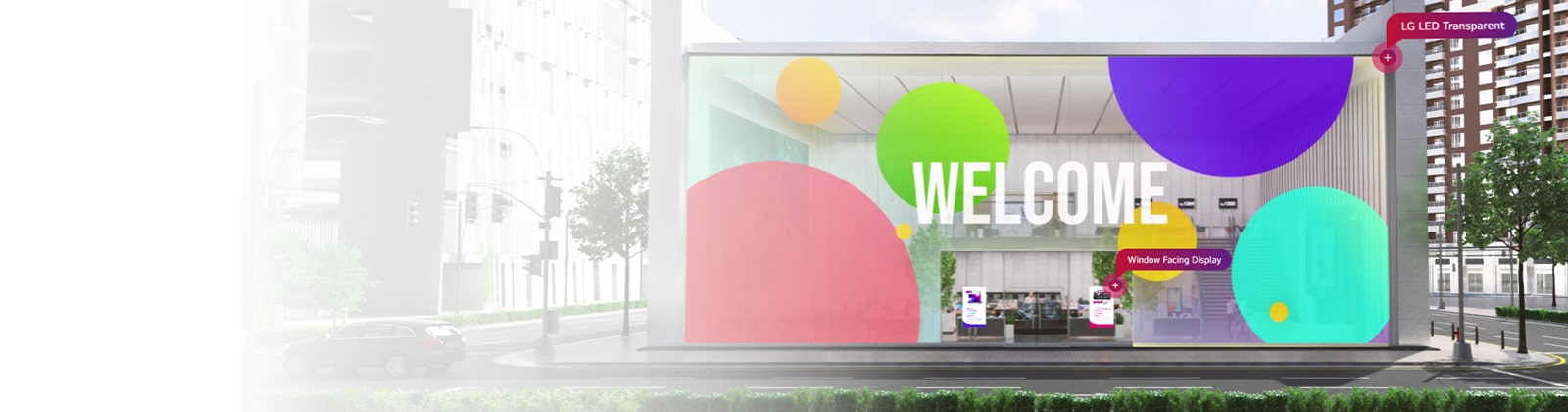

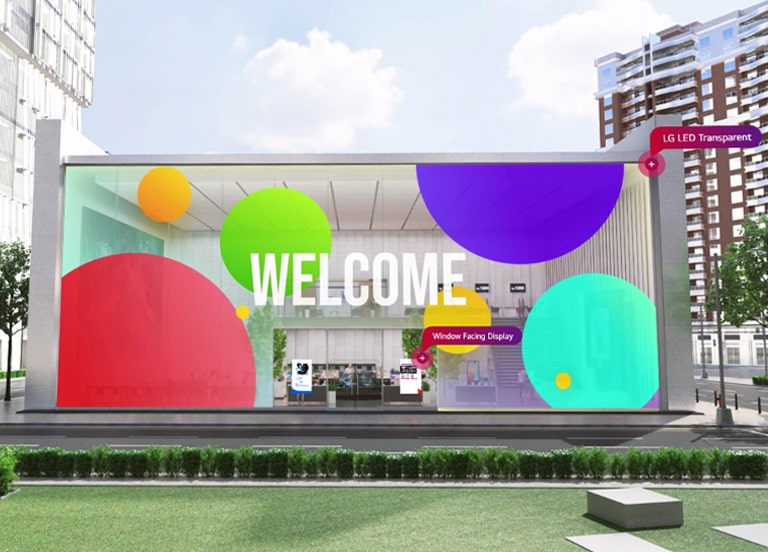

Explore more showroom at<br>LG Digital Connect1

Explore more showroom at<br>LG Digital Connect2

Explore more showroom at
LG Digital Connect

To Community Hall To Flagship store

LTAK140-GW

Pixel Pitch

13.7±0.2mm (14)

LED Type

R, G, B 3in1 Color Package (SMD2020)
Resolution

48 x 36

Pixels per Film

1,728
Physical Pixel Density(pixels/㎡)

5,102

Brightness

Typ.4,000nit
Contrast Ratio

≥ 100,000:1

Luminance Uniformity

≥ 70%
Chromaticity Uniformity

Δu’v’≤0.015

Viewing Angle (H x V)

120 x 120
Life Time (Brightness 50%)

50,000 Hrs

Daily Usage

24h / 7days
Warranty

2 year

Transparency

Typ 53%
Operating Temperature

0℃ ~ 45℃ (Instaliling at indoor glass)

Curved Installation

2,000 R (Concave and Convex available on Glass)
Film Trimming

Yes (horizontal direction according to Bezel only)

Color Processing

(9bit) 500/500/500 Level ( R, G, B)
Colors

125,000,000 Colors

Color Chromaticity

Cx: 0.25±0.03, Cy : 0.33±0.03
Dimension (W x H x D)

655 x 492 x 2.9mm
(with front & back protection film)

Weight

1kg
Power Consumption

75W per Film

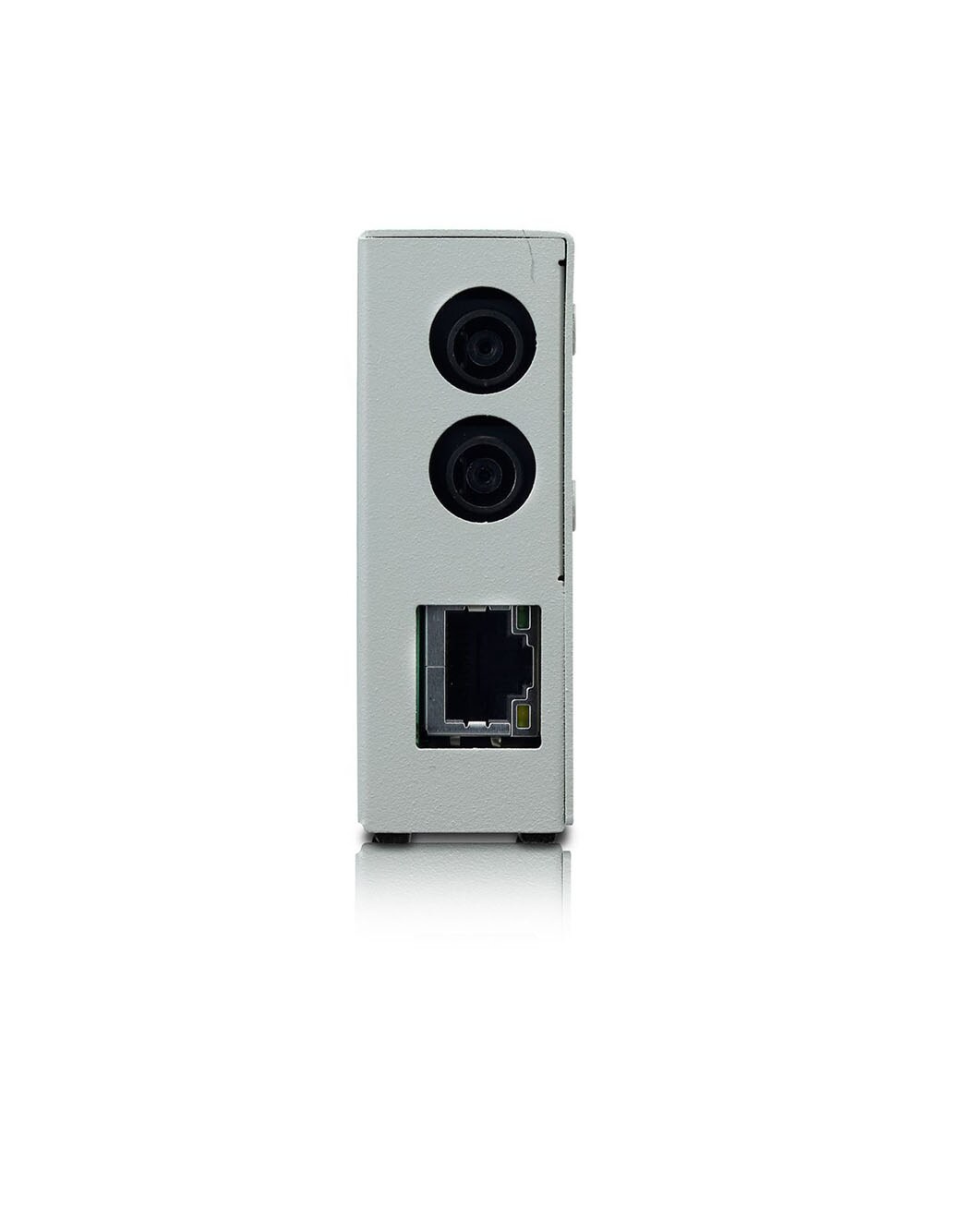

1st Bezel
(ACC-LTAK14W1)

Interface

Input : RGMII
Output : Differential Serial

Dimension (W x H x D)

69.4 x 492 x 25mm
Weight

0.4Kg

Power Consumption

75W(Transparent panel 1EA + First(1EA) & Common(1EA) Bezel kit)
Accessory

DC Jack Connection cable(1100mm) 1ea, DC Jack Connection cable(240mm) 1ea Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type, ESG, Regulation book, Warranty Card

Common Bezel
(ACC-LTAK14W2)

Interface

Input : Differential Serial
Output : Differential Serial

Dimension (W x H x D)

51.4 x 492 x 25mm
Weight

0.3Kg

Power Consumption

75W per Film
Accessory

DC Jack Connection cable(240mm) 2ea, Screw 2 type, Gasket Rubber 2 type, Cable hole cover 2 type, ESG, Regulation book, Warranty Card

Unit Controller
(LCLG141U)

Resolution

960x540 (1/4 FHD)

Interface

Input : LVDS
Output : RJ45 x4EA
Maximum Transmission Length

100m (Cable type: CAT5E, CAT6)

Dimension (W x H x D)

293 x 188.7 x 37mm
Weight

1.5Kg

Temperature Sensor

Yes
Power Consumption

20 W

Accessory

Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card

System Controller
(LCLG002-T)

Video - Max. Input Resolution

DP : 1920x1080@60Hz
HDMI : 1920x1080@60Hz
DVI-D : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA
Interface - Digital (w/ HDCP) - DP

Input : 1EA
Output : 1EA

Interface - Digital (w/ HDCP) - DVI-D

Input : 1EA
Interface - Comm. Port - RS-232C

Input : 1EA (Phone Jack Type)
Output : 1EA (Phone Jack Type)

Interface - Comm. Port - RJ-45

Input : 1EA (without LED indicator)
Output : 1EA (without LED indicator)
Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation

Interface - USB3.0

1EA
Interface - LVDS

Output : 1EA

Dimension (W x H x D mm)

293 x193.3 x 40.1mm
Weight (Head, Kg)

1.6kg

Temperature Sensor

Yes
Light Sensor

Yes

Source Selection

HDMI, DVI-D, DP
TPC (Temporal Peak luminance Control)

Yes

Motion Eye Care

Yes
Power Consumption

17W

CMS S/W

Yes (2.9)
Signage365care

Yes (2.7)

Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card

Adaptor
(ACC-LATP1)

Model No.

ACC-LATP1

Dimension (W x H x D)

183*86*28mm
Weight

769g

Input

100~240V, 50~60Hz
Output

19.5V/10.8A (210W)

Color

White
DC output cable

14AWG, 1.5m

Type

L Type
Accessory

Power Cord, Regulation Book

One-box controller(Unit + System Controller)
(CTAA-140G)

Resolution

480x270 (1/16 FHD)

Maximum Transmission Length

100m (Cable type : CAT5E, CAT6)
Dimension (W x H x D)

333 x186.8 x 40.1mm

Weight

1.8.2Kg
Video - Max. Input Resolution

HDMI : 1920x1080@60Hz

Interface - Digital (w/ HDCP) - HDMI

Input : 1EA
Interface - Comm. Port - RS-232C

Input : 1EA (3.5⌀ headphone jack type)
Output : 1EA (3.5⌀ headphone jack type)

Interface - Comm. Port - RJ-45

Input : 1EA
Output : 2EA (1EA to connect film with LED Indicator)
Interface - Comm. Port - IR Receiver (w/ Light Sensor)

1EA (Phone Jack Type) : Used for installation

Interface - USB3.0

1EA
Interface - LVDS

-

Temperature Sensor

Yes
Light Sensor

Yes

TPC (Temporal Peak luminance Control)

Yes
Motion Eye Care

Yes

Power Consumption

30
CMS S/W

Yes (3.0)

Signage365care

Yes (2.7)
Accessory

Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card

Series

Series

LTAK-GW

Datasheet
- LTAK140-GW_Datasheet(low)_LG Transparent LED Film_230315.pdf
Software

To download Software, Please visit the Software Download Page (Click).
Manual

To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
