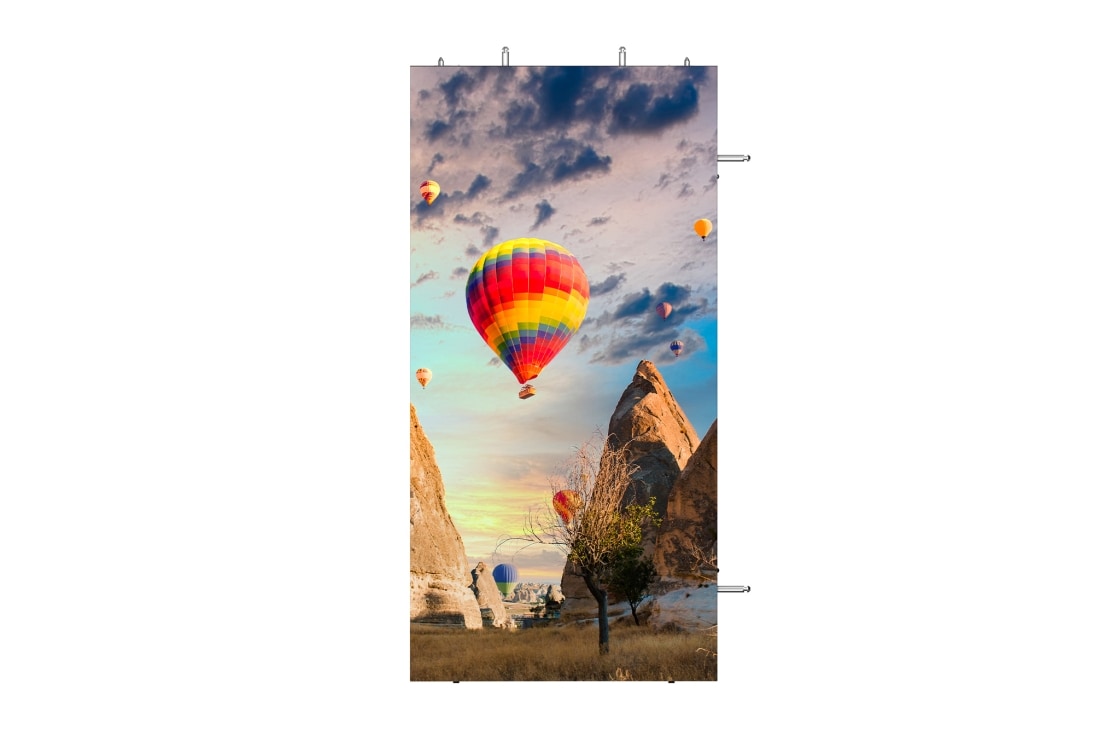

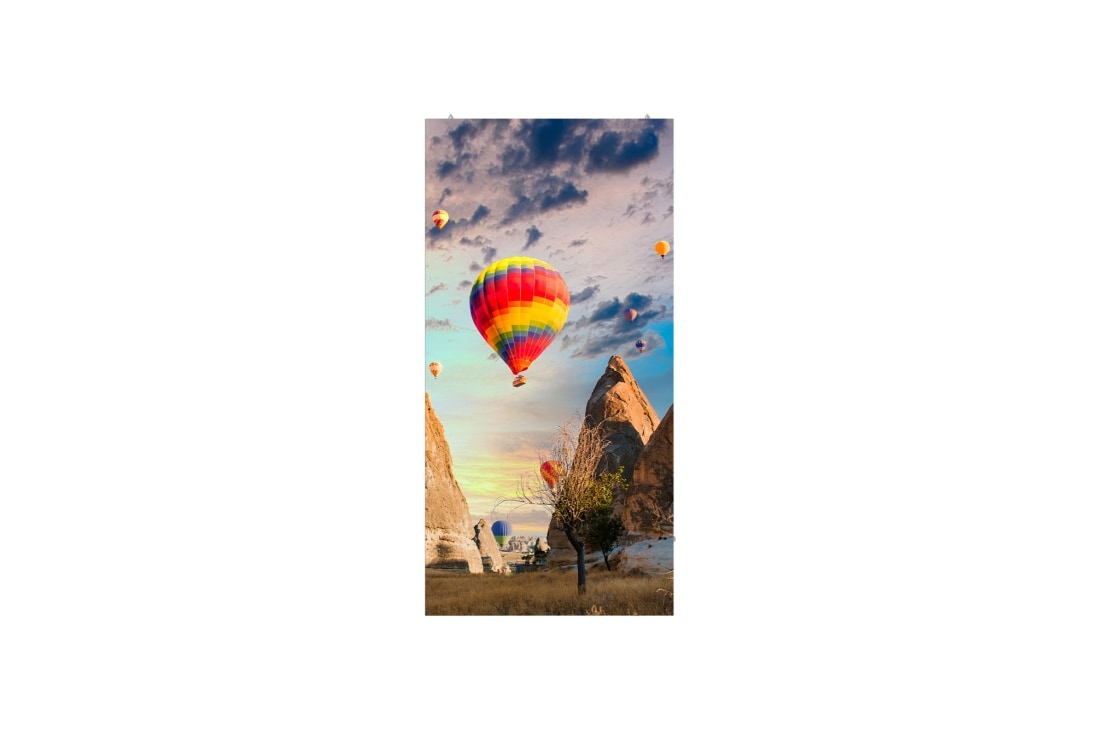

Window Facing LED Display

Key Features

Choose your Pitch

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LWBC039)
    $
    $
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LWBC039)
    $
    $
    LG Members Price
Total
Window Facing LED Display

Window Facing LED Display

A woman is looking at a large LED screen installed on the wall of the show window. A woman is looking at a large LED screen installed on the wall of the show window.
* All images in this web page are for illustrative purposes only.

Compatibility with
LG Software Solution

Powered by LG’s high performance system controller, the LWBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.
The LG employee is remotely monitoring the LWBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LWBC series to be compatible with LG software solutions. The LG employee is remotely monitoring the LWBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LWBC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
Physical Parameters
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    3.906
  • Module Resolution (W × H)
    64 × 64
    Module Dimensions (W × H, mm)
    250 × 250
  • Weight per Module (kg, ±0.003 kg)
    0.70
    No. of Modules per Cabinet (W × H)
    2 × 4
  • Cabinet Resolution (W × H)
    128 × 256
    Cabinet Dimensions (W × H × D, mm)
    500 × 1,000 × 68
  • Cabinet Surface Area (m²)
    0.500
    Weight per Cabinet (kg/Cabinet)
    12.0
  • Weight per Square Meter (kg/m²)
    24.0
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet (mm)
    0.5
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front or Rear
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    3,500
    Color Temperature (K)
    3,200-9,300
  • Visual Viewing Angle (H × V)
    160 × 140
    Brightness Uniformity
    97%
  • Color Uniformity
    ±0.003 Cx,Cy
    Contrast Ratio (Typ.)
    5,000
  • Processing Depth (bit)
    16
    (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    300
    Power Consumption (W/Cabinet, Avg.)
    100
  • Power Consumption (W/m², Max.)
    600
    Power Consumption (BTU/Cabinet, Max.)
    1,024
  • Power Consumption (BTU/Cabinet, Avg.)
    341
    Power Consumption (BTU/m², Max.)
    2,047
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)
    100,000
    Operating Temperature (°C)
    -20 to +40
  • Operating Humidity
    10-90% RH
    IP Rating Front / Rear
    IP5X / IP5X
Series
  • Series
    LWBC
  • Data Sheets
    • LWBC Series_Datasheet(low)_LG Window Facing_210913.pdf
  • Dimension
    • LWBC0xx-GD-v1.0.dwg
    • LWBC0xx-GD-v1.0.pdf
  • Software

    To download Software, Please visit the Software Download Page (Click).

  • Manual

    To download Owner’s manual, User guide, Quick set-up guide, Please visit the Manual Download Page (Click).
