UltraFine Display OLED Pro

65EP5G-B

UltraFine Display OLED Pro

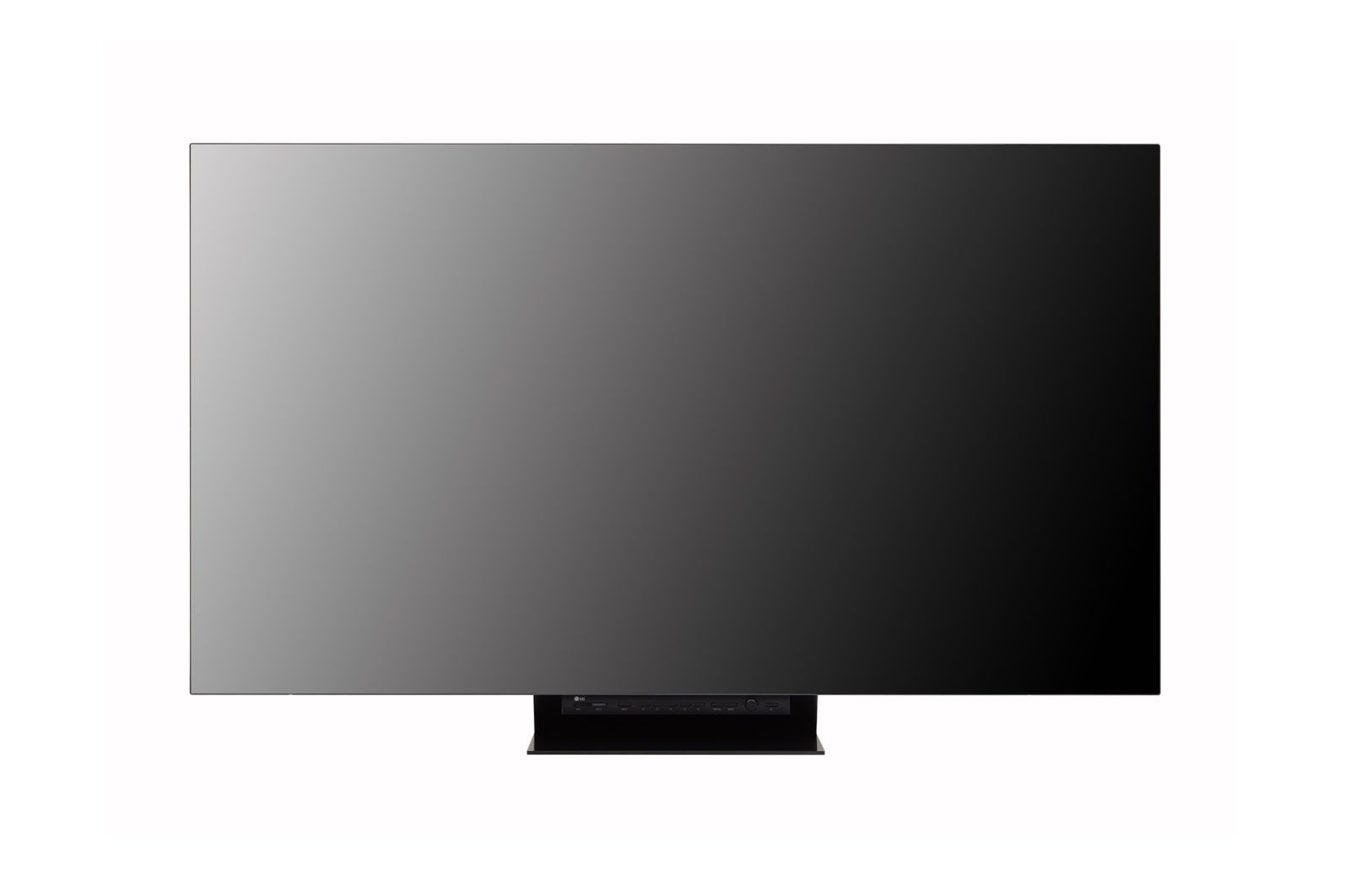

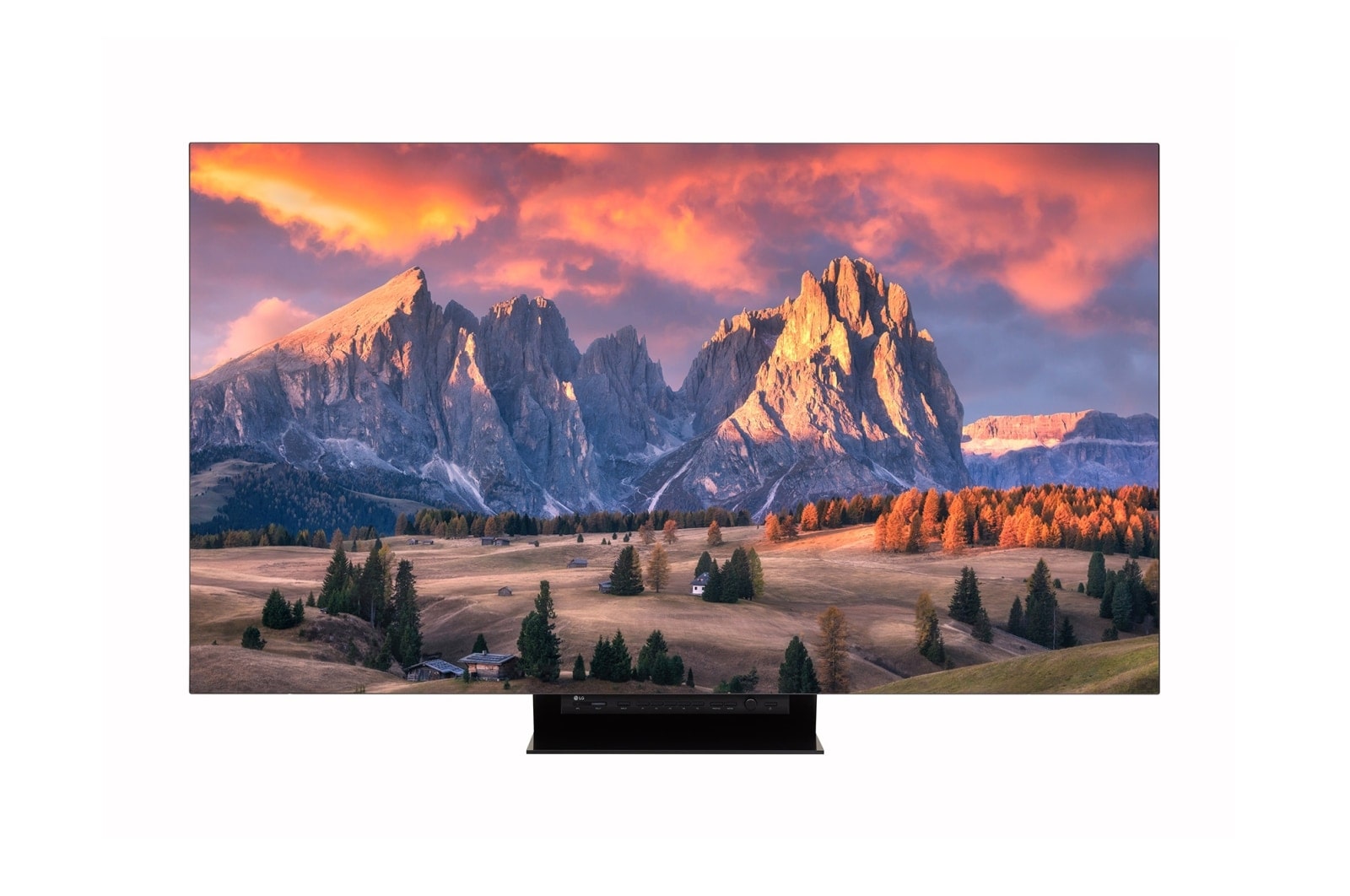

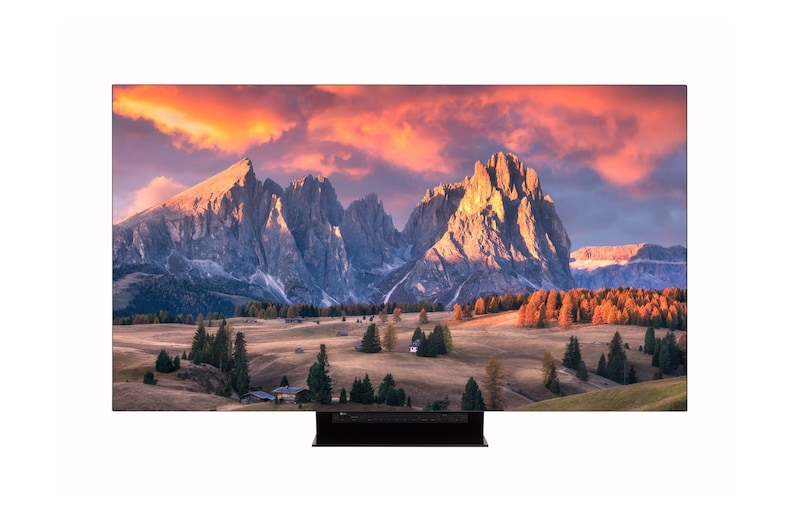

Front view with infill image




Reddot Winner 2021



LG UltraFine Display OLED Pro

Versatile OLED
with Accurate Color, Customized to Suit Your Needs




Enhance your workplace with LG’s 65EP5G OLED professional monitor that has been developed to meet a variety of use cases and workflows in content production, post-production and distribution. 65EP5G builds upon the capabilities of LG’s OLED displays recognized by a Technology and Engineering Emmy® award and incorporates additional features and functionality to meet the needs of professionals.

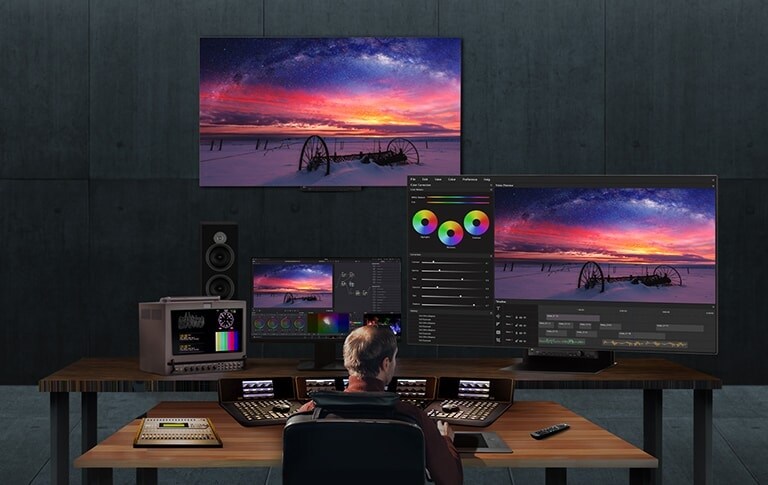

A man is working on video editing using two 65EP5Gs installed on walls and desks at his workplace.



* 65 Inch (65EP5G)
* All images are for illustrative purposes only.


Accurate Color
with a Wide OLED Screen




Advanced Calibration functionality allows display to achieve reference performance for picture quality-enabled by LG’s proprietary software (SuperSign for White Balance). It supports programmable hardware 1D & 3D LUTs and multiple color-accurate profiles for rapid transitioning between calibrated modes.

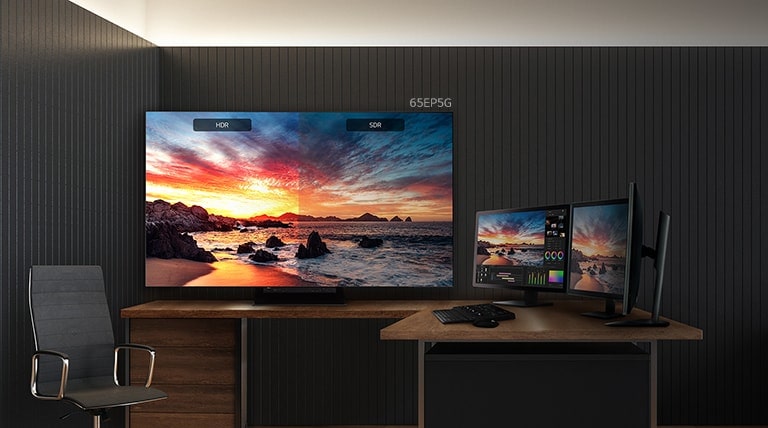

65EP5G can compare and monitor colors of SDR and HDR on one screen at the same time.



* All images are for illustrative purposes only.

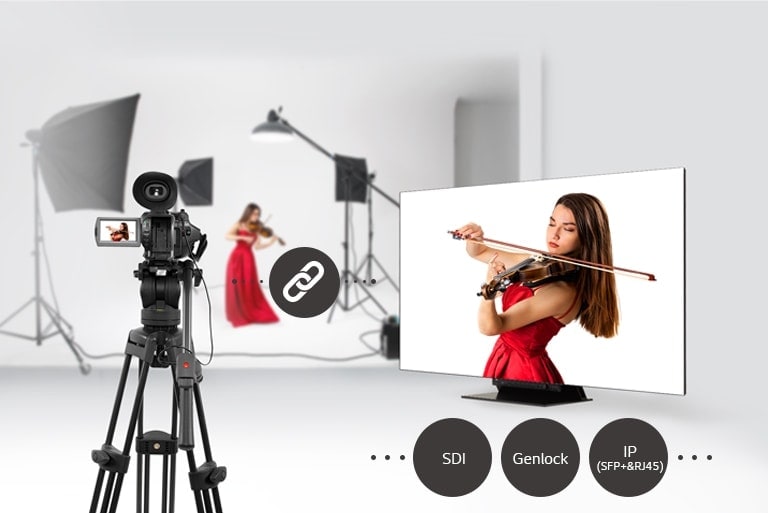

Equipped with jack interfaces such as SDI, Genlock, and IP(SFP

Diverse I/O Interfaces


A variety of input interfaces are provided including HDMI, quad loop-thru SDI (BNC), IP (SFP & RJ45). Supported IP formats include ST-2110 and ST-2022-6. Also included interface is a Genlock input for use in broadcast and virtual production applications.

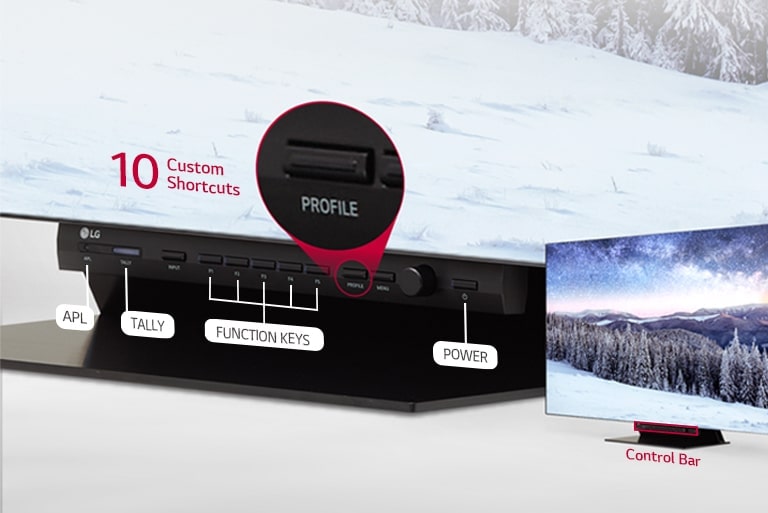

It is easy to set up through a control bar equipped with various functions such as APL, TALLY, Function keys, Power, and a profile key that can use 10 custom shortcuts.

Convenience and Functionality


The control panel provides shortcuts to frequently used functions and profiles featuring different monitor settings and picture quality options. Also, a variety of user selectable on-screen features are available such as Markers, Zoom, Audio Level Meters, and Waveform & Vector Scopes.

* All images are for illustrative purposes only.

Print

All Spec

LANGUAGE

  • OSD

    English, Korean

POWER

  • Power Supply

    AC 100-240V~, 50/60Hz

  • Power Type

    Built-in Power

SOUND

  • Speaker (Built-in)

    NO

ACCESSORY

  • Basic

    Remote Controller(include battery 2ea), IG(Installation Guide), Regulation Book

  • Optional

    NO

ENVIRONMENT CONDITIONS

  • Operation Humidity

    10 % to 80 %

  • Operation Temperature

    0 °C to 40 °C

OPS COMPATIBILITY

  • OPS Power Built-in

    N/A

  • OPS Type compatible

    N/A

CERTIFICATION

  • EMC

    FCC Class "A" / CE / KC

  • ePEAT(US only)

    NO

  • ERP / Energy Star

    YES / NO

  • Safety

    CB / NRTL

CONNECTIVITY (OLED PRO DEDICATED)

  • REF(Gen-Lock) In

    YES

  • RJ45(GPI Remote) In

    YES

  • RJ45(GPI Remote) Out

    YES

  • SDI In

    YES (4ea)

  • SDI Out

    YES (4ea)

  • SFP+ In

    YES

MECHANICAL SPECIFICATION

  • Weight (Head)

    31Kg

  • Bezel Color

    Black

  • Bezel Width

    T/R/L/B : 2.0/2.0/2.0/2.0mm (Off Bezel) T/R/L/B : 8.7/8.9/8.9/11.6mm (On Bezel)

  • Carton Dimensions (W x H x D)

    1670 x 1108 x 200mm

  • Handle

    YES

  • Monitor Dimensions (W x H x D)

    1446.3 x 823.8 x 49mm (without Control Box) 1446.3 x 853.8 x 56.5mm (with Control Box)

  • Monitor Dimension with Stand (W x H x D)

    1446.3 x 896.5 x 272mm

  • Packed Weight

    45.5Kg

  • VESA Standard Mount Interface

    300 x 300 mm

  • Weight (Head+Stand)

    35Kg

POWER CONSUMPTION

  • BTU (British Thermal Unit)

    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max.)

  • DPM

    N/A

  • Max.

    470W

  • Power off

    0.5W

  • Smart Energy Saving (70%)

    N/A

  • Typ.

    139W (IEC 62087)

PANEL

  • Aspect Ratio

    16:9

  • Back Light Type

    OLED

  • Brightness

    1000/900/500/180nit (APL 3%/10%/25%/100%)

  • Color Depth (Number of Colors)

    1.07 Billion colors

  • Color Gamut

    DCI-P3 99%

  • Contrast Ratio

    1,850,000:1

  • Dynamic CR

    NO

  • Life time

    30,000Hrs (Typ.)

  • Native Resolution

    3840 x 2160 (UHD)

  • Panel Technology

    OLED

  • Portait / Landscape

    NO / YES

  • QWP (Quarter Wave Plate)

    N/A

  • Refresh Rate

    120Hz

  • Response Time

    0.1ms (G to G)

  • Screen Size (Inch)

    65

  • Surface Treatment (Haze)

    Haze 0%

  • Transparency

    N/A

  • Viewing Angle (H x V)

    178º x 178º

SPECIAL FEATURE

  • Conformal Coating (Power Board)

    YES

  • Direct Sunlight

    N/A

  • IP Rating

    N/A

  • Overlay Touch Compatibility

    N/A

  • Power Protection

    N/A

  • Smart Calibration

    N/A

  • Tilt (Face down)

    N/A

  • Tilt (Face up)

    N/A

CONNECTIVITY

  • Audio In

    NO

  • Audio Out

    YES

  • Daisy Chain

    NO

  • DP In

    NO

  • DP Out

    NO

  • DVI-D In

    NO

  • External Speaker Out

    NO

  • HDMI In

    YES (2ea)

  • HDMI In (HDCP Ver.)

    2.2/1.4

  • HDMI Out

    NO

  • IR In

    NO

  • IR Out

    NO

  • RGB In

    NO

  • RJ45(LAN) In

    YES (1ea)

  • RJ45(LAN) Out

    NO

  • RS232C In

    YES

  • RS232C Out

    NO

  • Touch USB

    NO

  • USB In

    USB2.0 Type A (1ea)

SOFTWARE COMPATIBILITY

  • Connected Care

    NO

  • Mobile CMS

    NO

  • Promota

    NO

  • SuperSign Cloud

    NO

  • SuperSign CMS

    NO

  • SuperSign Control+

    NO

  • SuperSign WB

    YES

FEATURE - HARDWARE

  • Acceleration(Gyro) Sensor

    NO

  • Auto Brightness Sensor

    NO

  • BLU Sensor

    NO

  • Current Sensor

    NO

  • FAN (Built-in)

    NO

  • Humidity Sensor

    NO

  • Internal Memory (eMMC)

    8GB

  • Local Key Operation

    YES

  • Pixel Sensor

    NO

  • Power Indicator

    YES

  • Proximity Sensor

    NO

  • Temperature Sensor

    YES

  • Wi-Fi/BT (Built-in)

    NO

DEDICATED FEATURE - OLED PRO

  • 3rd Party Cal. SW Compatibility

    CalMAN - including Uniformity Compensation, 9p/13p/25p, EBU Grade1

  • AFD (Active Format Description)

    NO

  • Aspect Ratio

    Auto, Original, Full Wide, 4:3, 14:9, 13:9, 1.85:1, 2.35:1, 1:1

  • Audio - Dolby Atmos

    YES

  • Audio - Level Meter

    YES

  • Audio - Sound Mode

    NO

  • Audio - Source Selection

    YES

  • Calibration SW

    SuperSign WB - including Uniformity Compensation, 9p/13p/25p, EBU Grade1

  • Caption

    YES

  • Color Adjustment

    OLED Light, Brightness, Contrast, Chroma, Sharpness, Tint, White Balance Control

  • Color Temp.

    VAR Temp/9300K/6500K/5400K/3200K/D65(6504K)/C(6774K)/D-Cinema(6302K)

  • Custom 3D LUT file Import (through USB)

    NO

  • DeltaE < 2

    YES

  • EOTF(Electro-Optical Transfer Function)

    Auto/User/1.9/2.2/2.4/2.6/SDR(Calibration)/ST.2084 PQ/BT.2100 HLG/HDR(Calibration)

  • Eyesafe Certification

    YES

  • False Color

    NO

  • Function Key

    YES

  • Gamut

    HDR Gamut / SDR Gamut

  • Genlock

    YES

  • GPI Control (General Purpose Interface)

    YES

  • HDR/SDR monitoring

    YES

  • Internal Signal Pattern

    YES

  • LG Connect

    YES

  • Marker

    YES

  • Marker - Center Marker

    YES

  • Marker - Safety Area

    YES

  • Mastering Peak

    YES

  • Mono/Blue Only

    YES

  • OLED Panel Setting (for image sticking prevention)

    TPC Auto-dimming (Temporal Peak Luminance Control), Pixel Refresher, Screen Shift, Logo Luminance Adjustment, GSR Auto dimming (Global Sticky Reduction), CPC (Convex Power Control)

  • Over scan

    Zero Scan, Over Scan, Under Scan

  • Peaking Filter (Camera Focus Assist)

    NO

  • Profile Load / Save

    YES

  • R/G/B Gain

    -768~255

  • SDI Color Format

    Auto, RGB444, YCbCr444, YCbCr422

  • Support Web API

    YES

  • Tally

    YES

  • Time Code

    YES

  • Transfer Matrix

    YES

  • UMD (Under Monitor Display)

    YES

  • Video Analysis - Vector Scope

    YES

  • Video Analysis - Waveform

    YES

  • Video Range

    NO

  • VPID

    YES

  • Zoom

    x2~x5

FEATURE - SOFTWARE

  • ISM Method

    YES

  • OS Ver. (webOS)

    webOS 5.0

  • PBP

    YES (2PBP)

  • PIP

    YES
