KEY FEATURES

  • Brightness: 400 cd/m2 (APL* 25%) * APL: Average Picture Level
  • Bezel: 7.2 mm (U/B/R/L, Off-bezel)

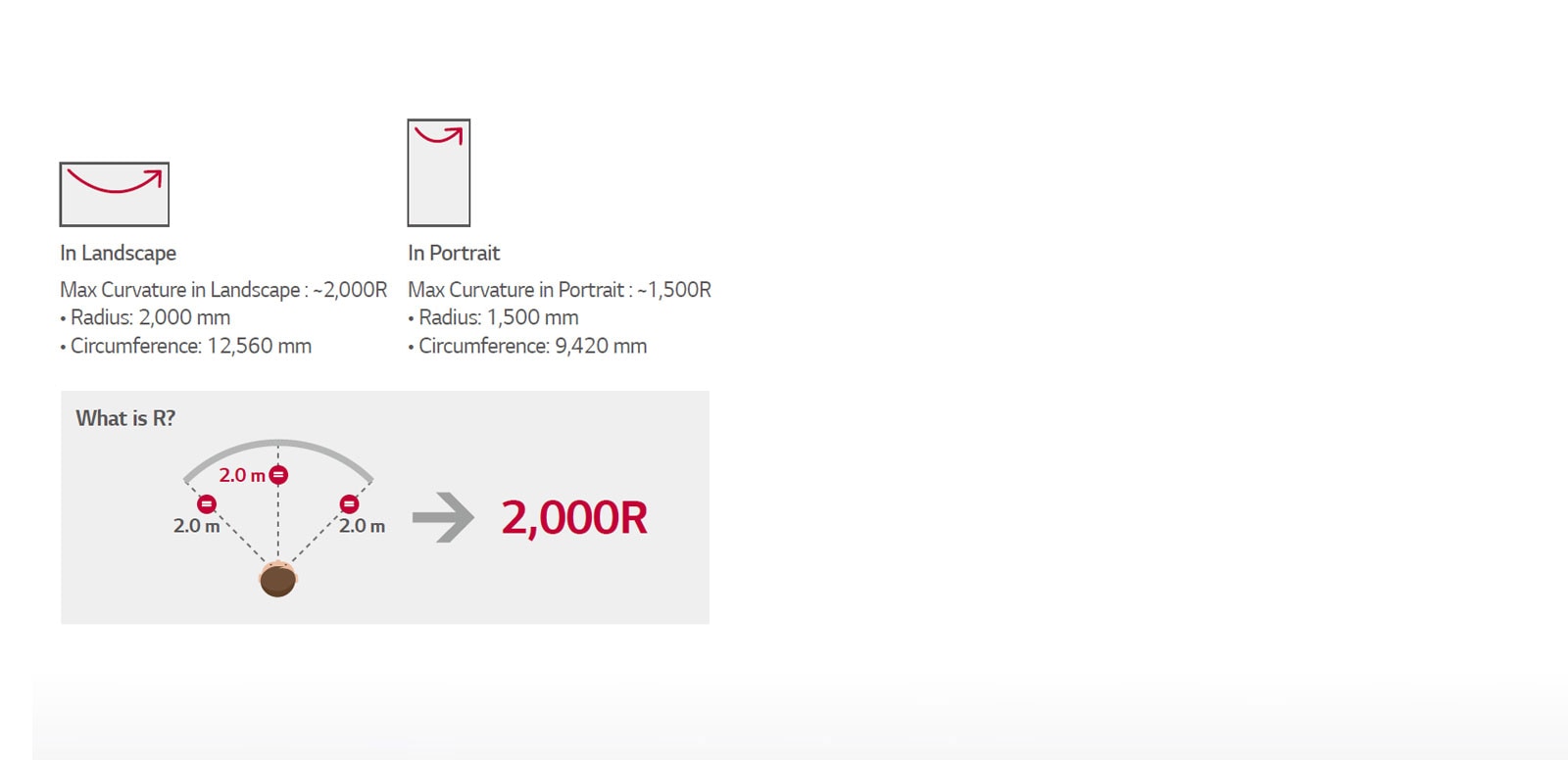

  • Available in 2,000R for landscape, 1,500R for portrait (Concave & Convex)
  • HDMI, DP, RJ45, IR, RS232C, USB, Audio out, Internal memory (64 GB), SuperSign OLED/C
Open-Frame OLED Signage

PANEL

    • Screen Size
    • 55"
    • Resolution
    • 1,920 x 1,080 (FHD)
    • Brightness
    • 100/400 cd/m2 (APL 100% / 25%) * Average picture level

STANDARD CERTIFICATION

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star
    • Yes / NA

CONNECTIVITY

    • Input
    • HDMI, DP
    • Output
    • DP, Audio
    • External Control
    • RS232C in/out, RJ45 in, IR receiver, LAN out, IR out, USB

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C
    • Operation Humidity
    • 10 % to 80 %

POWER

    • Power Supply
    • 100-240V~, 50/60Hz
    • Power Type
    • Built-In Power

ACCESSORIES

    • Basic
    • Remote Controller (including battery 2 ea), Power Cord, QSG, Mini HDMI Cable (3M x 2 ea, for connection between head and signage box), Power Harness Cable (3M x 2 ea, for connection between head and signage box), Regulation Book, Phone to RS232C Gender, Jack Cover, Signage Box Mounting Bracket
    • Optional
    • OPS Kit (KT-OPSA), Fixed Ceiling Mount Kit (ACC-CF-EH5C), Rotational Ceiling Mount Kit (ACC-CR-EH5C), Wall Mount Kit (ACC-W-EH5C), Stand Kit 1 (ACC-S-EH5C), Stand Kit 2 (ACC-S1-EH5C), Signage Box Cover (ACC-C-EH5C)

PHYSICAL SPECIFICATIONS

    • Bezel Width
    • 7.2, 7.2, 7.2, 7.2 mm (U, B, L, R *Off-bezel)

SOFTWARE COMPATIBILITY

    • SuperSign-c
    • Yes
    • SuperSign OLED
    • Yes

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • Yes
    • OPS Type Compatible
    • Yes

Brochures

Case Study

Specification Sheet

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
