KEY FEATURES

  • Glass Picture Effect

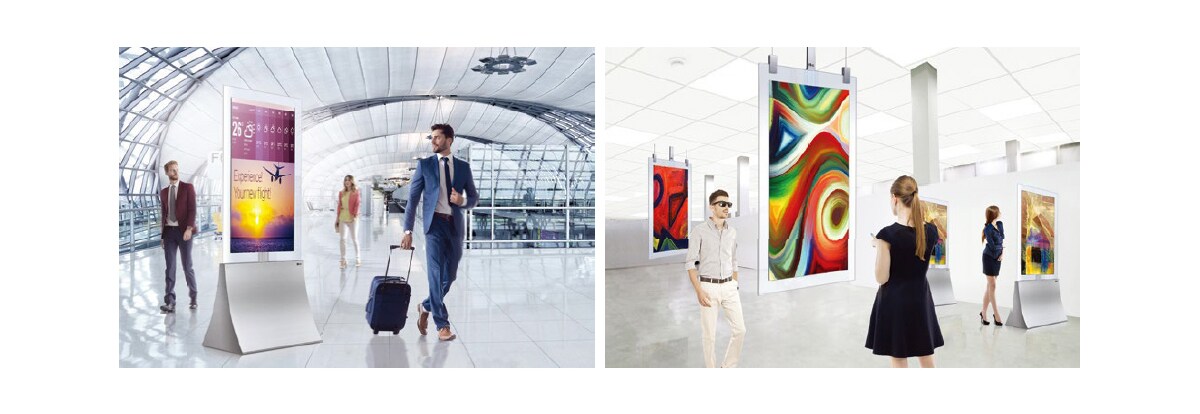

  • Dual-Sided OLED Experience
In-Glass OLED Wallpaper

PANEL

    • Screen Size
    • 55” class (54.64” diagonal)
    • Panel Technology
    • OLED
    • Response Time
    • 1 ms (G to G), 8 ms (MPRT)
    • Brightness
    • 100/400 cd/m2 (APL 100%/25%) *Average Picture Level
    • Aspect Ratio
    • 16:9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Viewing Angle (H x V)
    • 178 x 178
    • Orientation
    • Portrait
    • Operation Hours
    • 18 hrs / 7 days (moving video only)

CONNECTIVITY

    • Input
    • HDMI (1+1), DP (1+1)
    • Output
    • DP (1+1), Audio, IR out (w/RS232C OUT Port Share)
    • External Control
    • RS232C in/out (1+1), RJ45 in/out (1+1), IR receiver (1+1), USB 3.0 (1+1)

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Bezel Width
    • (Off-bezel, with Glass) 101.3 / 81.3 / 81.3 / 81.3 mm (U/B/L/R) (On-bezel, with Glass) 107.9 / 87.9 / 91.6 / 88.5 mm (U/B/L/R) (On-bezel, w/o Glass, Only Panel) 6.6 / 6.6 / 10.3 / 7.2 mm (U/B/L/R)
    • Dimensions (W x H x D)
    • (Head) 872.7 x 2,050.9 x 500 mm (with Stand Accessory) (T-Con Box) 312.2 x 213.4 x 16 mm (Signage Box) 412.6 x 222.4 x 64.3 mm
    • Weight
    • (Head) 37 kg (TBD) (ACC-S-EG5D) 53 kg (TBD) (T-Con Box) 1.6 kg (Signage Box) 4.3kg
    • Dimensions (Carton) (W x H x D)
    • 1,880 x 1,015 x 363 mm (Pallet: 1,800 x 363 x 120) 1,184 x 445 x 884 (ACC-S-EG5D)
    • Packed Weight
    • 78 kg (Glass Module 1ea, T-Con Box 2ea, Signage Box 2ea) TBD (ACC-S-EG5D)

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0°C to 40°C
    • Operation Humidity
    • 10 % to 80 %

SPECIAL FEATURES

    • Yes
    • Temperature sensor, Cooling FAN, ISM method, DPM select, DPM wake up, Energy saving, Motion eye care, File play with USB, Internal memory (64 GB), USB cloning, Calibration mode, PM mode, Fail over, DP daisy chain

POWER

    • Power Supply
    • 100 -240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • DPM
    • 3 W under
    • Power Off
    • 0.5 W under
    • Typ.
    • 190 W

STANDARD CERTIFICATION

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star
    • Yes / NA

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • Yes
    • OPS Type Compatible
    • Yes

SOFTWARE COMPATIBILITY

    • SuperSign C
    • Yes
    • SuperSign OLED
    • Yes

ACCESSORIES

    • Basic
    • Remote Controller (include battery 2ea), Power Cord, QSG, HDMI Cable (1m x 2ea for connection between T-Con box and signage box, 1.5m x 2ea), Power Hanness Cable (1m x 2ea for connection between T-Con box and signage box), IR receiver, Regulation Book, Phone to RS232C Gender (2 ea), Jack Cover, Signage Box Mounting Bracket, T-Con Box Mounting Bracket, FFC Cable Cover
    • Optional
    • OPS kit (KT-OPSA)
