KEY FEATURES

  • Brightness : 400 cd/m2
  • Bezel: 1.2 mm (Off bezel)

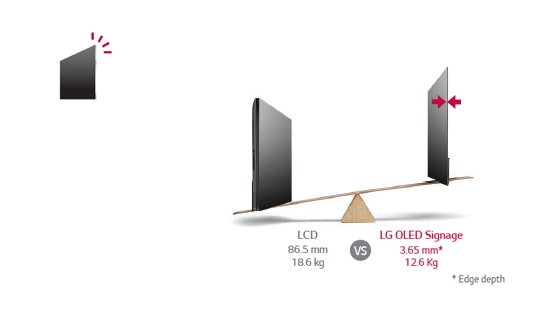

  • Depth: 3.65 mm (Module)
  • Interface: HDMI, DP, RS232C, RJ45, IR In, USB 3.0, USB 2.0
  • SuperSign W/Lite/C/N
Wallpaper OLED Signage

PANEL

    • Screen Size
    • 55"
    • Panel Technology
    • OLED
    • Response Time
    • 1 ms (G to G), 8 ms (MPRT)
    • Brightness
    • 100/400 cd/m2 (APL 100% / 25%) * Average picture level
    • Aspect Ratio
    • 16 : 9
    • Native Resolution
    • 1,920 x 1,080 (FHD)
    • Dynamic CR
    • 1,000,000 : 1
    • Viewing Angle (H x V)
    • 178 x 178
    • Surface Treatment
    • Hard coating (2H), Anti-reflection treatment of the front polarizer (Reflectance Typ.1.0%)
    • Orientation
    • Portrait and Landscape
    • Lifetime (Typ.)
    • 30,000 hrs
    • Operation Hours
    • 18 hrs / 7 days (moving video only)

CONNECTIVITY

    • Input
    • HDMI, DP
    • Output
    • DP, Audio
    • External Control
    • RS232C in/out, LAN in/out, IR Receiver, USB 2.0, USB 3.0

PHYSICAL SPECIFICATIONS

    • Bezel Color
    • Black
    • Packed Weight
    • 22.5 kg
    • Bezel Width
    • 1.2, 1.2, 1.2, 1.2 mm (U, B, L, R *Offset bezel)
    • Weight (Carton)
    • 1,383 x 834 x 252 mm
    • Dimensions (W x H x D)
    • Head: 1,227 x 702.1 x 3.65 mm, Signage Box: 420 x 230 x 75 mm
    • Weight
    • Head: 5.5 kg, Signage Box: 5.3 kg, Wall Bracket: 1.8 kg

SPECIAL FEATURES

    • Yes
    • Temperature Sensor, Cooling FAN, Source Selection, DPM Select, Energy Saving, Motion Eyecare, File Play with USB, PIP/PBP, Internal Memory (64 GB), Wi-Fi Dongle Ready, USB Cloning, Contents Scheduling, Local Time Auto Setting, Failover, Mirroring, SoftAP, BEACON, DP daisy chain

ENVIRONMENTAL CONDITIONS

    • Operating Temperature Range
    • 0 °C to 40 °C
    • Operation Humidity
    • 10 % to 80 %

POWER

    • Power Supply
    • 100–240V~, 50/60Hz
    • Power Type
    • Built-In Power
    • DPM
    • Less than 3 W
    • Power Off
    • Less than 0.5 W
    • Typ.
    • 190 W

STANDARD CERTIFICATION

    • Safety
    • UL / cUL / CB / TUV / KC
    • EMC
    • FCC Class "A" / CE / KCC
    • ErP / Energy Star
    • Yes / NA

MEDIA PLAYER COMPATIBILITY

    • External Media Player Attachable
    • Yes
    • OPS Type Compatible
    • Yes

SOFTWARE COMPATIBILITY

    • SuperSign C
    • Yes
    • SuperSign OLED
    • Yes

ACCESSORIES

    • Basic
    • Remote controller (includes 2 batteries), Cable (connection between screen and signage box), Power cord, DP cable, RS-232C cable, RS-232C gender, LAN cable, IR receiver, Manual (ESG, EIG), Wall-mount plate (includes screws), Harness locking cover, Set install guide
    • Optional
    • Signage box bracket (U-Leg), FPC cable cover
