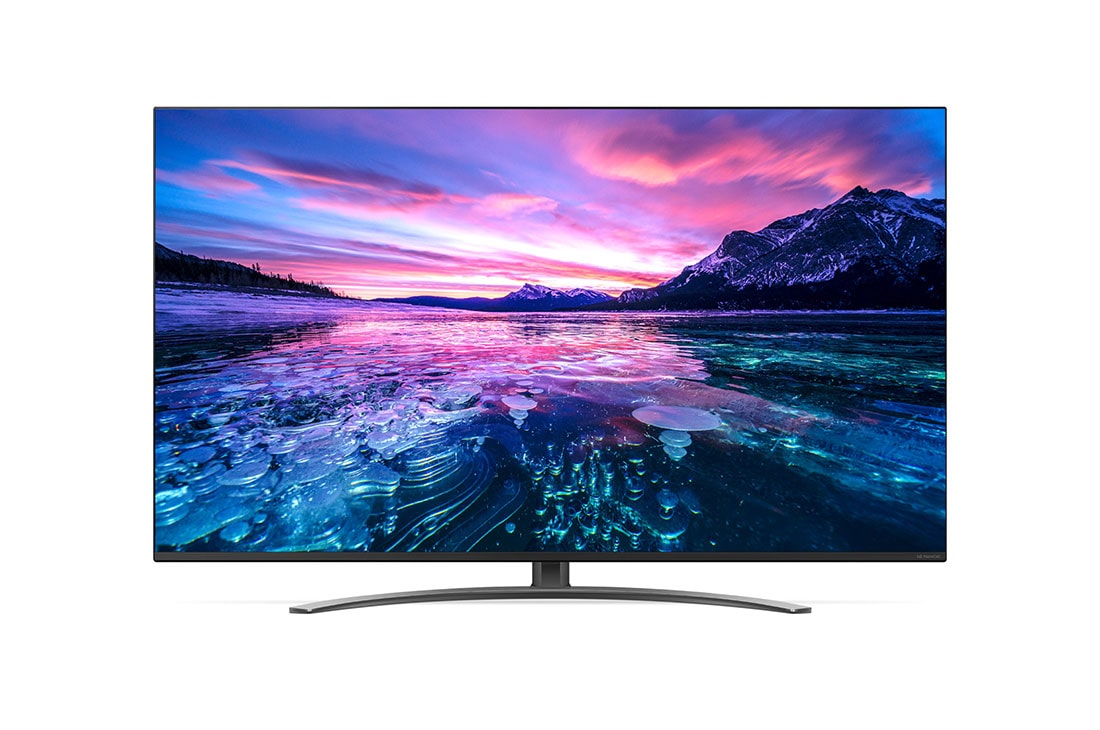

LG US761H Series, LG US761H Series, front view with inscreen, 65US761H, 65US761H0GD, thumbnail 1

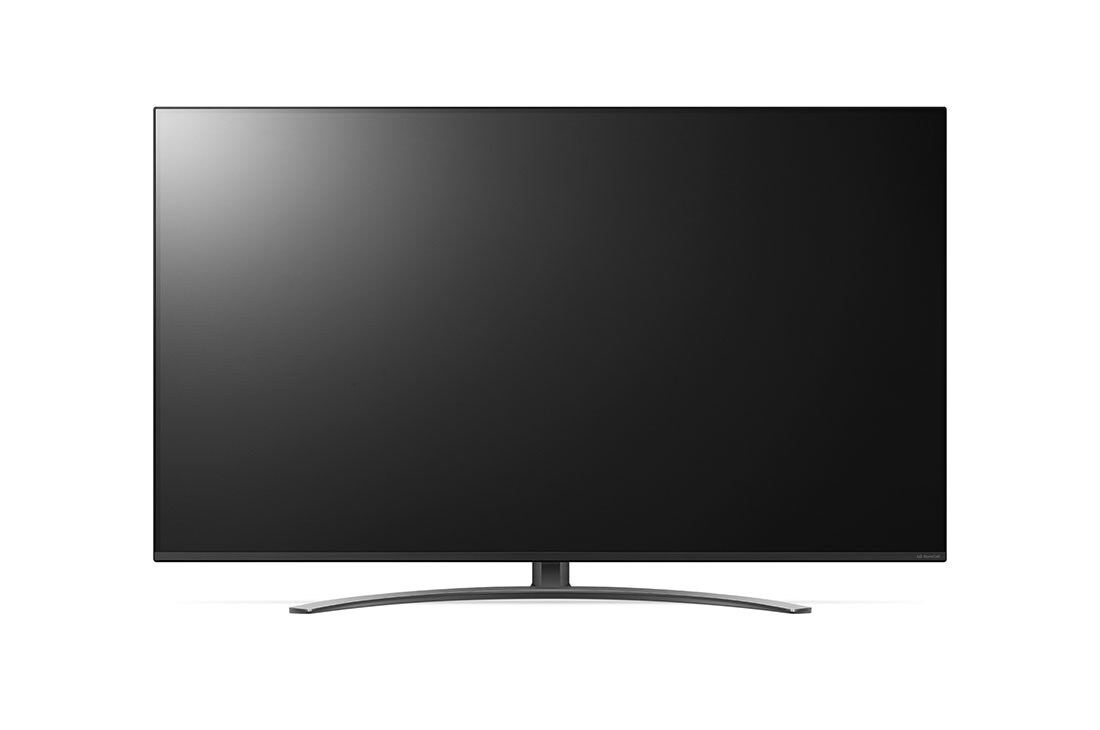

LG US761H Series, LG US761H Series, front view, 65US761H , 65US761H0GD, thumbnail 2

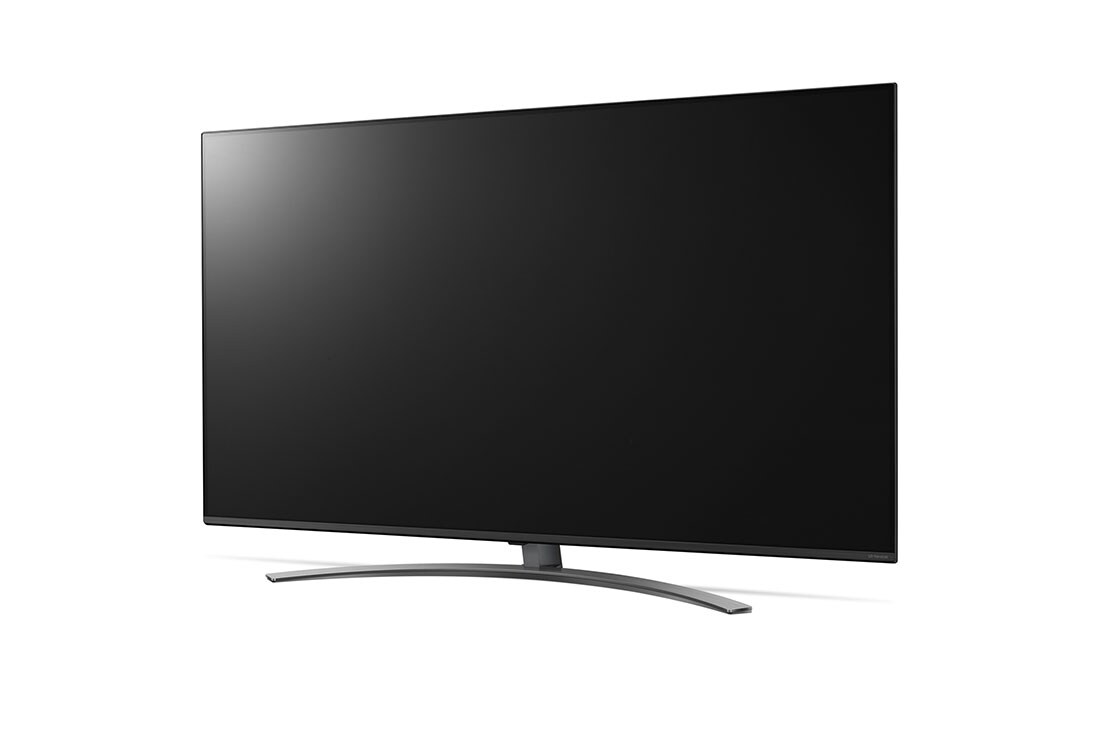

LG US761H Series, LG US761H Series, left 15 degree side, 65US761H, 65US761H0GD, thumbnail 3

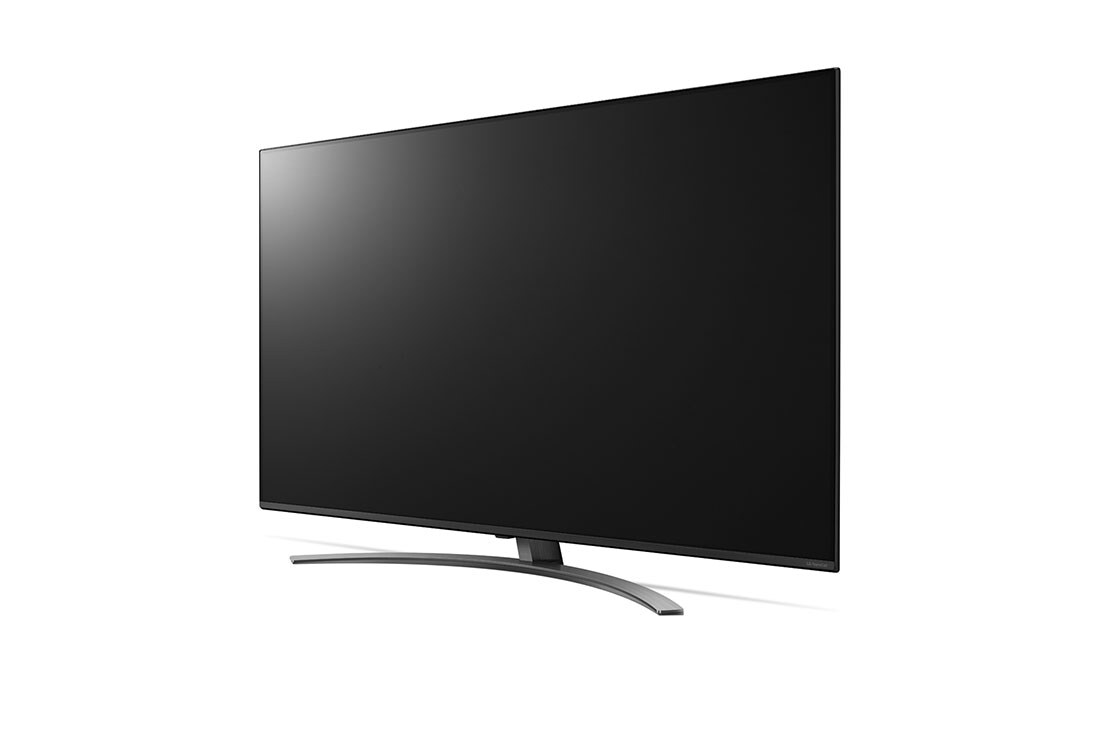

LG US761H Series, LG US761H Series, left 30 degree side, 65US761H , 65US761H0GD, thumbnail 4

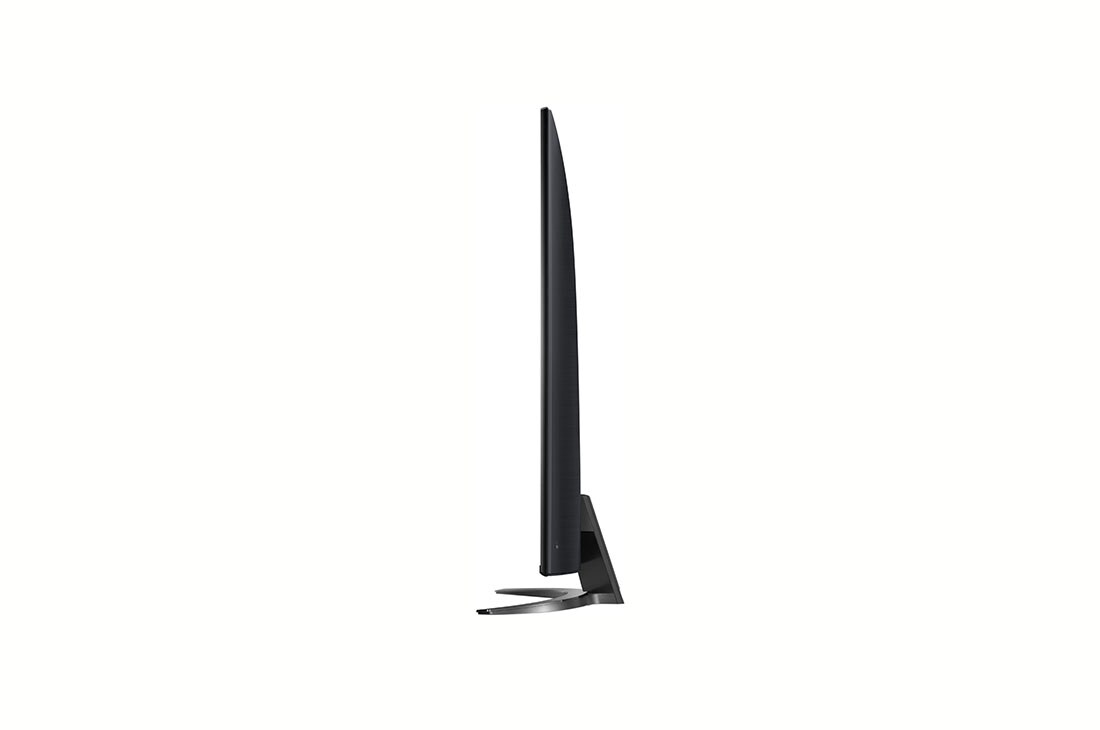

LG US761H Series, LG US761H Series, left side view, 65US761H, 65US761H0GD, thumbnail 5

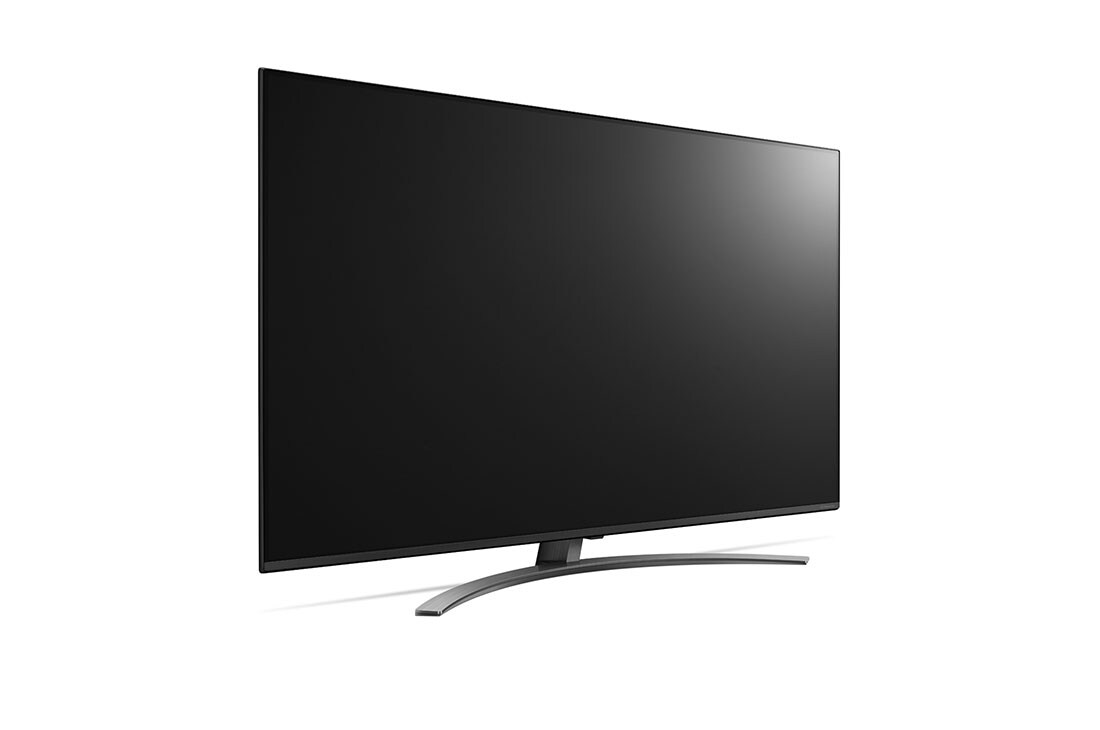

LG US761H Series, LG US761H Series, right 30 degree side view, 65US761H, 65US761H0GD, thumbnail 6

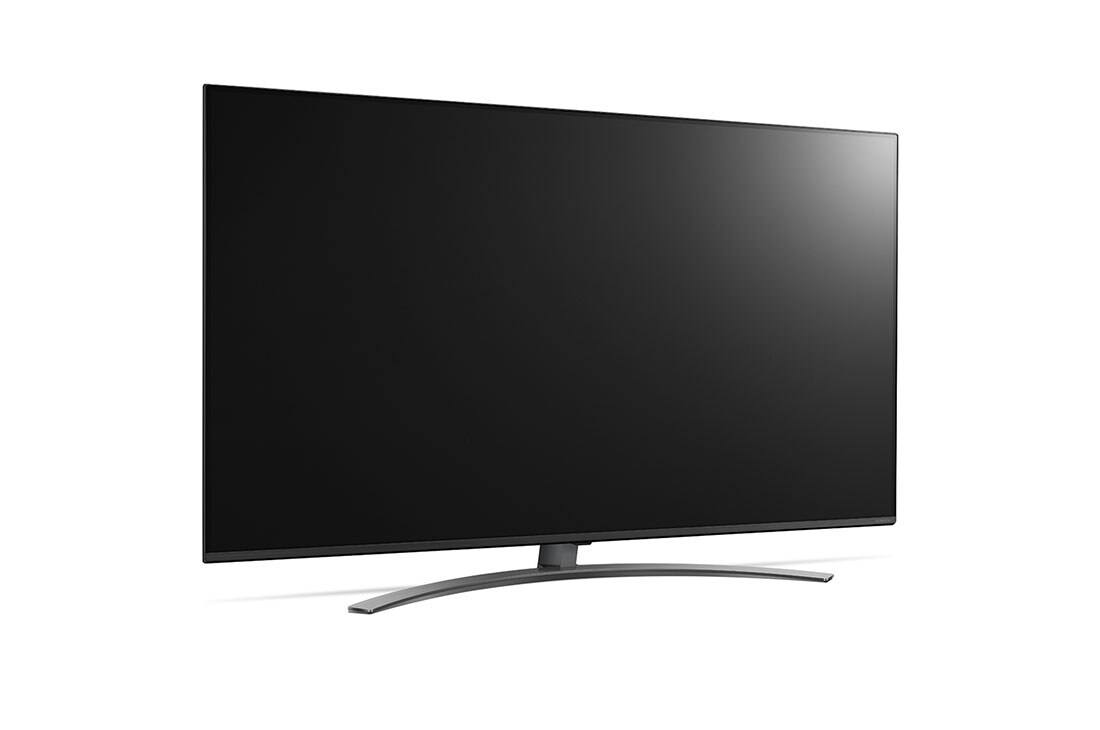

LG US761H Series, LG US761H Series, right 15 degree side view, 65US761H, 65US761H0GD, thumbnail 7

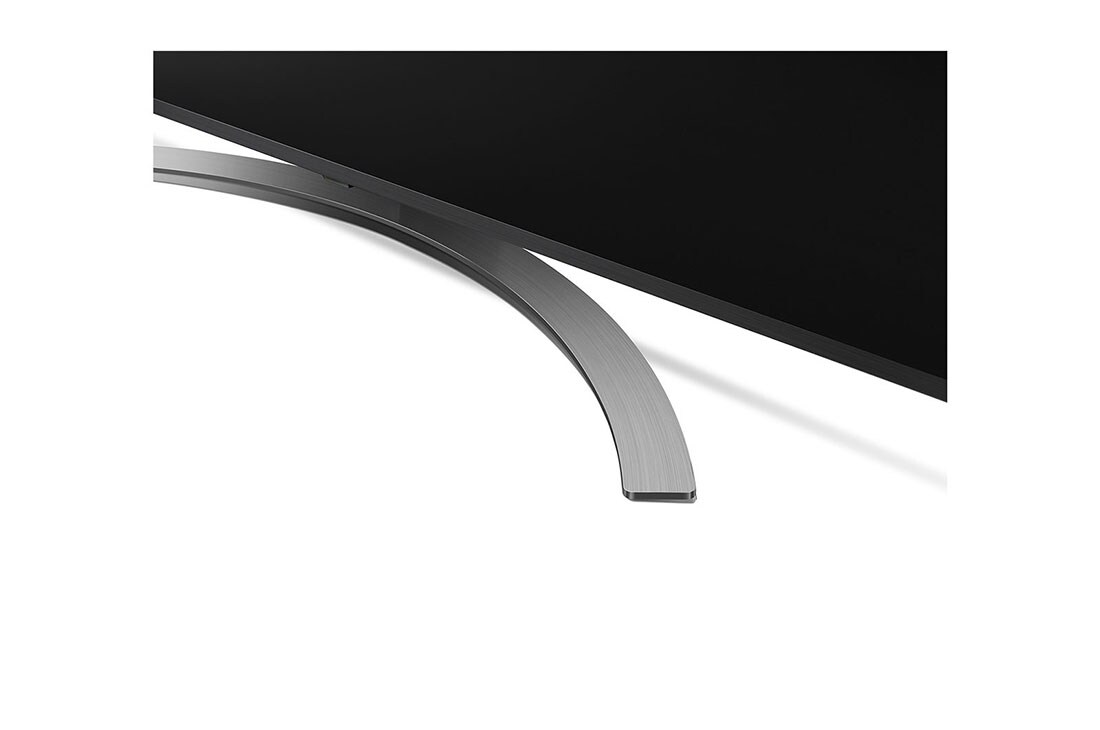

LG US761H Series, LG US761H Series, close-up image of bottom right corner, 65US761H, 65US761H0GD, thumbnail 8

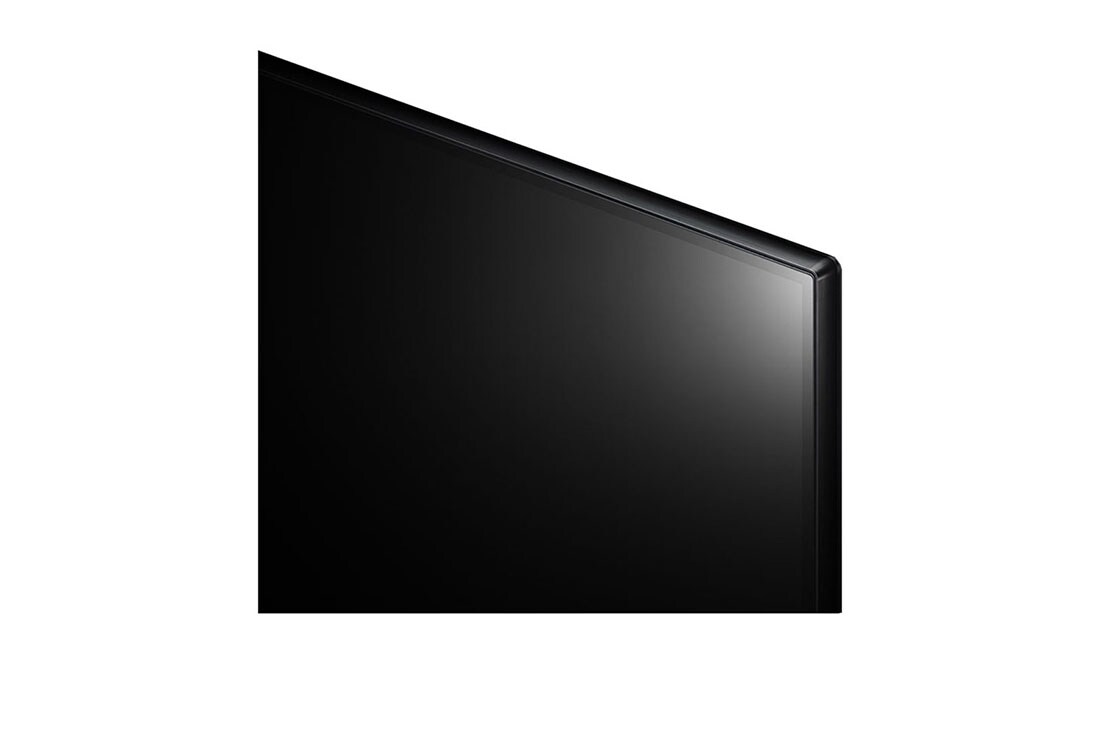

LG US761H Series, LG US761H Series, close-up image of top right corner, 65US761H, 65US761H0GD, thumbnail 9

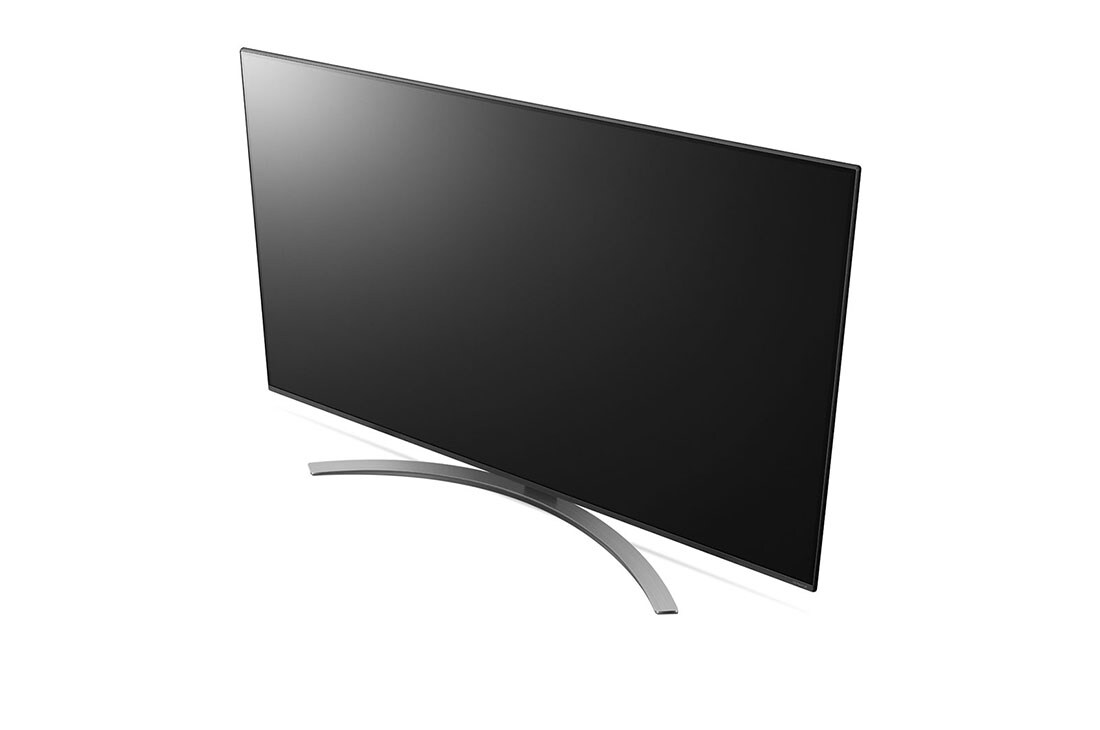

LG US761H Series, LG US761H Series, image taken from the top right, 65US761H, 65US761H0GD, thumbnail 10

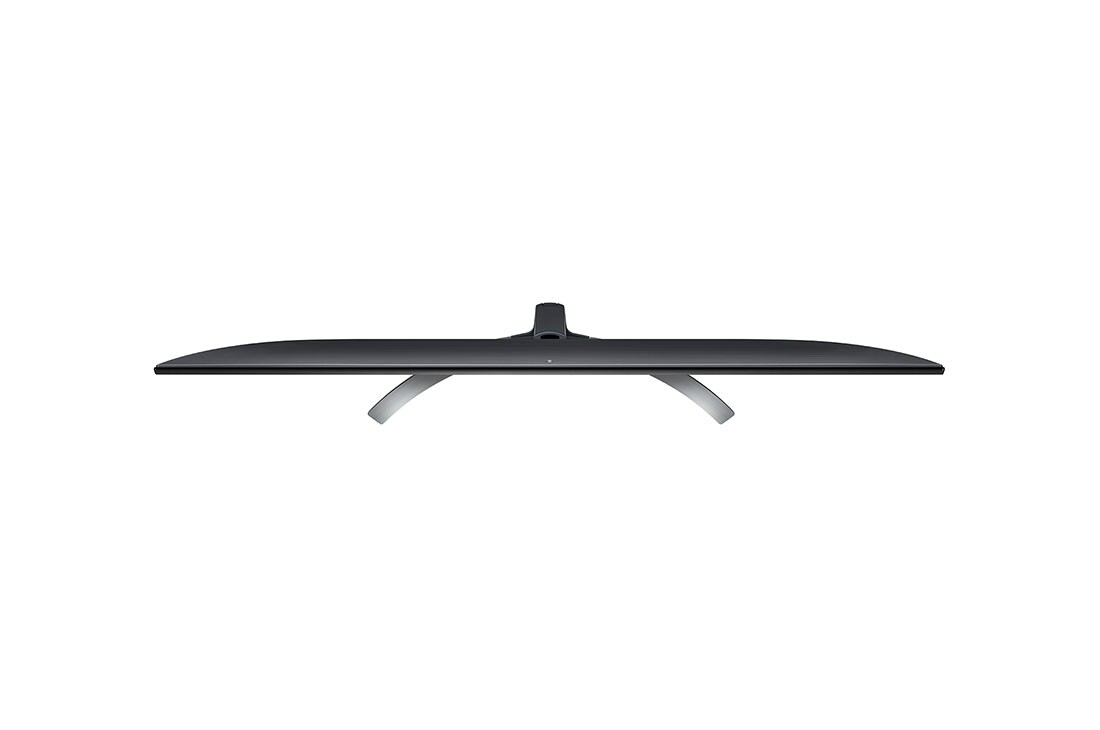

LG US761H Series, LG US761H Series, top view, 65US761H, 65US761H0GD, thumbnail 11

ADD TO WISHLIST

Discontinued

65US761H0GD component-copyModelName

US761H Series

Name: US761H Series
Brand: LG UAE
SKU: 65US761H0GD
Rating: 0 (0 reviews)

Key Features

Pro:Centric Hotel Management Solution
NanoCell Display
Gallery Mode
Soft AP with Bridge Mode

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pro:Centric Hotel Management Solution
NanoCell Display
Gallery Mode
Soft AP with Bridge Mode

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

US761H Series

4K UHD Hospitality TV with NanoCell Display and Pro:Centric Direct

US761H with NanoCell Display features UHD resolution that creates vivid details and a virtually flawless picture. And it features Pro:Centric technologies for easy management, configuration and updates on guest room TVs via a centralized management system.

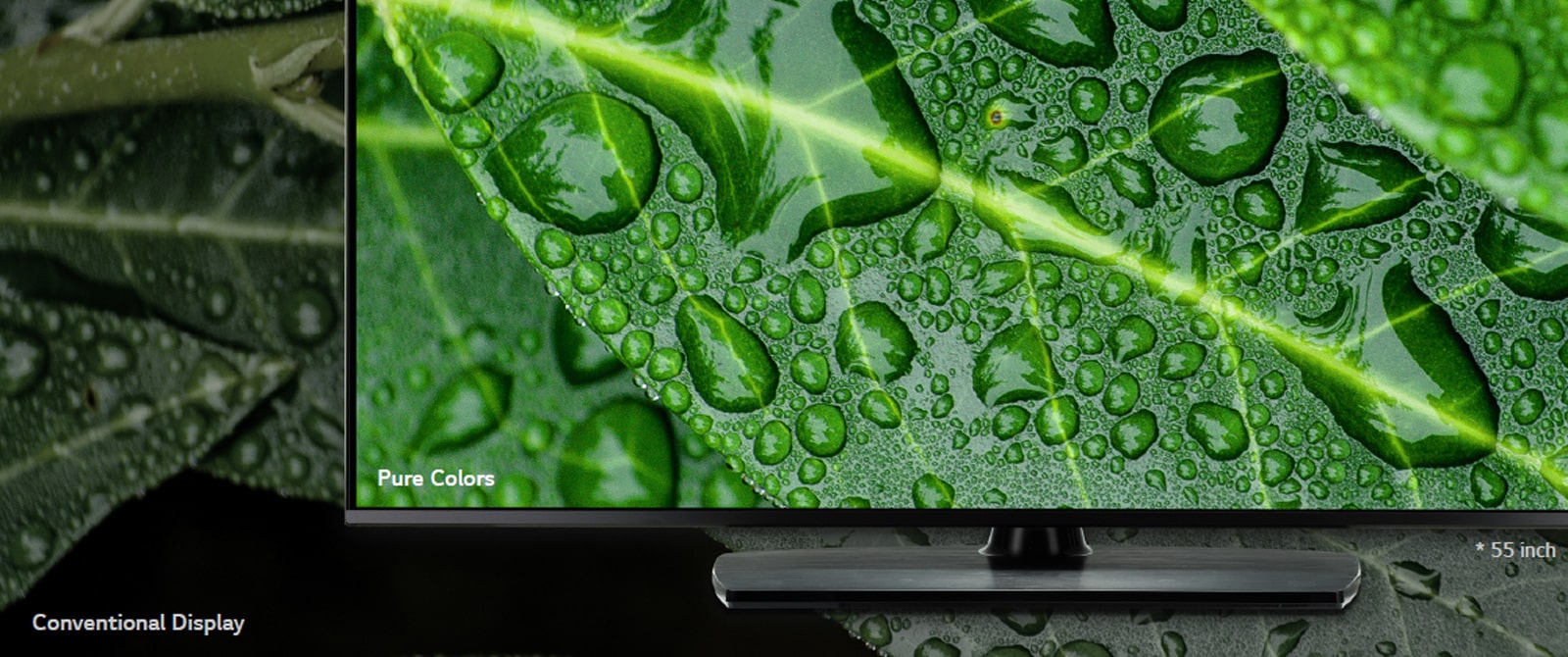

Real 4K Made by Pure Colors

NanoCell TV delivers a broad spectrum of color and lifelike accuracy with advanced NanoCell technology, which makes LG Hotel TV the best ever. Discover the more brilliant and clear visual experience with Real 4K that NanoCell TV delivers.

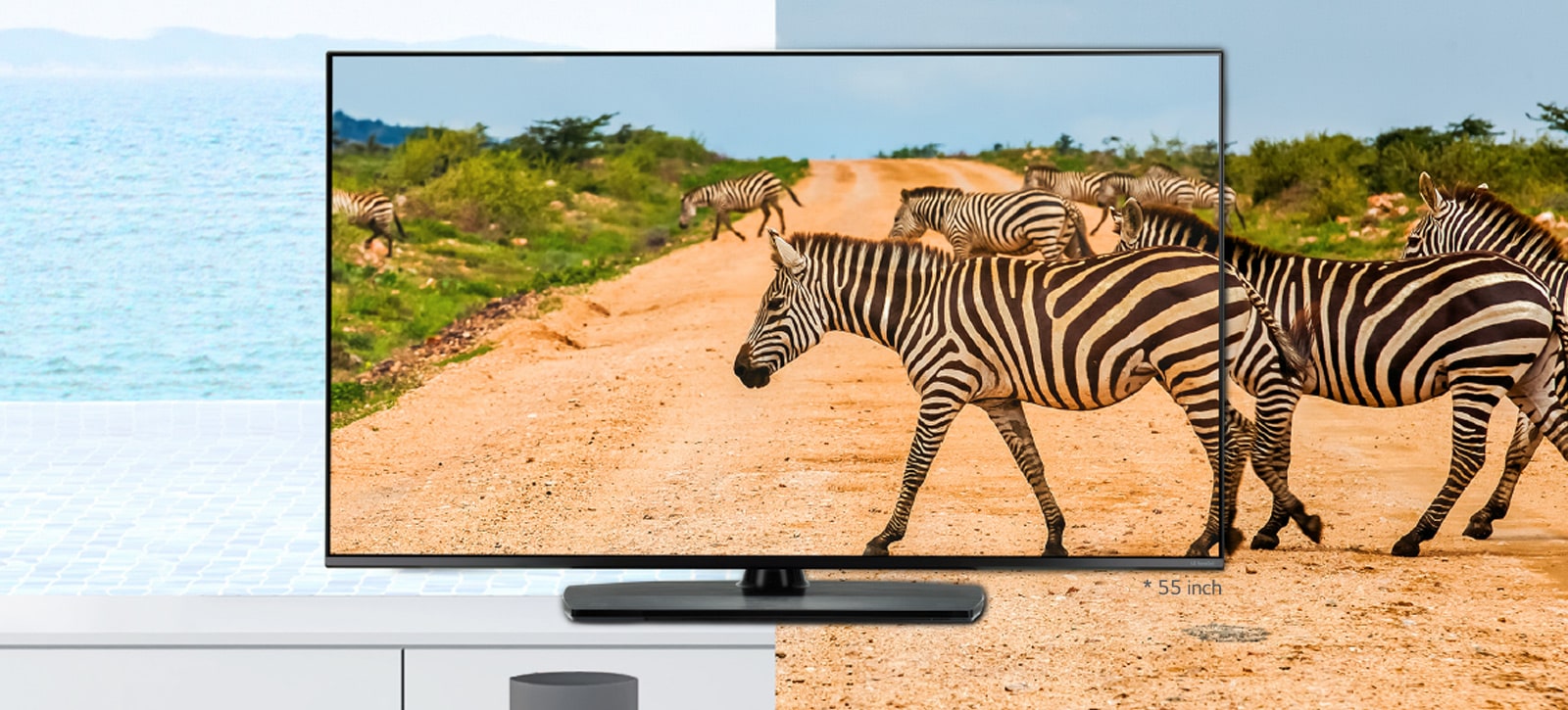

Nano Bezel Adds Sophisticated Ambiance

With its minimal Nano Bezel, NanoCell is designed to blend into any interior and delivers immersive viewing experience without any interruption.

*The above image is for illustrative purposes only.

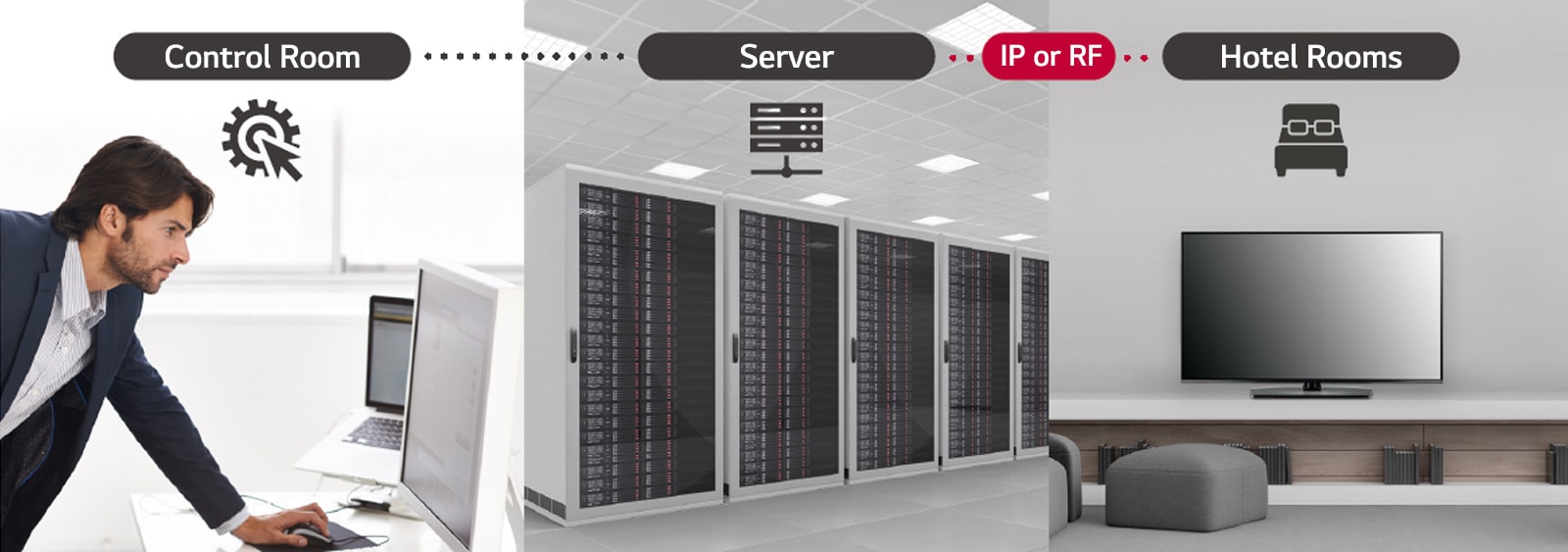

Pro:Centric HOTEL MANAGEMENT SOLUTION

The hotel content management solution Pro:Centric Direct offers easy and simple editing tools, making it easy to perform service and IP network-based remote management with a single click. The Pro:Centric Direct solution enables users to edit their interface easily by providing customized interface and efficiently manages all TVs in the room.

*Some features may not be supported based on PCD versions.

More Innovative LG webOS 5.0

Explore the latest LG Smart TV features, and discover TVs that deliver innovative technology, remarkable clarity, and true-to-life colors. Newly added Mood Display & Gallery Mode enable you to utilize the TV as a customized clock and an artwork which perfectly harmonizes with your space and life.

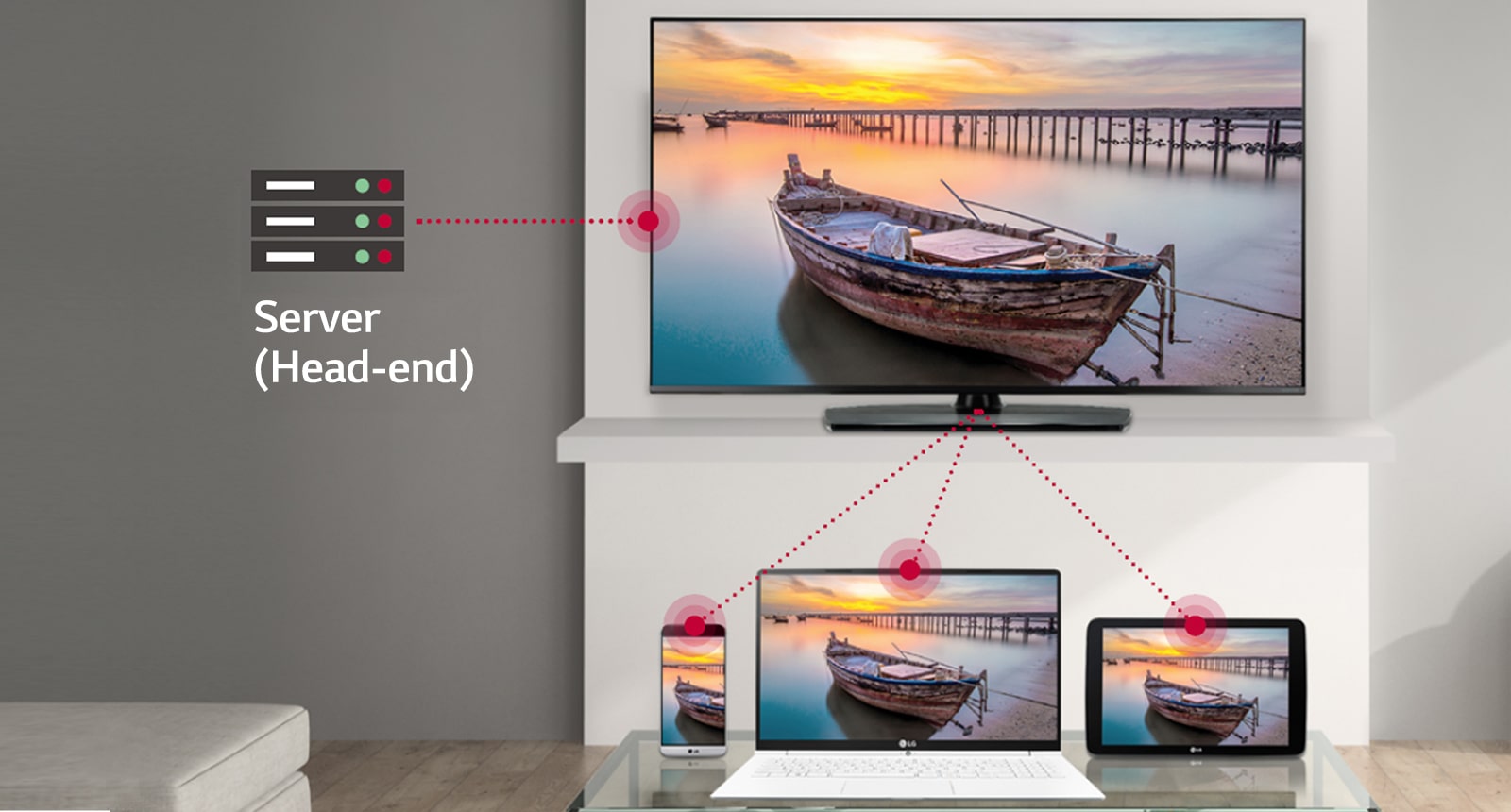

Soft AP

Software-enabled Access Point (Soft AP) is a "virtual" Wi-Fi feature that uses TV as a wireless hotspot, enabling guests to connect their own devices to the Soft AP. It supports Bridge Mode, allowing administrators to manage in-room Soft AP information such as signal level, Soft AP passwords, etc.

*Soft AP should be set in the installation menu after the TV is turned on.
*Smart Mirroring may not be operated at the same time.

Welcome Video / Screen

With the capability to display several images, Commercial Lite TVs allow for a greater variation of greeting messages in hotel rooms which make customers feel more welcome and cared for.

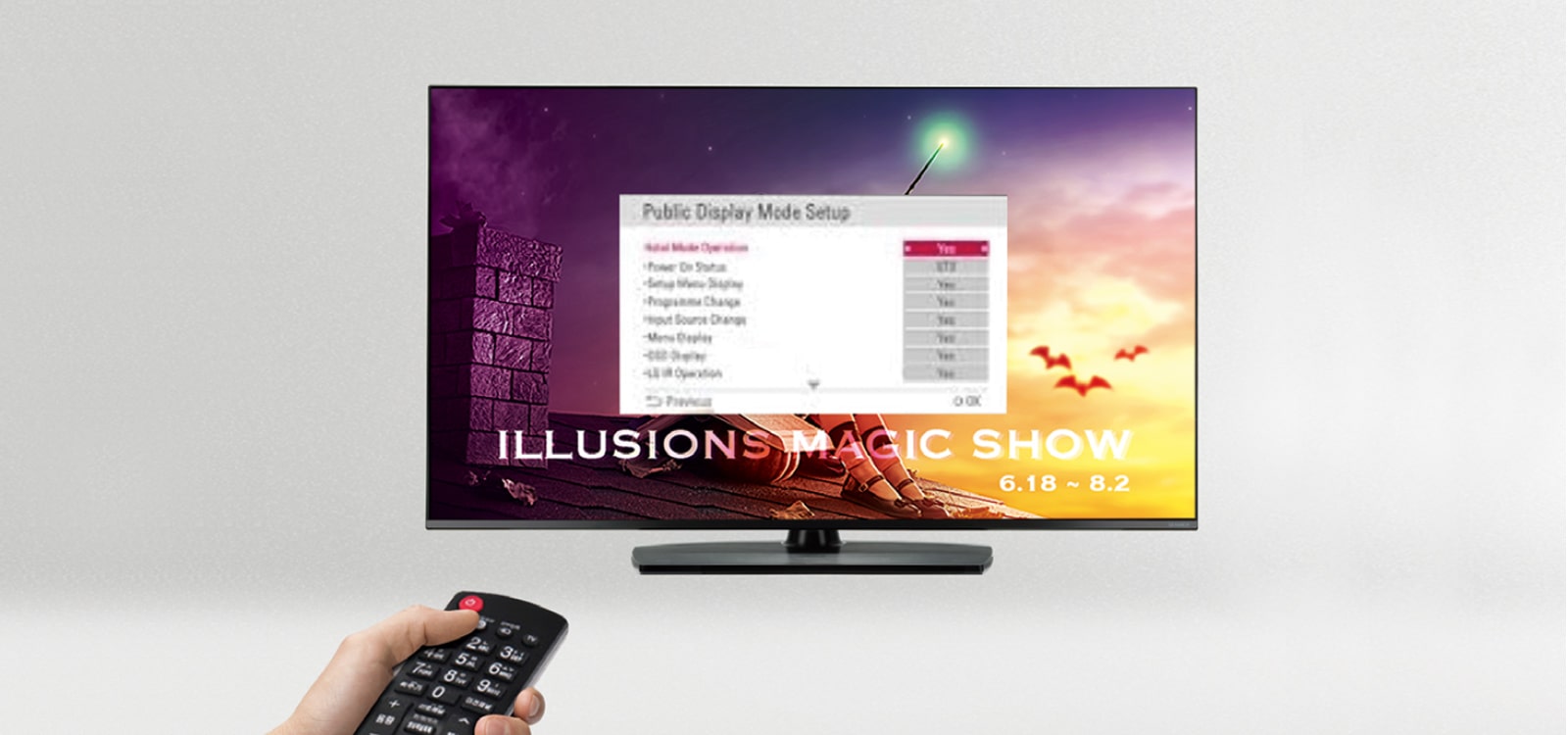

Hotel Mode
(Public Display Mode)

From channel selection to volume level, you can control the TV settings in business areas. Public Display Mode also enables you to restore default settings, as required, on the TVs.

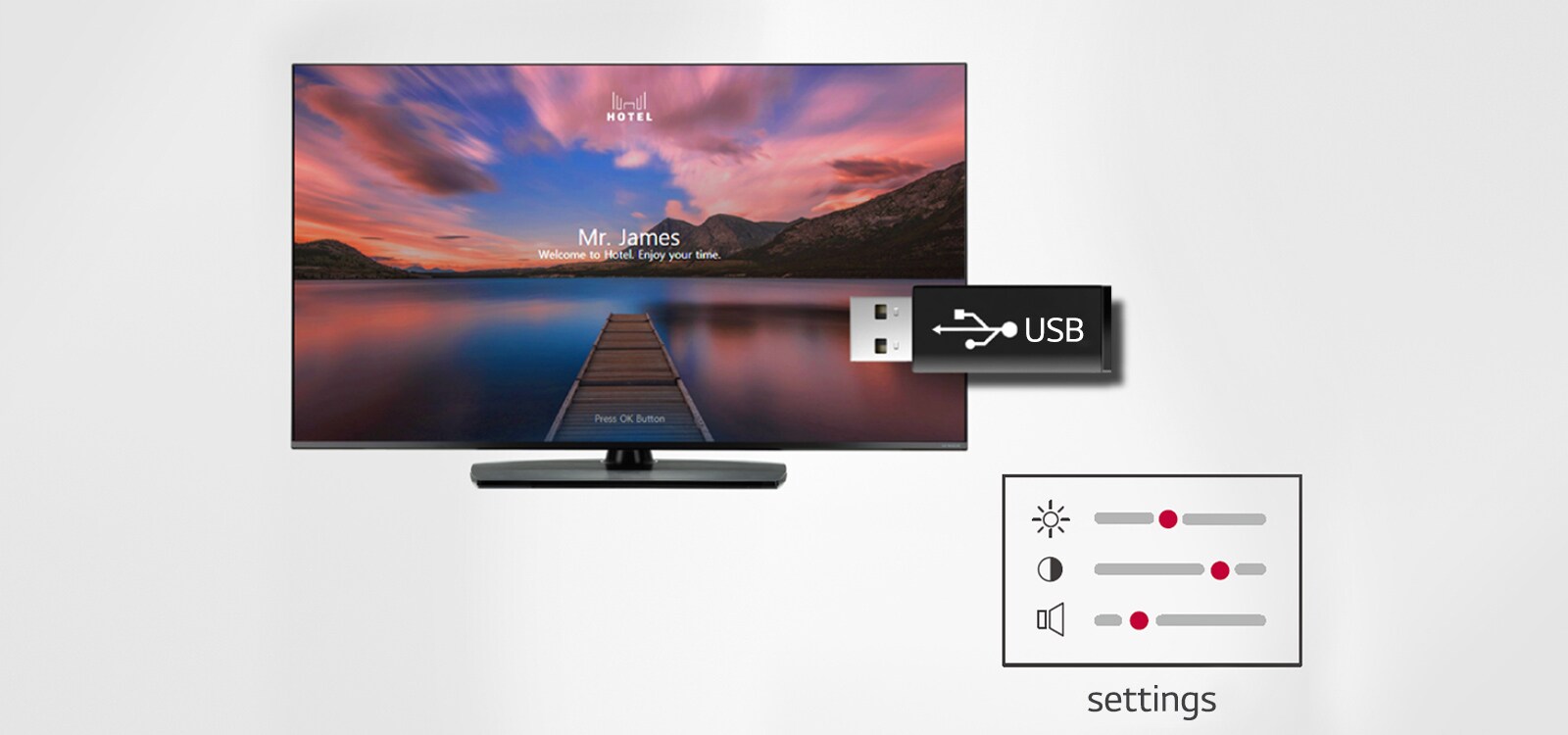

USB Cloning

USB data cloning makes managing multiple displays more efficient for optimal operation. Instead of setting up each display one by one, data can be copied to a USB for one display and can be sent to the other displays through a USB plug-in.

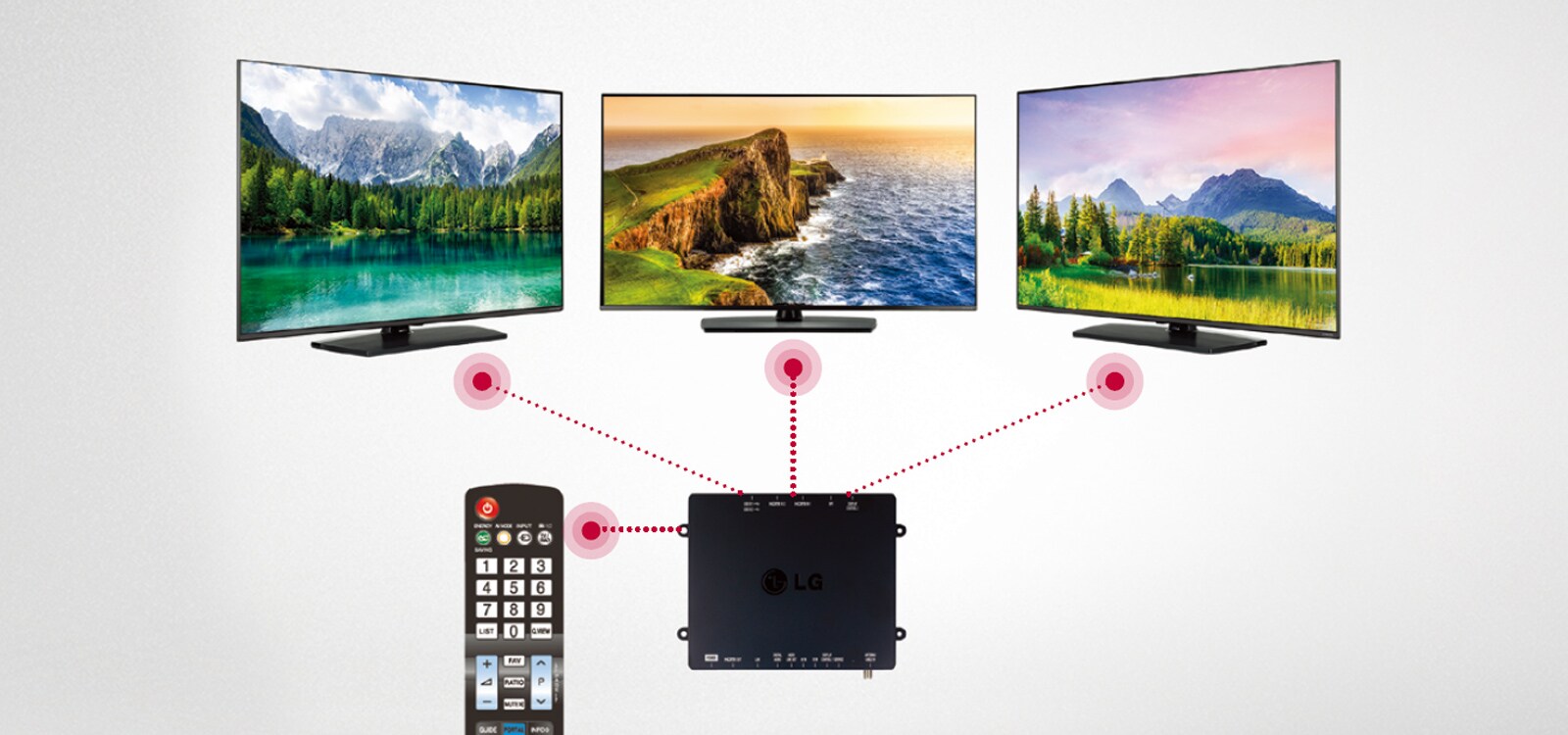

IR Out

Using the interactive set-top box, all LG TVs can be controlled with a single remote control.

DESIGN

Tool Name

65": SM85

Stand Type

1 pole (Fixed)
front color

Nano Bezel (Cinema Screen)

DISPLAY

Inch

65"

Resolution

3840 x 2160 (UHD)
Backlight Unit Type

Edge

Nano

Yes
Brightness

400nit

Dynamic Contrast Ratio (Dynamic MCI (Hz))

1,000,000:1
Response Time(G to G, ms)

8

Refresh Rate

60Hz
Life span (hrs)

30,000

VIDEO

SoC

K6Hp

SoC (Marketing Name)

Quad
HDR_HDR 10 Pro

Yes

HDR_HLG

Yes

AUDIO

Speaker (sound output)

10W + 10W

Speaker System

2.0 ch
AI Sound

Yes

One Touch Sound Tuning

Yes (Ready)
LG Sound Sync

Yes (Required Bluetooth)

BROADCASTING SYSTEM

Digital (Terrestrial,Cable,Satellite)

DVB-T2/C/S2

Analog (NTSC / SECAM / PAL)

PAL/SECAM
Teletext / Auto Teletext

Yes/Yes

HOSPITALITY SOLUTION

Pro:Centric Smart

Yes (Smart)

Data Streaming (IP & RF)

Yes
HCAP (GEM/FLASH/HTML)
※ Service Carousel (TLL/XML)

GEM/HTML5

IP Return path

Yes
Multicast / Unicast ready

Yes/Yes

webRTC (Real Time Communication)

Yes
Pro:Centric Direct (version)

4.0

Pro:Centric Application (version)

Yes (PCA3.8)
PCS400R

Yes

Standalone-Quick Menu (Version)

Yes (4.0)
DRM-Pro:Idiom (S/W Type)

Yes

DRM-Pro:Idiom (Mobile, Lite)

Yes

SMART FUNCTION

Commercial Smart UX-webOS version

Yes (webOS 5.0)

Commercial Smart UX-Gallery Mode

Yes
Commercial Smart UX-Quick Access

Yes

Commercial Smart UX-Web Browser

Yes
Commercial Smart UX-CP App

Yes

Commercial Smart UX-Magic Remote Compatibility

Yes (Ready, MR18HA)
Commercial Smart UX-SW Clock (World Clock / Alarm)

Yes

Commercial Smart UX-Mood Display

Yes
Connectivity-Soft AP

Yes

Connectivity-WiFi (version)

Yes (802.11ac)
Connectivity-Screen Share (Miracast)

Yes

Connectivity-Smart Share (DLNA)

Yes
Connectivity-LG TV Plus App

Yes

Connectivity-DIAL

Yes
Connectivity-Bluetooth Audio Playback

Yes

Connectivity-LG Sound Sync/bluetooth

Yes
Connectivity-Mobile Connection Overlay

Yes

Artificial Intelligence-Voice Recogion (Standalone/Solution)

Yes
Artificial Intelligence-IoT

Yes

OTHER FEATURE

Ease Installation-EzManager

Yes

Ease Installation-USB Cloning

Yes
Management-Wake on RF

Yes

Management-WOL / WOWL

Yes
Management-SNMP

Yes

Management-Diagnostics

Yes (IP Remote)
Management-SI Compatible

Yes (TV Link Tuner, RS232C)

Management-HTNG-CEC

Yes (1.4)
Management-Simplink(HDMI-CEC)

Yes (1.4)

Management-IR Out

Yes (HDMI, RS232C)
Management-Multi IR Code

Yes

Hospitality Feature-Hotel Mode / PDM / Installer Menu

Yes (Installer Menu)
Hospitality Feature-Lock mode

Yes (Limited)

Hospitality Feature-Port Block

Yes
Hospitality Feature-Welcome Video

Yes

Hospitality Feature-Welcome Screen (Splash Image)

Yes
Hospitality Feature-Insert Image

Yes

Hospitality Feature-One Channel Map

Yes
Hospitality Feature-IP Chanenel Manager

Yes

Hospitality Feature-External Speaker Out

Yes (Int/Ext.Variable/Fixed)
Hospitality Feature-Instant ON

Yes

Hospitality Feature-External Power Out

Yes
Hospitality Feature-V-Lan Tag

Yes

Hospitality Feature-RJP (remote jack pack) Compatibility

Yes
LG/Teleadapt (RS232C), Teleadapt/Guestlink (HDMI CEC)
Hospitality Feature-External Clock Compatibility

Yes (LEC-005)

Setting Option-Auto Off / Sleep Timer

Yes/Yes
Setting Option-Energy Saving mode

Yes

VERTICAL FUNCTION

Hospital-Healthcare Headphone Mode

Yes

Cruise-Hybrid Caption (Closed Caption Digital Only)

Yes
Signage (Corporate/Retail)-RTC (Real Time Clock)

Yes

Signage (Corporate/Retail)-NTP sync timer

Yes (Clock Setup NTP)
Signage (Corporate/Retail)-BEACON

Yes

Signage (Corporate/Retail)-Video Tag

Yes (2 Supported) (MR)

JACK INTERFACE

Set Side-HDMI In

1 (2.0)

Set Side-USB

2 (2.0)
Set Side-CI Slot

1

Set Rear-HDMI In (HDCP)

2 (2.0)
Set Rear-Headphone Out

1

Set Rear-RF In

2
Set Rear-Digital Audio Out (Optical)

1

Set Rear-RS-232C(D-Sub 9pin / Phone jack)

1 (D-Sub 9pin)
Set Rear-Clock Interface (RJ12)

1

Set Rear-RJ45 (Usage Purpose)

2 (Ethernet, Aux)
Set Rear-External Speaker Out(3.5mm phone jack)

2 (Spk-out 1, 4W (Stereo, R: 2.0W, L: 2.0W, 8Ω Vol. Control 1)

ETC

VESA Compatible

300 x 300

Anti-theft System-Kensington Lock

Yes

MECHANIC

Product Weight-Weight without Stand

24.1

Product Weight-Weight with Stand

25.8
Product Weight-Weight in Shipping

33.3

Product Size-Size without Stand

1451 x 840 x 64
Product Size-Size with Stand

1451 x 910 x 323.7

Product Size-Size in Shipping

1600 x 1035 x 207
Product Size-Bezel Width (L/R/U/B) : On Bezel

11.3/11.3/11.3/19.8

Product Size-Bezel Width (L/R/U/B) : Off Bezel

5.0/5.0/5.0/16.6

POWER

Power Supply (Voltage, Hz)

AC 120 V ~ 50 / 60 Hz

Standby Power Consumption

0.5W Under

REQUIRED LISTING(CERTIFICATION)

Safety

CB

EMC

CE

ACCESSORY

Remote type

S-Con/MMR (Option)

Power Cable

Yes (1.55M, Angle Type)
