Pro:Centric SMART Set Top Box

Enjoy Seamless and Smart TV with Pro:Centric Set Top Box

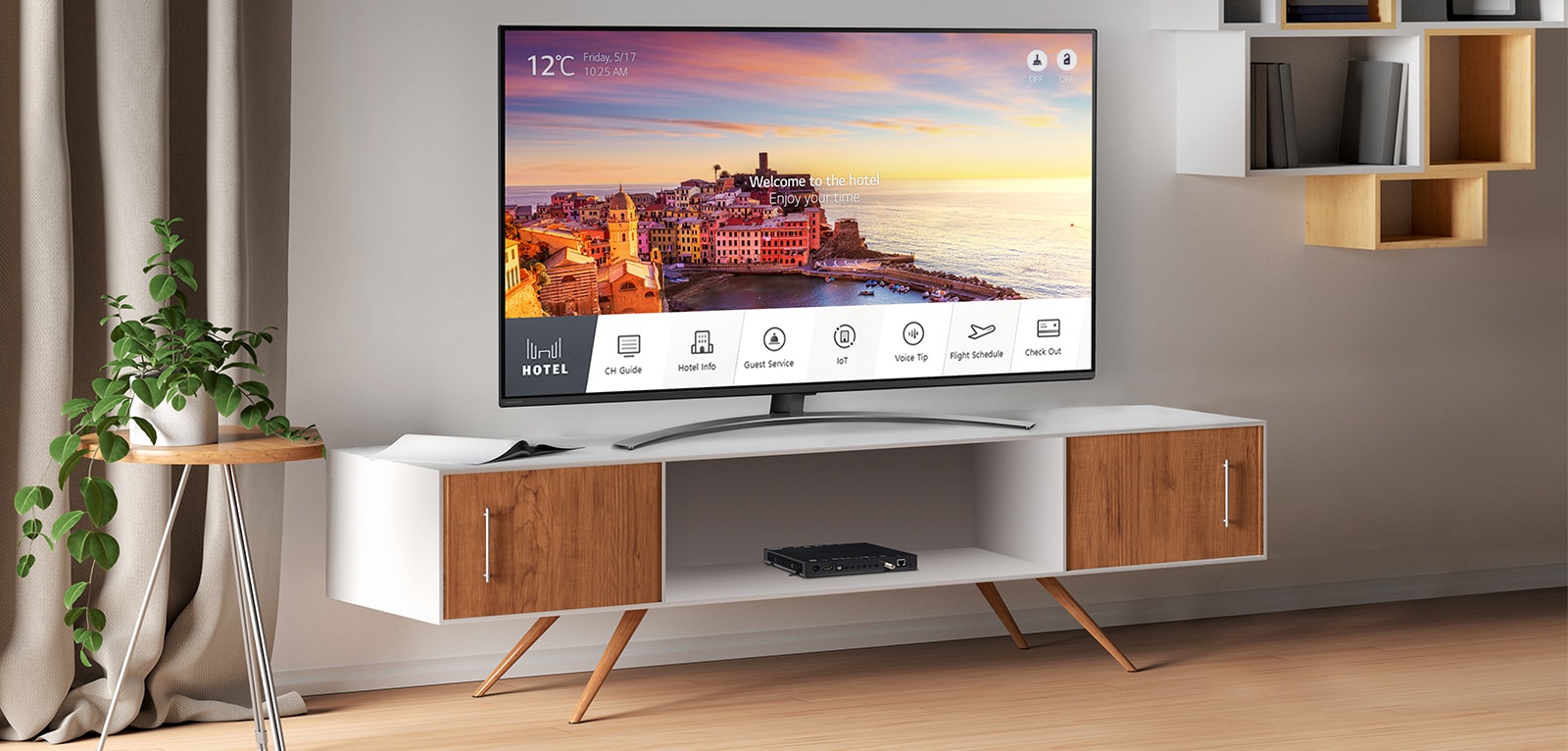

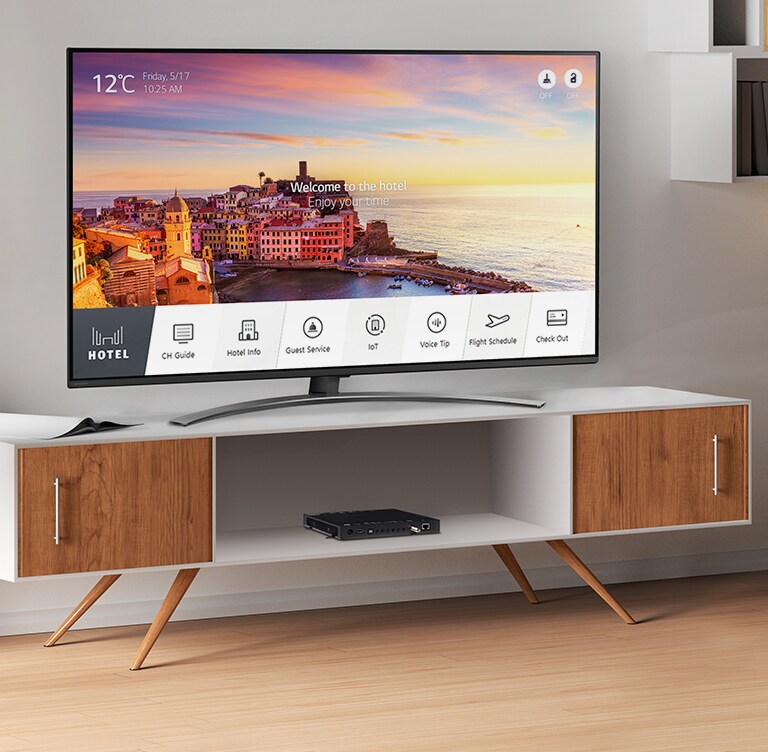

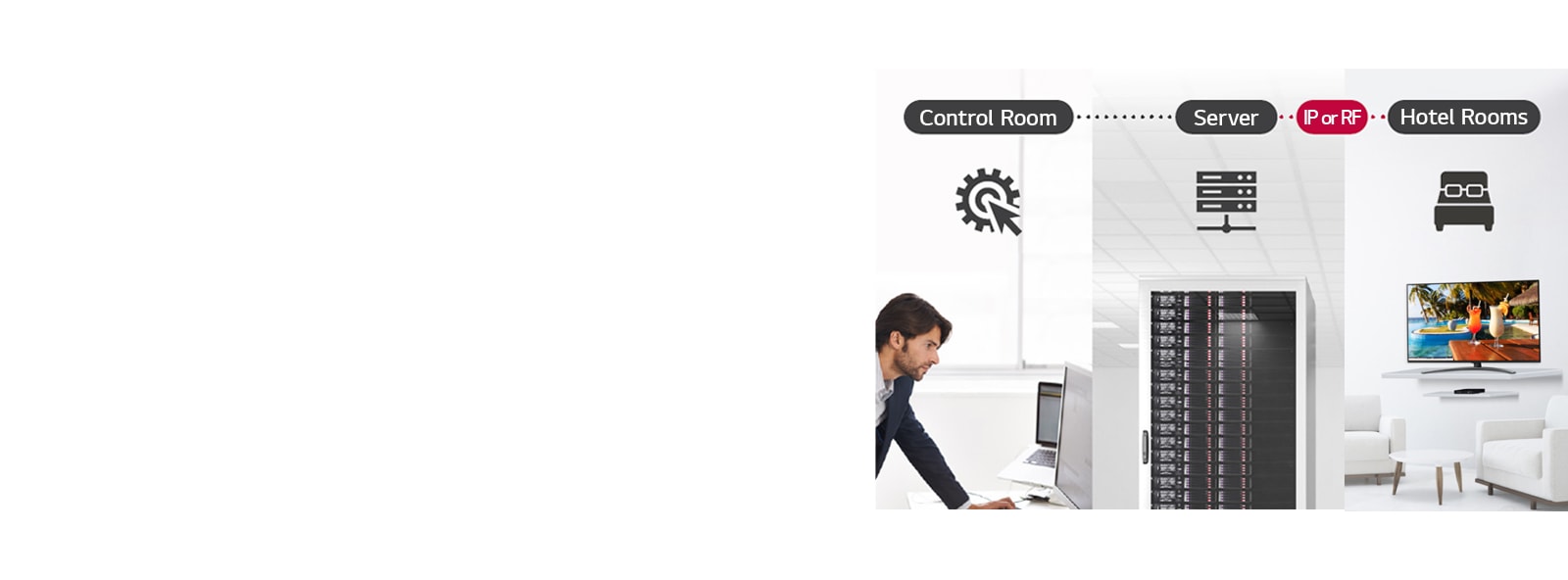

There is a simulated image to show Pro:Centric Set Top Box, STB-6500, installed in the hotel room. The TV connected to STB-6500 provides various information and services to guests. There is a simulated image to show Pro:Centric Set Top Box, STB-6500, installed in the hotel room. The TV connected to STB-6500 provides various information and services to guests.
* All images in this web page are for illustrative purposes only and may differ from the actual product.
* Actual UI may differ
* Some devices may have limited compatibility, thus may not support voice control and IoT function.
* The output resolution should be set and selected 2160p, and the native resolution of the connected display panel should support Ultra HD. For example, 2160p requires a UHD display panel.

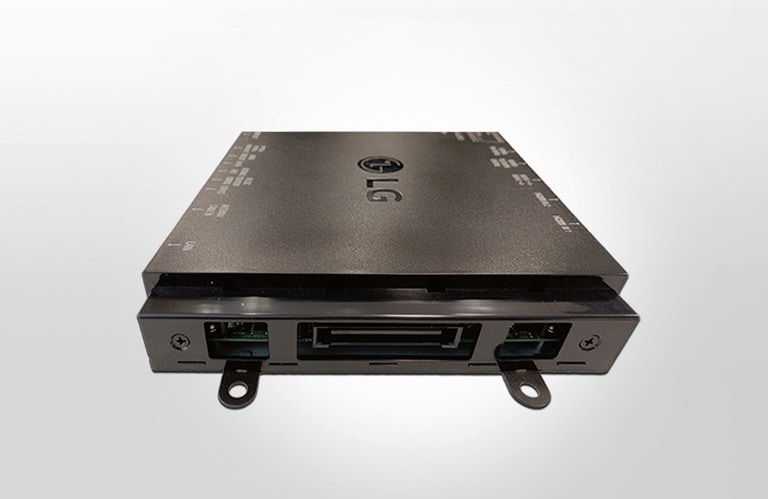

* The external modules must be tested for compatibility with STB-6500.
* The devices must be DLNA certified to support this feature.

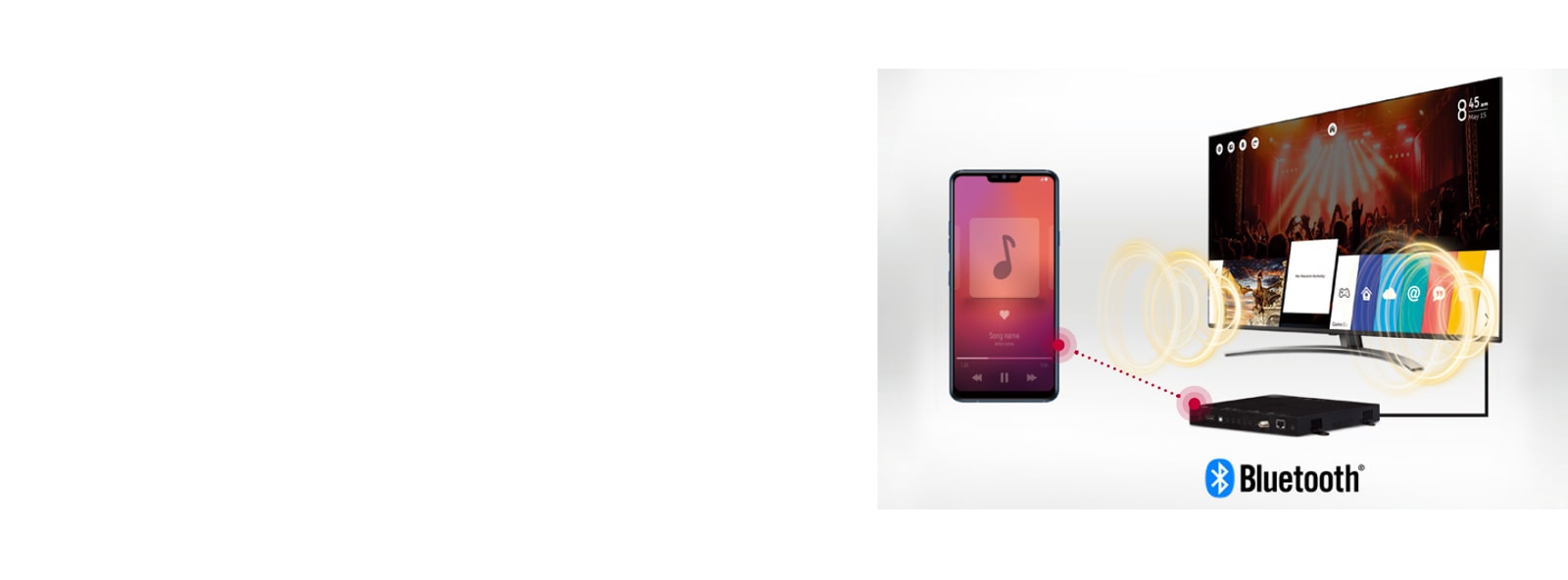

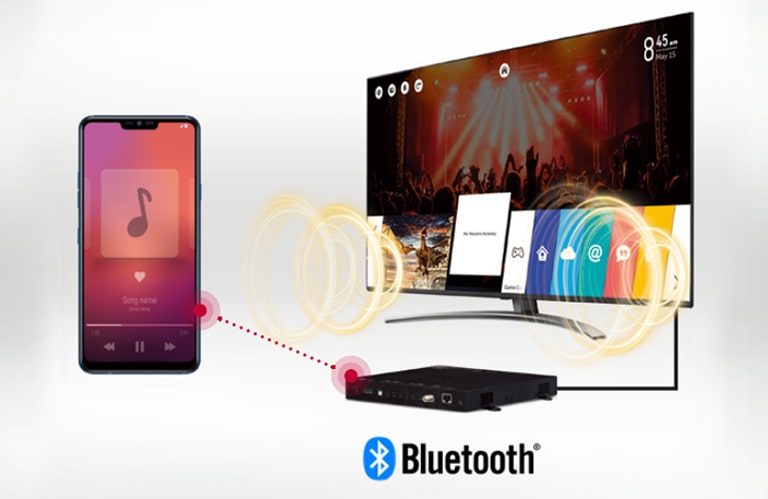

* Support devices for Bluetooth Sound Sync : Android, iOS based mobile device.

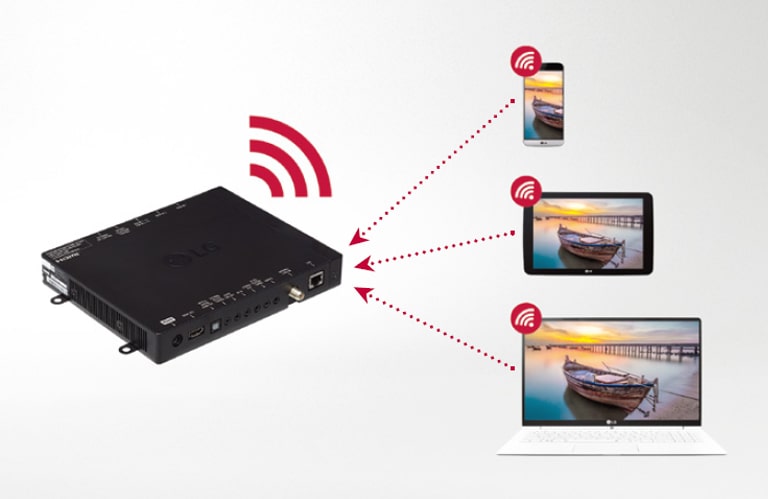

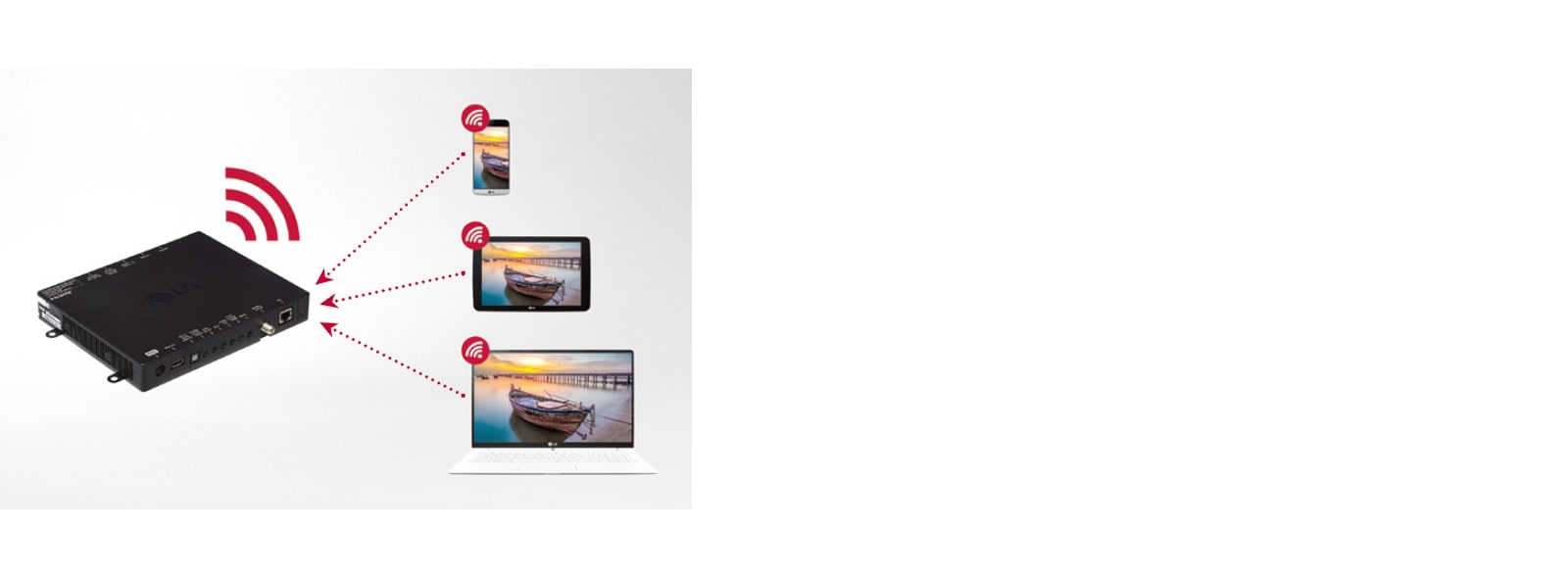

* Soft AP should be set in installation menu.
* Smart Mirroring may not be operated at the same time.
* This feature may not be available in certain devices because of different encryption method.
VIDEO
  • Output Resolution
    UHD / FHD / HD / 1,366 × 768
AUDIO
  • LG Sound Sync
    Yes (Required Bluetooth)
BROADCASTING SYSTEM
  • Digital (Terrestrial, Cable, Satellite)
    ATSC (Clear QAM)
    Analog (NTSC / SECAM / PAL)
    NTSC
HOSPITALITY SOLUTION
  • Solution Type

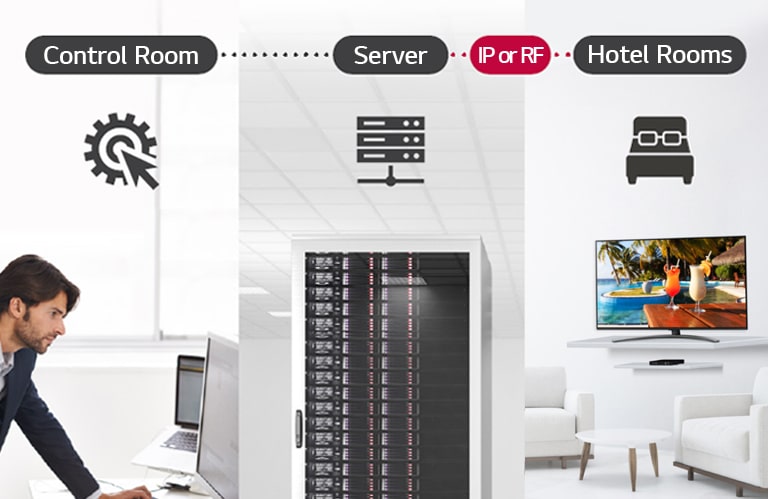

    Pro:Centric (Smart, Direct, V), Quick Menu 4.0
    Pro:Centric Server
    PCS400R
  • DRM
    Pro:Idiom (S/W Type), Pro:Idiom Media
SMART FEATURES
  • Smart Features

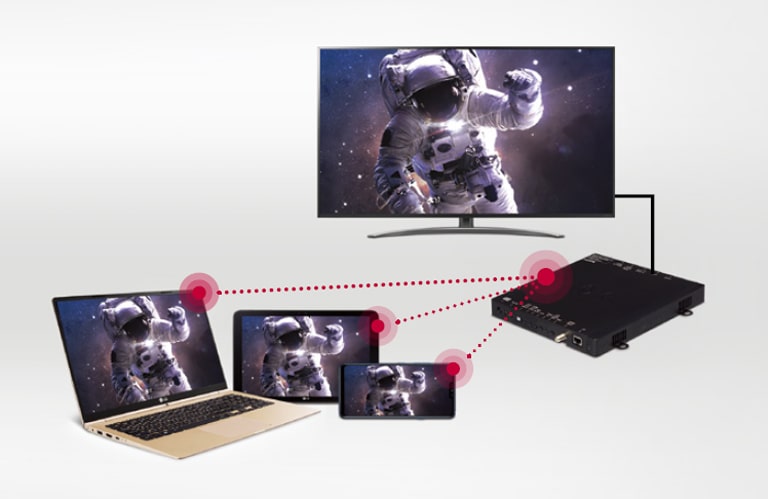

    webOS 5.0, Gallery Mode, Web Browser, Pre-loaded App, Magic Remote Compatibility (Ready, MR18HA), Soft AP, Wi-Fi (802.11ac), Screen Share (Miracast), Smart Share, Bluetooth Audio Playback, LG Sound Sync / Bluetooth, Voice Recognition (with Magic Remote), IoT, USB Cloning, SI Compatible (MPI, RS232C), IR Out (MPI, RS232C)
HOSPITALITY FEATURE
  • Hospitality Feature
    Installer Menu, One Channel Map (Logical Channel Management), External Speaker Out (Int Variable / Fixed, 3.5mm, Stereo, Line-Out, Typ. 400mVrms ± 100mVrms @10KΩ), Instant ON
JACK INTERFACE

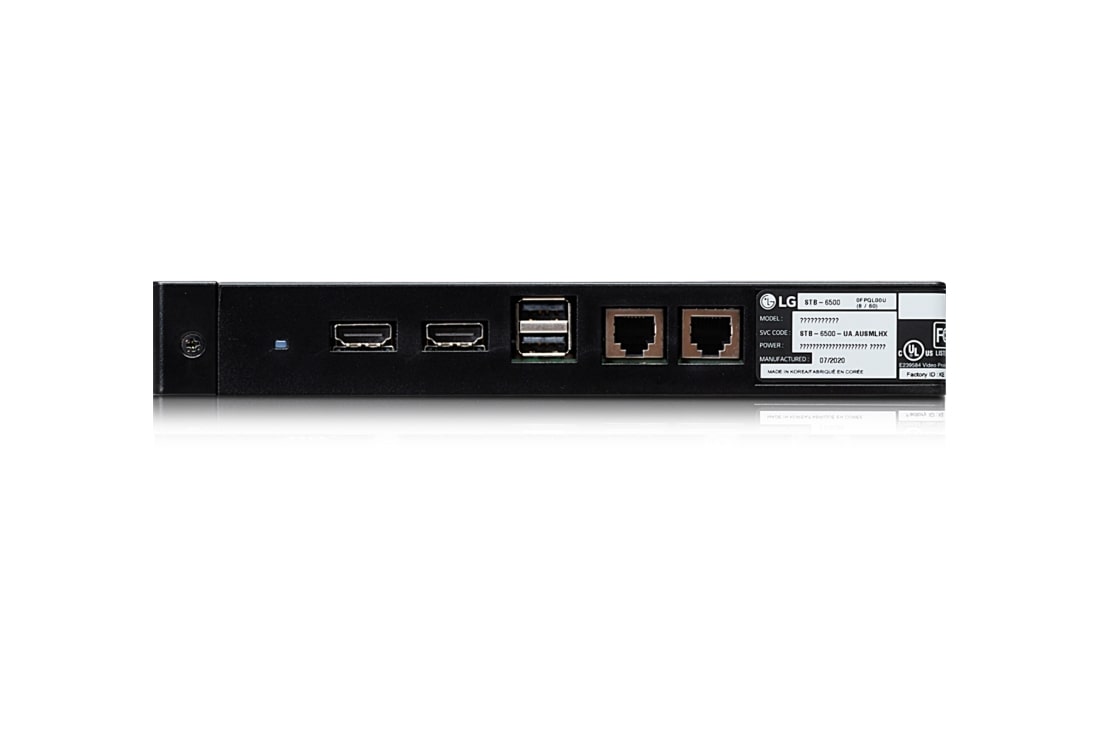

  • Upper Side
    External MPI Control (RJ12 Jack), MPI/MTI Television Control (RJ12 Jack),HDMI 2.0 (2, HDCP 2,2), USB 2.0 (2)

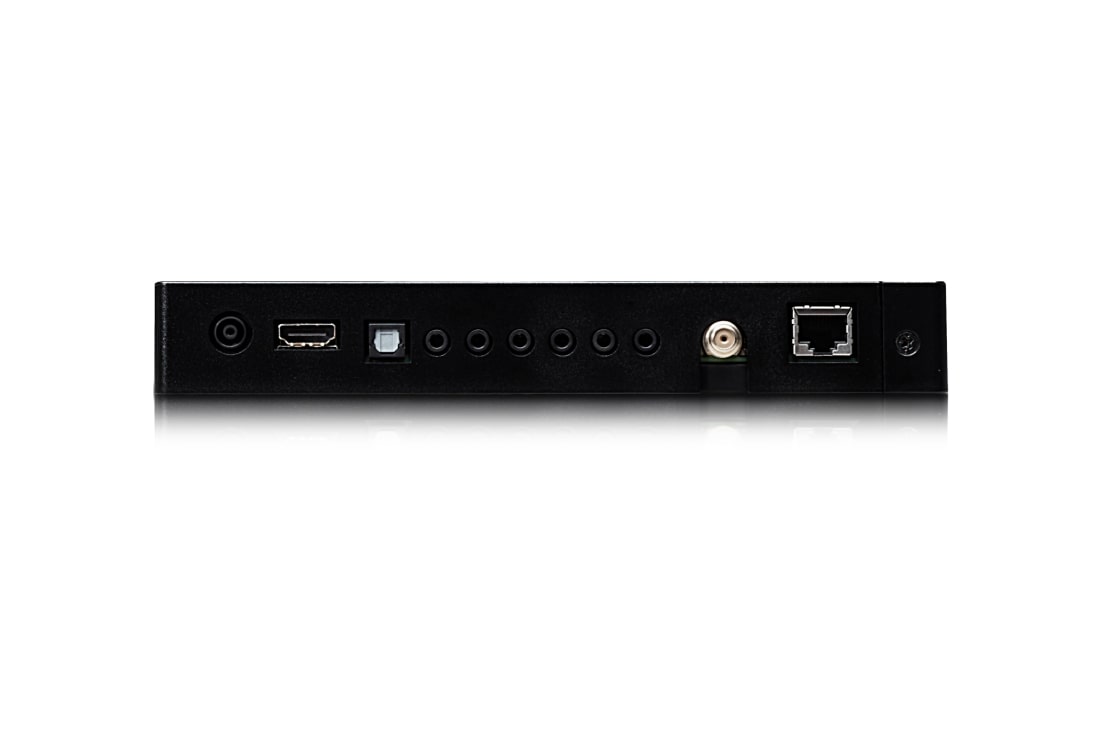

    Lower Rear
    Power, HDMI Out (2.0, HDCP 2,3), Digital Audio Out (Optical), External Speaker Out (Line Out), AV In (Phone Jack Type), External IR (Phone Jack Type), RS-232C Display (Phone Jack Type), RS-232C Ext. Device (Phone Jack Type), Debug, RF In, RJ45
  • Right Side

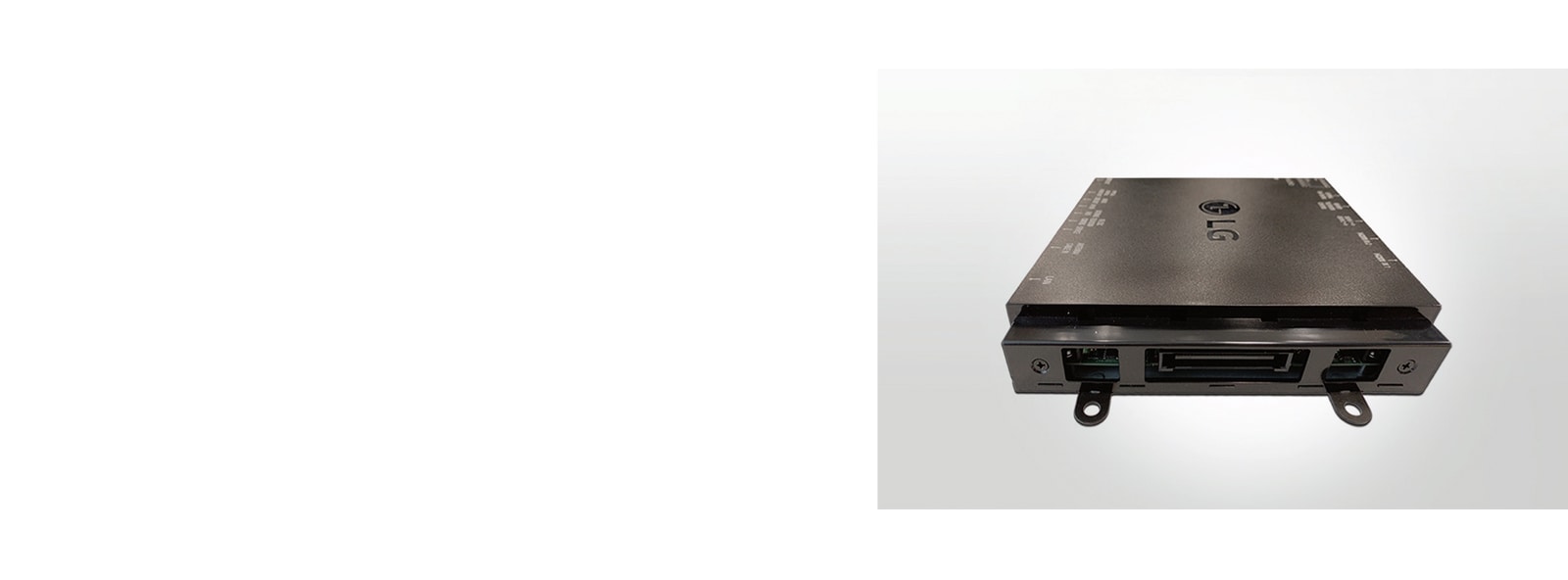

    60 pin interface
DIMENSION
  • W × H × D / Weight
    233 × 180.5 × 29.8 mm / 0.72 kg
    W × H × D / Weight (Shipping)
    366 × 143 × 218 mm / 1.85 kg
POWER
  • Power Supply (Voltage, Hz)
    AC 120 V ~ 50 / 60 Hz
    Power Consumption(Max)
    60 W
  • Power Consumption(Typ.)
    STB only : 14.1W
    STB + Exp Module : 44W
    Standby Power Consumption
    under 1.5W
STANDARD APPROVAL
  • Safety
    UL
    EMC
    FCC

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
