10SM3TB component-copyModelName
10'' 450 nits Standard Signage

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

10" 450 nits Standard Signage
Find a Dealer
Close
PANEL
  • Screen Size
    10" (10.1")
    Resolution
    1,280 x 800 (HD)
  • Brightness
    Module : 450cd/m², SET : 400cd/m² [ W/Touch ]
CONNECTIVITY - INTPUT
  • HDMI
    No
    DVI-D
    No
  • DP
    No
    Analog (RGB)
    No
  • Audio In
    No
    External Control (RS232C IN)
    No

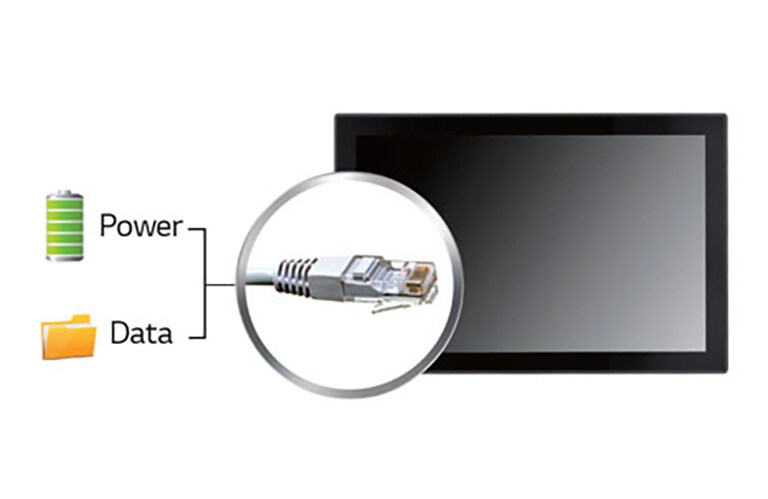

  • External Control (RJ45)
    Yes (1)
    External Control (IR receiver)
    No
  • External Control (Pixel Sensor)
    No
    USB (USB2.0)
    Yes (1)
  • SD Card (SDHC/Full Size)
    Yes (micro SD)
CONNECTIVITY - OUTPUT
  • Audio Out
    No
    Externel Speaker Out
    No
  • External Control (RS232C OUT)
    No
PHYSICAL SPECIFICATION
  • Bezel Width
    14mm (T,R/L,B)
    Monitor Dimension (W x H x D)
    245.6mm X 164.2mm X 29.7mm
  • Weight (Head)
    0.63kg
    VESA™ Standard Mount Interface
    50mm x 50mm
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    No
    External Media Player Attatchable
    No
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    No
    SuperSign-c
    No
ACCESSORY
  • Basic
    Adaptor, Manual (Web), ESG
    Optional
    SP-2000, ST-200T, LSW430
GENERAL
  • Region
    Global
