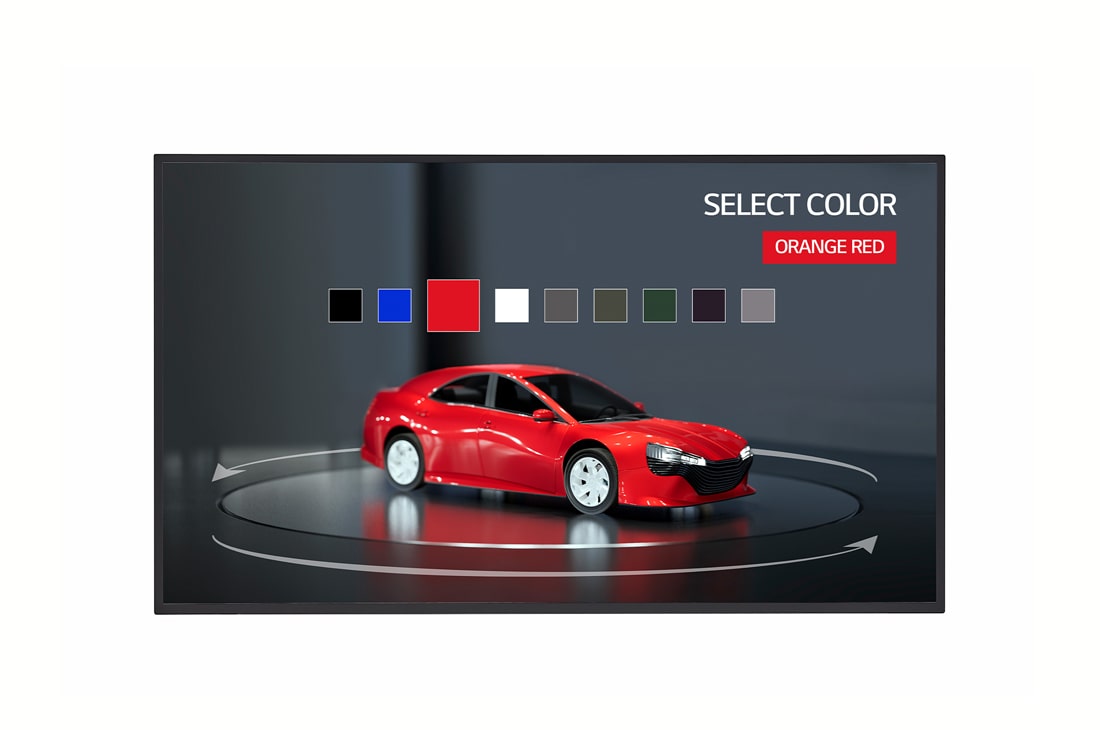

Touch Open Frame

New In-Cell Touch Open Frame for Optimal Customization

New In-Cell Touch Open Frame for Optimal Customization1 New In-Cell Touch Open Frame for Optimal Customization2
* All images in this page are for illustrative purposes only.

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).
Slim & Light1 Slim & Light2

Clear Picture Quality

Compared to general touch products, TNF5P implements clear picture quality without milk effects caused by additional touch sensor film parts.
Clear Picture Quality1 Clear Picture Quality2

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.
Design Flexibility1 Design Flexibility2
24hrs / 7days1 24hrs / 7days2

24hrs / 7days

TNF5P’s excellent durability allows for use in kiosks that require a full day of operation.
Wide Viewing Angle1 Wide Viewing Angle2

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.
45-degree Tilt<br>(Face up) Installation Possible1 45-degree Tilt<br>(Face up) Installation Possible2

45-degree Tilt
(Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.
10 Points of<br>Multi-Touch1 10 Points of<br>Multi-Touch2

10 Points of
Multi-Touch

The TNF5P provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with
webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on TNF5P for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.
High-Performance with<br>webOS 6.01 High-Performance with<br>webOS 6.02
* SoC : System On Chip
** GUI : Graphical User Interface
Close
PANEL
  • Screen Size
    32"
    Panel Technology
    IPS
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness (nit)
    500
  • Contrast Ratio
    1,000:1
    Color gamut
    NTSC 72%
  • Viewing Angle (H × V)
    178 × 178
    Color Depth
    8bit, 16.7 Million colors
  • Response Time
    9ms (G to G)
    Surface Treatment (Haze)
    Haze 12%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours / Day)
    24 / 7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    Digital (HDMI(2), HDCP 1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
    Output
    Audio Out, USB2.0 Type B(1)
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    11.3/11.3/11.3/13.2 mm
  • Weight (Head)
    5.8 kg
    Monitor Dimensions (W × H × D)
    723.0 x 419.4 x 39.1 mm
  • Carton Dimensions (W × H × D)
    812 x 510 x 142 mm
    VESA™ Standard Mount Interface
    200 x 200
KEY FEATURE(HARDWARE)
  • Internal Memory
    8GB (System 5GB + Available 2.48GB)
    Temperature Sensor
    Yes
  • Acceleration(Gyro) Sensor
    Yes
KEY FEATURE(SOFTWARE)
  • webOS ver.
    webOS 6.0
    Embedded CMS
    Local Contents Scheduling, Group Manager
  • USB Plug & Play
    Yes
    Fail over
    Yes
  • Background Image
    Booting Logo Image, No Signal Image
    Video Tag
    Yes
  • Play via URL
    Yes
    Screen Rotation
    Yes
  • Gapless Playback
    Yes
    Setting Data Cloning
    Yes
  • SNMP
    Yes
    ISM Method
    Yes
  • Status Mailing
    Yes
    Control Manager
    Yes
  • Cisco Certification
    Yes
    Crestron Connected
    Yes
  • Power
    Smart Energy Saving, PM mode, Wake on LAN, Network Ready
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    48 W
    Max.
    65 W
  • BTU (British Thermal Unit)
    164 BTU/Hr(Typ.), 222 BTU/Hr(Max.)
    Smart Enegy Saving (70%)
    34 W
  • DPM
    0.5 W↓
    Power off
    0.5 W↓
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    N/A / Yes
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • SuperSign Cloud
    Yes
    Mobile CMS
    Yes
  • Connected Care
    Yes
ACCESSORY
  • Basic
    Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
TOUCH
  • Available object size for touch
    Ø6mm ↑
    Response Time (Based on 'Paint' app on Windows 10 PC)
    90ms ↓
  • Accuracy
    3.5 mm
    Interface
    USB 2.0
  • Operating System Support
    Win 10 / 11, Android
    Multi touch point
    Max. 10 Points
