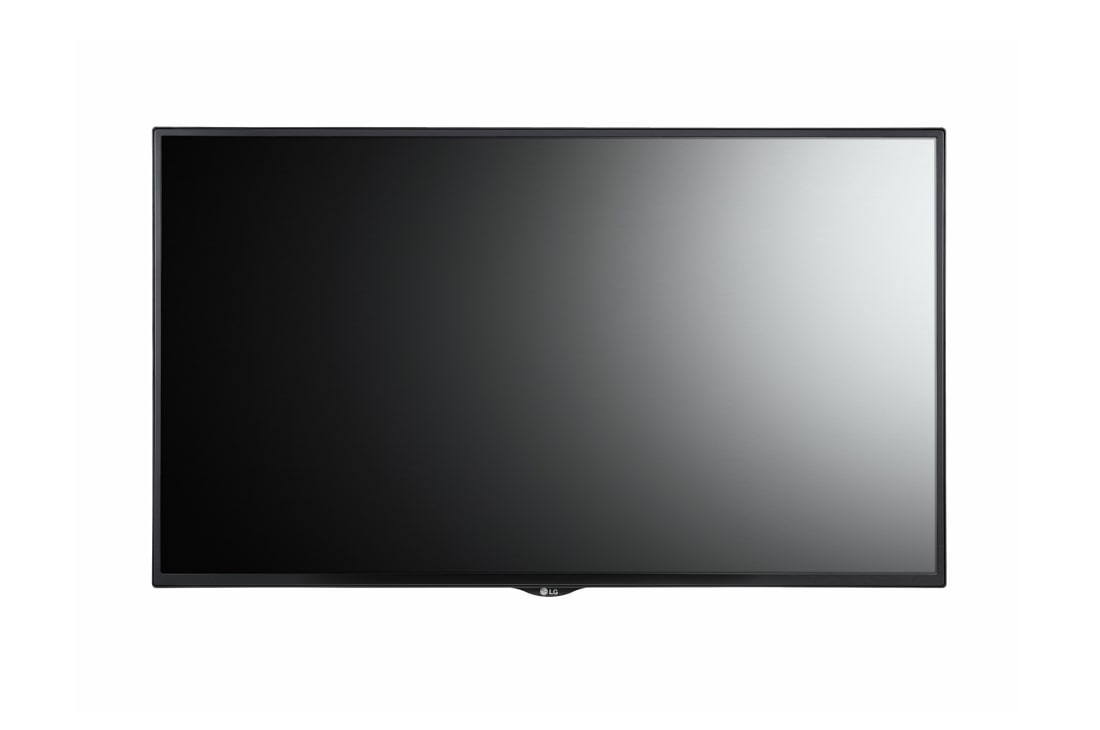

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 2

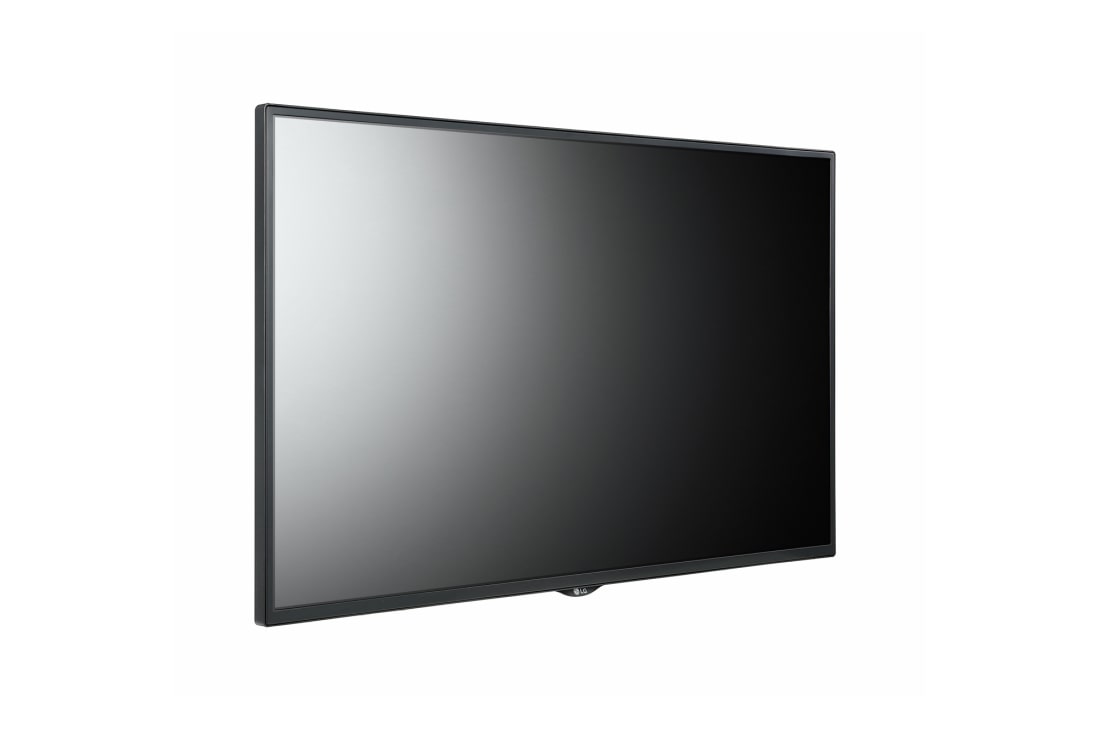

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 3

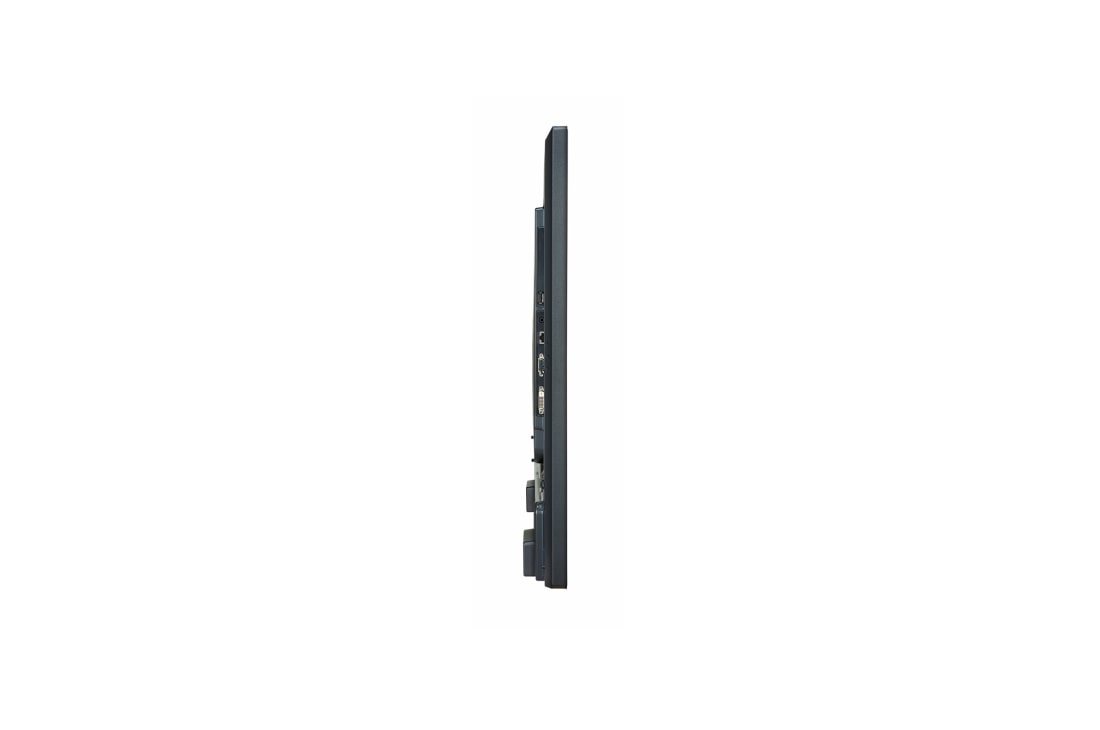

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 4

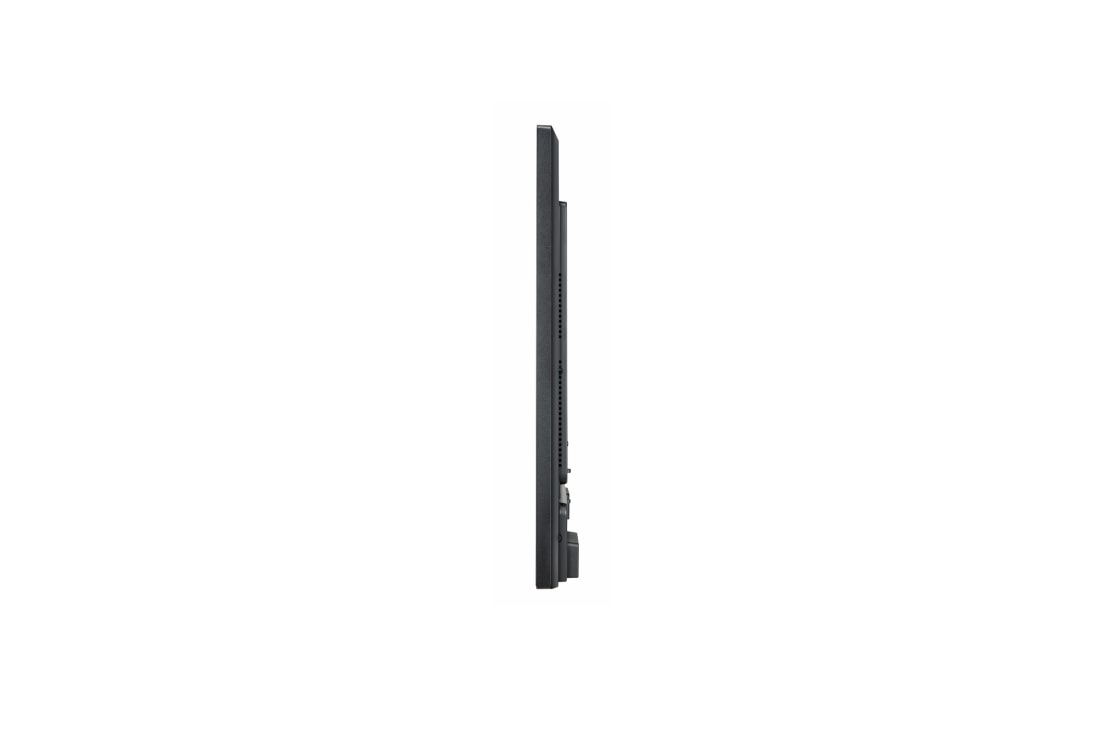

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 5

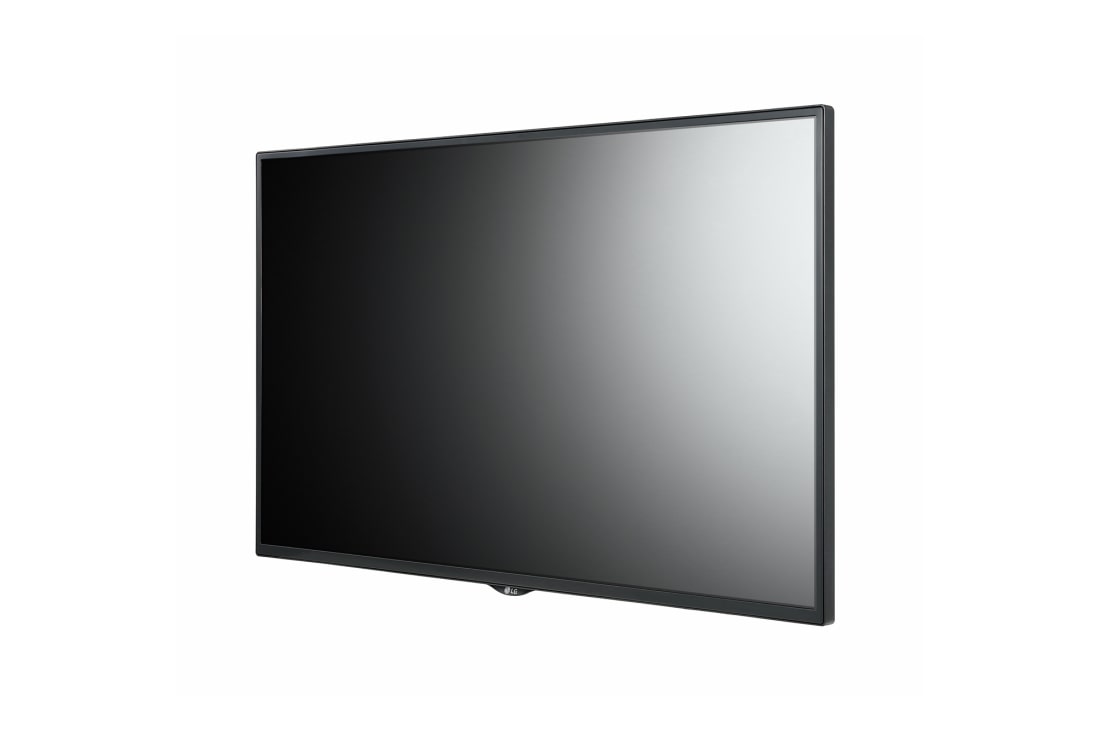

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 6

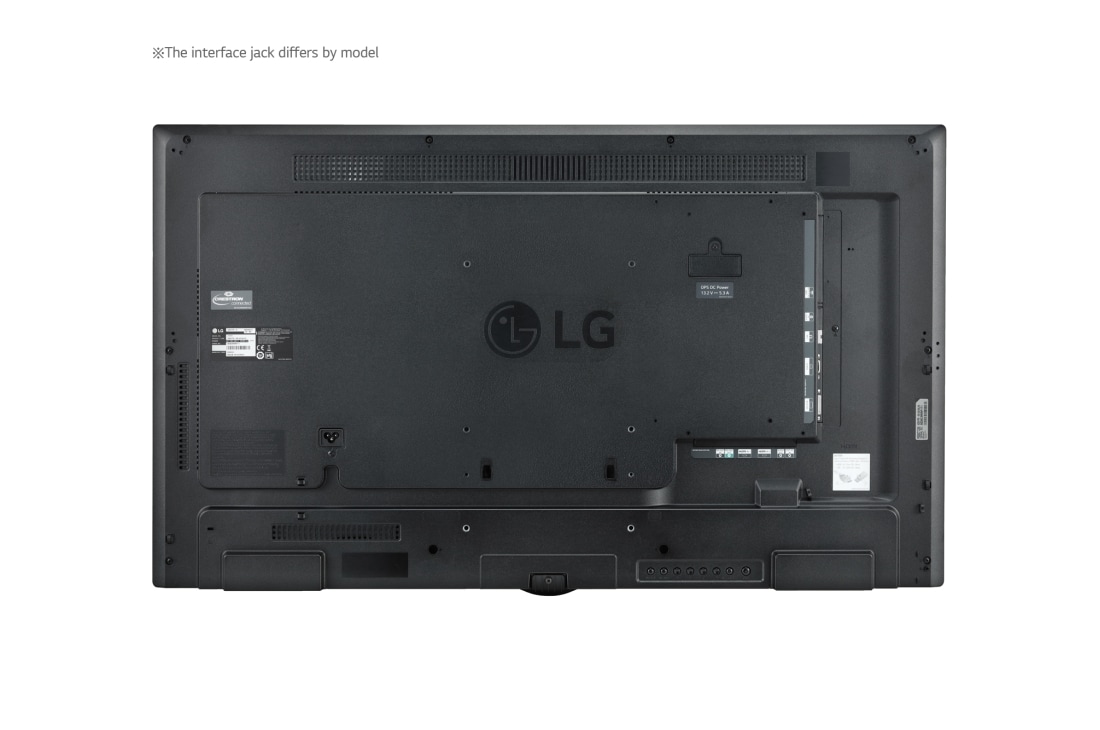

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 7

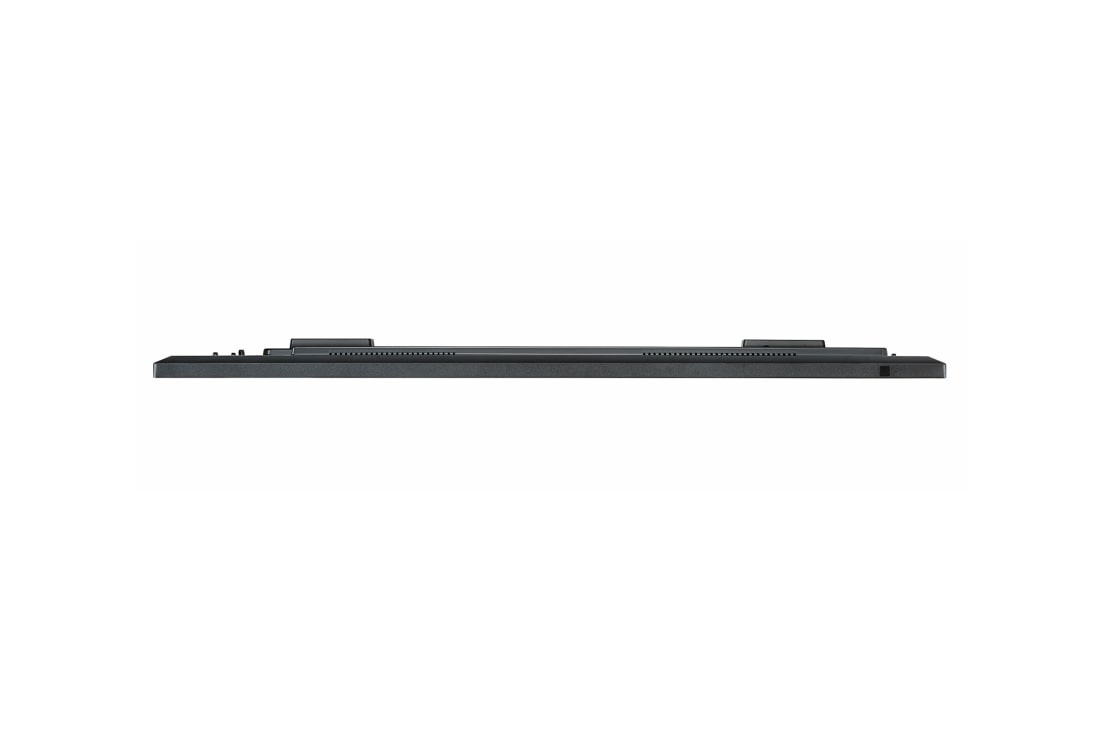

LG 49'' 450 nits FHD Standard Signage, 49SM5KE-B, thumbnail 8

ADD TO WISHLIST

Discontinued

49SM5KE-B component-copyModelName

49'' 450 nits FHD Standard Signage

Name: 49'' 450 nits FHD Standard Signage
Brand: LG UAE
SKU: 49SM5KE-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 11.9 mm (T/R/L), 18 mm (B)
Depth : 54 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker : 10W + 10W

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 11.9 mm (T/R/L), 18 mm (B)
Depth : 54 mm
Interface : HDMI(3)/ DP/ DVI-D/ USB 3.0/ RS232C/ RJ45/ Audio/ IR
Built-in Speaker : 10W + 10W

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

49" 450 nits FHD Standard Signage

Quad Core SoC with webOS

High Performance Smart Platform

Quad Core SoC (System-on-Chip) executes several tasks at once with smooth content playback without a media player. webOS smart signage platform enhances user convenience with intuitive UI and simple development tools.

Integrated CMS

Easy Contents Management

Embedded CMS (Content Management System) allows users to edit and play content, and create playlists, all without a seperate PC. It's a one-stop solution that lets users manage signage simply, and effectively.

GUI for B2B & EZ Setting

Enhanced Usability

A B2B dedicated GUI for portrait and long range environment modes provides convenient user management. With the 'EZ setting', users get integrated management of signage special features through a unifying access point.

Video Streaming

Real-time Streaming

Various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast are supported for real-time content streaming. It is easy to manage content as it is free from capacity limits for content playback, and provides live broadcasts.
* Image is for illustration-purposes only.

* HLS (HTTP Live Streaming) /* UDP (User Datagram Protocol )
* RTSP(Real-Time Streaming Protocol)/* RTP (Real-time Transport Protocol)

Gapless Playback

Seamless Content Playback

During playback of diverse content such as videos, images, and HTML, enjoy seamless transition between screens with no black screen gaps with webOS.

PBP/PIP

Multiple Screen Composition

PBP (Picture-By-Picture) and PIP (Picture-In-Picture) enables up to two divided split screens in landscape or portrait display format enabling users to more flexibly allocate space for each content source.

Detachable Logo & Built-in Speaker

Suited for Industrial Design

The detachable logo allows for installation in the desired orientation: landscape or portrait mode. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Wireless Solutions

Content Sharing

Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion

With Beacon and Bluetooth Low Energy (BLE), retail stores can provide coupons and information in real-time.

Support for Network Protocol

HTTPS

With support for the HTTPS (Hypertext Transfer Protocol over Secure Socket Layer) protocol, communication between the server and signage is more secure.
Proxy Server

Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.

Value-added Offerings

Thermal Printer Supported

Users can easily enable the thermal printer solution* by plugging a USB into the display. It functions versatilely as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.

* Supported model: NIPPON PRIMEX (NP-3511,NP-3611)

Value-added Offerings

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client's business.

Conformal Coating

The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

PANEL

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

450

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, Audio, USB 3.0

Output

DP(SST), Audio(Off/Fixed/Variable)
External Control

RS232C In/out, RJ45 In, IR Receiver In

PHYSICAL SPECIFICATION

Bezel Width

11.9 mm (T/R/L), 18 mm (B)

Monitor Dimension (W x H x D)

1,102.2 x 638.5 x 54 mm
Weight (Head)

14.3 kg

Monitor with Optional Stand Dimensions (W x H x D)

1102.2 x 696.8 x 219.6 mm
Weight (Head+Stand)

17.6 kg

Carton Dimensions (W x H x D)

1,197 x 760 x 166 mm
Packed Weight

17.4 kg

VESA™ Standard Mount Interface

300 x 300 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240 V~, 50/60 Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ. / Max.

85 W (TBD) / 105 W

Smart Energy Saving

60 W (TBD)

STANDARD(CERTIFICATION)

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

N/A / Yes (Energy Star 8.0)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

Yes

External Media Player Attatchable

Yes

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+/Control

ACCESSORY

Basic

Remote Controller (2ea batteries included), Power cord, QSG, HDMI cable, Regulation book, Phone to RS232C gender, Memory cover

Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T49E)
