49VL5F-A component-copyModelName

49'' 450 nits FHD Slim Bezel Video Wall

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 1

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 2

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 3

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 4

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 5

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 6

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 7

LG 49'' 450 nits FHD Slim Bezel Video Wall, 49VL5F-A, thumbnail 8

ADD TO WISHLIST

Discontinued

49VL5F-A component-copyModelName

49'' 450 nits FHD Slim Bezel Video Wall

Name: 49'' 450 nits FHD Slim Bezel Video Wall
Brand: LG UAE
SKU: 49VL5F-A
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/DP/DVI-D/USB/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 450 cd/m²
Bezel : 2.25 mm (T/L), 1.25 mm (B/R)
Depth : 89.7 mm
Interface : HDMI/DP/DVI-D/USB/ RS232C/ RJ45/ Audio/ IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

49" 450 nits FHD Slim Bezel Video Wall

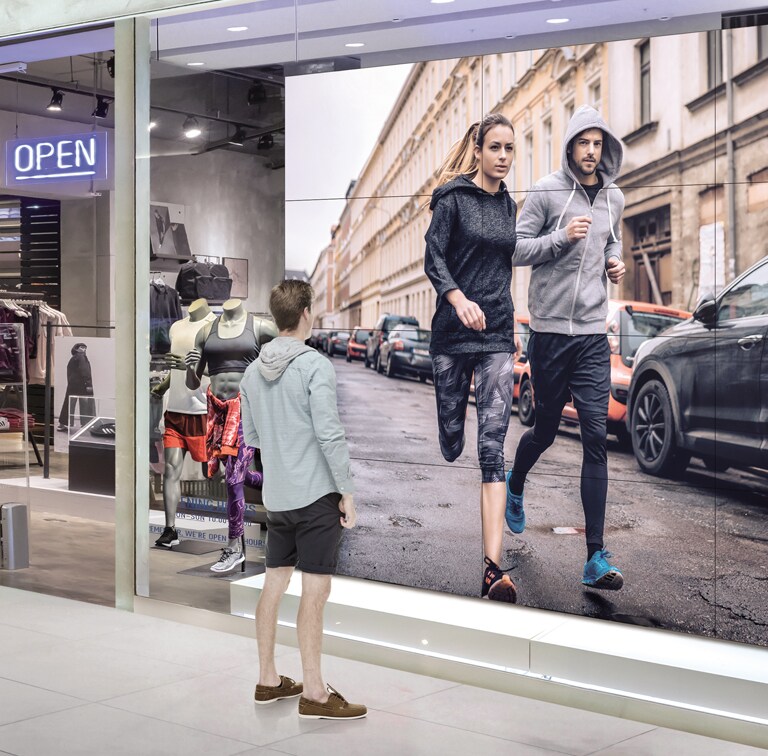

Incredible Immersion with Ultra-Narrow Bezel

The 49VL5F provides all-encompassing screen immersion thanks to its ultra-narrow 3.5 mm bezel-to-bezel, while its outstanding IPS panel delivers a clear image from any angle. With its extremely attractive and highly functional design, it can be used to deliver advertising and information in a variety of business environments.

Seamless Large Screens with Ultra-Narrow Bezel1

Achieving Incredible Immersion

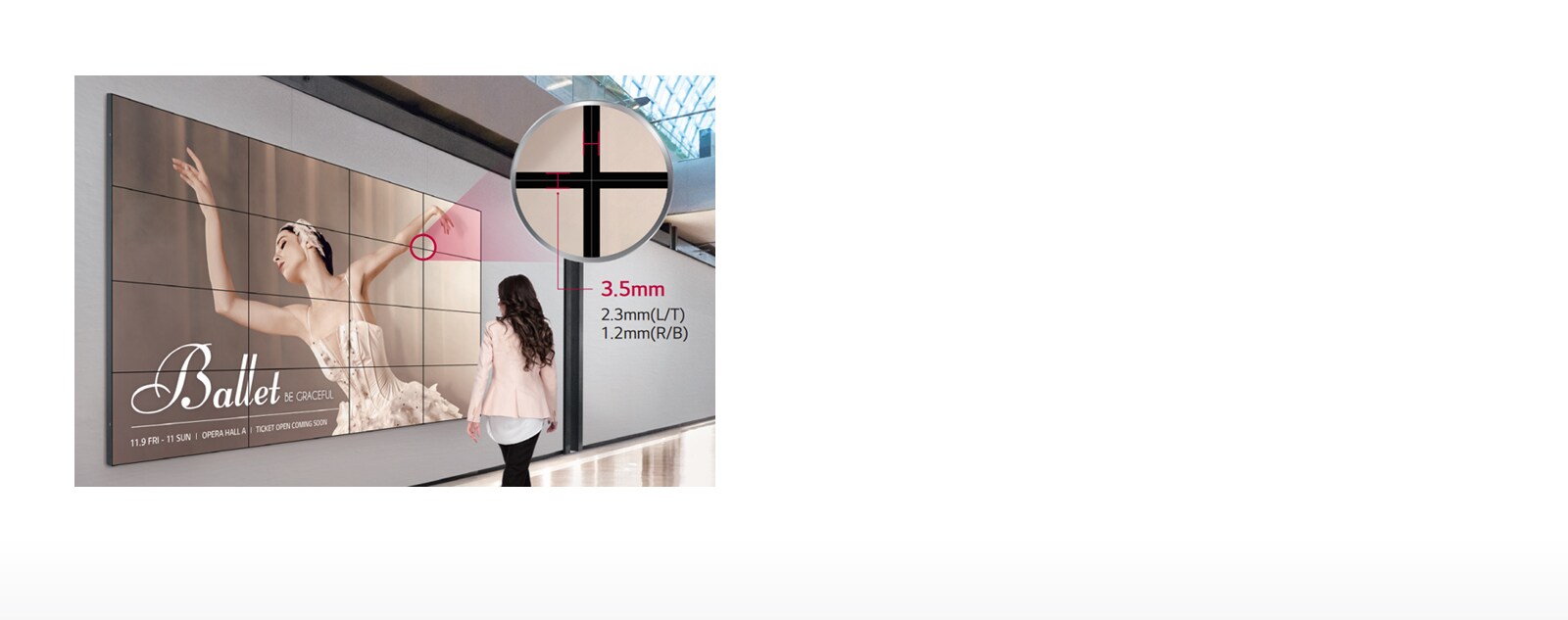

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

Achieving Incredible Immersion

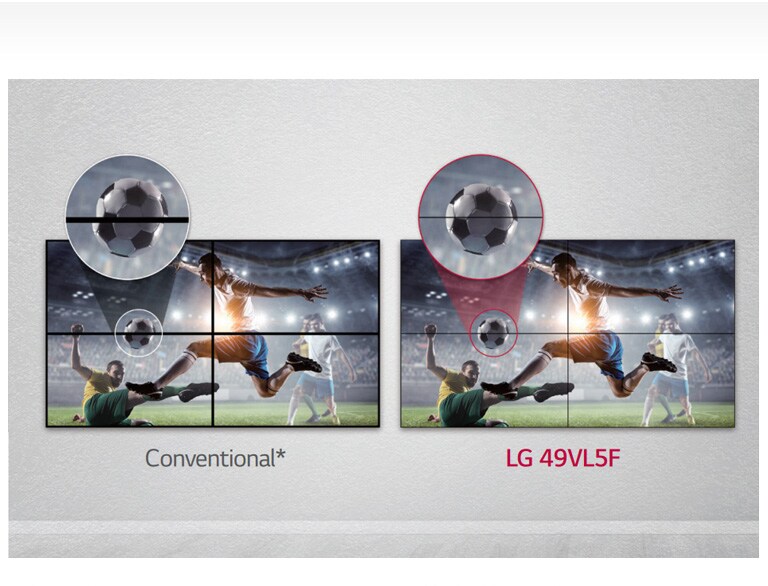

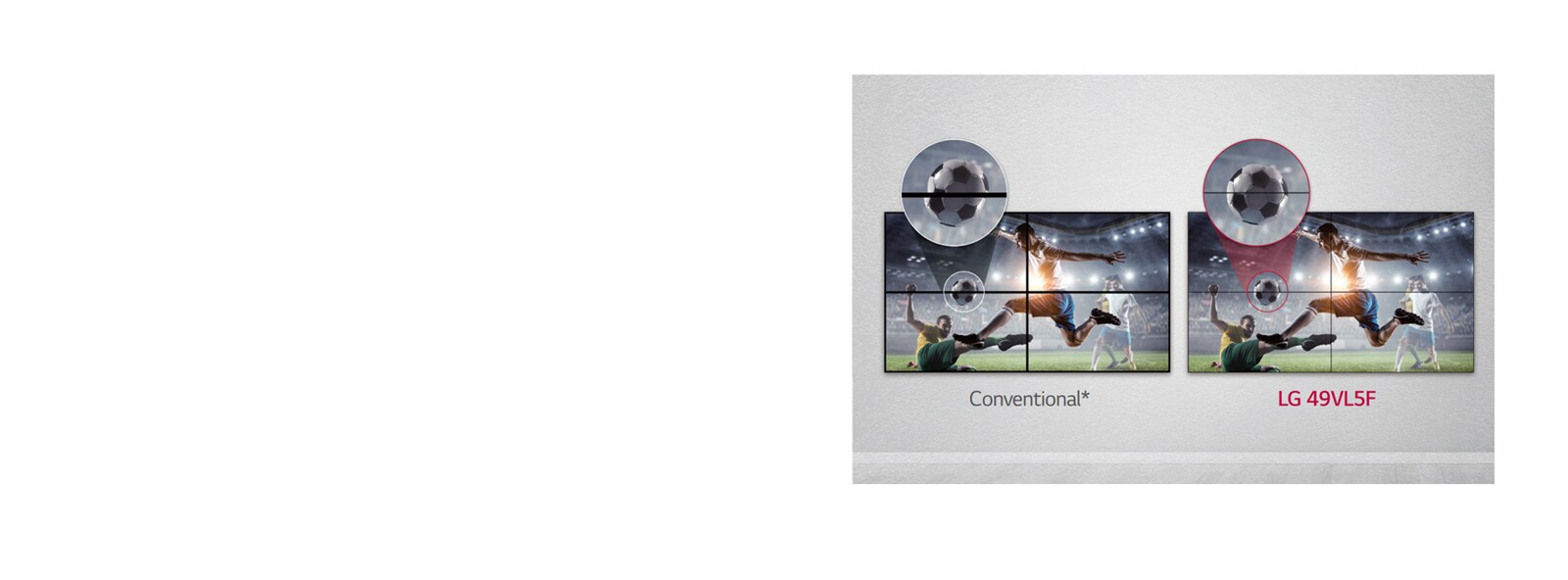

Image Gap Reduction

The 49VL5F includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

*The "Conventional" refers to displays which do not include an image improvement algorithm.

Vivid and Dynamic Picture Quality

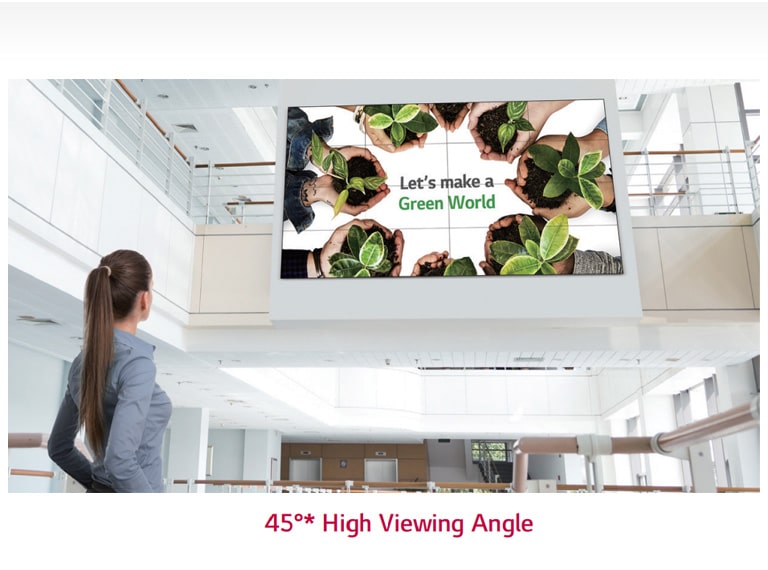

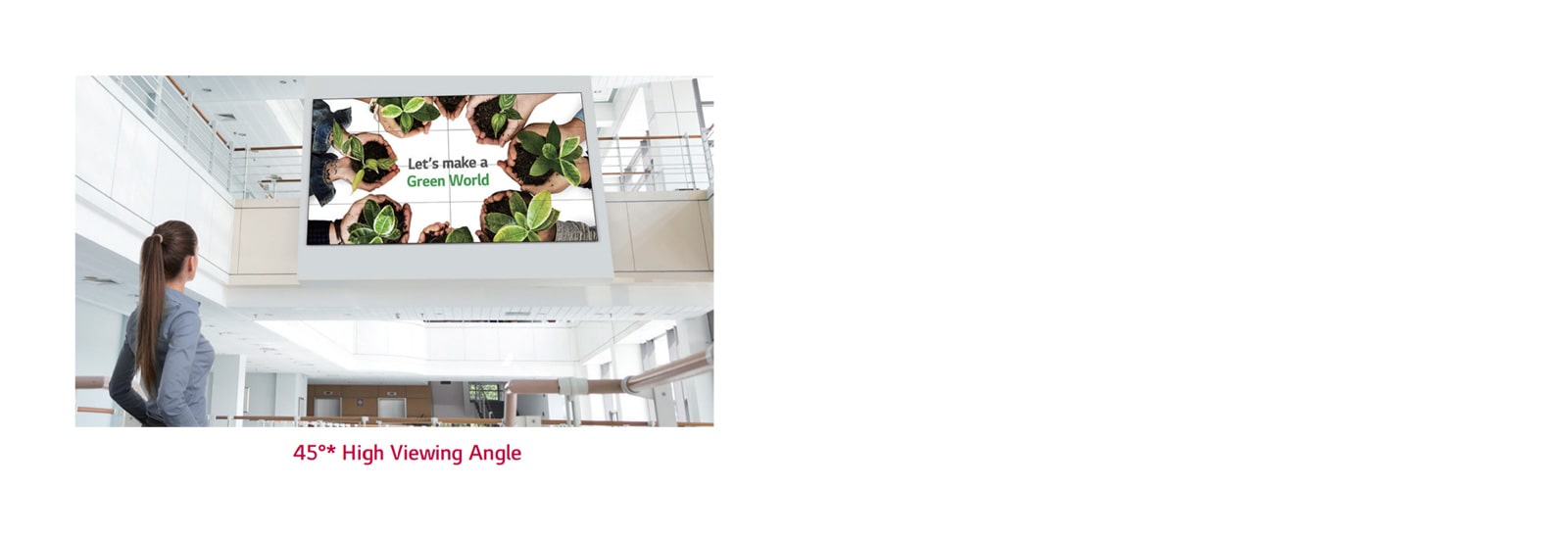

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 49VL5F is high enough to display vivid colors throughout the screen with no distortion.

*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

Vivid and Dynamic Picture Quality

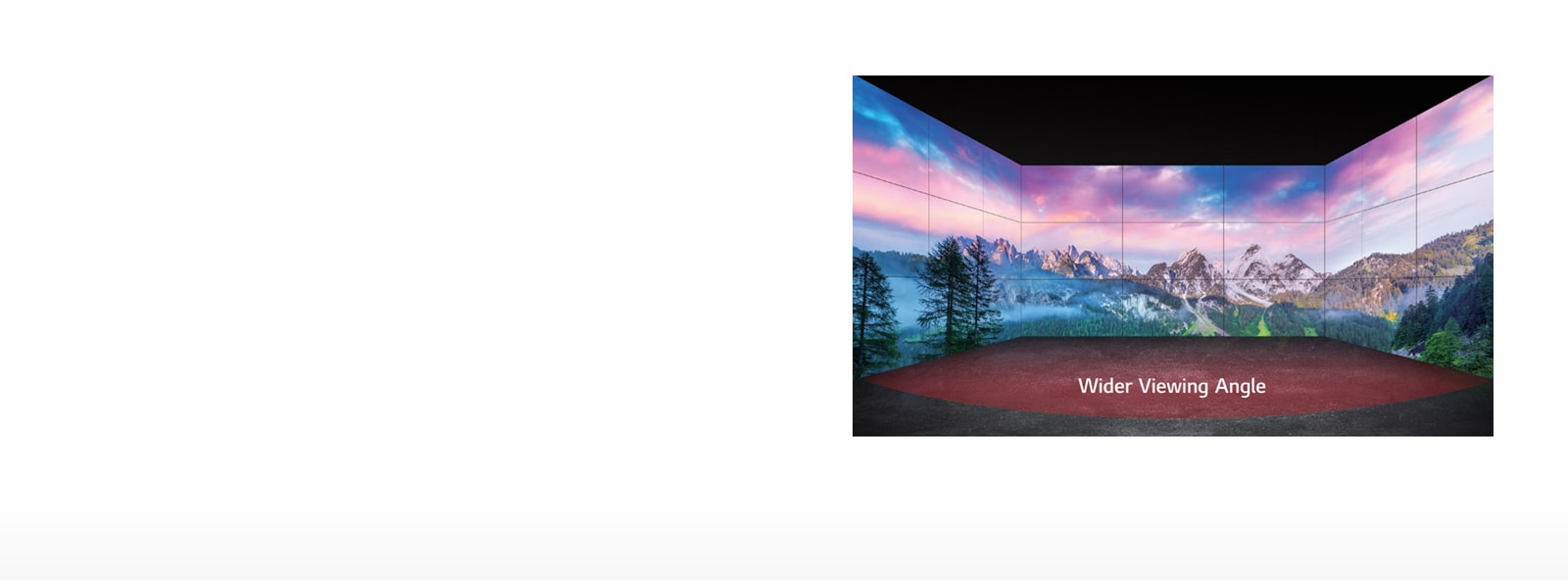

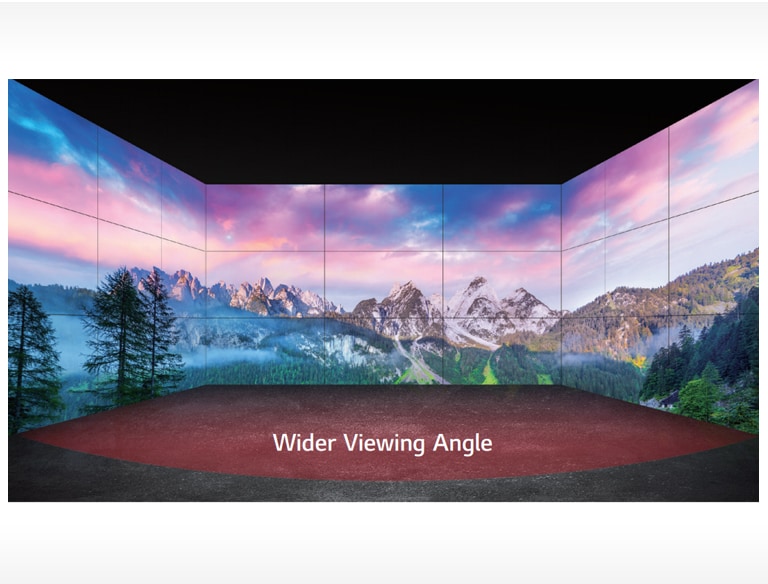

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 49VL5F captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

User Convenience

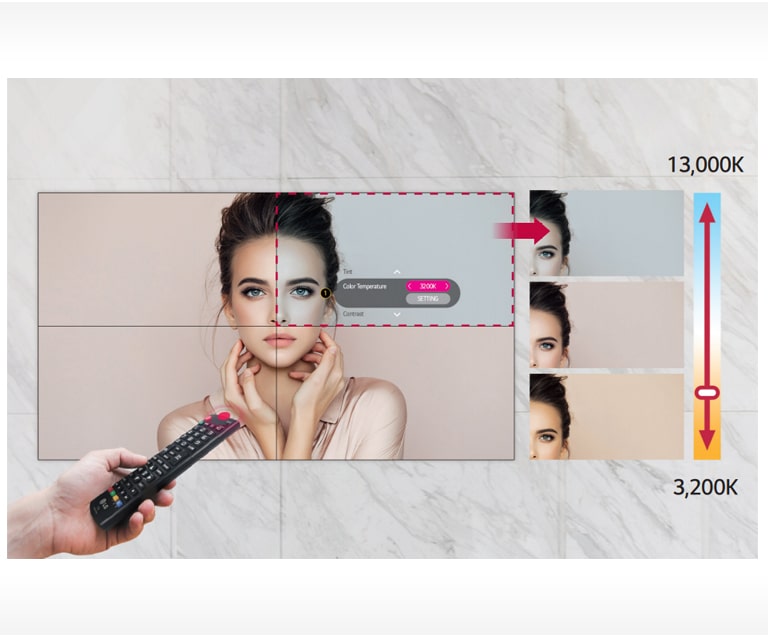

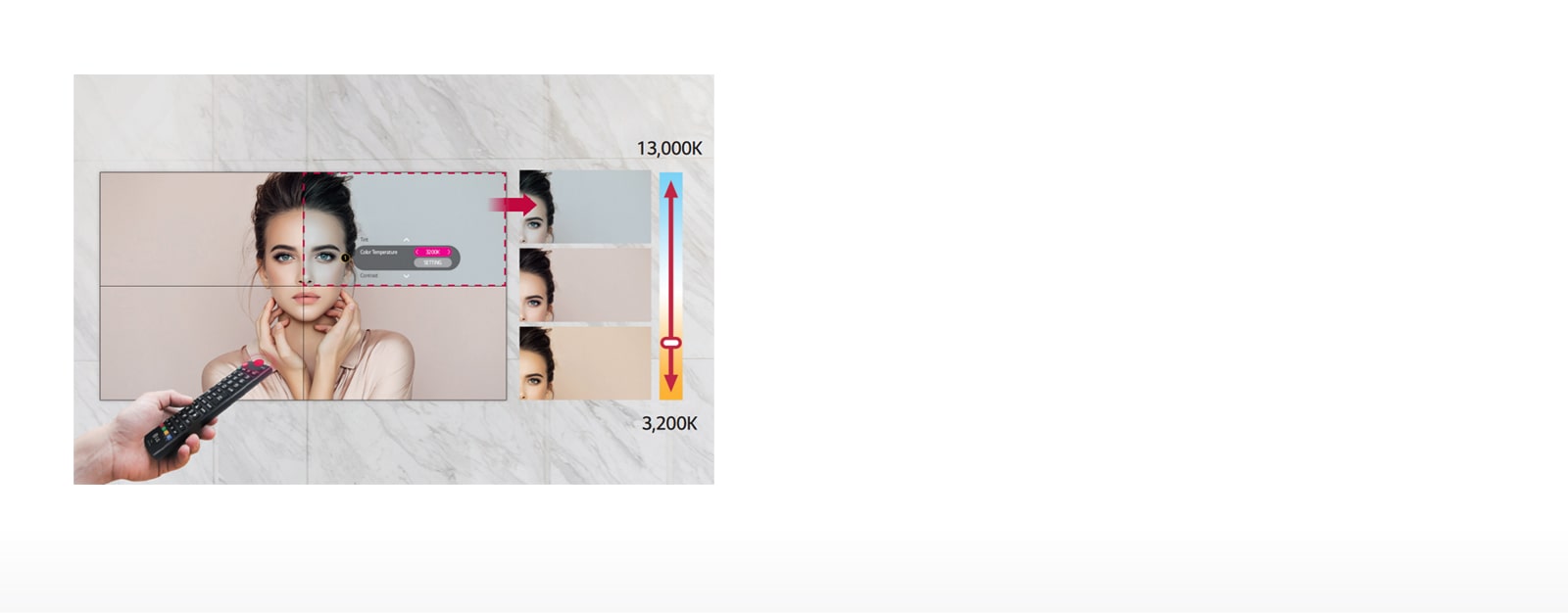

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

User Convenience

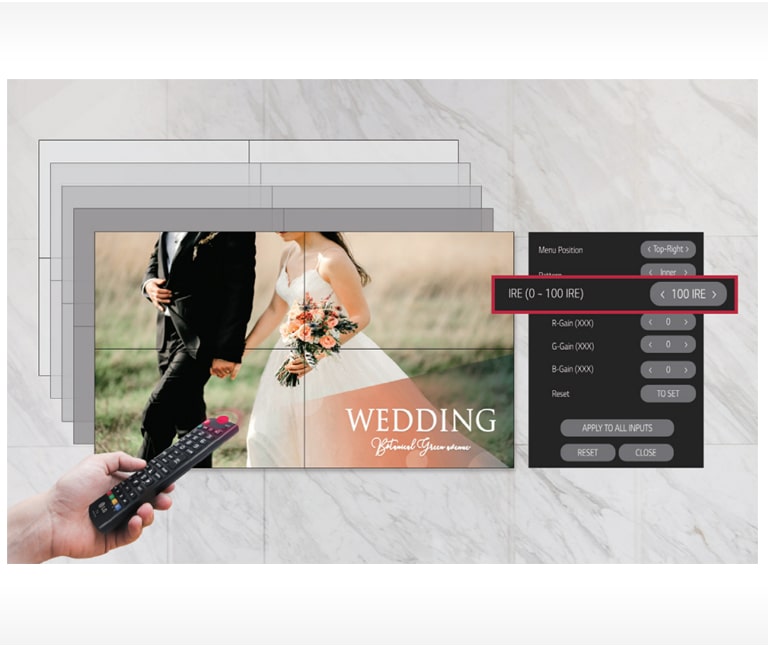

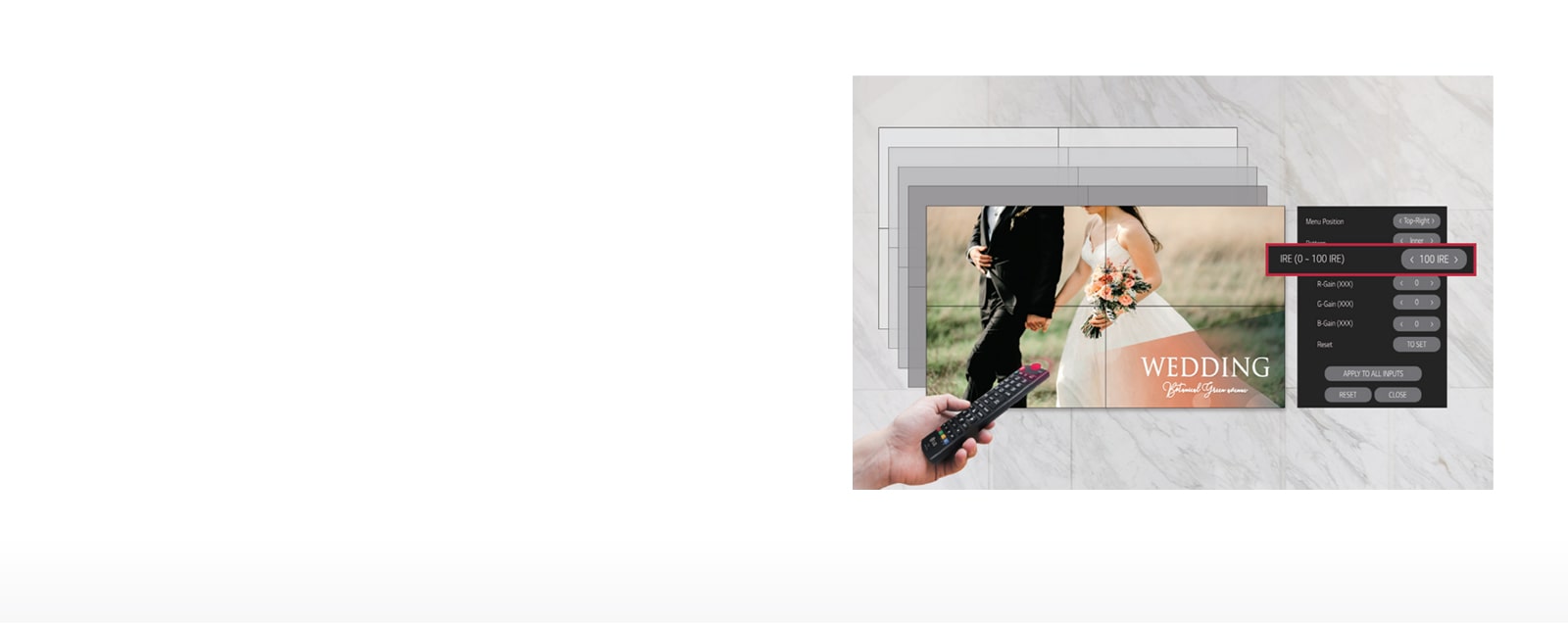

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 49VL5F allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

User Convenience

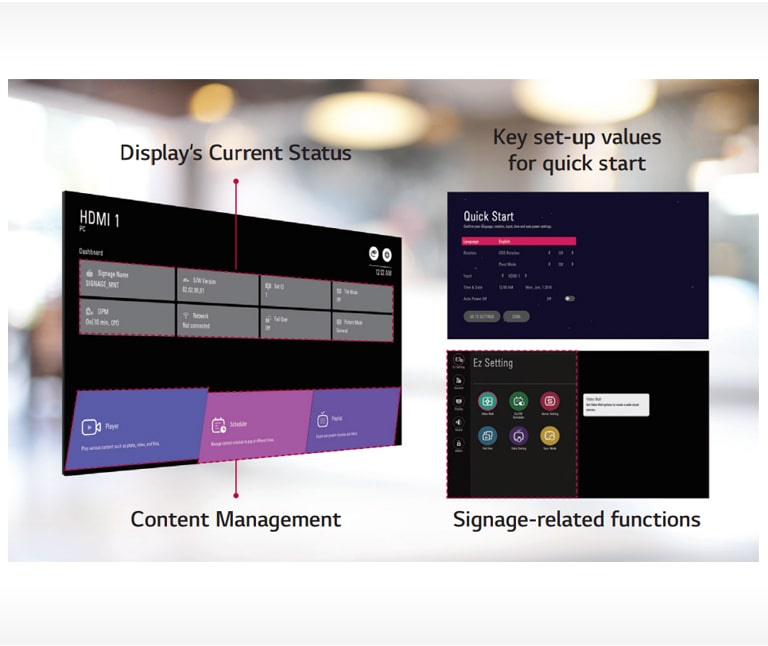

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-anderror when exploring desired functions and managing displays.

User Convenience

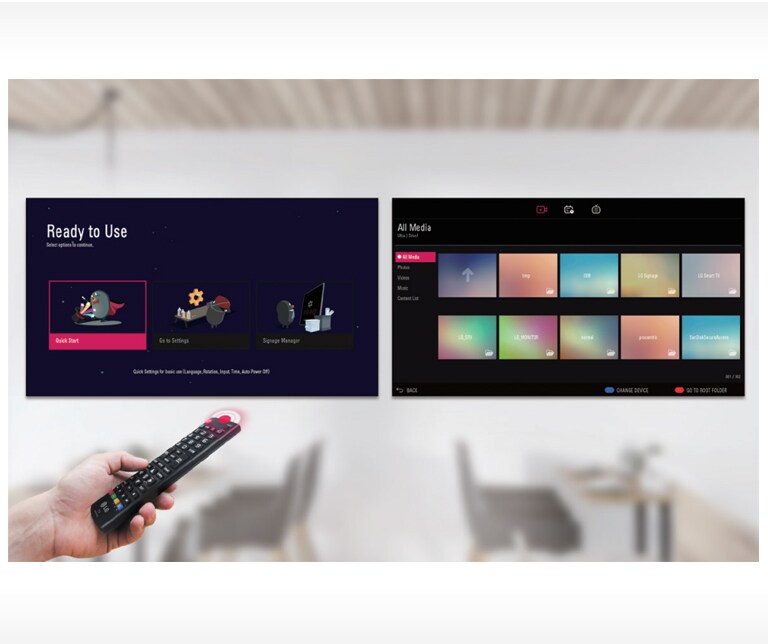

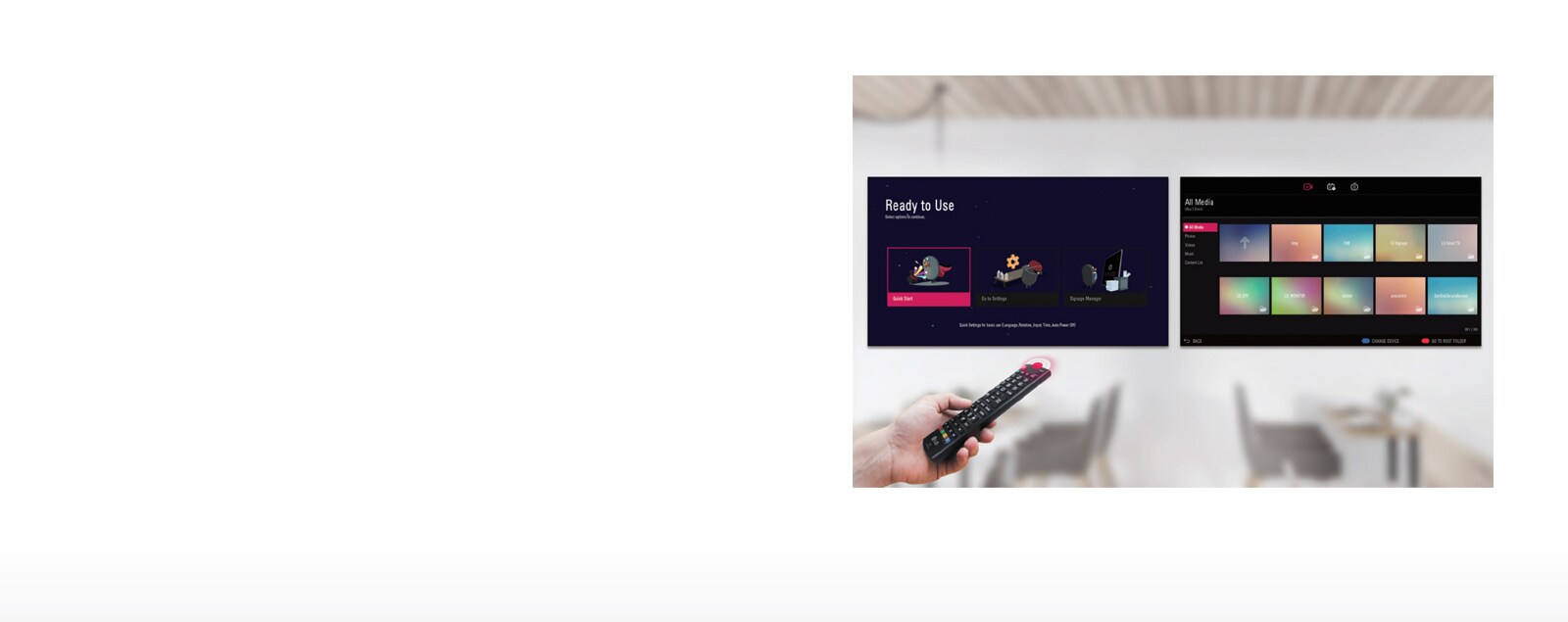

Intuitive GUI

The GUI^{(Graphic User Interface)} is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a larger font for better visibility, which is necessary when users want to control displays from relatively far distances.

PANEL

Screen Size

49"

Resolution

1,920 x 1,080 (FHD)
Brightness(Typ.,cd/m²)

450

CONNECTIVITY

Input

HDMI, DP, DVI-D, RGB, Audio, USB 2.0

Output

DP, Audio
External Control

RS232C In/out, RJ45 (LAN) In, IR In

MECHANICAL SPECIFICATION

Bezel Width

2.25 mm (T/L), 1.25 mm (B/R)

Monitor Dimension (W × H × D)

1,077.6 x 607.8 x 89.7 mm
Weight (Head)

17.8 kg

Carton Dimensions (W × H × D)

1,214 x 778 x 263 mm
Packed Weight

22.8 kg

VESA™ Standard Mount Interface

600 x 400 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

90 W

Max.

110 W
Smart Energy Saving

55 W

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A" / CE / KC
ErP / Energy Star

Yes(EU Only) / Yes (Energy Star 8.0, US Only)

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible

No

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control/Control+

ACCESSORY

Basic

Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual

Optional

Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V)
