49VL5G-M component-copyModelName
49'' 500 nits FHD Slim Bezel Video Wall

Key Features

Choose your Size

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49VL5G-M)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49VL5G-M)
    AED
    AED
    LG Members Price
Total
49'' 500 nits FHD Slim Bezel Video Wall
Find a Dealer

Incredible Immersion with
Ultra-Narrow Bezel

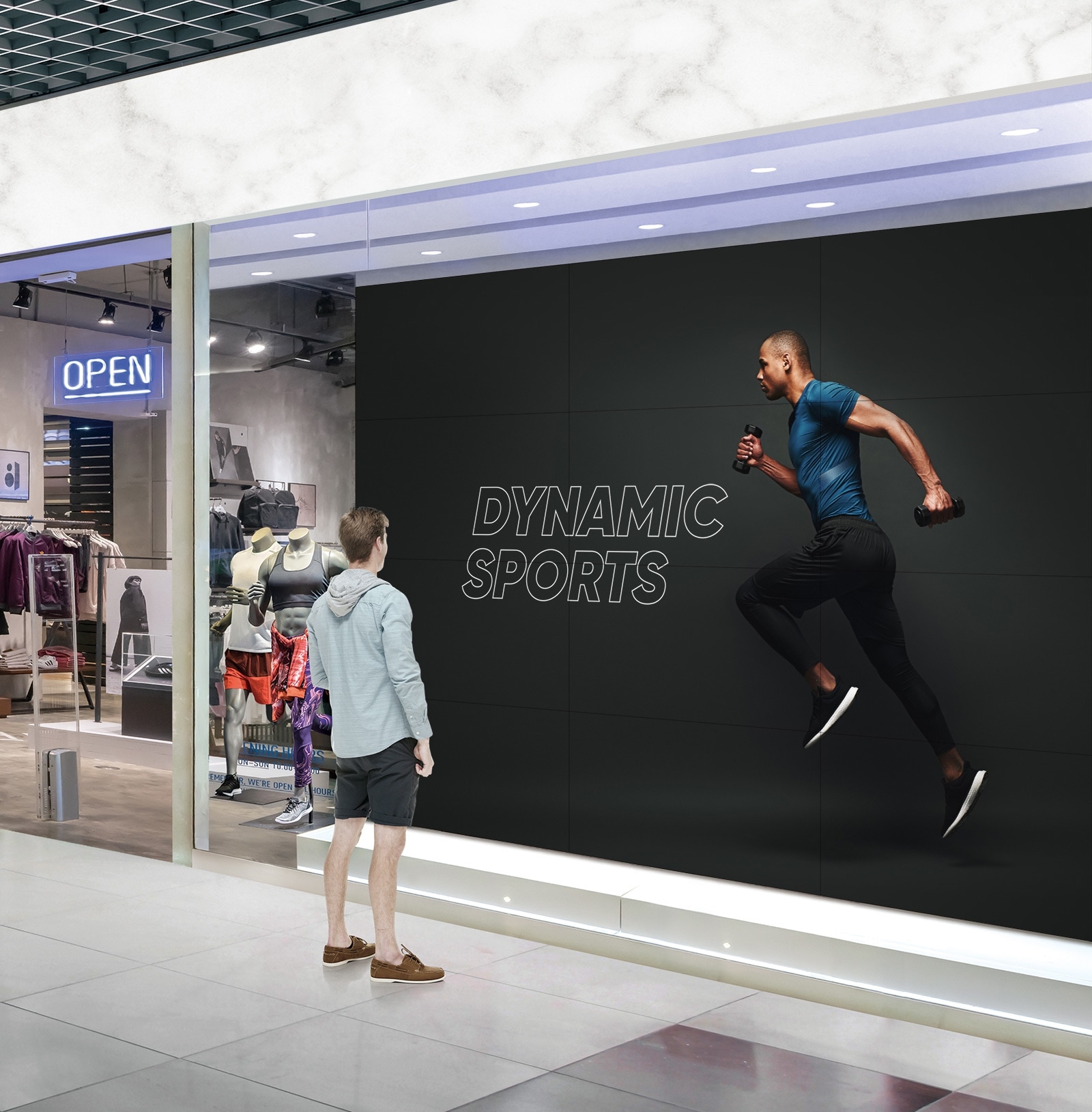

A man is looking at a big screen attached to the window of a sports store. A man is looking at a big screen attached to the window of a sports store.
* All images in this web page are for illustrative purposes only.

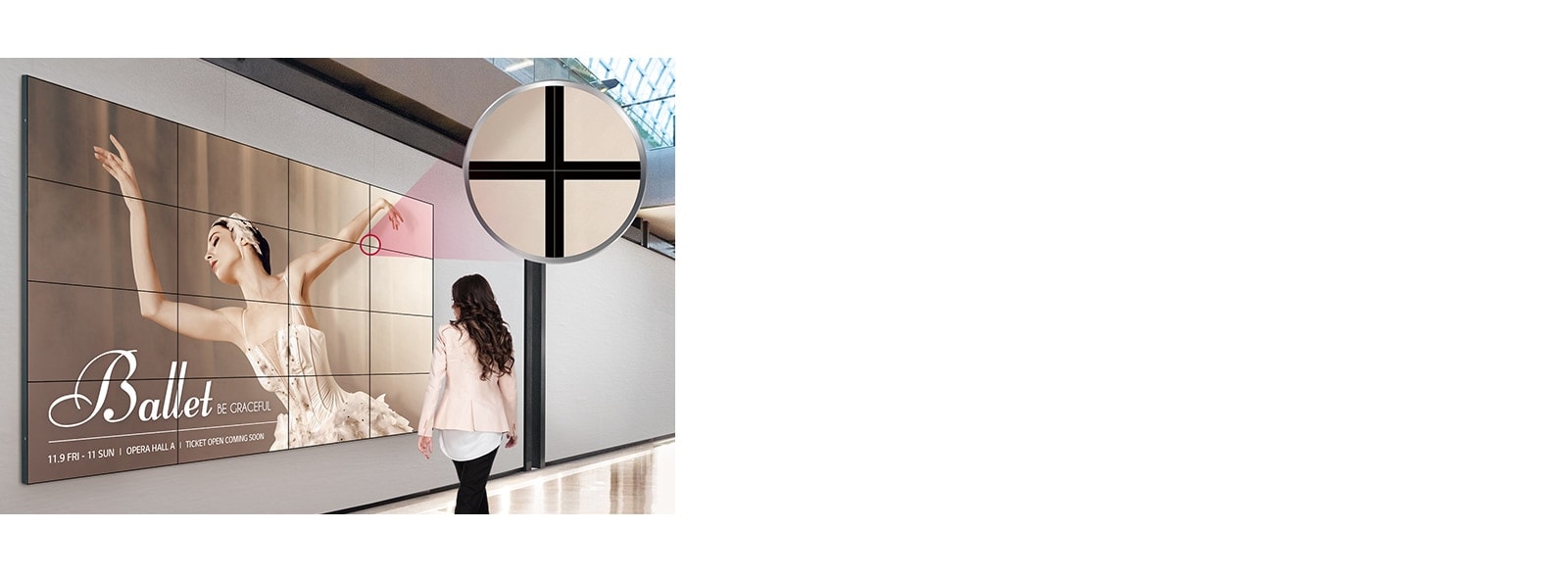

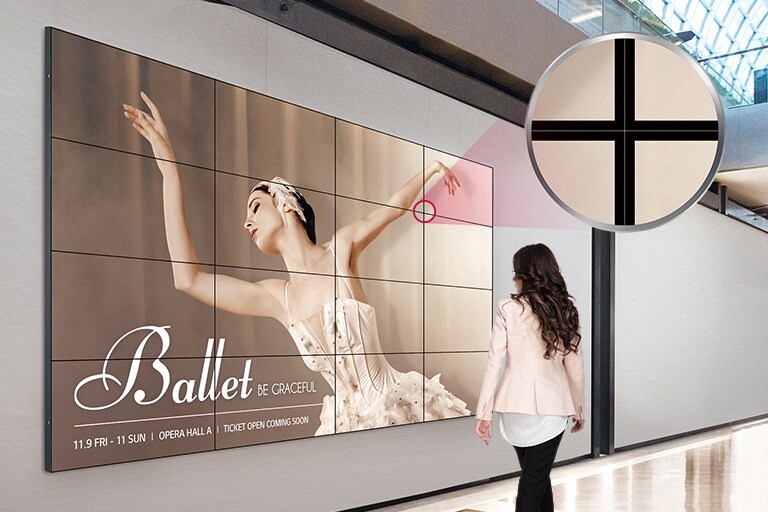

The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content. The ultra-narrow bezel screens are attached to the wall in the form of tiles, displaying large and dynamic content.

Seamless Large Screens with Ultra-Narrow Bezel

The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.

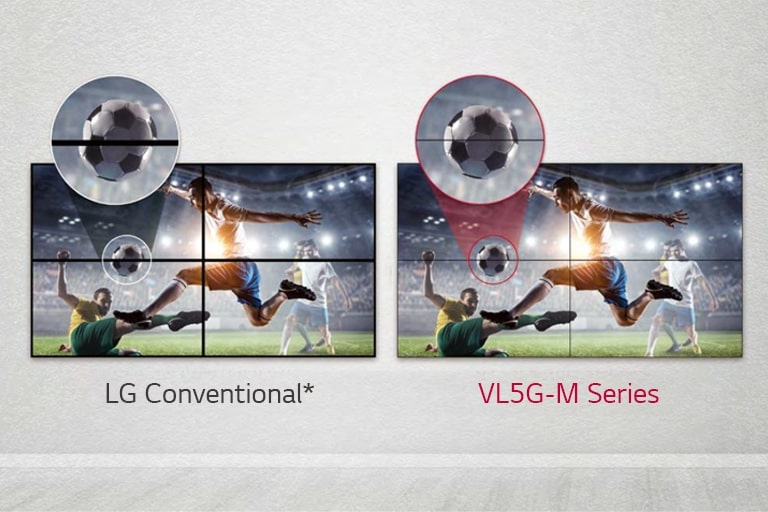

VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap. VL5G series has a less image gap between tiled screens compared to LG Conventional, so its content is seen well without being disturbed by the gap.

Image Gap Reduction

The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
* The "LG Conventional" refers to displays which do not include an image improvement algorithm.

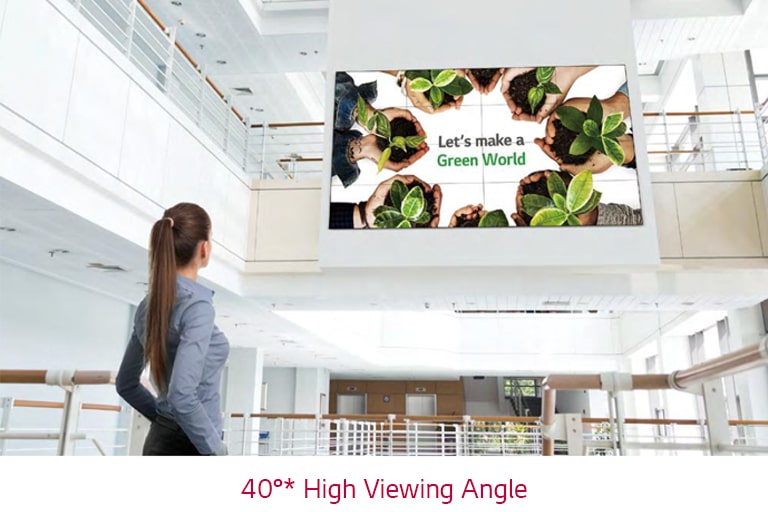

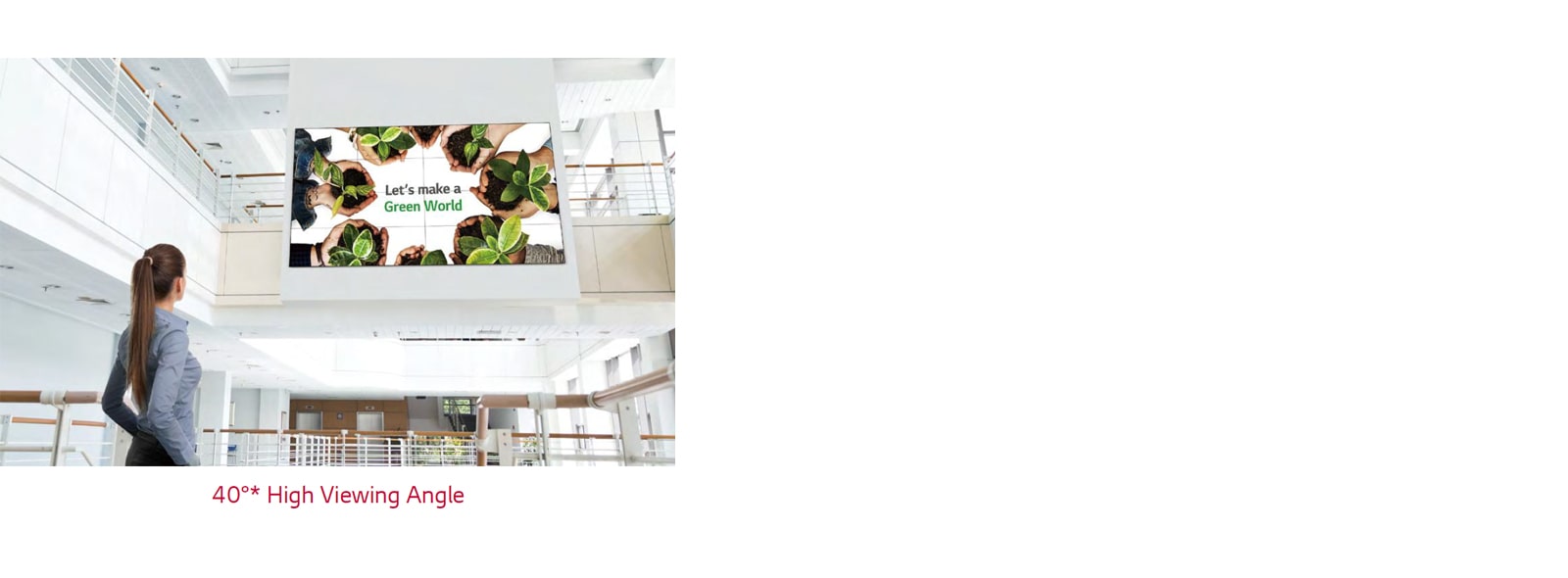

A woman is looking up at the screen installed upstairs. A woman is looking up at the screen installed upstairs.

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion.
* Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.

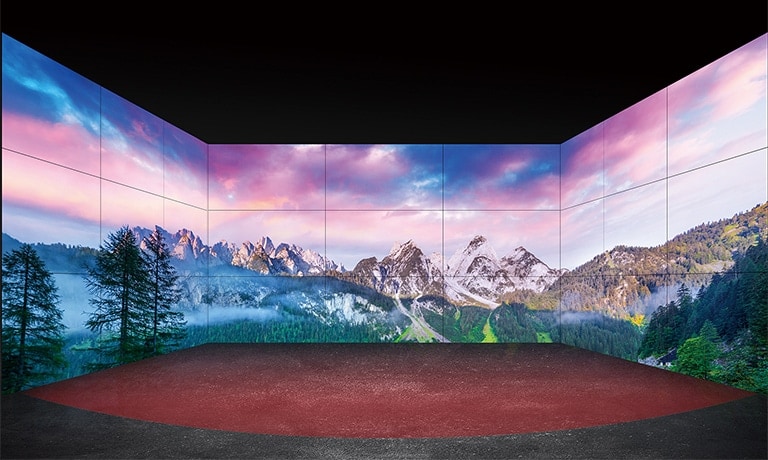

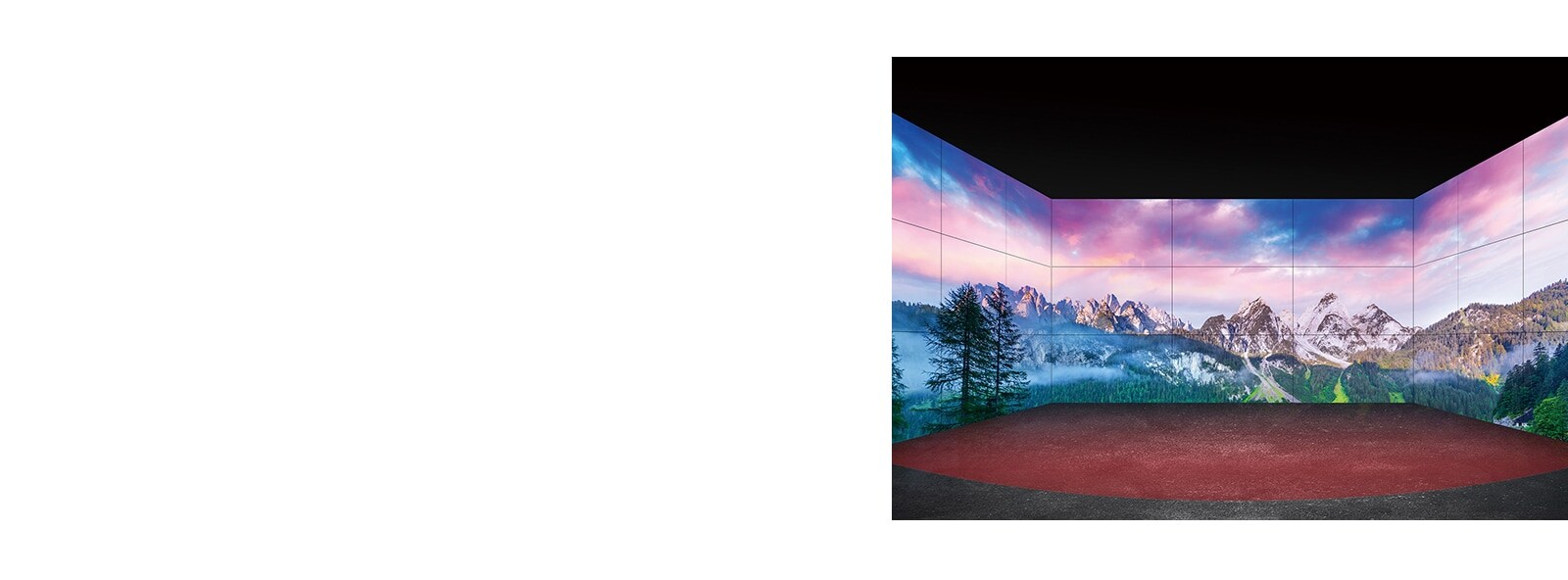

A number of screens installed on both sides and front wall provide a more vivid and wider view. A number of screens installed on both sides and front wall provide a more vivid and wider view.

Wide Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

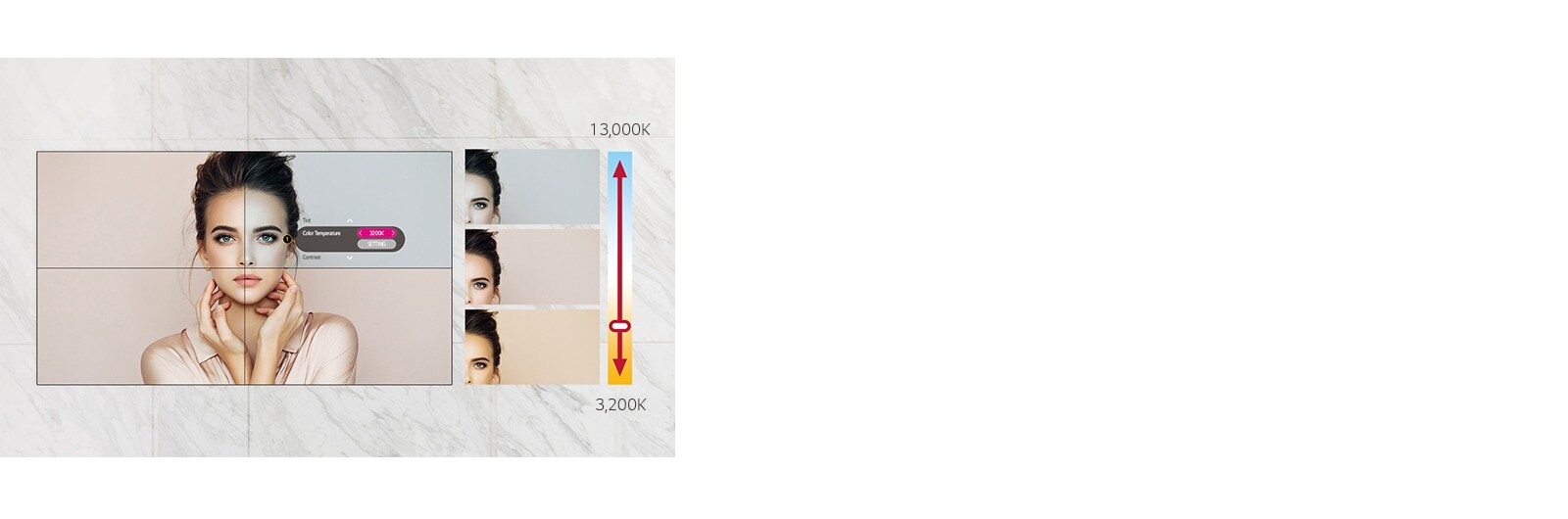

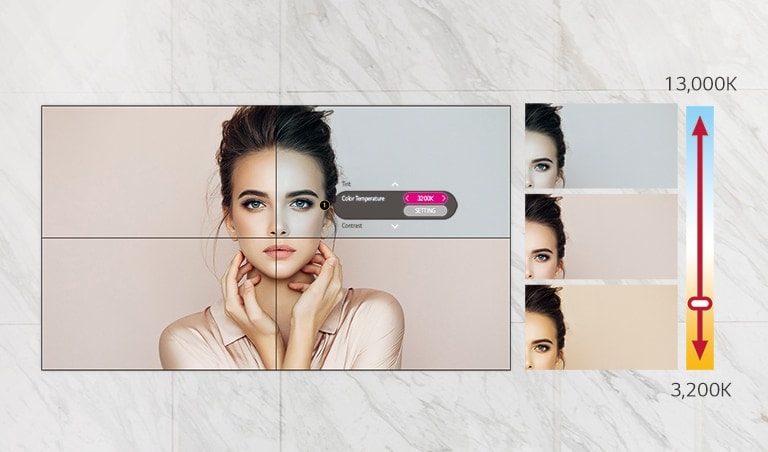

49VL5G can adjust the color temperature from 3,200K to 13,000K in units of 100K. 49VL5G can adjust the color temperature from 3,200K to 13,000K in units of 100K.

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

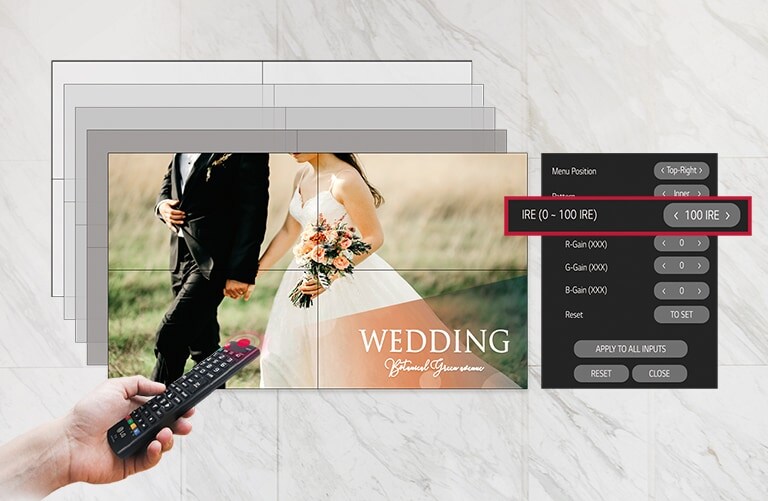

VL5G series can be more accurately adjust white balance. VL5G series can be more accurately adjust white balance.

White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

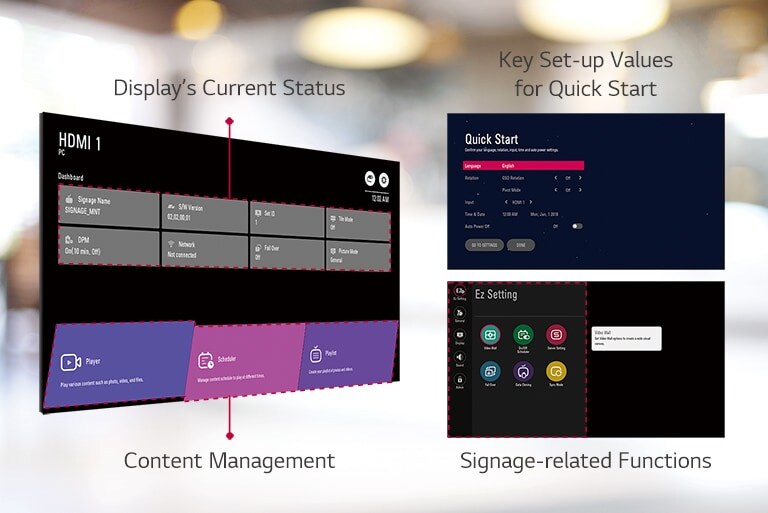

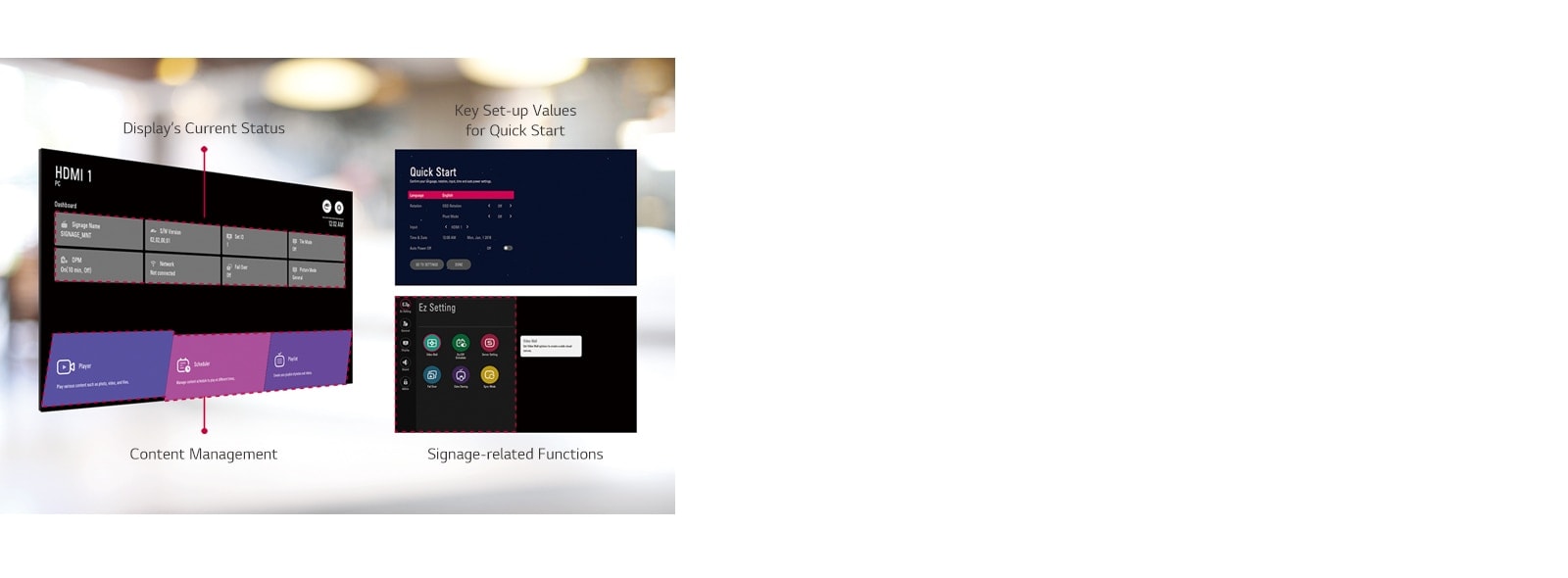

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

User-Friendly Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
A display is easily controlled using a user-friendly GUI and a remote control. A display is easily controlled using a user-friendly GUI and a remote control.

Intuitive GUI

The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
Close
PANEL
  • Screen Size
    49"
    Panel Technology
    IPS
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1,920 x 1,080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    500,000:1
    Color Gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8 ms (G to G)
    Surface Treatment(Haze)
    3%
  • Life time
    60,000Hrs (Typ.) / 50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / Yes
CONNECTIVITY
  • Input
    HDMI (2, HDCP 1.4), DP (1, HDCP 1.3),DVI-D (1, HDCP 1.4) Audio In, RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A (1)
    Output
    DP Out (Input : DP (HDCP)), Audio Out, RS232C OUT
MECHANICAL SPECIFICATION
  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 2.25/1.25/2.25/1.25mm
  • Weight(Head)
    16.9Kg
    Packed Weight
    29.3kg
  • Monitor Dimension(W x H x D)
    1077.6 x 607.8 x 89.7mm
    Carton Dimensions(W x H x D) (Box outer size)
    1214 x 778 x 263mm
  • Handle
    Yes
    VESA™ Standard Mount Interface
    600 x 400
KEY FEATURE
  • HW
    Temperature Sensor
    SW
    Embedded CMS (Local Contents Scheduling), USB Plug & Play, Fail over, Background Image (Booting Logo Image, No Signal Image), Sync Mode (RS-232C Sync), Rotation (Screen Rotation), Tile Mode Setting (Max. 15x15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, 3rd Party Compatibility (Crestron Inside), Smart Energy Saving, PM mode, Wake on LAN, HDMI-CEC, SI Server Setting, W/B Setting by Grey scale, Scan Inversion
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    100W
    Max.
    120W
  • BTU (British Thermal Unit)
    341 BTU/Hr(Typ.), 409 BTU/Hr(Max)
    Smart Enegy Saving
    60W
  • DPM
    0.5W
    Power off
    0.5W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC
  • ErP / Energy Star
    Yes / Energy Star 8.0(US Only)
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    Yes
    SuperSign Media Editor
    Yes
  • Connected Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, RS232C cable, DP cable, IR Receiver, Guide Bracket, Screws, Manual
    Optional
    Wall Mount ( Landscape : WM-L640V, Portrait : WM-P640V)
