49XE3P-B component-copyModelName
High-brightness IP-rated Outdoor Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49XE3P-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (49XE3P-B)
    AED
    AED
    LG Members Price
Total
High-brightness IP-rated Outdoor Display

Outdoor Display with
Easy Maintenance and Lasting Performance

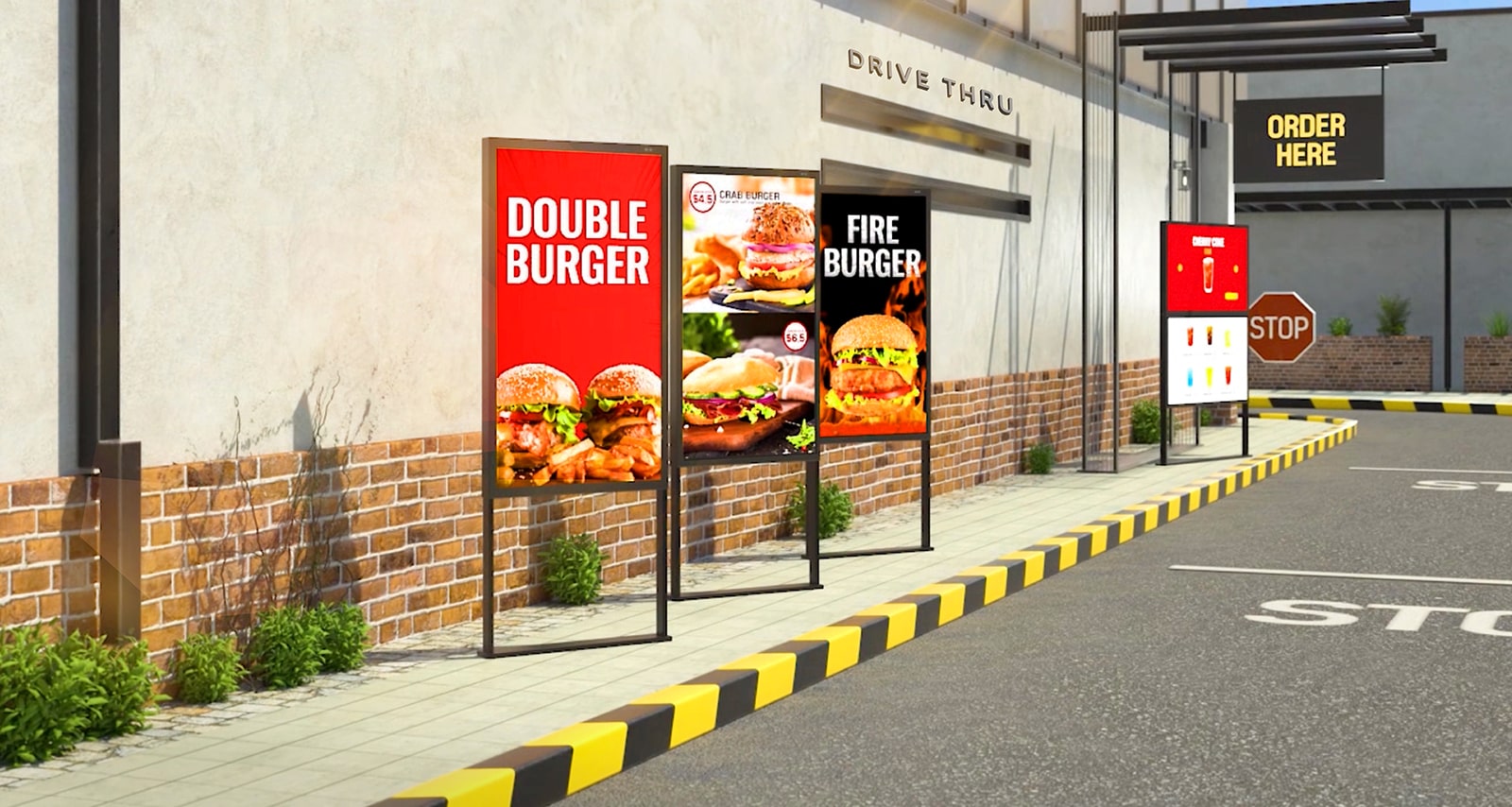

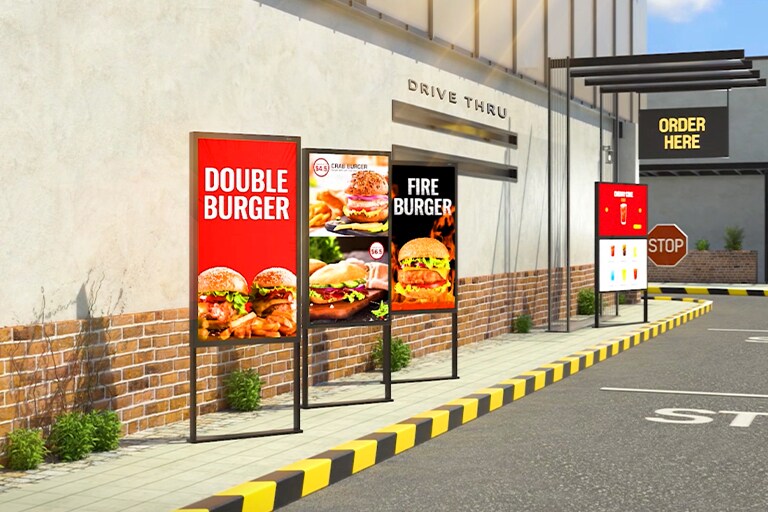

There are four XE3P installed in the drive-thru zone at the burger place, and they vividly display the burger menus and images even in bright sunlight. There are four XE3P installed in the drive-thru zone at the burger place, and they vividly display the burger menus and images even in bright sunlight.

IP-rated Outdoor Display

LG offers advanced technical solutions equipped with various sensors, providing reliable and effective operations. In diverse spaces under sunlight, the XE3P highlights your content, reducing concerns about excessive operational burdens.

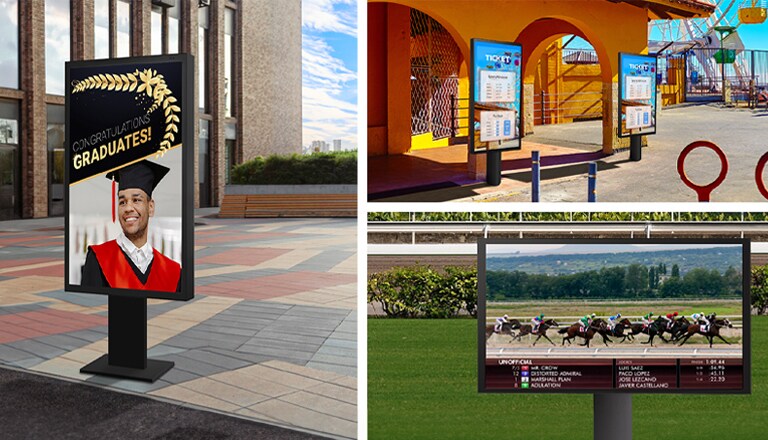

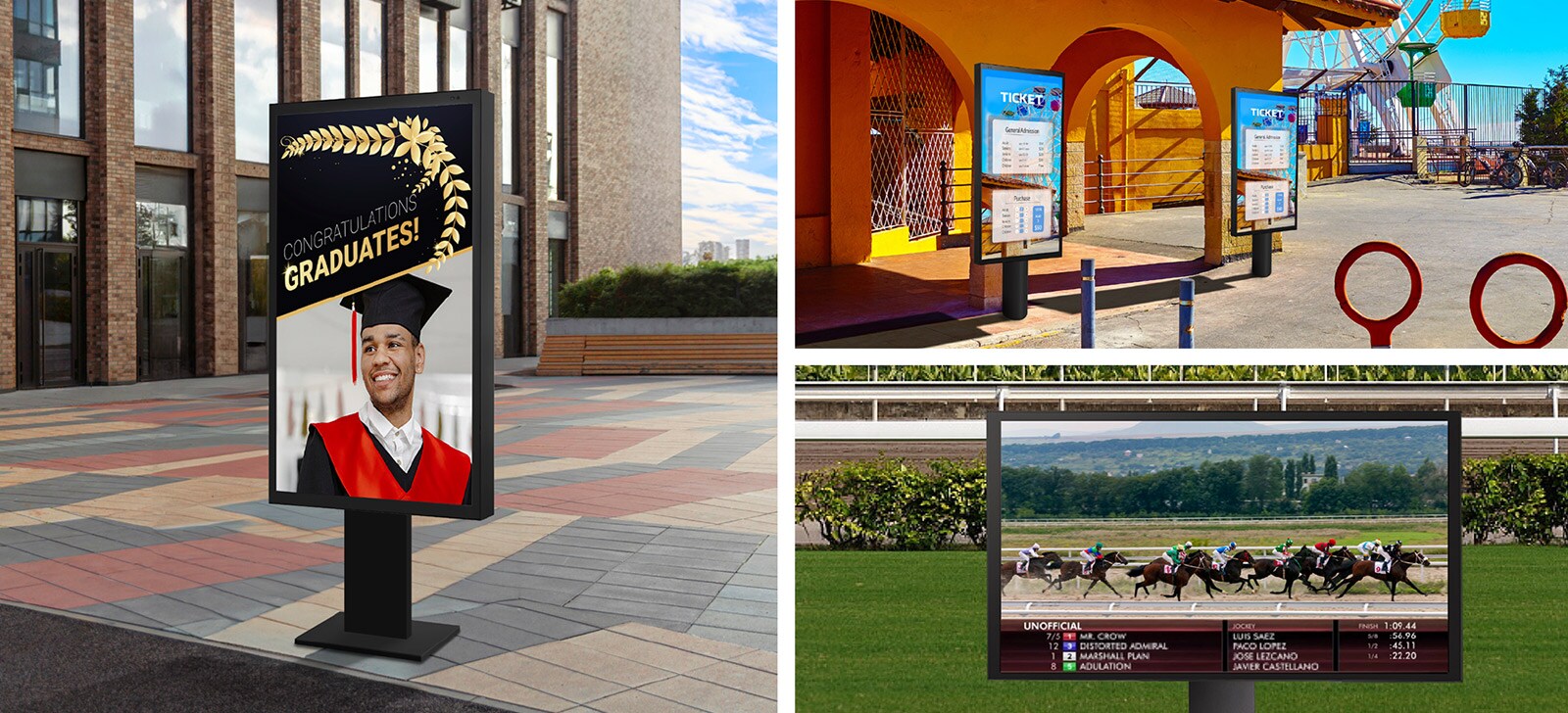

"An XE3P display is installed in the outdoor area next to the school building, clearly celebrating the graduation ceremony. Two XE3P displays are installed in front of the ticket booth at an amusement park, showing ticket purchase information clearly, even in strong sunlight. An XE3P display installed at the racetrack clearly shows the race and relevant information." "An XE3P display is installed in the outdoor area next to the school building, clearly celebrating the graduation ceremony. Two XE3P displays are installed in front of the ticket booth at an amusement park, showing ticket purchase information clearly, even in strong sunlight. An XE3P display installed at the racetrack clearly shows the race and relevant information."

High Visibility Under
Strong Sunlight

With outstanding high brightness of 3,500 nits (Typ.), the XE3P outdoor display delivers content clearly with captivating passersby. Through IPS technology, viewers can engage with the content at wide viewing angles.

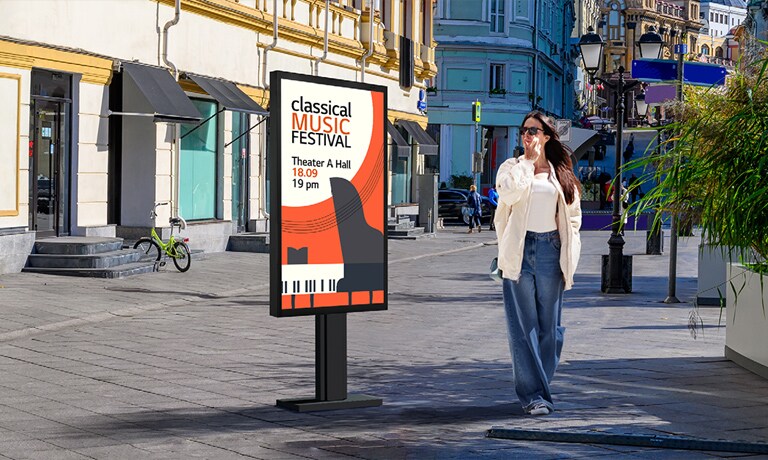

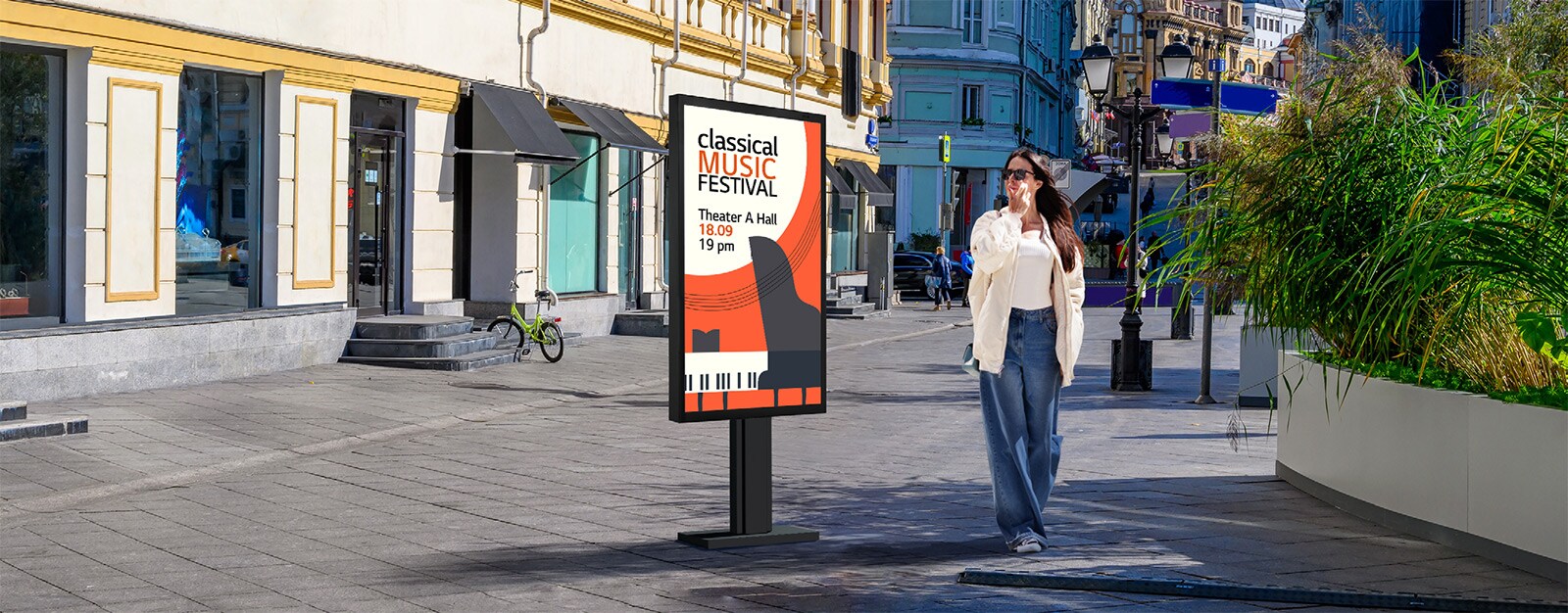

An XE3P is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen. An XE3P is installed on the street, and a woman is looking at a vivid-quality advertisement on the screen.

LG Anti-Discoloration

By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality. The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality.

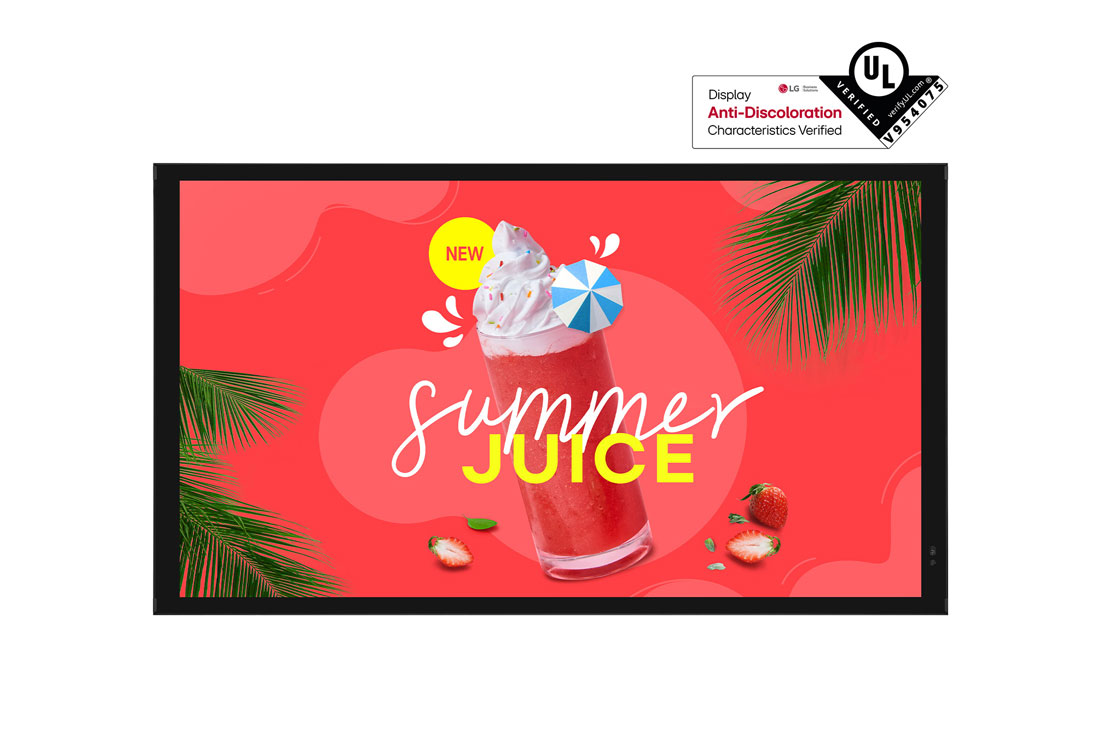

World’s First UL Verified Display for Anti-Discoloration Characteristics

Especially for screen yellowing resistance, we obtained the world’s first UL Verification of Anti-Discoloration characteristics for displays. The UL Verified XE3P can alleviate concerns about screen yellowing, the most common but tricky issue for outdoor digital signage products.

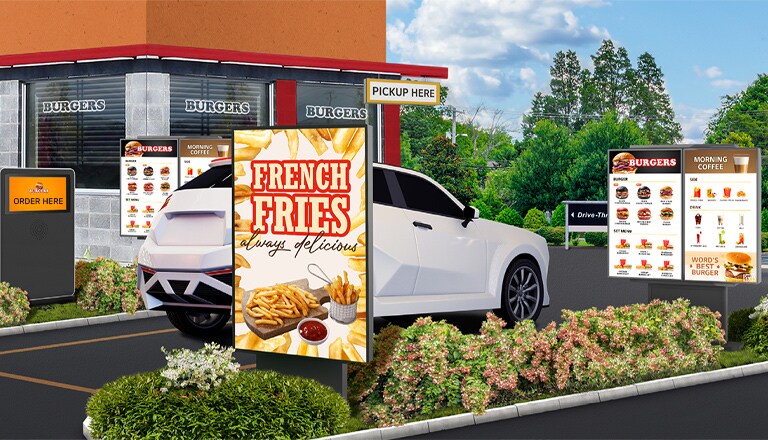

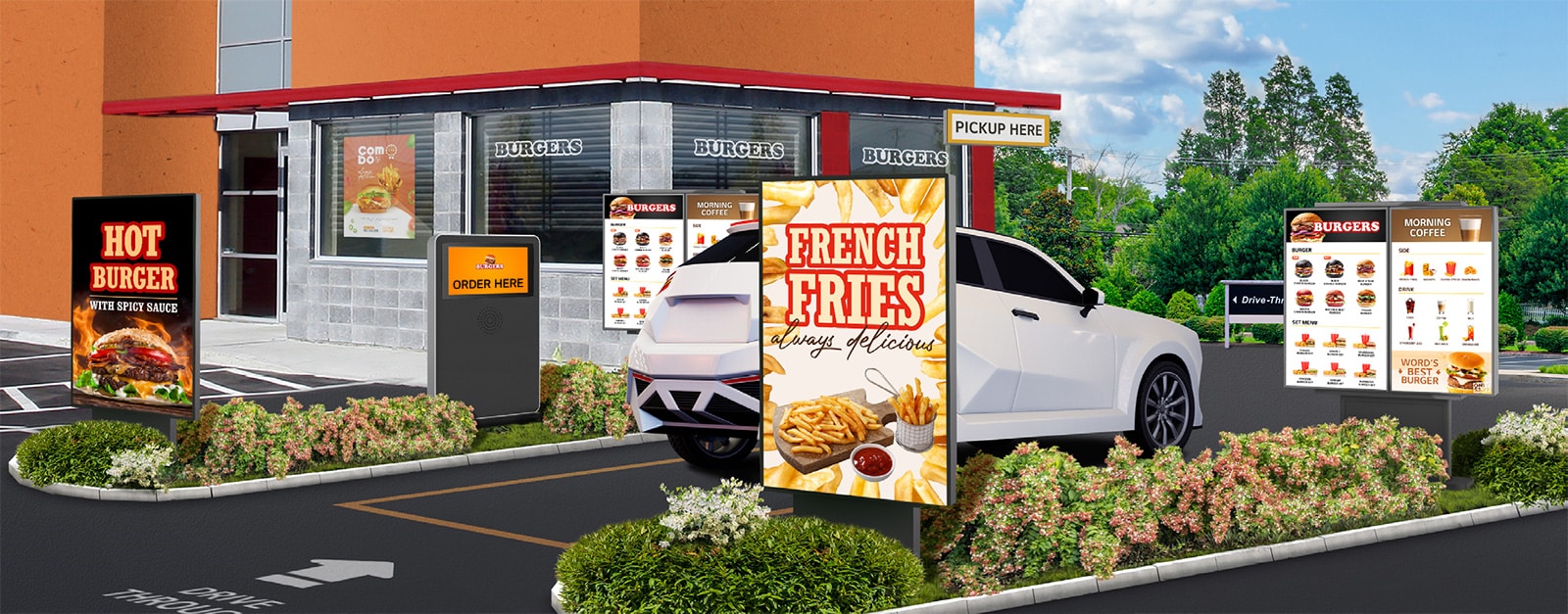

Several outdoor displays are installed at a burger place’s drive-thru, brightly and clearly showcasing the menu and food images. Several outdoor displays are installed at a burger place’s drive-thru, brightly and clearly showcasing the menu and food images.
* For more details, please visit https://verify.ul.com/verifications/1382.
** World's first UL Verification in the manufacturing industry
The XE3P is resistant to external elements such as water and dust. The XE3P is resistant to external elements such as water and dust.

IP56 Rated Reliability

The XE3P is sealed with IP56 design for reliable operation. It is designed to be protected not only from water but also from dust, which is an essential feature for outdoor applications.

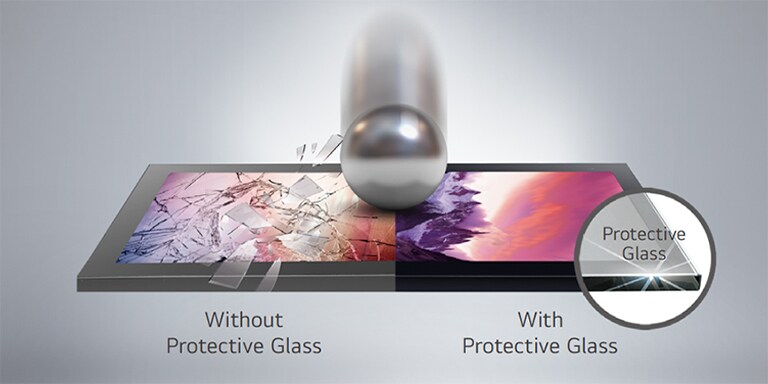

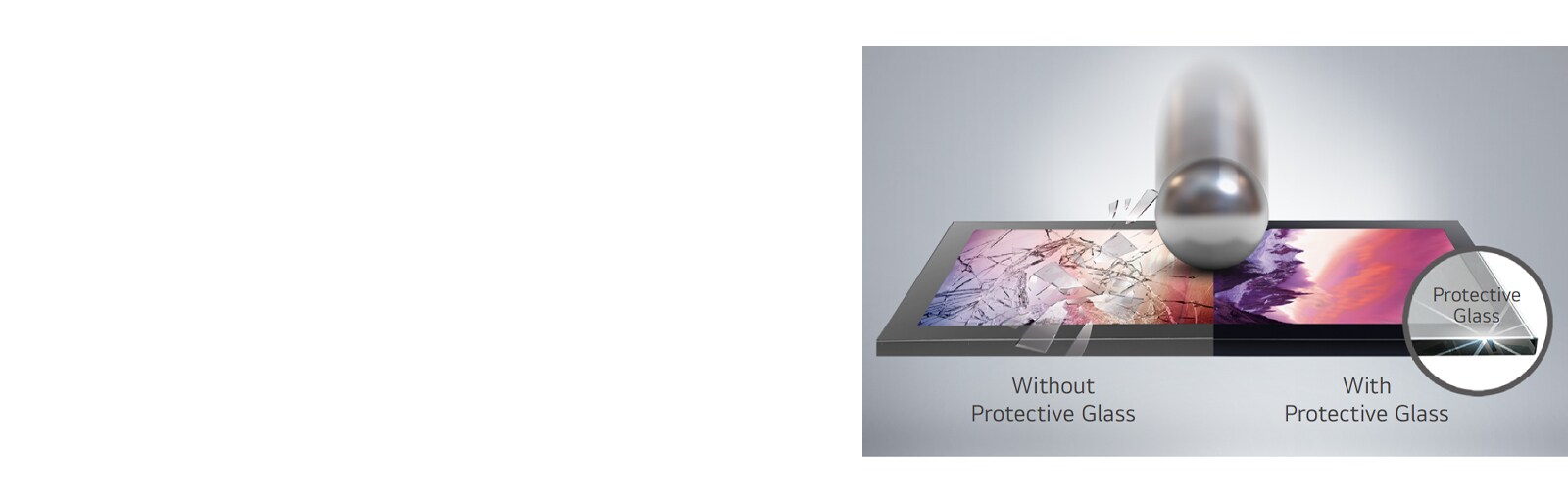

When a strong impact hits the front glass from the outside, the display without protective glass breaks, but the XE3P minimizes the damage with protective glass. When a strong impact hits the front glass from the outside, the display without protective glass breaks, but the XE3P minimizes the damage with protective glass.

IK10 Protective Glass

The XE3P features IK10 rated protective glass, tempered and laminated for outdoor extremes, minimizing damage from external impacts. This can reduce unnecessary LCD module replacements and can lead to cost-effective maintenance.
A display is working well in an environment of -30~50°C. A display is working well in an environment of -30~50°C.

Wide Range of Operating Temperature

The XE3P can be used under a wide range of operating temperature from -30℃ to 50℃.

* Conducted by LG internal test, Operating temperature : -30℃~50℃ (without direct sunlight; with direct sunlight in cooling system), -30℃~40℃ (with direct sunlight)
The XE3P has a conformal coating making it resistant to dust and salinity in moisture. The XE3P has a conformal coating making it resistant to dust and salinity in moisture.

Conformal Coating

Conformal Coating* protects the circuit board and power board against dust, iron powder, humidity, etc.

* Thin protective films/breathing membranes that filter water vapor and solid debris

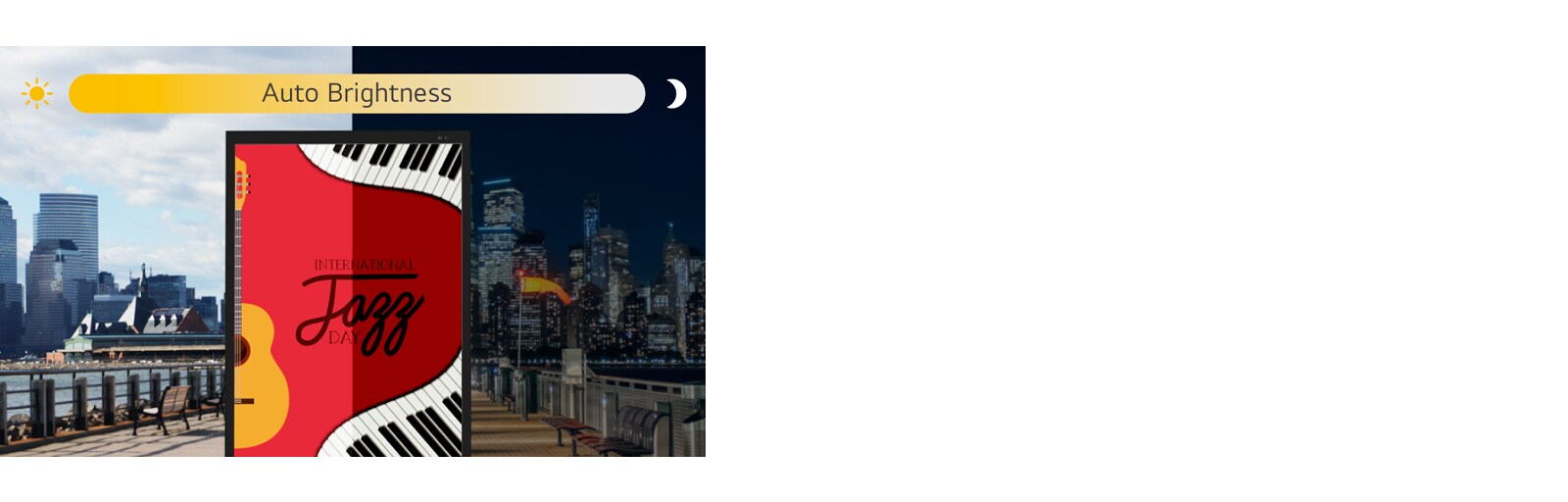

The XE3P screen can adjust its brightness automatically according to the ambient light. The XE3P screen can adjust its brightness automatically according to the ambient light.

Efficient Energy Management

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, the XE3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.

* The cost-saving effect may vary depending on the actual power consumption, billing methods, and policies of the respective country and site.
** M+ IPS reduced approximately 35% BLU power consumption (IEC62087, 10 min) compared to RGB IPS, tested under same brightness (@full white, 400 nits).
The user is managing the power consumption of the XE3P display efficiently using preset brightness settings. The user is managing the power consumption of the XE3P display efficiently using preset brightness settings.

Easy Energy Management

The XE3P provides preset brightness settings suited to different locations and usage environments, enabling easy and effective power consumption management according to various scenarios.

* Manual mode : Max. 95%, Min. 5%
Highlight mode : Max. 100%, Min. 20%
Basic mode : Max. 70%, Min. 10%
Nearby mode : Max. 50%, Min. 10%

Built-in Wi-Fi & Bluetooth

Built-in Wi-Fi and Bluetooth allow easy wireless transfer and distribution of content, help to prevent data hijacking, and ensure convenient and efficient device operation. Additionally, the XE3P is equipped with a beacon that delivers real-time information, using location data for display content.

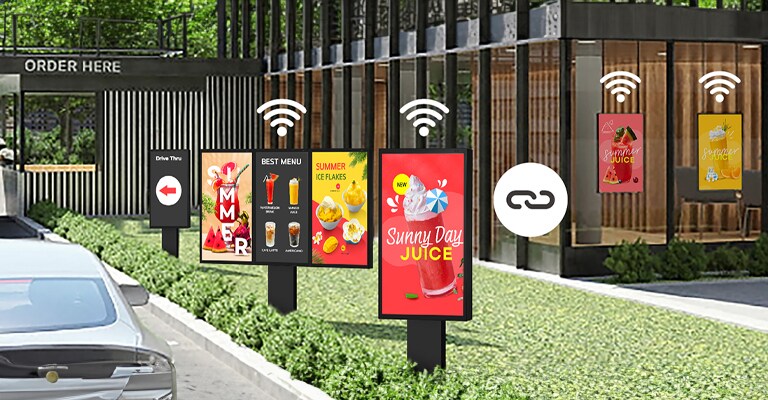

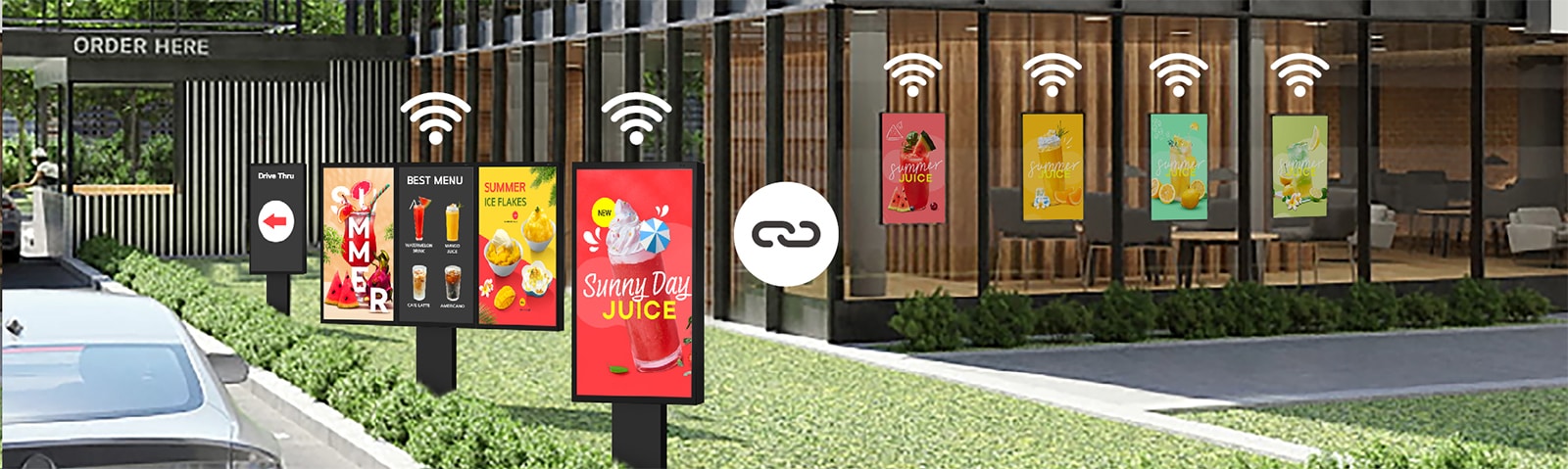

Displays installed inside and outside a café are connected via Wi-Fi and Bluetooth, making it easy to manage content seamlessly. Displays installed inside and outside a café are connected via Wi-Fi and Bluetooth, making it easy to manage content seamlessly.

Vandalism Alert

If the sensor detects the XE3P experiencing an impact above a certain threshold or deviating from its original installation angle, it sends an alert to the administrator, enabling a quick response to issues like vandalism.
If the device detects external impact surpassing a certain threshold, an alert is automatically sent to the administrator. If the device detects external impact surpassing a certain threshold, an alert is automatically sent to the administrator.

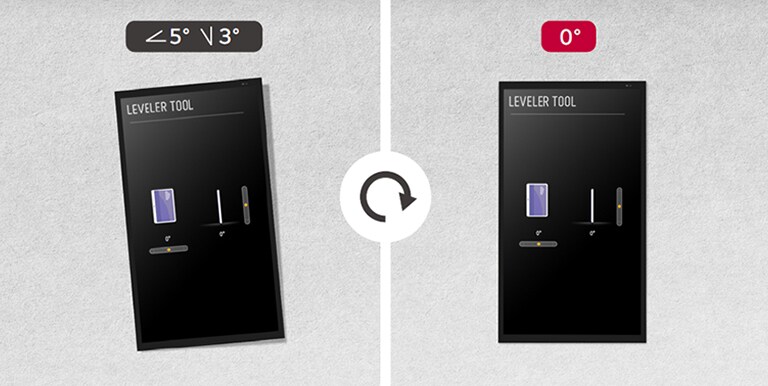

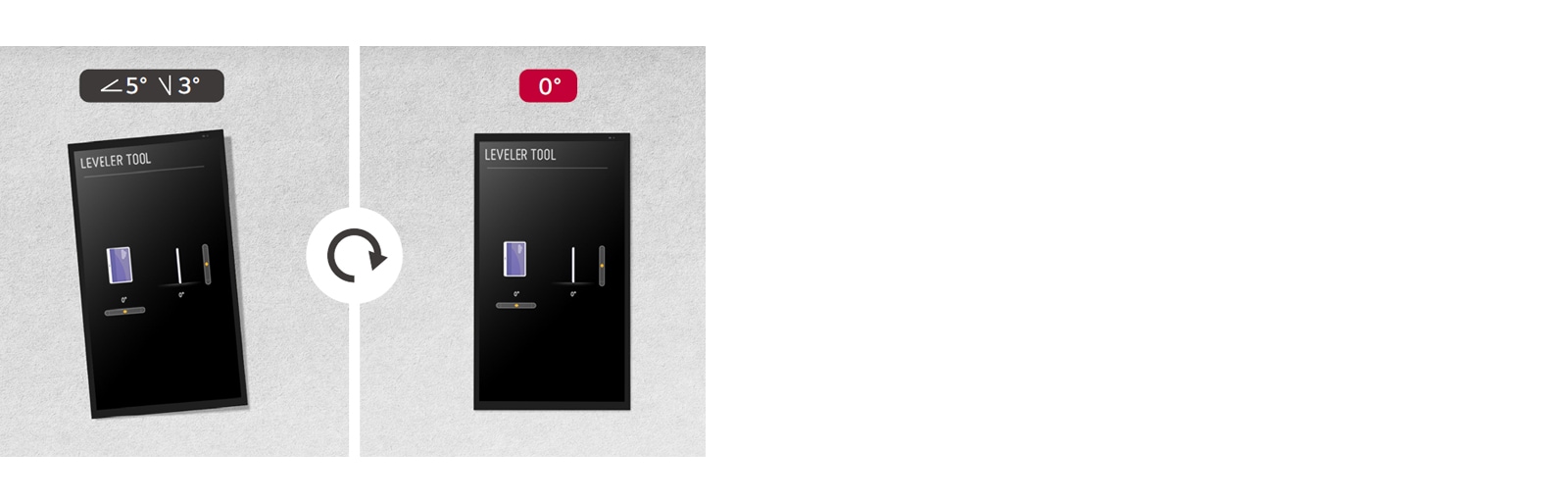

A display is installed without tilting using the self-leveler tool. A display is installed without tilting using the self-leveler tool.

Easy Installation

For easy installation, the XE3P is equipped with a self-leveler tool for checking horizontal and vertical levels during installation, reducing the burden of installation work.

* The availability of leveler tool feature may differ by model.

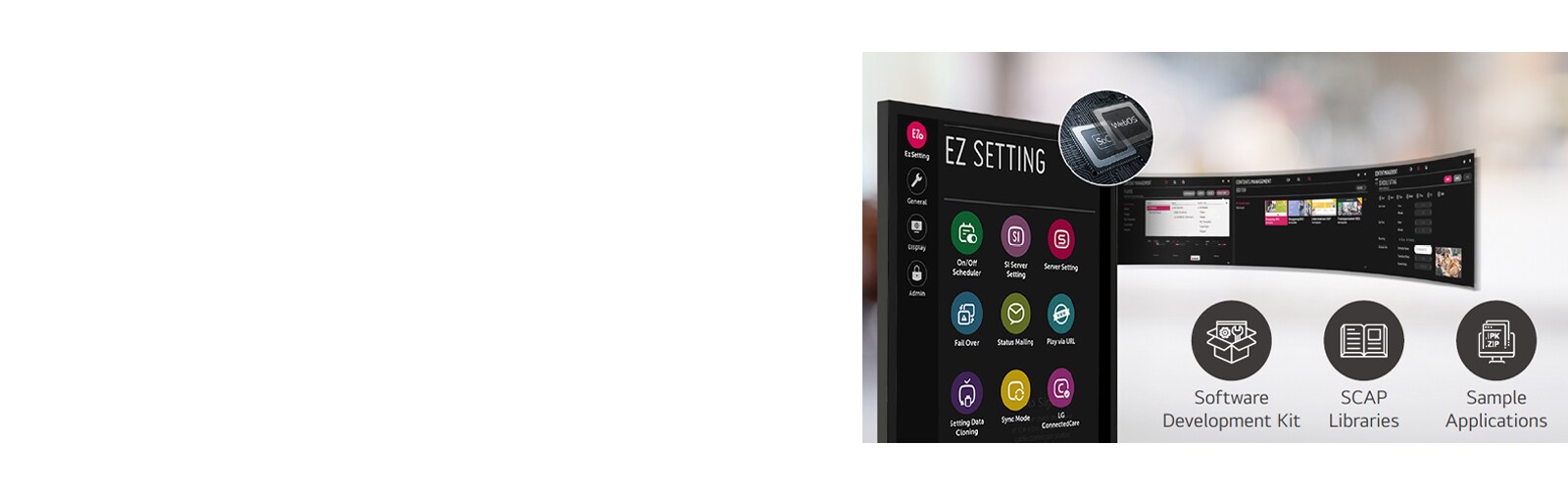

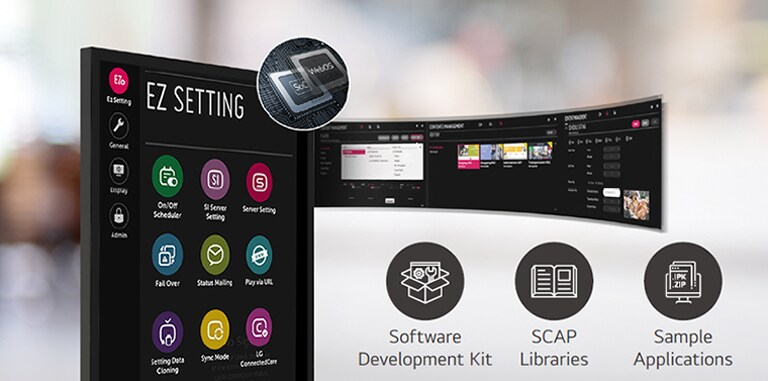

It has improved user convenience by utilizing the SoC and webOS. It has improved user convenience by utilizing the SoC and webOS.

High-performance with webOS 6.1

LG webOS 6.1, upgraded with SoC* and web engine, is available on the XE3P for smooth execution of several tasks. The XE3P enhances user convenience with its intuitive GUI**, and it also facilitates easy app development by being compatible with programming languages such as HTML, JavaScript, and CSS.

* SoC : System on Chip
** GUI : Graphical User Interface

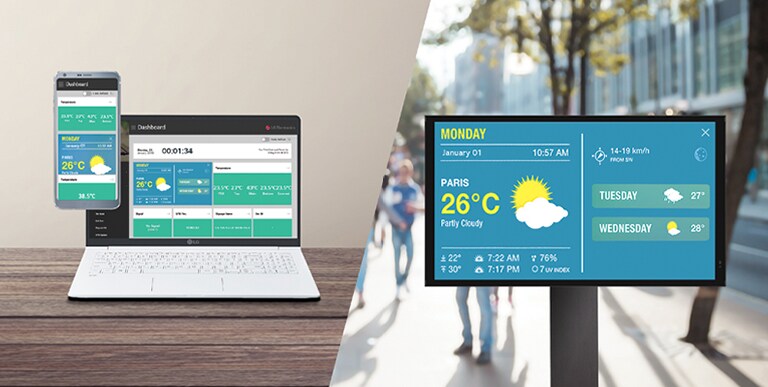

Users can monitor and control their displays through a mobile phone and laptop. Users can monitor and control their displays through a mobile phone and laptop.

Web Monitoring

The LG Control Manager*, an embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

* Enabled by wired LAN connection
Partner content is being utilized to compose the content intended for playback on the signage. Partner content is being utilized to compose the content intended for playback on the signage.

Professional Content Partners

Pairing the XE3P with LG SW solutions* would enhance its utilization.

* Sold separately

LG Anti-Discoloration

By focusing on the key pain points, we developed our new "Anti-Discoloration" technology designed to deter both screen yellowing and black circles. With an enhanced thermal solution, the XE3P can deliver long-lasting and stable display quality.
The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality. The display on the left shows yellowing, degrading its quality, but with XE3P, which acquired the UL Verification for Display Anti-Discoloration Features, the screen, as shown on the right, remains clear, safeguarding display quality.
Close
INFO
  • Product
    Outdoor
    Year
    Y24
  • Month
    M10
PANEL
  • Screen Size (Inch)
    55"
    Panel Technology
    IPS, M+
  • Back Light Type
    Direct
    Aspect Ratio
    16 : 9
  • Native Resolution
    1920x1080 (FHD)
    Refresh Rate
    60Hz
  • Brightness
    3,500 nit (Typ), 2,800 nit(Min)
    Contrast Ratio
    1,000:1
  • Dynamic CR
    500,000:1
    Color Gamut
    72%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth (Number of Colors)
    8bit, 16.7Million colors
  • Response Time
    Typ. 9ms (G to G BW)
    Surface Treatment (Haze)
    3%
  • Life time
    50,000Hrs(Typ)
    Operation Hours (Hours/Day)
    24/7
  • Portait / Landscape
    O / O
    QWP (Quarter Wave Plate)
    O
Connectivity
(Jack Interface)
  • HDMI IN
    O(2), HDCP2.2
    DP IN
    O(1), HDCP2.2
  • RS232C IN
    O(1) (4pin phone jack)
    RJ45(LAN) IN
    O(2) (Lan (1), HDbaseT(1))
  • USB IN
    USB2.0 Type A(2)
    External Speaker Out
    O(1, L/R, 10W+10W)
  • RS232C Out
    O(1)
    RJ45(LAN) Out
    O(1)
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    38.4/26/26/38.4mm
  • Weight (Head)
    TBD
    Packed Weight
    TBD
  • Monitor Dimensions (W x H x D)
    1292.5 x 737.4 x 88.0mm
    Carton Dimensions (W x H x D)
    1446 x 890 x 207mm
PROTECTION GLASS
  • Thickness
    5mm
    Degree of Protection
    O (IK10)
  • Tempered / Chemical strengthening
    Tempered
    Anti-Reflective
    O
  • Infrared - Resistance (IR)
    O
    Shatter-Proof
    O
HW FEATURE
  • Internal Memory (eMMC)
    16GB
    Wi-Fi/BT (Built-in)
    O
  • Temperature Sensor
    O
    IR Temperature Sensor
    O
  • Auto Brightness sensor
    O
    Pixel sensor
    O
  • Current Sensor
    O
    BLU Sensor
    O
  • Humidity Sensor
    O
    Acceleration(Gyro) Sensor
    O
  • Power Indicator
    O
    FAN (Built-in)
    O
SW FEATURE
  • OS Ver. (webOS)
    webOS6.1
    Local Contents Scheduling
    O
  • Group Manager
    O
    USB Plug & Play
    O
  • Fail over
    O
    Booting Logo Image
    O
  • No Signal Image
    O
    RS232C Sync
    O
  • Local Network Sync
    O
    Backlight Sync
    O
  • PIP
    O
    PBP
    O(2)
  • Video Tag
    O(4)
    Play via URL
    O
  • Screen Rotation
    O
    External Input Rotation
    O
  • Gapless Playback
    O
    Tile Mode Setting
    O (Max. 15x15)
  • Setting Data Cloning
    O
    SNMP
    O
  • ISM Method
    O
    Auto Set ID
    O
  • Status Mailing
    O
    Control Manager
    O
  • Smart Energy Saving
    O
    PM mode
    O
  • Wake on LAN
    O
    Network Ready
    O
  • Beacon
    O
    HDMI-CEC
    O
  • SI Server Setting
    O
    webRTC
    O
  • Pro:Idiom
    O
ENVIRONMENT CONDITIONS
  • Operation Temperature
    -30 °C to 50 °C
    Operation Humidity
    5% to 100%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    380W
    Max.
    430W
  • BTU (British Thermal Unit)
    1126 BTU/Hr(Typ.), 1365 BTU/Hr(Max)
    Smart Enegy Saving (70%)
    180W
  • DPM
    0.5 W↓
    Power off
    0.5 W↓
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC / VCCI
  • ErP / Energy Star
    O / X
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    O
    SuperSign Control+
    O
  • SuperSign Cloud
    O
    Connected Care
    O
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Turkish, polski (Polska), Arab
ACCESSORY
  • Basic
    Remote Controller, Manual(EIG, IG), Regulation Book, Phone to RS232C Gender, HDMI Cable , POWER CABLE, Battery, Screws
SPECIAL FEATURE
  • IP Rating
    IP56
    Conformal Coating (Power Board)
    O
  • Direct Sunlight
    O
PRODUCT DEDICATED
FEATURE
  • Heat dissipation
    Heat exchange
    Noise level
    62dB
