55TNF5J-B component-copyModelName

Touch Open Frame

LG Touch Open Frame, Front view with infill image, 55TNF5J-B, thumbnail 1

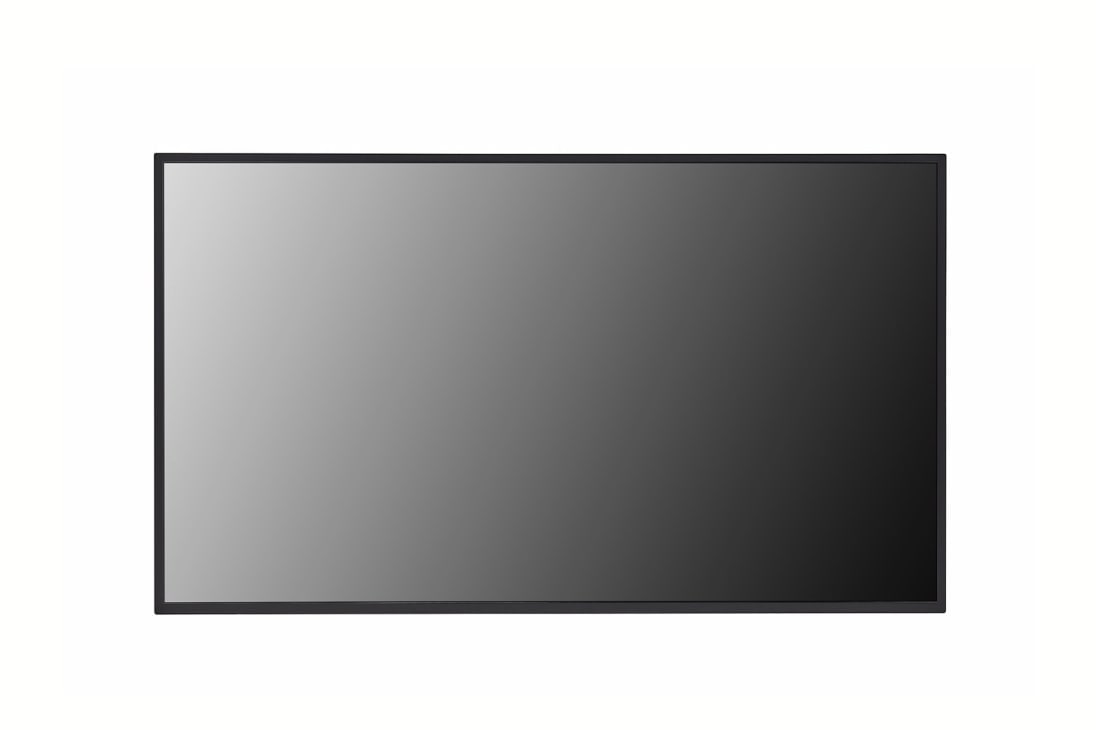

LG Touch Open Frame, Front view, 55TNF5J-B, thumbnail 2

LG Touch Open Frame, -45 degree side view, 55TNF5J-B, thumbnail 3

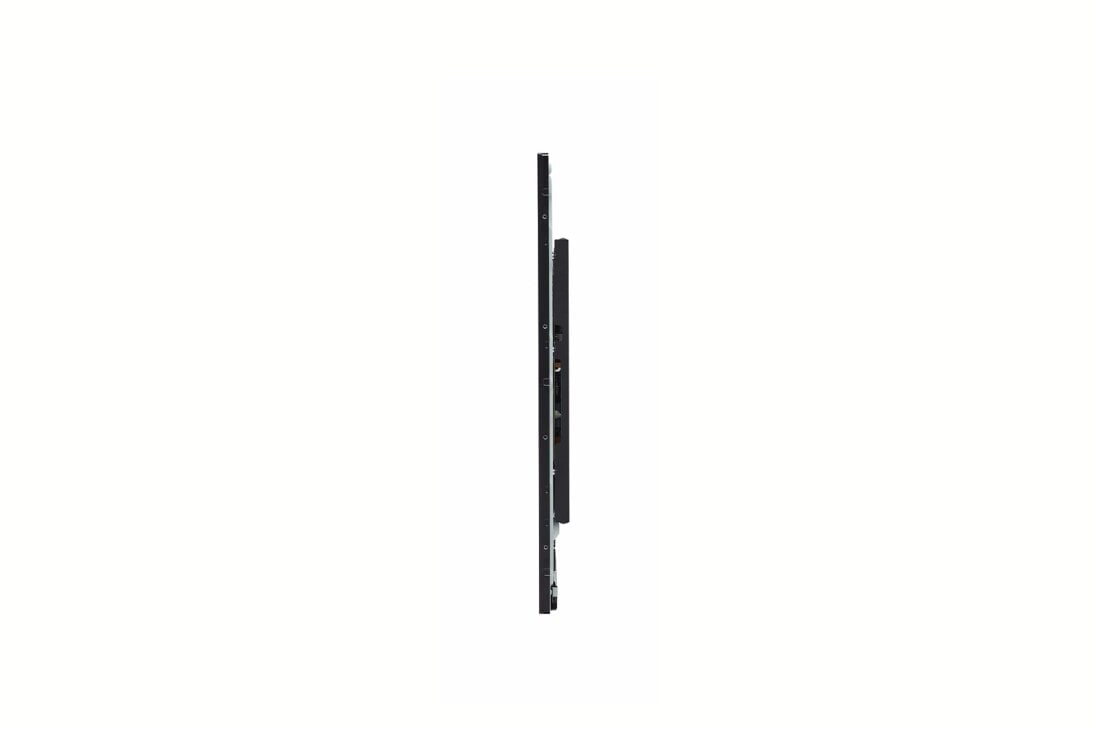

LG Touch Open Frame, -90 degree side view, 55TNF5J-B, thumbnail 4

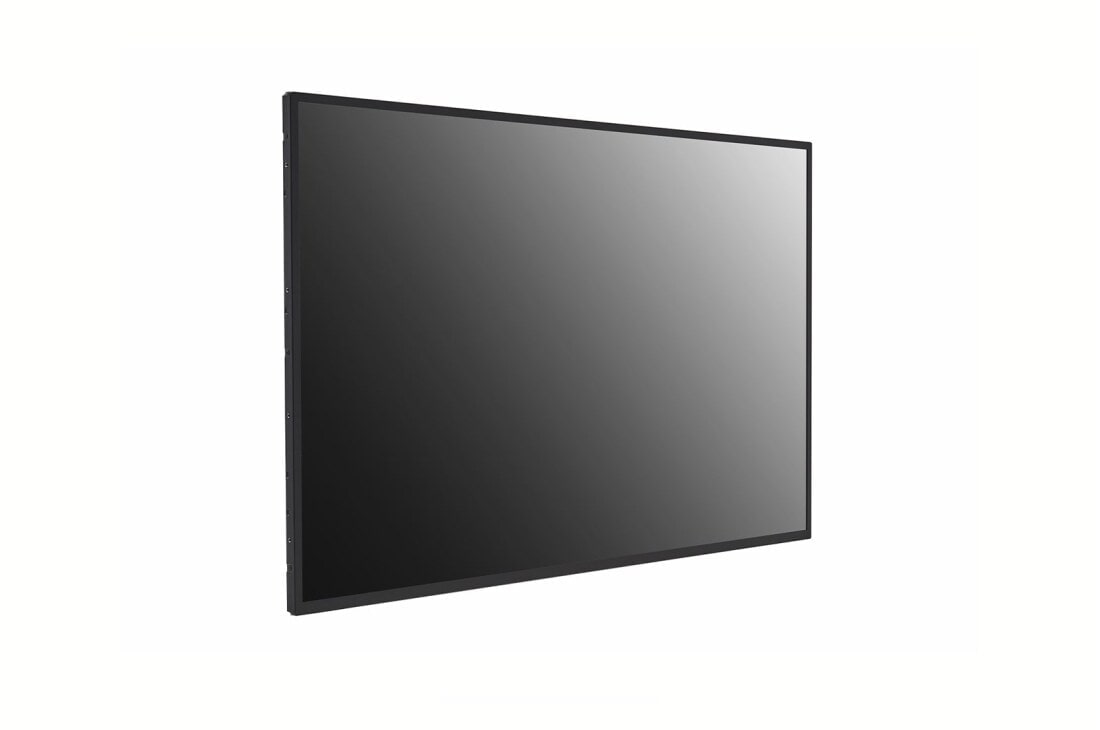

LG Touch Open Frame, +45 degree side view, 55TNF5J-B, thumbnail 5

LG Touch Open Frame, +90 degree side view, 55TNF5J-B, thumbnail 6

LG Touch Open Frame, Top view, 55TNF5J-B, thumbnail 7

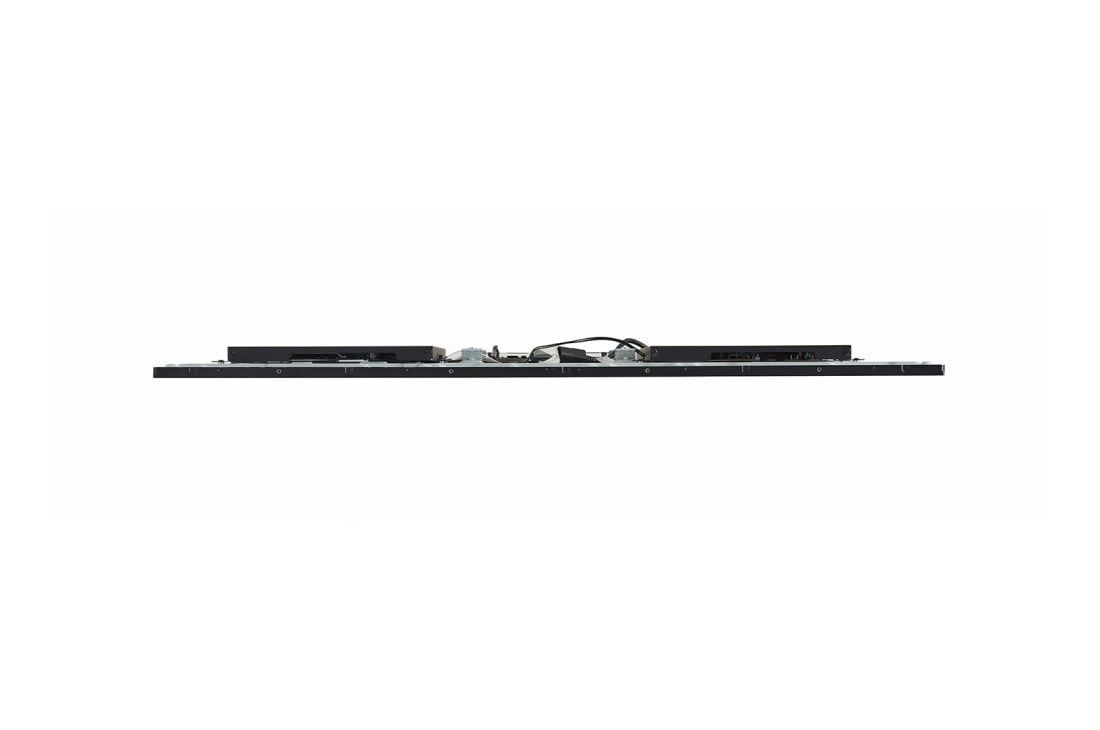

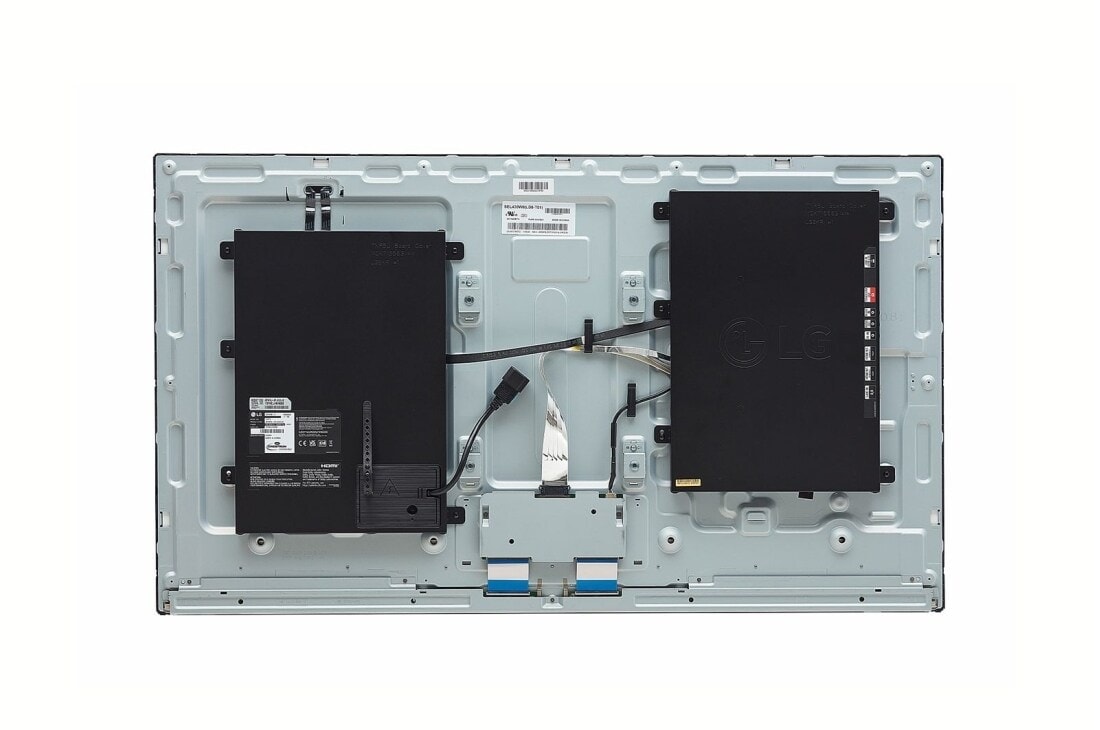

LG Touch Open Frame, Rear view, 55TNF5J-B, thumbnail 8

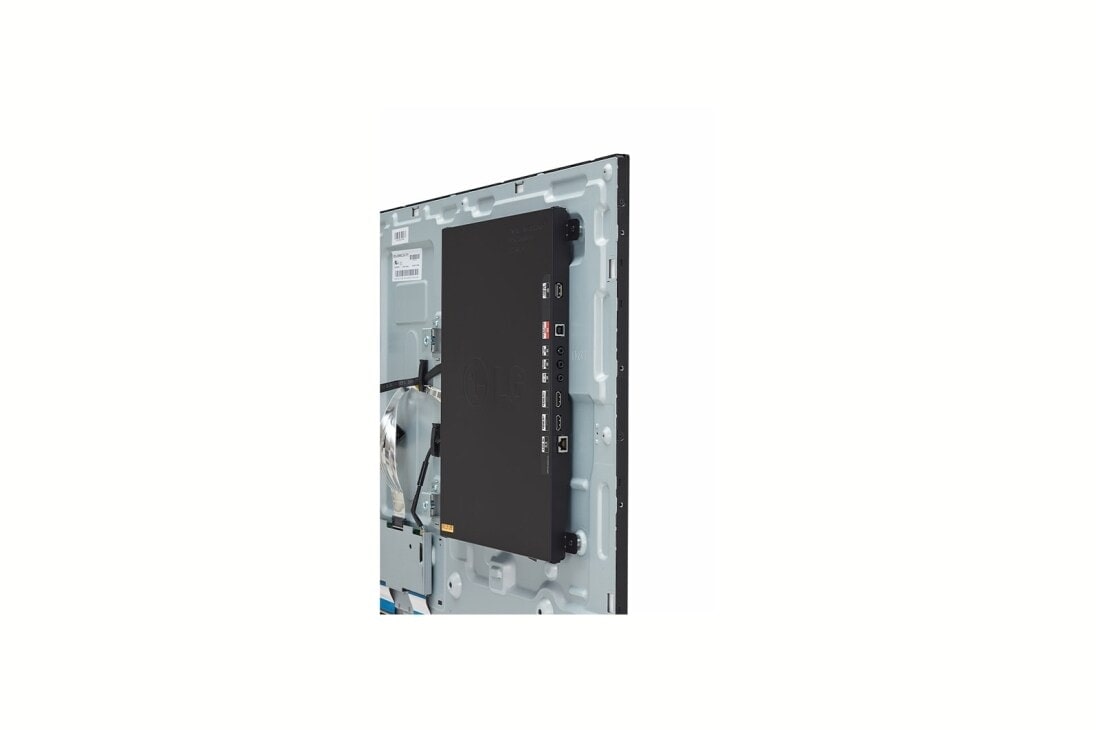

LG Touch Open Frame, Close-up rear view, 55TNF5J-B, thumbnail 9

ADD TO WISHLIST

Discontinued

55TNF5J-B component-copyModelName

Touch Open Frame

Name: Touch Open Frame
Brand: LG UAE
SKU: 55TNF5J-B
Rating: 0 (0 reviews)

Key Features

Brightness : 450 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

SEE ALL SPECS

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness : 450 nit
Multi Touch Point : 10 Points (Max.)
Interface : HDMI (2, HDCP 2.2/1.4), RS-232C In, RJ45(LAN), IR In, USB2.0 Type A, Audio Out, Touch USB (USB 2.0 Type B)

SEE ALL SPECS

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Touch Open Frame

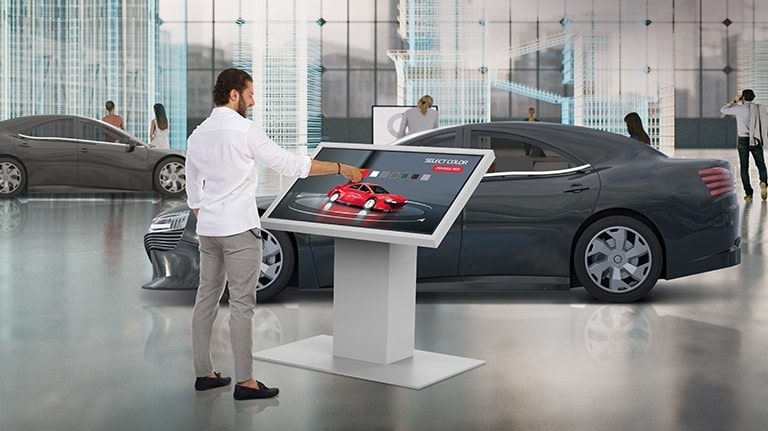

New In-Cell Touch Open Frame for Optimal Customization

* All images in this page are for illustrative purposes only.

Slim & Light

The In-Cell Touch Open Frame has a touch function built into the display, allowing for the implementation of a slim design and a narrow bezel compared to general touch products that require additional touch parts (Film).

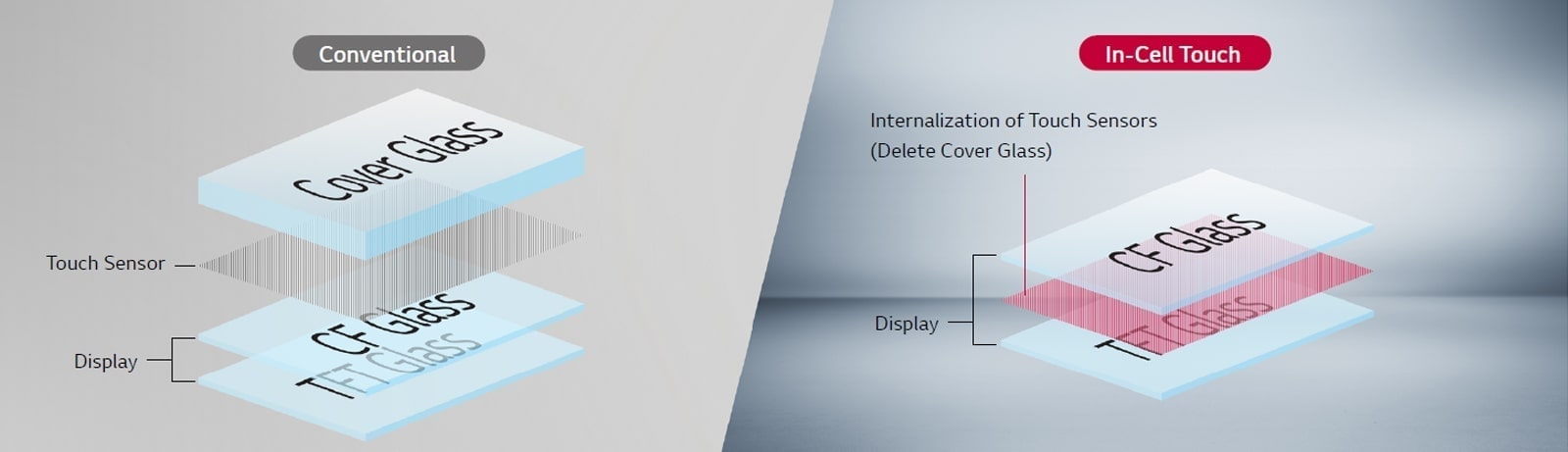

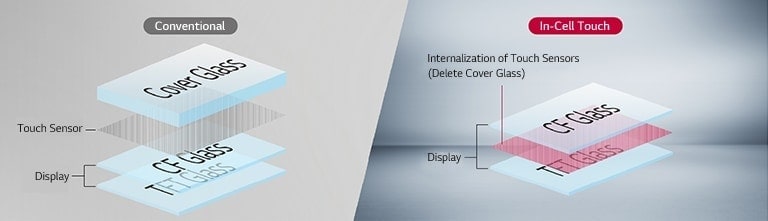

The conventional display has a touch sensor between the cover glass layer and the CF glass and TFT glass layers, whereas In-cell Touch has a touch sensor between the CF glass layer and the TFT glass layer without a cover glass layer.

Clear Picture Quality

Compared to general touch products, TNF5J implements clear picture quality without milk effects caused by additional touch sensor film parts.

While scenery on the conventional display looks blurry, the image on the In-cell Touch is clear.

Design Flexibility

By providing integrated parts such as touchscreen, display, and webOS, users can realize free design for their own needs.

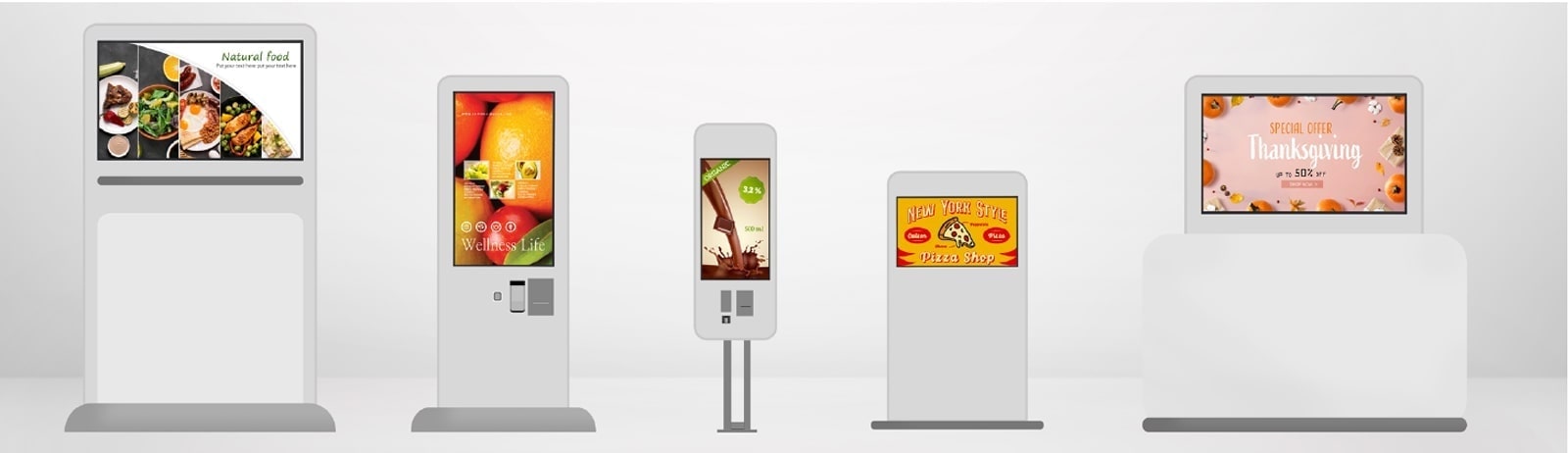

Various types of displays using TNF5J such as kiosk displays and publicity displays are placed.

A woman is touching a kiosk to select a hamburger from the menu.

24hrs / 7days

TNF5J’s excellent durability allows for use in kiosks that require a full day of operation.

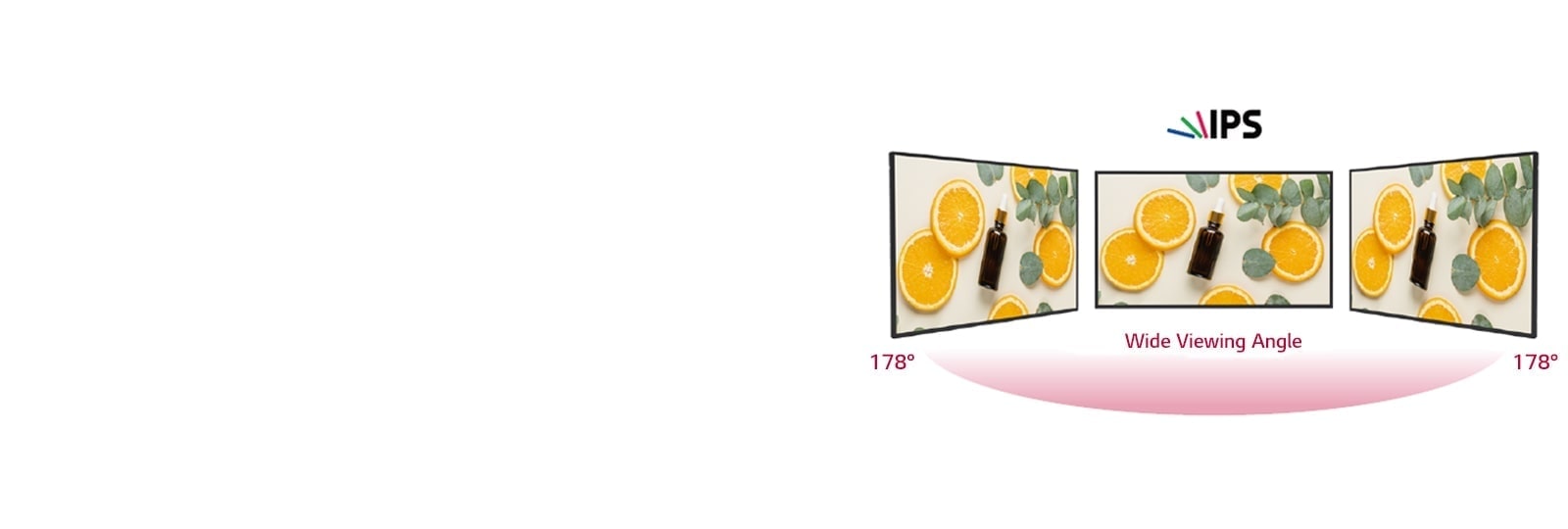

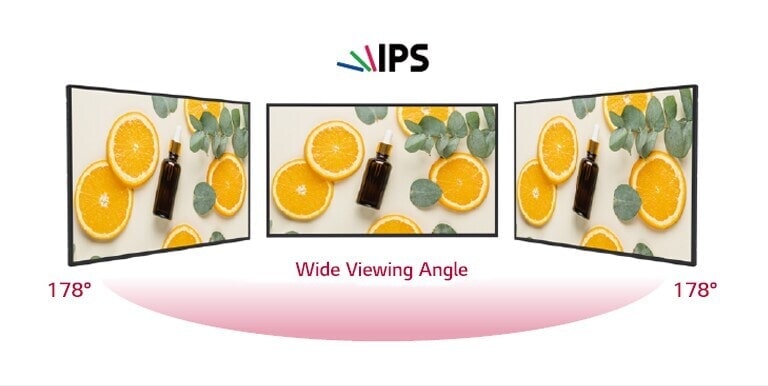

Wide Viewing Angle

IPS panel technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

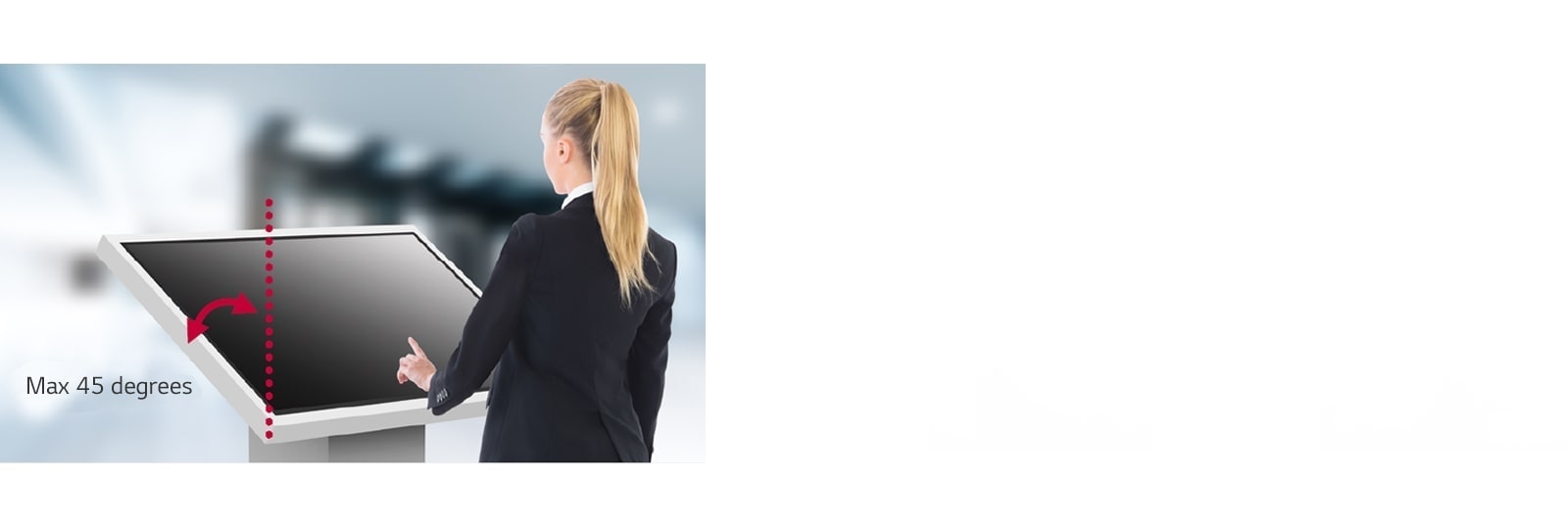

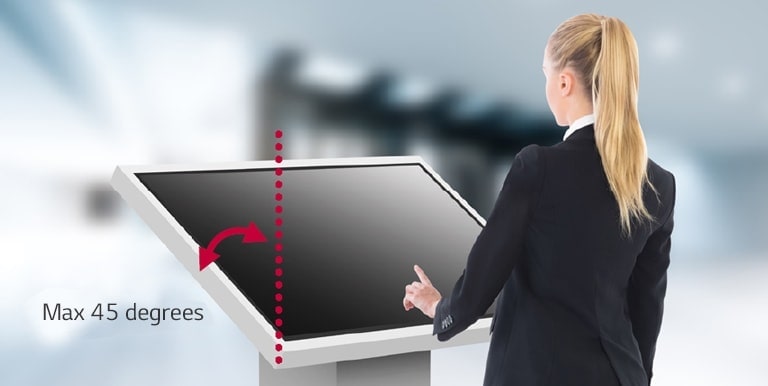

A woman is touching a lower installed TNF5J. The TNF5J is installed tilted toward the woman so she can see the display content well.

45-degree Tilt
(Face up) Installation Possible

When a display is installed at low places, it is usually tilted for the user’s viewing comfort. Considering this, the installation with a max tilt of 45 degrees is supported.

The user places all ten fingers on the TNF5J display to touch it.

10 Points of
Multi-Touch

The TNF5J provides a more realistic touch sensation since it can recognize up to 10 points of multi-touch at once, and various touchbased user services can be provided through the screen.

High-Performance with
webOS 6.0

webOS 6.0, upgraded in SoC* and web engine, is available on TNF5J for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI** and provides to SI or/and developers simple app development tools such as SDK (Software Development Kit), SCAP, sample applications.

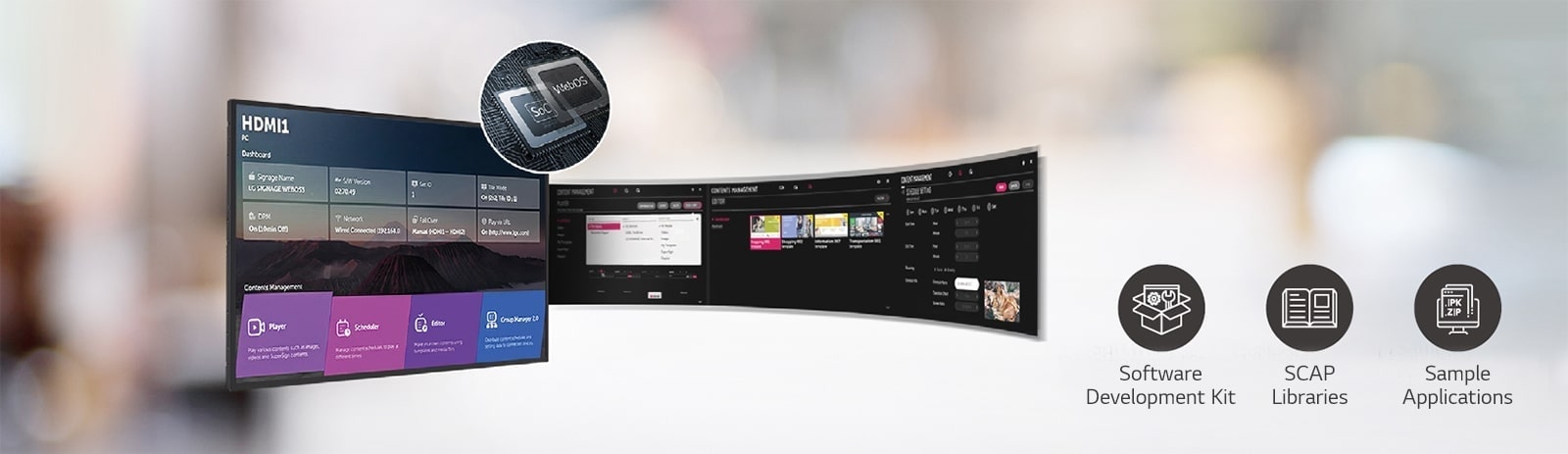

A number of tasks that can be done simultaneously are easily arranged through the webOS platform.

* SoC : System On Chip
** GUI : Graphical User Interface

PANEL

Screen Size

55"

Panel Technology

IPS
Native Resolution

3,840 x 2,160 (UHD)

Brightness

450 nit
Contrast Ratio

1,000:1

Color Gamut

NTSC 72%
Viewing Angle (H x V)

178 x 178

Color Depth

10bit, 1.07Billion colors
Response Time

9ms(G to G)

Surface Treatment(Haze)

Low Haze (3%)
Operation Hours (Hours/Day)

24/7

Portrait / Landscape

Yes / Yes

CONNECTIVITY(JACK INTERFACE)

Input - Digital - HDMI

Yes(2), HDCP 2.2/1.4

Input - RS232C IN

Yes (1)
Input - RJ45(LAN)

Yes (1)

Input - IR IN

Yes(1)
Input - USB

USB2.0 Type A(1)

output - Audio Out

Yes (1)
Output - Touch USB

USB2.0 Type B(1)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

9.1/9.1/9.1/16.1mm
Weight(Head)

16.8Kg

Monitor Dimension(W x H x D)

1231.8 x 709.6 x 39.2mm
VESA™ Standard Mount Interface

300 x 300

KEY FEATURE

HW - Internal Memory

8GB (System 5GB + Available 2.48GB)

HW - Sensor - Temperature Sensor

Yes
SW - webOS ver.

webOS6.0

SW - Embedded CMS - Local Contents Scheduling

Yes
SW - Embedded CMS - Group Manager

Yes

SW - USB Plug & Play

Yes
SW - Fail over

Yes

SW - Background Image - Booting Logo Image

Yes
SW - Background Image - No Signal Image

Yes

SW - Video Tag

Yes
SW - Play via URL

Yes

SW - Rotation - Screen Rotation

Yes
SW - Gapless Playback

Yes

SW - Setting Data Cloning

Yes
SW - SNMP

Yes

SW - ISM Method

Yes
SW - Status Mailing

Yes

SW - Control Manager

Yes
SW - 3rd Party Compatibility - Crestron Inside

Yes

SW - Power - Smart Energy Saving

Yes
SW - Power - PM mode

Yes

SW - Power - Wake on LAN

Yes
SW - Power - Network Ready

Yes

SW - HDMI-CEC

Yes
SW - SI Server Setting

Yes

SW - webRTC

Yes
SW - Pro:Idiom

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0 °C to 40 °C

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

127W

Max.

170W
BTU (British Thermal Unit)

433 BTU/Hr(Typ.), 580 BTU/Hr(Max.)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class "A"/ CE / KC
ErP / Energy Star

Yes / No

SOFTWARE COMPATIBILITY

SuperSign CMS

Yes

SuperSign Control / Control+

Yes
Signage 365 Care

Yes

Language

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arabic, Turkish, Polski

ACCESSORY

Basic

Power Cord 1.55 M*1, USB Cable (Type A-Type B) 1.8 M*1, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver

SPECIAL FEATURE

Touch - Available object size for touch

Ø6mm ↑

Touch - Reponse Time (Based on 'Paint' app on Windows 10 PC)

90ms ↓
Touch - Accuracy

3.5mm±0.5mm

Touch - Interface

USB2.0
Touch - Operating System Support

Windows 10

Touch - Multi touch point

Max. 10 Points
