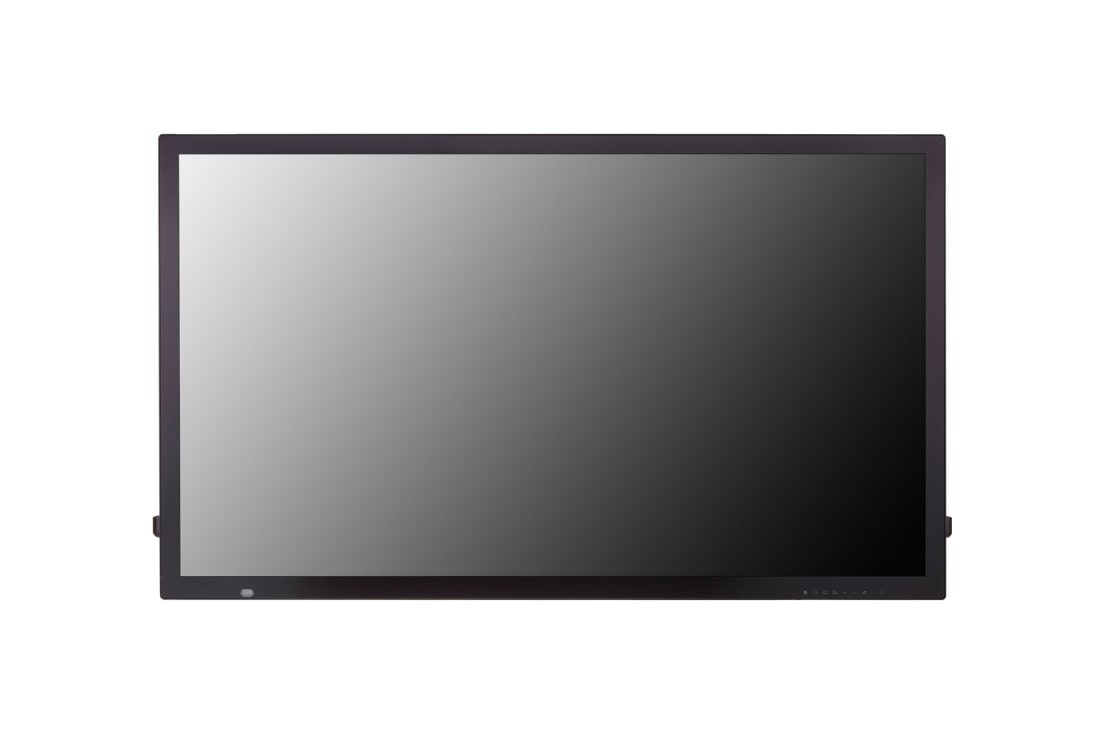

LG Interactive Digital Board, 65TC3D-B, thumbnail 2

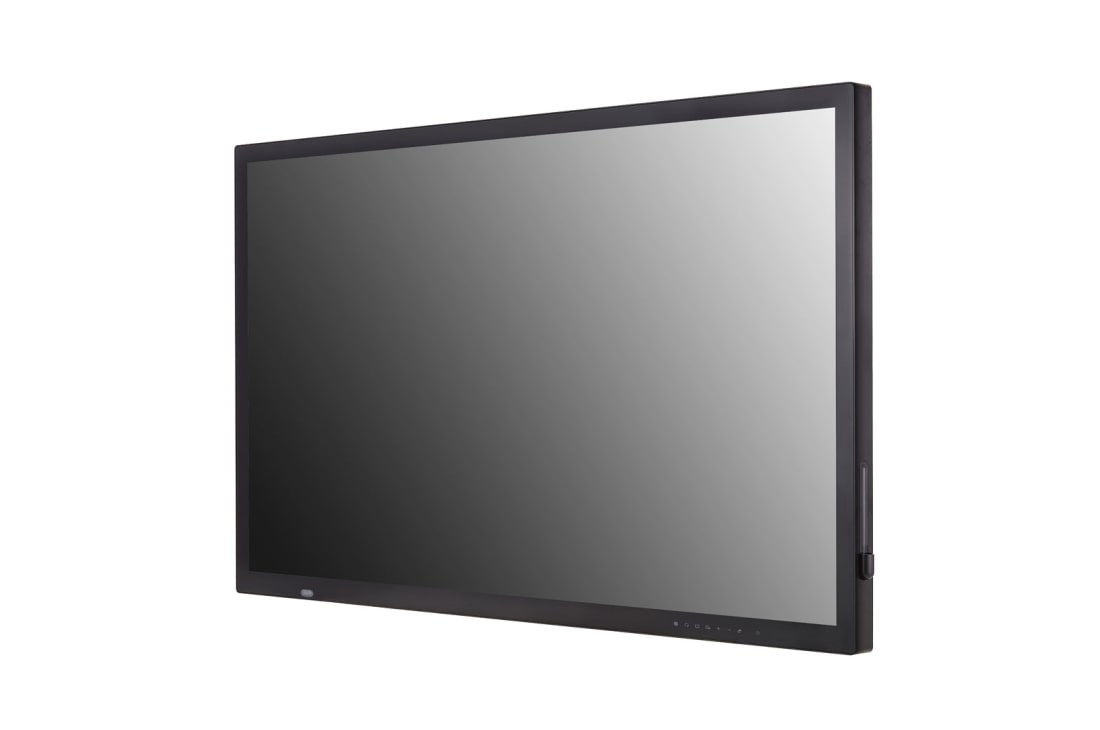

LG Interactive Digital Board, 65TC3D-B, thumbnail 3

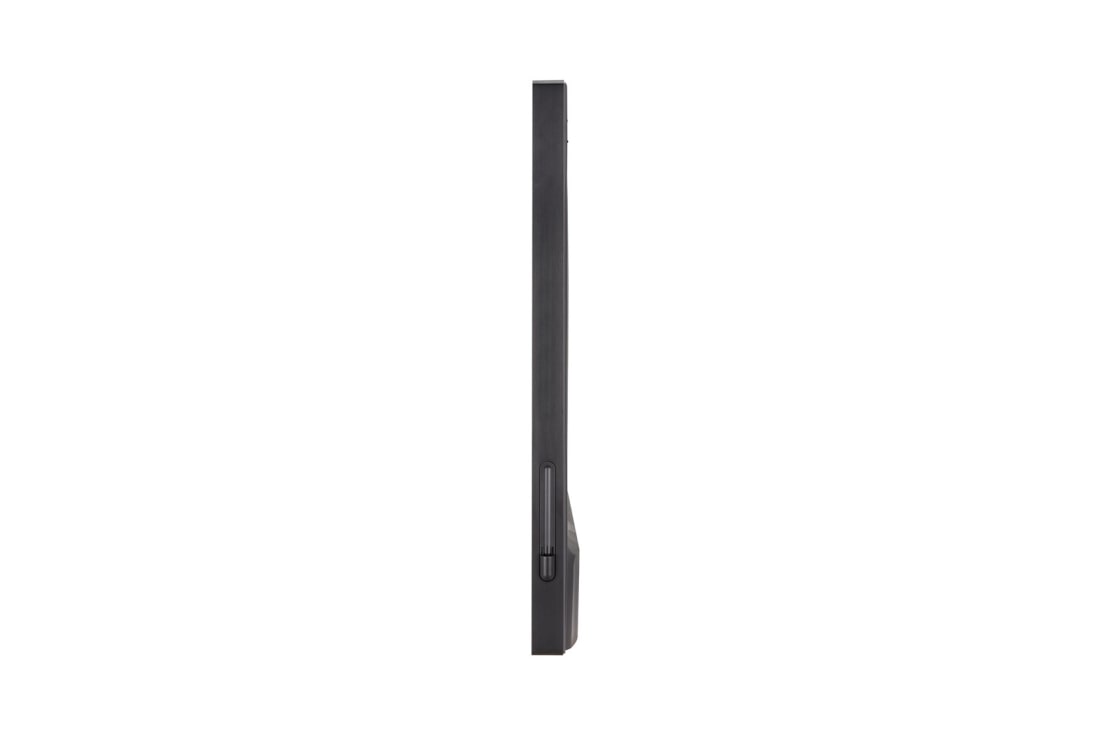

LG Interactive Digital Board, 65TC3D-B, thumbnail 4

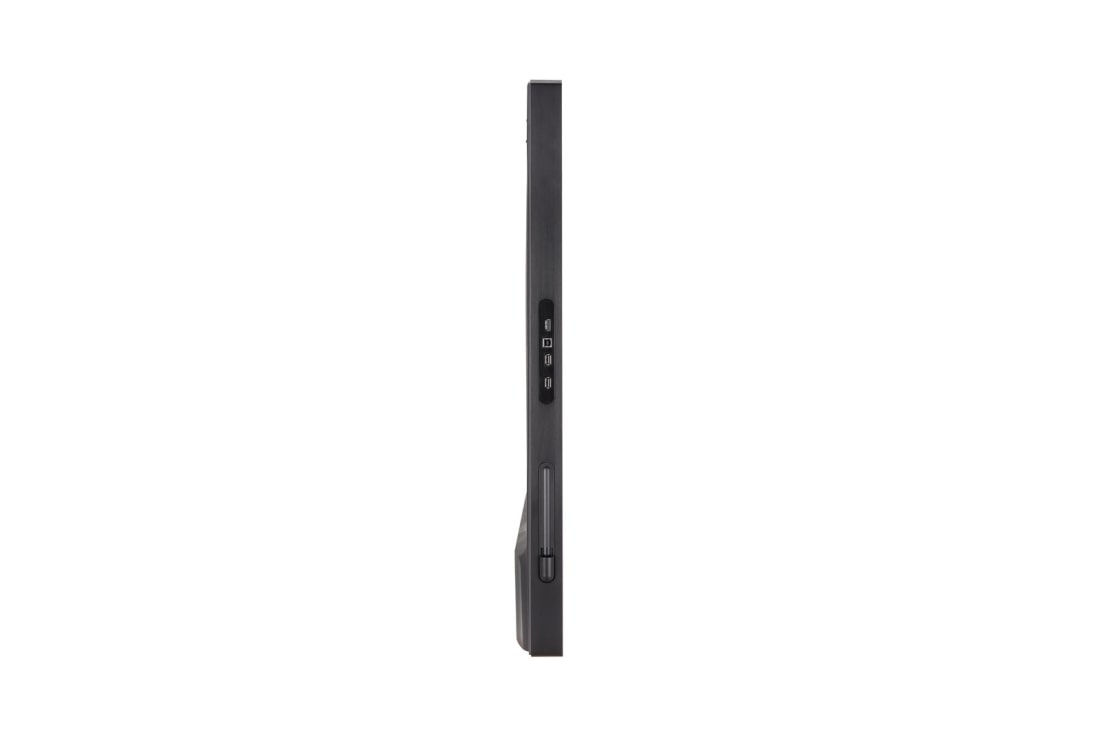

LG Interactive Digital Board, 65TC3D-B, thumbnail 5

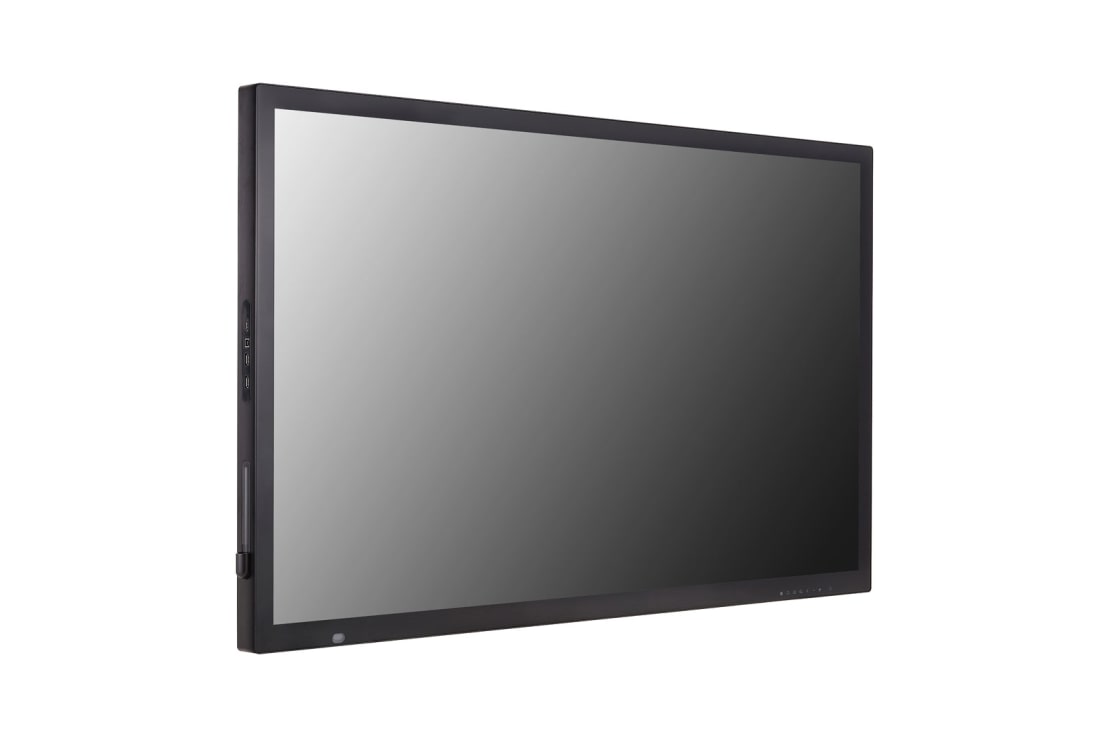

LG Interactive Digital Board, 65TC3D-B, thumbnail 6

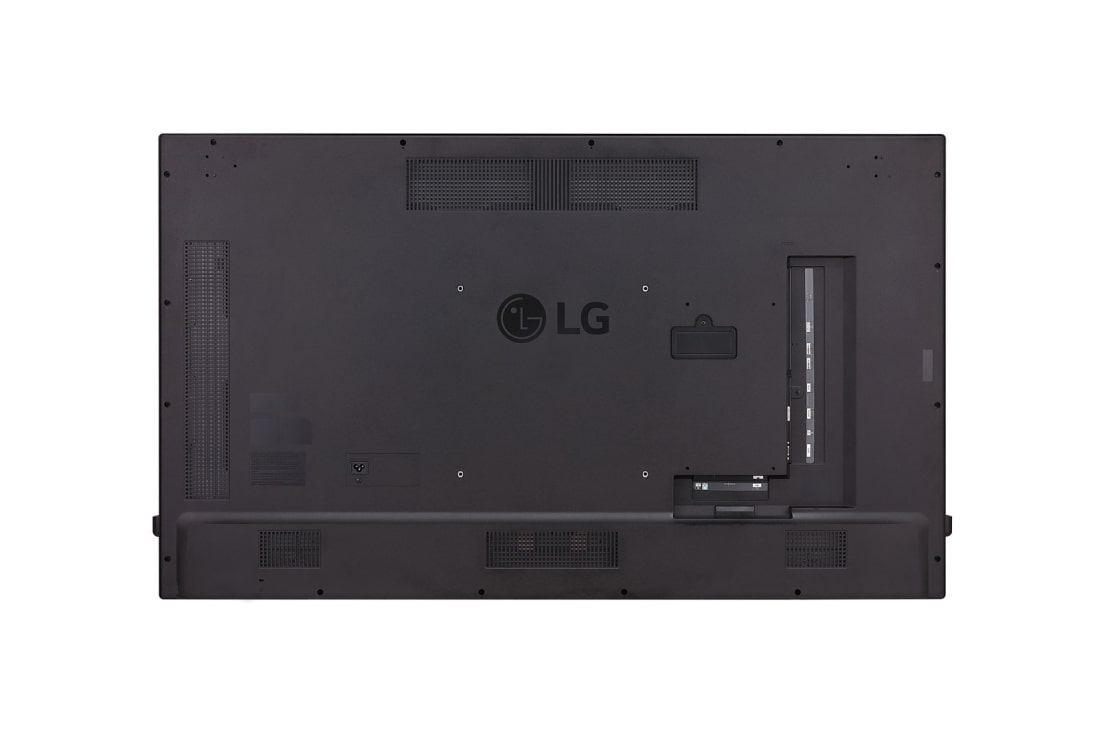

LG Interactive Digital Board, 65TC3D-B, thumbnail 7

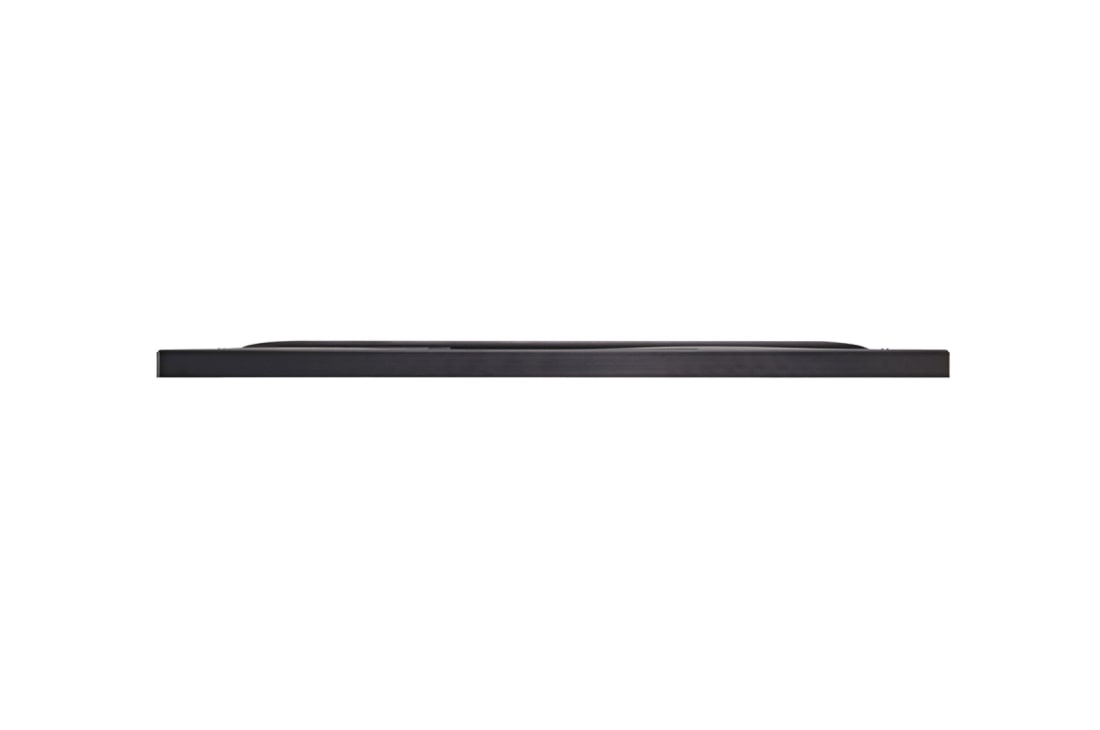

LG Interactive Digital Board, 65TC3D-B, thumbnail 8

ADD TO WISHLIST

Discontinued

65TC3D-B component-copyModelName

Interactive Digital Board

Name: Interactive Digital Board
Brand: LG UAE
SKU: 65TC3D-B
Rating: 0 (0 reviews)

Key Features

Brightness: 450 cd/㎡
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness: 450 cd/㎡
Touch Type: P-Cap(Ag Metal Mesh)
Touch Point: Max. 40 points
Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Interactive Digital Board

Embedded LG IDB App & webOS

LG IDB: Do More Smartly, Simply

With the IDB app, based on the webOS smart platform, get rid of the need for a PC or additional software licenses when writing/collaborating on Interactive Digital Board.

Innovative Touch Performance

Intuitive Touch and Writing

Advanced P-Cap touch-technology enables precise touch responses and realistic handwriting. Pen thickness adapts to the writing speed, with support for max. 40 point muli-touch.

Efficient Collaboration

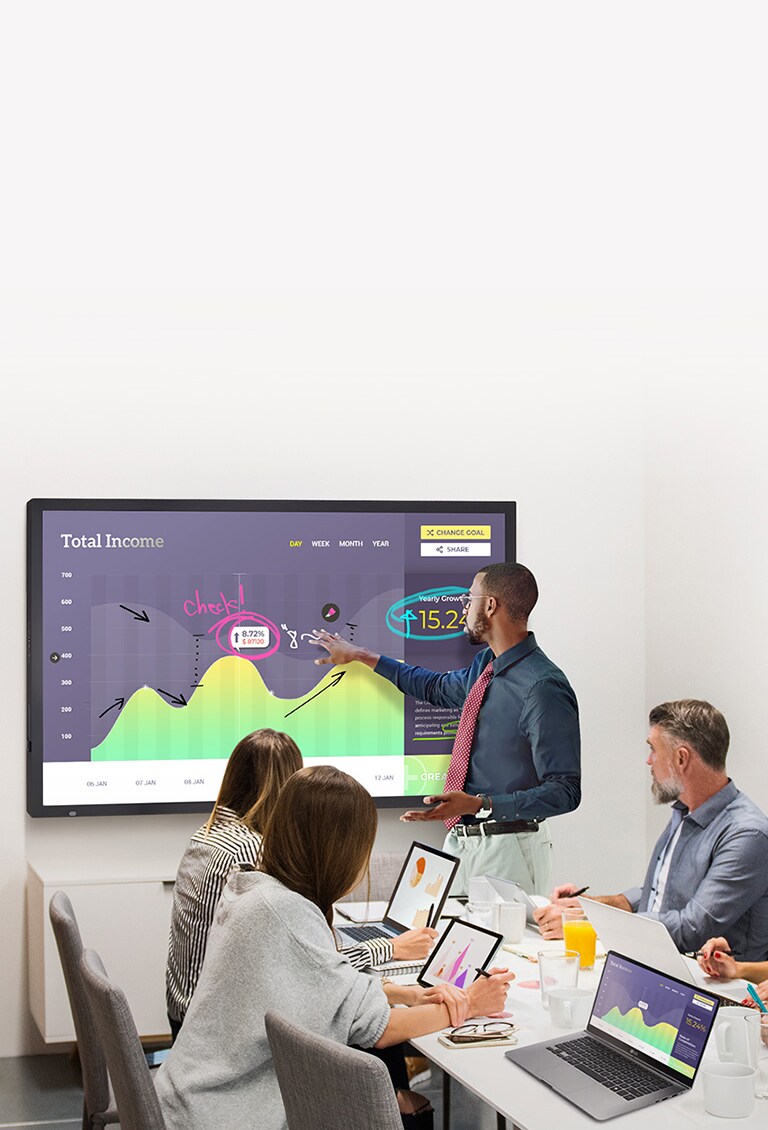

All-in-One Meeting Experience

For effective collaboration, LG IDB combines once separate processes including participant laptop screen sharing via wired/wireless connection, writing on a shared screen, and saving annotations.

IPS Panel

True Color, Wide View

LG IPS panel features a wide viewing angle to deliver clear content regardless of where meeting participants are seated. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

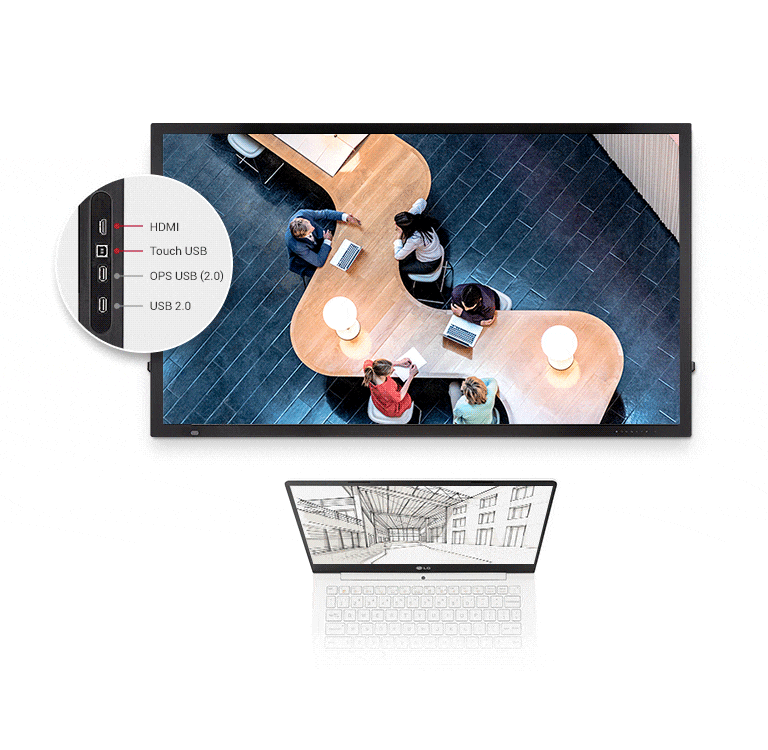

Auto Signal/Touch Switching

Quick and Easy Screen Sharing

Delivering time-saving functionality, the display can detect input/touch signals and automatically change the source if the new input has higher priority than the previous source.

* The menu design(GUI) is subject to change without notice

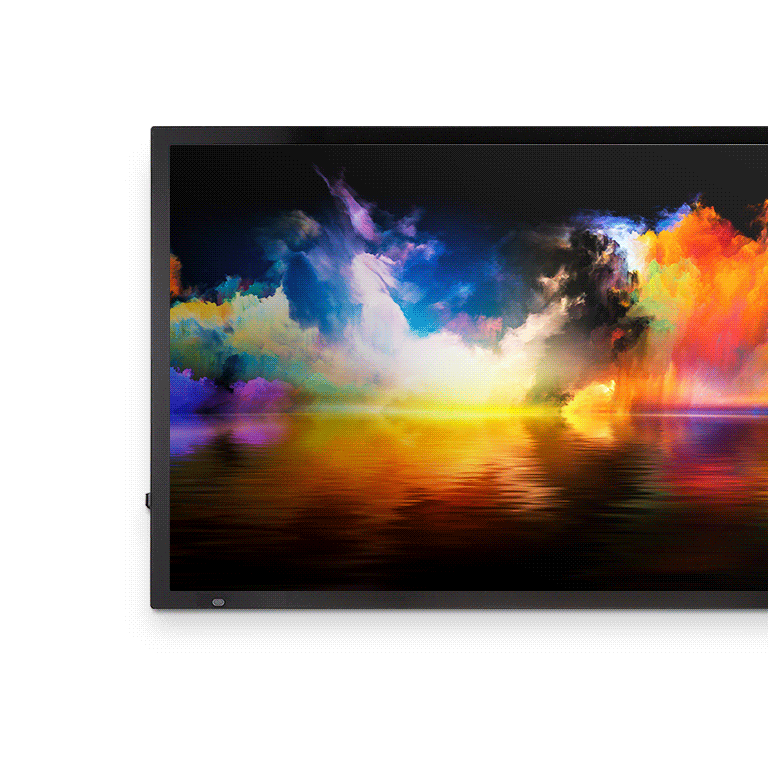

Assistive Touch Menu

Easy Menu Calling, and Control

Providing optimal ease of use, LG IDB users can run desired functions or change settings by softly pressing the screen to call up the Touch Menu.

* The menu design(GUI) is subject to change without notice

PBP/PIP

Enjoy a Multi Screen Experience

Providing enhanced flexibility for users, PBP/PIP enables two different content sources to be displayed in various layout settings including full screen, original ratio, and sub-screen modes.

PANEL

Screen Size

65”

Native Resolution

1,920 x 1,080 (FHD)
Brightness (Module, cd/㎡)

450

CONNECTIVITY

Input

HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0

Output

Touch USB 2.0 (2)
External Control

RS232C in/out, RJ45 in

PHYSICAL SPECIFICATION

Bezel Width

36.1mm(T/L/R), 42.2mm(B)

Monitor Dimension (W x H x D)

1,530.8 x 883.8 x 71.7 mm(w/o Handle)
Weight (Head)

51 kg

Carton Dimensions (W x H x D)

1,650 x 1,035 x 228 mm
Packed Weight

59 kg

VESA™ Standard Mount Interface

300 x 300 mm

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

POWER CONSUMPTION

Typ.

≤ 120 W

Smart Energy Saving

≤ 85 W

STANDARD(CERTIFICATION)

Safety

UL / cUL / CB / TUV / KC

EMC

FCC Class “A” / CE / KCC

SOFTWARE COMPATIBILITY

Content Management Software

SuperSign Premium

Control and Monitoring Software

SuperSign Link

ACCESSORY

Basic

Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea)

Optional

OPS Kit (KT-OPSA)

TOUCH

Touch type

P-Cap(Ag Metal Mesh)

Available object size for touch

more than Ø 6 mm
Accuracy

2 mm

Interface

USB 2.0
Protection Glass Thickness

3.2T (Anti-Glare)

Multi touch point

Max. 40 Points
