86UH5C component-copyModelName
86'' 500 nits UHD Signage

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

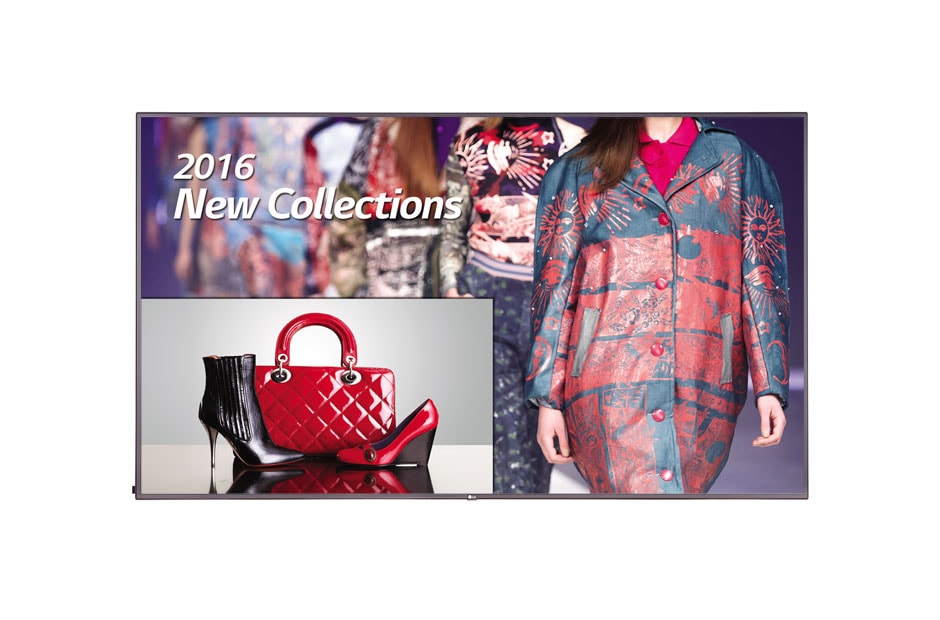

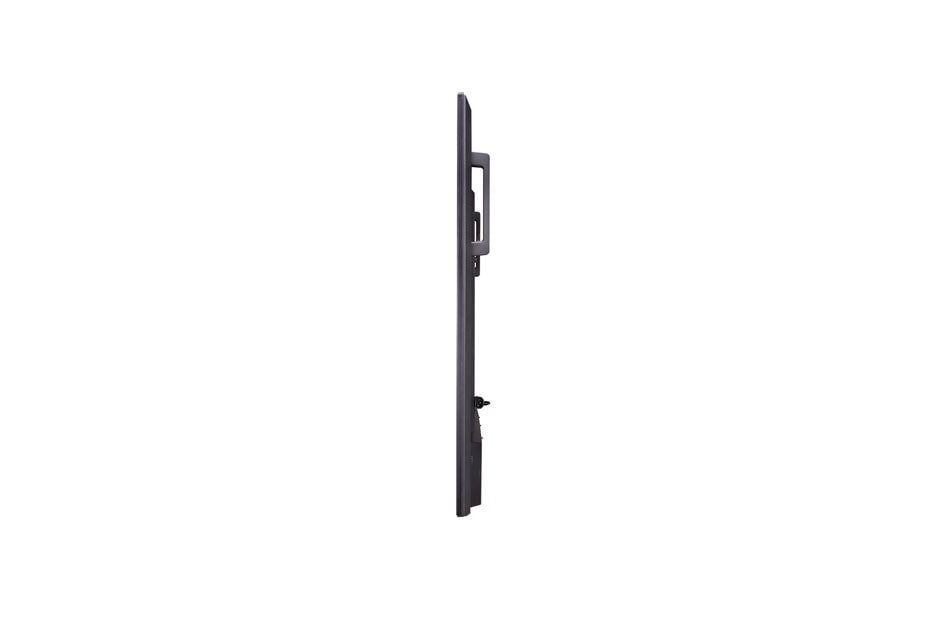

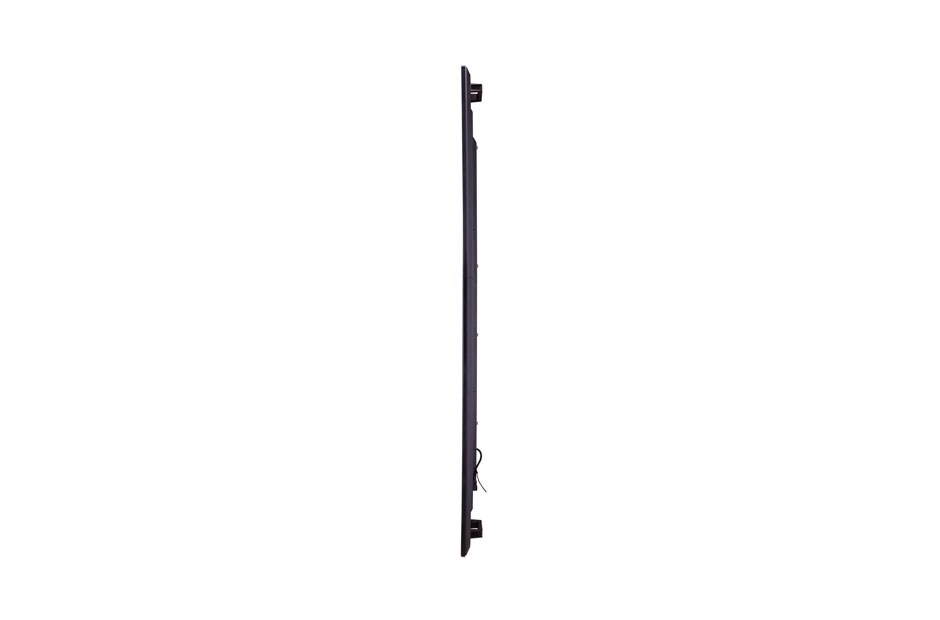

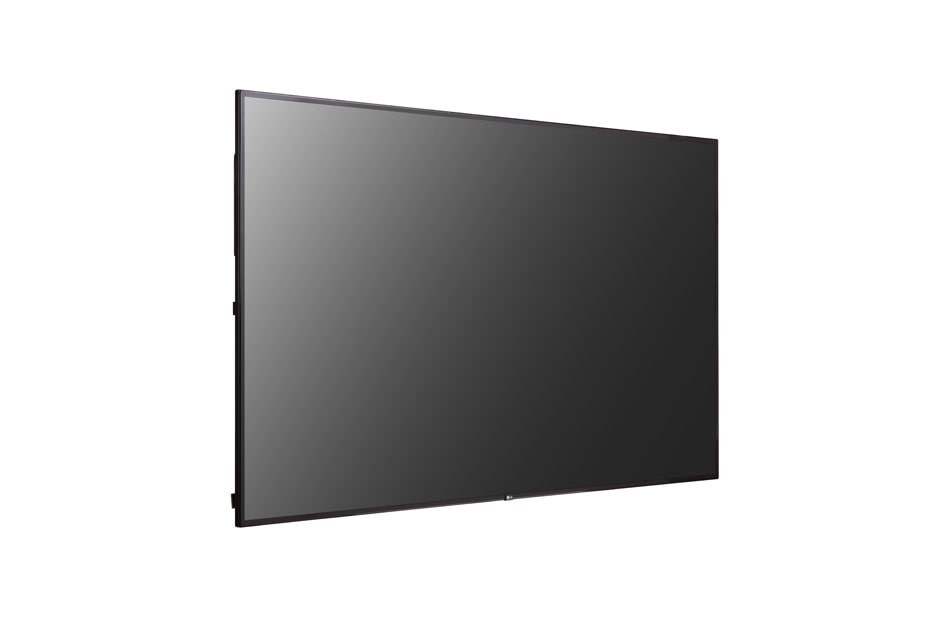

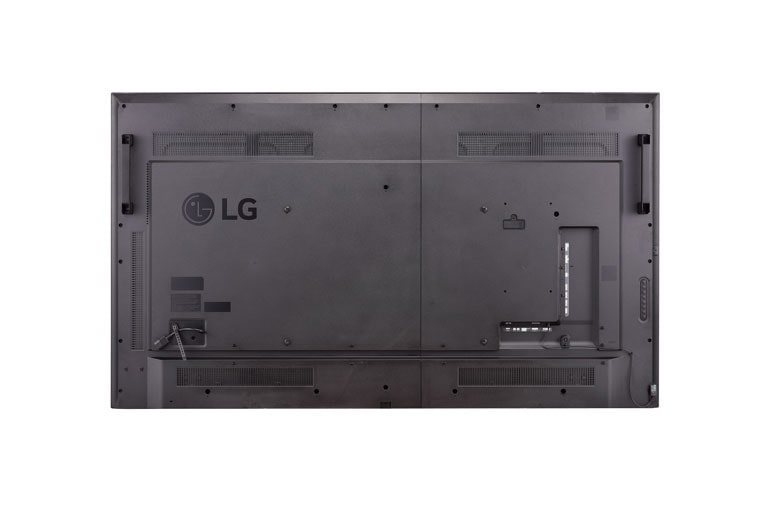

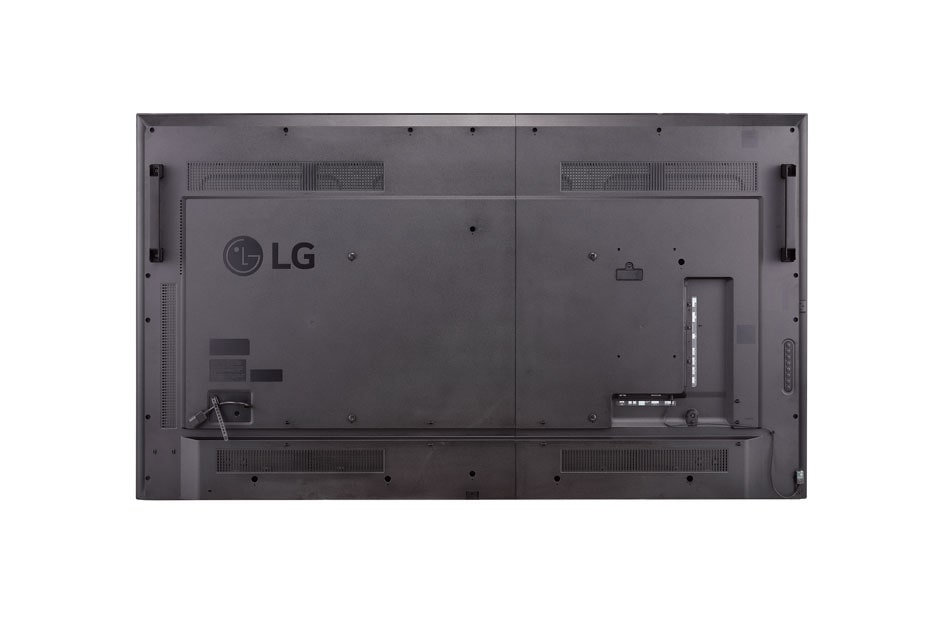

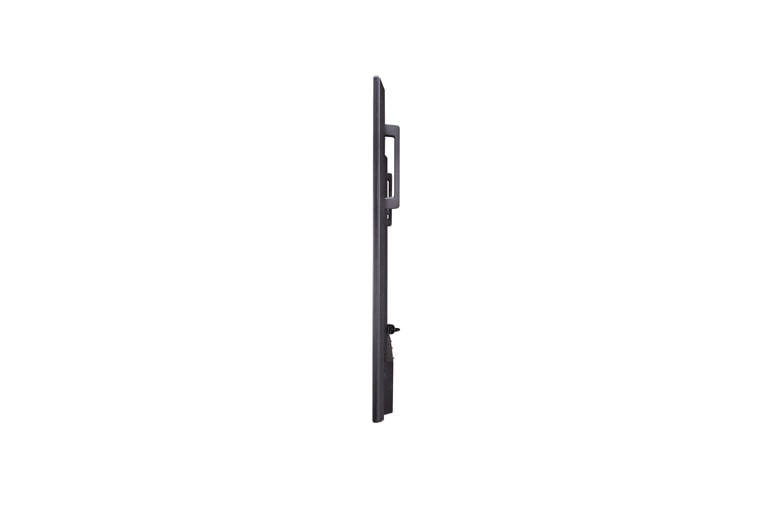

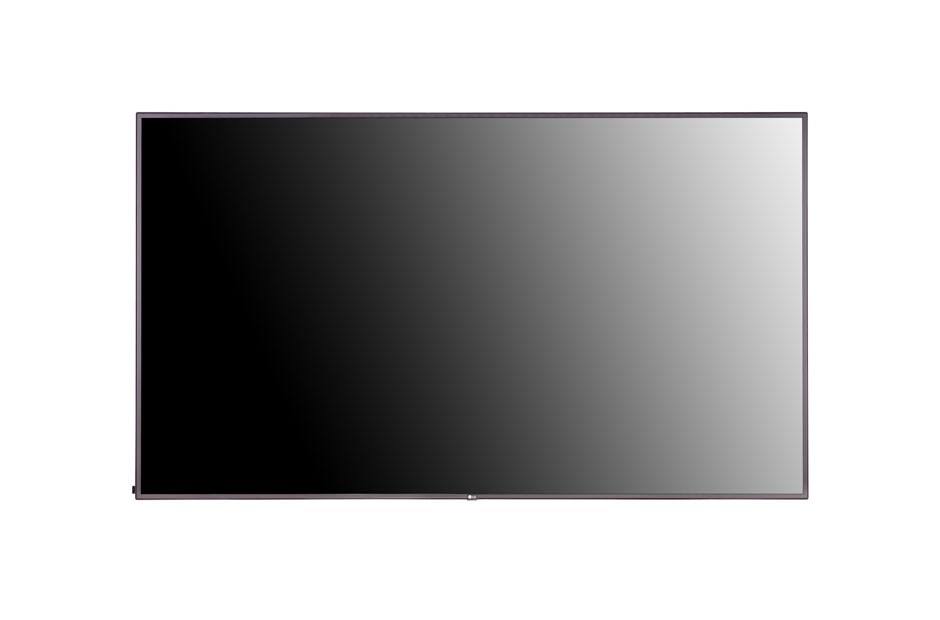

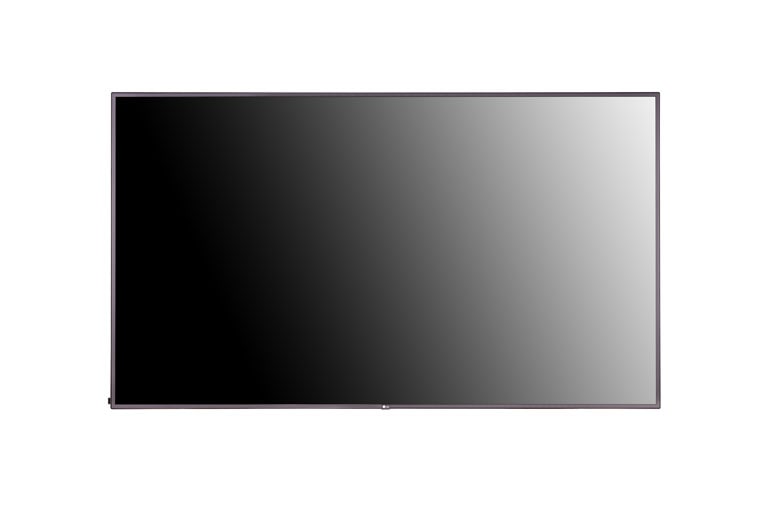

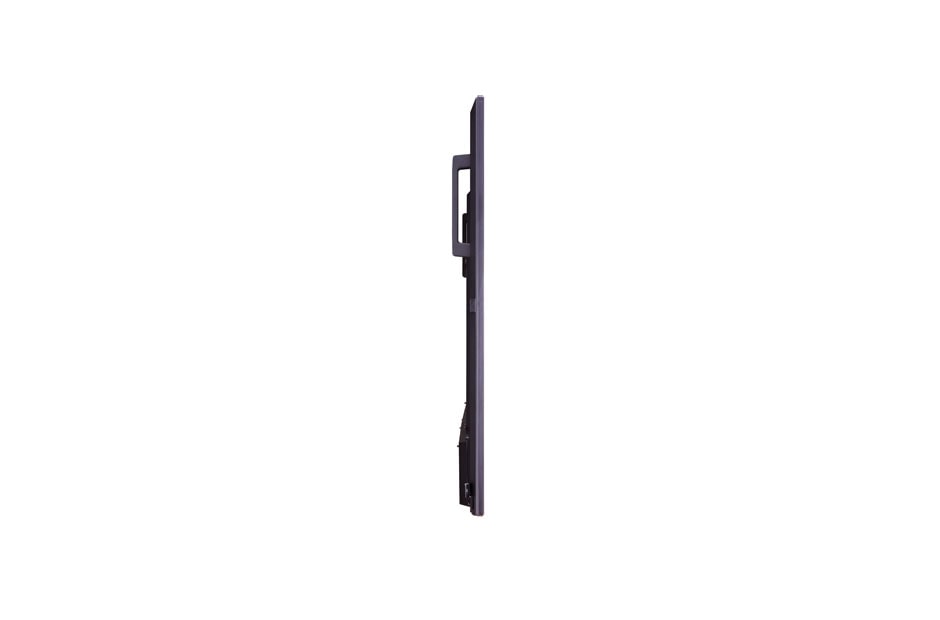

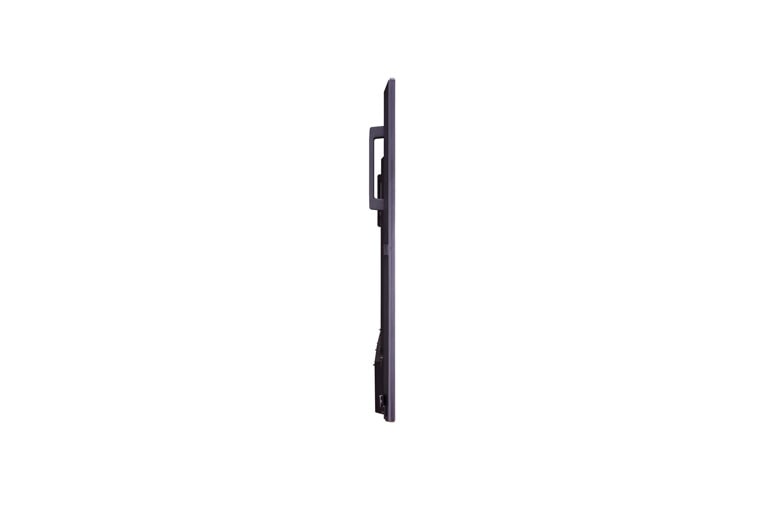

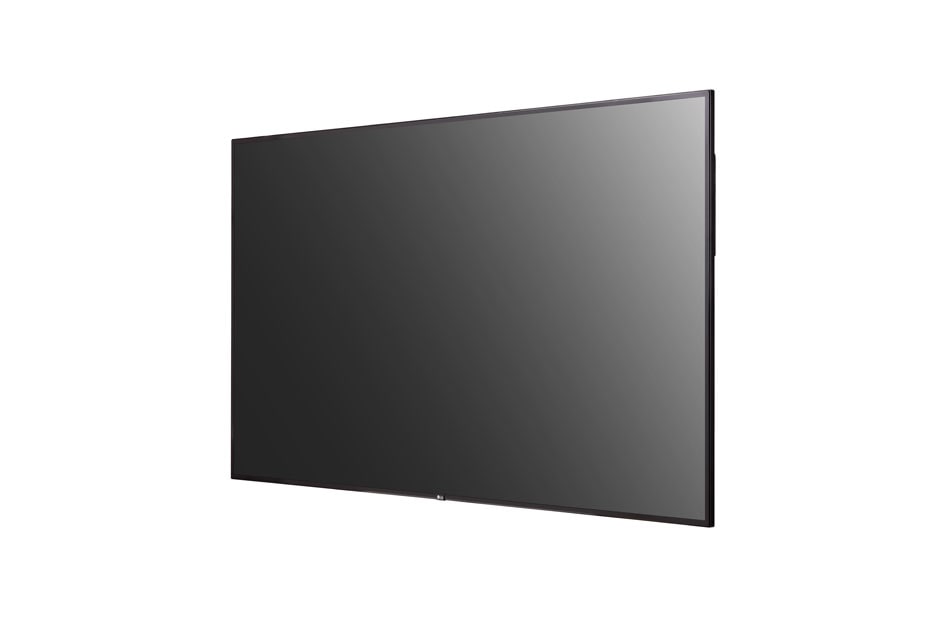

86" 500 nits UHD Signage
Find a Dealer
Close
PANEL
  • Screen Size
    86"
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness
    500cd/m²
CONNECTIVITY
  • Input
    HDMI, DP, DVI-D, Audio, USB 3.0, SD Card
    Output
    DP, Audio
  • External Control
    RS232C, RJ45, IR Receiver, Pixel Sensor
PHYSICAL SPECIFICATION
  • Bezel Width
    14.7mm
    Monitor Dimension (W x H x D)
    1,926.2 x 1,097.2 x 60.6mm (without logo / handle)
  • Weight (Head)
    49kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    275W
    Smart Energy Saving
    193W
STANDARD(CERTIFICATION)
  • Safety
    UL / cUL / CB / TUV / KC
    EMC
    FCC Class "A" / CE / KCC
  • ErP / Energy Star
    No / No
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
    External Media Player Attatchable
    Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
  • SuperSign-w lite
    Yes
    SuperSign-c
    Yes
ACCESSORY
  • Basic
    Remote Controller (include battery 2ea), Power Cord, QSG, DP cable (2.6M), Regulation Book, Phone to RS232C Gender, Memory Cover
    Optional
    Pixel Sensor (KT-SP0), Media Player, OPS Kit (KT-OPSA), HDBaseT (EB-B100)
