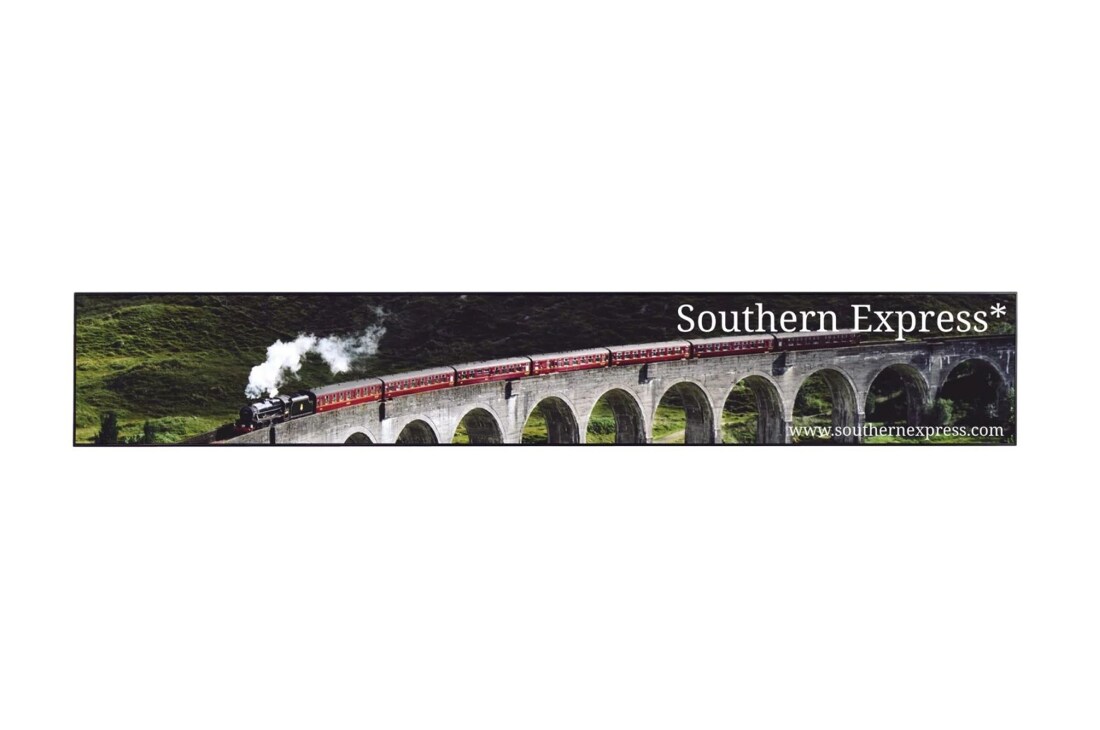

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 1

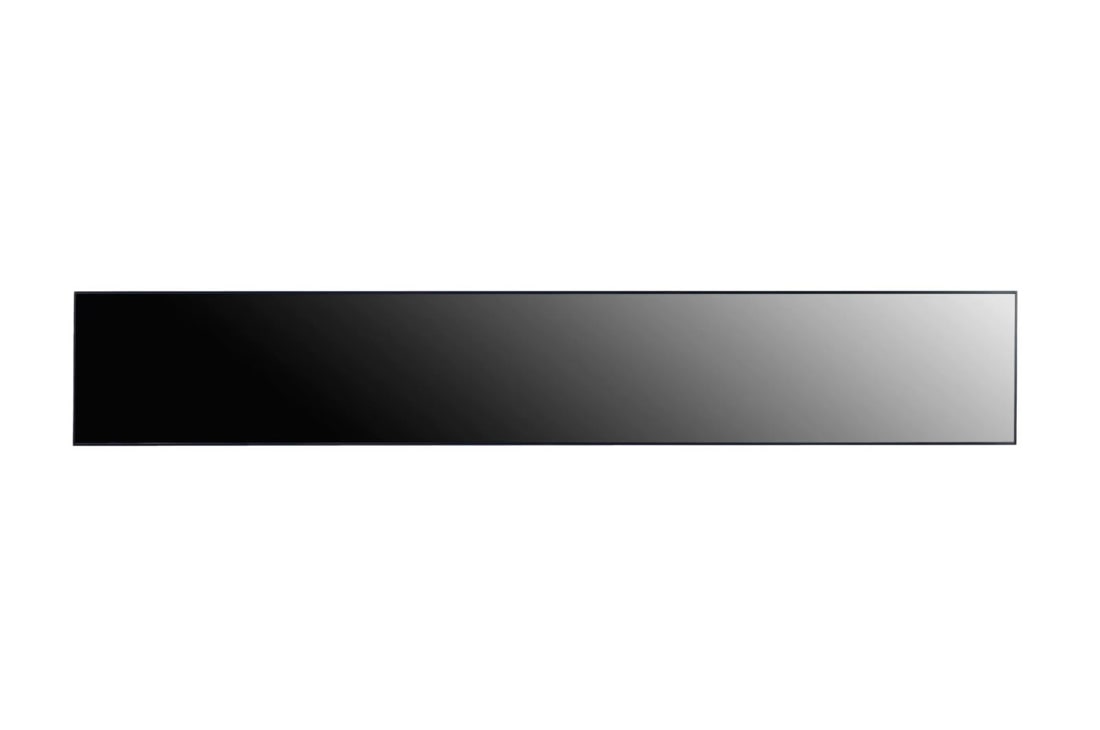

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 2

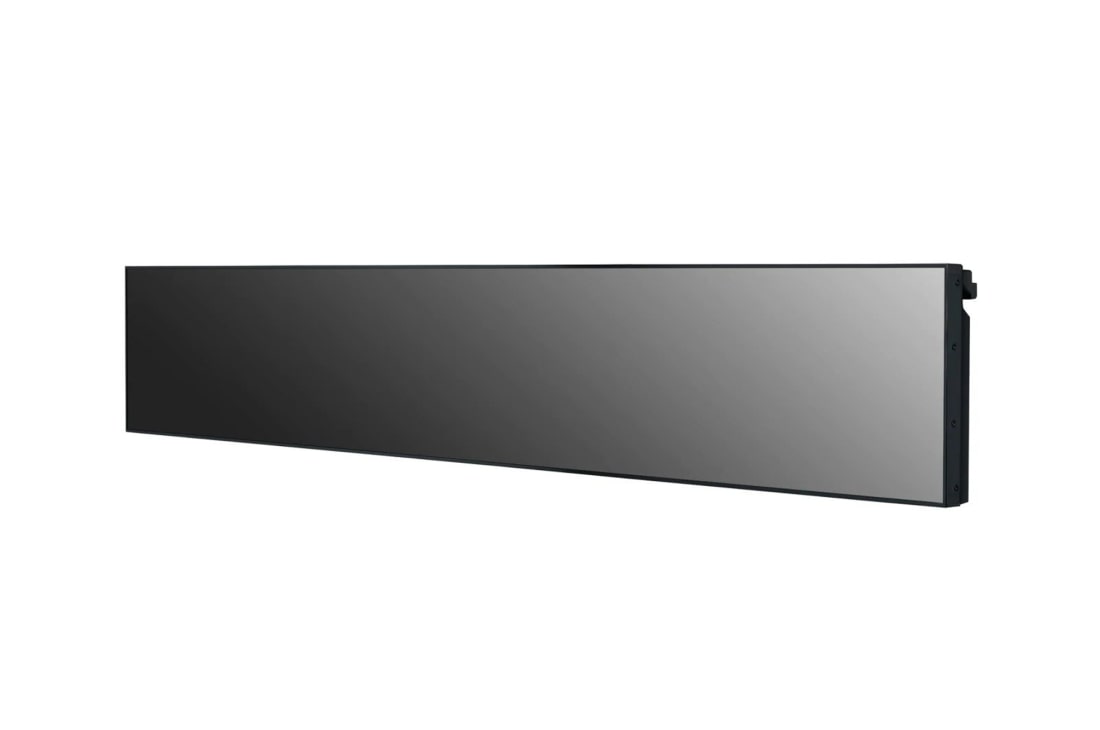

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 3

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 4

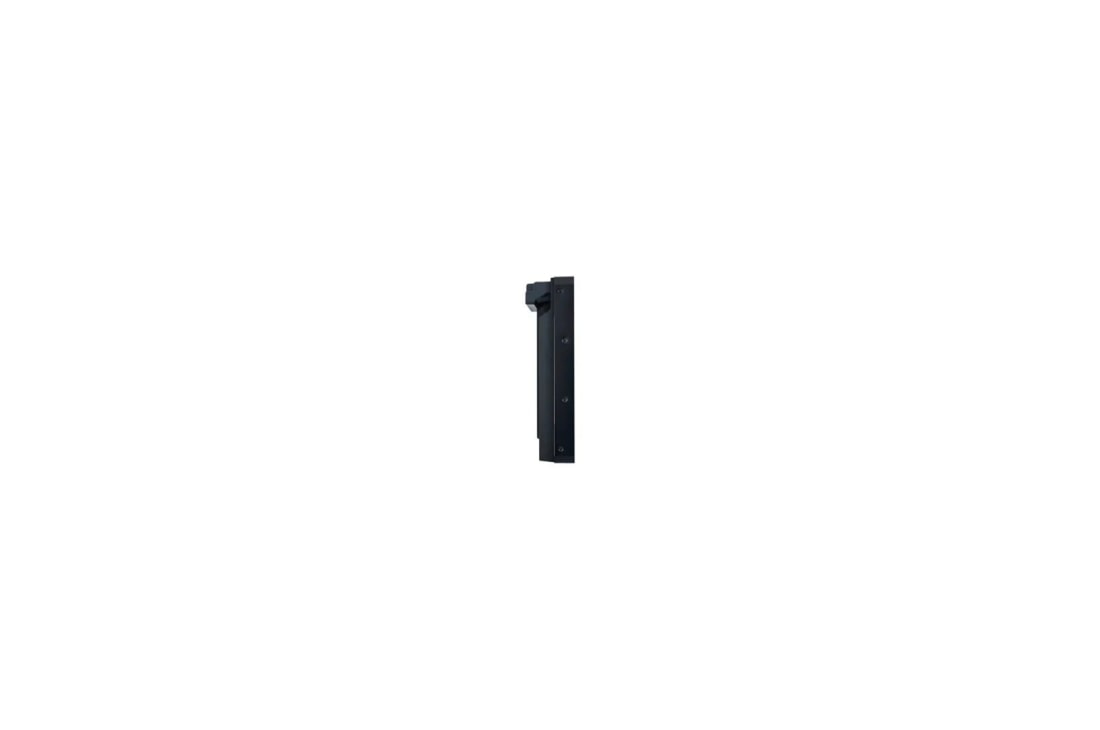

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 5

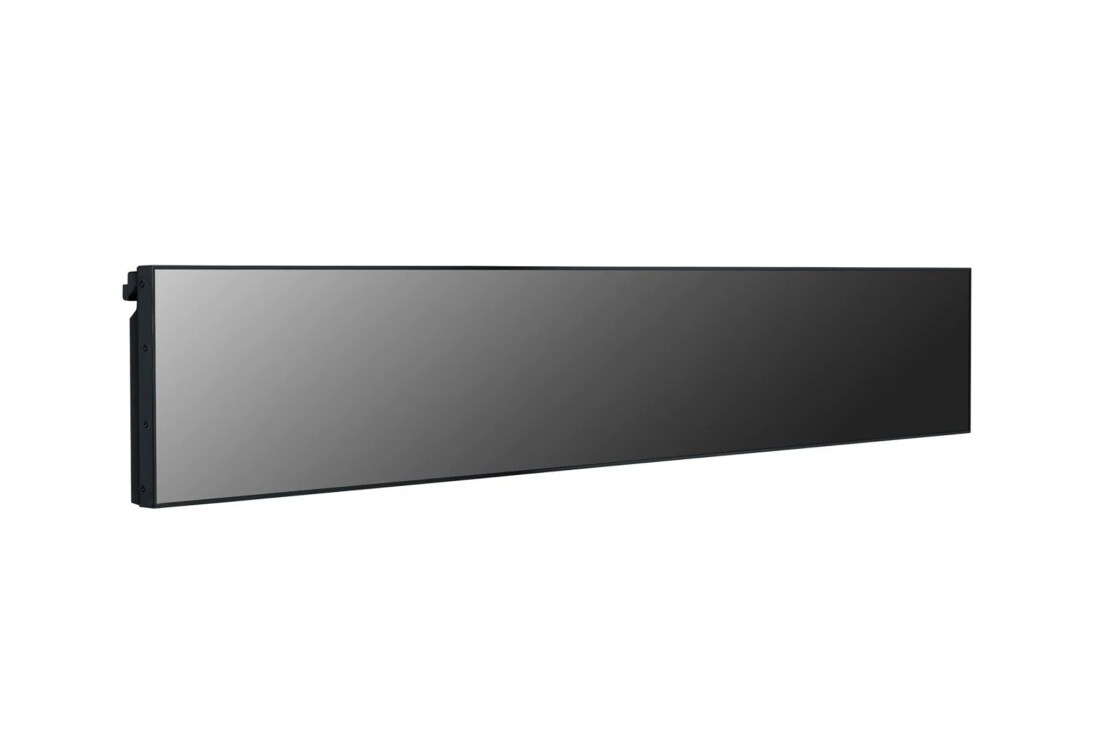

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 6

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 7

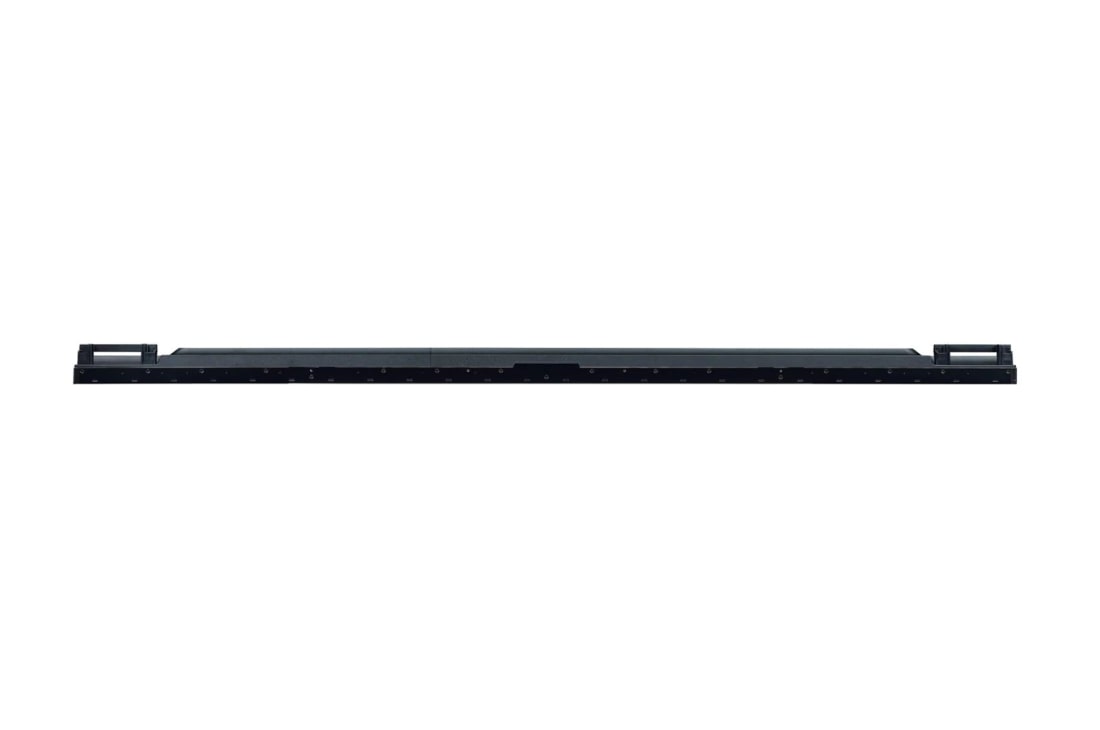

LG Ultra Stretch Signage, 86BH5F-B, thumbnail 8

ADD TO WISHLIST

Discontinued

86BH5F-B component-copyModelName

Ultra Stretch Signage

Name: Ultra Stretch Signage
Brand: LG UAE
SKU: 86BH5F-B
Rating: 0 (0 reviews)

Key Features

Brightness(Typ.) : 500 cd/m²
Aspect Ratio: 58:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 81.7mm
Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

Choose your Size

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Brightness(Typ.) : 500 cd/m²
Aspect Ratio: 58:9
Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
Depth: 81.7mm
Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

Choose your Size

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra Stretch Signage

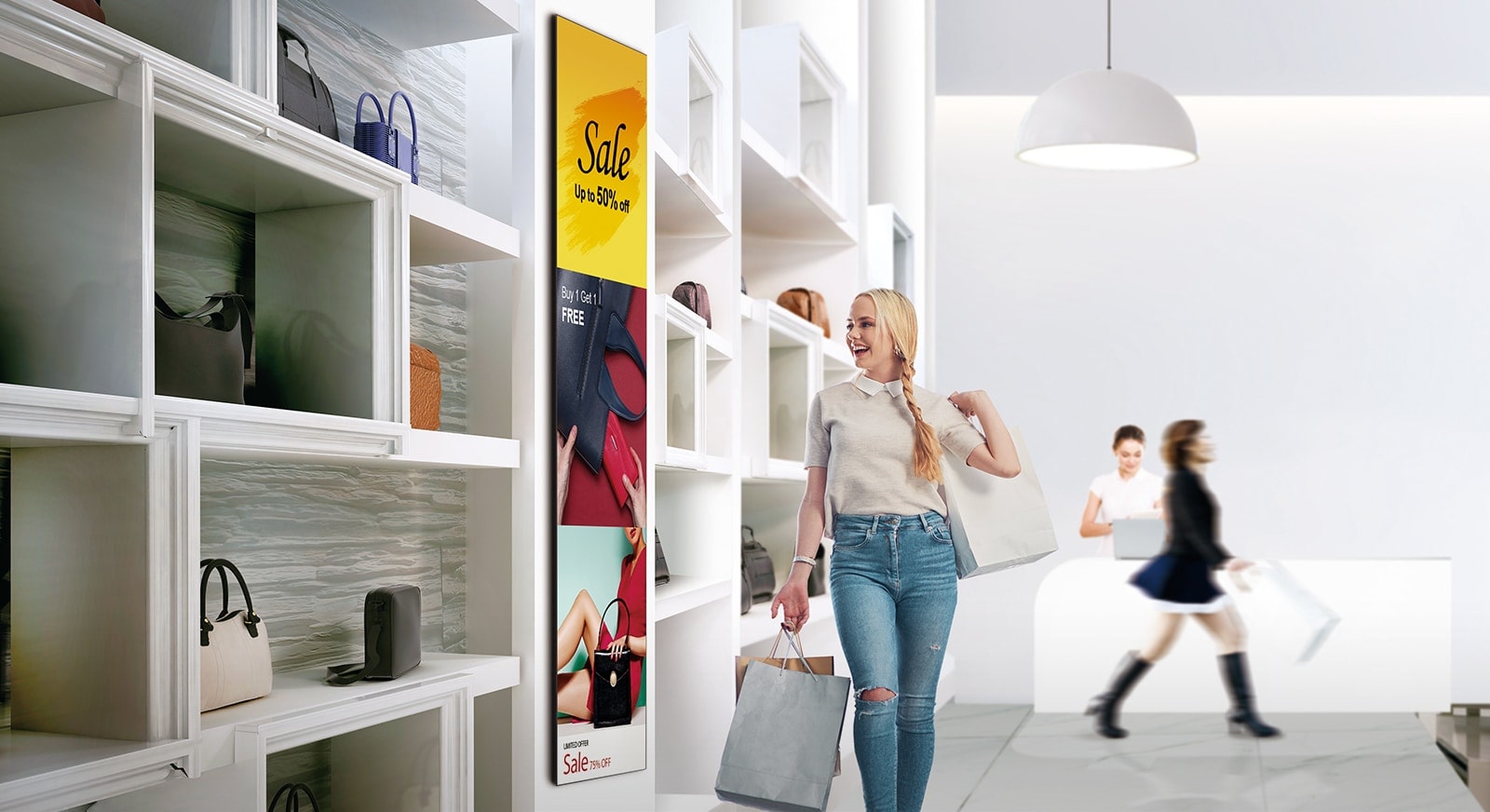

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen

The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

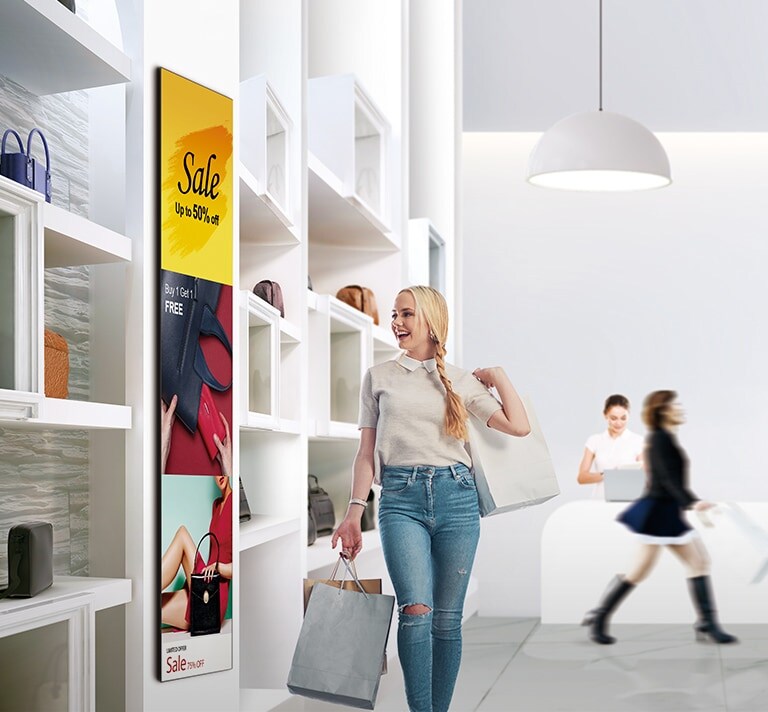

Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen2

* All images in this page are for illustrative purposes only.

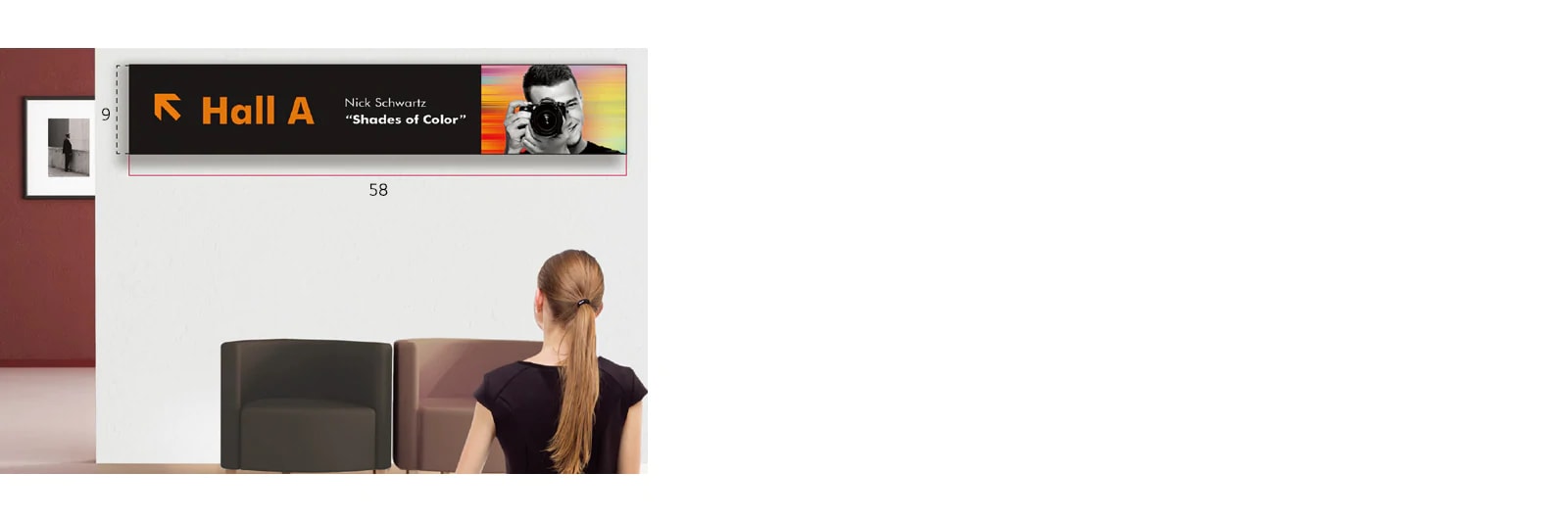

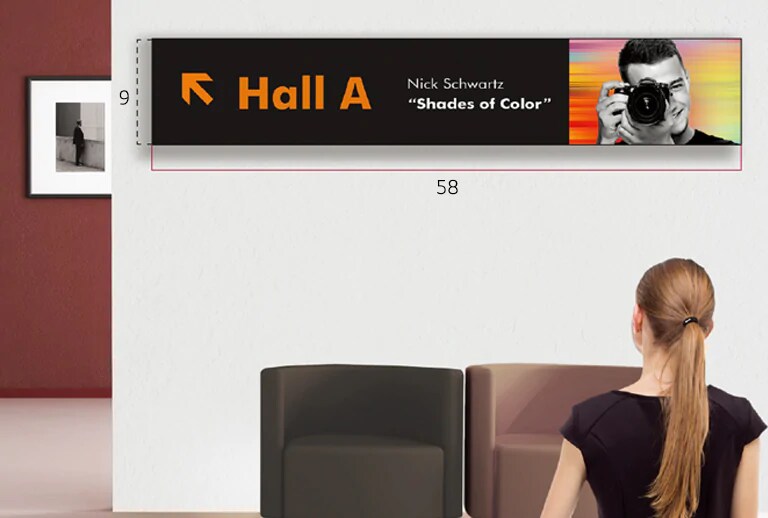

58:9 Extended Wide Format

It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

* Video content only. (Images not supported)

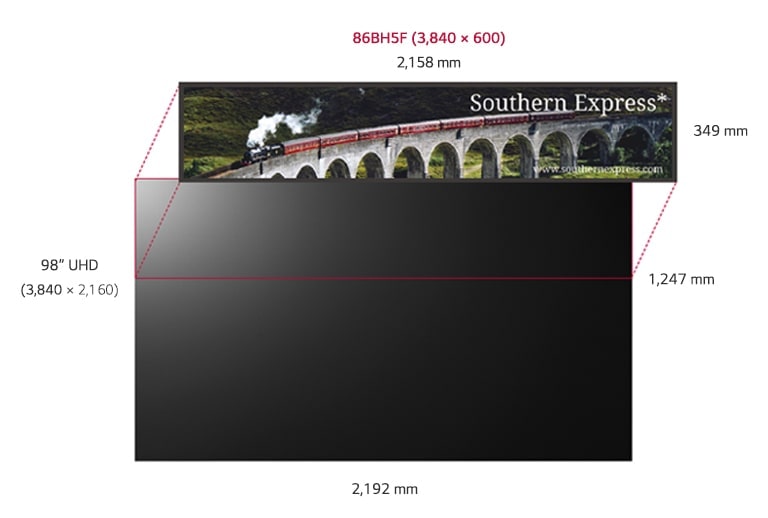

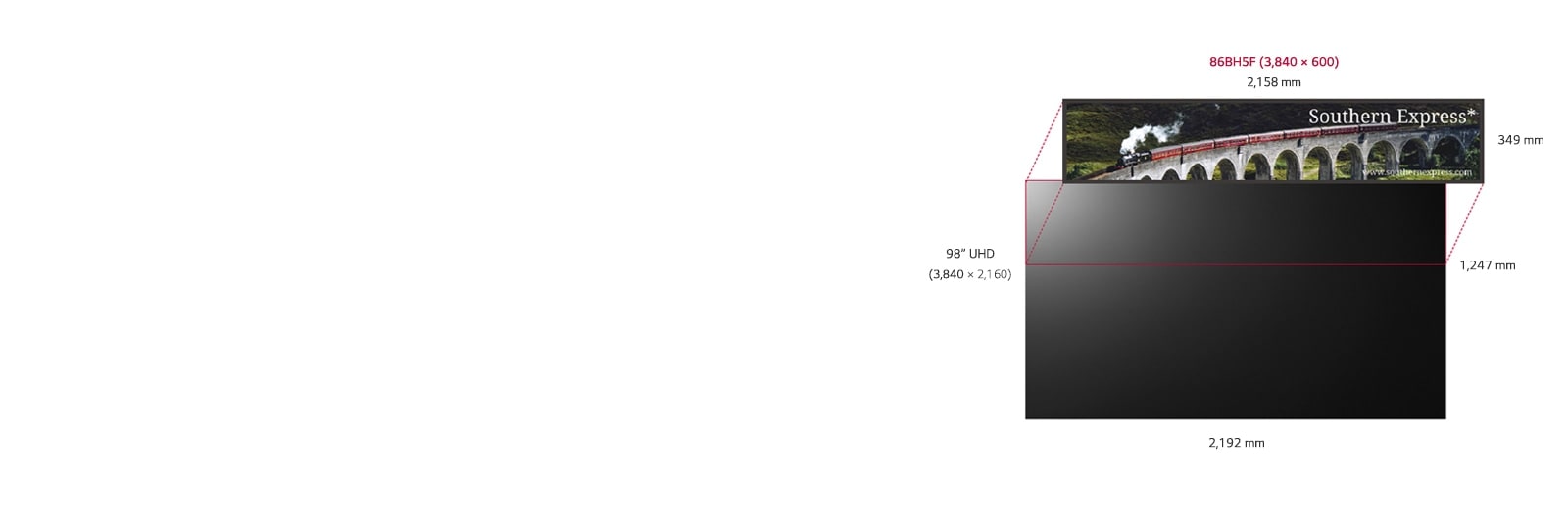

Ultra HD Resolution (3,840 x 600)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

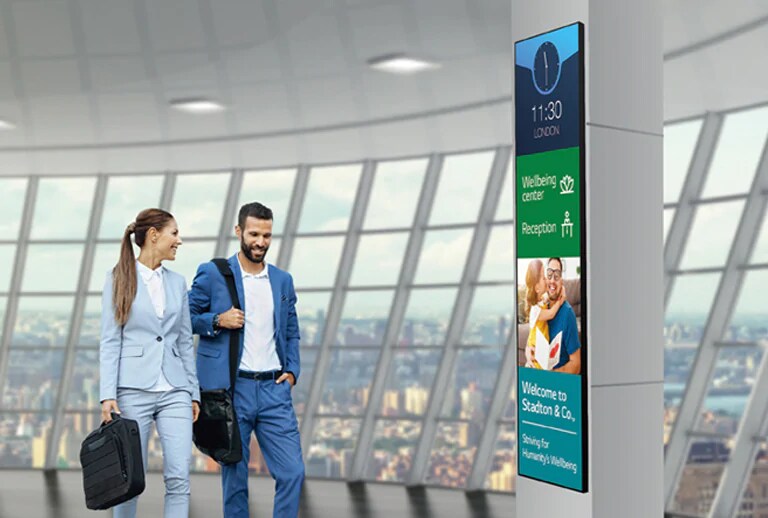

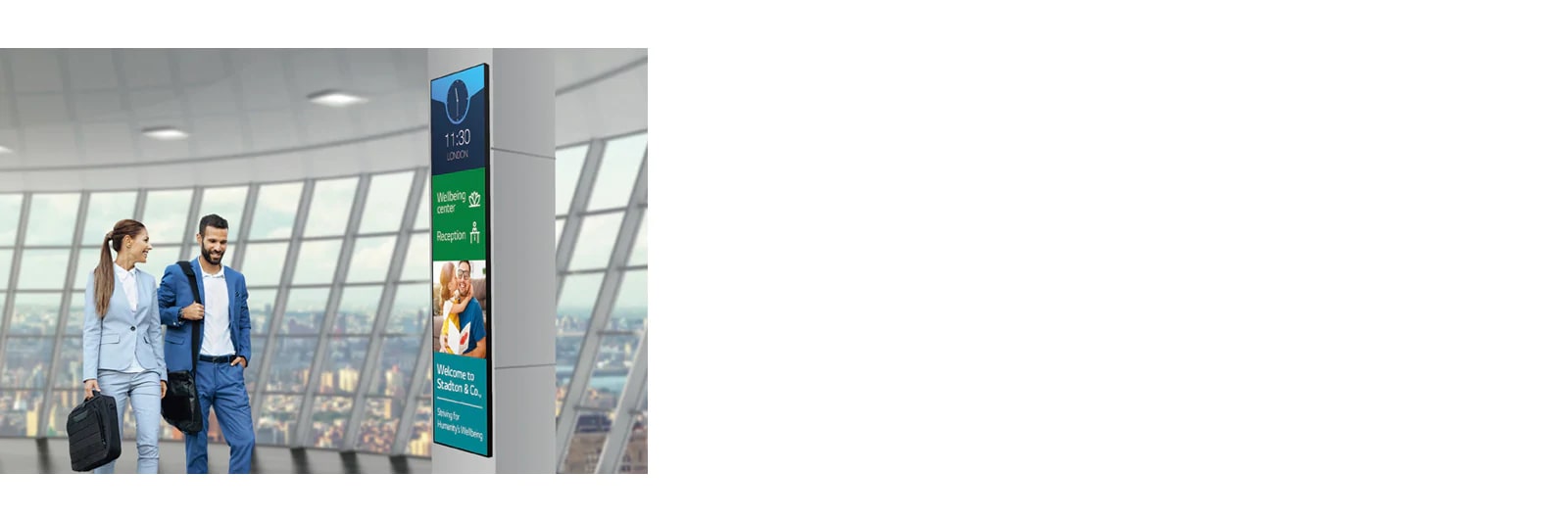

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

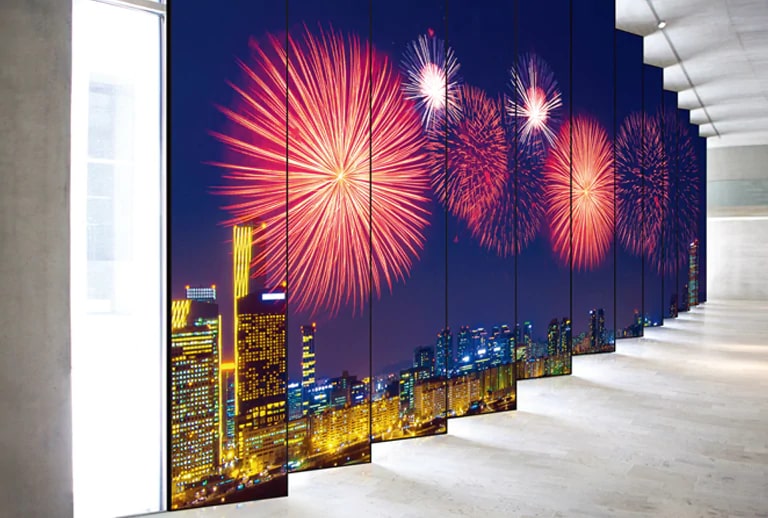

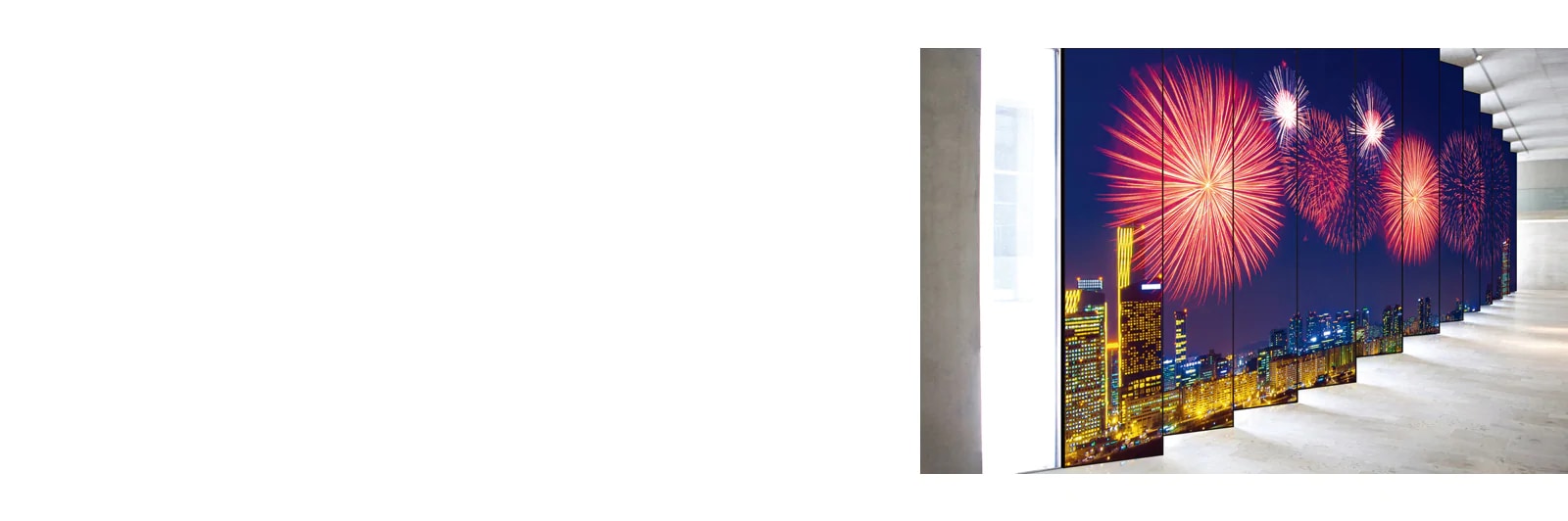

Tiled Scene with Immersive View

The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

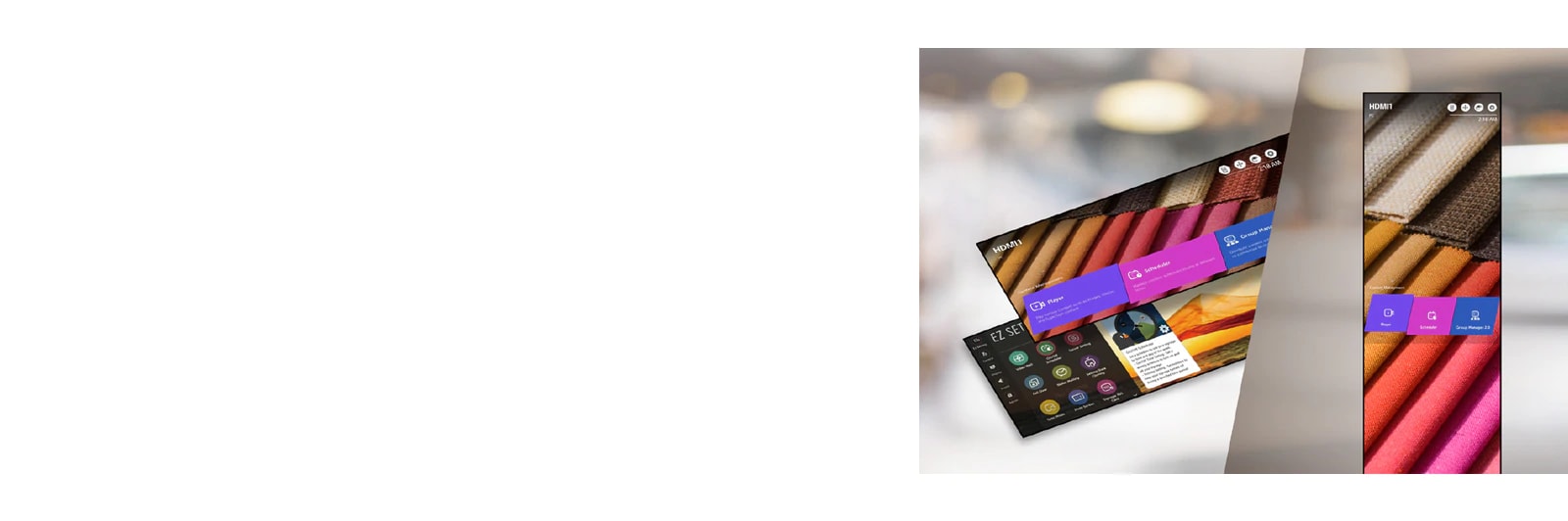

User-Friendly UX

The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

*OSD : On Screen Display

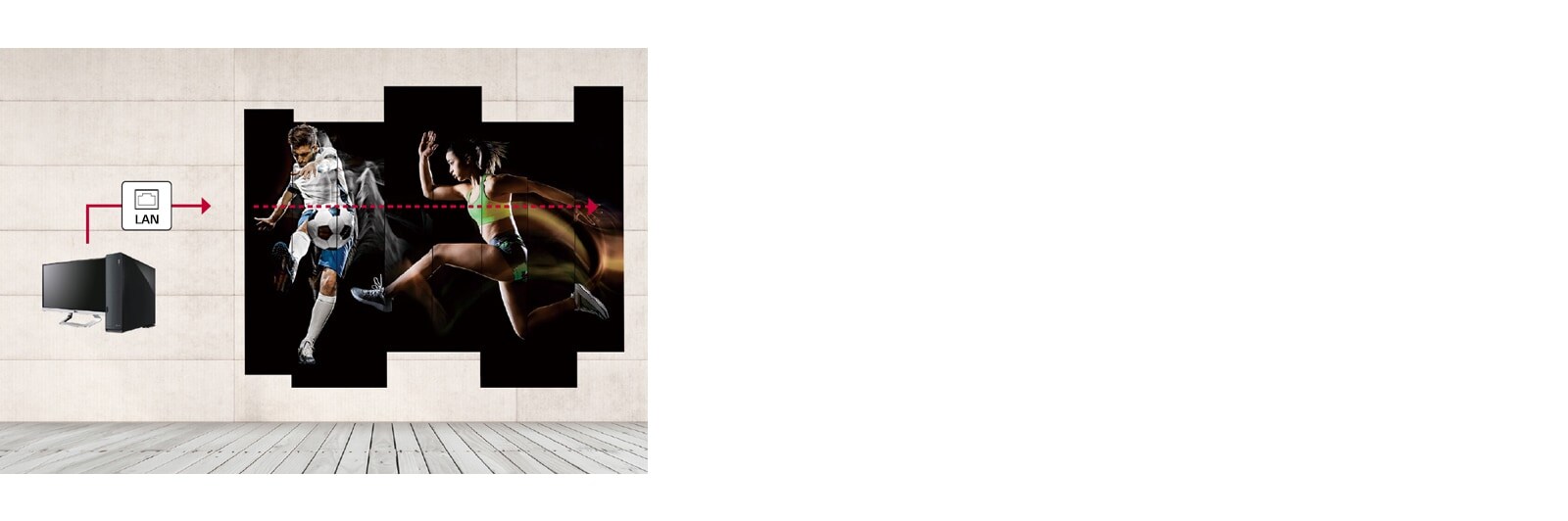

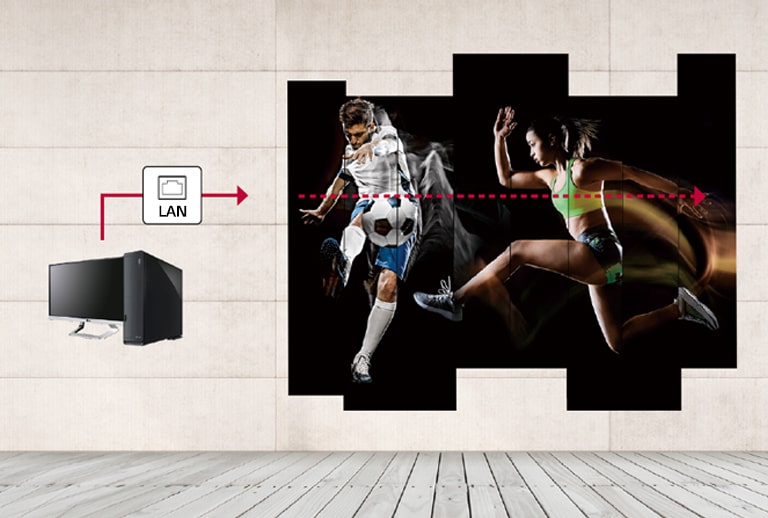

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with ConnectedCare

Easier and faster maintenance are available with our optional cloud service solution ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

* ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

PANEL

Screen Size

86"

Panel Technology

IPS
Aspect Ratio

58:9

Native Resolution

3840 x 600
Refresh Rate

60Hz

Brightness(Typ.,cd/m²)

500nit (Typ.)
Contrast Ratio

1,100:1

Dynamic CR

500,000:1
Color Gamut

NTSC 72%

Viewing Angle (H x V)

178 x 178
Color Depth

10bit, 1.07Billion colors

Response Time

8ms (G to G)
Surface Treatment(Haze)

10%

Operation Hours (Hours/Day)

24/7
Portrait / Landscape

Yes / Yes

CONNECTIVITY
(JACK INTERFACE)-INPUT

Digital-HDMI

Yes(3), HDCP2.2 / 1.4

Digital-DP

Yes(1), HDCP2.2 / 1.3
Digital-DVI-D

Yes (1), HDCP1.4

Audio In

Yes(1)
RS232C IN

Yes(1)

RJ45(LAN)

Yes(1)
IR IN

Yes(1)

USB

USB2.0 Type A(2)

CONNECTIVITY
(JACK INTERFACE)-OUTPUT

DP Out

Yes (1), Input : HDMI / DVI / DP

Audio Out

Yes(1)
RS232C OUT

Yes(1)

RJ45(LAN)

Yes(1)

MECHANICAL SPECIFICATION

Bezel Color

Black

Bezel Width

T/R/L/B : 5.9/4.4/4.4/5.9mm
Weight (Head)

20.5 kg

Monitor Dimensions (W x H x D)

2158.3 x 348.5 x 81.7mm
Handle

Yes

VESA™ Standard Mount Interface

600 x 200

KEY FEATURE

HW - Internal Memory

8GB

HW - Wi-Fi - Built-in

Yes
HW - Sensor - Temperature Sensor

Yes

HW - Sensor - Auto Brightness sensor

Yes
HW - Sensor - Current Sensor

Yes

HW - Local Key Operation

Yes
SW - webOS ver.

webOS 4.0 (SCAP : not support)

SW - Embedded CMS - Local Contents Scheduling

Yes
SW - Embedded CMS - Group Manager

Yes

SW - USB Plug & Play

Yes
SW - Fail over

Yes

SW - Background Image - Booting Logo Image

Yes
SW - Background Image - No Signal Image

Yes

SW - Sync Mode - RS-232C Sync

Yes
SW - Sync Mode - Local Network Sync

Yes

SW - Multi-screen - PBP

Yes(4)
SW - Rotation - Screen Rotation

Yes

SW - Rotation - External Input Rotation

Yes
SW - Tile Mode Setting

Yes(Max. 15x15)

SW - Setting Data Cloning

Yes
SW - SNMP

Yes

SW - ISM Method

Yes
SW - Auto Set ID

Yes

SW - Status Mailing

Yes
SW - Control Manager

Yes

SW - 3rd Party Compatibility - Crestron Inside

Yes
SW - Smart Energy Saving

Yes

SW - PM mode

Yes
SW - Wake on LAN

Yes

SW - Beacon

Yes
SW - HDMI-CEC

Yes

ENVIRONMENT CONDITIONS

Operation Temperature

0°C to 40°C

Operation Humidity

10% to 80%

POWER

Power Supply

AC 100-240V~, 50/60Hz

Power Type

Built-In Power

POWER CONSUMPTION

Typ.

220W

Max.

240W
BTU (British Thermal Unit)

751 BTU/Hr(Typ.), 819 BTU/Hr(Max)

CERTIFICATION

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC

OPS COMPATIBILITY

OPS type compatible

O(Piggyback)

SOFTWARE COMPATIBILITY

SuperSign Control / Control+

Yes / Yes

SuperSign WB

Yes
SuperSign Media Editor

Yes

LG ConnectedCare

Yes

LANGUAGE

OSD

English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek, Arabic

ACCESSORY

Basic

Remote Controller(including battery 2ea), Power Cord, DP cable, RS-232C Cable,IR/Light sensor receiver, Manual

Optional

OPS Kit(KT-OPSF)
