UHD Signage

Large UHD Signage Display with Slim Design

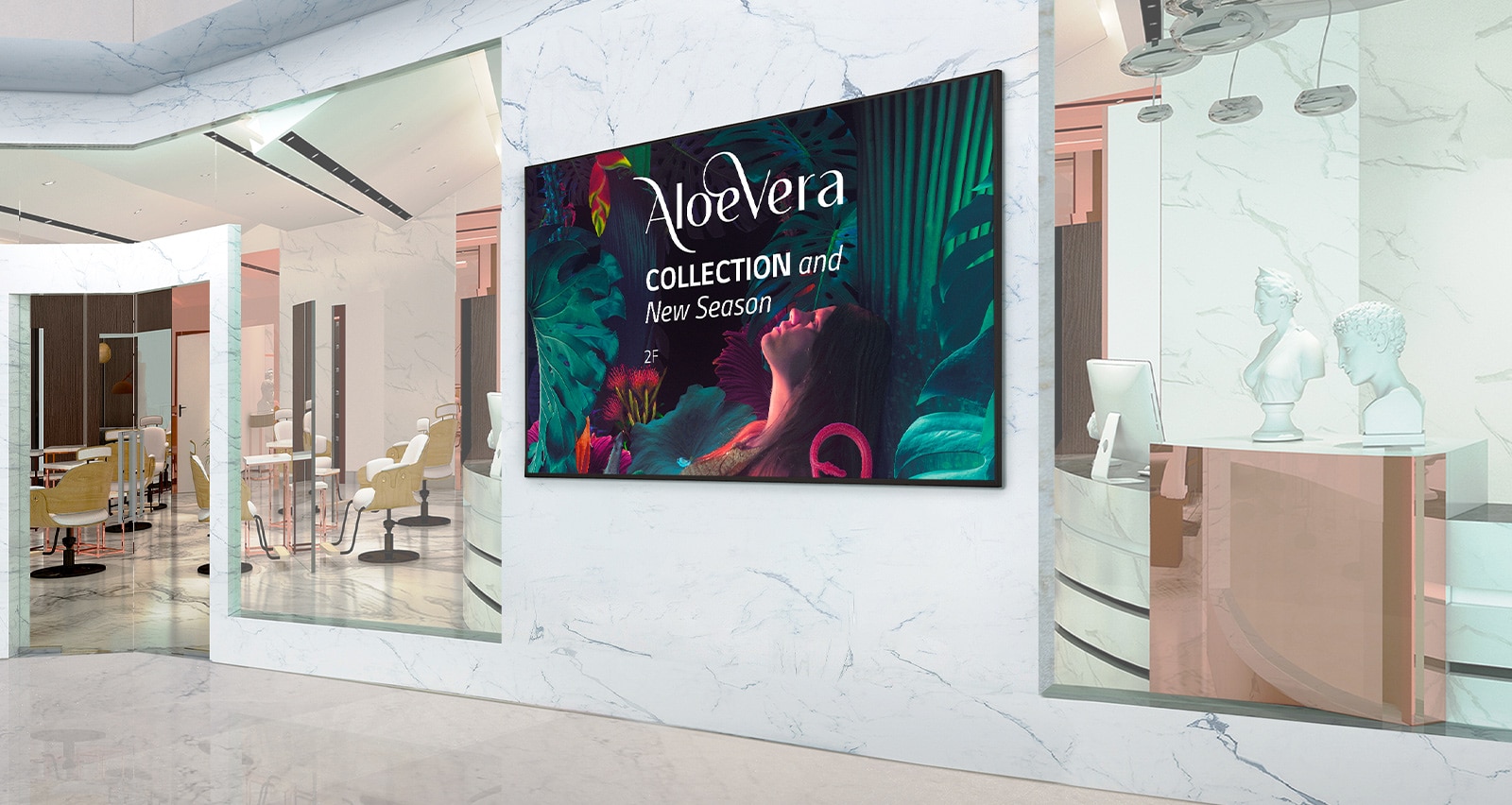

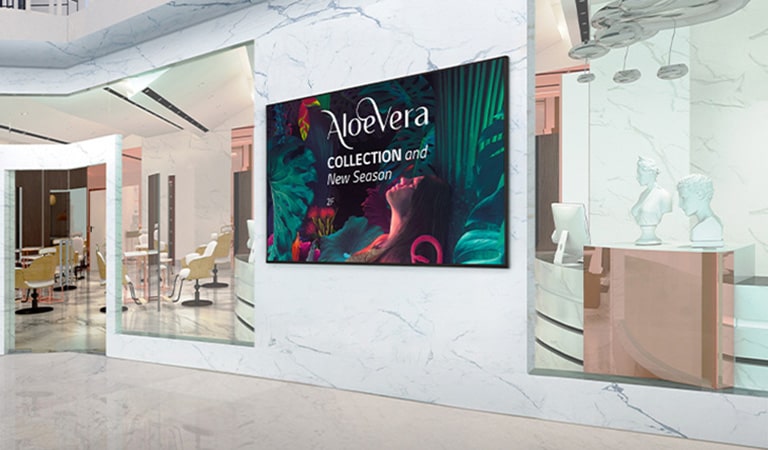

Signage installed on the interior walls of the shopping mall displays advertisements vividly. Signage installed on the interior walls of the shopping mall displays advertisements vividly.
* All images in this page are for illustrative purposes only.

Eye-catching Large Screen

A large screen effectively captures people's attention. Especially, 86-inch model supports 120Hz, enabling smooth content operation.

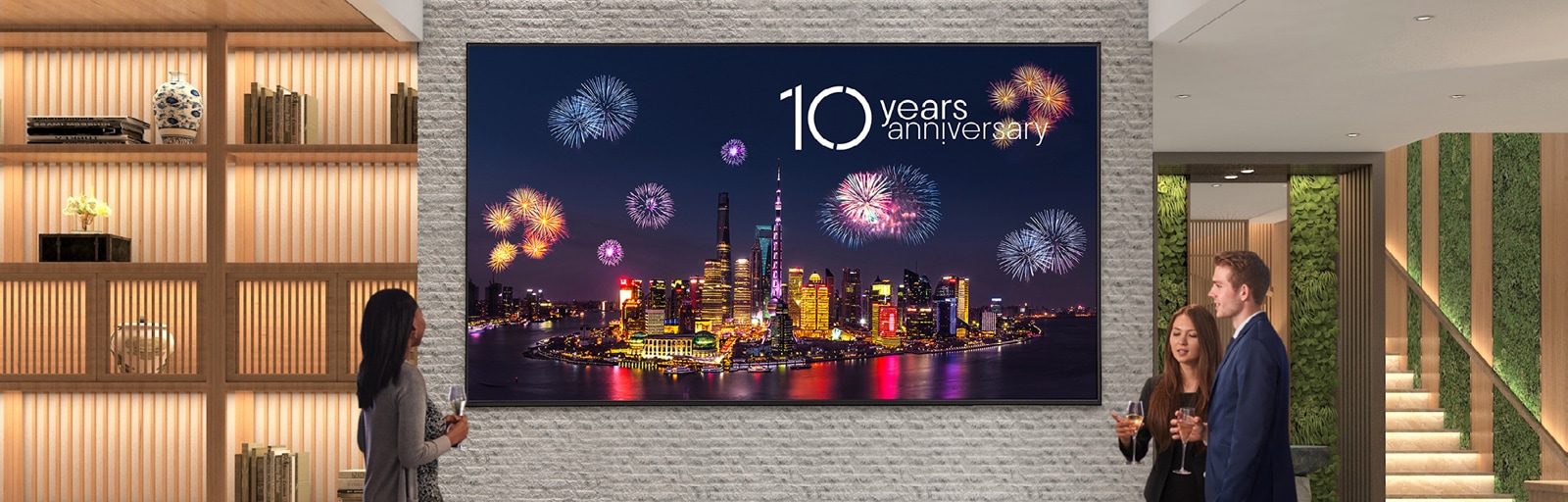

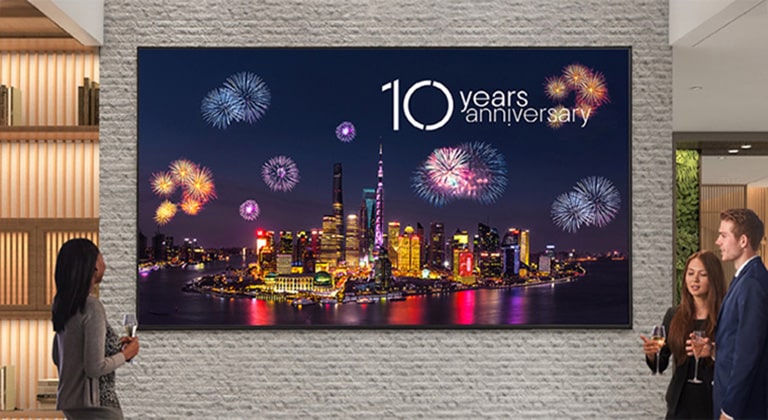

The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention. The company lounge features a sizable UH5N-M installed on the wall. The large screen vividly displays images, easily capturing people’s attention.

Slim Depth with Even Bezel

Despite its large screen, UH5N-M boasts a slim depth, which is advantageous for interior design. To avoid visual issues when adjusting to portrait mode, the bezel maintains uniform thickness on all four sides, providing even symmetry on the top, bottom, left, and right. Therefore, it is a model suitable for various styling options.

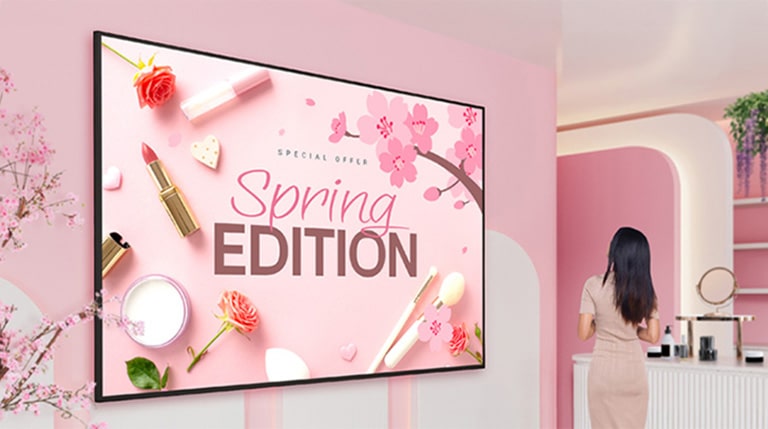

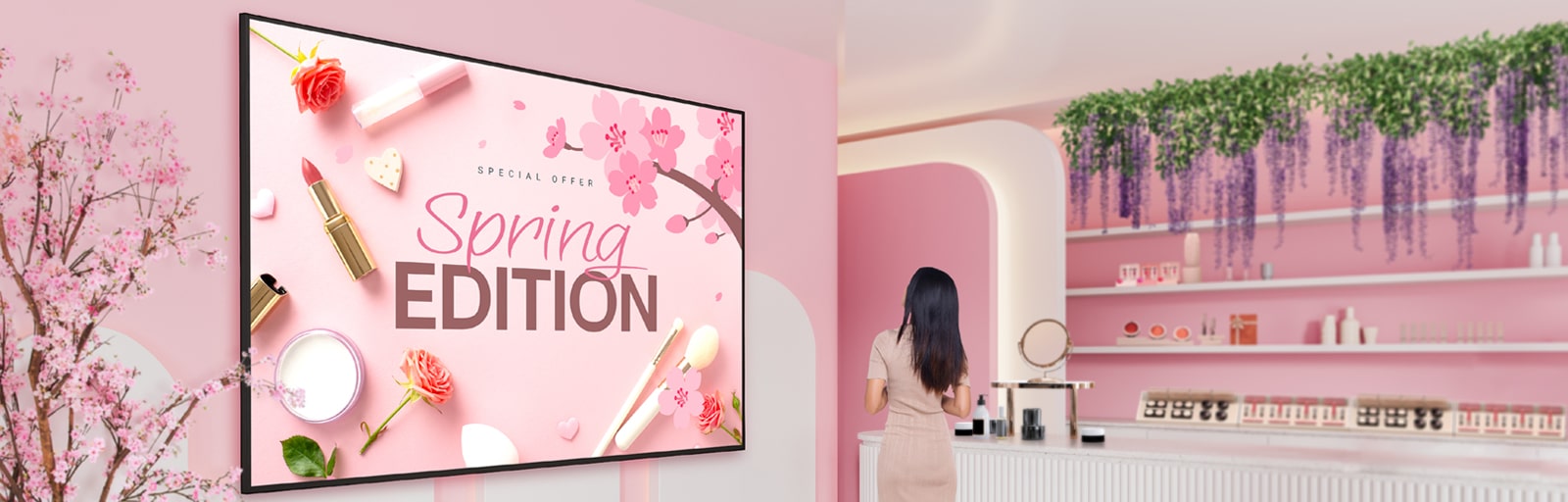

In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior. In the cosmetic shop, the UH5N-M is mounted on the wall, and its slim design and uniform bezel seamlessly blend with the interior.

Versatile Operation with
Multi-USB

With support for two USB ports, UH5N-M offers versatile usage options. For example, operating content on the screen while simultaneously using other connected devices is possible. This includes convenient tasks like downloading PPT files from external storage devices while using a mouse or keyboard during a meeting.

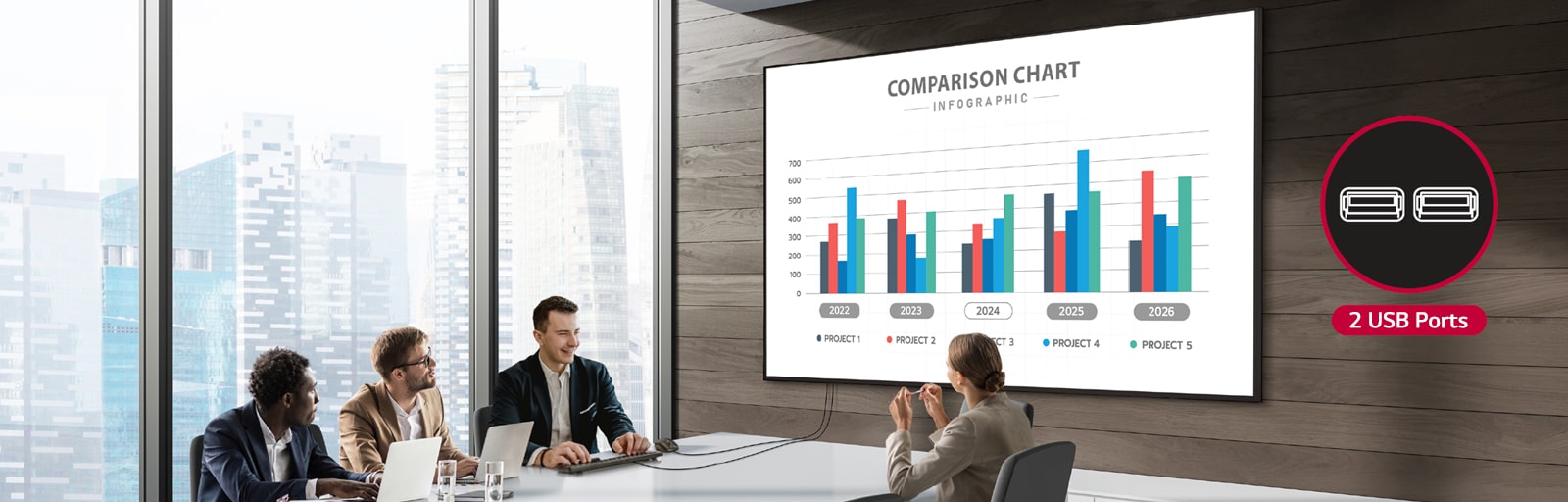

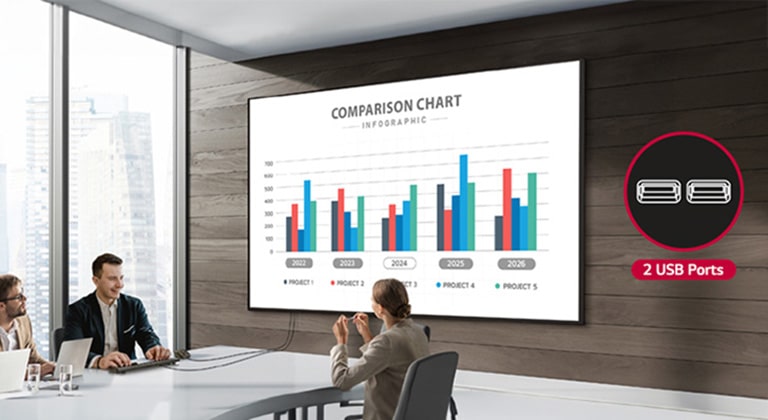

A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously. A man in the meeting room is conducting the meeting using both a mouse and keyboard, which are connected to the UH5N-M and used simultaneously.
The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD. The difference comparing at a glance is shown in Ultra HD quality, which is four times higher than Full HD.

High Resolution Display

It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
A number of tasks can be done at the same time with the intuitive UI. A number of tasks can be done at the same time with the intuitive UI.

Convenient webOS Platform

The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Durability that Provides Reliability

Optimized for business environments, the UH5N-M is protected against rust and dust with conformal coating and IP5x certification, allowing for stable operation.
The UH5N-M has conformal coating to protect the display even in salty or humid environments. The UH5N-M has conformal coating to protect the display even in salty or humid environments.

Enhanced Security Features

The UH5N-M provides advanced security features, including LG's Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certifications in the field of information security, maintaining customers' data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.
The UH5N-M provides security features to protect important data from external access or attacks. The UH5N-M provides security features to protect important data from external access or attacks.

SuperSign Solutions

SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

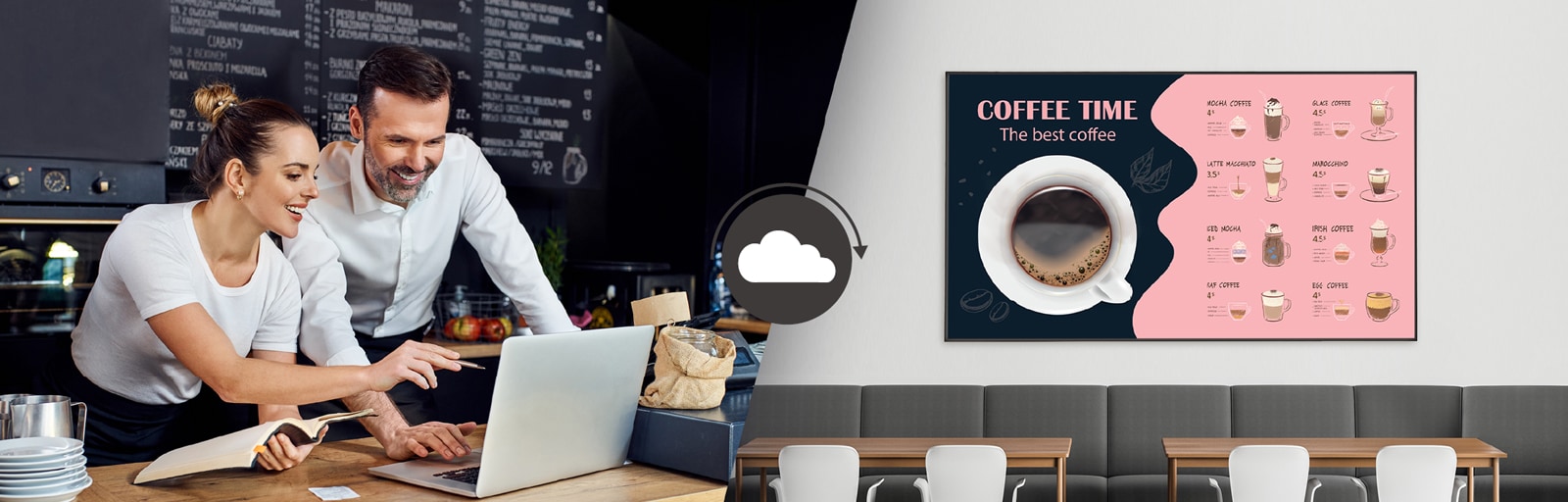

Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software. Cafe managers are creating menus that will be displayed on the display installed on the cafe wall using content management software.
Close
INFO
  • Product
    Standard (UHD)
    Year
    Y24
  • Month
    M08
PANEL
  • Screen Size (Inch)
    86
    Panel Technology
    IPS
  • Back Light Type
    Edge
    Aspect Ratio
    16:9
  • Native Resolution
    3840 x 2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness
    500nit (Typ.)
    Contrast Ratio
    1,200:1
  • Dynamic CR
    1,000,000:1
    Color Gamut

    BT709 95%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth (Number of Colors)
    8bit(D), 1.07Billion colors
  • Response Time
    8m (G to G)
    Surface Treatment (Haze)
    25%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portait / Landscape
    O / O
Connectivity
(Jack Interface)
  • HDMI IN
    O(3), 3840x2160@60Hz, HDCP 2.2/1.4
    DP IN
    O(1), 3840x2160@60Hz, HDCP 2.2/1.3
  • RS232C In
    O(1), 4pin Phone-jack
    RJ45(LAN) In
    O(1)
  • IR In
    O(1)
    USB In
    USB2.0 Type A(2)
  • Audio Out
    O(1)
    RS232C Out
    O(1), 4pin Phone-jack
  • IR Out
    Ｘ (Support IR daisy chain via RS232C IN/OUT)
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    13.4mm
  • Weight (Head)
    52.7kg(TBD)
    Packed Weight
    65.5kg(TBD)
  • Monitor Dimensions (W x H x D)
    1928.8 x 1099.8 x 29.7 (without IR, Handle)
    Carton Dimensions (W x H x D)
    2100 x 1250 x 253(TBD)
  • Handle
    O
    VESA™ Standard Mount Interface
    600 x 400
HW FEATURE
  • Internal Memory (eMMC)
    16GB
    Wi-Fi/BT (Built-in)
    O
  • Temperature Sensor
    O
    Auto Brightness sensor
    O(IR)
  • Acceleration(Gyro) Sensor
    O
    Local Key Operation
    O
SW FEATURE
  • OS Ver. (webOS)
    webOS6.0
    Local Contents Scheduling
    O
  • Group Manager
    O
    USB Plug & Play
    O
  • Fail over
    O
    Booting Logo Image
    O
  • No Signal Image
    O
    RS232C Sync
    O
  • Local Network Sync
    O
    PIP
    O
  • PBP
    O(4)
    Screen Share
    O
  • Video Tag
    O(4)
    Play via URL
    O
  • Screen Rotation
    O
    External Input Rotation
    O
  • Gapless Playback
    O
    Tile Mode Setting
    O (Max. 15x15)
  • Setting Data Cloning
    O
    SNMP
    O
  • ISM Method
    O
    Auto Set ID
    O
  • Status Mailing
    O
    Control Manager
    O
  • Cisco Certification
    O (TBD)
    Crestron Connected
    O
  • Smart Energy Saving
    O
    PM mode
    O
  • Wake on LAN
    O
    Network Ready
    O
  • Beacon
    O
    HDMI-CEC
    O
  • SI Server Setting
    O
    webRTC
    O
  • Pro:Idiom
    O
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ.
    197W (TBD)
    Max.
    297W (TBD)
  • BTU (British Thermal Unit)
    672 BTU/Hr(Typ.), 1013 BTU/Hr(Max) (TBD)
    Smart Enegy Saving (70%)
    138W (TBD)
  • DPM
    0.5W
    Power off
    0.5W
SOUND
  • Speaker (Built-in)
    O (10W X 2)
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "B" / CE / KC
  • ErP / Energy Star
    N/A / O
    ePEAT(US only)
    O / Carbon "Reducing CO2"
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    O
    SuperSign Control+
    O
  • SuperSign WB
    O
    SuperSign Cloud
    O
  • Mobile CMS
    O
    Connected Care
    O
Language
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Türkçe, Arabic
ACCESSORY
  • Basic
    Remote Controller(include battery 2ea), Power Cord, QSG, Regulation Book, Phone to RS232C Gender, Cable Holder(6EA), Cable Holder(7Pin/1EA)
    Optional
    Wall Mount
    (LSW640A/B)
SPECIAL FEATURE
  • IP Rating
    IP5X
    Conformal Coating (Power Board)
    O
