86XF3CK-B component-copyModelName
High-brightness Open-frame Display

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XF3CK-B)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (86XF3CK-B)
    AED
    AED
    LG Members Price
Total
High-brightness Open-frame Display

Boost Your Outdoor Advertising
with a Large Dual-view Display

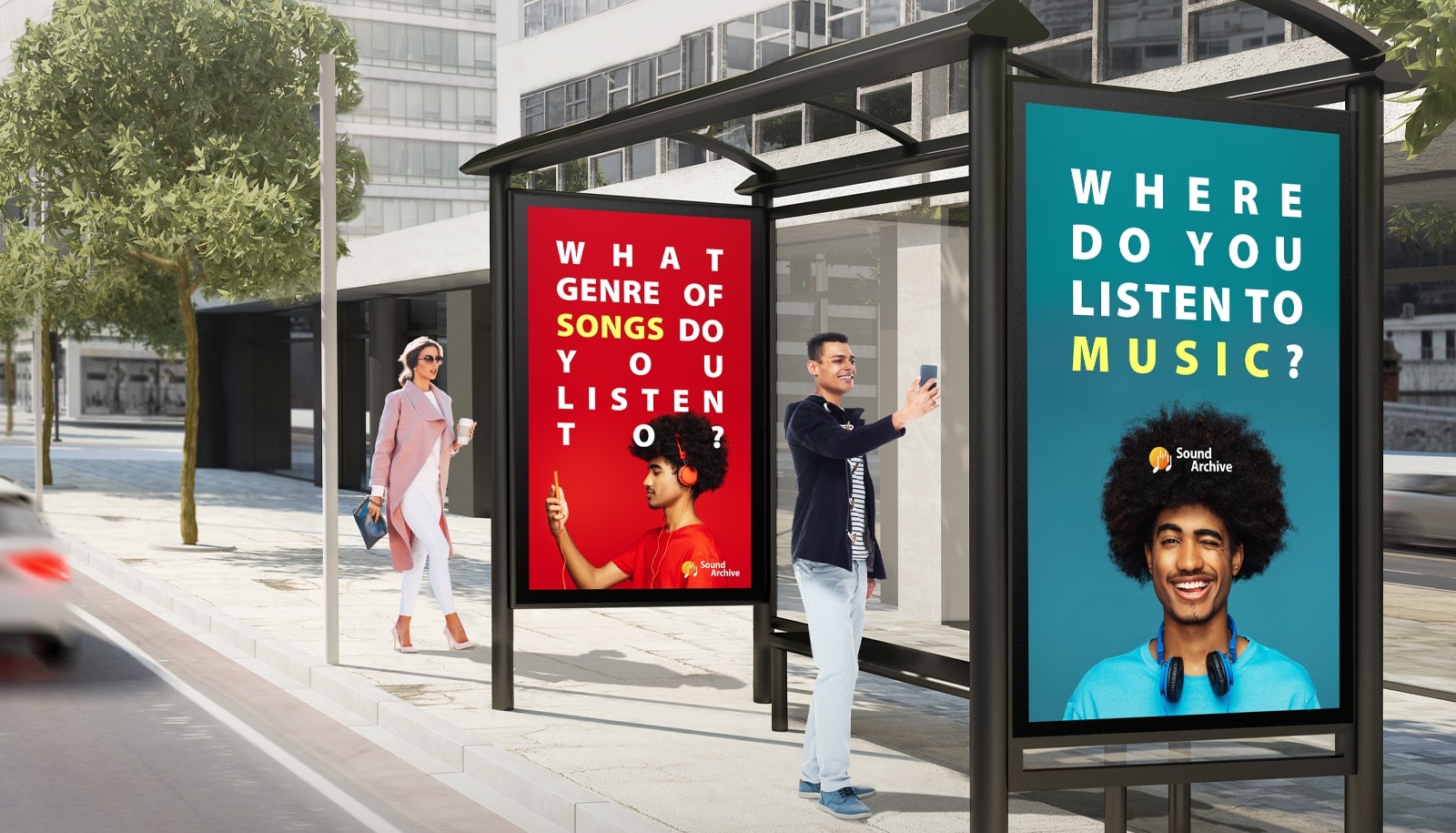

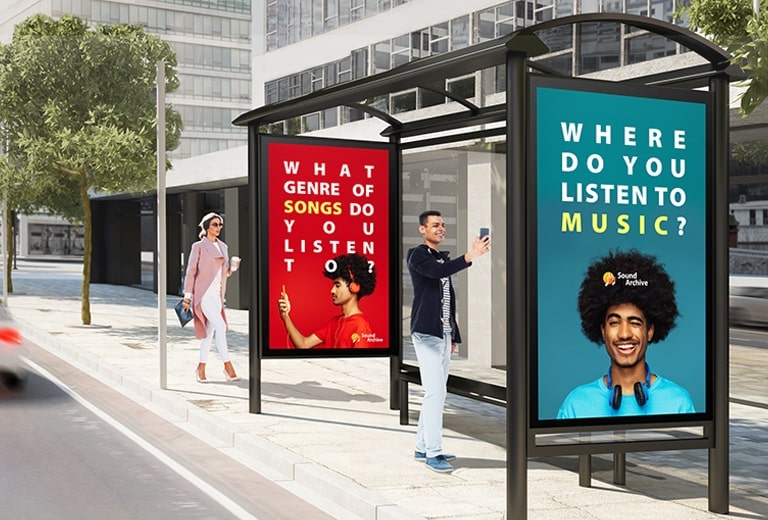

Large double-sided displays are installed at both ends of the bus station. Advertisements are being displayed on both sides of the displays, and people are watching advertisements inside and outside of the bus stop at the same time. Large double-sided displays are installed at both ends of the bus station. Advertisements are being displayed on both sides of the displays, and people are watching advertisements inside and outside of the bus stop at the same time.
* All images in this page are for illustrative purposes only.

Double-sided Screen with
Ultra HD Resolution

86XF3CK features a dual-view screen with a UHD resolution which makes the color of images and videos clear. The IPS panel allows users to view screen at various angle.

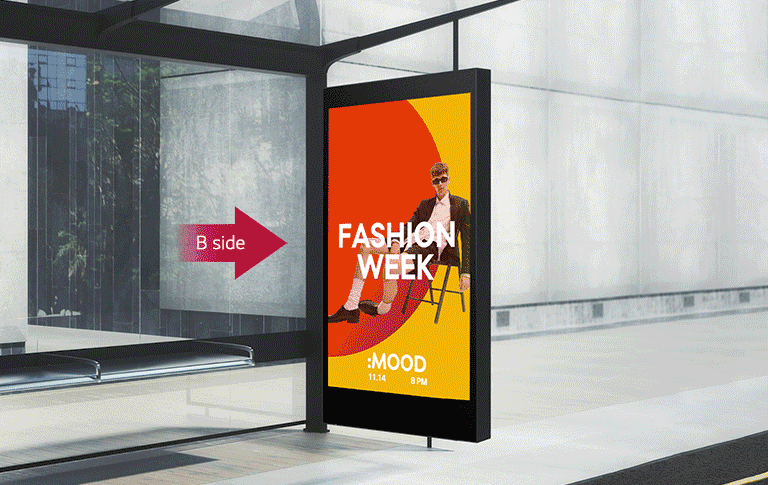

A double-sided display is installed at the end of the bus stop. Having UHD resolution, the display screen’s colorful advertisements are expressed in a vivid way. A double-sided display is installed at the end of the bus stop. Having UHD resolution, the display screen’s colorful advertisements are expressed in a vivid way.

Outdoor Advertisement Utilization

86XF3CK can help save space since it has the advertising impact of installing 2 signages with a single signage. The double-sided display allows the targeting of customers standing on either opposing side, thus increasing space utilization. It can be used as an effective marketing tool especially in narrow spaces such as bus stops or sidewalks where space utilization is important.

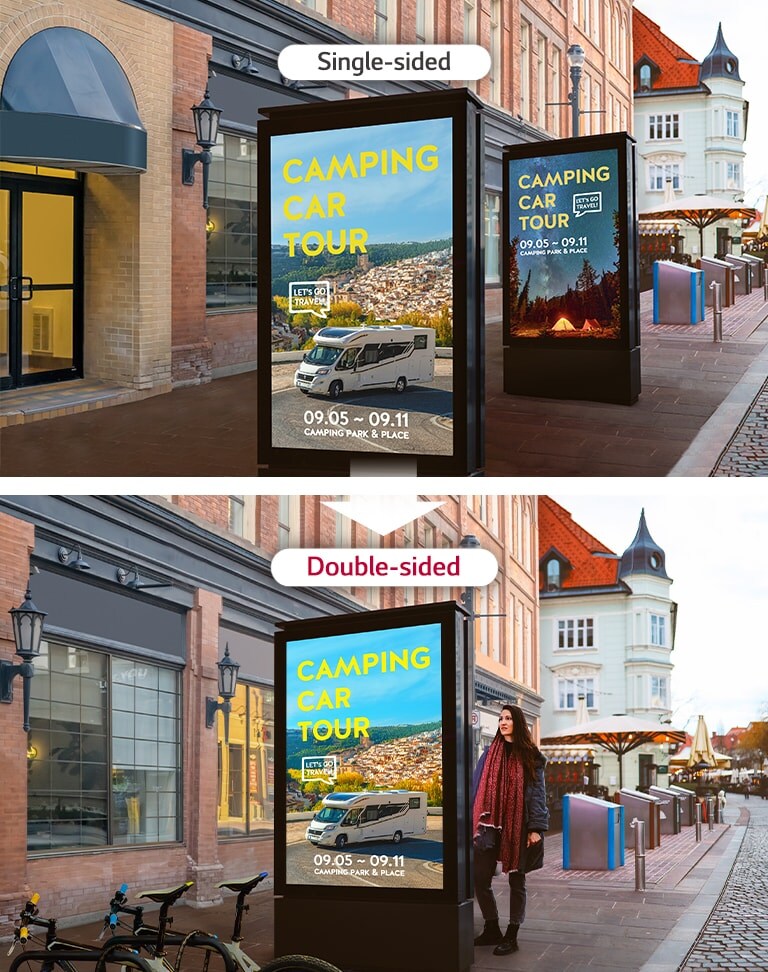

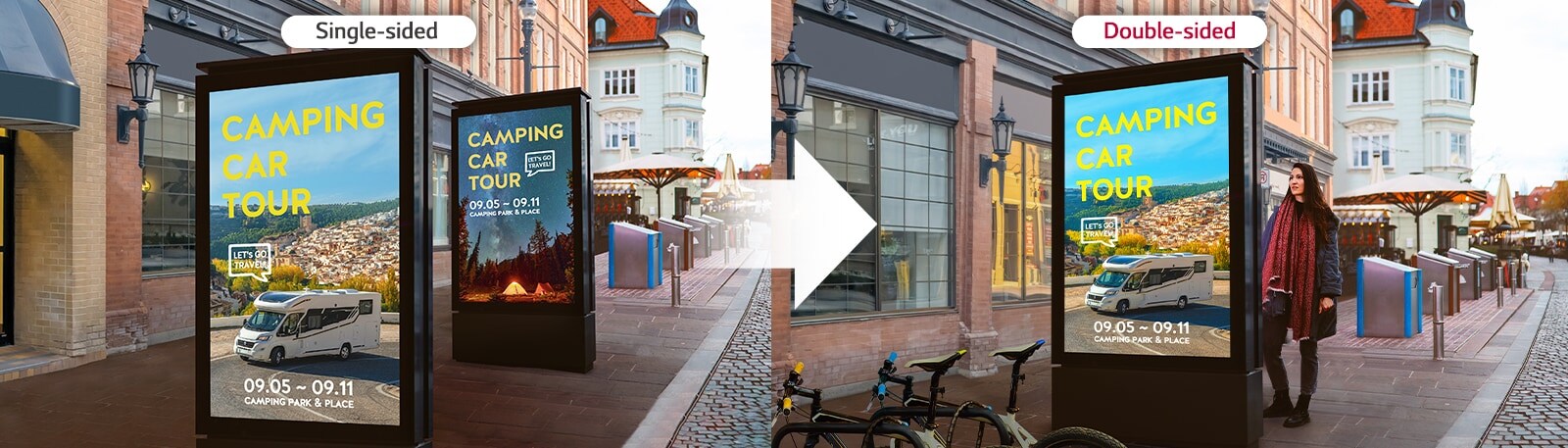

Two single-sided displays on a narrow sidewalk are very near each other, while the place where one double-sided display is installed is efficient because there is space left over. Two single-sided displays on a narrow sidewalk are very near each other, while the place where one double-sided display is installed is efficient because there is space left over.

High Visibility
Under Strong Sunlight

With outstanding high brightness of 3,300 nits (Typ.), the 86XF3CK outdoor display delivers contents clearly while captivating passersby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.
A large double-sided display is installed on the street, and a woman and man are looking at a vivid-quality advertisement on either side of the screen. A large double-sided display is installed on the street, and a woman and man are looking at a vivid-quality advertisement on either side of the screen.

Open-frame Type Display

86XF3CK is an open-frame type high brightness displays to give customers flexibility in exterior of casing such as colors or design.

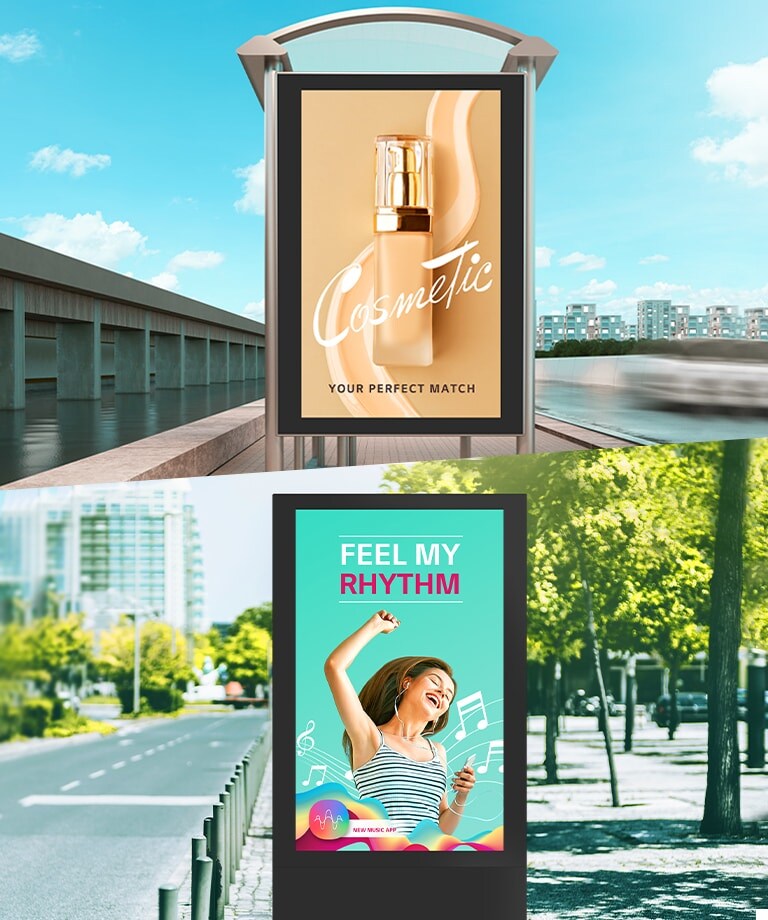

Various frame-shaped displays are installed outdoors. Various frame-shaped displays are installed outdoors.
* 86XF3SK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association).
** 86XF3SK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

Wide Range of
Operating Temperature

The display offers superb reliability under a wide range of operating temperatures, which also goes through LG’s solar test* which causes a lot of thermal energy. So the 86XF3CK requires fewer constraints for outdoor installations** which are usually exposed to strong sunlight and various environmental changes.

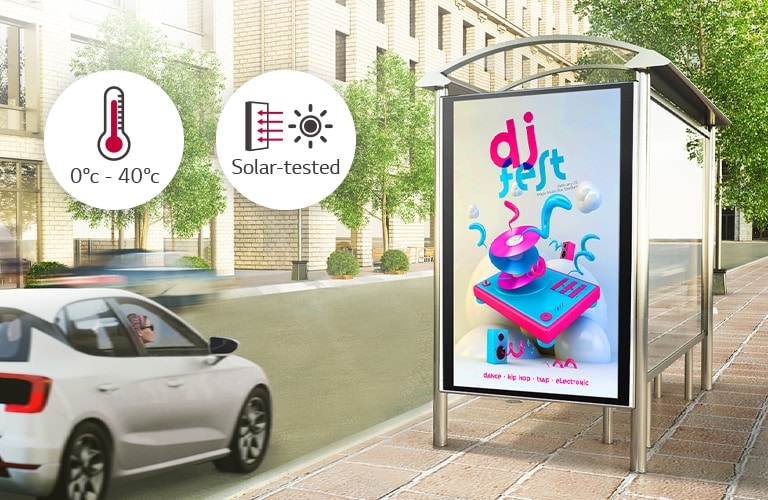

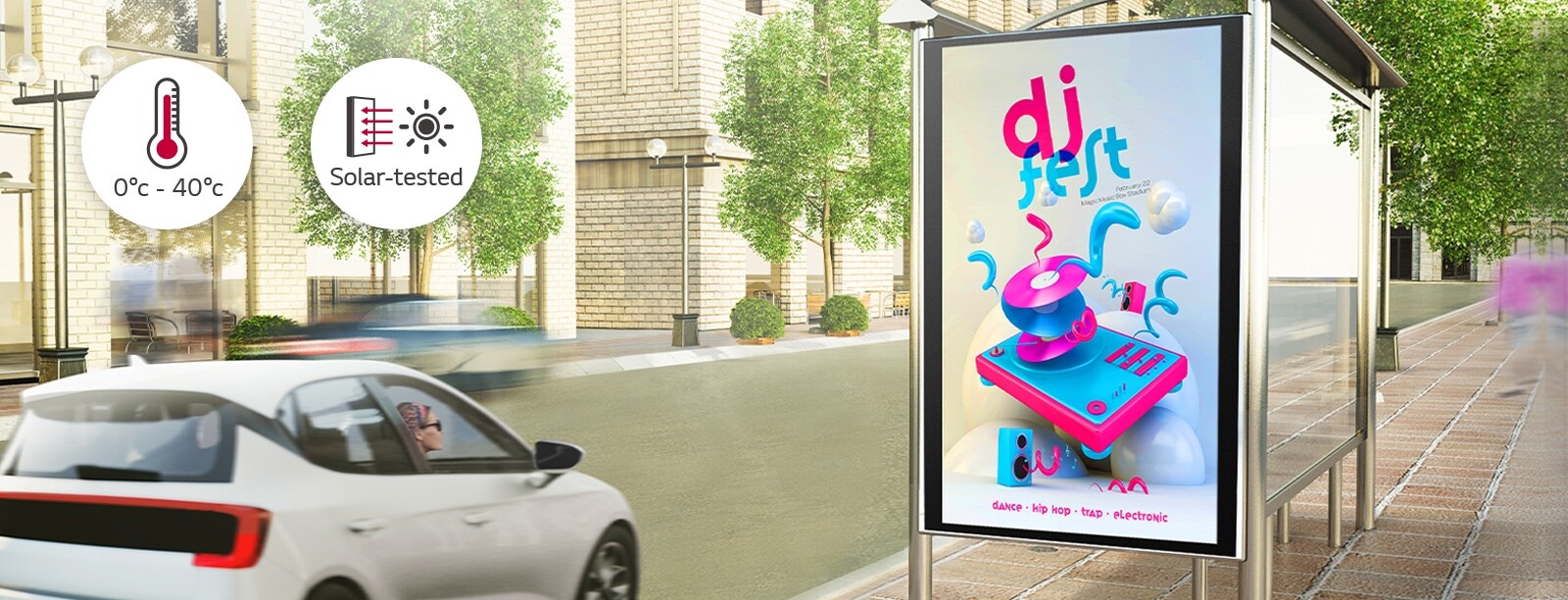

A woman in a car is looking at a DOOH (Digital Out Of Home media) ad on the side of the road. Via a solar test conducted inside LG, this product can operate at wide range of temperature of 0 to 40 degrees. A woman in a car is looking at a DOOH (Digital Out Of Home media) ad on the side of the road. Via a solar test conducted inside LG, this product can operate at wide range of temperature of 0 to 40 degrees.
* 86XF3CK is LG-internally tested based on international environment test standard IEC 600680205, MIL-STD-810G and TTA (Telecommunication Technology Association).
** 86XF3CK needs to be installed inside a casing according to LG's official installation guide to be used safely and appropriately. The installation guide is provided by LG.

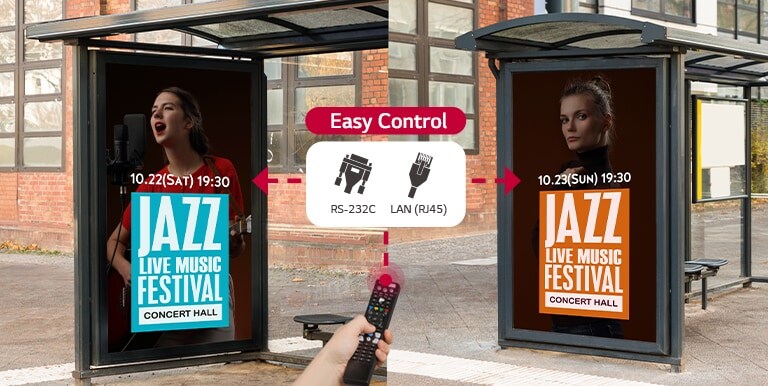

Double-sided displays can be easily controlled through RS-232C and LAN (RJ45). Double-sided displays can be easily controlled through RS-232C and LAN (RJ45).

Easy Operation Control
(Multi Display Control)

Multiple device controls are available through the RJ45 & RS-232C ports. It means that even double-sided displays can be easily controlled simultaneously with a remote control.
The 86XF3CK minimizes the change of the panel’s brightness over time. The 86XF3CK minimizes the change of the panel’s brightness over time.

Smart Brightness Compensation

The built-in BLU* sensor frequently measures the brightness of the display and automatically compensates for reduced brightness during operation.

* Back Light Unit
The 86XF3CK has Conformal Coating on its power board to protect the display, even in a humid environment. The 86XF3CK has Conformal Coating on its power board to protect the display, even in a humid environment.

Conformal Coating

Conformal Coating* improves reliability of the circuit board, power board by protecting it against humidity.

* Conformal Coating : Thin protective films/breathing membranes that filter water vapor.
The 86XF3CK screen can adjust its brightness automatically according to the ambient light. The 86XF3CK screen can adjust its brightness automatically according to the ambient light.

Smart Brightness Control

The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.
The display is protected from external electrical hazards. The display is protected from external electrical hazards.

Electrical Safety

Circuit breaker inside 86XF3CK minimizes the possibility of product damage by cutting off current when abnormal current is detected.

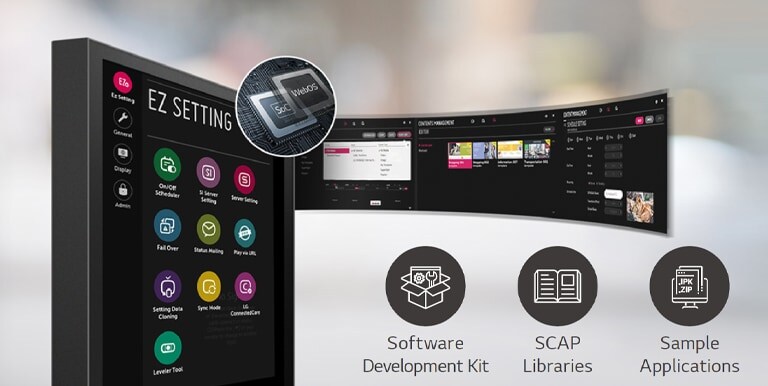

A number of tasks can be done at the same time with the intuitive GUI. A number of tasks can be done at the same time with the intuitive GUI.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC* and web engine, is available on 86XF3CK for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.** This also enables the easy management of doubled-sided sending.

* SoC : System On Chip
** GUI : Graphical User Interface
User can monitor and control their displays through mobile phone and laptop. User can monitor and control their displays through mobile phone and laptop.

Web Monitoring (Control Manager)

This is a web-based monitoring solution, which provides easy control for the user. It enables users to have full access anywhere, anytime from their mobile phone & PC as long as they’re connected to a network to monitor and control the displays remotely in real-time. Both side of displays can be controlled by multi display control.
Close
INFO
  • Product
    Outdoor
    Year
    Y23
  • Month
    M05
PANEL
  • Screen Size (Inch)
    86"
    Panel Technology
    IPS, RGB
  • Back Light Type
    Direct
    Aspect Ratio
    16:9
  • Native Resolution
    3840x2160 (UHD)
    Refresh Rate
    120Hz
  • Brightness (Typ.)
    3,300nit
    Contrast Ratio
    1,100:1 (Typ)
  • Dynamic CR
    500,000:1
    Color Gamut
    NTSC 68%
  • Viewing Angle(H x V)
    178x178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8 ms (G to G)
    Surface Treatment(Haze)
    3%
  • Life time
    50,000Hrs (Min.)
    Operation Hours (Hours/Day)
    24/7
  • Portrait / Landscape
    Yes / No
    QWP(Quarter Wave Plate)
    Yes
CONNECTIVITY(JACK INTERFACE)
  • HDMI IN
    Yes(1), HDCP2.2*2
    DP IN
    Yes(1), HDCP1.4*2
  • RS232C IN
    Yes(1) (4pin phone jack)*2
    RJ45(LAN) IN
    Yes(1)
  • IR IN
    Yes(1)
    USB IN
    USB2.0 Type A (1)*2
  • RS232C Out
    Yes(1)
    RJ45(LAN) Out
    Yes(4)
  • IR Out
    Sharing RS232C Out
MECHANICAL
  • Bezel Color
    Black
    Bezel Width
    L/R: 66.4mm, T: 51.95, B: 51.95mm
  • Weight (Head)
    201.8Kg
    Packed Weight
    262.6Kg
  • Monitor Dimensions (W x H x D)
    1,202.8 x 2,003 x 229.18mm
    Carton Dimensions (W x H x D)
    1,425 x 2,312 x 1,046 mm
HW FEATURE
  • Internal Memory
    8GB
    Temperature Sensor
    Yes
  • Auto Brightness sensor
    Yes
    Pixel sensor
    Yes
  • Current Sensor
    Yes
    BLU Sensor
    Yes
  • Humidity Sensor
    Yes
    Acceleration(Gyro) Sensor
    Yes
  • FAN (Built-in)
    Yes
SW FEATURE
  • OS ver.
    webOS6.0
    Local Contents Scheduling
    Yes
  • Group Manager
    Yes
    USB Plug & Play
    Yes
  • Fail over
    Yes
    Booting Logo Image
    Yes
  • No Signal Image
    Yes
    RS-232C Sync
    Yes
  • Local Network Sync
    Yes
    Backlight Sync
    Yes
  • Video Tag
    Yes(4, Max One HDMI input)
    Play via URL
    Yes
  • Screen Rotation
    Yes
    External Input Rotation
    Yes
  • Gapless Playback
    Yes
    Setting Data Cloning
    Yes
  • SNMP
    Yes
    ISM Method
    Yes
  • Auto Set ID
    Yes
    Status Mailing
    Yes
  • Control Manager
    Yes
    Smart Energy Saving
    Yes
  • PM mode
    Yes
    Wake on LAN
    Yes
  • Network Ready
    Yes
    HDMI-CEC
    Yes
  • SI Server Setting
    Yes
    webRTC
    Yes
  • Pro:Idiom
    Yes
    Brightness Compensation
    Yes
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0 °C to 40 °C (with Solar)
    0 °C to 50 °C (without Solar)
    Operation Humidity
    10% to 80%
POWER
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ.)
    1450W (Front) (Full White) / 1500 W (Back) 383W (IEC 62087)
    Power Consumption (Max.)
    1950 W (Front) / 1700W (Back)
  • Power Consumption (British Thermal Unit)
    TBD
    Power Consumption (Smart Energy Saving, ~70%)
    710W
  • Power Consumption (DPM)
    0.5W↓
    Power Consumption (Power Off)
    0.5W↓
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class "A"/ CE / KC / VCCI
  • ErP / Energy Star
    Yes / No
SOFTWARE COMPATIBILITY
  • SuperSign CMS
    Yes
    SuperSign Control+
    Yes
  • Connected Care
    Yes
LANGUAGE
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Russian, Japanese, Portugues(Europe), Dutch, Czech, Greek, Arab, Türkiye, Polski
ACCESSORY
  • Basic
    Remote Controller(Including Battery 2ea), HDMI Cable(1ea), USB Cable(2ea), Manual (IG&EIG), Regulation Book, Phone to RS232C Gender(1ea), LAN extension cable(2ea), SMA Cable(2ea), IR Cable(1ea), JCD 5P PWR Cable(3ea), JCD 8P PWR Cable(1ea) Cord Grip rubber(5ea), Screw (6ea), JCD Corner Bracket (4ea)
SPECIAL FEATURE
  • Power protection
    Yes (Circuit Breaker)
    Direct Sunlight
    Yes
