1428 x 803 Touch Overlay Kit

Key Features

component-OBScountrySelectDesc

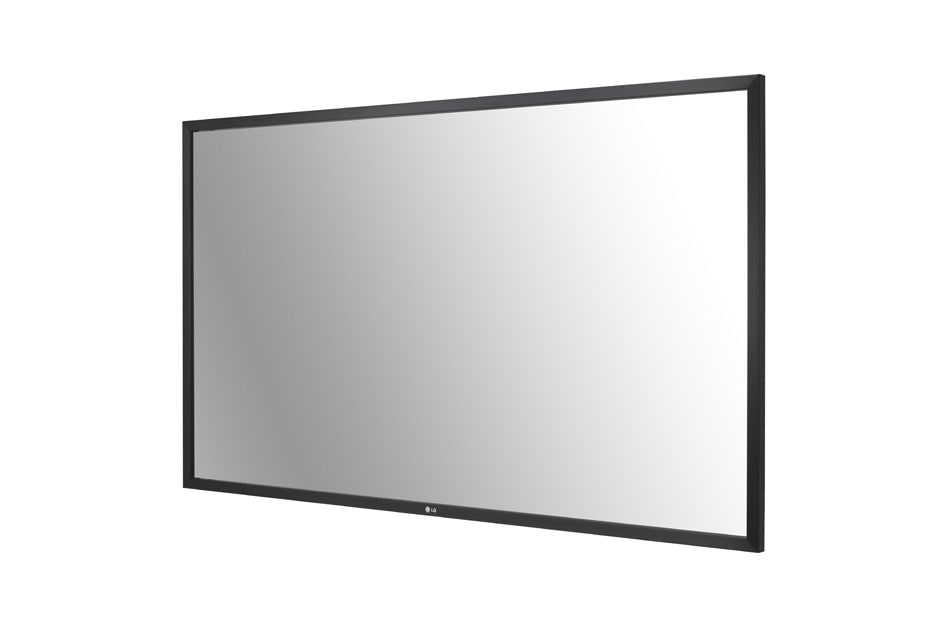

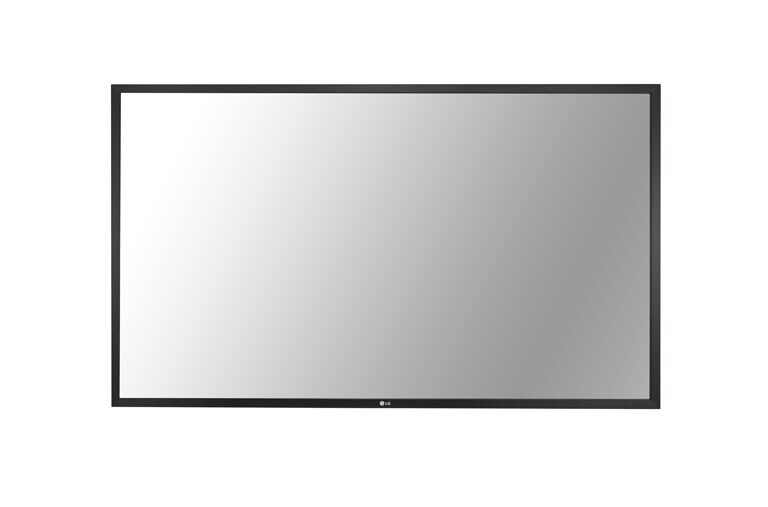

1428 x 803 Touch Overlay Kit
TOUCH
  • Touch type
    IR(Infrared Rays) Spread
    Available object size for touch
    Ø 8mm
  • Scan Time
    9 ~ 14ms
    Accuracy
    1mm
  • Interface
    USB 2.0
    Protection Glass Thickness
    2.8T (Anti-Glare)
  • Operating Systme Support
    Windows 7, Windows 8 / Mac OS X (10.7 or later) / Android / Linux (Kernel 3.9 or later)
    Multi touch point
    Max 10 Point
  • Touch Resolution
    1,428 x 803
PANEL
  • Screen Size
    49"
    Compatible Products
    49SE3B, 49SM5B, 49SE3KB, 49SM5KB, 49SM3B, 49SL5B
  • Orientation
    Landscape & Portrait
CONNECTIVITY
  • Input
    USB
PHYSICAL SPECIFICATION
  • Bezel Width
    27.0mm
    Overlay Dimension (W x H x D)
    1,132 x 660 x 23.5 mm (Max 60 mm)
  • Weight (Head)
    8kg
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    USB
    Typ.
    1.31W
SOFTWARE COMPATIBILITY
  • IWB Software
    No
ACCESSORY
  • Basic
    Manual (Overlay), Install Accessories
