Ceiling Concealed Duct

LG Concealed Duct is a concealed cooling and heating solution that provides optimal temperature control without affecting interior aesthetics.

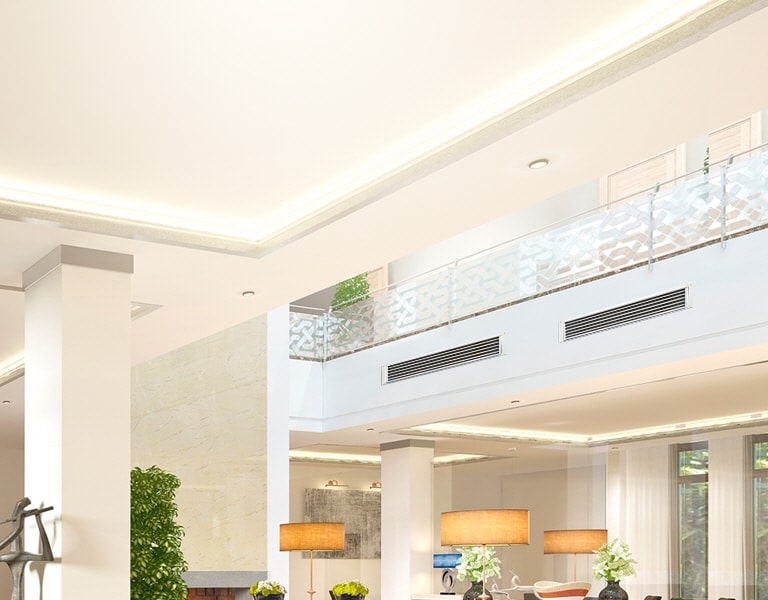

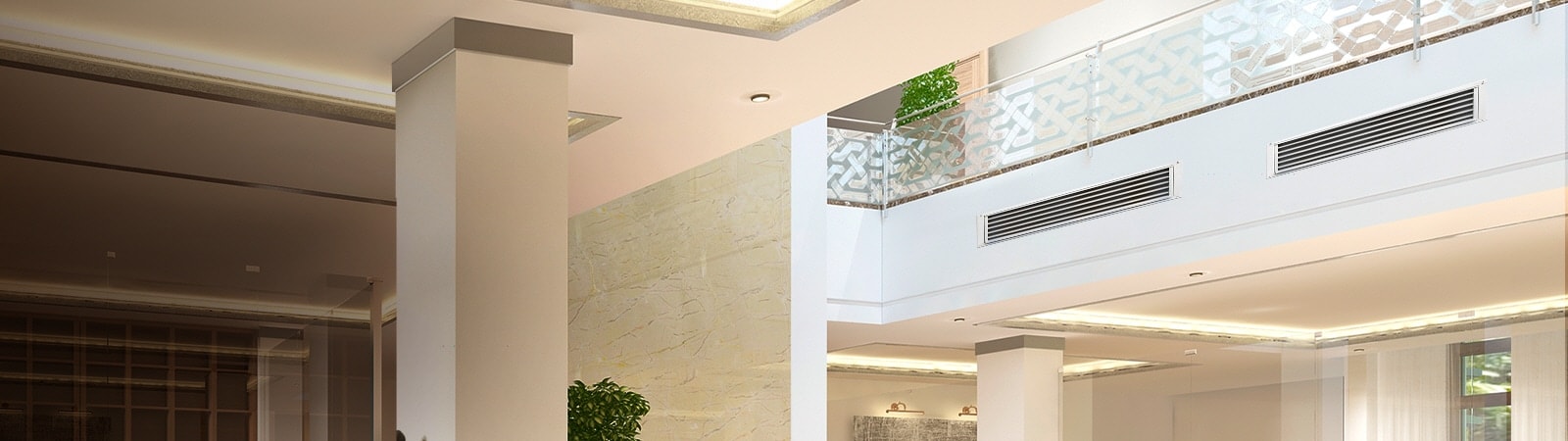

LG HVAC ceiling concealed duct air conditioners(ac) are in an elegant interior, blending with room decor for unobtrusive air distribution. LG HVAC ceiling concealed duct air conditioners(ac) are in an elegant interior, blending with room decor for unobtrusive air distribution.

Ceiling Concealed Duct

Invisible cooling solution suitable for applications that require interior aesthetics

Clean and Fresh air with LG Duct UVnano Filter box

LG Ceiling Concealed Duct with Duct UVnano Filter Box can provide the suitable solution for Clean and Fresh Environment
An LG Ceiling Concealed Duct, centered atop the office wall, perceptibly emits a stream of green airflow, blending seamlessly into the environment. An LG Ceiling Concealed Duct, centered atop the office wall, perceptibly emits a stream of green airflow, blending seamlessly into the environment.
* LG Duct UVnano Filter Box needs to be purchased additionally as an option. The applicable model should be checked with the local office when purchasing.

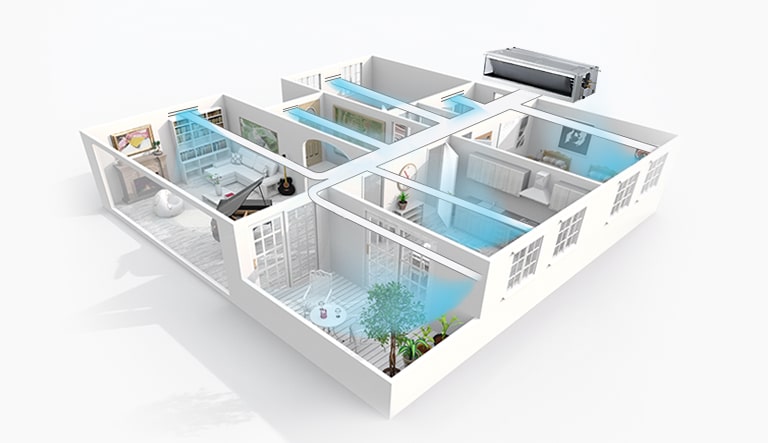

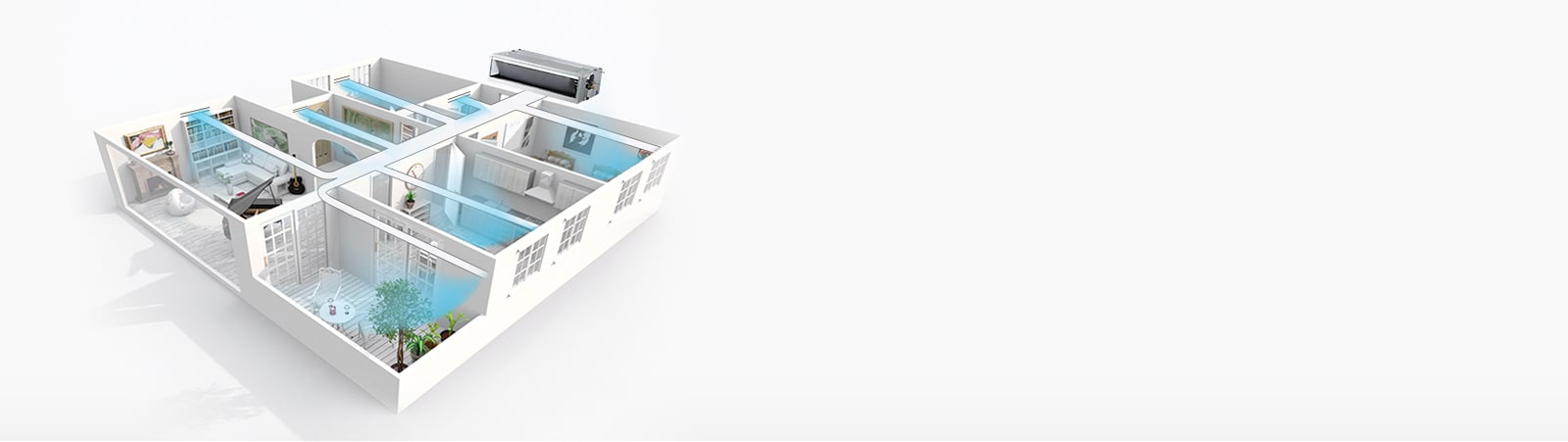

The LG Ceiling Concealed Duct air conditioner(ac) is emitting a visible blue airflow, permeating multiple square-outlined rooms. The LG Ceiling Concealed Duct air conditioner(ac) is emitting a visible blue airflow, permeating multiple square-outlined rooms.

Operation for Multiple Rooms

Using a spiral duct (embedded or flexible type) and stream chamber, it is possible to operate cooling and heating for several rooms simultaneously.

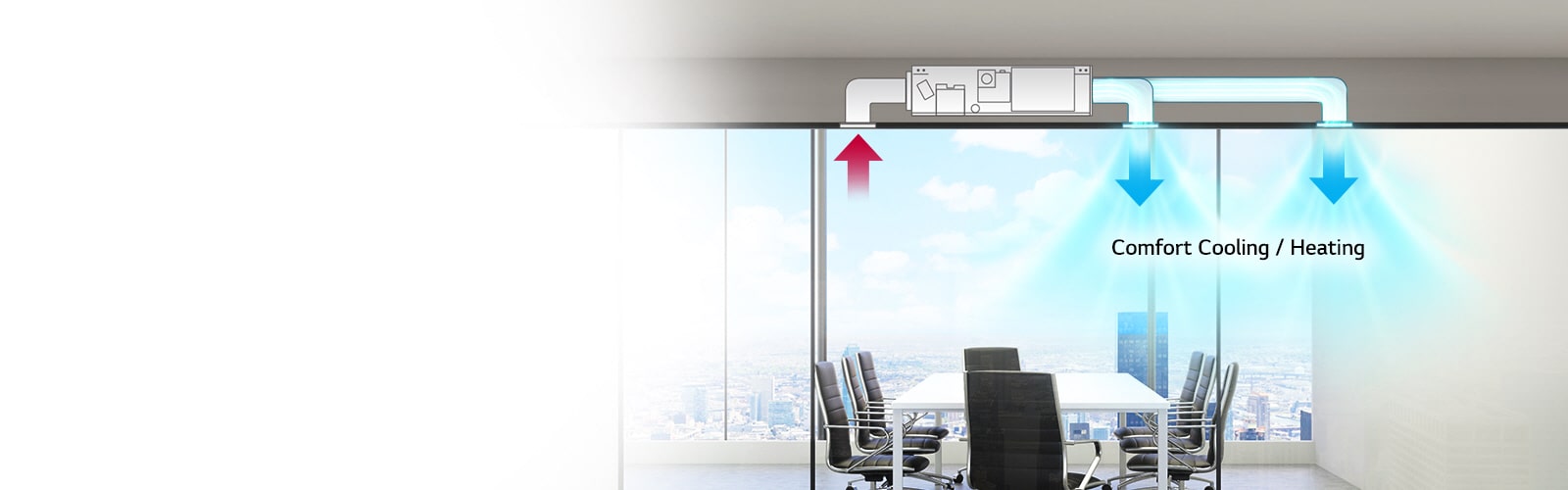

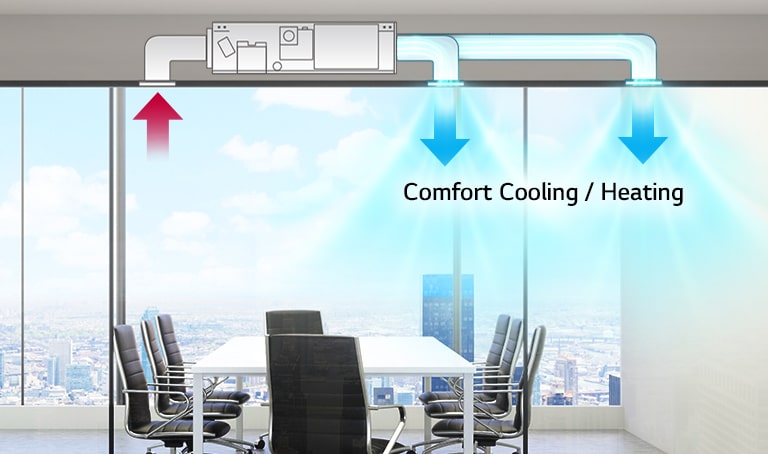

The LG Ceiling Concealed Duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room. The LG Ceiling Concealed Duct, viewed from the side, draws air from the left duct while two right ducts expel air into the meeting room.

E.S.P. Control

E.S.P. (External Static Pressure) control function can make air volume controlled easily with remote controller. The BLDC motor can control fan speed and air volume regardless of the external static pressure. No additional accessories are necessary to control air flow.

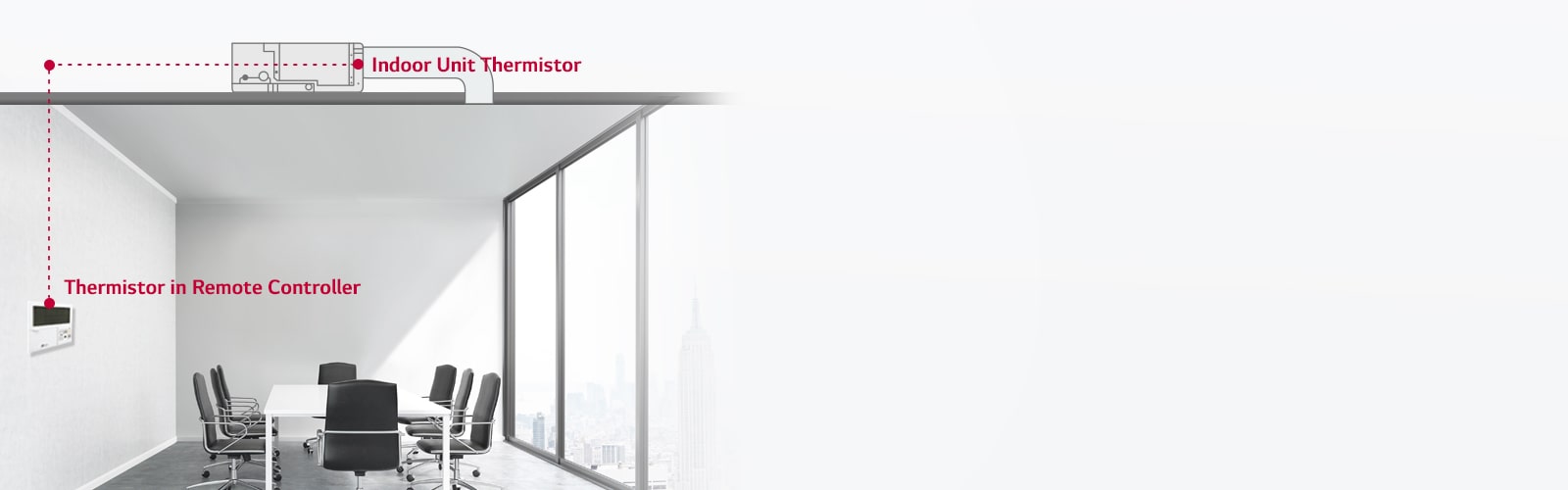

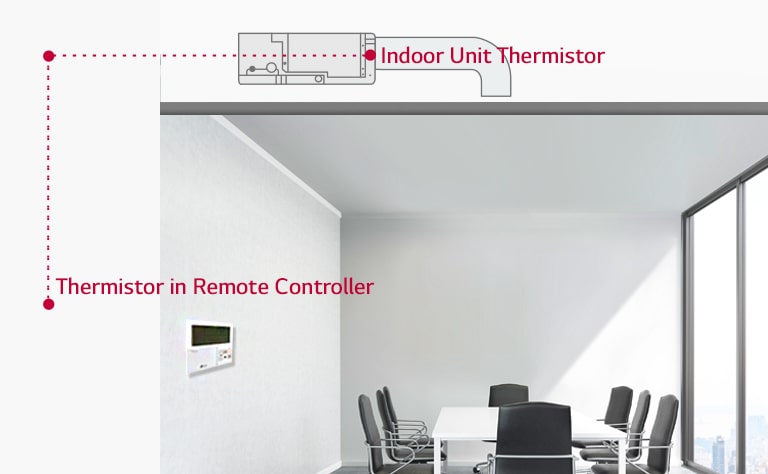

Installed on the conference room ceiling, the LG Ceiling Concealed Duct is linked to a remote controller on the left wall by a red dotted line. Installed on the conference room ceiling, the LG Ceiling Concealed Duct is linked to a remote controller on the left wall by a red dotted line.

Two Thermistors Control

The indoor temperature can be checked using the thermistors in the remote controller, as well as from the indoor unit to sensor temperature difference in one place. Two thermistors can optimize indoor air temperature for a more comfortable environment.

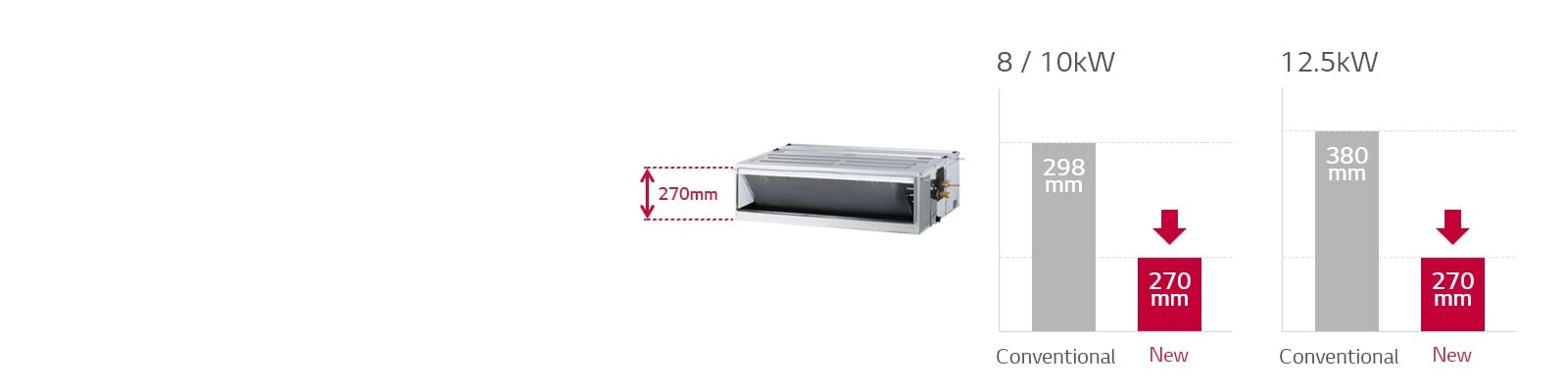

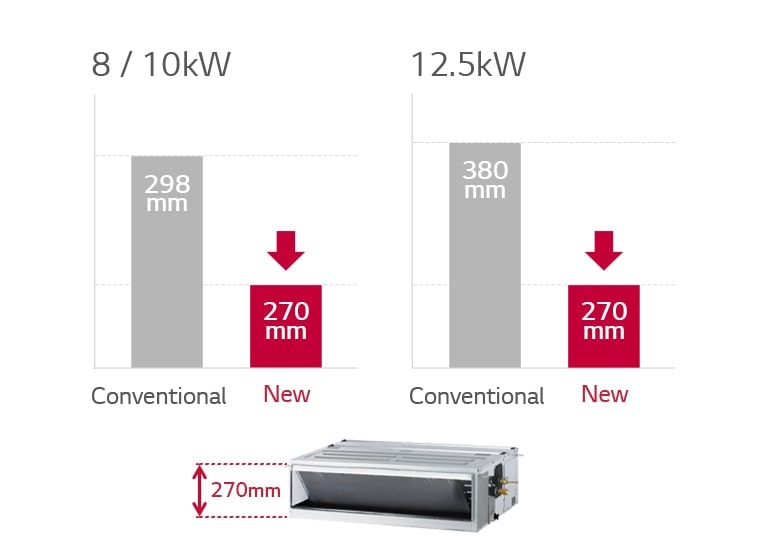

The LG Ceiling Concealed Duct, marked with a red arrow, is 270mm tall. Bar graphs compare this minimized height with a conventional unit. The LG Ceiling Concealed Duct, marked with a red arrow, is 270mm tall. Bar graphs compare this minimized height with a conventional unit.

Minimized Height

New mid-static ducts provide ideal solution
for installation in limited space.

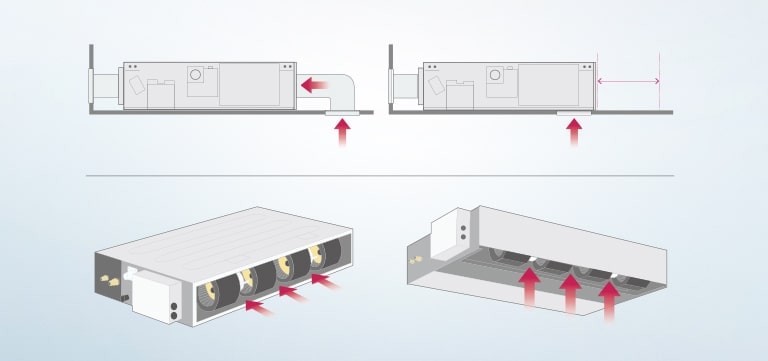

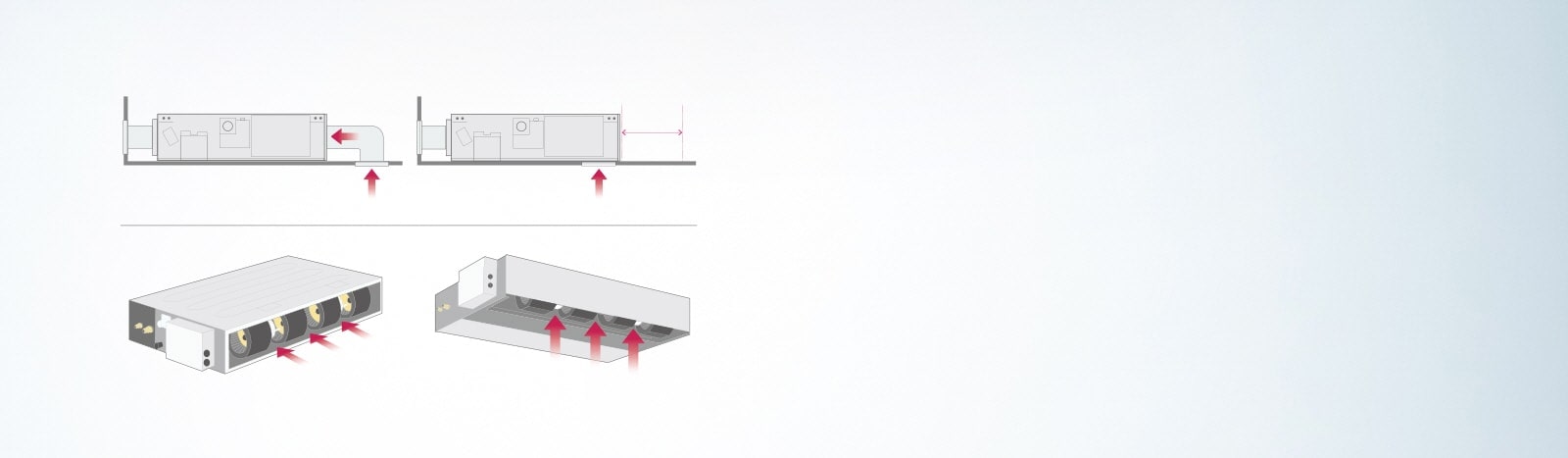

From two side and corner views, arrows highlight the flexible installation of the LG ceiling mounted concealed low static duct. From two side and corner views, arrows highlight the flexible installation of the LG ceiling mounted concealed low static duct.

Flexible Installation (Low Static Duct Only)

The new low static duct allows the air intake at the rear or bottom under installation condition.

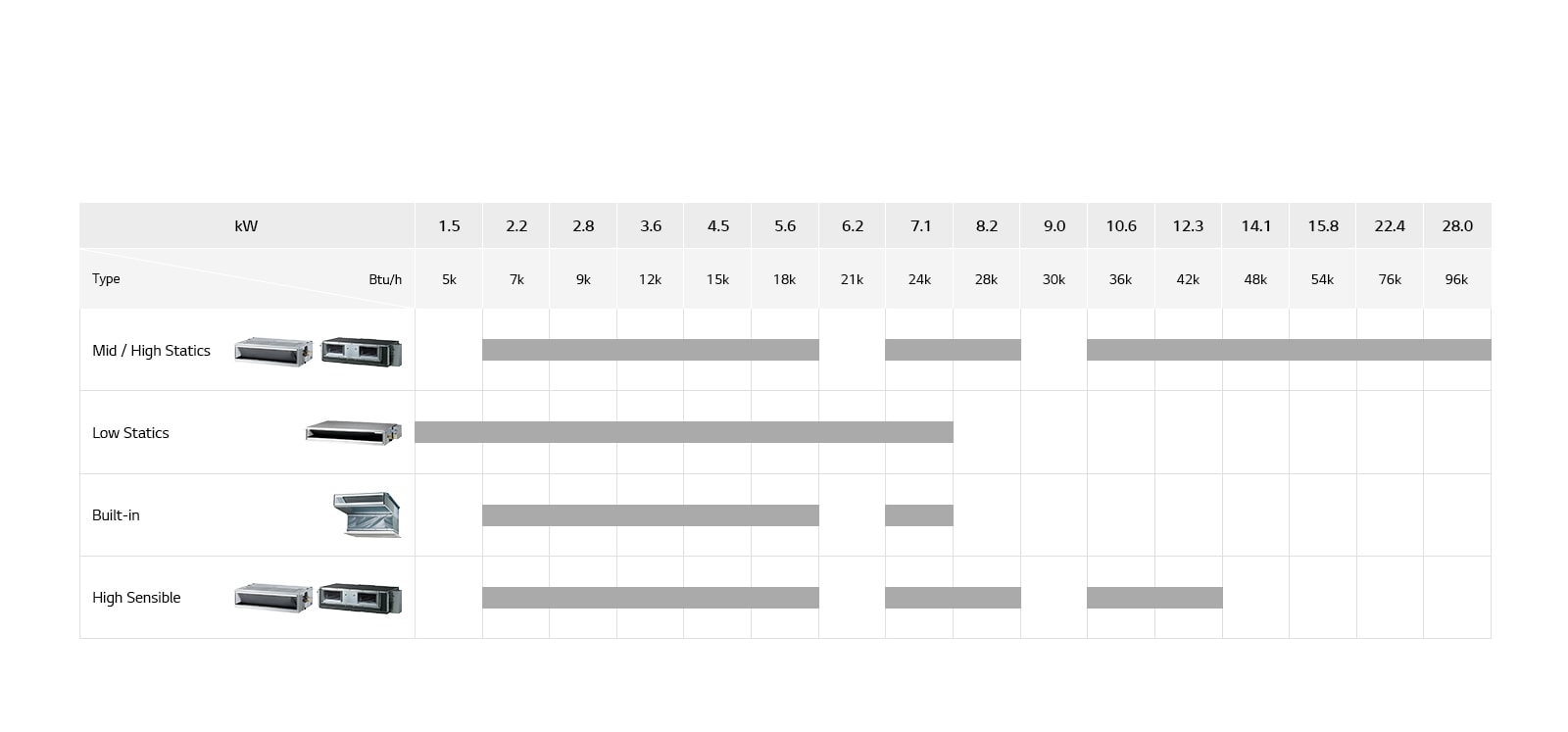

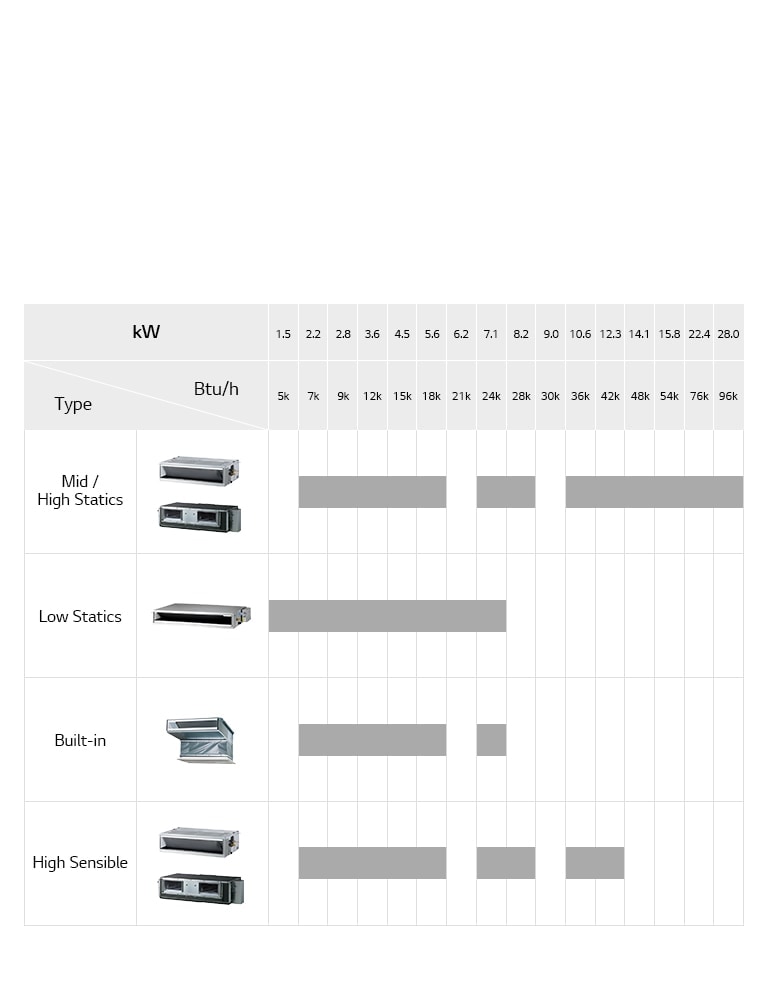

LG VRF Ceiling Concealed Duct lineup chart includes mid, high, low statics, detailing model name, and usRT. LG VRF Ceiling Concealed Duct lineup chart includes mid, high, low statics, detailing model name, and usRT.

Ceiling Concealed Duct Line Up

A man in a suit holds a smartphone in his right hand, displaying the LG website. A man in a suit holds a smartphone in his right hand, displaying the LG website.

Inquiry To Buy

Please inquiry to buy for more information on the product and we will get in touch with you soon.
