Air Handling Unit (AHU)

LG Air Handling Unit is a flexible air handling solution for a fresh and comfortable indoor environment that will you have feeling your best. LG AHU provides a better indoor environment with an energy-efficient system during all seasons.
A lounge looking area with black chairs, three marble columns on the left, and a city view visible through a large window. A lounge looking area with black chairs, three marble columns on the left, and a city view visible through a large window.

AHU Solution for MULTI V

Flexible air handling solution for fresh and comfortable indoor climate
TAB 1
Features
Features Inquiry To Buy

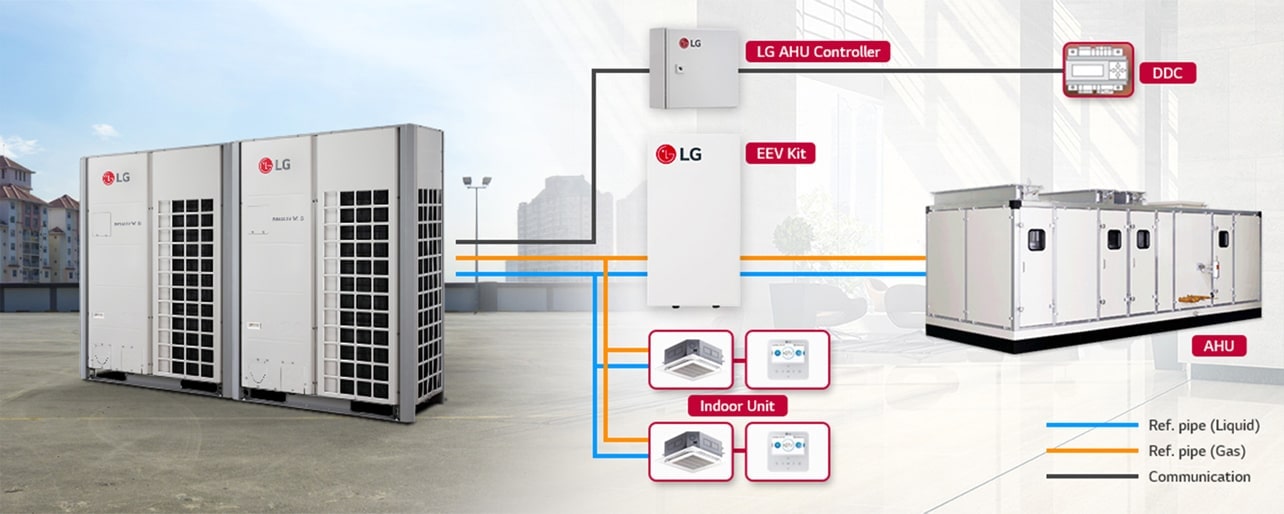

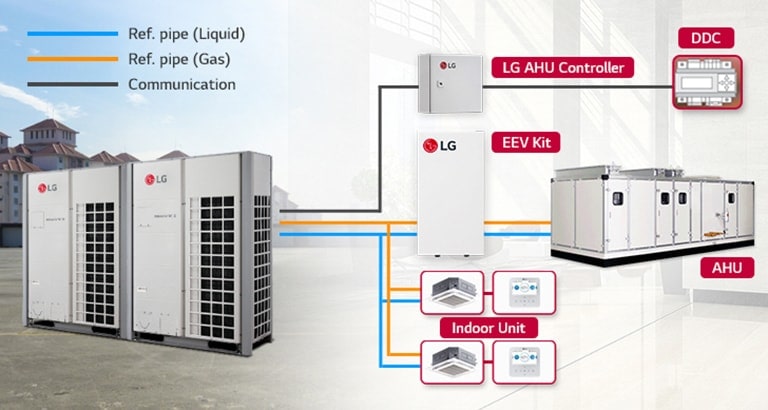

  • Left half has two LG Multi V 5 on the roof, while the right half displays a diagram of AHU, indoor unit, EEV kit, and DDC connections using pipes. Left half has two LG Multi V 5 on the roof, while the right half displays a diagram of AHU, indoor unit, EEV kit, and DDC connections using pipes.

    MULTI V-AHU Connection

    MULTI V can be connected to the DX coil of an Air Handling Unit for fresh air conditioned environment. Various control options are prepared for LG controllers or supplied DDC, which can contact signal or Modbus protocols.

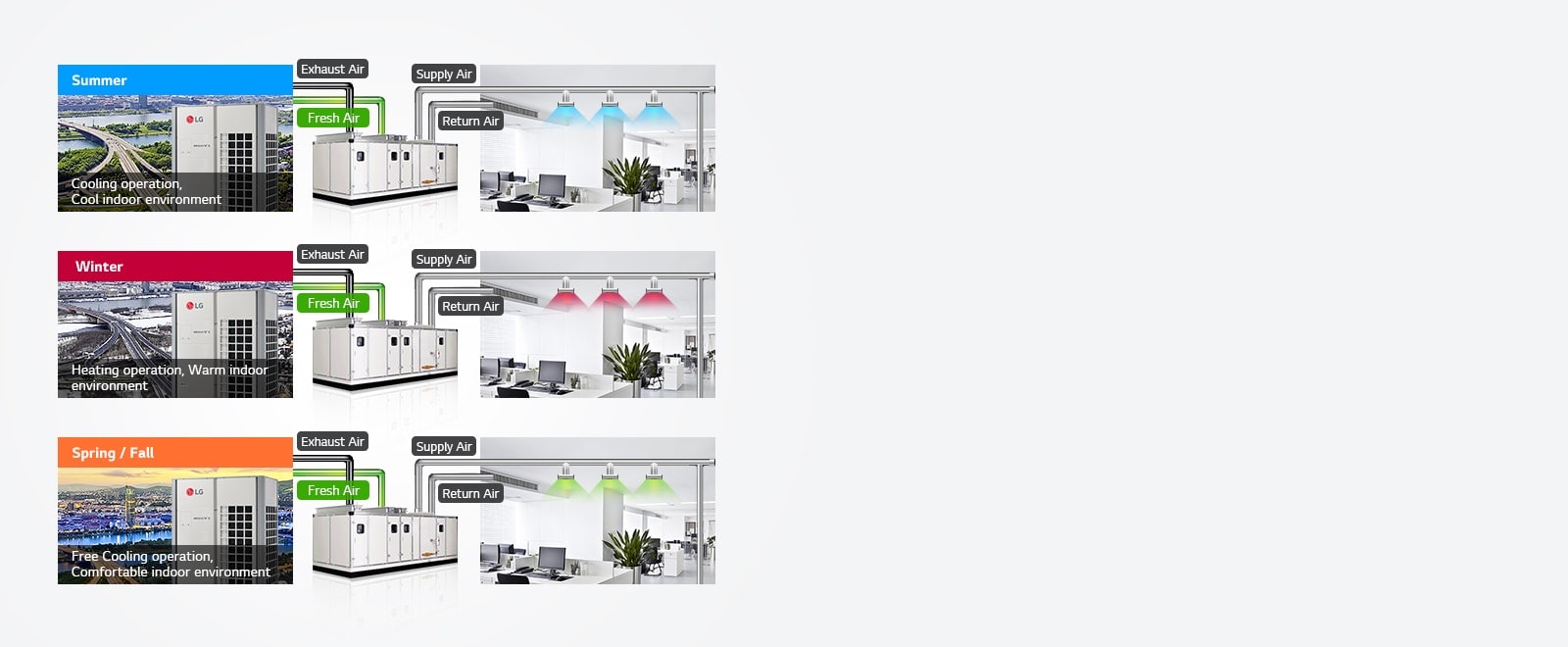

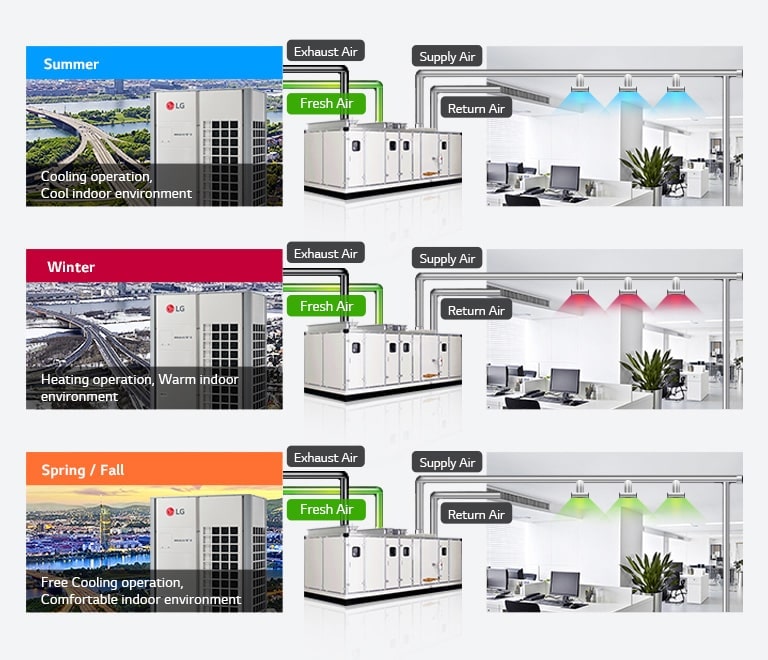

LG Air Handling Unit at the center provides three distinct air operations for the office area based on the season: summer, winter, and spring/fall. LG Air Handling Unit at the center provides three distinct air operations for the office area based on the season: summer, winter, and spring/fall.

Energy Saving Air Control for All Climatic Needs

DX AHU is the Heat Pump AHU combined with unique technology of the AHU and MULTI V. As a new solution, it can provide cooling, heating and free cooling operations for energy reduction via air control throughout indoor and outdoor environments during all seasons.

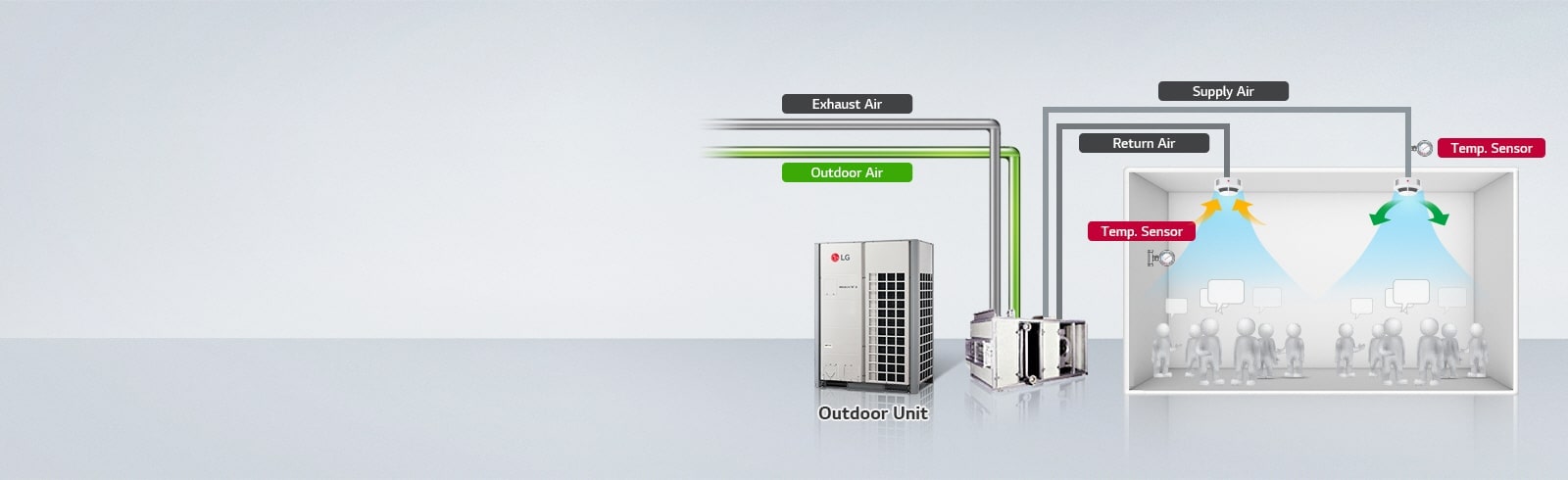

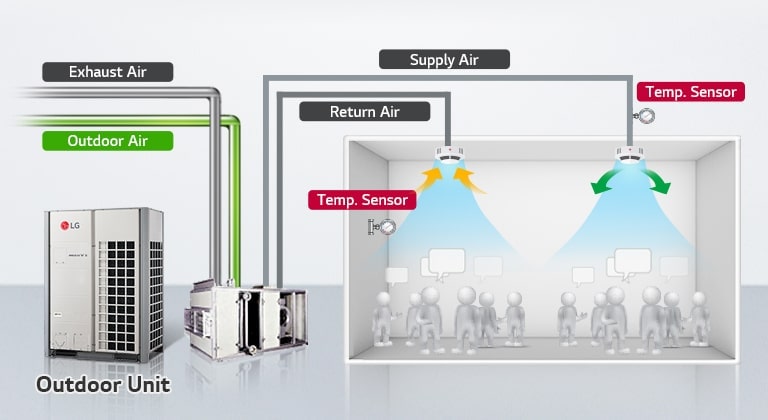

LG outdoor unit on the left, central air handler, and room with two temp sensors. Each temp sensor returns and supplies visible air flow to the room. LG outdoor unit on the left, central air handler, and room with two temp sensors. Each temp sensor returns and supplies visible air flow to the room.

Air Control via Temperature Sensor

When controlling the indoor air temperature, users can choose to set indoor temperature that matches either the supply air or return air via temperature sensor.

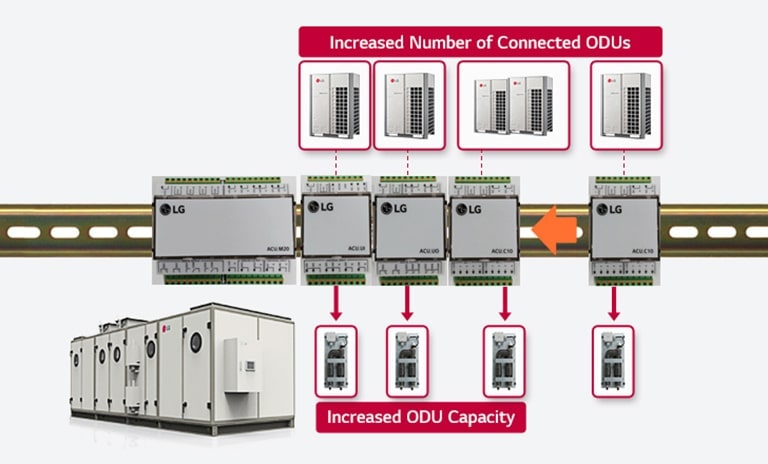

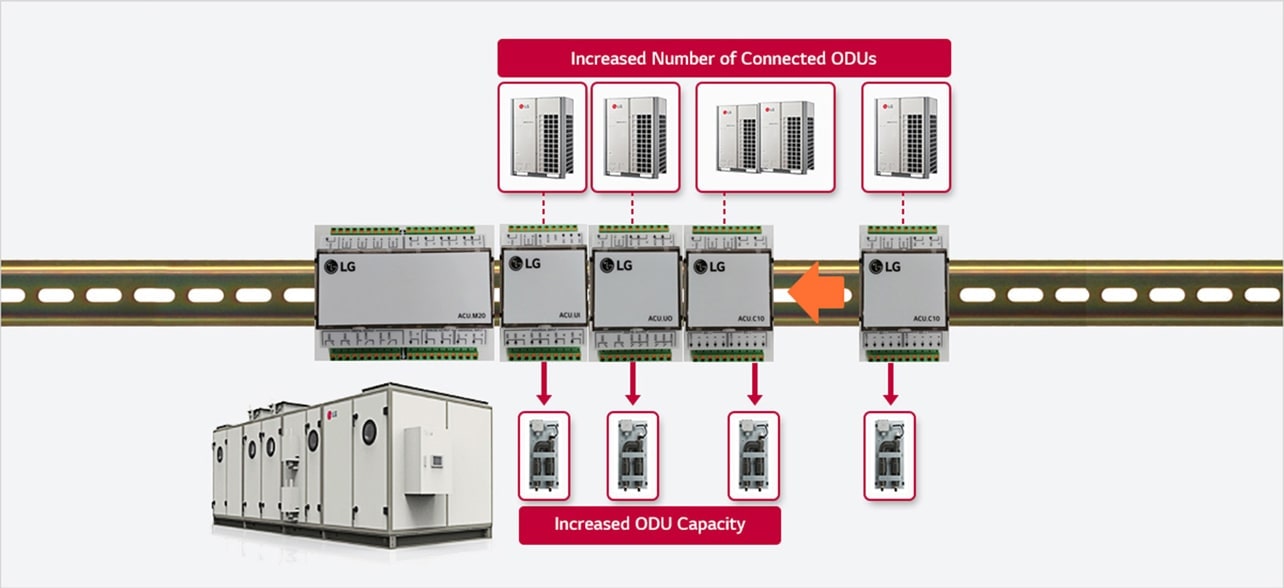

  • Five LG air control handling unit chips in the center boost outdoor unit capacity. Complete Air Handling Unit at the bottom, four outdoor units above. Five LG air control handling unit chips in the center boost outdoor unit capacity. Complete Air Handling Unit at the bottom, four outdoor units above.

    Flexible & Expandable Air Solution

    AHU can be a suitable solution for various sites due to its application flexibility and wide range of line up with large capacity models. It can be connected to various field devices and its link to multiple 3rd party controllers make it an even more compatible air solution.

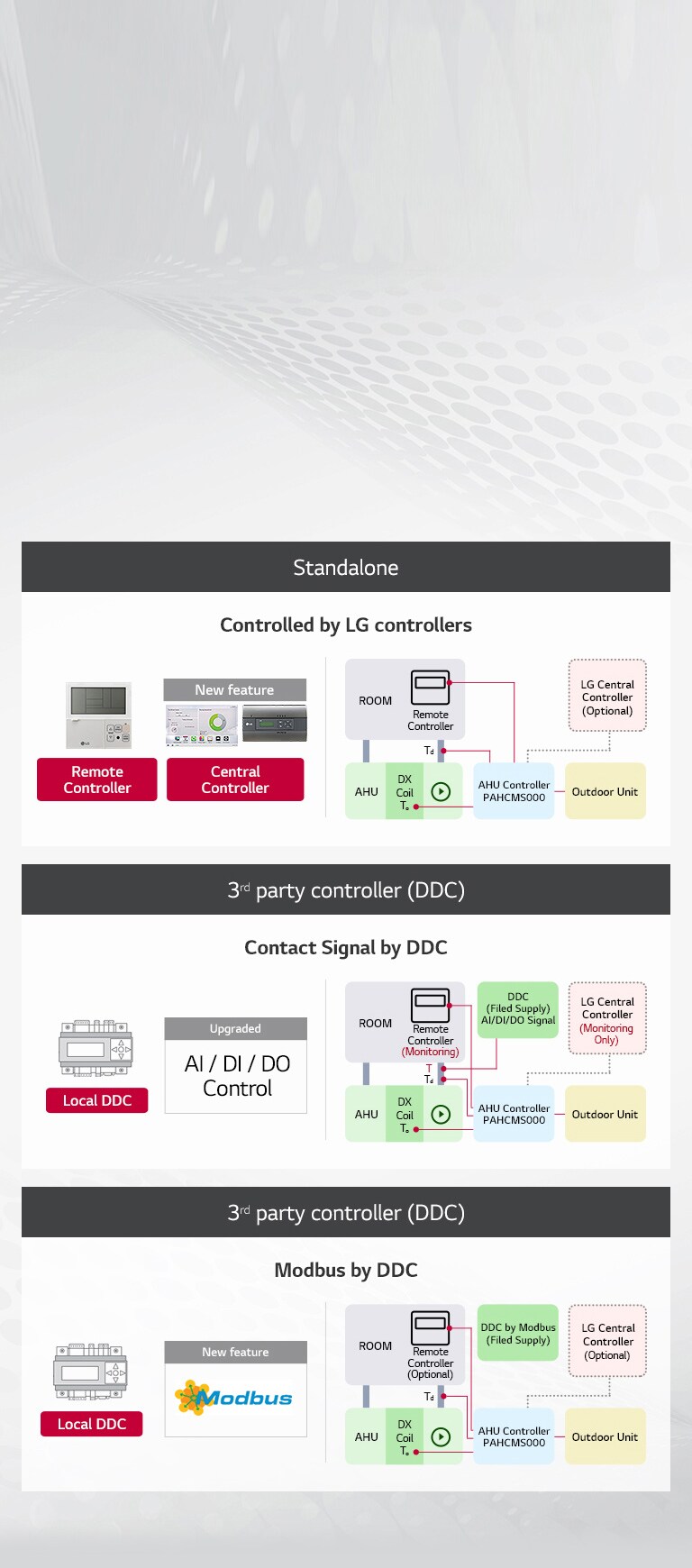

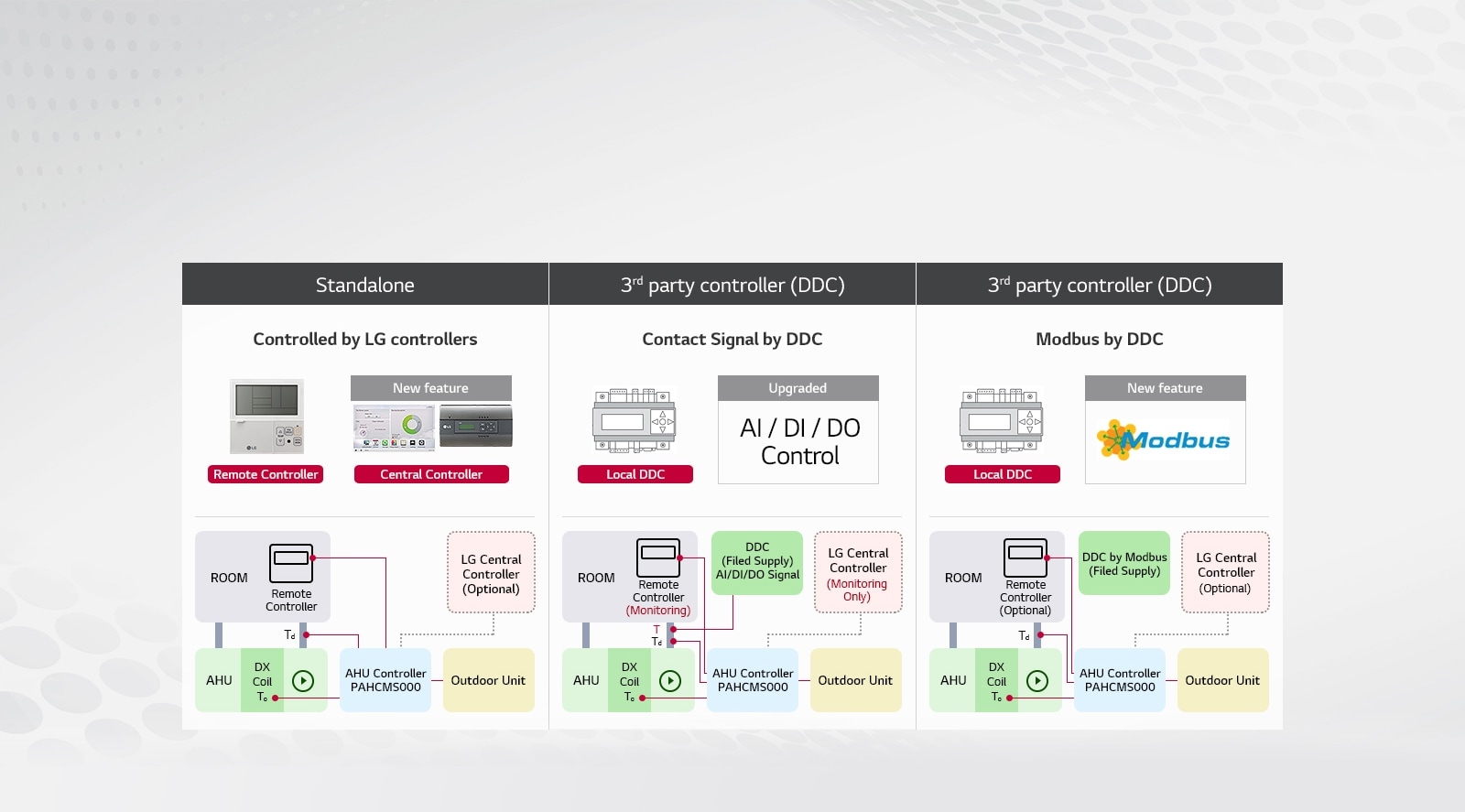

The diagram depicts an LG Air Handling Unit (AHU) linked to LG controllers and third-party controllers via signal by DDC and Modbus by DDC. The diagram depicts an LG Air Handling Unit (AHU) linked to LG controllers and third-party controllers via signal by DDC and Modbus by DDC.

Various Options for Control Links

AHU can be connected to various control links such as individual remote controller, LG central control system, contact control via direct contact with DDC and Modbus communication control.

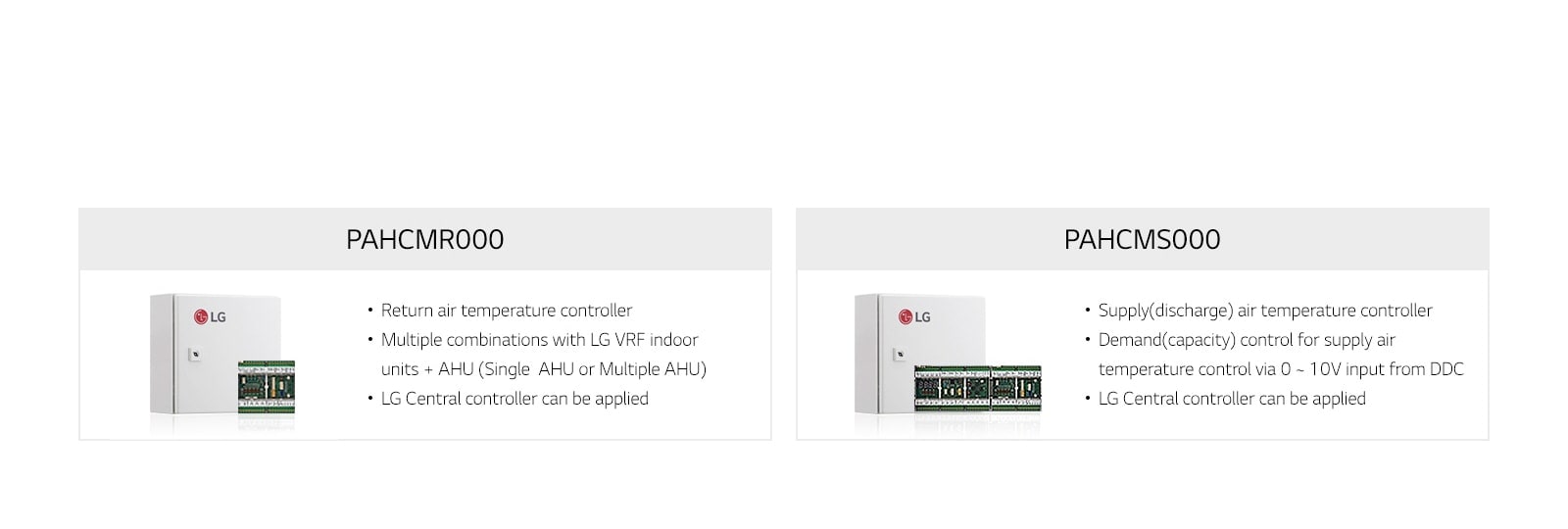

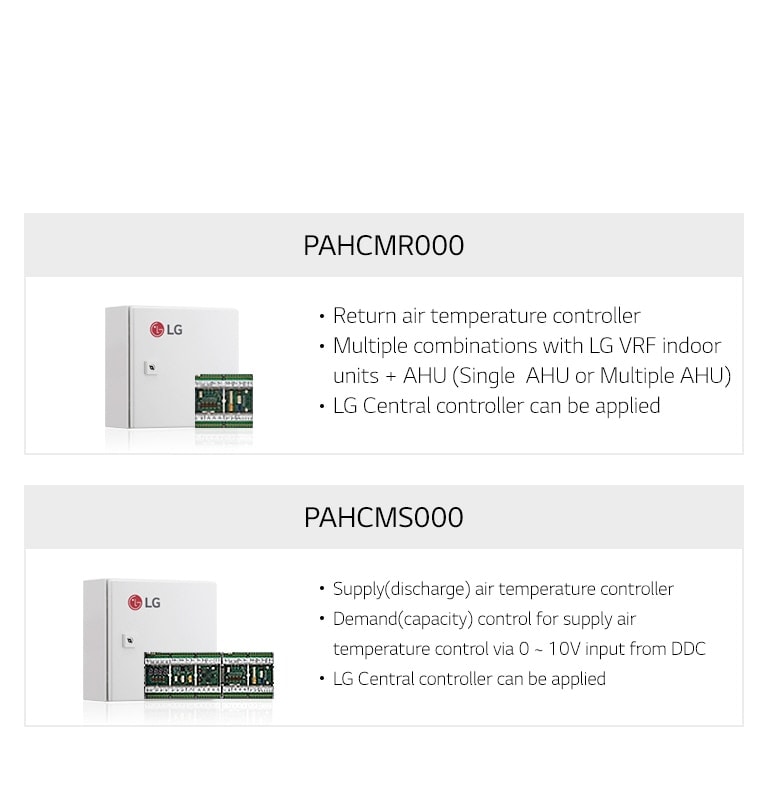

Rectangular LG PAHCMR000 returns air temperature controller and LG PAHCMS000 supplies air temperature controller, which features a 0-10V input from DDC. Rectangular LG PAHCMR000 returns air temperature controller and LG PAHCMS000 supplies air temperature controller, which features a 0-10V input from DDC.

Line Up

A man in a suit holds a smartphone in his right hand, displaying the LG website. A man in a suit holds a smartphone in his right hand, displaying the LG website.

Inquiry To Buy

Please inquiry to buy for more information on the product and we will get in touch with you soon.
