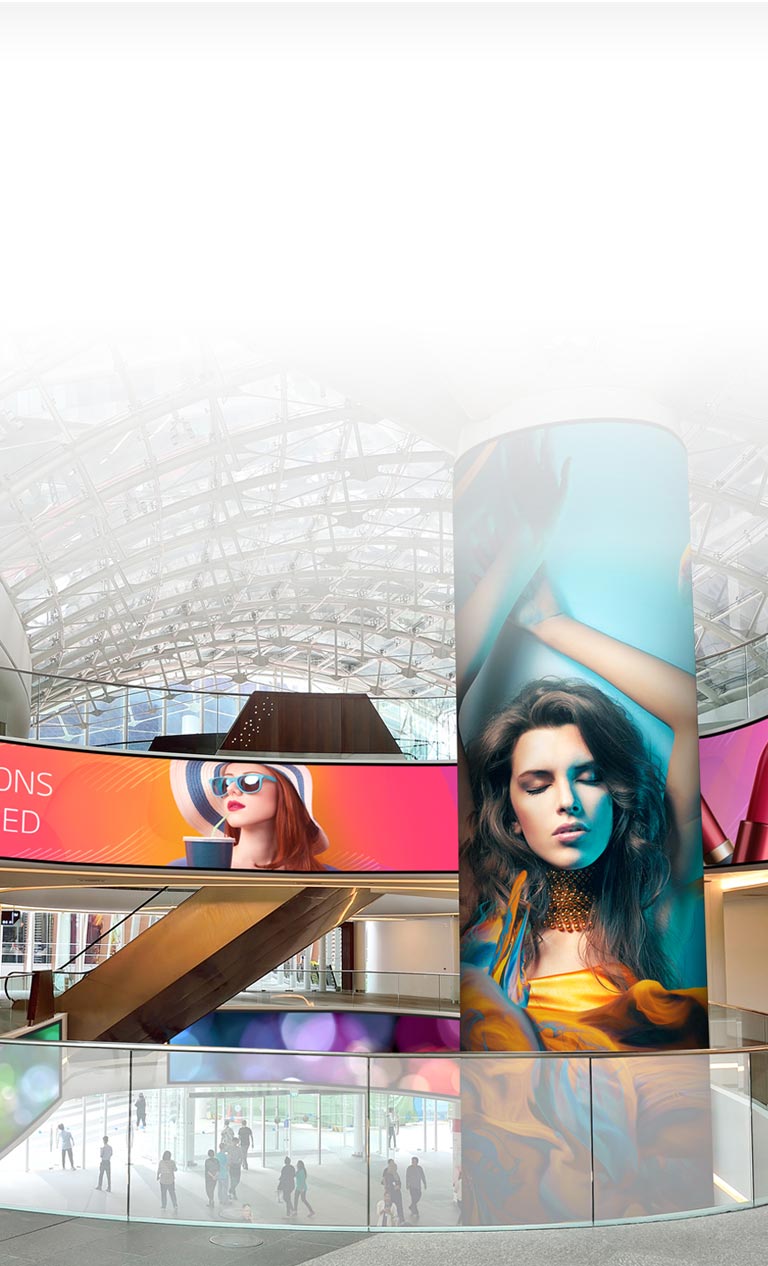

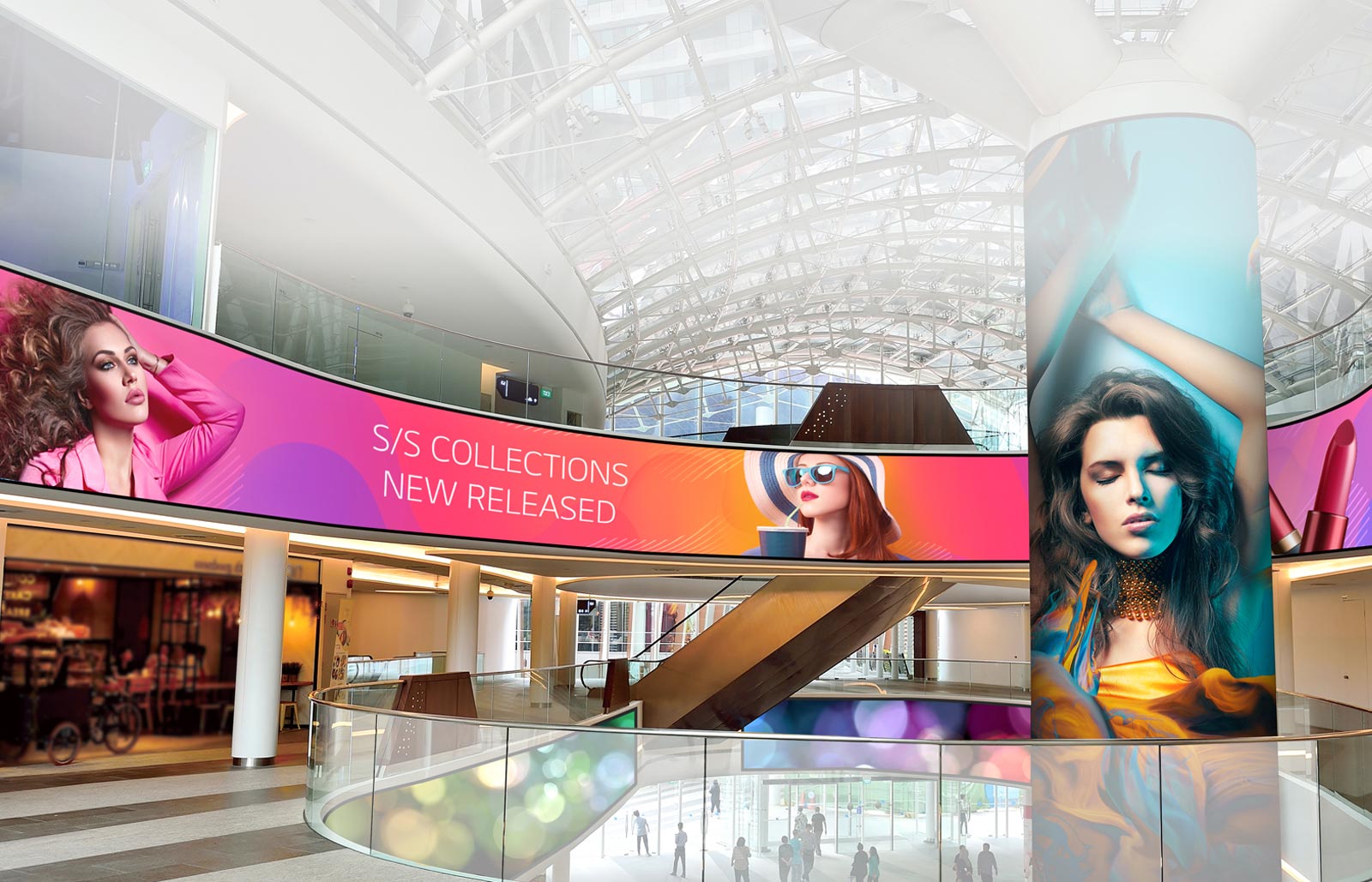

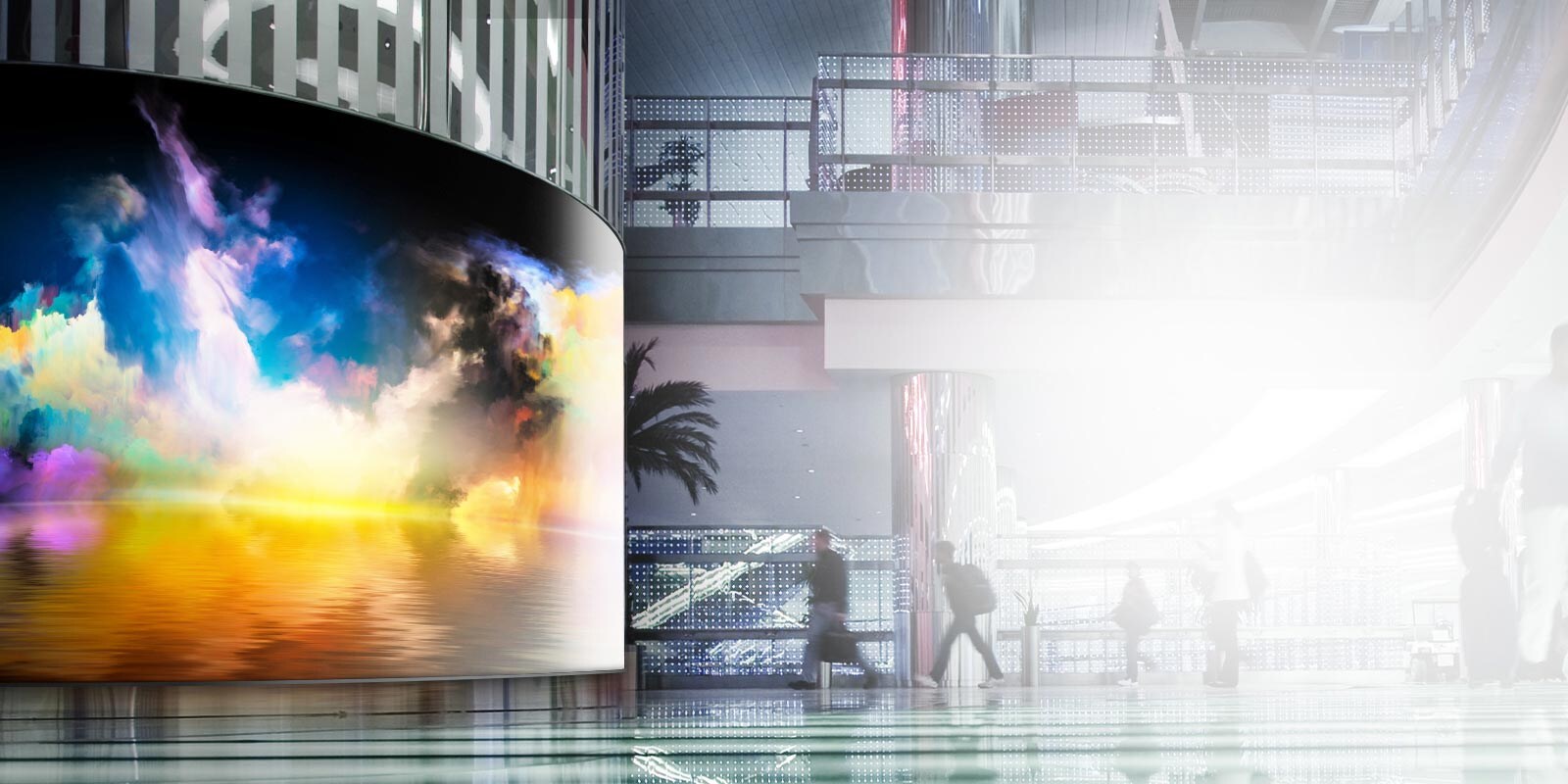

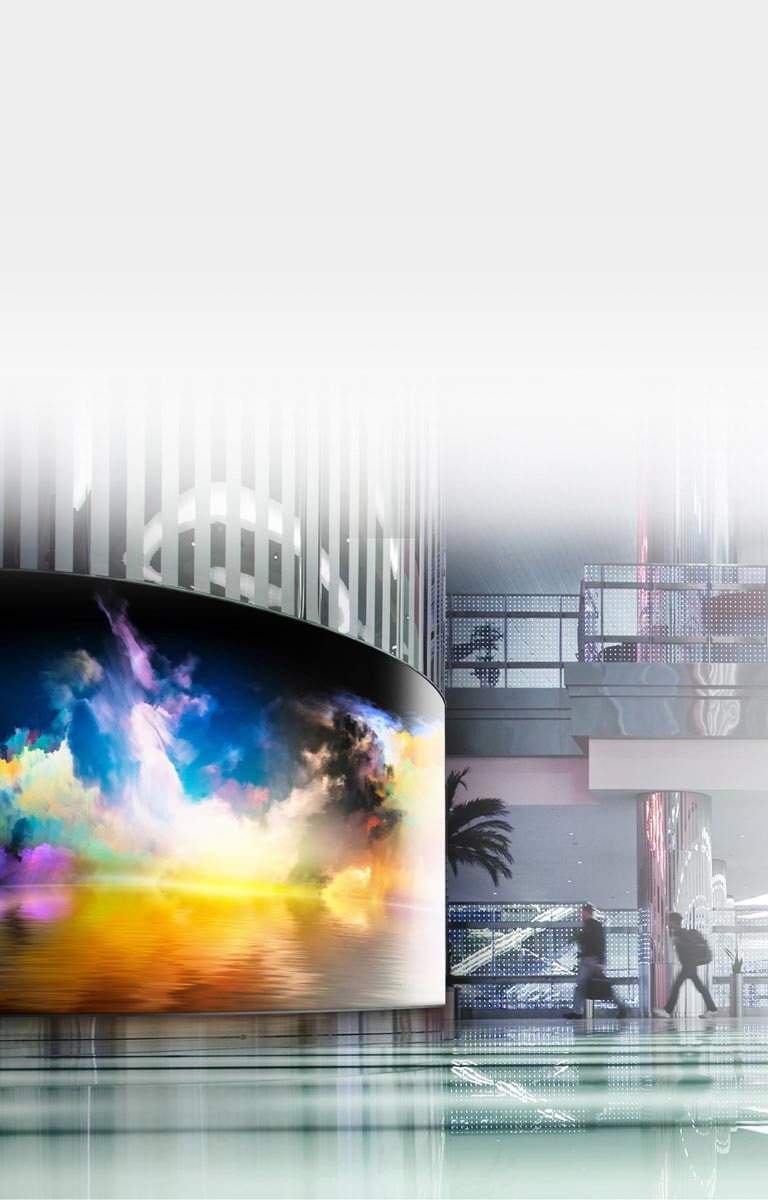

LAC Curved
The curved screen is perfect for indoor use as it conforms to the surface it is placed on, delivering picture perfect quality. Find out more about our curved displays below.

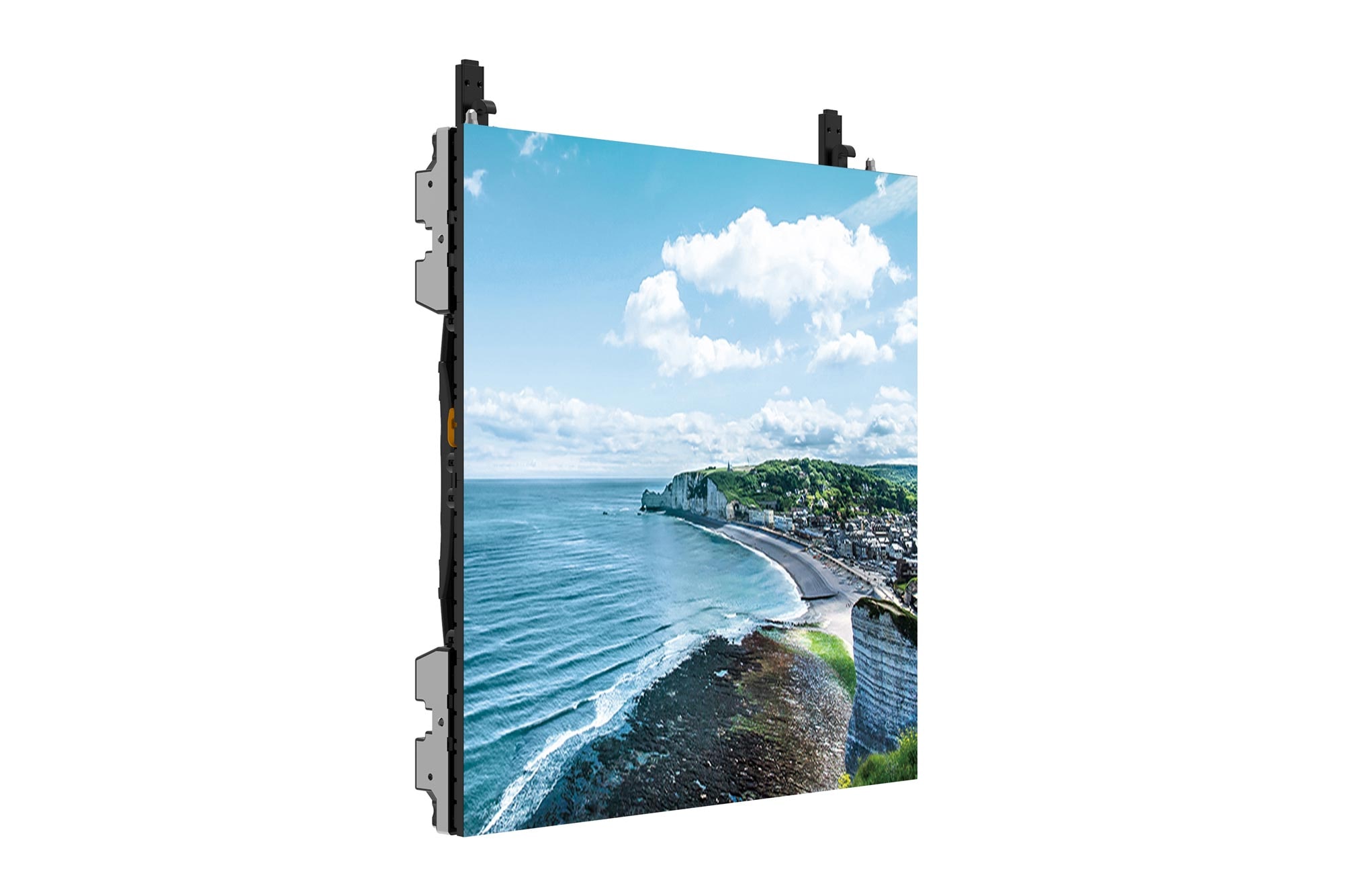

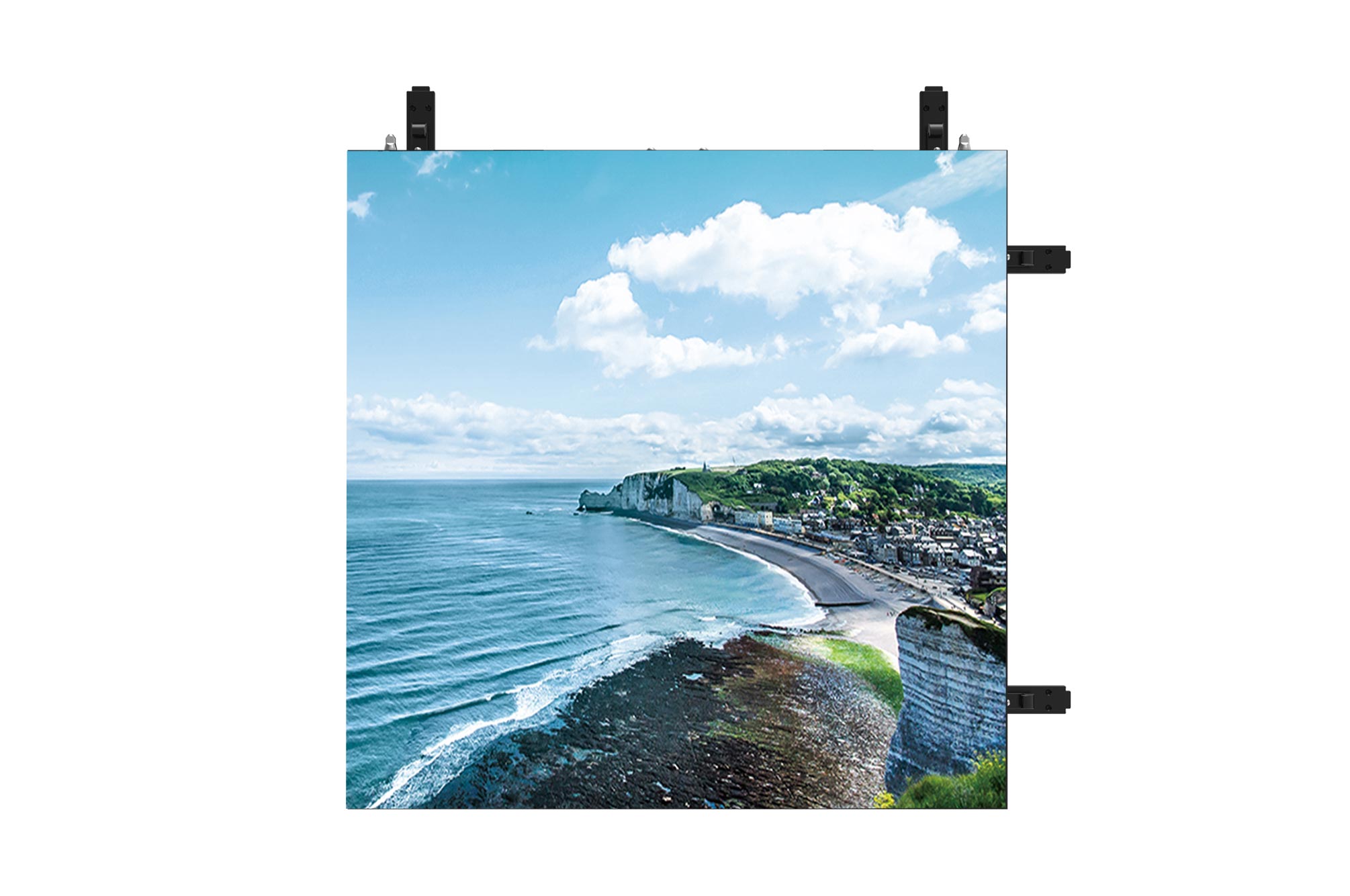

LAC Curved
The LAC Curved series supports both concave and convex curved formats. It is highly flexible, ultra-thin, super-light and features full black LED.

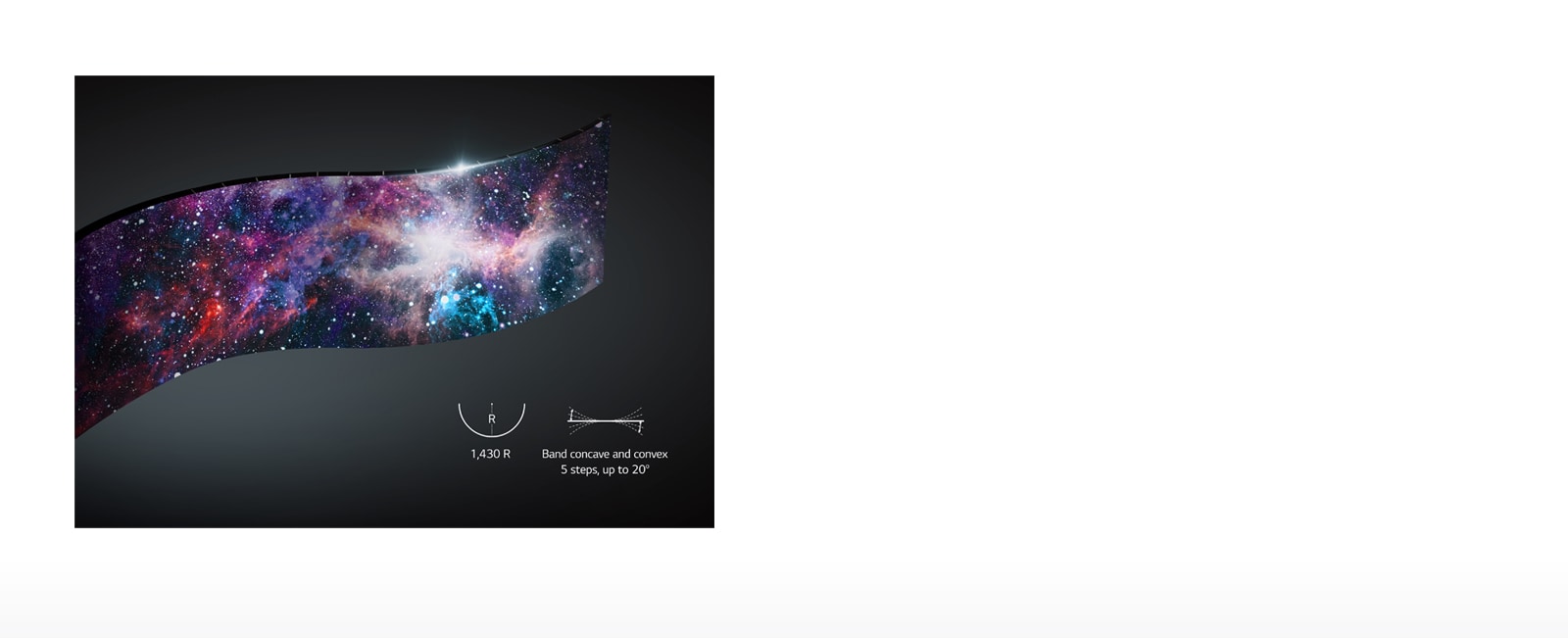

Design Flexibility
Each unit case can be adjusted up to 20 degrees with five angles and supports a curvature of up to 1,430 R, offering a truly curved design. Only 18 panels are needed to build a circular screen with a diameter of 2.864 m.
1,200nit High Brightness
Installed in a large venue with natural or indoor lighting, this high-brightness product immediately captures the audience’s attention and effectively delivers your message.

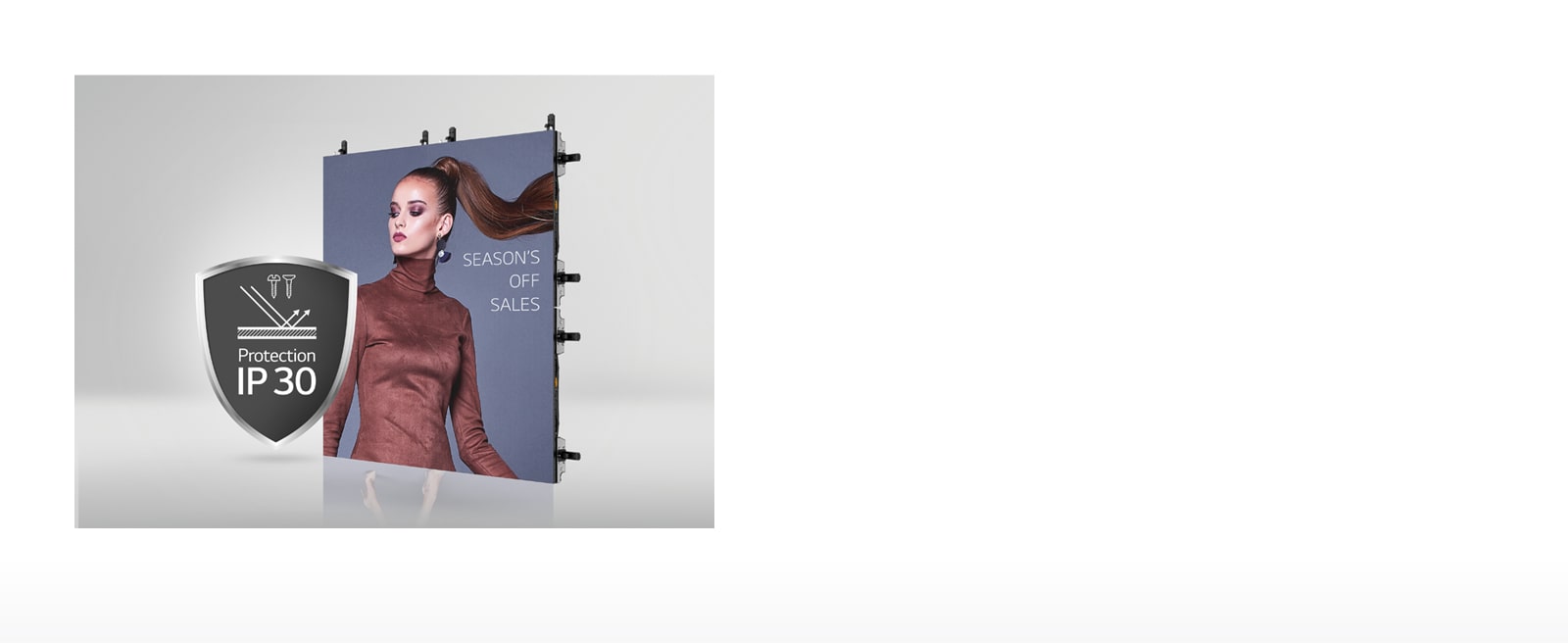

IP30 Secured Design
Despite being built for indoor use, this IP30-rated product offers extraordinary durability. IP30 offers ingress protection from solids that are Φ2.5mm or larger (e.g., screws) for the LED unit case.

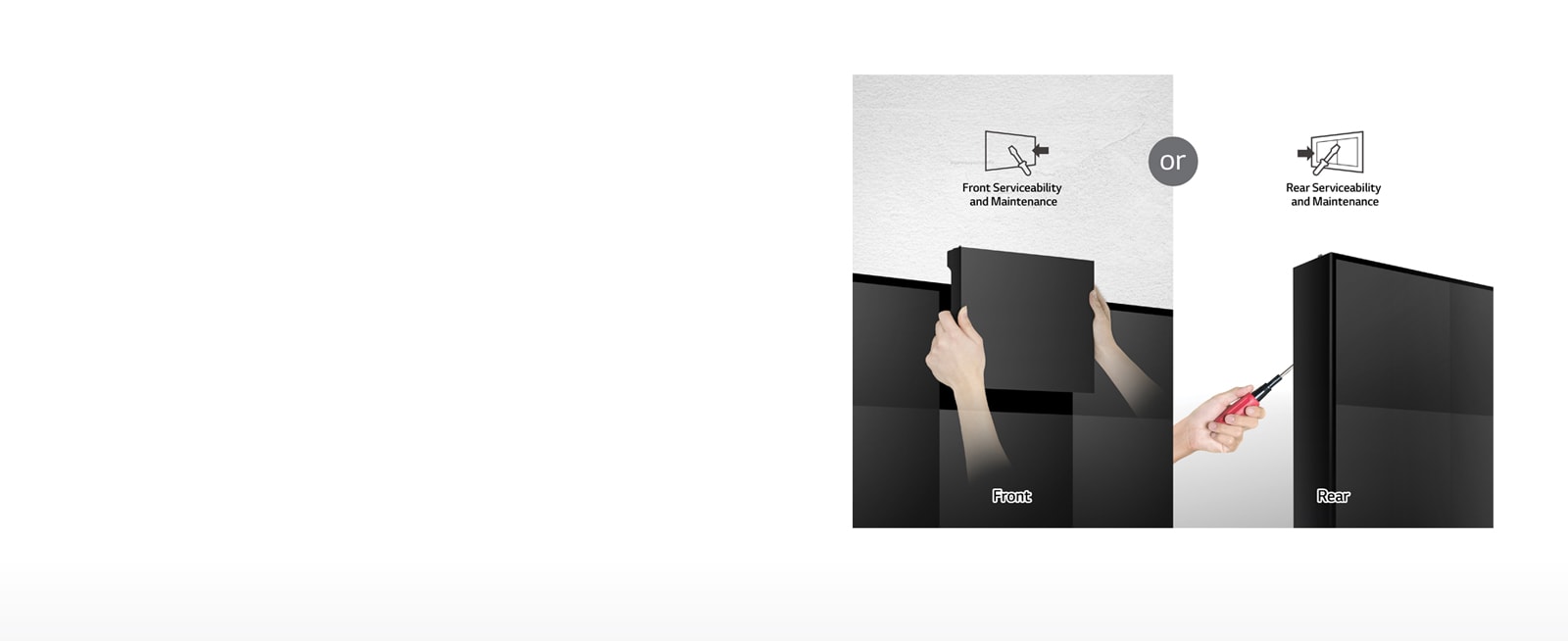

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

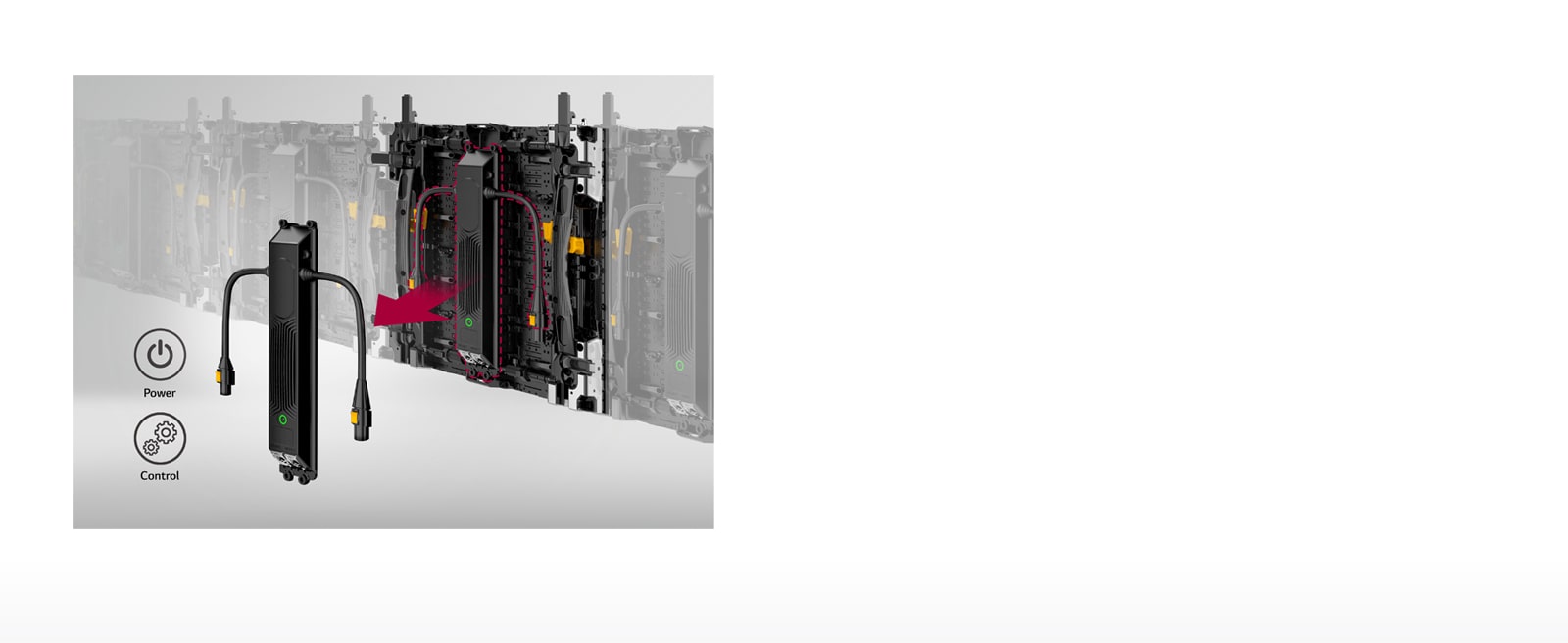

Attachable Power and Control Modules
Power and control modules attached to the unit cases can be removed easily, making it easy to fix problems that may arise.

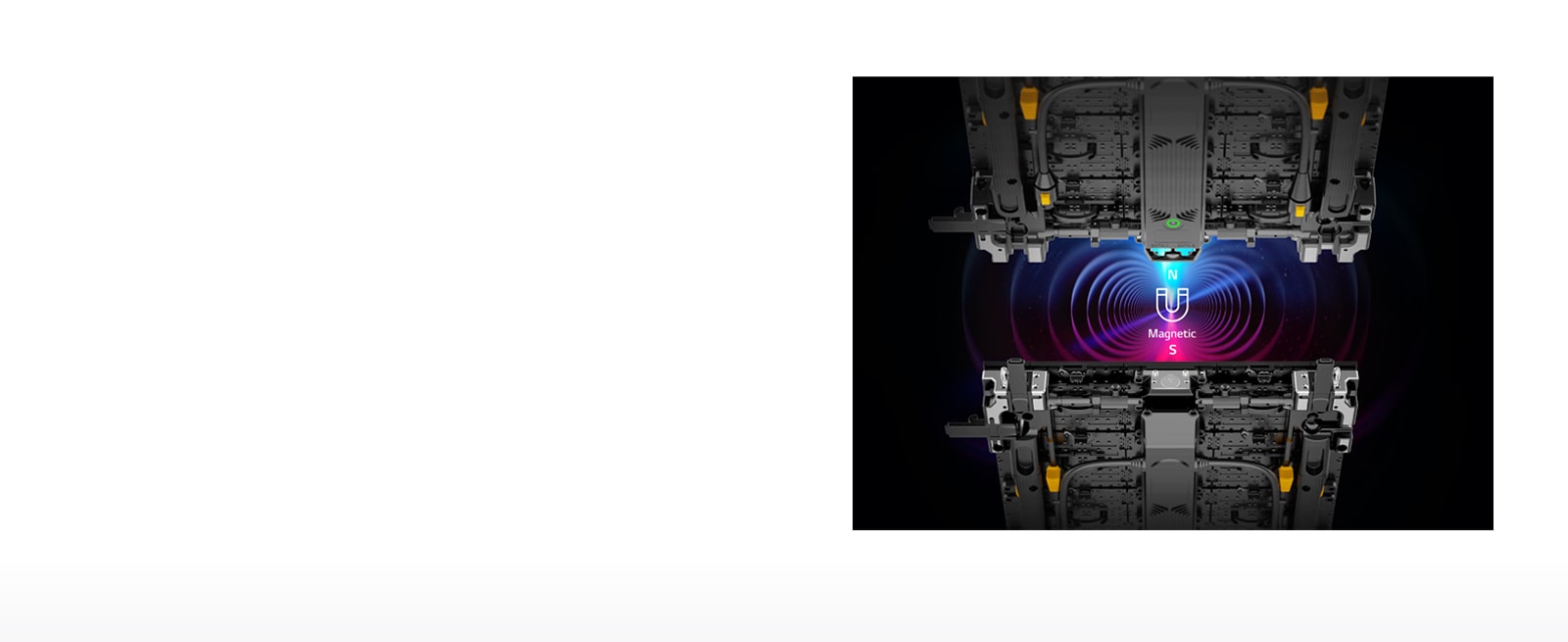

Simple Magnetic Connection
Magnetic connection is applied for fastening and easy service with positioning pin between two units.
Uniform Picture Quality
Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97％ brightness uniformity.
Vividness with Color Accuracy
LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.
RoHS Certified Safe Product
Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.
| Model Name | LAC025DD3 | LAC025DD4 | LAC029DD3 | LAC029DD4 |
|---|---|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 2.50 | 2.50 | 2.97 | 2.97 |
| Unit Case Resolution (WxH) |
200x200 | 200x200 | 168x168 | 168x168 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x84 | 500x500x84 | 500x500x84 | 500x500x84 |
| Weight per Unit Case / Square Meter (kg) |
8.9/35.6 | 8.9/35.6 | 8.9/35.6 | 8.9/35.6 |
| Service access | Front or Rear | Front or Rear | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
1,200 | 1,200 | 1,200 | 1,200 |
| Color Temperature | 6,500 | 6,500 | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/160 | 160/160 | 160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 | 5,000 | 5,000 |
| Processing Depth (bit) | 13 | 13 | 13 | 13 |
| Power Consumption (W/Unit, Avg./Max.) |
50/150 | 50/150 | 50/150 | 50/150 |
| Power Consumption (W/m², Max.) |
600 | 600 | 600 | 600 |
| Power Supply (V) | 100 to 240 | 100 to 240 | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 1,920 | 1,920 | 1,920 | 1,920 |
| Lifetime (Half brightness)* |
80,000 | 50,000 | 80,000 | 50,000 |
| Operating Temperature(°C) / Humidity |
-10° to 45°/0~80％RH | -10° to 45°/0~80％RH | -10° to 45°/0~80％RH | -10° to 45°/0~80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
**Models may vary by region. Check with local salesteam for availability.
| Model Name | LAC039DD3 | LAC039DD4 |
|---|---|---|
| Pixel Configuration | 3 in 1 SMD | 3 in 1 SMD |
| Pixel Pitch(mm) | 3.91 | 3.91 |
| Unit Case Resolution (WxH) |
128x128 | 128x128 |
| Unit Case Dimensions (WxHxD, mm) |
500x500x84 | 500x500x84 |
| Weight per Unit Case / Square Meter (kg) |
8.9/35.6 | 8.9/35.6 |
| Service access | Front or Rear | Front or Rear |
| Min. Brightness (After Calibration) |
1,200 | 1,200 |
| Color Temperature | 6,500 | 6,500 |
| Visual Viewing Angle (Horizontal/Vertical) |
160/160 | 160/160 |
| Brightness Uniformity | 97％ | 97％ |
| Color Uniformity | ±0.003CxCy | ±0.003CxCy |
| Contrast Ratio | 5,000 | 5,000 |
| Processing Depth (bit) | 14 | 14 |
| Power Consumption (W/Unit, Avg./Max.) |
50/150 | 50/150 |
| Power Consumption (W/m², Max.) |
600 | 600 |
| Power Supply (V) | 100 to 240 | 100 to 240 |
| Refresh Rate (Hz) | 3,840 | 3,840 |
| Lifetime (Half brightness)* |
80,000 | 50,000 |
| Operating Temperature(°C) / Humidity |
-10° to 45°/0~80％RH | -10° to 45°/0~80％RH |
* The Lifetime(Half brightness) spec is subject to LED package spec.
**Models may vary by region. Check with local salesteam for availability.
