ADD TO WISHLIST

Discontinued

LAA015F component-copyModelName

130'' All-in-one LED Screen

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 1

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 2

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 3

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 4

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 5

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 6

LG 130'' All-in-one LED Screen, LAA015F, thumbnail 7

ADD TO WISHLIST

Discontinued

LAA015F component-copyModelName

130'' All-in-one LED Screen

Name: 130'' All-in-one LED Screen
Brand: LG UAE
SKU: LAA015F
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.5mm
Screen Size: 130"
Brightness: 500 cd/m²
HDR10 Pro / Surface Sound
Embedded System Controller

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.5mm
Screen Size: 130"
Brightness: 500 cd/m²
HDR10 Pro / Surface Sound
Embedded System Controller

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

130" All-in-one LED Screen

The Most Effective Audiovisual Effects

130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

The Most Effective Audiovisual Effects

Vivid Color Expression Powered by HDR10 Pro

With HDR10 Pro support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.

Vivid Color Expression Powered by HDR10 Pro6

The Most Effective Audiovisual Effects

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

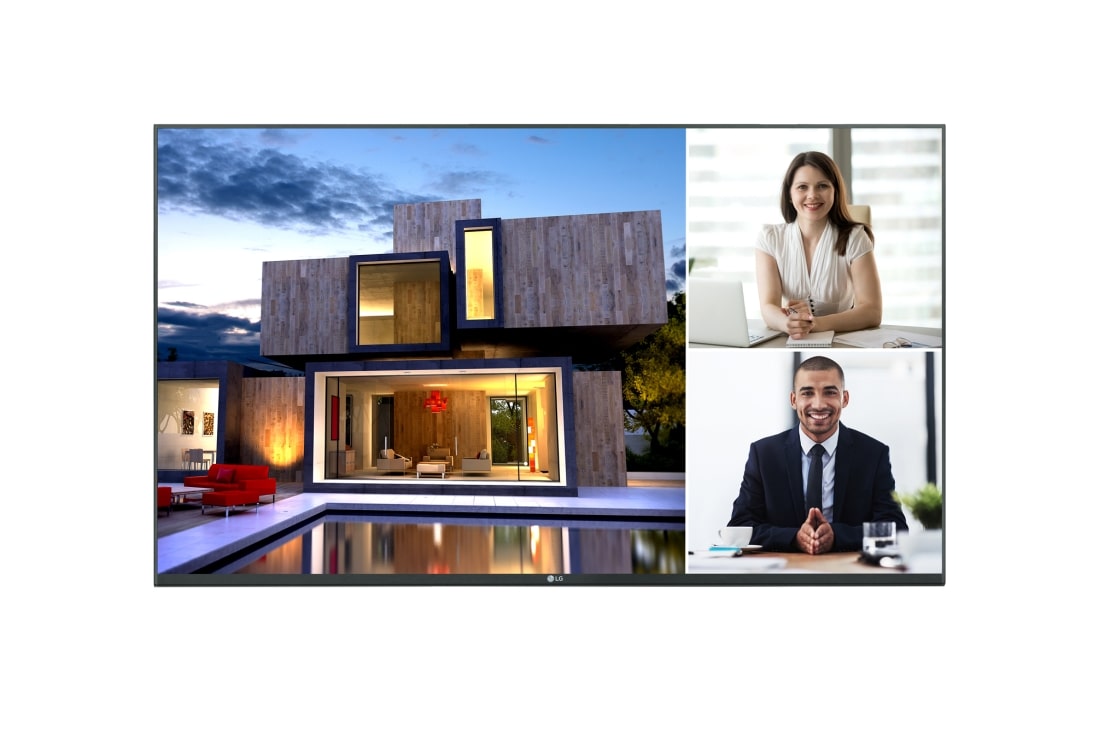

Multi Screen with PBP/PIP

PBP (Picture-By-Picture) features multi screen in a single display with upto 2 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.

Installation Options for <br>Various Environments1

Installation Options for <br>Various Environments2

Easy Installation for User Convenience

Installation Options for
Various Environments

The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.

* Mounting accessories (wall mount, stand, etc.) are not included with LG products.

Easy Installation for User Convenience

Easy Remote Control Support

The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

Easy Installation for User Convenience

Front Serviceability

The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.

Easy Installation for User Convenience

Auto Configuration

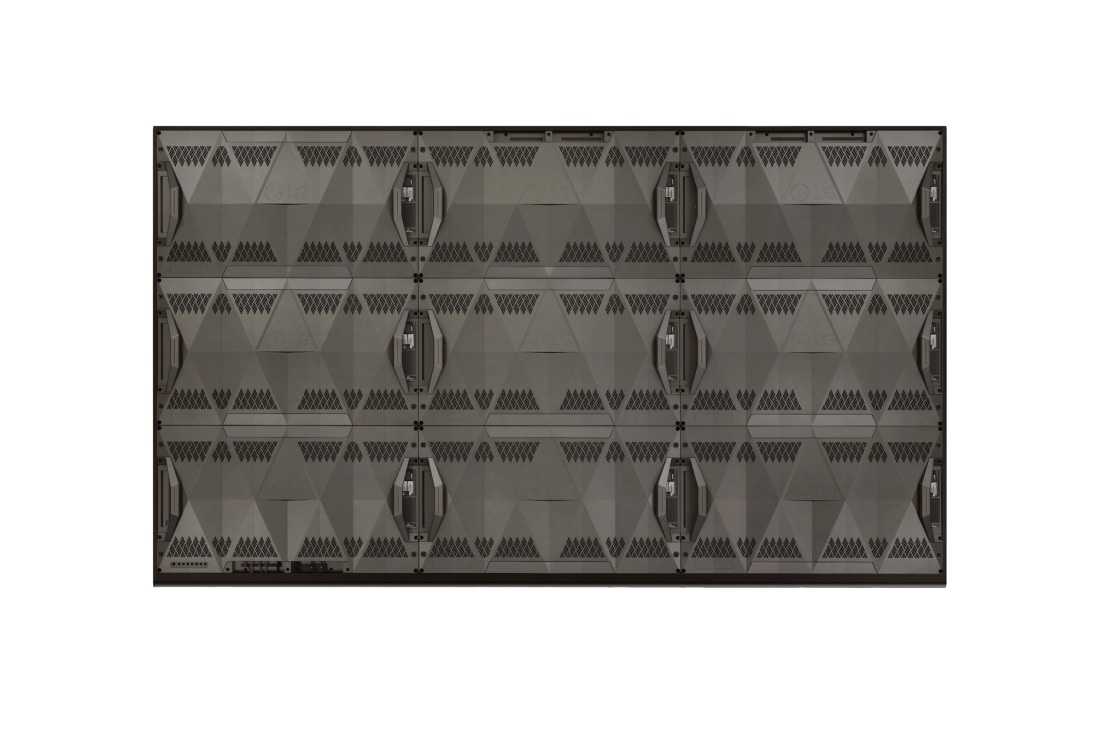

LG's 130" All-in-one LED Screen is composed of one master unit case and eight slave unit cases. Each unit case automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.

Operational Efficiency

High Performance SoC with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

High Compatibility for Meeting Room

Compatibility with AV Control Systems

The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

* Network-based control

Compatibility with LG Software Solutions

SuperSign Solution

The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.
Signage365Care

Maintenance is easier and faster with the optional Signage365Care* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

*The availability of the "Signage365Care" service differs by region, so please contact the LG sales representative in your region for more details.

PHYSICAL PARAMETERS

Pitch Name

P1.5

Pixel Configuration

3 in 1 SMD
Pixel Pitch (mm)

1.50

Screen Resolution (WxH)

1,920x1,080
Screen Dimension (W x H x D,mm)

2,880 x 1,620 x 128.5 (w/o Screen Frame)

Screen Weight (kg)

175 (w/o Screen Frame)
No. of Modules per Unit Case (W x H)

4x3

Unit Case Resolution (W x H)

640x360
Unit Case Dimensions (W x H x D, mm)

960x540x128.5

Unit Case Surface Area (m²)

0.518
Weight per Unit Case (kg/unit)

Master: 20.85
Slave: 19.24

Weight per Square Meter (kg/m²)

37.6
Physical Pixel Density (pixels/m²)

444,444

Flatness of Unit Case (mm)

±0.2
Unit Case material

Front : Die Casting Aluminum
Rear : PC+ABS

Service access

Front and Rear

OPTICAL PARAMETER

Max. Brightness (cd/m²)

500

Color Temperature

6,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

140
Brightness Uniformity

95%

Color Uniformity

±0.015Cx,Cy
Contrast Ratio

5,000

Processing Depth (bit)

16(HDR10, HDR10 Pro)

ELECTRICAL PARAMETER

Power Consumption (W/Screen, Max.)

2,900

Power Consumption (W/Screen, Avg.)

980
Power Consumption (W/m², Max.)

622

Power Supply (V)

100 to 240
Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,840
Sound Output (Max.)

162W

OPERATION CONDITIONS

Lifetime (Half Brightness, hrs)

100,000 (It is subject to LED package spec.)

Operating Temperature (°C)

0°C to 40°C
Operating Humidity

10-80% RH

CERTIFICATION

Safety

IEC 60950-1 / EN 60950-1 / UL 60950-1

EMC

FCC Class A / CE / KC
Environment

RoHS

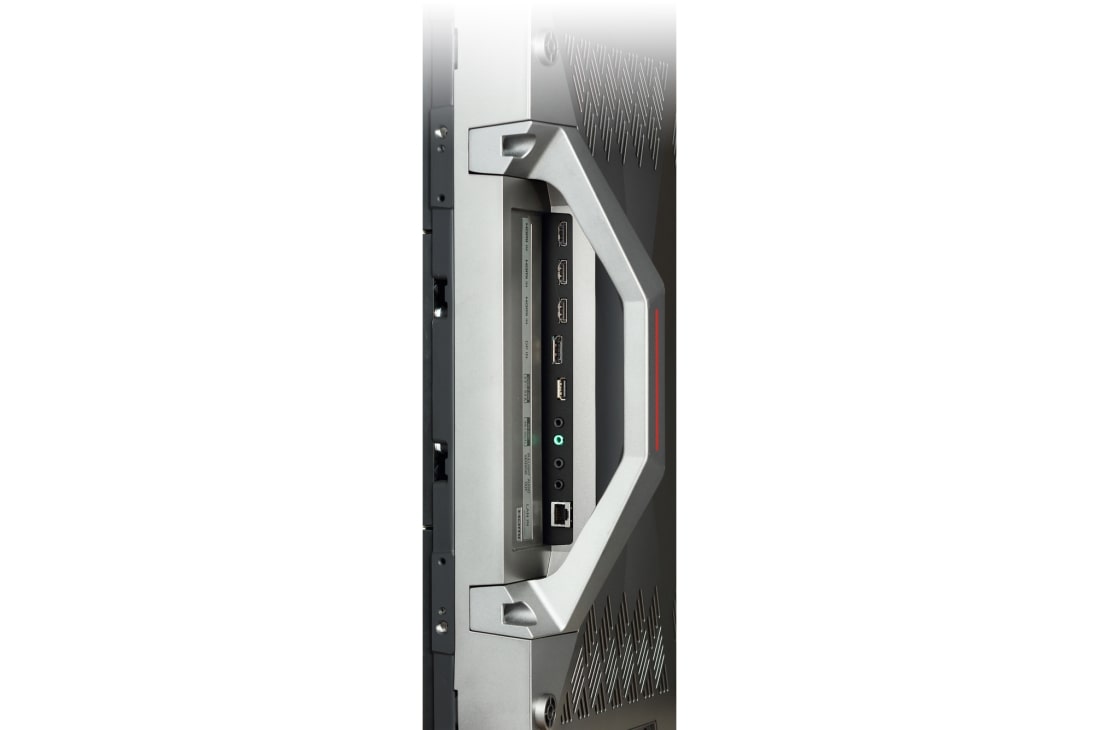

CONNECTIVITY(EMBEDDED CONTROLLER)

Video Inputs

HDMI In(3), DP In, USB

Control

RJ45 In, RS232C In/out
Special Features

Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected(Network based control)

BASIC ACCESSORY

Basic Accessory

Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
