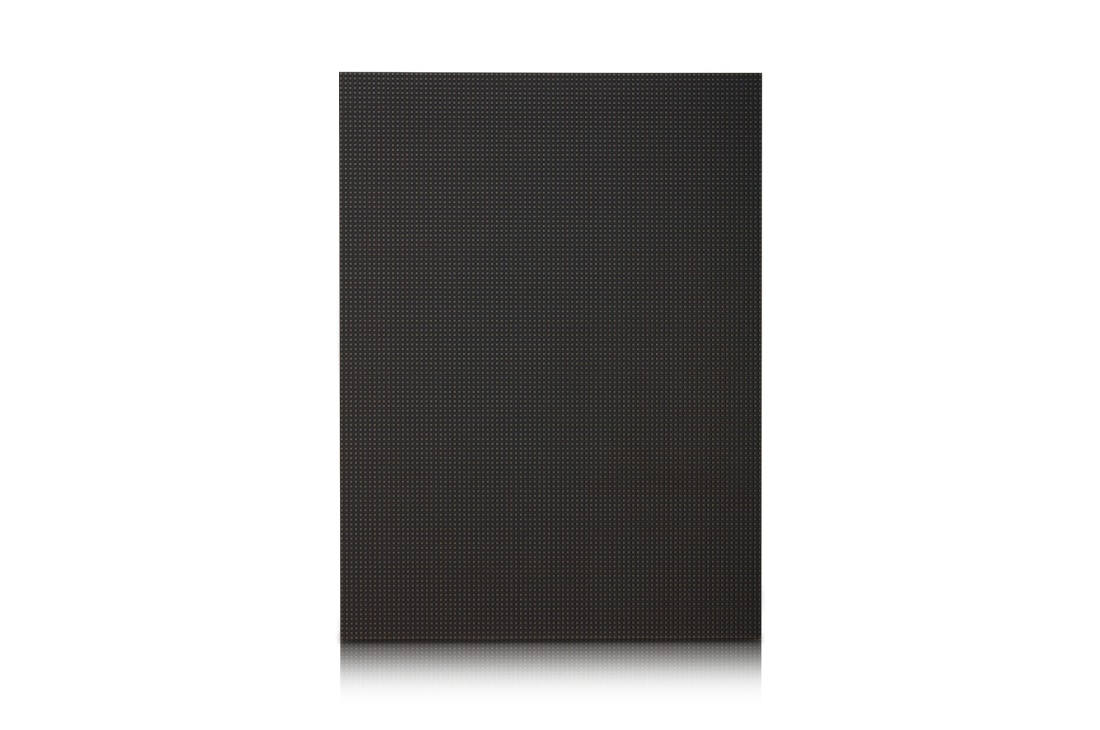

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 2

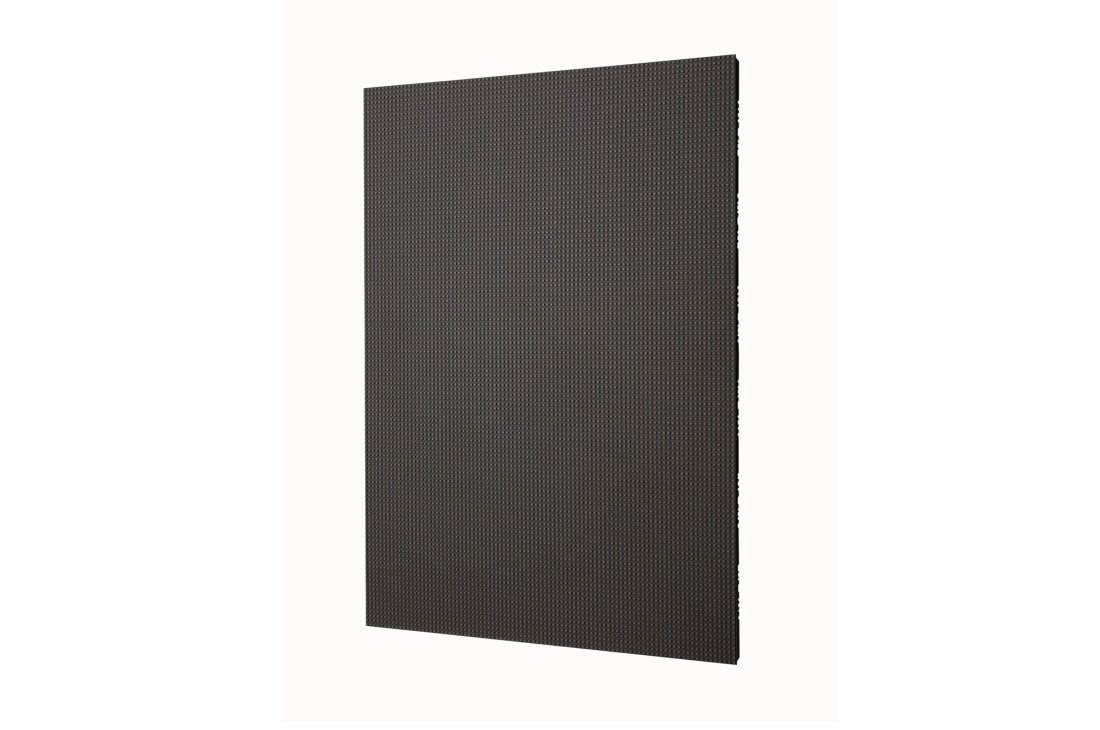

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 3

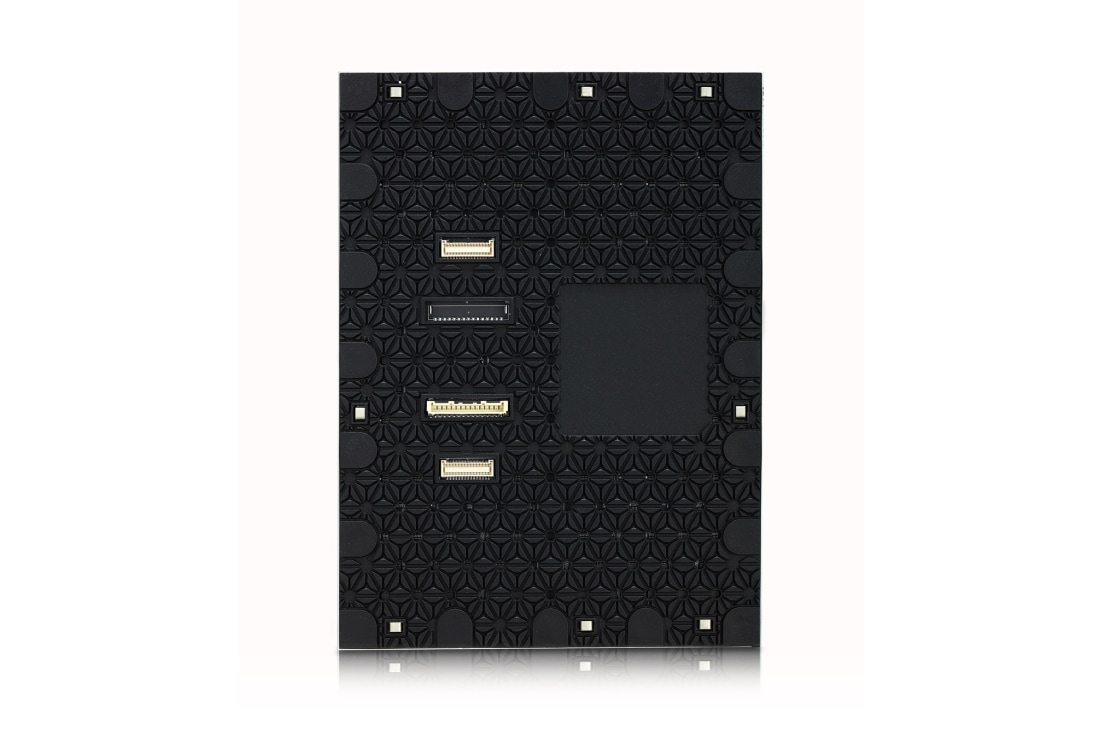

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 4

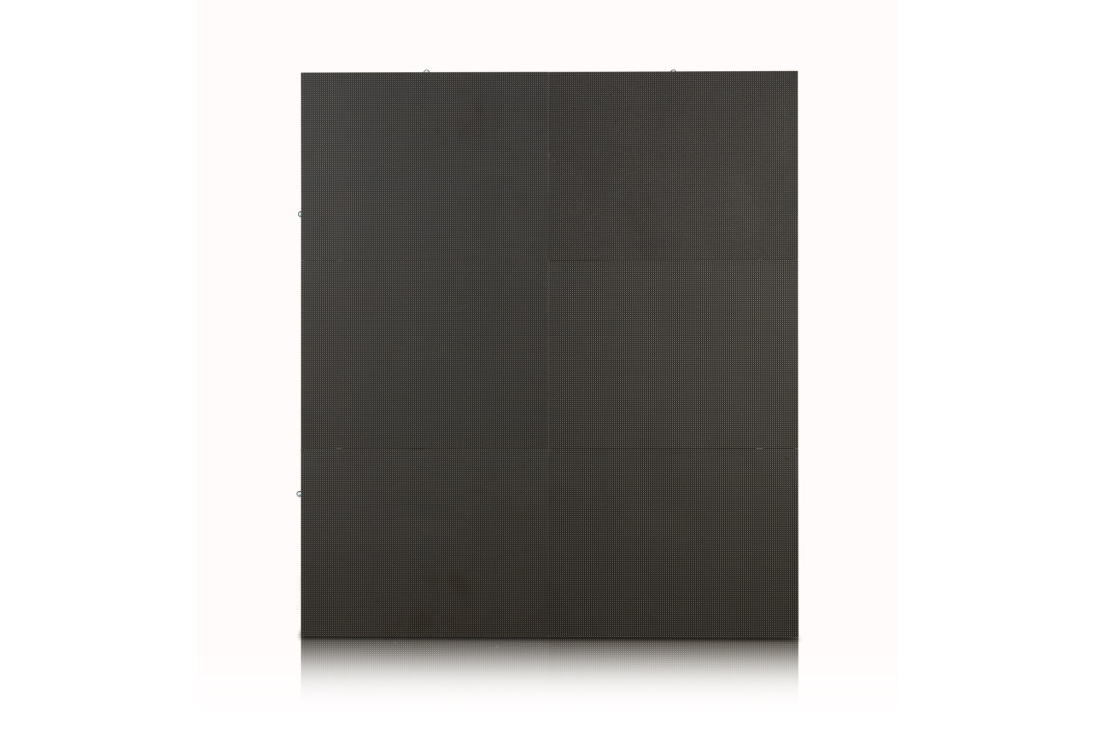

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 5

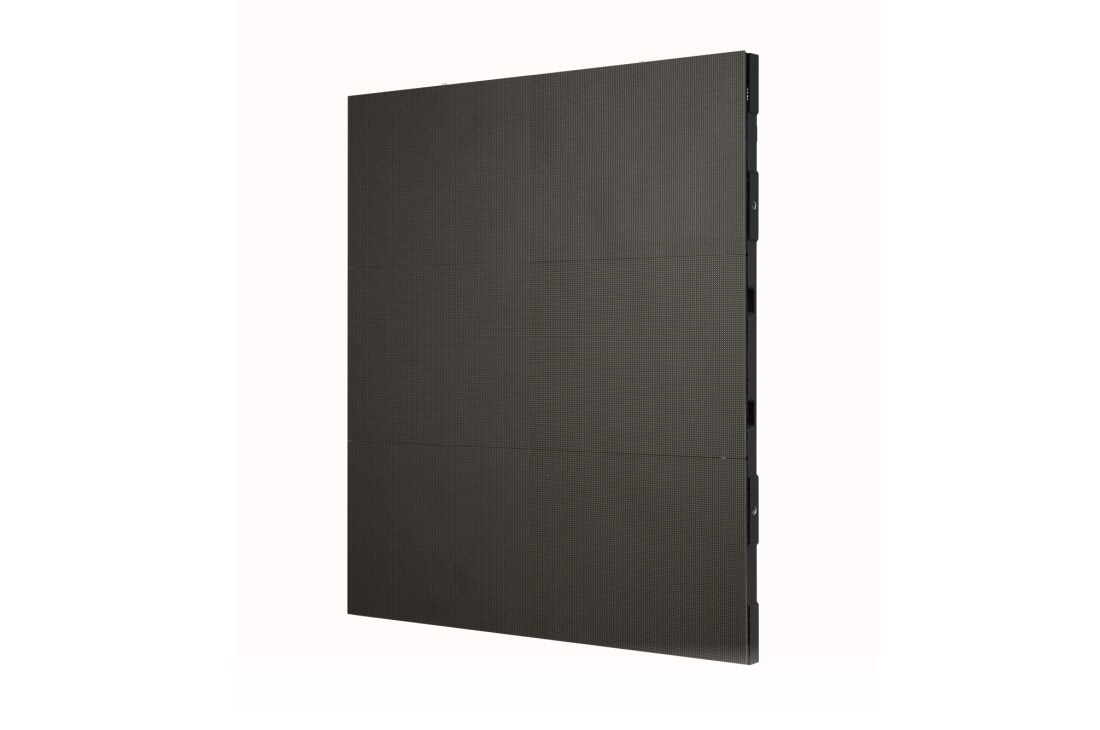

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 6

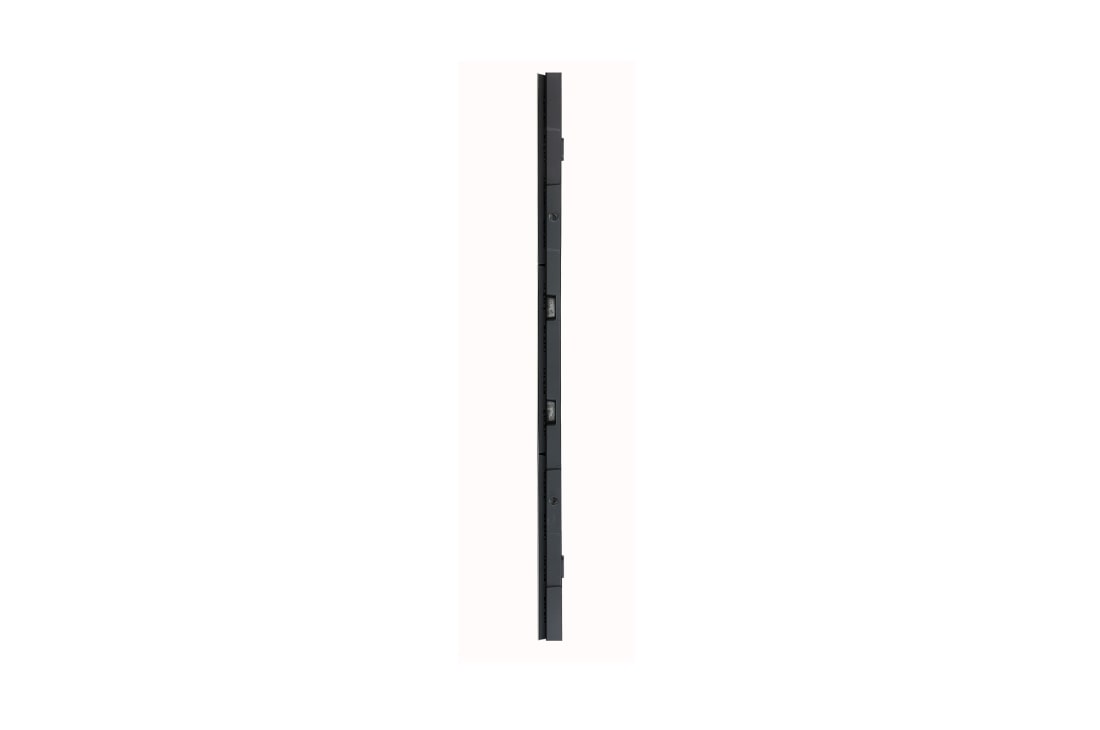

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 7

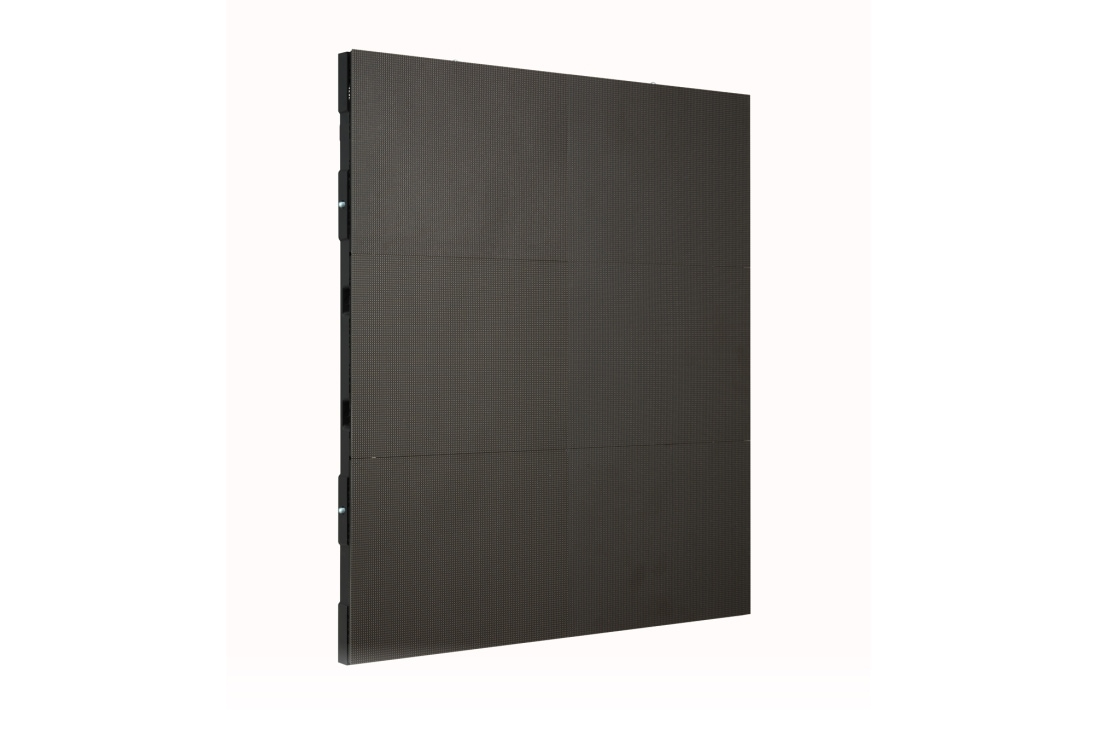

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 8

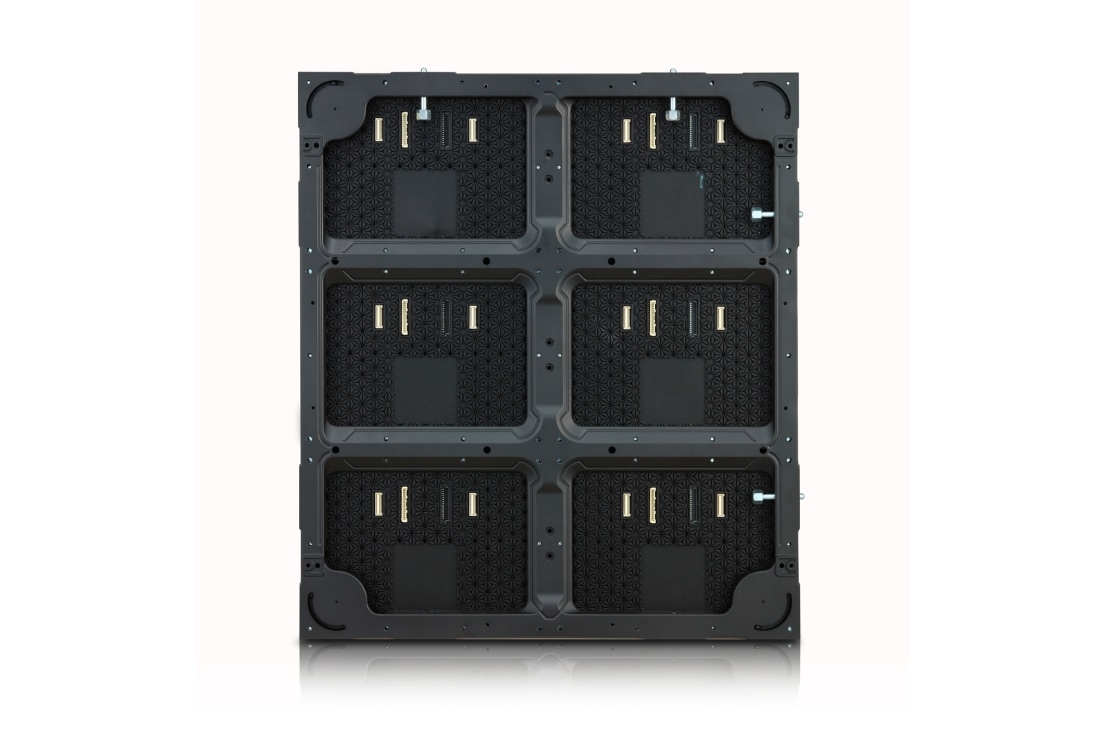

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 9

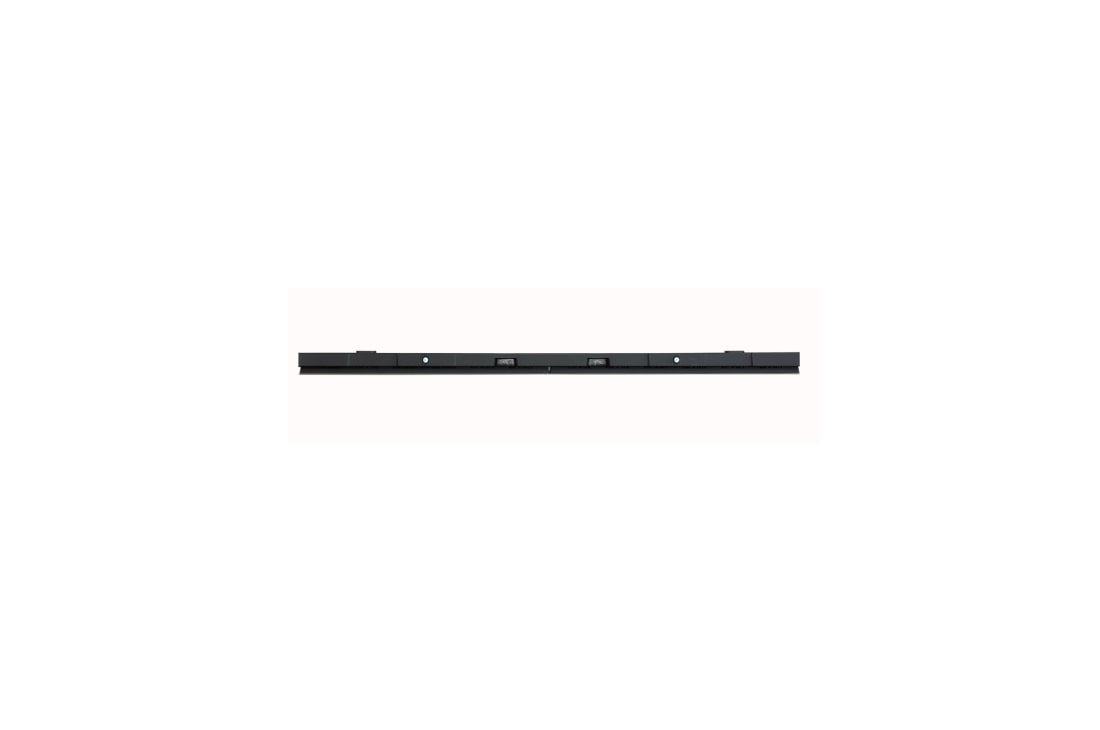

LG P1.5 1,000 nits LG LED Curve Series for Indoor, LAP015EL6B, thumbnail 10

ADD TO WISHLIST

Discontinued

LAP015EL6B component-copyModelName

P1.5 1,000 nits LG LED Curve Series for Indoor

Name: P1.5 1,000 nits LG LED Curve Series for Indoor
Brand: LG UAE
SKU: LAP015EL6B
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 1.5mm
Brightness: 1,000 cd/m²
Modular design
Curvature(Concave/convex): Up to 1,000R
High performance system controller
Front and rear serviceability

Choose your Pitch

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 1.5mm
Brightness: 1,000 cd/m²
Modular design
Curvature(Concave/convex): Up to 1,000R
High performance system controller
Front and rear serviceability

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

P1.5 1,000 nits LG LED Curve Series for Indoor

LG PREMIUM FINE-PITCH
LED SIGNAGE

Boasting detailed color and super contrast, LG's LAPE series brings content to life through freedom of design, giving it outstanding presence as a work of media art.

SELECTABLE TWO PRODUCT TYPES

The LAPE Series comes in 2 product types which differ in the way the power is installed. Each has their own distinctive benefits, so customers can choose between two types based on installation environment.

FLEXIBLE LDM

With a specially designed flexible LDM^{(LED Display Module)}, the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.

* The "Conventional" shown above refers to an LED screen composed of flat LED unit cases.

REALISM THROUGH LIFELIKE COLORS

The LAPE series delivers vivid and distinctive picture quality through a wide range of color details with deep contrast thanks to LG's exclusive ‘Dynamic Contrast Algorithm'.

DETAILED EXPRESSION OF COLOR DEPTH

16-bit color processing provides a higher greyscale level, which seamlessly displays different depths and densities of colors without distortion, thereby giving a more realistic and sophisticated content.

SMOOTH PLAYBACK IN DYNAMIC MOTION

Powered by LG's display technology, a high refresh rate of 3,840Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

FLEXIBLE POWER MANAGEMENT

Thanks to the modular power concept design, users can choose the desired brightness of the screen by customizing the number of PSUs* based on the electrical capacity of the user environment.

* The number of power units required may vary depenging on the installation environment.
The above description is an example of a UHD screen configuration with a 20 mm pitch in 'redundancy off' mode.

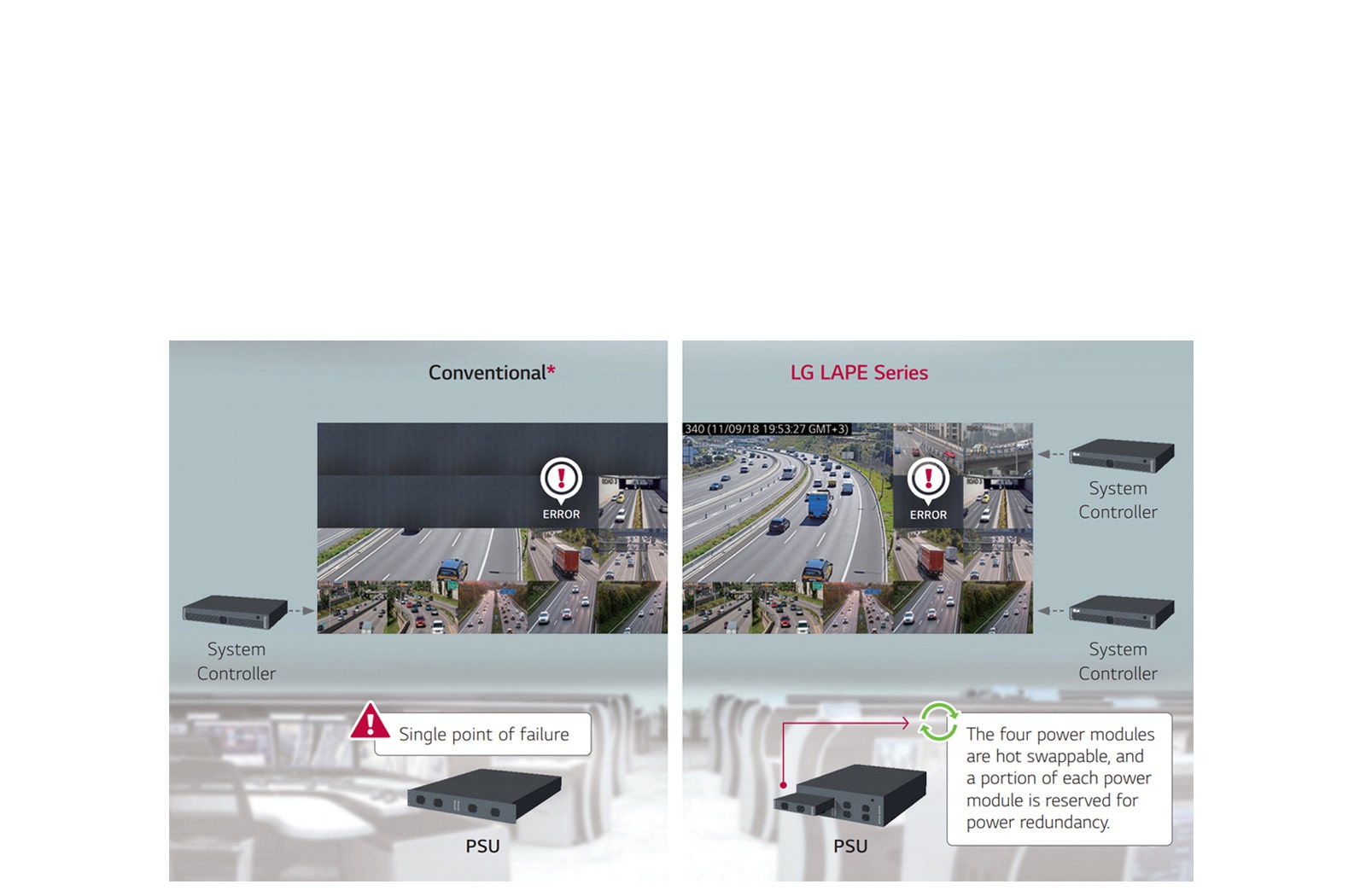

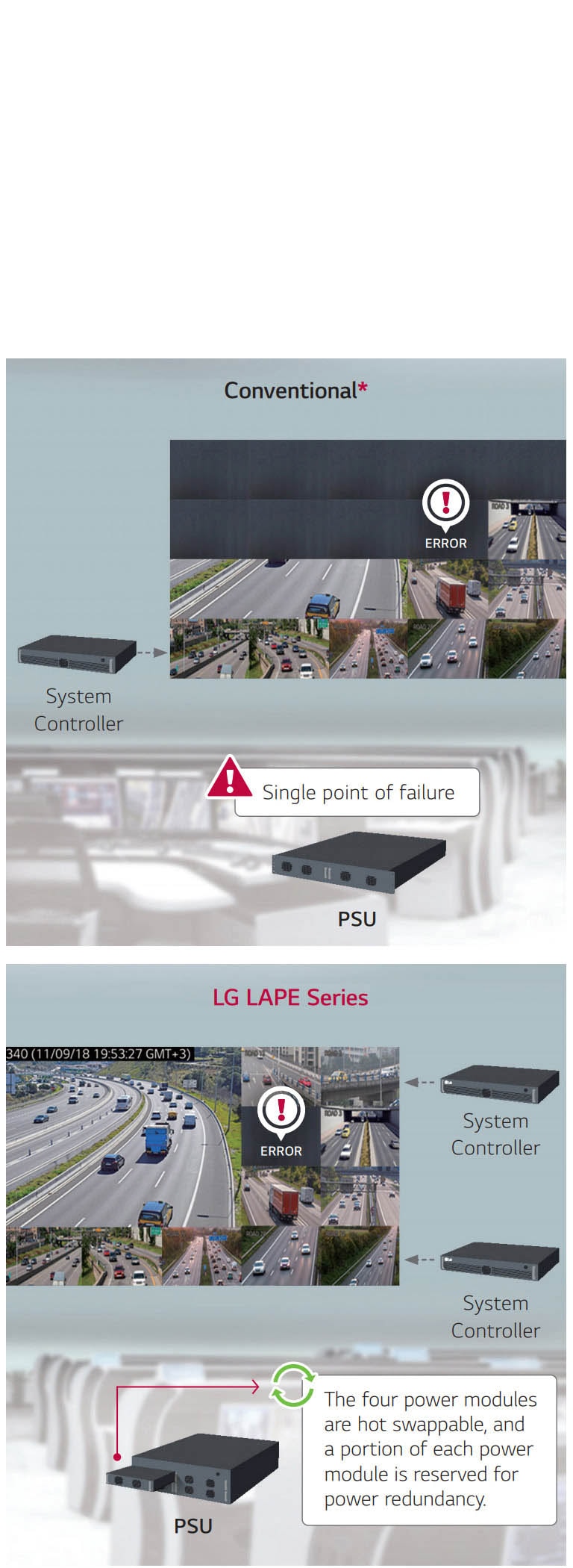

POWER/SIGNAL REDUNDANCY SUPPORT

The LAPE series is designed to support signal redundancy (optional), providing users with peace of mind.

* The "Conventional" shown above refers to LED displays which do not support the power/signal redundancy mode.

PRECISE FHD/UHD SCEEN CONFIGURATION

It has often been difficult to configure a perfect FHD/UHD resolution screen prohibiting native resolution image display. With the LAPE series, this is possible for all model options.

SMART HIGH PERFORMANCE SYSTEM CONTROLLER

The LAPE series comes with a versatile 4K system controller, providing simplified system configuration in a high-resolution canvas platform. The controller also has a built-in high performance media player as well as scaler.

* The "Conventional" shown above refers to LED displays that don't have an all-in-one system controller

INTUITIVE MANAGEMENT SOFTWARE

LG's new management control software platform ‘LED Assistant' provides easy screen management.

REAL-TIME 365 CARE SERVICE

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of LED displays in client workplaces for fault diagnosis and remote-control services.

* The availability of "Signage 365 Care" service can differ by region, so please contact the LG sales representative in your region for further details.

EASY TO HANDLE & INSTALL

Conventional large-sized and heavy cabinet-based installation often results in LED dot defects during installation. The LAPE series breaks free from conventional norms by introducing much smaller and light weight LDM^{(LED Display Module)}-based installation, providing incomparable ease of handling.

EASY SCREEN ALIGNMENT

The unit frame of the LAPE series has been carefully designed for easy screen flatness alignment. Each LDM has 20 Z-axis alignment points for ultra-fine flatness alignment.

FRONT INSTALLATION & SERVICE

The LAPE series comes with front installation and front service access, freeing users from needing rear access space, as well as a sleek screen design for maximum space optimization

PHYSICAL PARAMETERS

Pixel Configuration

3 in 1 SMD

Pixel Pitch(mm)

1.50
Module Resolution (WxH)

160x120

Module Dimensions(WxH,mm)

240x180
Weight per Module (kg)

0.36

No. of Modules per Unit Case (WxH)

2x3
Unit Case Resolution (WxH)

320x360

Unit Case Dimensions (W x H x D, mm)

480x540x40
Unit Case Surface Area (㎡)

0.260

Weight per Unit Case (kg/unit)

5.0
Weight per Square Meter (kg/㎡)

19.8

Physical Pixel Density (pixels/㎡)

444,444
Flatness of Unit Case (mm)

±0.2

Unit Case material

Die casting alluminum
Service access

Front or Rear

OPTICAL SPECIFICATIONS

Min. Brightness (After Calibration)

300 ~ 1,000

Color Temperature

3,200 ~ 9,300
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

140
Brightness Uniformity

≥97%

Color Uniformity

±0.015Cx,Cy
Contrast Ratio

6,000

Processing Depth (bit)

16

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Unit, Avg.)

170

Power Consumption (W/Unit, Max.)

330
Power Consumption (W/㎡, Max.)

1270(@1,000nit)

Power Supply (V)

100 to 240
Frame Rate (Hz)

50 / 60

Refresh Rate (Hz)

3,840

OPERATION SPECIFICATIONS

Lifetime (Half brightness)* * The Lifetime(Half brightness) spec is subject to LED package spec.

100,000

Operating Temperature(℃)

0∘to +40∘
Operating Humidity

10-80%RH(TBD)

IP rating Front

-
IP rating Rear

-

CONTROLLER

Controller

LCLG003
