Discontinued

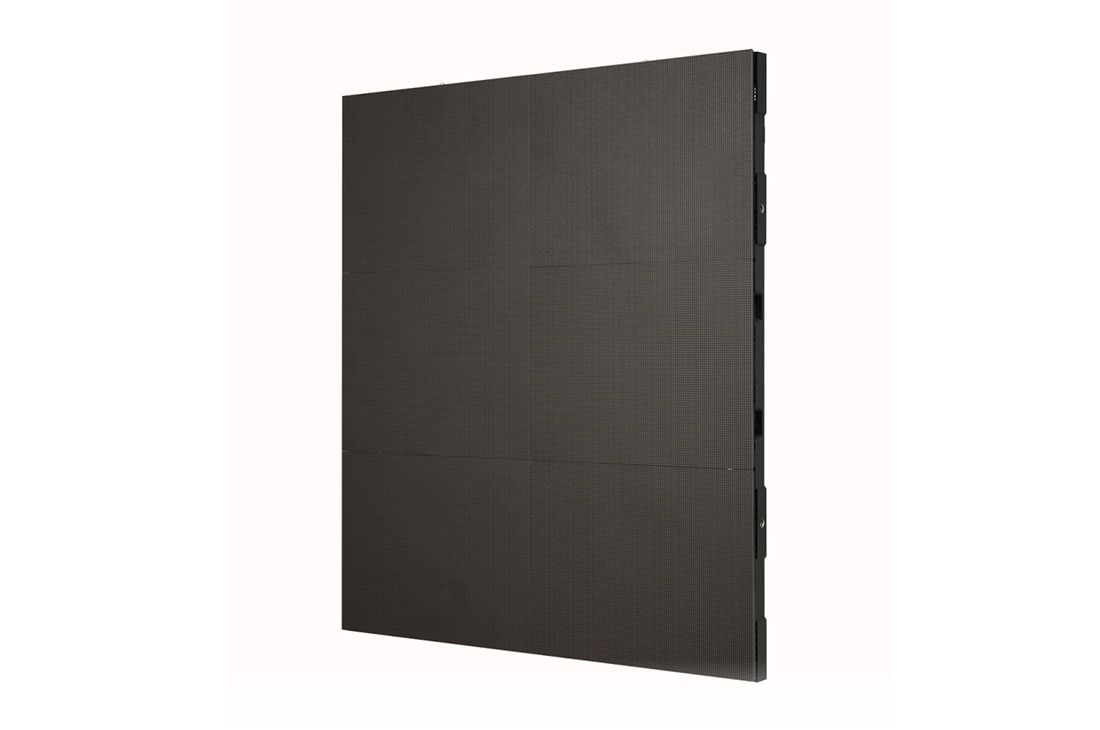

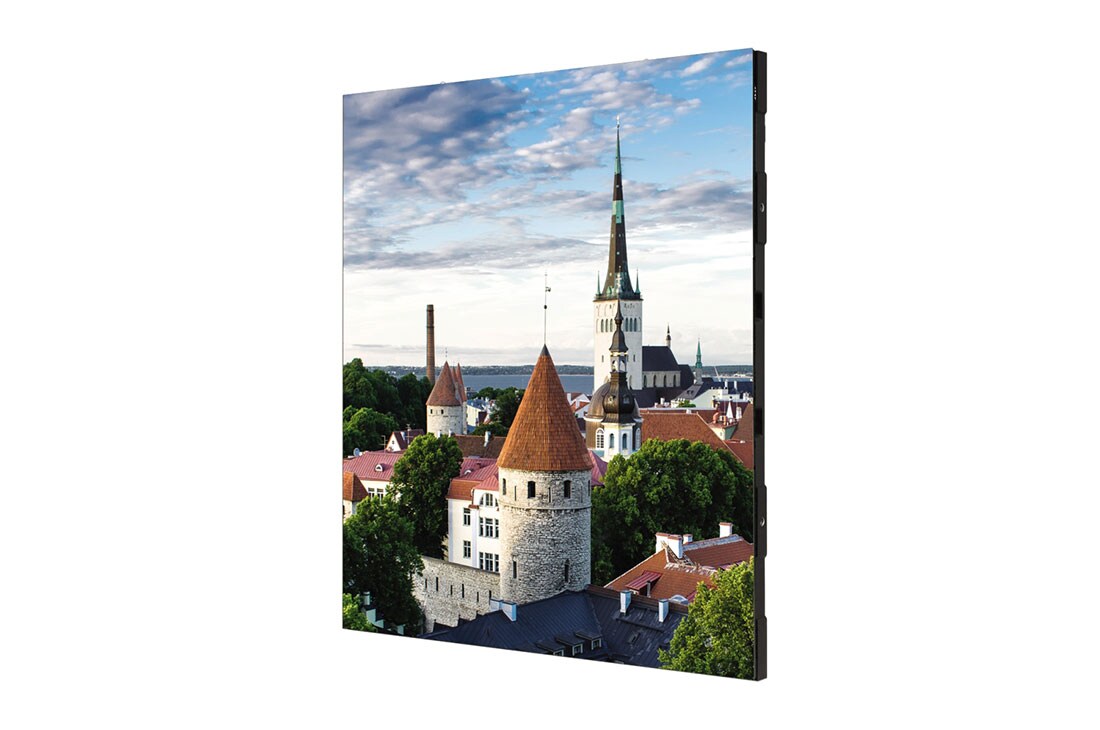

LAP015EP component-copyModelName

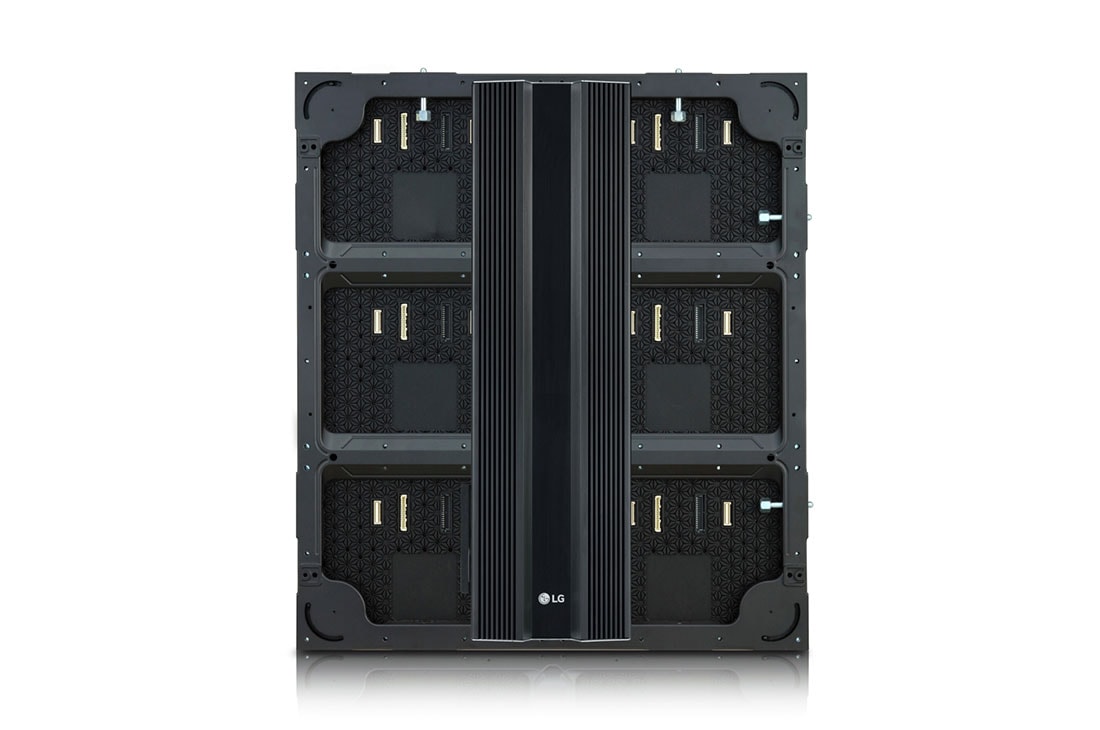

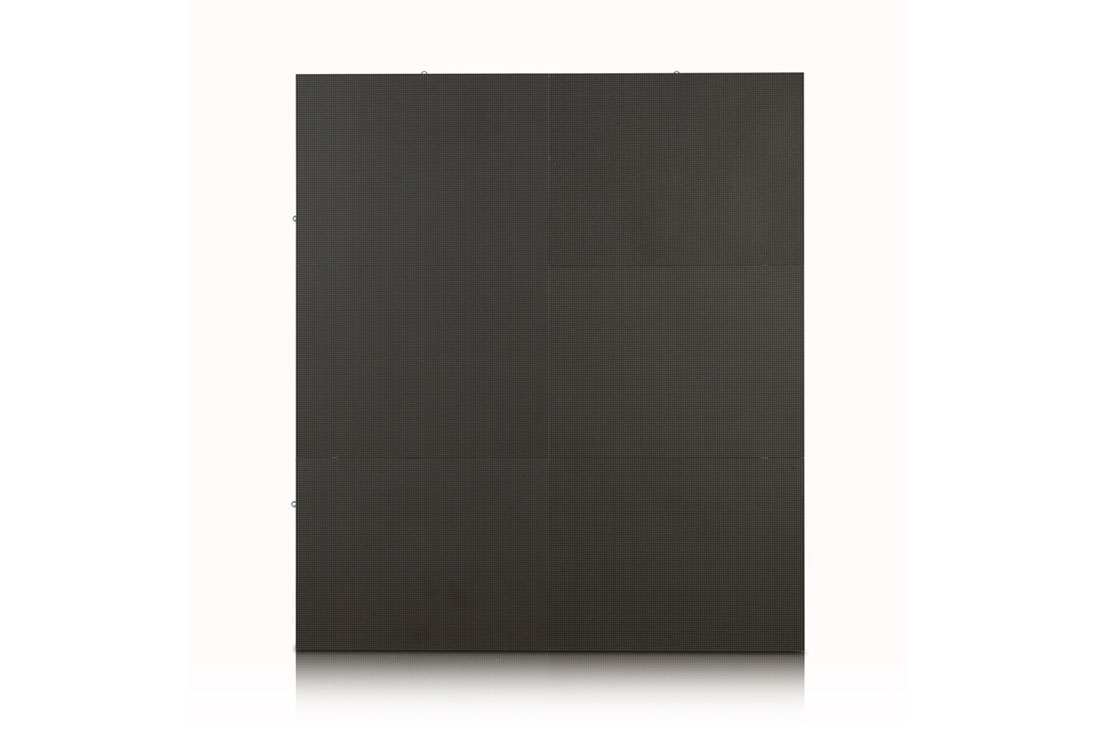

P1.5 700 nits LG LED Curve Series for Indoor

Key Features

Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

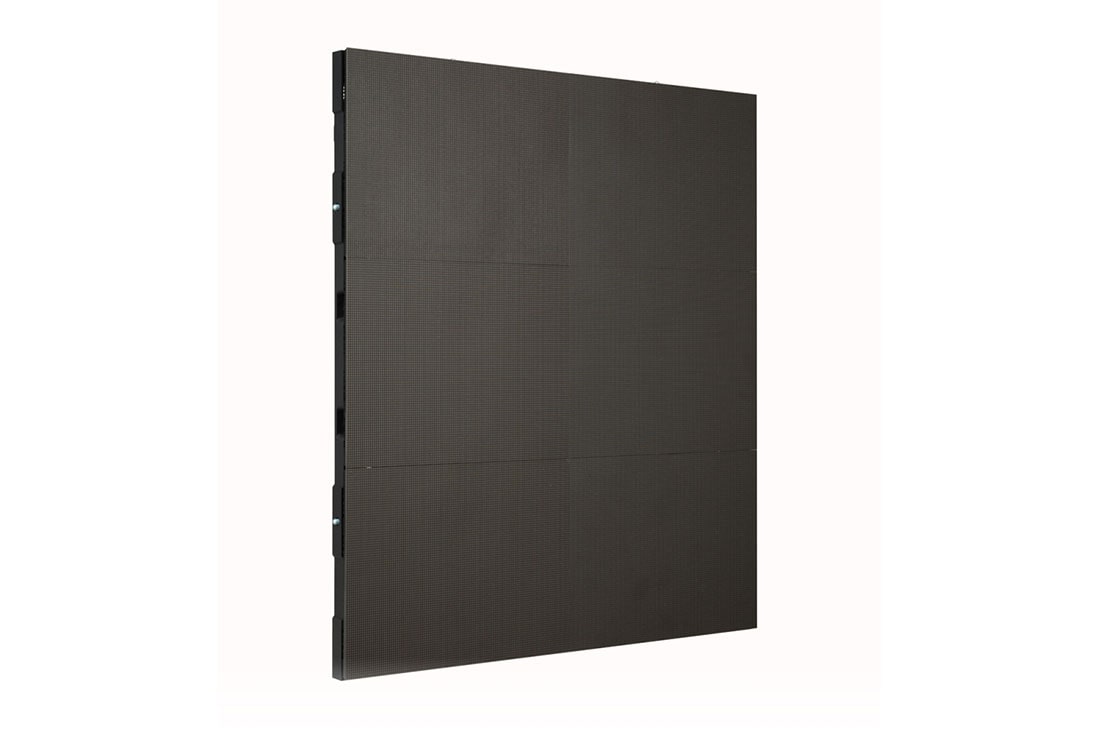

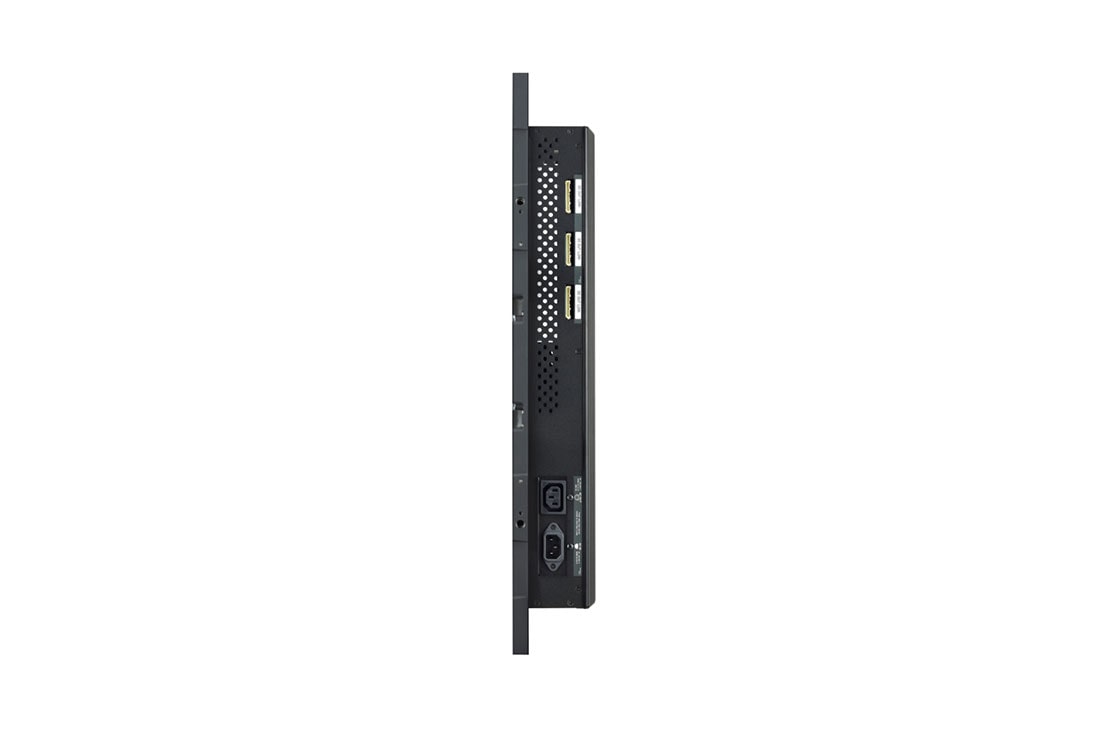

P1.5 700 nits LG LED Curve Series for Indoor
Find a Dealer
Close
PHYSICAL PARAMETERS
  • Pitch Name
    P1.5
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.50

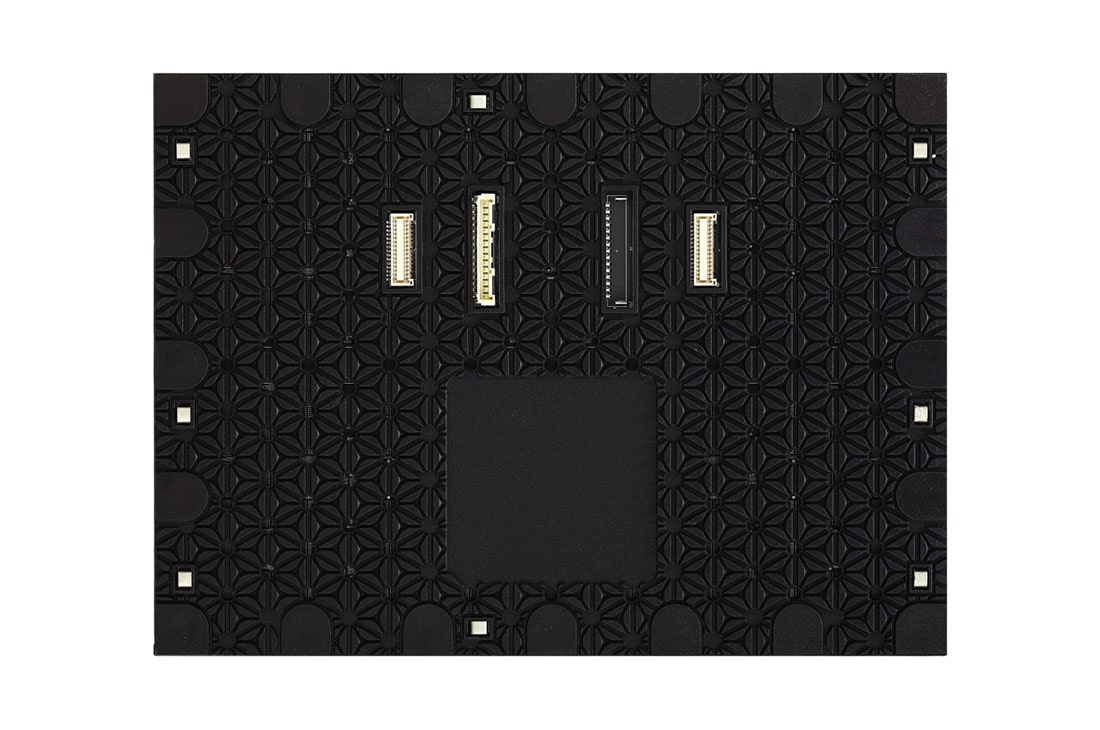

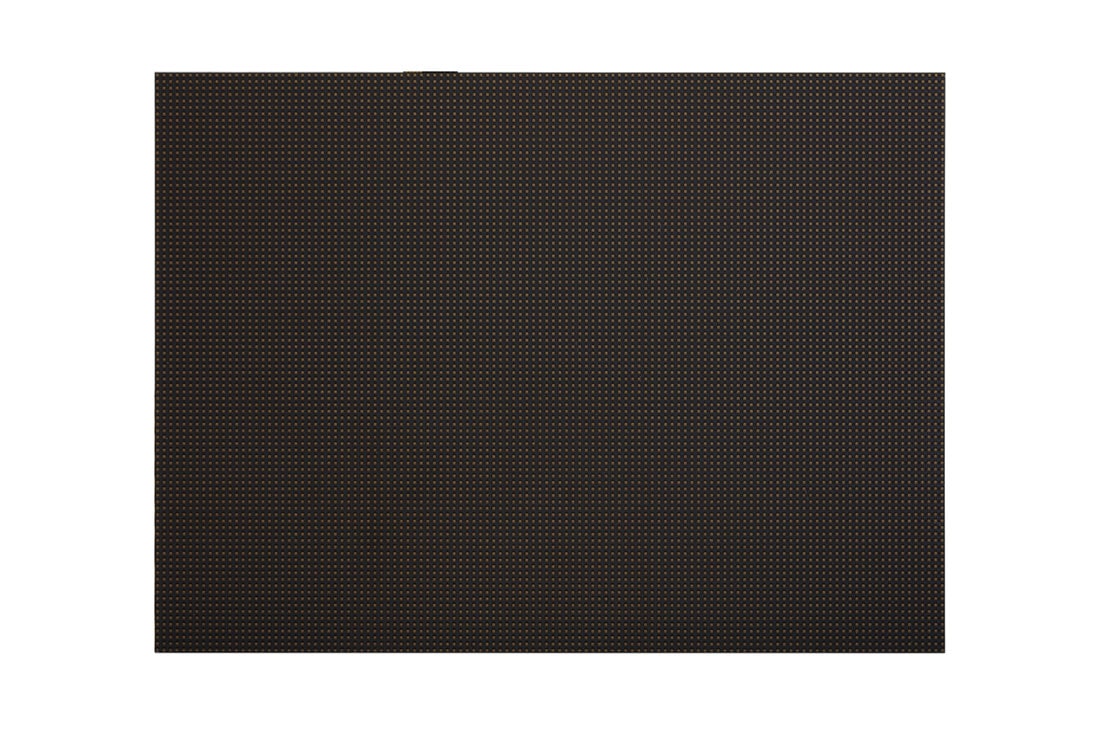

    Module Resolution (W x H)
    160 x 120

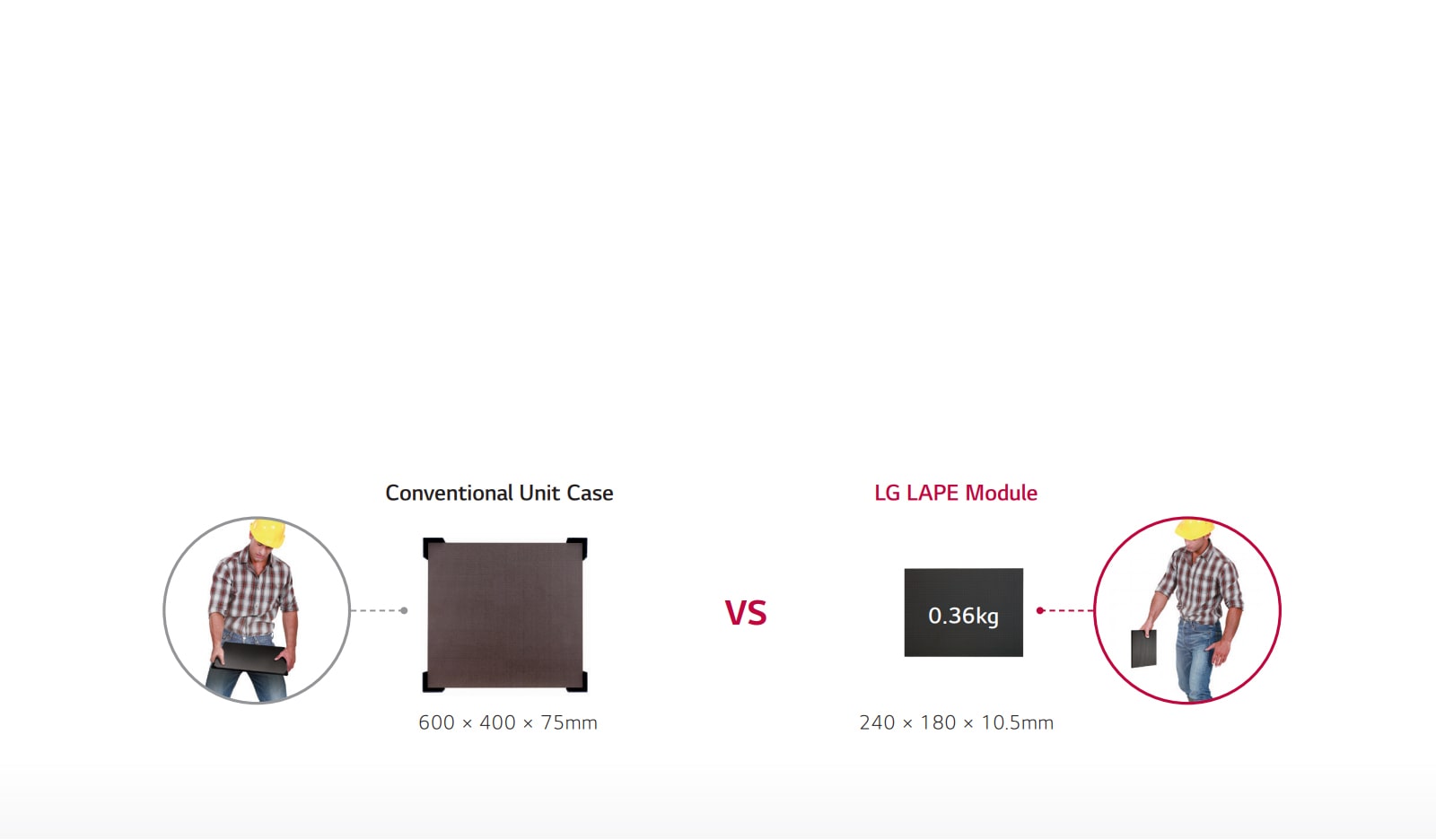

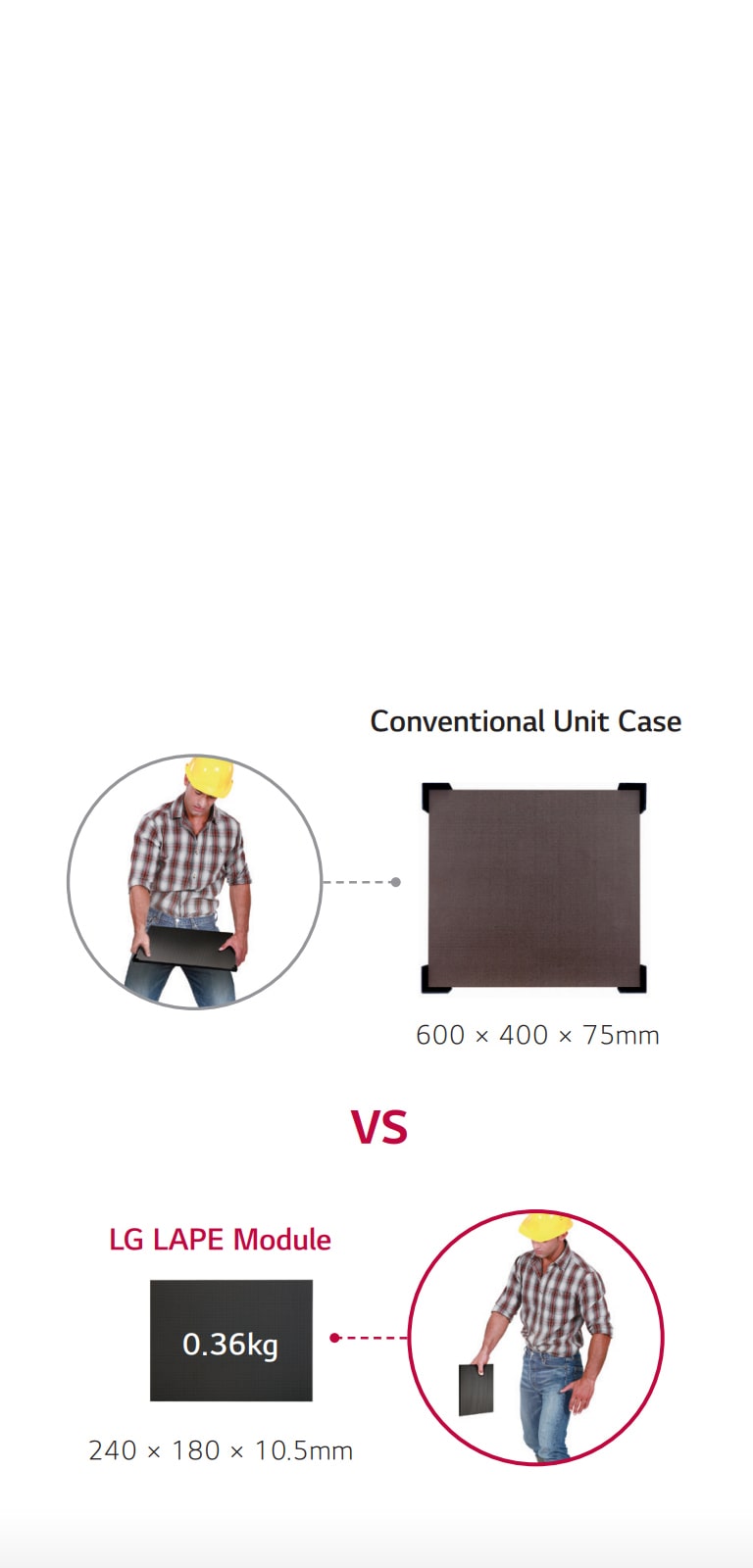

  • Module Dimensions (W x H, mm)
    240 x 180
    Weight per Module (kg)
    0.36
  • No. of Modules per Unit Case (W x H)
    2 x 3
    Unit Case Resolution (W x H)
    320 x 360

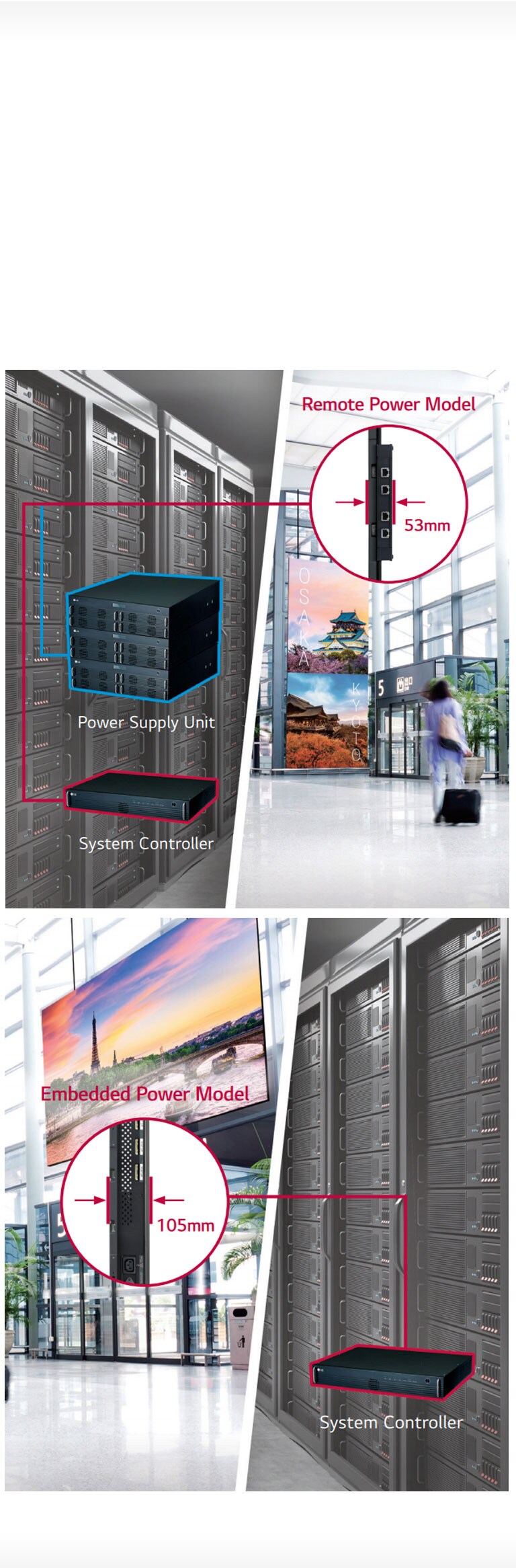

  • Unit Case Dimensions (W x H x D, mm)
    480 x 540 x 105
    Unit Case Surface Area (m²)
    0.259
  • Weight per Unit Case (kg/unit)
    10.1
    Weight per Square Meter (kg/m²)
    38.4
  • Physical Pixel Density (pixels/m²)
    444,444

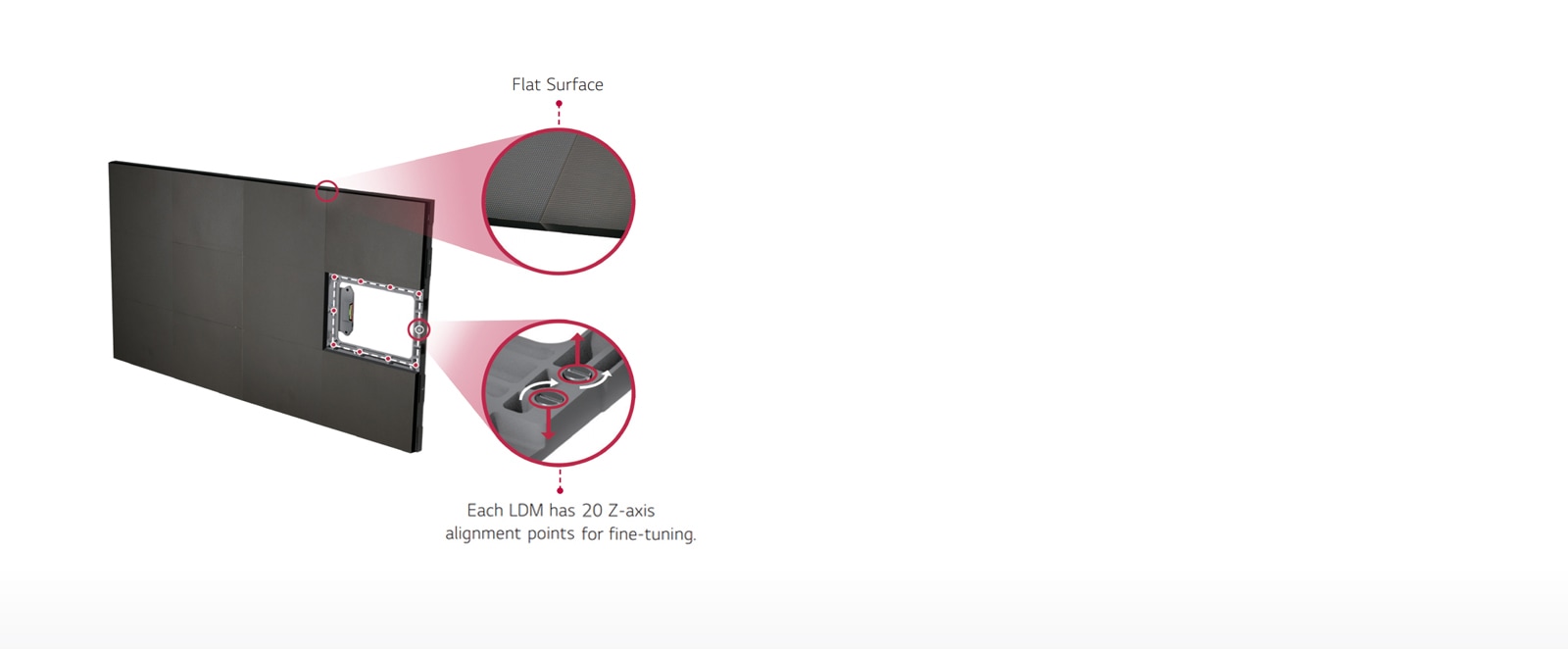

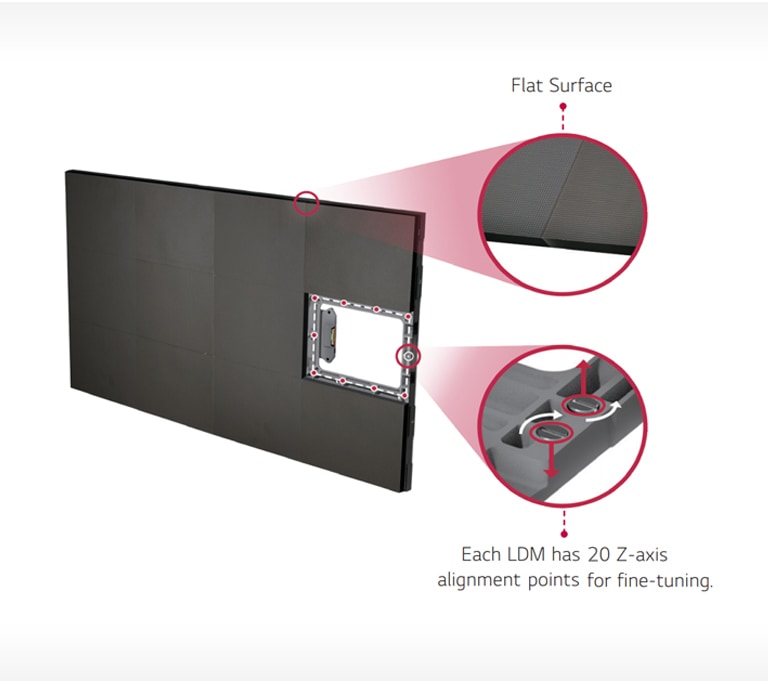

    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Die Casting Aluminum

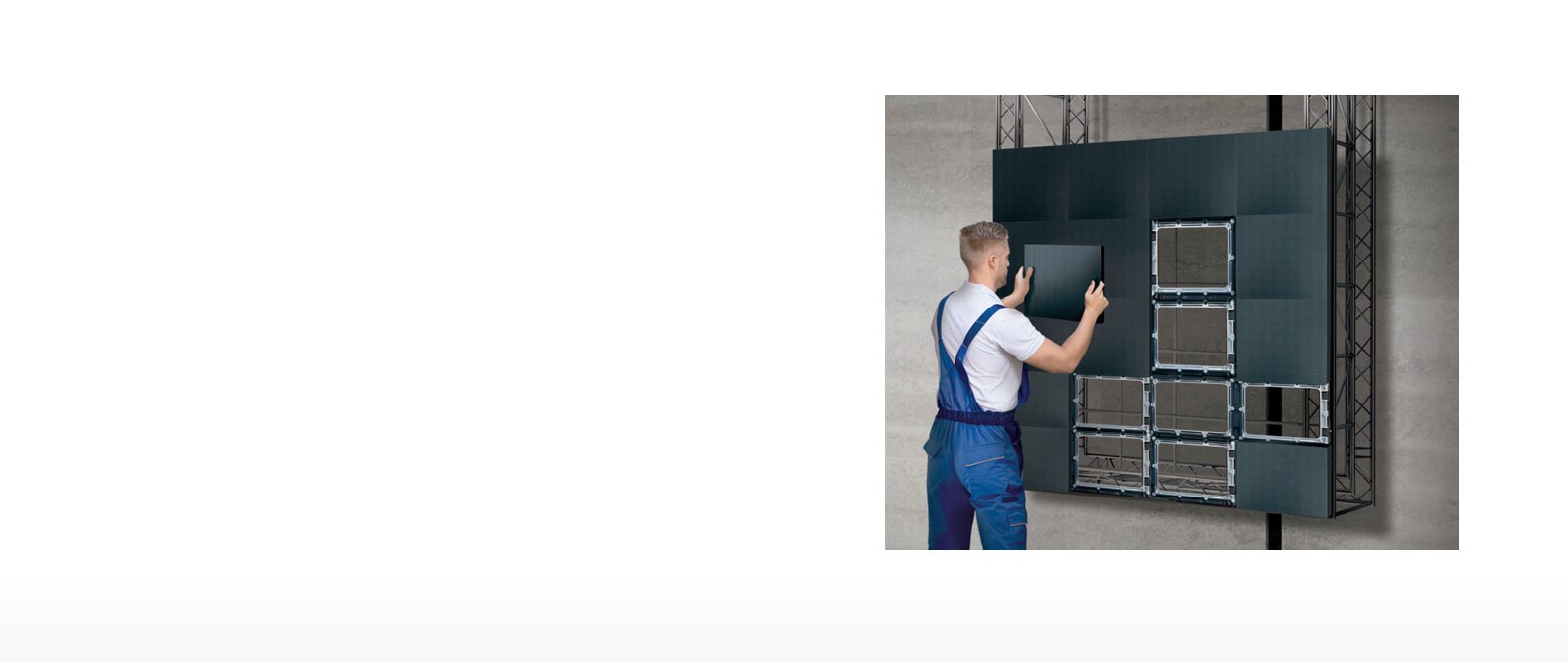

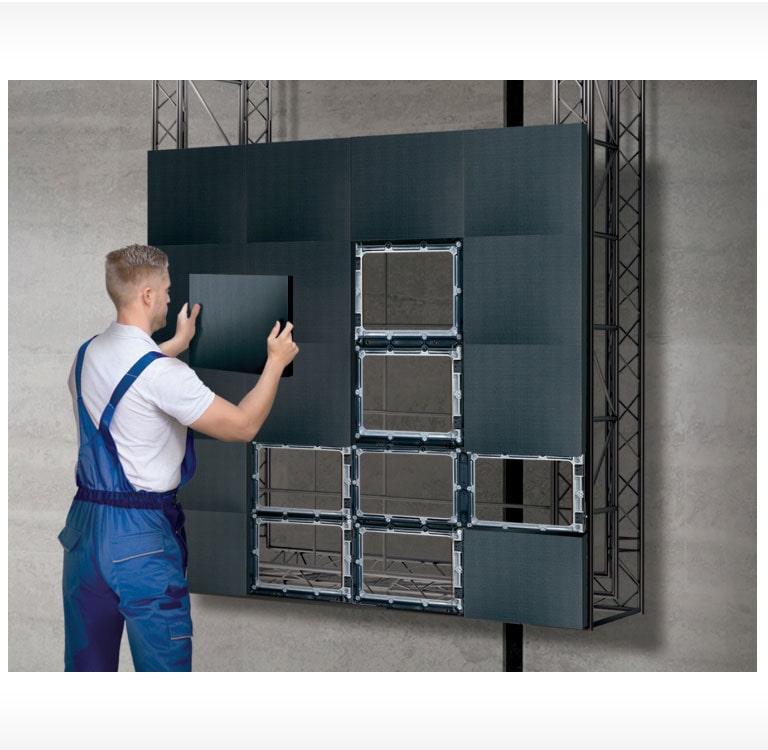

    Service access
    Front and Rear
OPTICAL PARAMETER
  • Min. Brightness (After Calibration)
    700 cd/m²
    Color Temperature
    3,200 ~ 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx, Cy
  • Contrast Ratio
    6,000

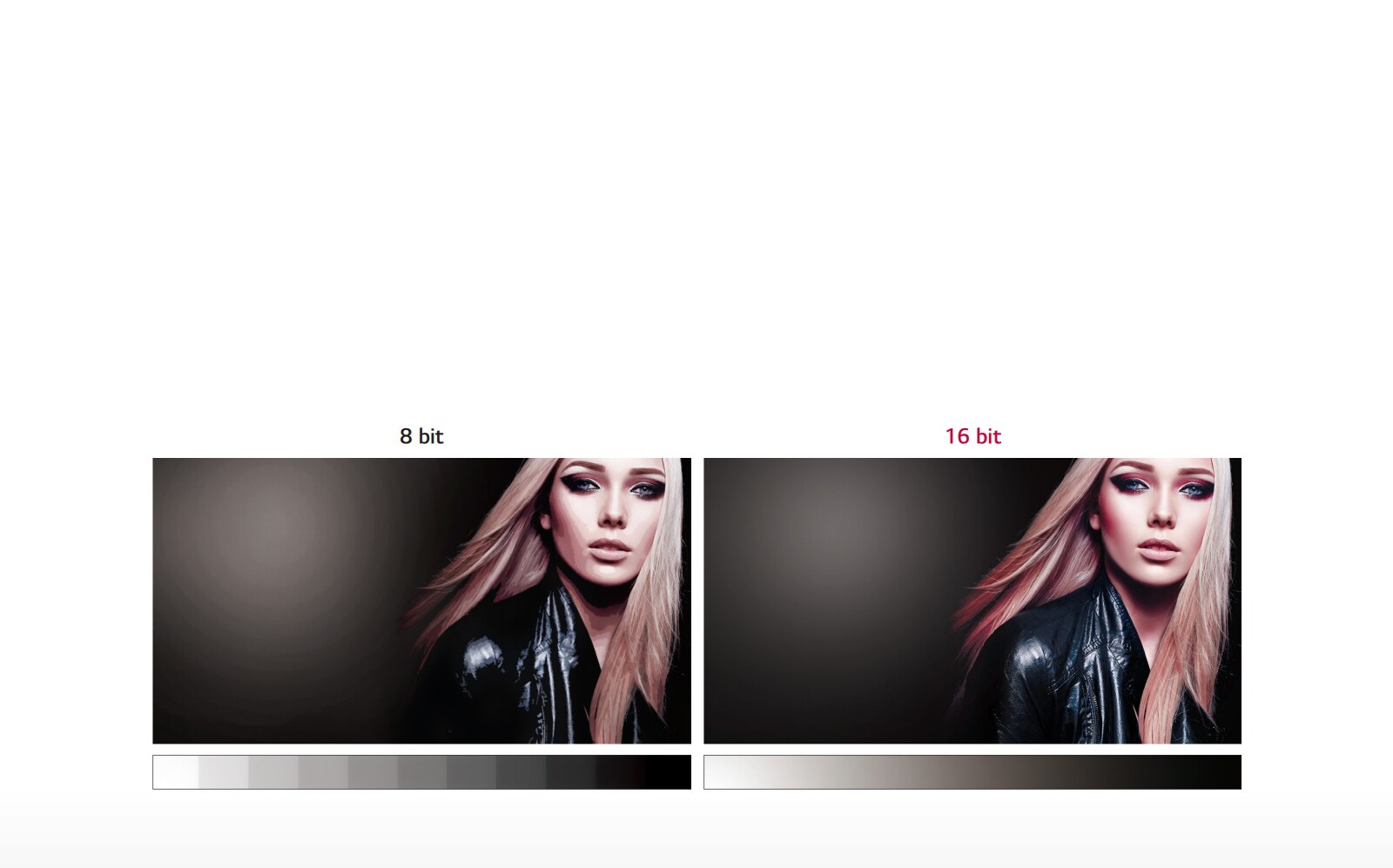

    Processing Depth (bit)
    16 (HDR10)
ELECTRICAL PARAMETER
  • Power Consumption (W/Unit, Max.)
    200
    Power Consumption (W/Unit, Avg.)
    67
  • Power Consumption (W/m², Max.)
    770
    Power Supply (V)
    100 to 240
  • Frame Rate (Hz)
    50/60

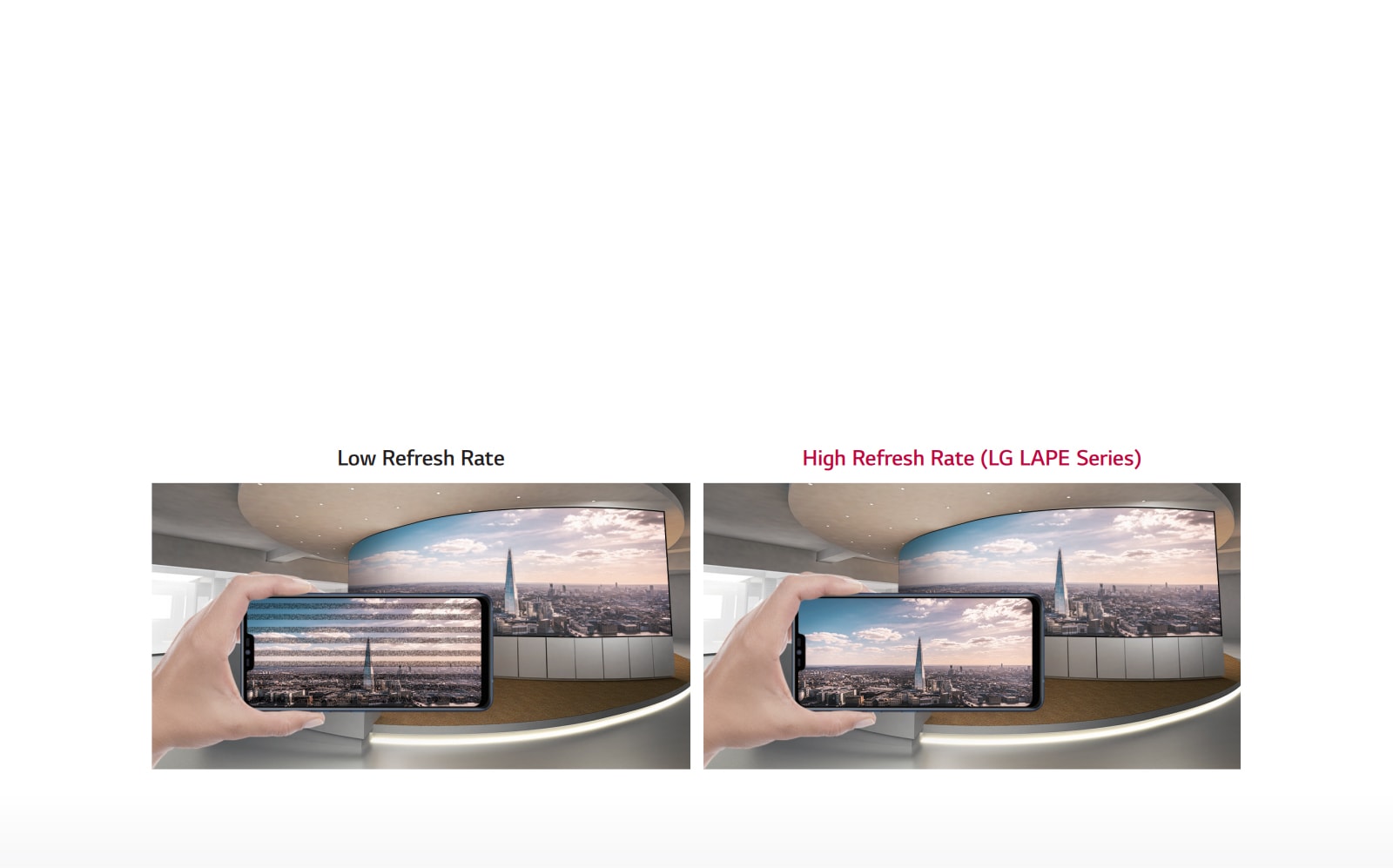

    Refresh Rate (Hz)
    3,840
OPERATION CONDITIONS
  • Lifetime (Duration of Half Brightness in Hours)
    100,000
    Operating Temperature (°C)
    0°C to + 40°C
  • Operating Humidity
    10-80% RH
CERTIFICATION
  • EMC
    FCC Class A/CE/KC
    Environment
    RoHS

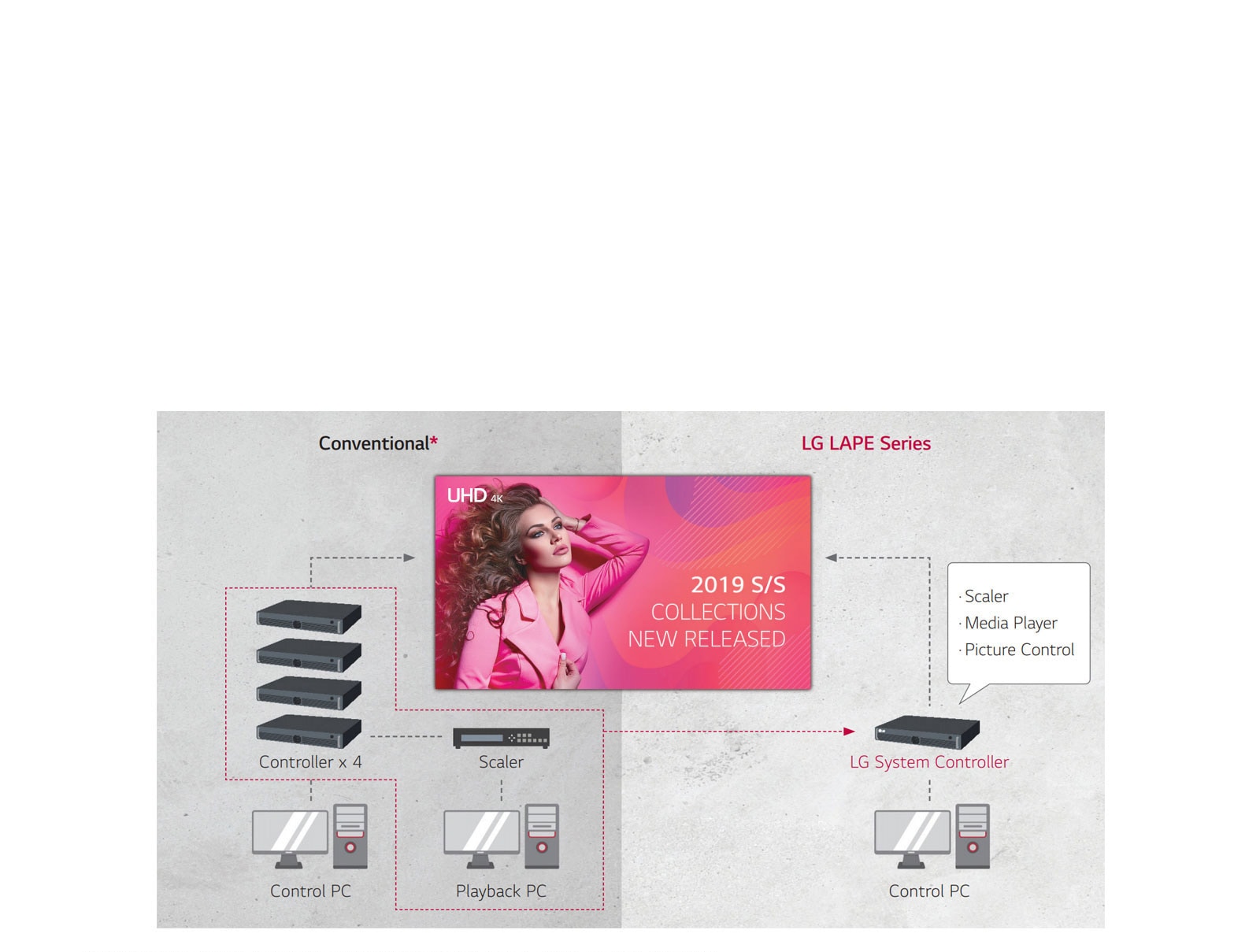

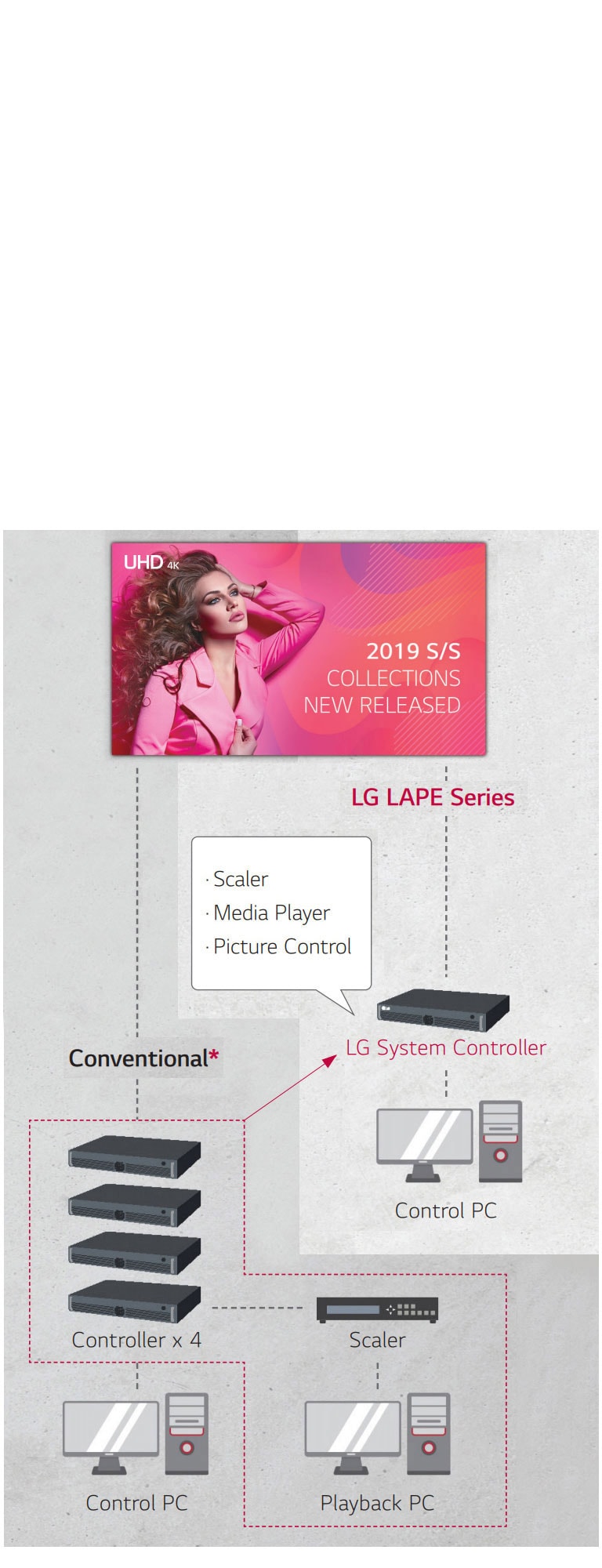

CONTROLLER
  • Controller
    LCLG005-A
CONNECTIVITY
  • Video Inputs
    HDMI In, DP In, OPS In, USB
    Control
    RJ45 In, RS232C In/out
  • Special Features
    HDR10, Temperature Sensor, Power Detection
