Flexible Outdoor LED
Find a Dealer

Flexible Mesh LED Display

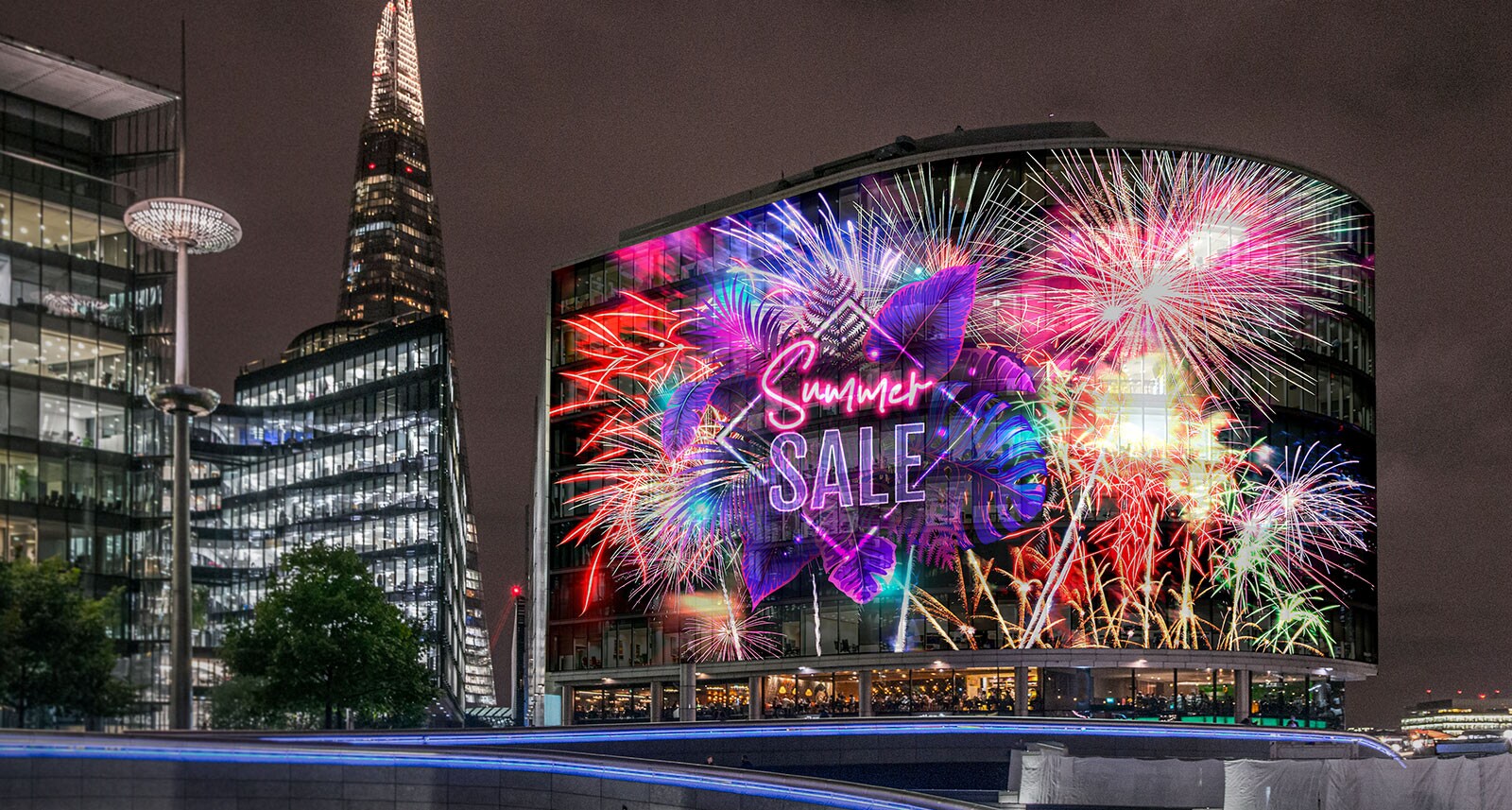

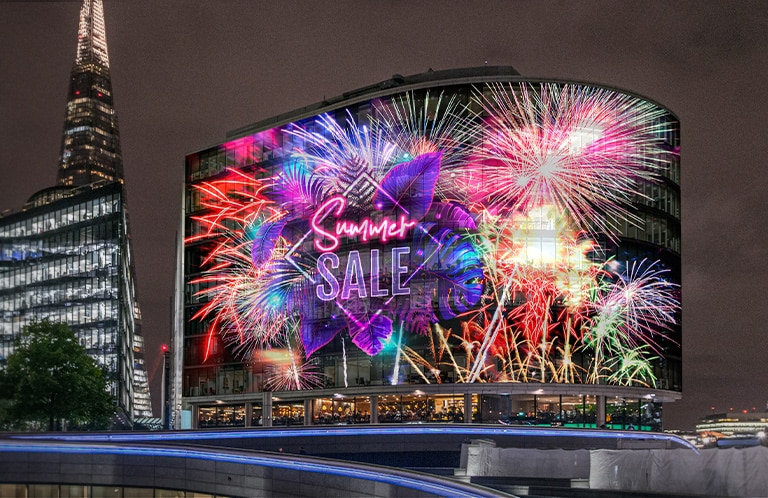

A mesh LED is installed to fit the building’s curved exterior wall shape. The colorful advertisement reflected by the LED appears to harmonize with the city’s night view. A mesh LED is installed to fit the building’s curved exterior wall shape. The colorful advertisement reflected by the LED appears to harmonize with the city’s night view.
* All images in this page are for illustrative purposes only.

Flexibility for Various Screen Shapes

With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views.

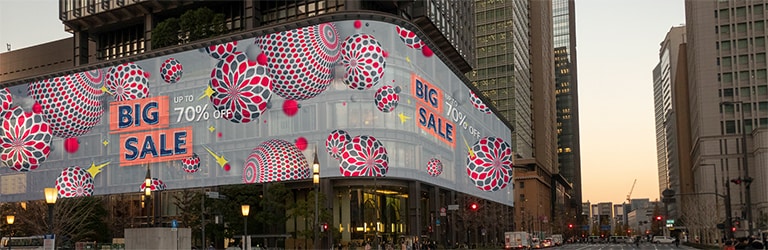

An LED is installed to fit the shape of the building’s outer wall which has rounded corner. An LED is installed to fit the shape of the building’s outer wall which has rounded corner.

Lightweight Mesh LED

Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation.

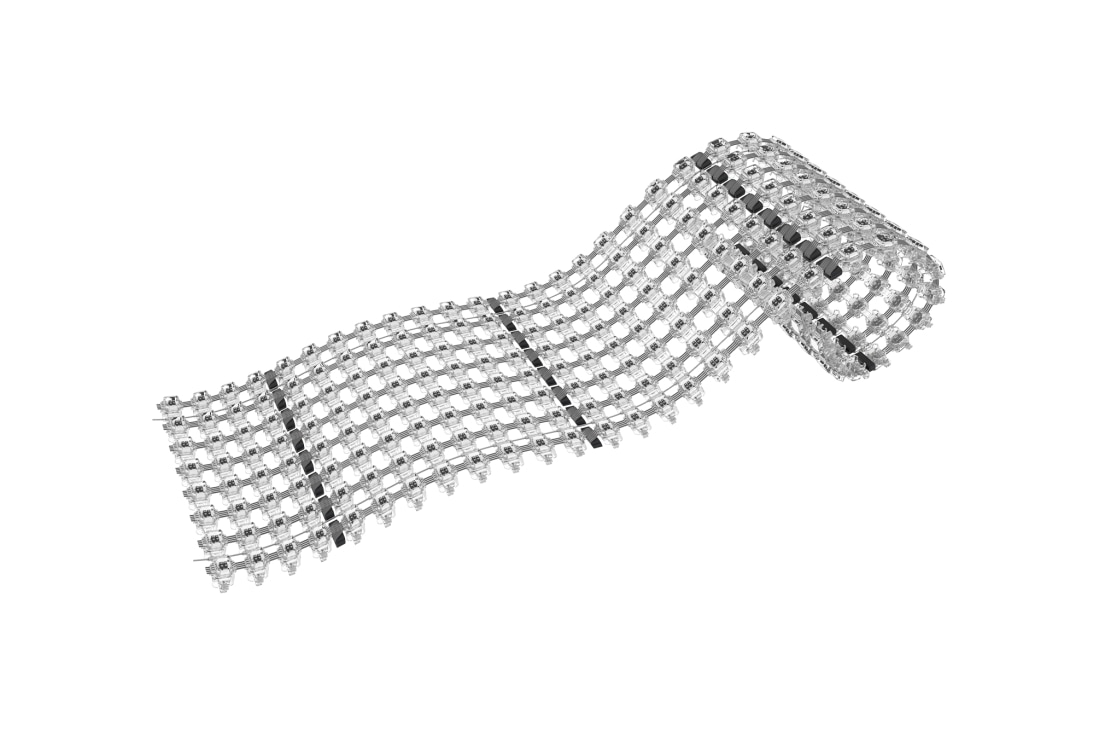

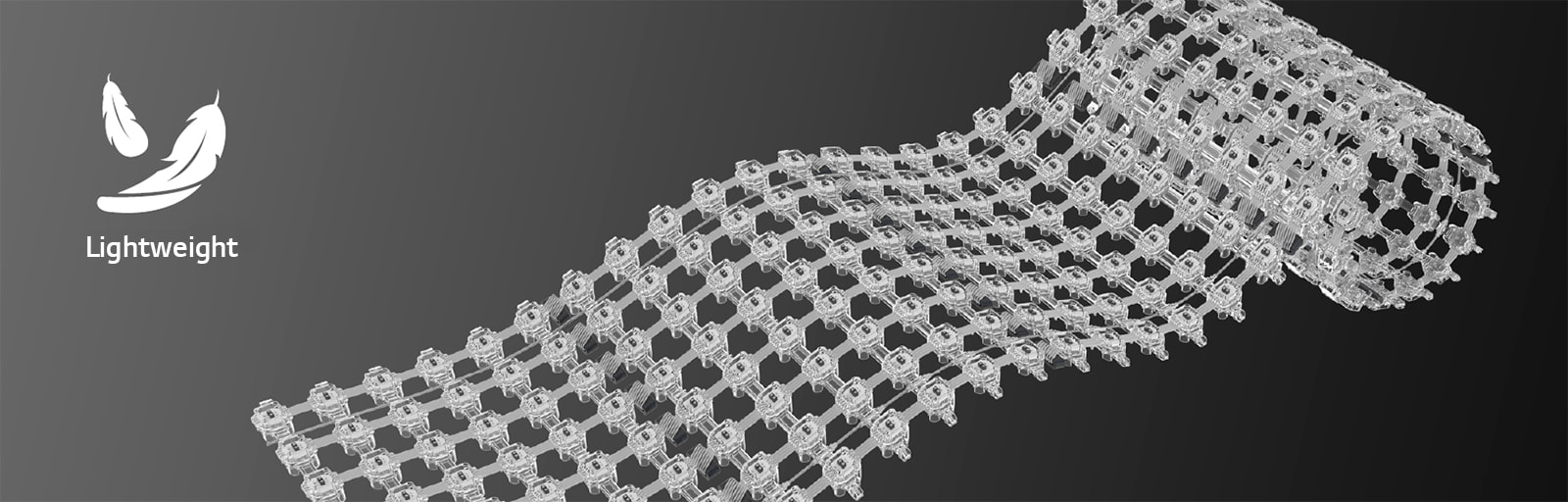

One side of the lightweight mesh GMBD is rolled. One side of the lightweight mesh GMBD is rolled.

Easy Maintenance

Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.

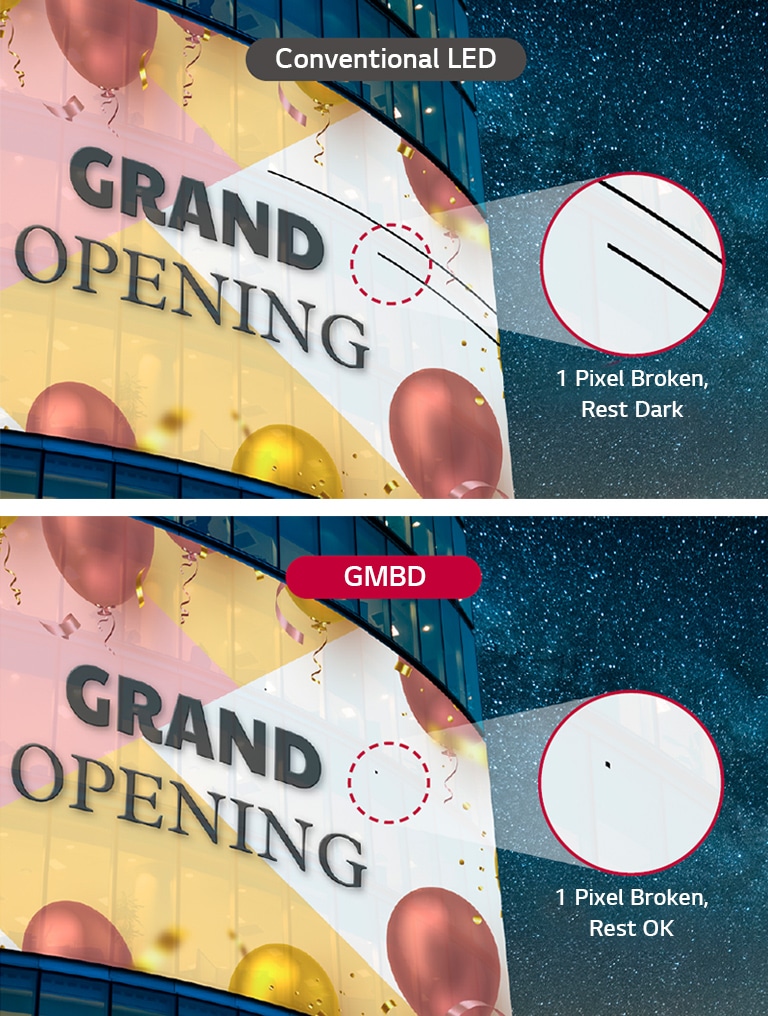

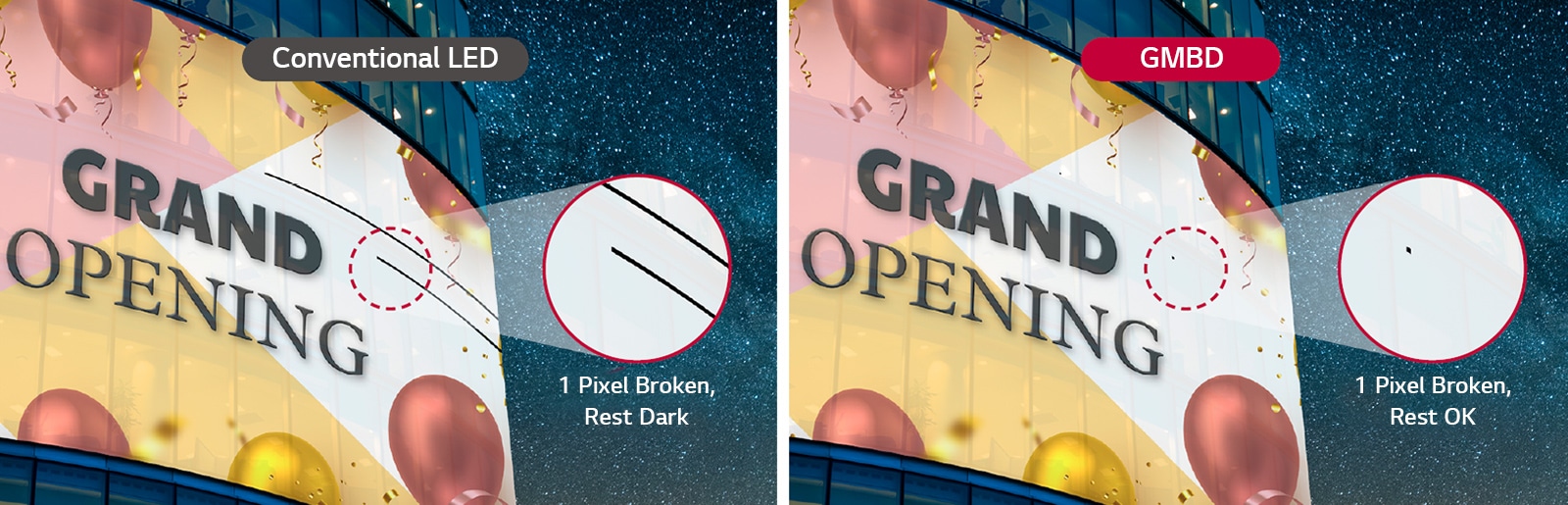

Conventional LED cuts off the signal when one pixel fails and the rest of the pixels in the line become black. However, for GMBD, the rest of the pixels are visible showing no problems even if one pixel dies. Conventional LED cuts off the signal when one pixel fails and the rest of the pixels in the line become black. However, for GMBD, the rest of the pixels are visible showing no problems even if one pixel dies.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    4 in 1 SMD
    Pixel Pitch(mm)
    35.00
  • Module Resolution (WxH)
    1x80
    Module Dimensions(WxH,mm)
    18x2,800
  • Weight per Module (kg)
    0.52
    No. of Modules per Cabinet (WxH)
    8x1
  • Cabinet Resolution (WxH)
    8x80
    Cabinet Dimensions (W x H x D, mm)
    280x2,800
  • Cabinet Surface Area (㎡)
    0.784
    Weight per Cabinet (kg/unit)
    6.2
  • Weight per Square Meter (kg/m²)
    8.0
    Physical Pixel Density (pixels/m²)
    816
  • Cabinet Material
    Plastic body and silicon cable
    Service access
    Front and Rear
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    7,500
    Color Temperature (K)
    18,000-25,000
  • Visual Viewing Angle (Horizontal)
    120
    Visual Viewing Angle (Vertical)
    120
  • Brightness Uniformity
    90%
    Contrast Ratio
    20,000:1
  • Processing Depth (bit)
    12 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    640
    Power Consumption (W/Cabinet, Avg.)
    213
  • Power Consumption (W/m², Max.)
    816
    Heat Dissipation (BTU/h/Cabinet, Max.)
    2,184
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    727
    Heat Dissipation (BTU/h/m², Max.)
    2,784
  • Power Supply (V)
    15
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    20,000
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -40℃ to +60℃
  • Operating Humidity
    10~90%RH
    IP rating Front
    IP66
  • IP rating Rear
    IP66
CERTIFICATION
  • Certification
    CE, FCC, cTUVus, CB
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVBA
90 degree corner cut
  • 90 degree corner cut
    Yes
