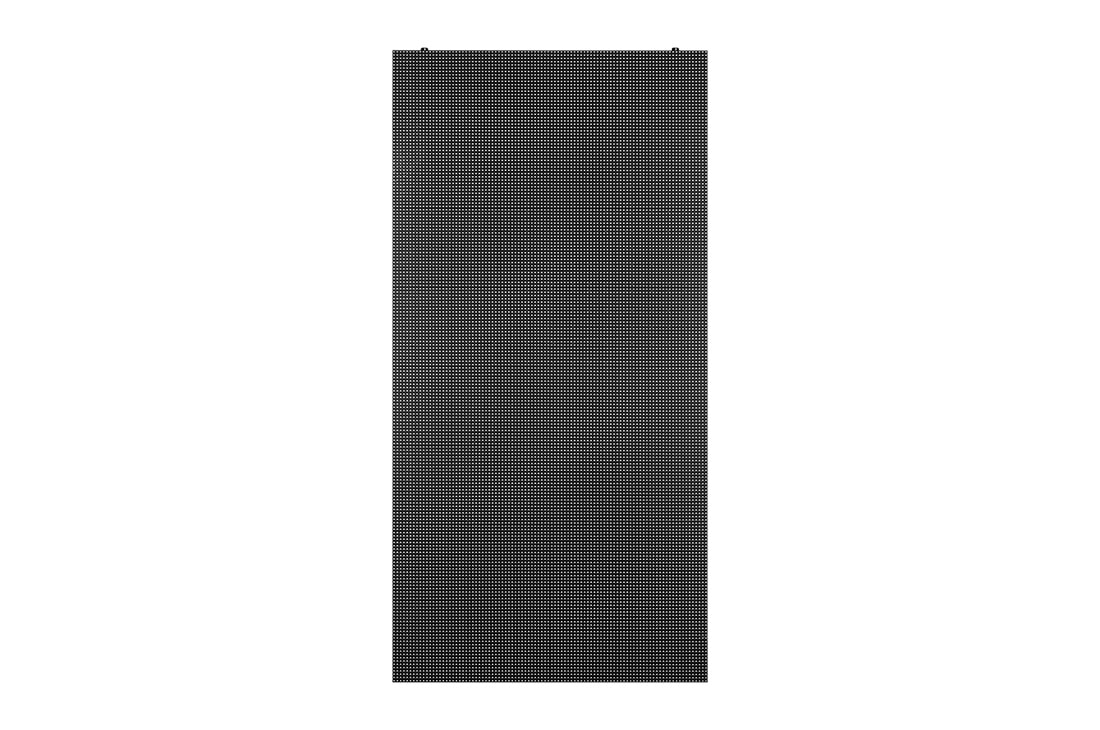

LG Outdoor LED Display for Seaside Environments, Front view, GNEA083-GN, thumbnail 2

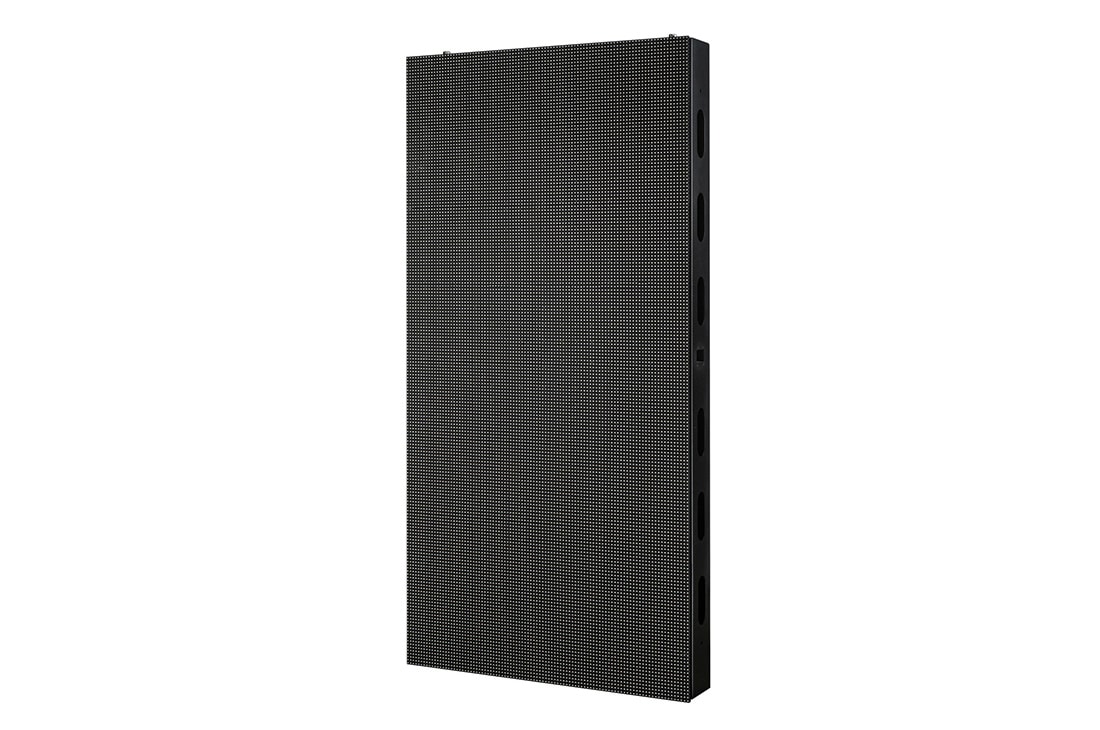

LG Outdoor LED Display for Seaside Environments, -45 degree side view, GNEA083-GN, thumbnail 3

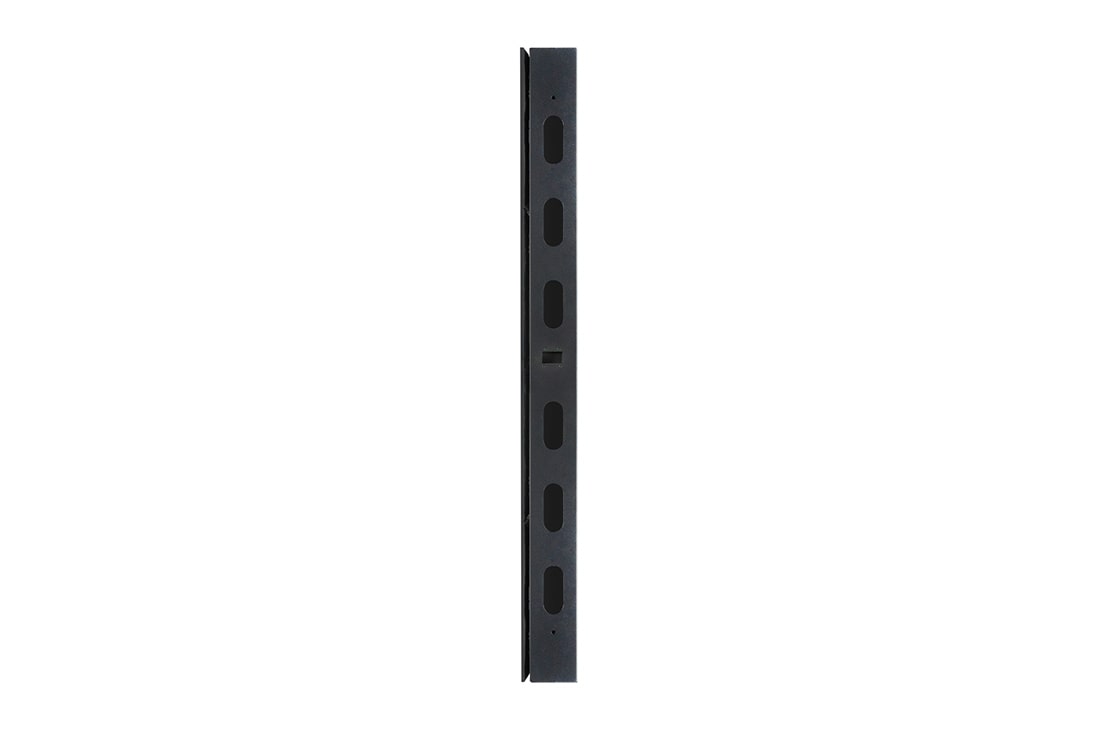

LG Outdoor LED Display for Seaside Environments, -90 degree rear view, GNEA083-GN, thumbnail 4

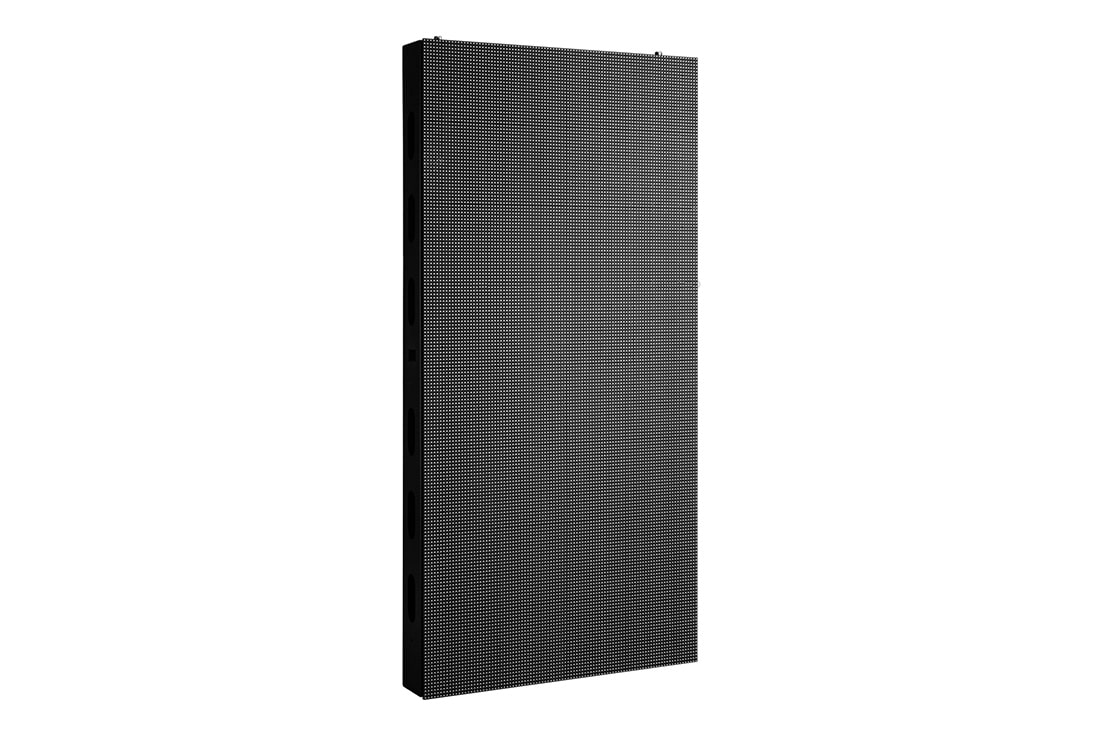

LG Outdoor LED Display for Seaside Environments, +45 degree side view, GNEA083-GN, thumbnail 5

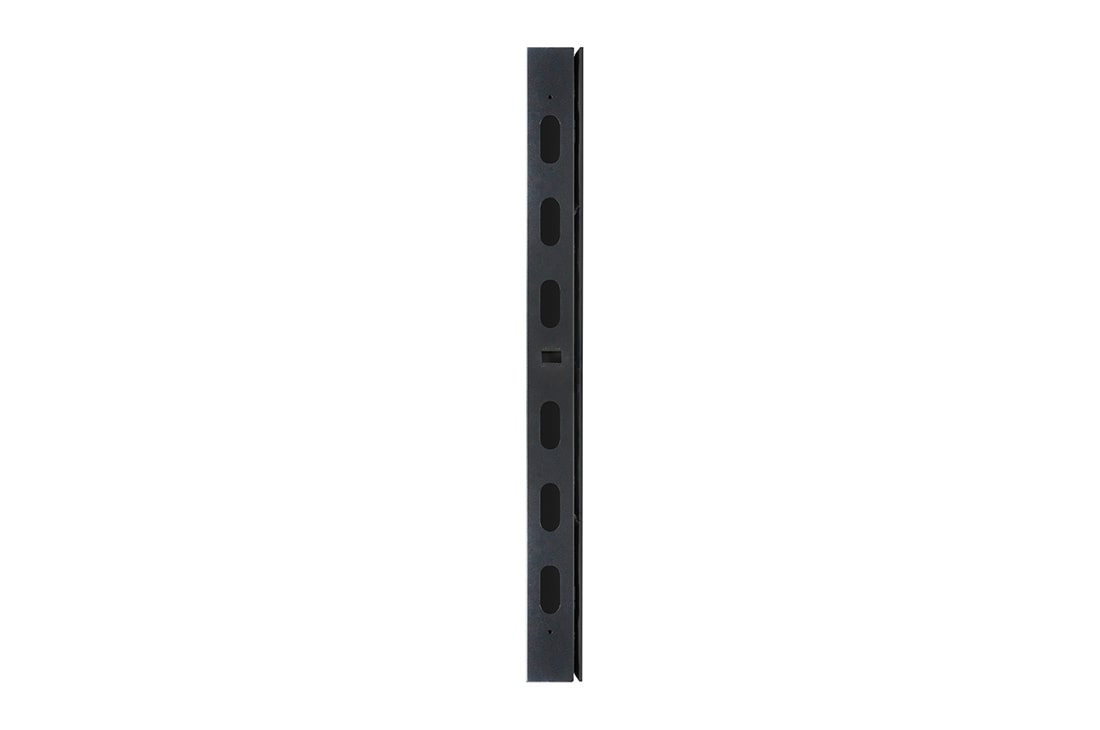

LG Outdoor LED Display for Seaside Environments, +90 degree rear view, GNEA083-GN, thumbnail 6

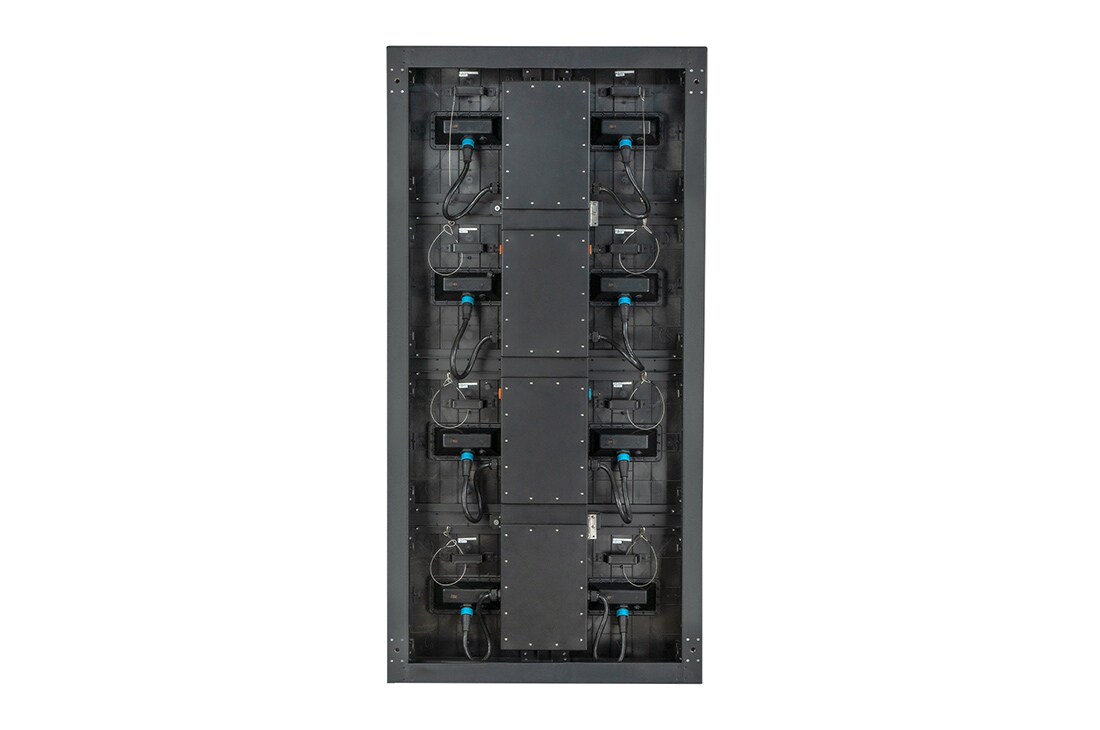

LG Outdoor LED Display for Seaside Environments, Rear view, GNEA083-GN, thumbnail 7

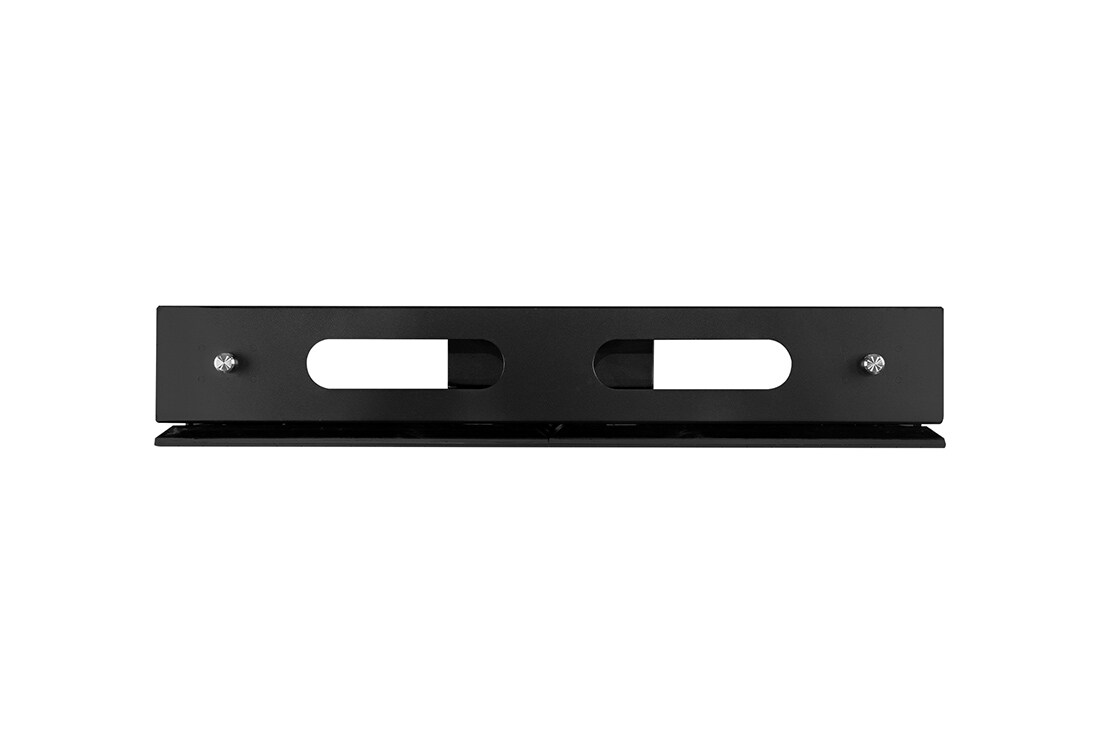

LG Outdoor LED Display for Seaside Environments, Top view, GNEA083-GN, thumbnail 8

ADD TO WISHLIST

Discontinued

GNEA083-GN component-copyModelName

Outdoor LED Display for Seaside Environments

Name: Outdoor LED Display for Seaside Environments
Brand: LG UAE
SKU: GNEA083-GN
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 8.33 mm
Brightness: 6,000 nit
IP Rating: IP67
Durability for Rough Environment
Safe Installation and Maintenance
High Refresh Rate

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 8.33 mm
Brightness: 6,000 nit
IP Rating: IP67
Durability for Rough Environment
Safe Installation and Maintenance
High Refresh Rate

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Outdoor LED Display for Seaside Environments

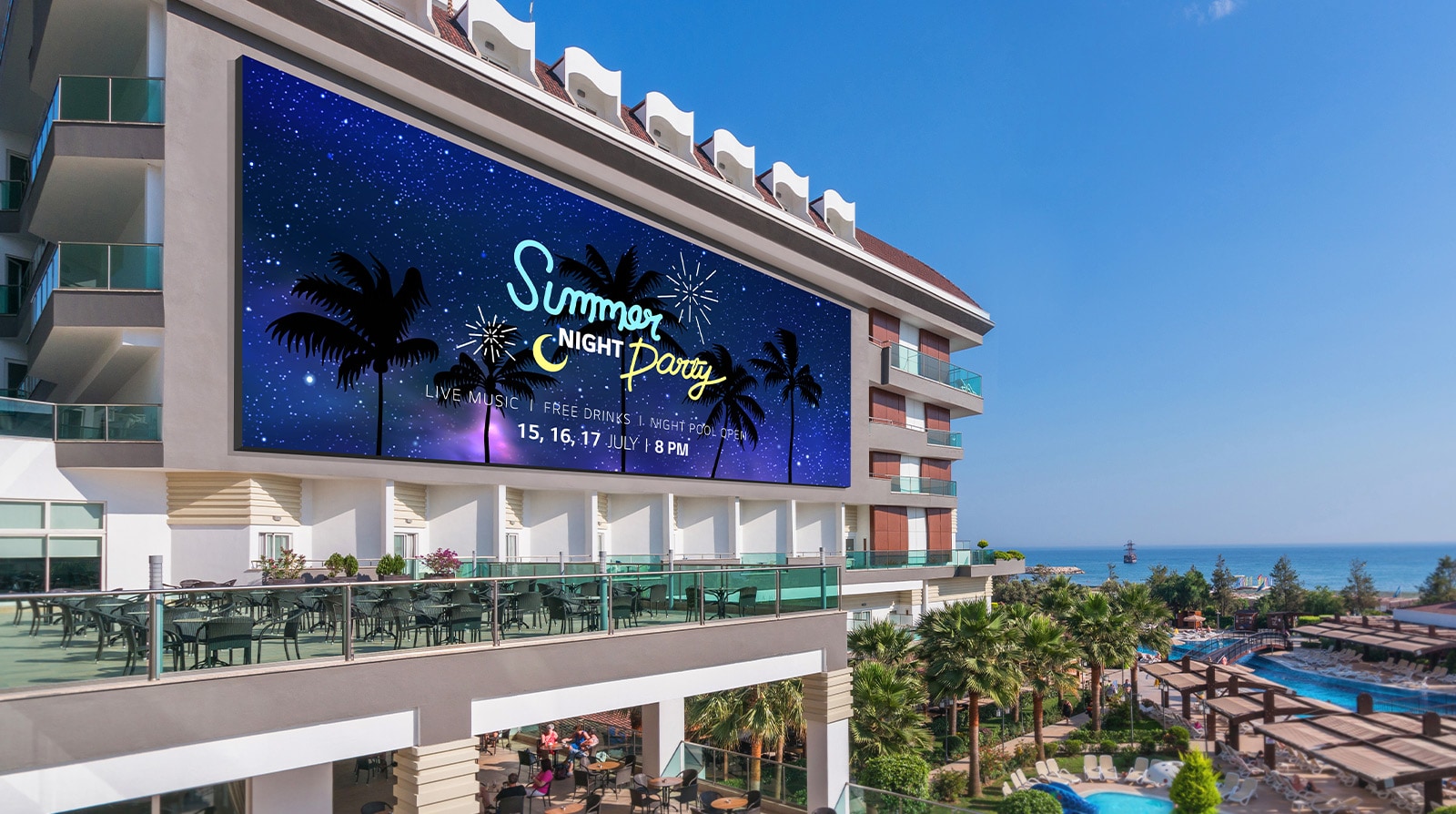

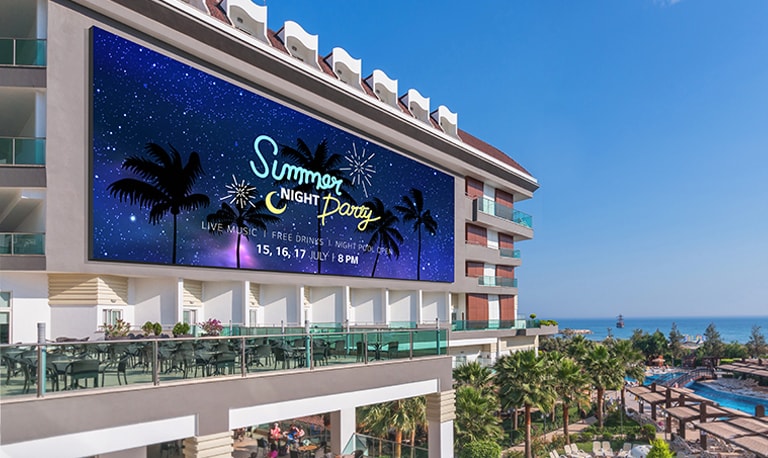

A large LED is installed on the building’s outer wall next to a resort’s outdoor swimming pool by the beach, and it clearly shows the resort’s event advertisement.

* All images in this page are for illustrative purposes only.

Durability for Rough Environment

GNEA series provides durability with marine-grade powder coating and conformal coating to protect against salinity and corrosion in marine environments and weather conditions. Both the front and rear of the cabinet are IP67-certified and offer reliable designs for seaside, allowing stable power and data connections protected by outdoor environmental factors such as wet weather and the salinity.

GNEA series has Conformal Coating on the power board to protect LED even in a humid or salty environment.

* Metal parts meet Qualicoat standards.

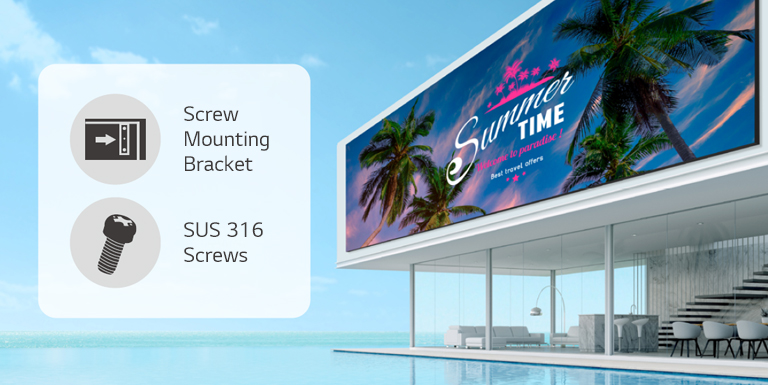

More Durable LEDs that used a screw mounting bracket and SUS 316 screws are installed on the swimming pool building’s outer wall.

Safe Installation and Maintenance

GNEA series offers safe and hassle free installation and maintenance with a powerful screw mounting bracket. Applying SUS 316 screws further protects against salt corrosion, leading to increased durability.

There is a LED screen and the screen is being watched with mobile phone camera. Despite showing the same advertisement, the conventional screen shows black bars, but the GNEA series clearly shows the original screen.

High Refresh Rate

A high refresh rate of 7,680 Hz assures the smooth playback of content. The flicker-free image prevents the black bars that typically occur during video playback, and reduces eye strain and blurred images for viewers.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GNEA series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

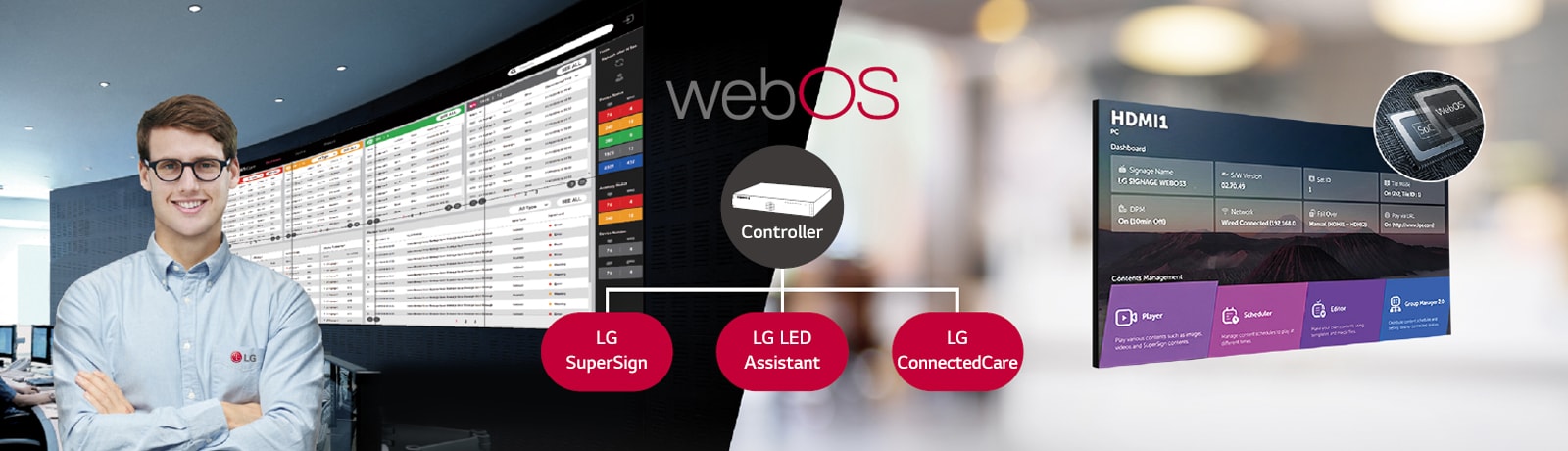

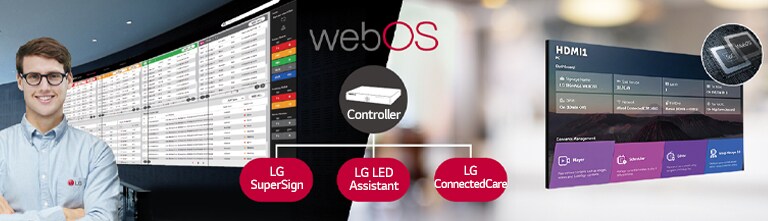

"The LG employee is remotely monitoring the GNEA series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GNEA series to be compatible with LG software solutions. "

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.

PHYSICAL PARAMETERS

Pitch Name

P8.33

Pixel Configuration

Single SMD
Pixel Pitch(mm)

8.33

Module Resolution (WxH)

48x48
Module Dimensions(WxH,mm)

400x400

Weight per Module (kg)

2.45
No. of Modules per Cabinet (WxH)

2x4

Cabinet Resolution (WxH)

96x192
Cabinet Dimensions (W x H x D, mm)

800x1,600x143.5

Cabinet Surface Area (m²)

1.280
Weight per Cabinet (kg/unit)

40.0

Weight per Square Meter (kg/m²)

31.3
Physical Pixel Density (pixels/m²)

14,400

Flatness of Cabinet (mm)

±1.0
Cabinet Material

Al

Service access

Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

6,000

Color Temperature (K)

3,500~8,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

125
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

5,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

950

Power Consumption (W/Cabinet, Avg.)

380
Power Consumption (W/m², Max.)

742

Heat Dissipation (BTU/h/Cabinet, Max.)

3,242
Heat Dissipation (BTU/h/Cabinet, Avg.)

1,297

Heat Dissipation (BTU/h/m², Max.)

2,533
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

7,680

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30°C to +50°C
Operating Humidity

0~90%RH

IP rating Front

IP67
IP rating Rear

IP67

CERTIFICATION

Certification

CE,FCC,ETL

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

CVEA

90 degree corner cut

90 degree corner cut

Yes
