GSEH160-GR component-copyModelName

Ultra High Brightness Series

LG Ultra High Brightness Series, Front view with infill image, GSEH160-GR, thumbnail 1

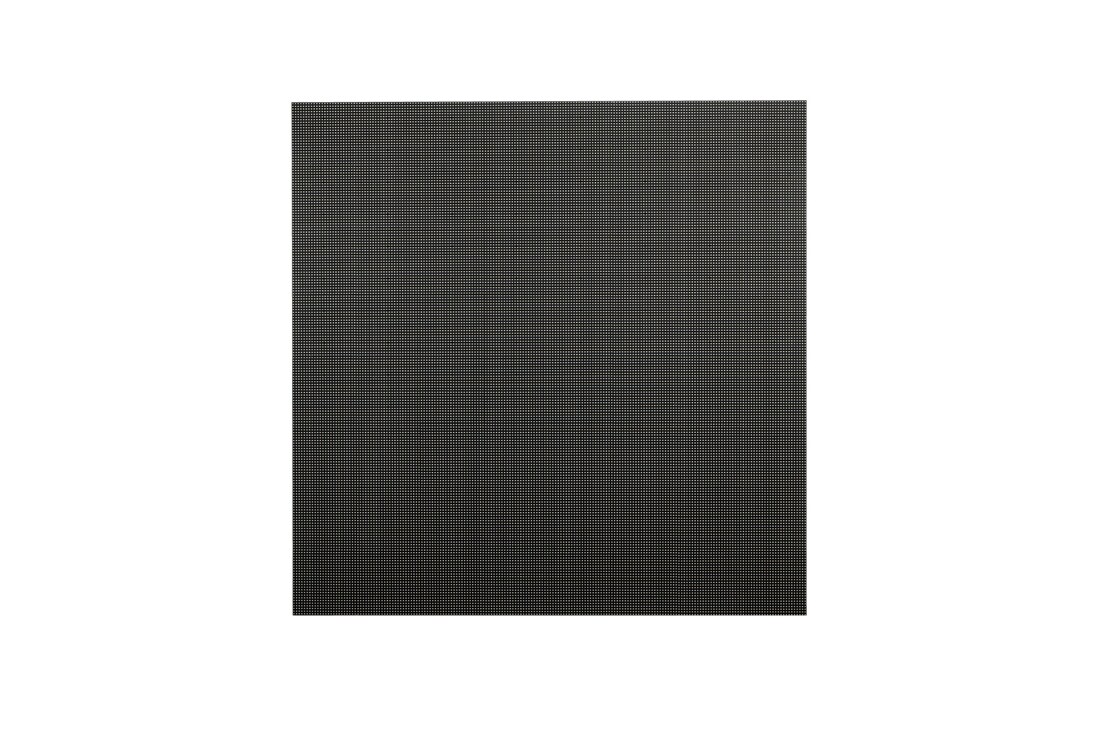

LG Ultra High Brightness Series, Front view, GSEH160-GR, thumbnail 2

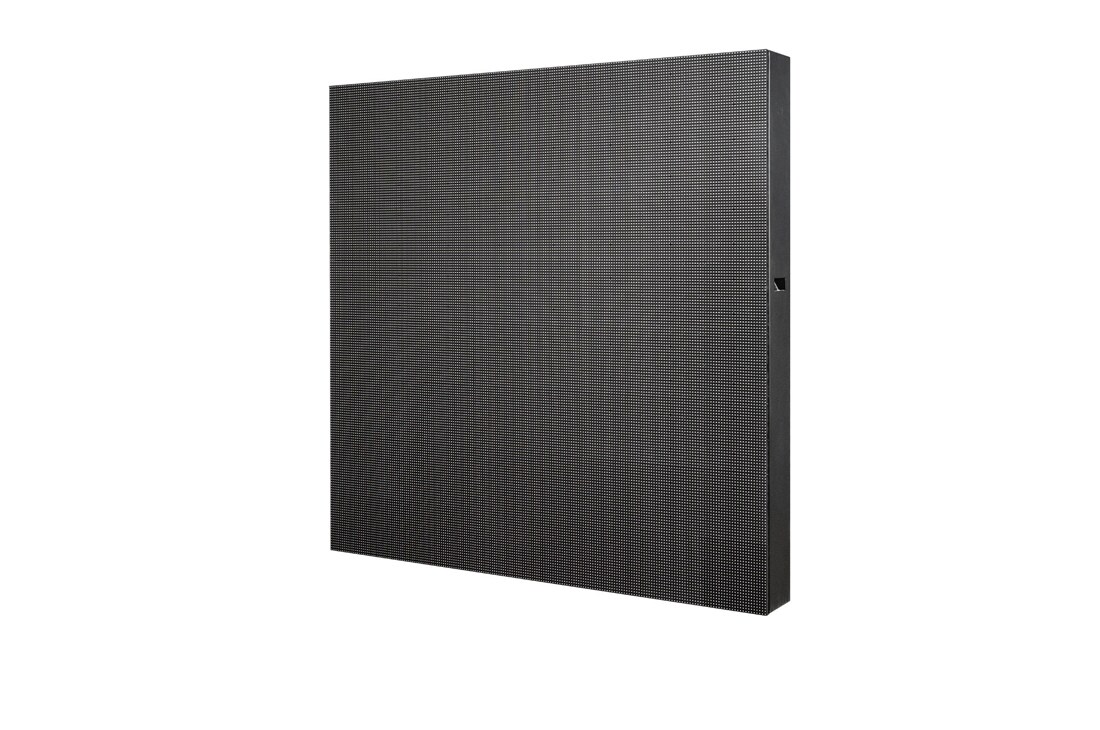

LG Ultra High Brightness Series, -45 degree side view, GSEH160-GR, thumbnail 3

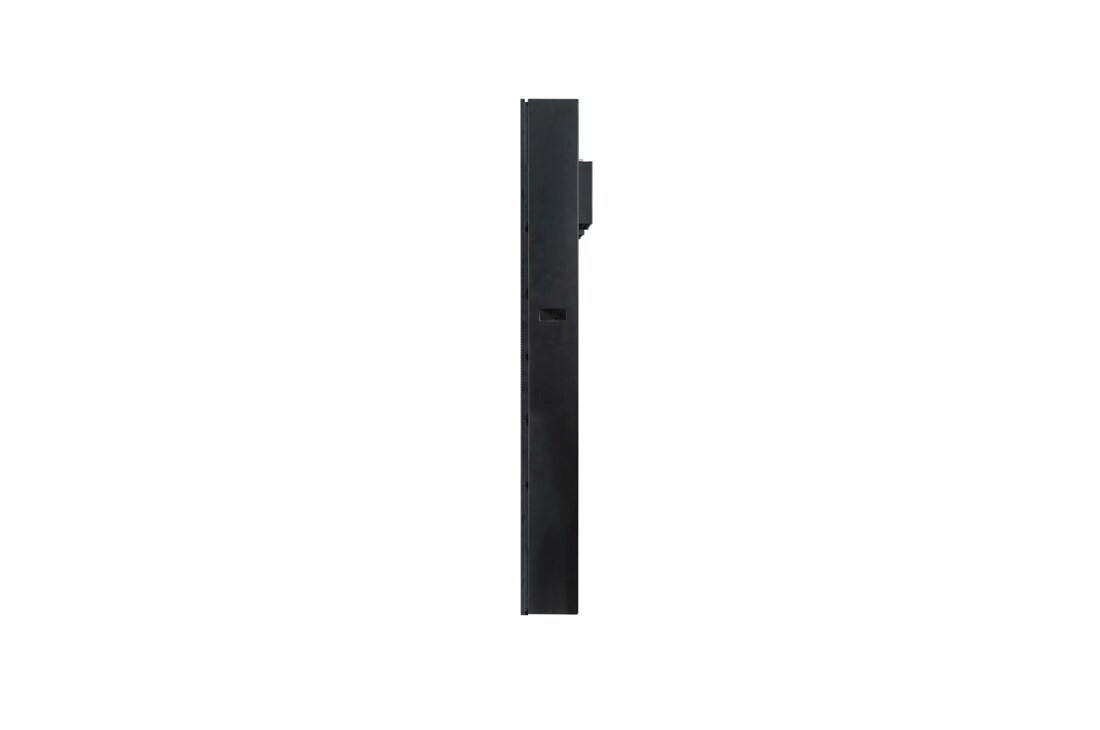

LG Ultra High Brightness Series, -90 degree rear view, GSEH160-GR, thumbnail 4

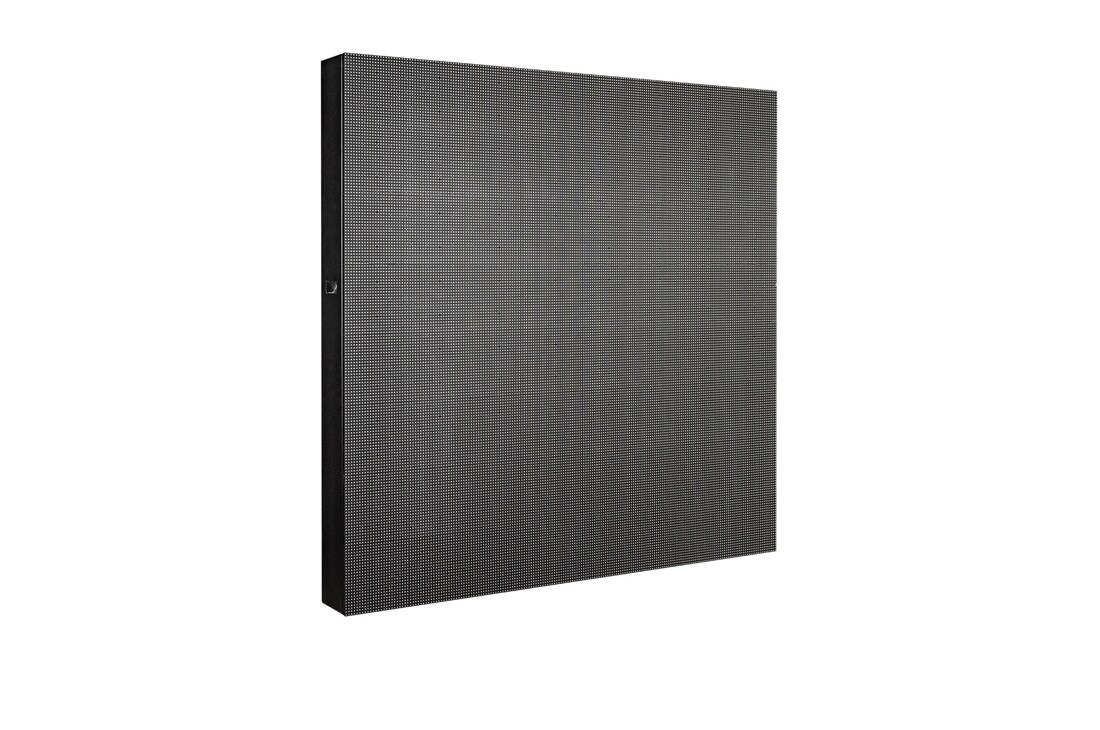

LG Ultra High Brightness Series, +45 degree side view, GSEH160-GR, thumbnail 5

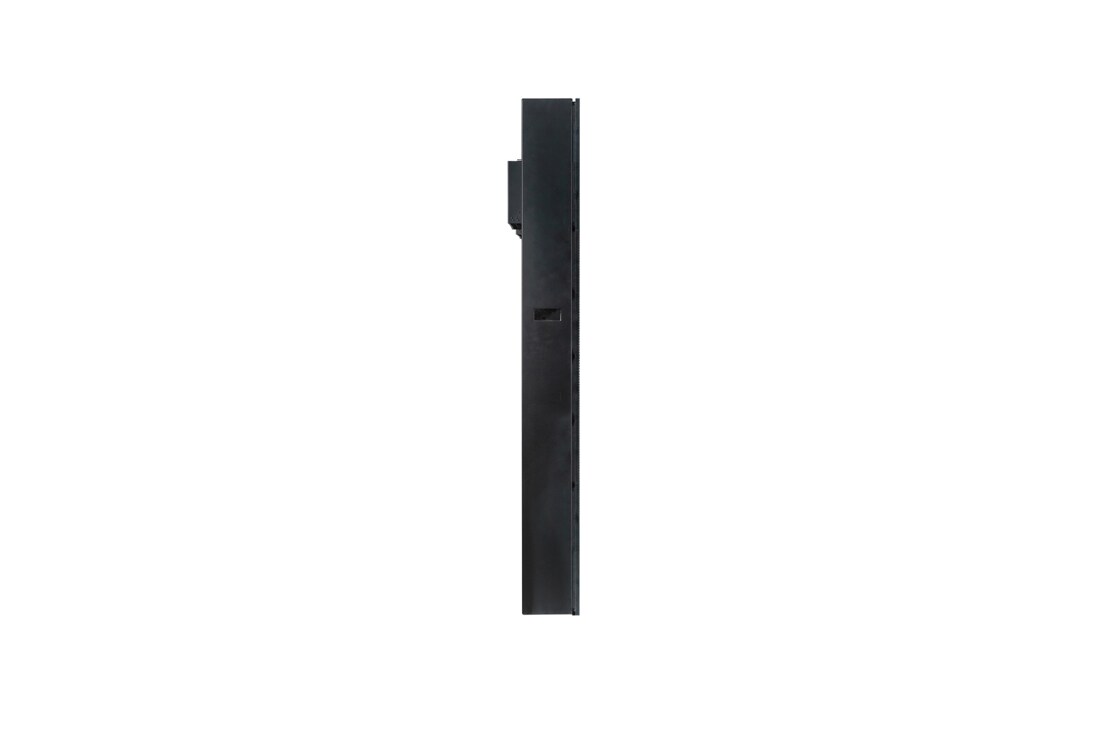

LG Ultra High Brightness Series, +90 degree rear view, GSEH160-GR, thumbnail 6

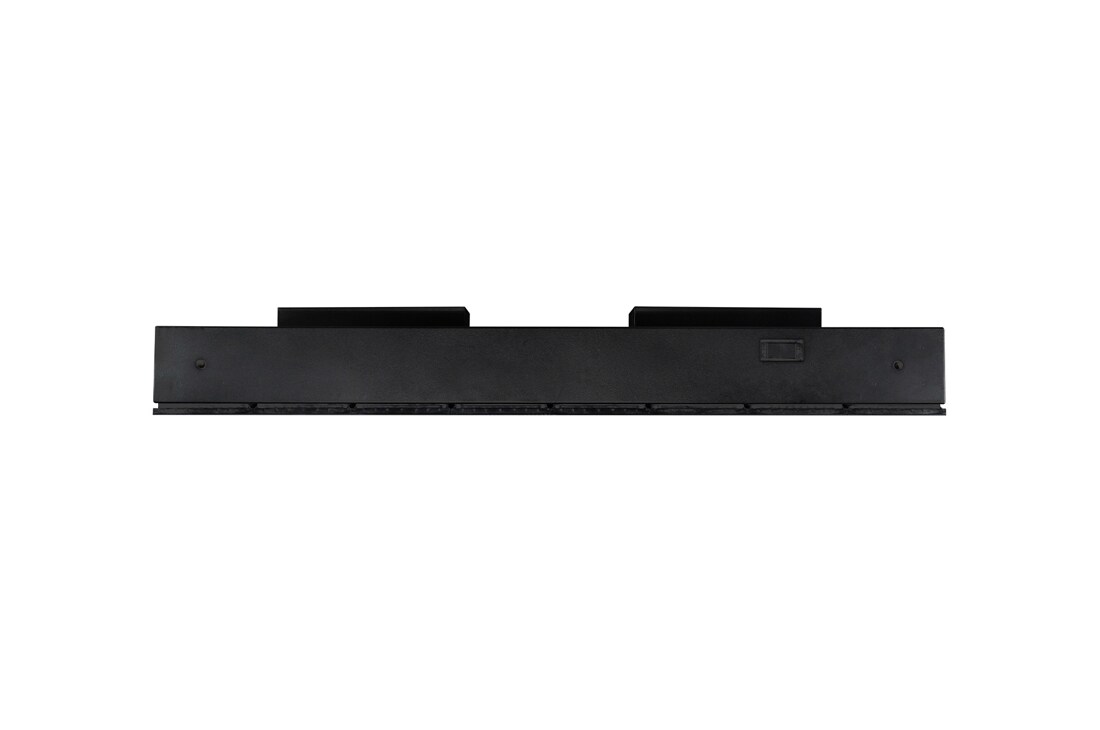

LG Ultra High Brightness Series, Top view, GSEH160-GR, thumbnail 7

ADD TO WISHLIST

Discontinued

GSEH160-GR component-copyModelName

Ultra High Brightness Series

Name: Ultra High Brightness Series
Brand: LG UAE
SKU: GSEH160-GR
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 16.00 mm
Brightness: 8,500 nit
Quick Installation
Easy Maintenance
Front and Rear Serviceability
Compatibility with LG Software Solutions

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 16.00 mm
Brightness: 8,500 nit
Quick Installation
Easy Maintenance
Front and Rear Serviceability
Compatibility with LG Software Solutions

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Ultra High Brightness Series

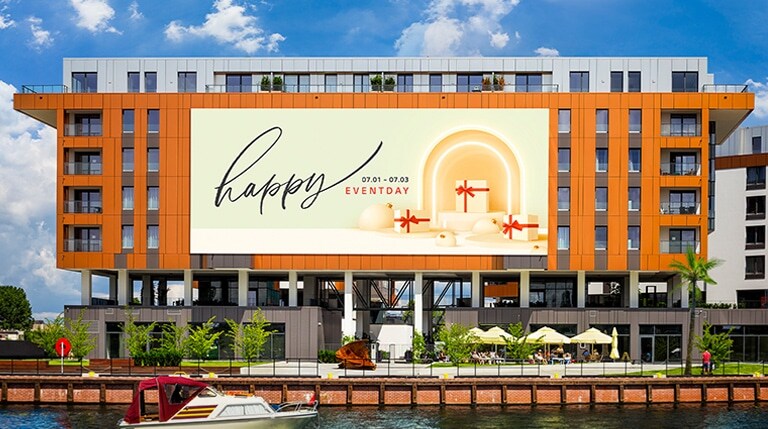

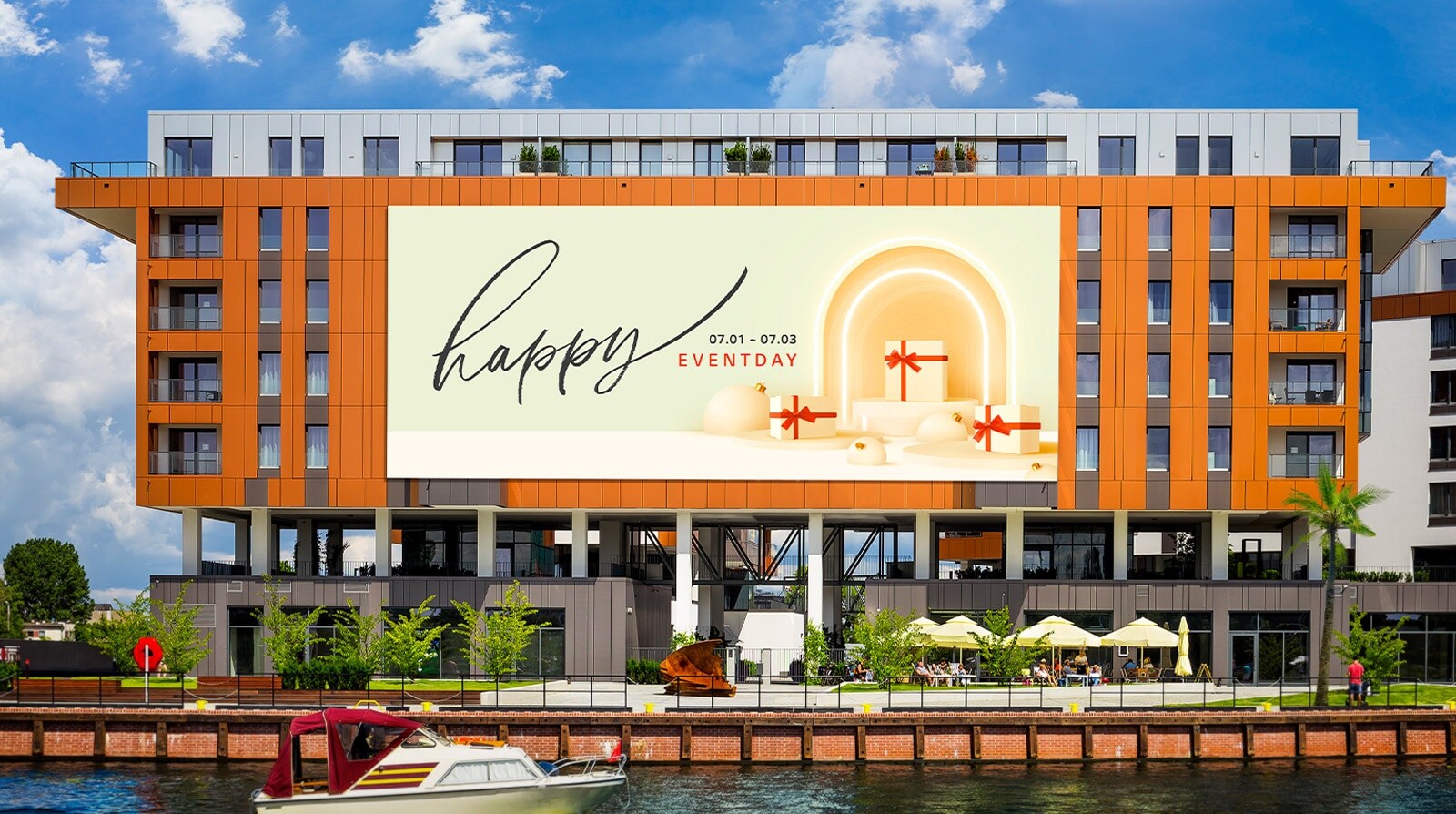

A large LED is installed on the 6th floor exterior wall of a building. Even in the strong sunlight, the screen’s contents are clearly visible.

* All images in this page are for illustrative purposes only.

Ultra High Brightness

With a great brightness of 8,500 nits, it clearly delivers content and attracts public attention, which is the suitable display for outdoor visibility.

In the strong sunlight, the 5,000 nits LED screen becomes blurred by light and cannot be seen clearly, while the 8,500 nits LED screen is clearly visible.

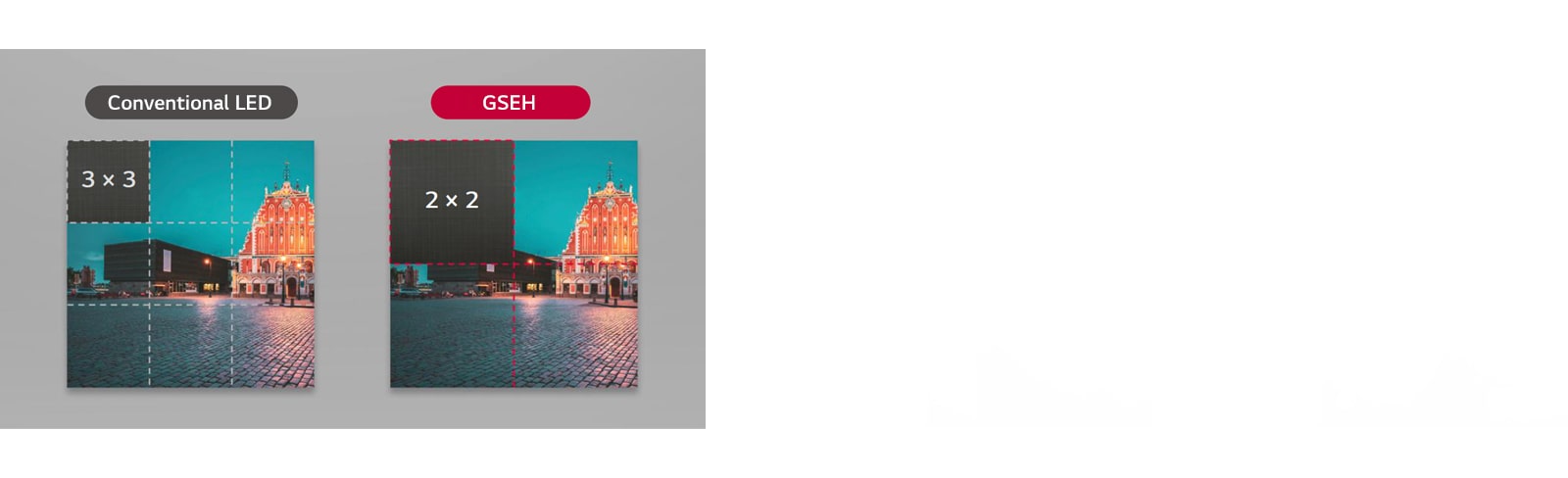

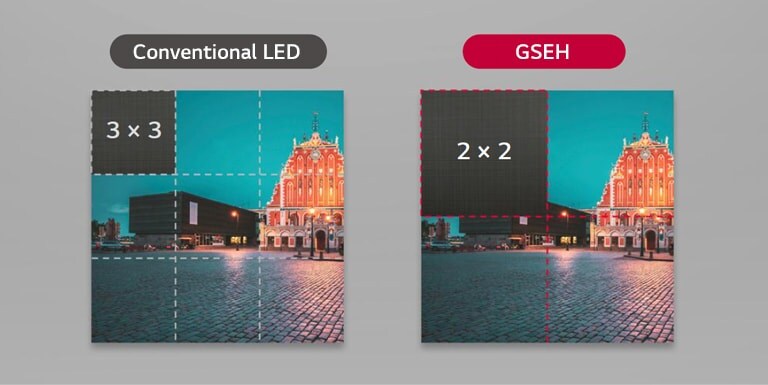

The GSEH cabinet is 1.5 times larger than the conventional LED’s cabinet.

Quick Installation

The GSEH series is 1.5 times larger than a conventional LED cabinet, making it much easier to fit a screen of the same size.

* Normal size is 1.536 × 1.536 m except GSEH060 (1,152 × 768 mm)
* Conventional LED (e.g. GSED series) cabinet size is 1.0 × 1.0 m

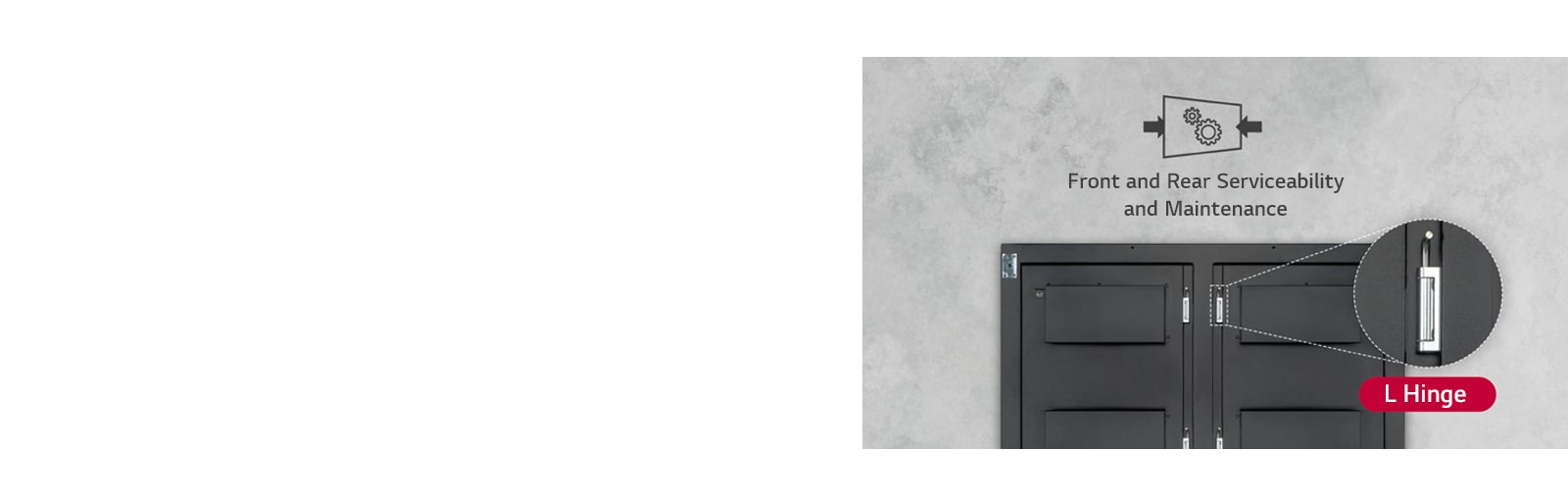

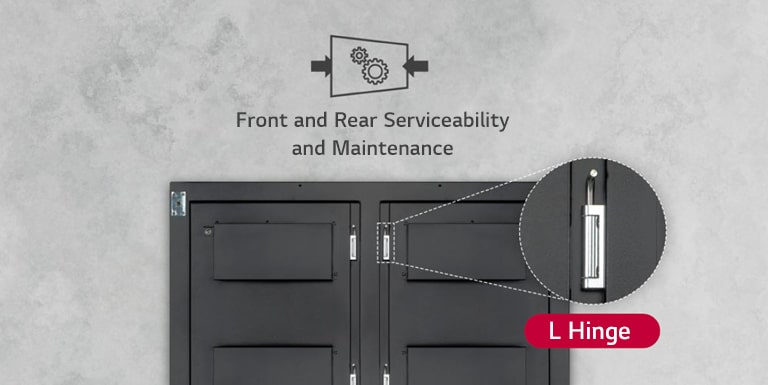

It shows the enlarged image of an L hinge which is on the rear product.

Easy Maintenance

Both front and rear are supported. When rear service is required, the door itself can be removed as it is with an L-shaped hinge, which allows maintenance to be performed in a narrower space.

Compatibility with LG Software Solutions

When connected with LG's CVEA system controller, the GSEH series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

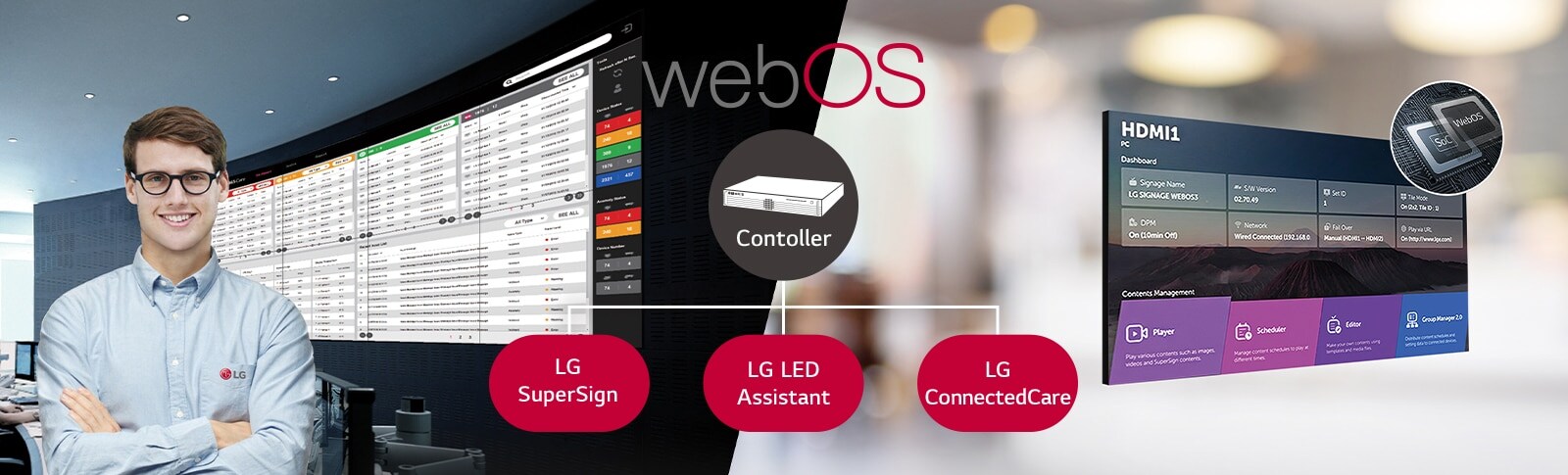

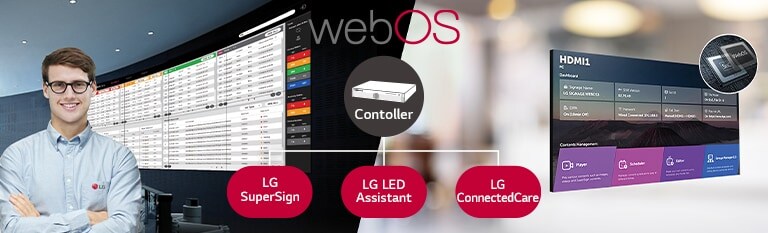

The LG employee is remotely monitoring the GSEH series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables GSEH series to be compatible with LG software solutions.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* SuperSign CMS service needs to be purchased separately.

PHYSICAL PARAMETERS

Pixel Configuration

Single SMD

Pixel Pitch(mm)

16.00
Module Resolution (WxH)

12x12

Module Dimensions(WxH,mm)

192x192
Weight per Module (kg)

0.56

No. of Modules per Cabinet (WxH)

8x8
Cabinet Resolution (WxH)

96x96

Cabinet Dimensions (W x H x D, mm)

1,536x1,536x227
Cabinet Surface Area (m²)

2.359

Weight per Cabinet (kg/unit)

104.0
Weight per Square Meter (kg/m²)

44.1

Physical Pixel Density (pixels/m²)

3,906
Flatness of Cabinet (mm)

±1.0

Cabinet Material

Al
Service access

Front and Rear

OPTICAL SPECIFICATIONS

Max Brightness (After Calibration, nit)

8,500

Color Temperature (K)

3,500~8,500
Visual Viewing Angle (Horizontal)

160

Visual Viewing Angle (Vertical)

105
Brightness Uniformity

97%

Color Uniformity

±0.05Cx,Cy
Contrast Ratio

10,000:1

Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

1,690

Power Consumption (W/Cabinet, Avg.)

676
Power Consumption (W/m², Max.)

716

Heat Dissipation (BTU/h/Cabinet, Max.)

5,767
Heat Dissipation (BTU/h/Cabinet, Avg.)

2,307

Heat Dissipation (BTU/h/m², Max.)

2,445
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION SPECIFICATIONS

LED Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-30°C to +50°C
Operating Humidity

0~90%RH

IP rating Front

IP65
IP rating Rear

IP54

CERTIFICATION

Certification

CE,FCC,ETL

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

CVEA

90 degree corner cut

90 degree corner cut

Yes
