LG LED All-in-One

LED Display Supporting FHD Resolution

In a spacious meeting room with long tables on both sides, a LABA series which is TAA (Trade Agreements Acts) compliant All-in-One LED model is placed against the wall. The LABA screen displays meeting content vividly. In a spacious meeting room with long tables on both sides, a LABA series which is TAA (Trade Agreements Acts) compliant All-in-One LED model is placed against the wall. The LABA screen displays meeting content vividly.
* All images in this page are for illustrative purposes only and may differ from the actual product.
* Stand accessory needs to be purchased separately.

Easy Installation (for FHD Resolution Configuration Case)

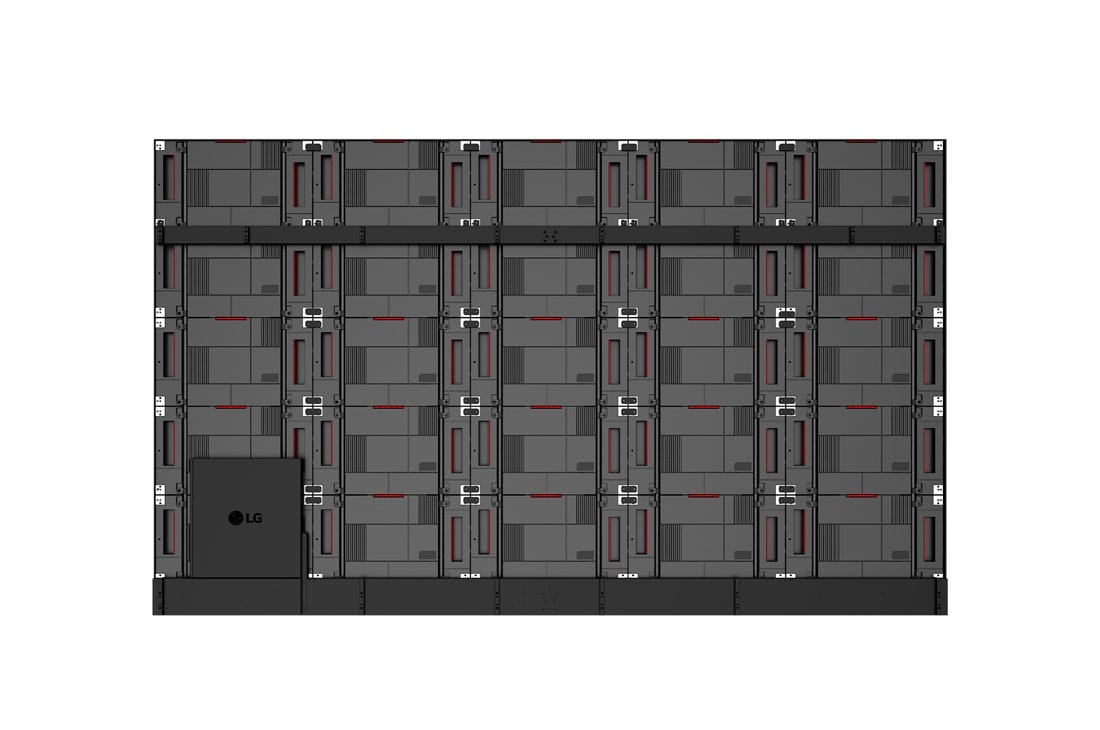

Thanks to the carbon fiber tubes and locks located behind the cabinets, installation is straightforward. Simply place the 5 units of cabinets, connect and secure them with locking catches. Then the assembly is done. 5 cabinets forming a unit are pre-assembled with carbon fiber tubes and each unit can be held tightly with lock catches.
This consists of a total of 3 images illustrating the installation steps to place 5 units of cabinets, secure the units, and install a control box. This shows how LABA series can be installed with ease. This consists of a total of 3 images illustrating the installation steps to place 5 units of cabinets, secure the units, and install a control box. This shows how LABA series can be installed with ease.
* Fixing screws or installing wall mount/accessories is needed additionally.

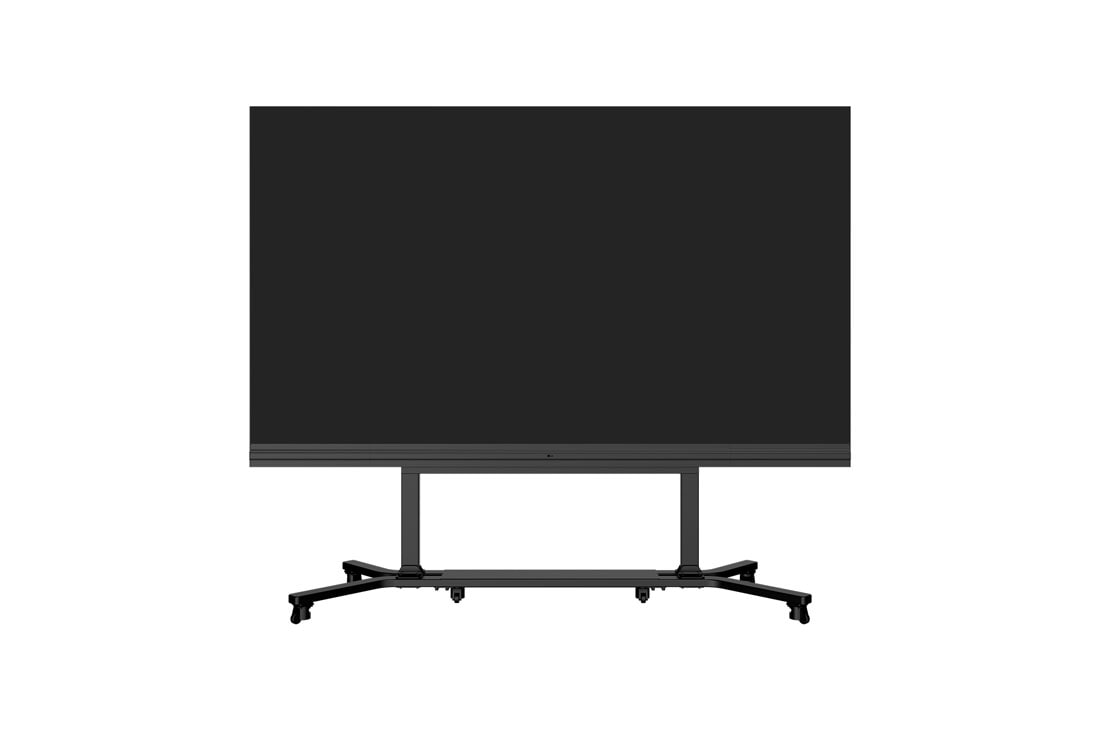

Dedicated Installation Accessories (for FHD Resolution Configuration Case)

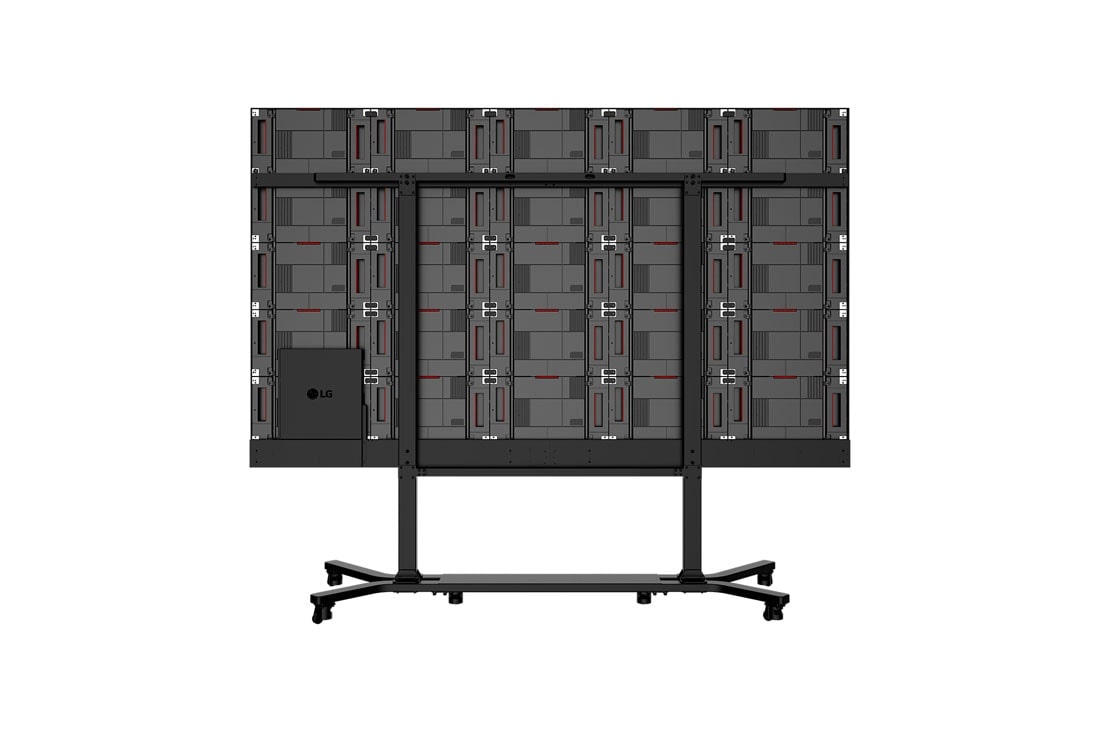

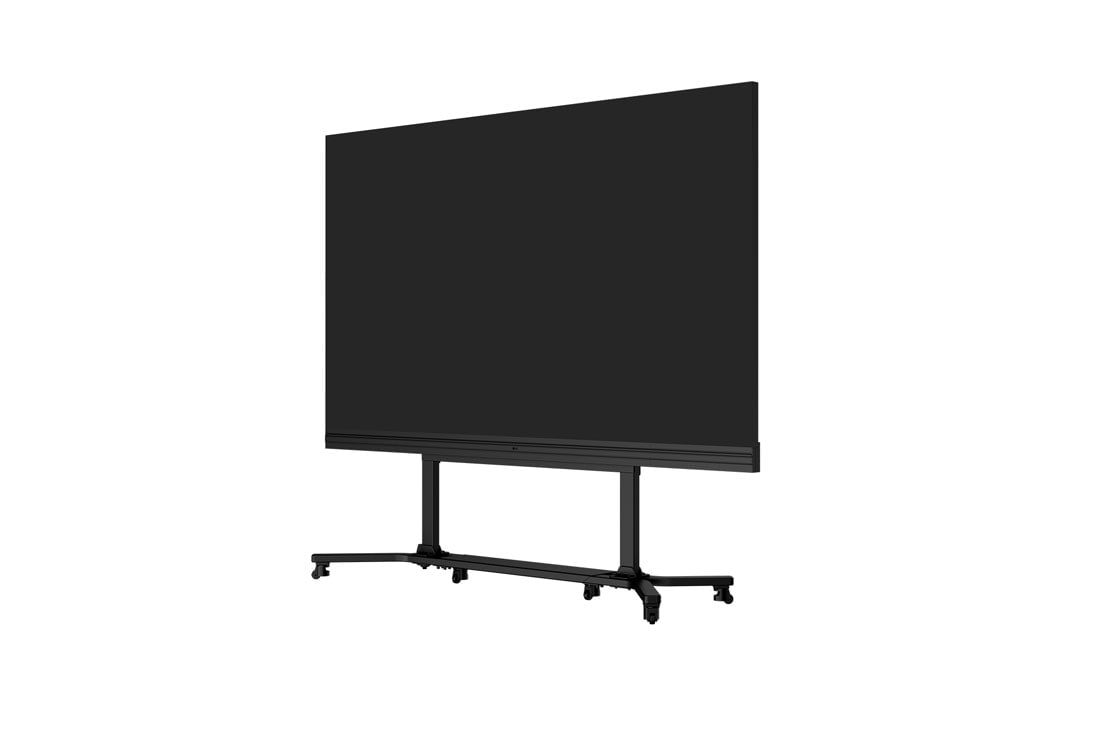

The product includes necessary components including the landscape wall mount and tools for installation. The dedicated stand is provided as an option, so that you can easily place it depending on your installation sites.
"The LABA series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images. The LABA’s have been installed along with the motorized stand in an event hall." "The LABA series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images. The LABA’s have been installed along with the motorized stand in an event hall."
* Stand accessory needs to be purchased separately.

Display Power Management (DPM)

The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.
The LABA series can be set to be in standby mode when there is no signal from the input source device. The LABA series can be set to be in standby mode when there is no signal from the input source device.

Real-time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.
The one of LG employee is remotely monitoring the LABA LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare. The one of LG employee is remotely monitoring the LABA LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare.
* The availability of LG ConnectedCare differs by region.
** Stand accessory needs to be purchased separately.
*** LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.
LABA015-GD
  • Notice

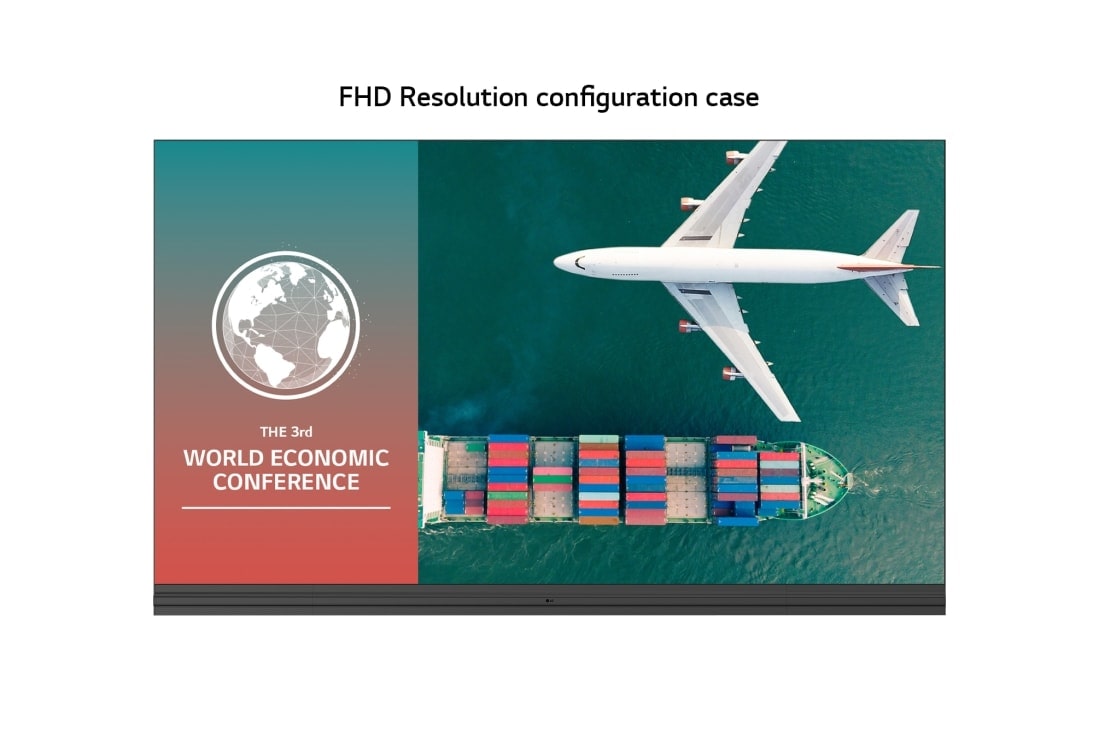

    The below is the specification for FHD Resolution Configuration Case with LABA015-GD 5 × 5
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.575
  • Screen Resolution (W × H)
    1,920 × 1,080
    Module Dimensions (W x H, mm)
    151.2 × 340.2
  • No. of Modules per Screen (W × H)
    20 × 5 (Total 100)
    Screen Dimension (W x H x D,mm)
    3,035 × 1,821.5 × 45.5 (Thickest 83.5)
  • Screen Surface Area (m²)
    5.14
    Screen Weight (kg)
    154
  • Physical Pixel Density (pixels/m²)
    403,124
    Flatness of Cabinet (mm)
    ≤0.15
  • Cabinet Material
    Die-casting Aluminum
    Service access
    Front
OPTICAL SPECIFICATIONS
  • Max. Brightness (nit, after calibration)
    500
    Color Temperature (K)
    3,200-9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003 Cx, Cy
  • Contrast Ratio
    8,000 : 1
    Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Screen, Max.)
    1,600
    Power Consumption (W/Screen, Avg.)
    950
  • Power Consumption (W/m², Max.)
    300
    Power Consumption (BTU/h/Screen, Max.)
    5,456
  • Power Consumption (BTU/h/Screen, Avg.)
    3,240
    Power Consumption (BTU/h/m², Max.)
    1,023
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0 to +40
  • Operating Humidity
    10-80% RH
    IP Rating (Front / Rear)
    IP50 / IP50

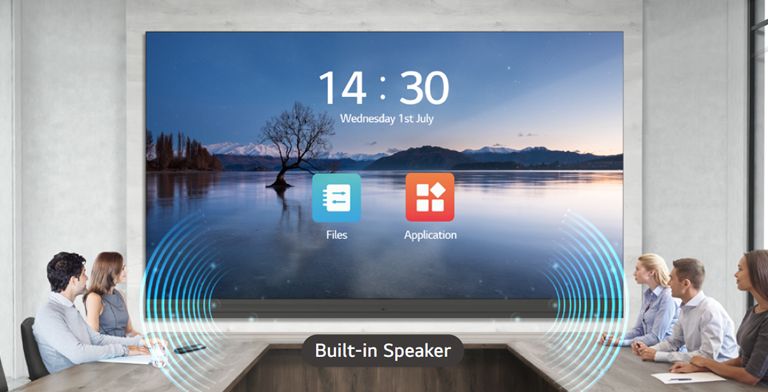

SPEAKER
  • Speaker
    Built-in (8 W + 8 W)
CERTIFICATION
  • Certification
    CE, FCC, cTUVus, CB, EMC Class A
Environment
  • Environment
    RoHS,REACH
CONTROLLER
  • Controller
    Embedded
REMOTE CONTROL

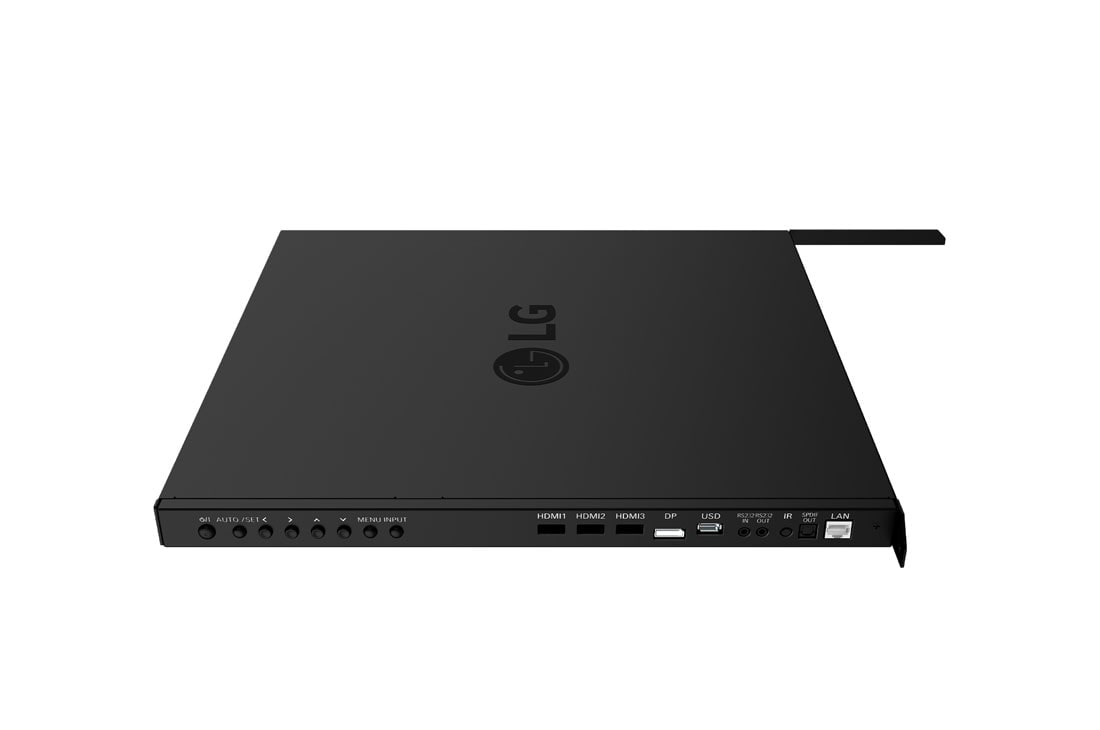

  • I/O Port
    HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out
SERIES
  • Series
    LABA
