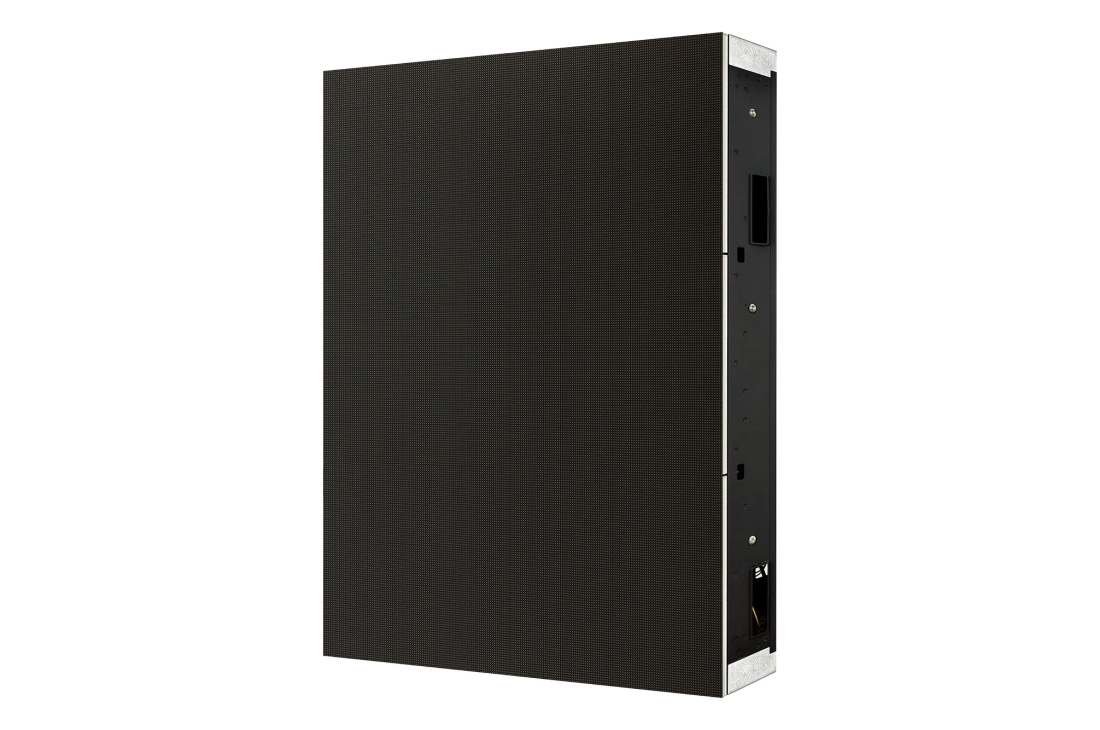

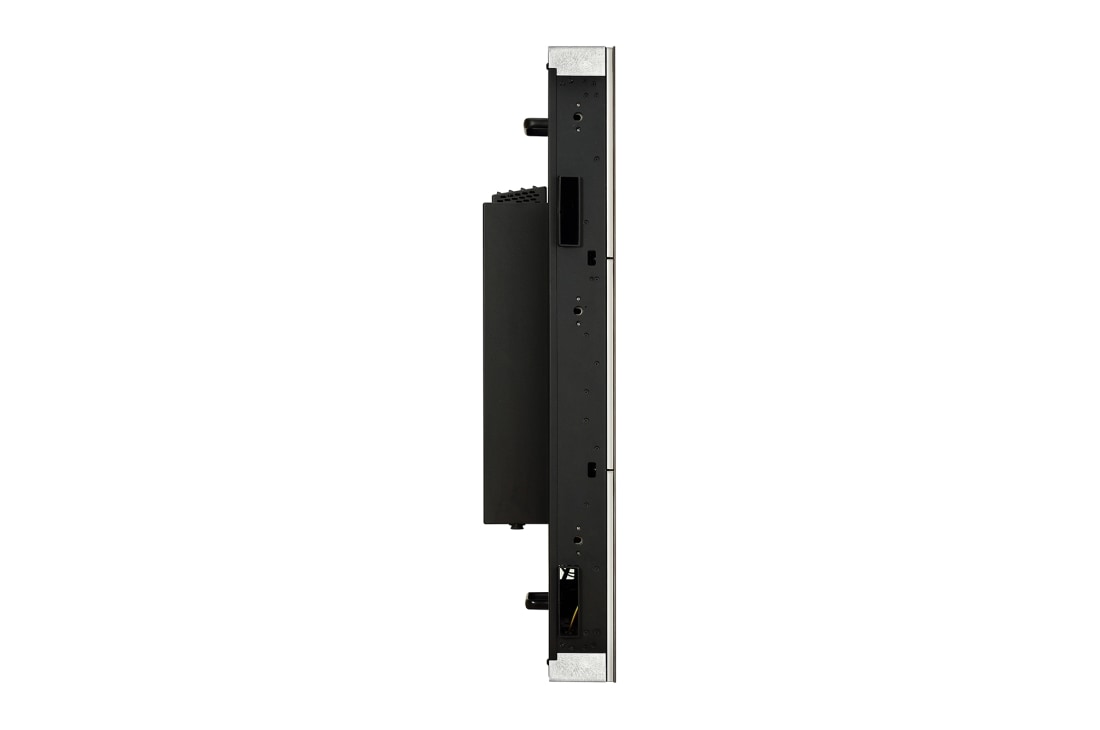

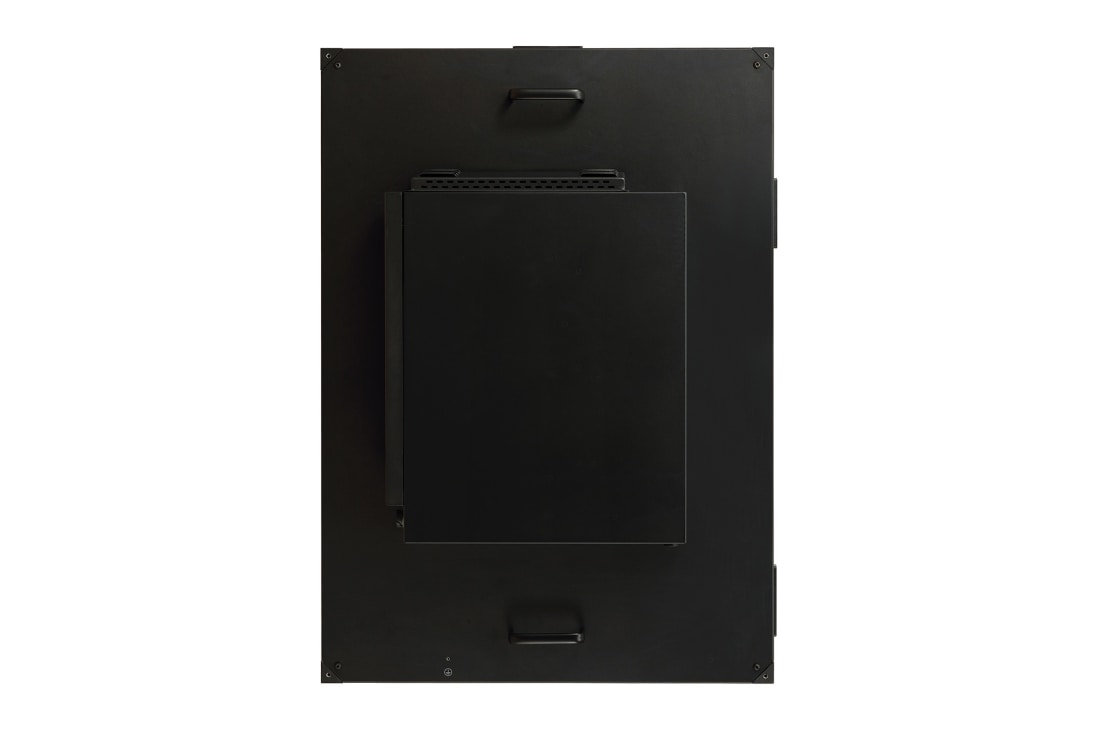

LG Miraclass, 4K Screen
Find a Dealer

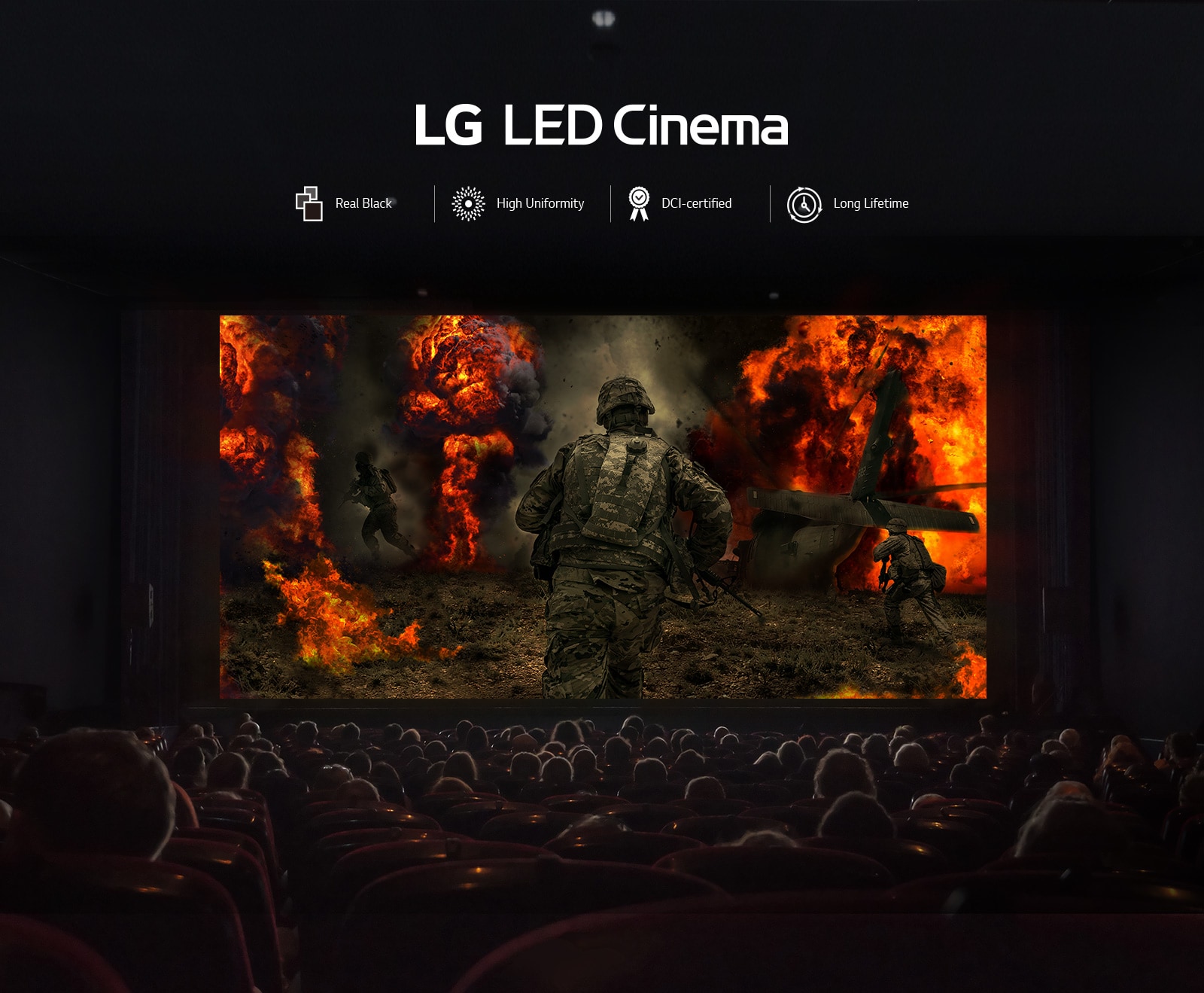

LG LED Cinema LG LED Cinema

Real Black, Infinite Darkness

The infinite contrast created by the individual LEDs that make up LG LED Cinema creates deep darkness of the content. By bringing fine details perfectly to the screen, it provides viewers an amazing sense of immersion that has never experienced before.
Real Black, Infinite Darkness. Real Black, Infinite Darkness.

Lifelike Colors

Most cinema screens feature a DCI-P3 Color Gamut spec, but the actual colors that the audience feels may be different. LG LED Cinema accurately reproduces the colors intended by the content creator and delivers the DCI-P3 Color more vividly.
Lifelike Colors. Lifelike Colors.

High Uniformity

Unlike standard projectors using a single light source, LG LED Cinema has LEDs emitting individually and offers an excellent brilliance uniformity. As there is no dimming and image distortion like fading, LG LED Cinema delivers a clearer & uniform image representation on the entire screen.
High Uniformity. High Uniformity.

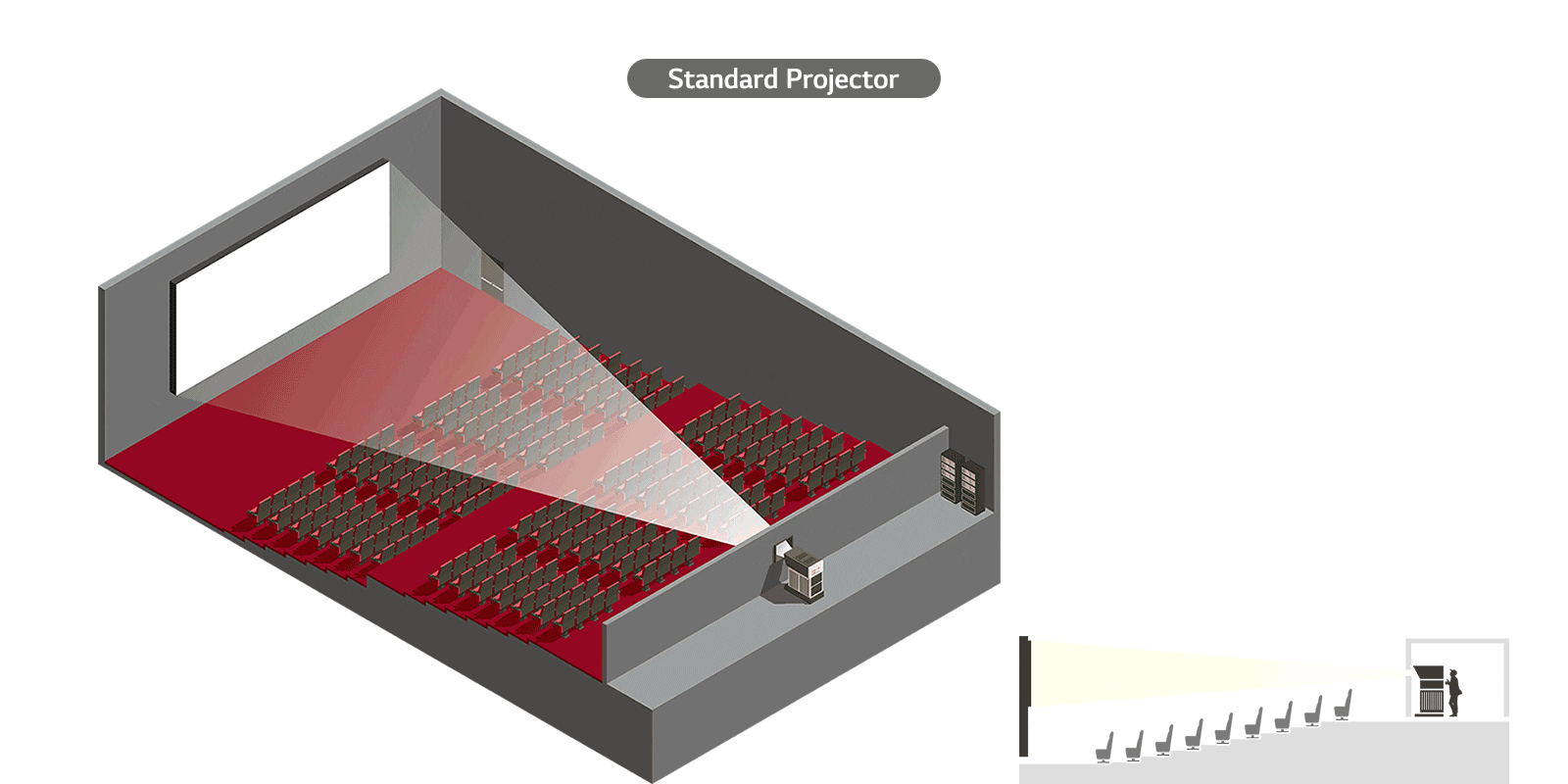

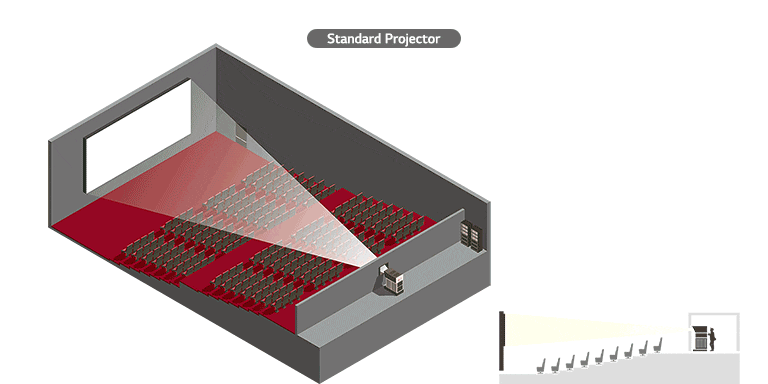

The Optimal Space Utilization

As LG LED Cinema does not need a projection room which is necessary in standard projector-style theaters, it guarantees maximizing profits by securing additional seats. A space behind the stuffy theater can be reinvented to more customer satisfying interiors.
The Optimal Space Utilization. The Optimal Space Utilization.

Compatibility with Dolby

LG LED Cinema has secured compatibility with Dolby Media Server and Dolby Atmos of Dolby, the global leader in the entertainment industry, to offer the most immersive experiences in sound, as well as picture quality.
Compatibility with Dolby. Compatibility with Dolby.
Longer Lifetime. Longer Lifetime.

Longer Lifetime

The LG LED Cinema boasts 100,000 hours of long lifetime and saves time and cost for maintenance. It doesn’t require placement of parts like lamps as conventional projectors used to.
Close
Optical Parameters
  • Pitch
    3.3 mm
    LED Type
    SMD
  • Pixels per LED Module
    8,640
    Aspect Ratio (per Cabinet)
    64 : 90
  • Resolution (per Cabinet)
    192 × 270
    Pixels (per Cabinet)
    51,840
  • Pixel Density (per SQM)
    90,000
    Frame (Video) Rate
    24 Hz, 25 Hz, 30 Hz, 48 Hz, 50 Hz, 60 Hz
  • Brightness (After Calibration)
    48 nit (DCI-compliant)
    Contrast Ratio
    4000 : 1 (Minimum)
  • Color Space (Gamut)
    DCI - P3 (DCI-compliant)
    Viewing Angle (Horizontal, Vertical)
    120º, 120º
  • Color Depth
    12 Bit (DCI-compliant)
    Chromaticity Uniformity
    In case of White : Within ±0.015 x, ±0.015 y
  • Color Temperature (White)
    (x. y) = (0.314, 0.351) / DCI-P3 Theater
    Color Temperature (R, G, B)
    DCI-P3 theater R: (x. y) = (0.68, 0.32)
    G: (x. y) = (0.265, 0.690)
    B: (x. y) = (0.15, 0.06)
  • Lifetime
    100,000 Hours (LED to Half Brightness)
    Operation Hours
    16 Hours per Day / 7 Days per Week
Physical/Electrical Parameters
  • Modules (per Cabinet)
    6 (2 × 3)
    Dimension (LDM)
    320 mm × 300 mm
  • Dimension (per Cabinet)
    640 mm × 900 mm × 124 mm (Including Handle)
    Dimension (4K, Total)
    14,080 mm × 7,200 mm (101 sqm)
  • Dimension (4K, Active Area)
    13,653 mm × 7,200 mm (98 sqm)
    Weight (per Cabinet)
    15 kg
  • Weight (4K, Total)
    2,640 kg
    Material of Cabinet Body
    Aluminum
  • Heat Generation (per Cabinet)
    221 BTU (Max.) / 73 BTU (Typ.)
    Serviceability
    Rear only
  • Power Supply
    AC100-240 V ~, 50/60 Hz
    Power Type
    Built-in Power
  • Power Consumption (Max, per Cabinet)
    90 watt (Main) / 52 watt (Secondary)
    Power Consumption (Max, 4K)
    9,260 W
  • Certification
    DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
    Supported Media Server
    Dolby® IMS3000
  • Interface
    RJ45
    Operation Temperature
    0°C to 40°C
  • Operation Humidity
    10% to 80%
    Storage Temperature
    -20°C to 60°C (-4°F to 140°F)
  • Storage Humidity
    5% to 85%

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Find a dealer to help with service for sales, installation, and after sales.
Business Unit is required
Address Unit is required.
  • sales
  • install
  • service
Please retry to enter zip code.

There is no data. Please retry to enter zip code.

Compare

0
Compare 0
*Prices, promotions and availability may vary by store and online. Prices subject to change without notice. Quantities are limited. Check with your local retailers for final price and availability.
Enjoy a total sense of immersion from the most advanced professional cinema screens with LG LED Cinema. These screens deliver stellar imagery without a projector with greater contrast between highlights and shadows, near-perfect blacks, and infinite contrast thanks to its individual LED technology. With DCI-P3 technology you'll also enjoy true-to-life colors, great picture uniformity, and compatibility with leading Dolby technology. Contact your local LG representative for more information.
