All-in-one Smart Series

Key Features

Choose your Pitch

component-OBScountrySelectDesc

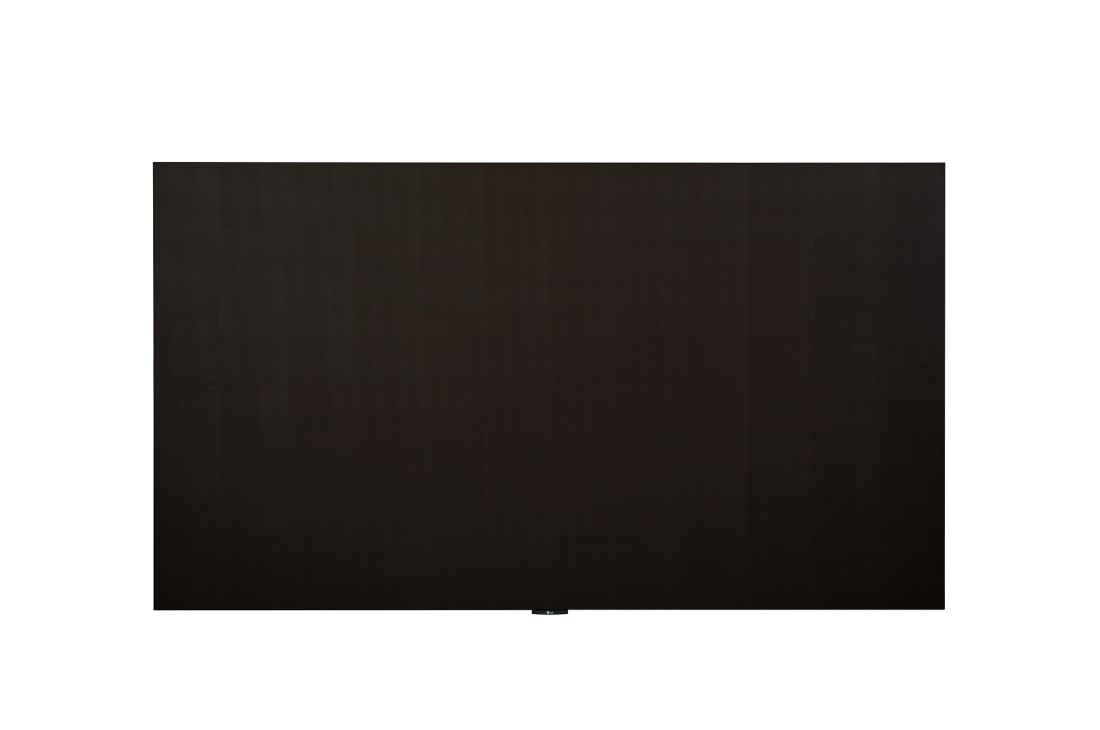

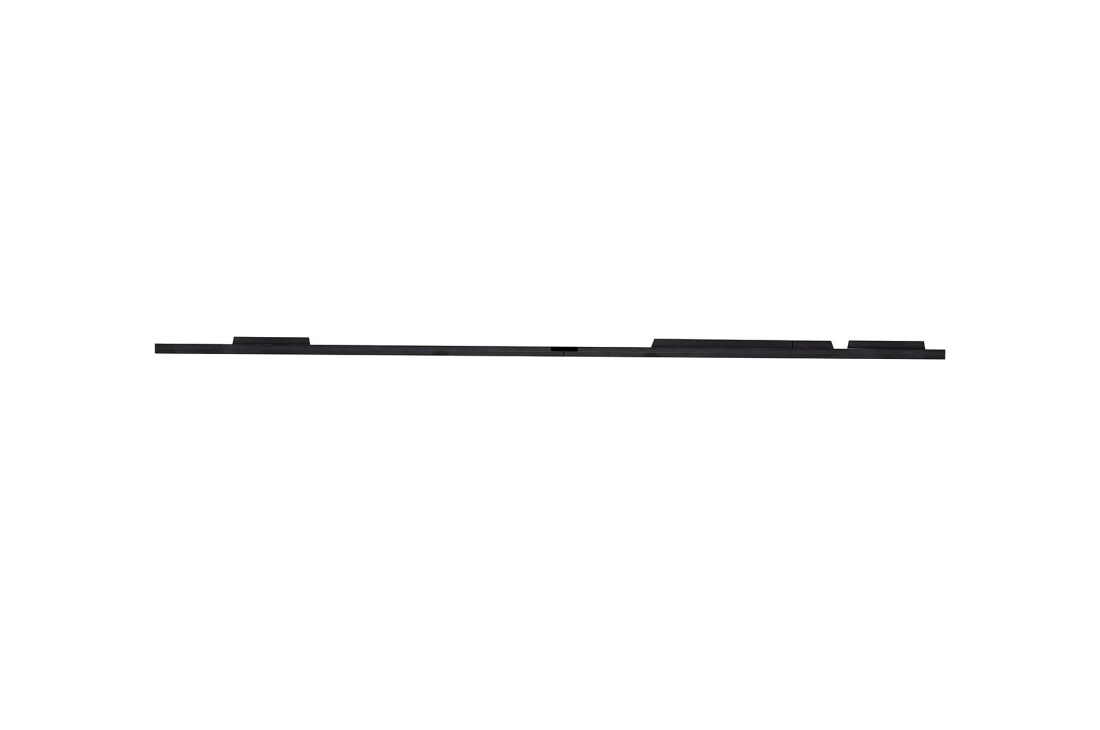

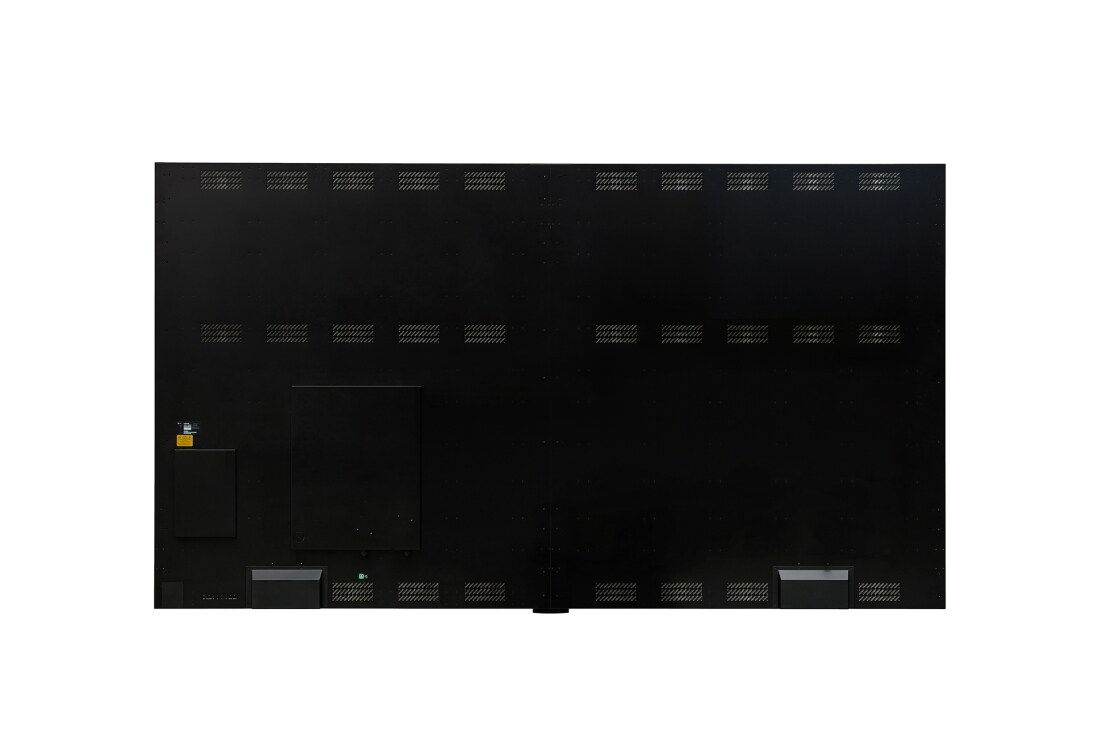

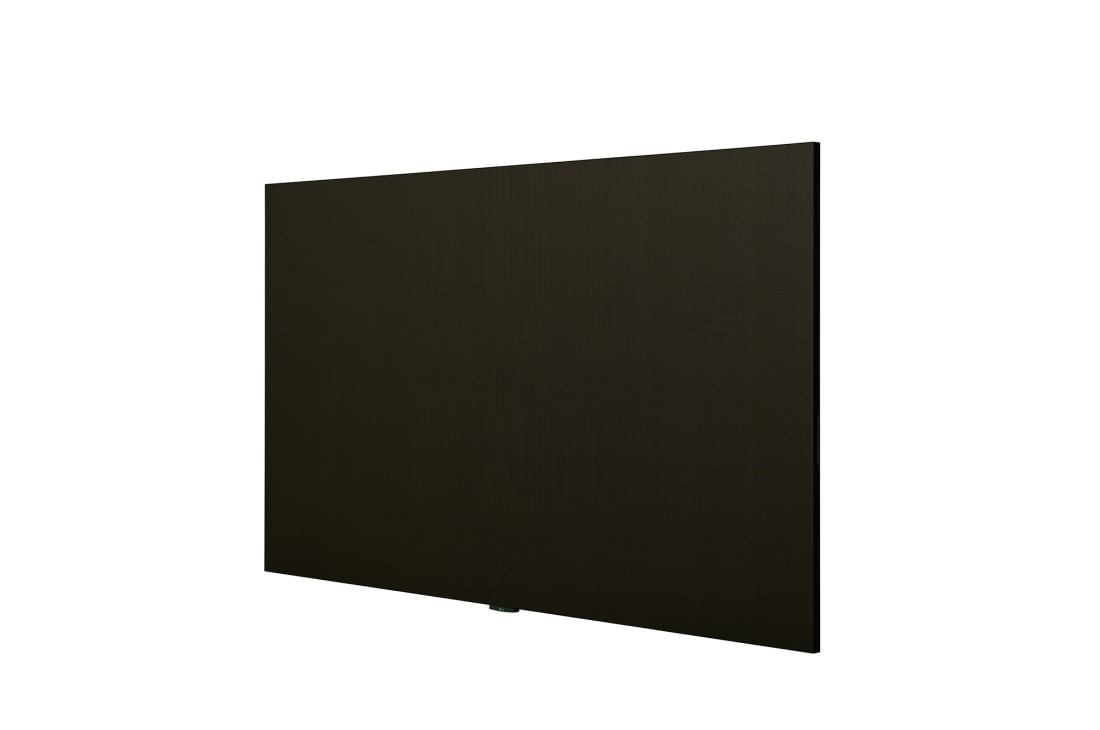

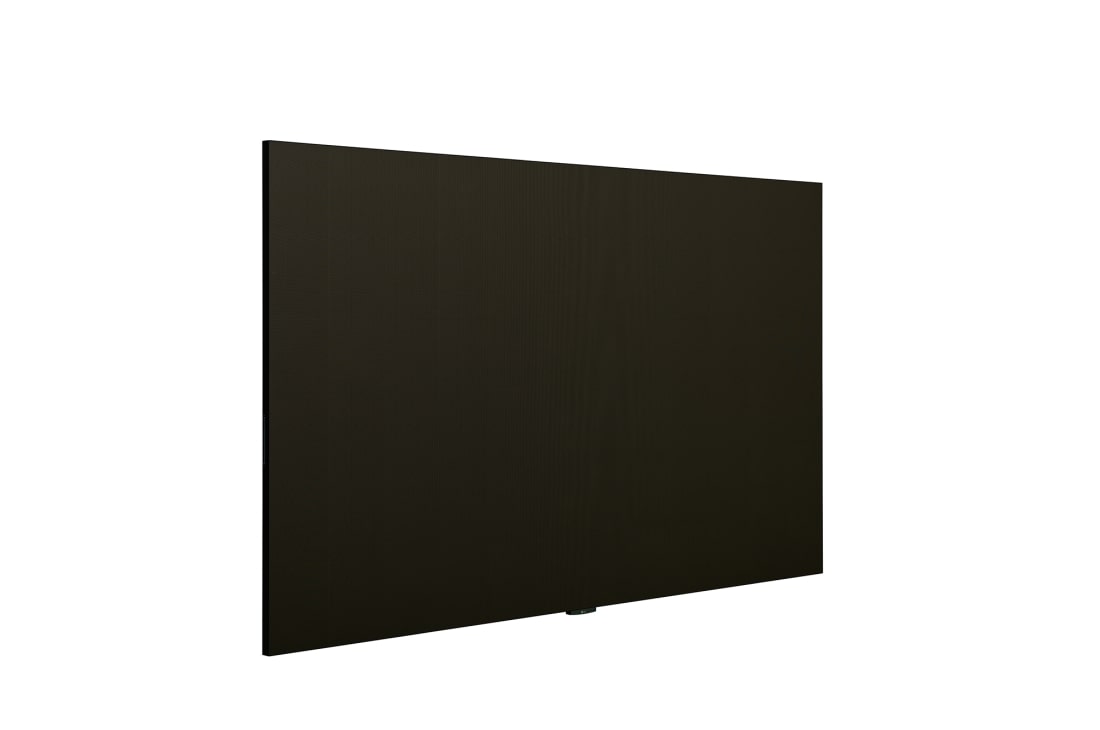

All-in-one Smart Series
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch (mm)
    1.56
  • Screen Resolution (WxH)
    1,920x1,080
    Module Dimensions (WxH, mm)
    250 x 281.25
  • No. of Modules per Screen (WxH)
    12 x 6 (Total 72)
    Screen Dimension (W x H x D,mm)
    3,004 × 1,692 × 36.5 (Thickest 70)
  • Screen Surface Area (㎡)
    5.06
    Screen Weight (kg)
    135
  • Physical Pixel Density (pixels/m²)
    409,600
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case material
    Aluminum

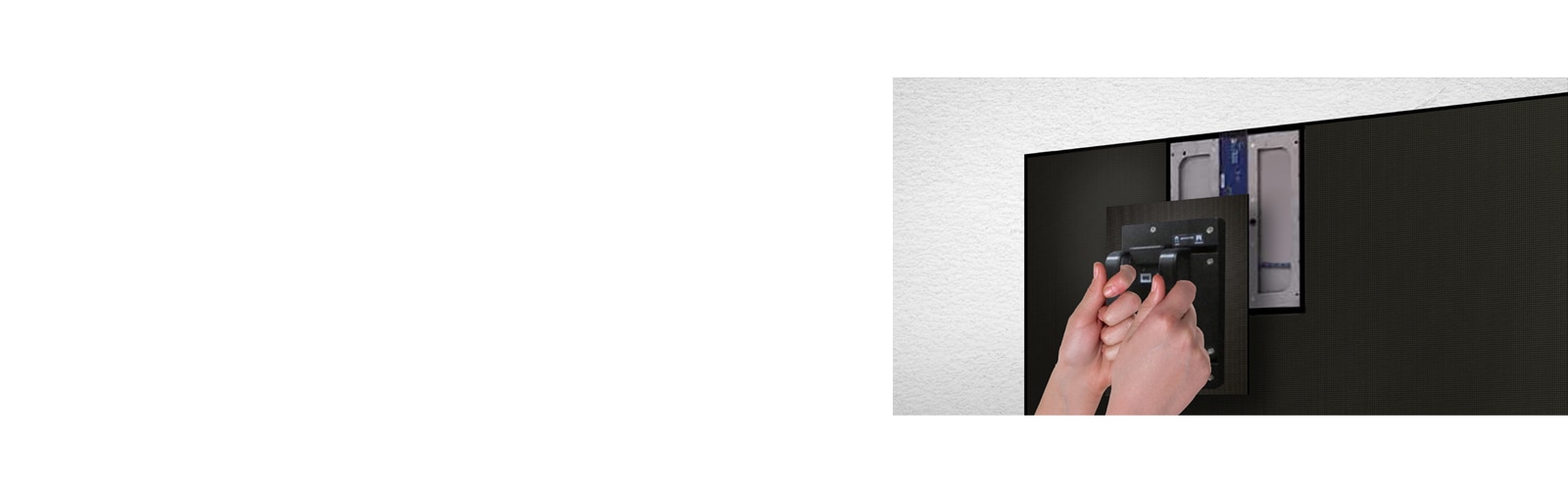

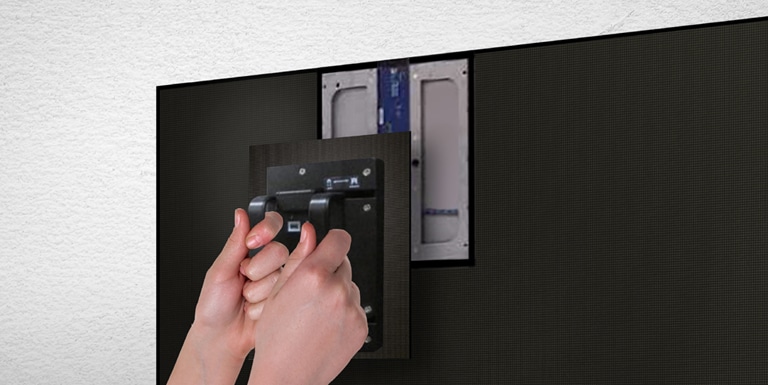

    Service access
    Front
OPTICAL SPECIFICATIONS
  • Min. Brightness (After Calibration)
    500 nit
    Color Temperature
    3,200~9,300
  • Visual Viewing Angle (H x V)
    160° x 160°
    Brightness Uniformity
    98%
  • Color Uniformity
    ±0.015Cx,Cy
    Contrast Ratio
    3,000:1
  • Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Screen, Max.)
    1,700
    Power Consumption (W/Screen, Avg.)
    560
  • Power Consumption (W/m², Max.)
    336
    Power Consumption (BTU/h/Screen, Max.)
    5,801
  • Power Consumption (BTU/h/Screen, Avg.)
    1,911
    Power Consumption (BTU/h/m², Max.)
    1,146
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    ≥2880
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    0℃ to +40℃
  • Operating Humidity
    <90%RH(without condensation)
    IP rating Front
    IP30
  • IP rating Rear
    IP20

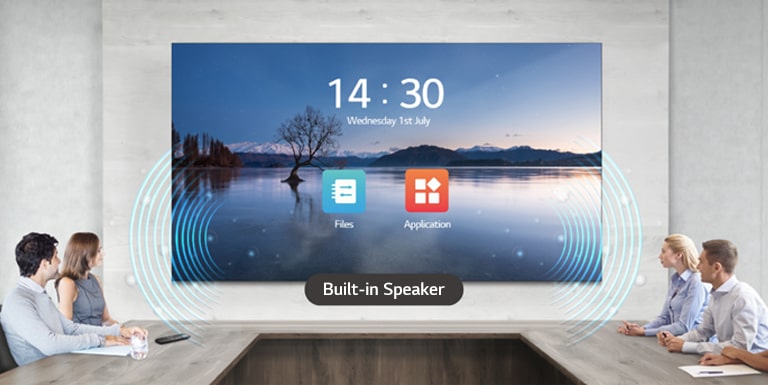

SPEAKER
  • Speaker
    Built-in(9W+9W)
CERTIFICATION
  • Certification
    CE,FCC,ETL,CB
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    Embedded
