LAED015-GN component-copyModelName

2023 LG All-in-One LED Display 21:9 ratio

LG 2023 LG All-in-One LED Display 21:9 ratio, Front view with infill image, LAED015-GN, thumbnail 1

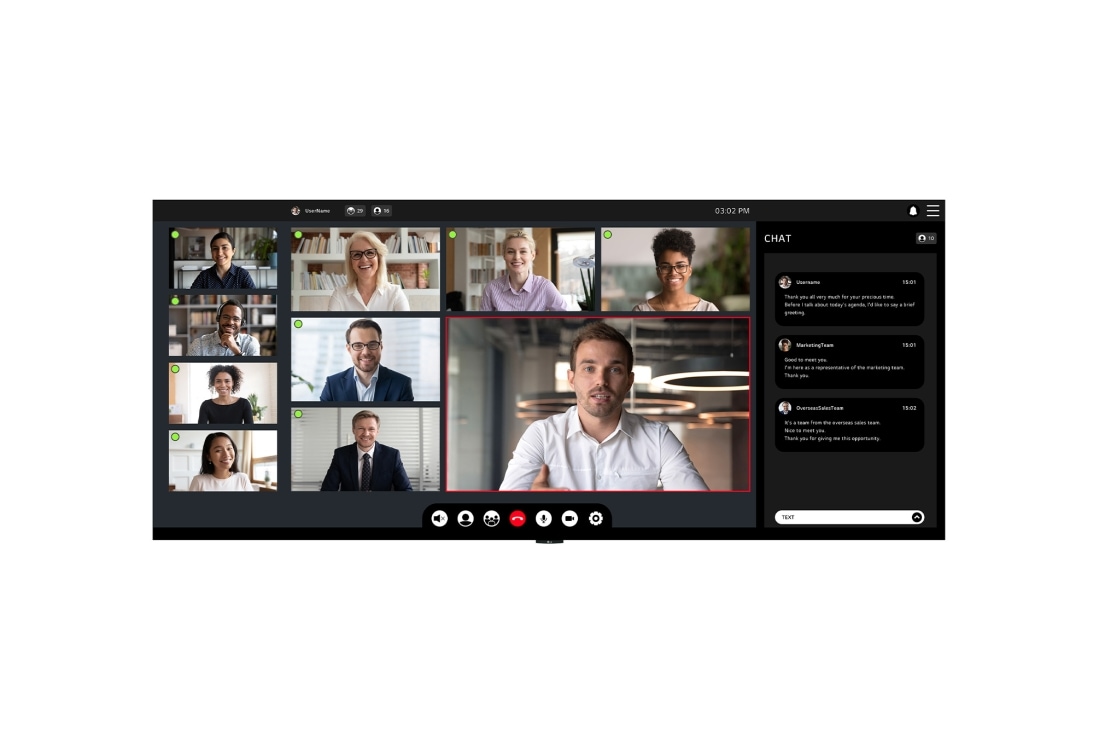

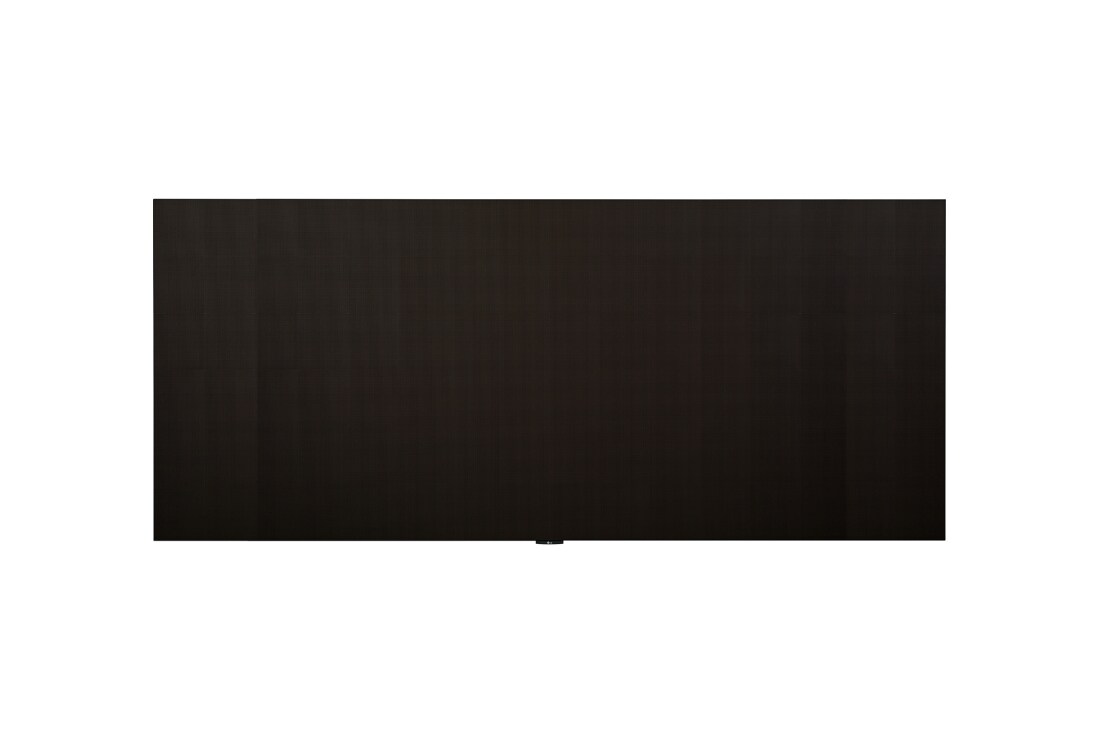

LG 2023 LG All-in-One LED Display 21:9 ratio, Front view, LAED015-GN, thumbnail 2

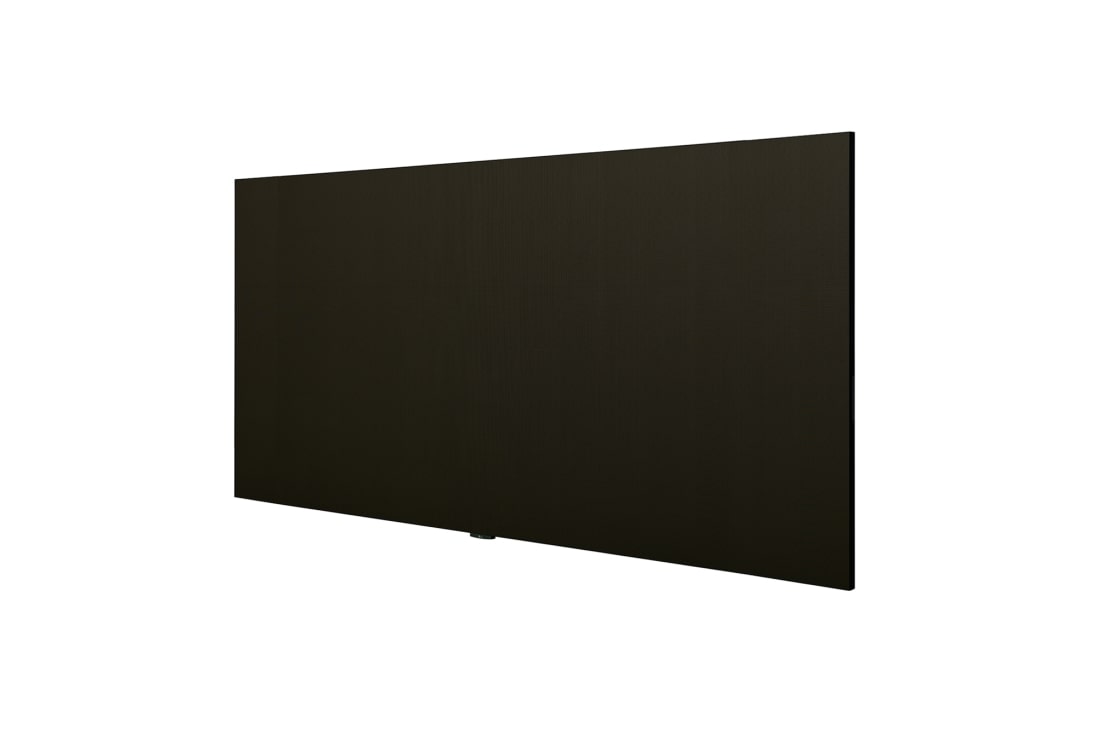

LG 2023 LG All-in-One LED Display 21:9 ratio, -45 degree side view, LAED015-GN, thumbnail 3

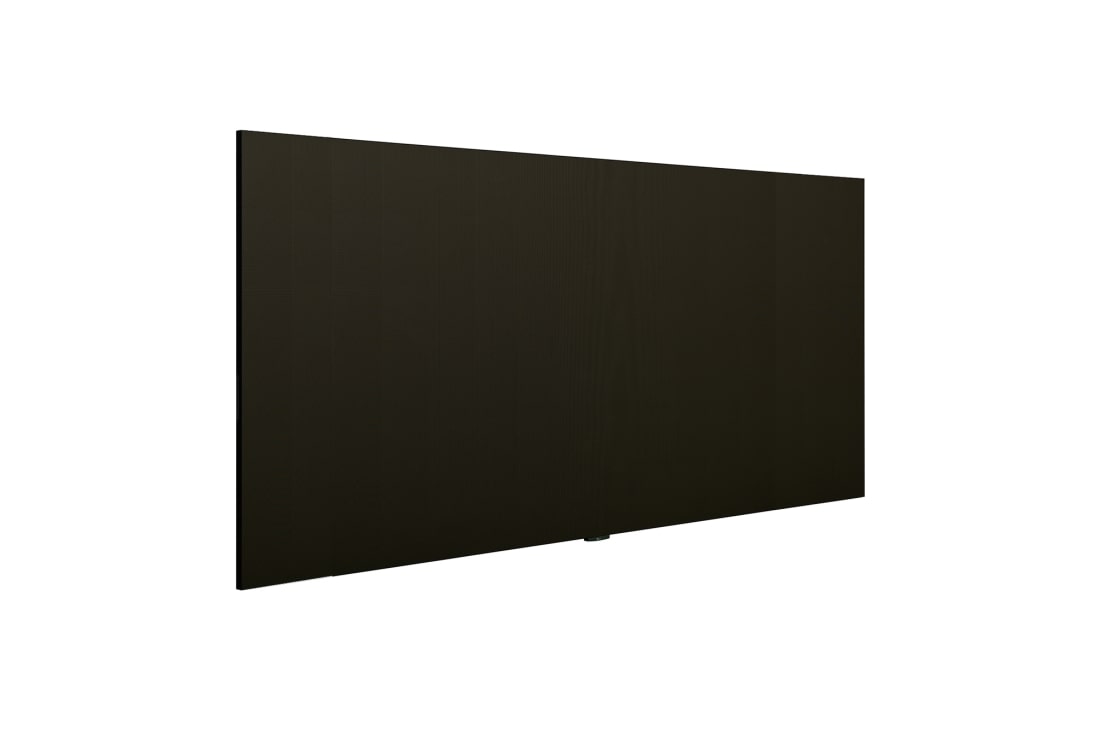

LG 2023 LG All-in-One LED Display 21:9 ratio, +45 degree side view, LAED015-GN, thumbnail 4

ADD TO WISHLIST

Discontinued

LAED015-GN component-copyModelName

2023 LG All-in-One LED Display 21:9 ratio

Name: 2023 LG All-in-One LED Display 21:9 ratio
Brand: LG UAE
SKU: LAED015-GN
Rating: 0 (0 reviews)

Key Features

Pixel Pitch : 1.56 mm
Screen Size: 171”
21:9 Widescreen
Embedded System Controller and Built-in Speaker
Brightness (after calibration) : 500 nit (Max.)

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch : 1.56 mm
Screen Size: 171”
21:9 Widescreen
Embedded System Controller and Built-in Speaker
Brightness (after calibration) : 500 nit (Max.)

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

2023 LG All-in-One LED Display 21:9 ratio

21:9 All-in-One LED Display

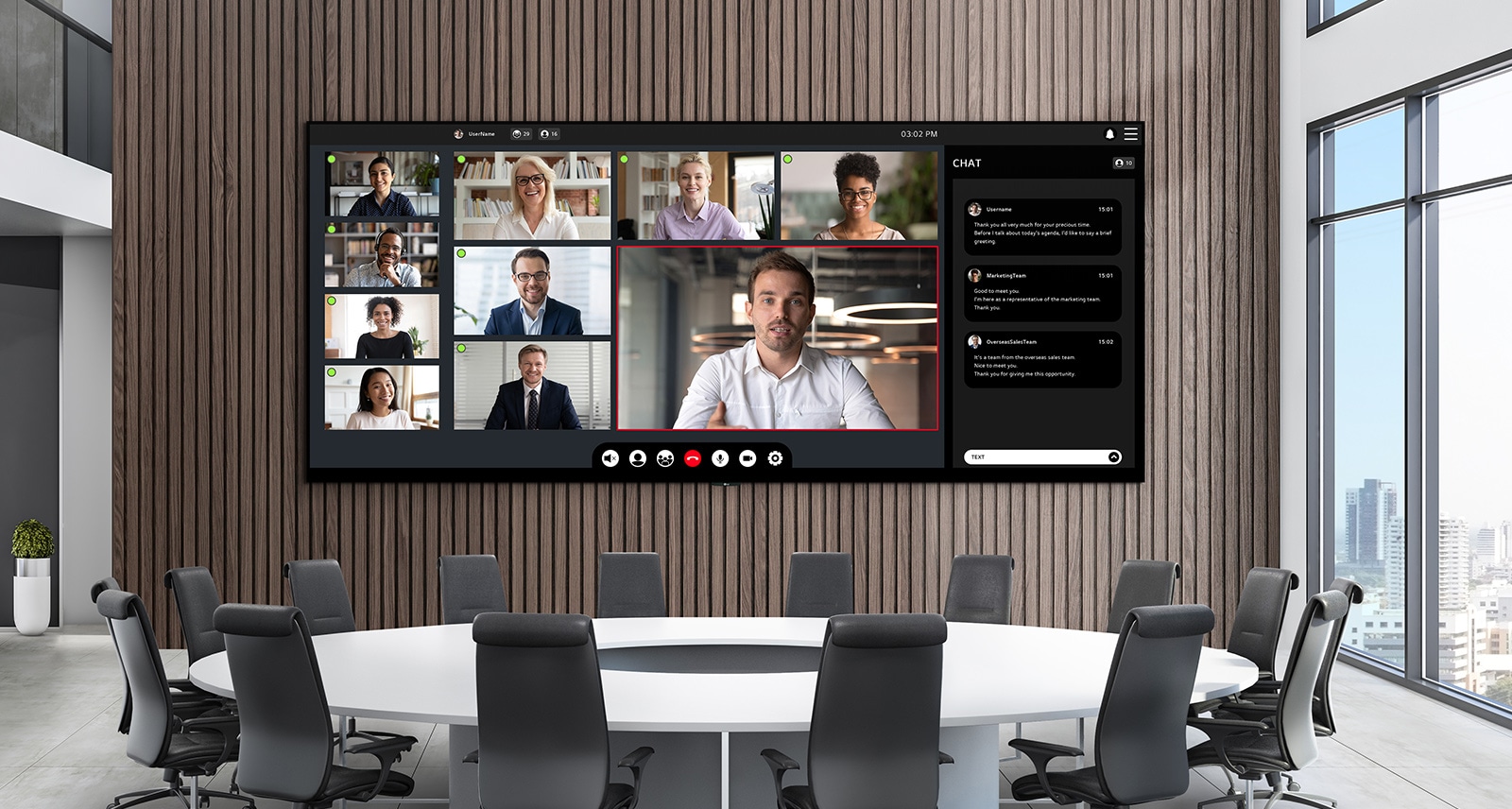

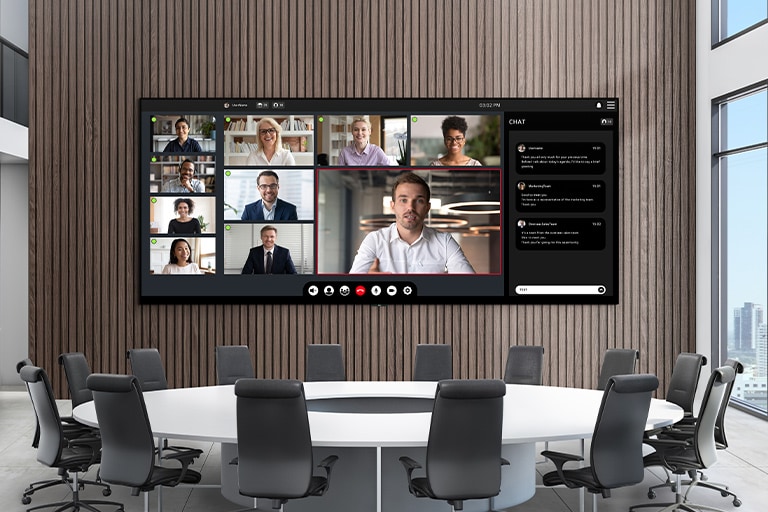

A wide LED screen is installed on the wall of a meeting room with a large round table. The expansive LED screen shows an ongoing video conference.

* All images in this page are for illustrative purposes only and may differ from the actual product.

21:9 Widescreen

With support for a 21:9 widescreen aspect ratio (2,560 × 1,080), LAED series provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.

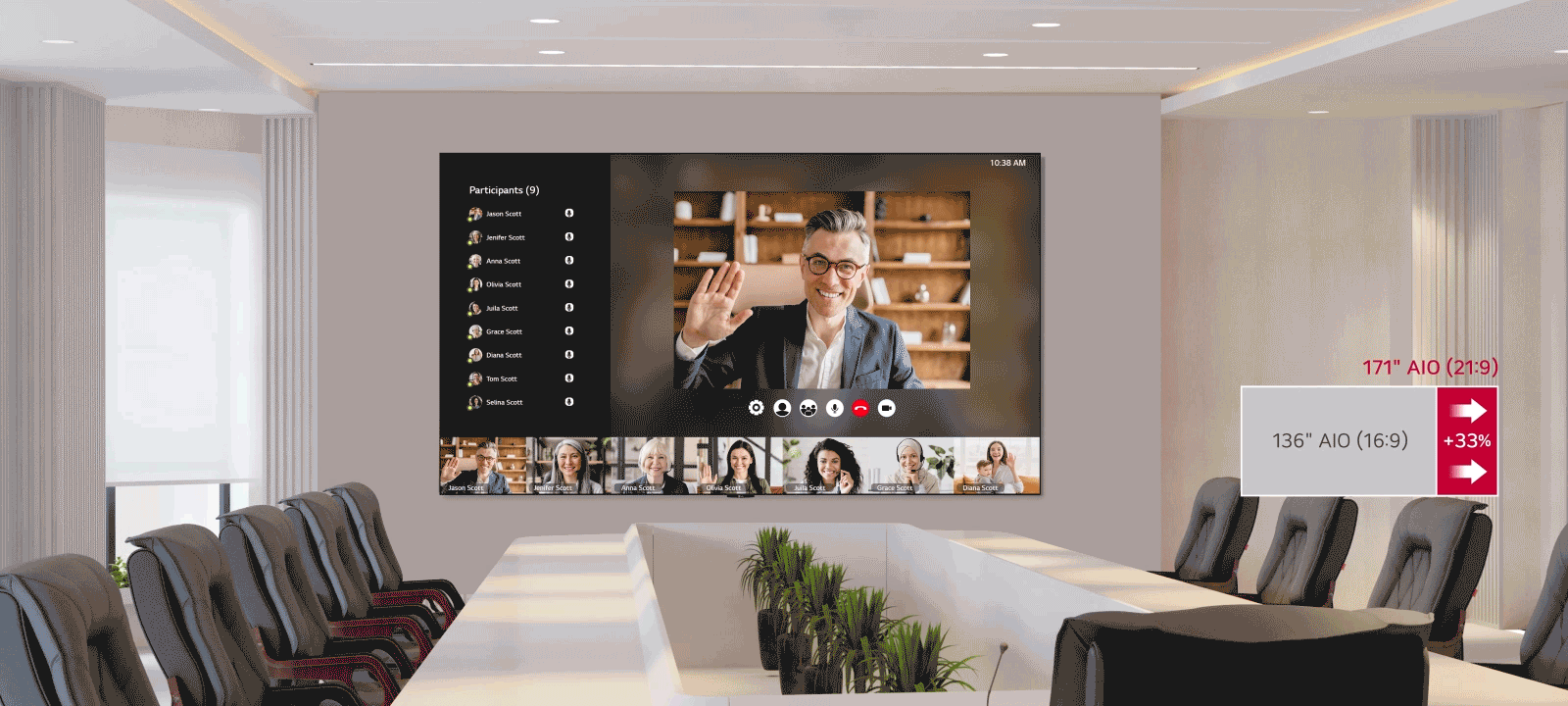

The LAED screen, with a 21:9 ratio and a size of 171 inches, provides more information than a 136-inch 16:9 screen.

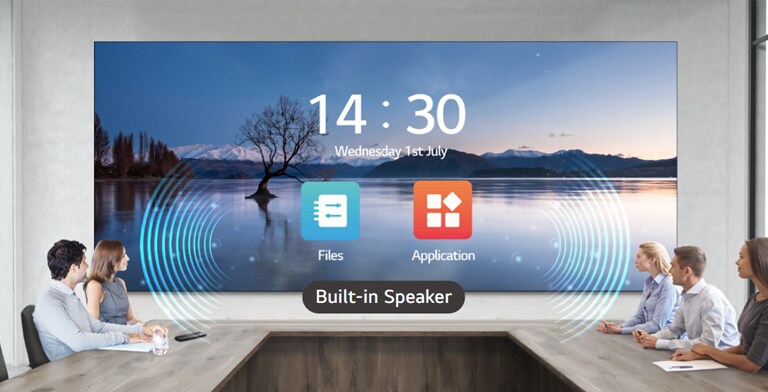

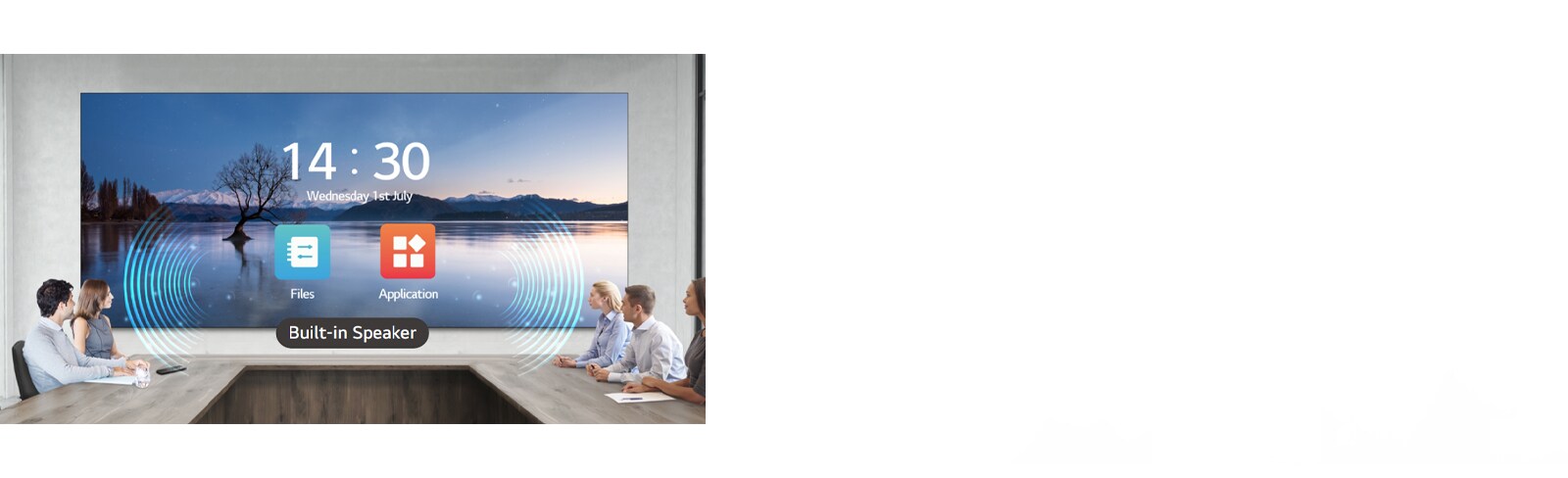

People have a meeting while watching the display and listening sound with the built-in speakers of LAED series, installed in the meeting room.

All-in-One LED Screen with Built-in Speaker

LG’s LED All-in-One LAED series with 171-inch screen size is offered as an all-in-one package including an embedded controller and built-in speaker. Eliminating the prejudice that LED displays are difficult and complex to install, it doesn't require controller connections or module configuration. After a simple installation process, all you need to do is to turn on the screen with a remote control like home TV.

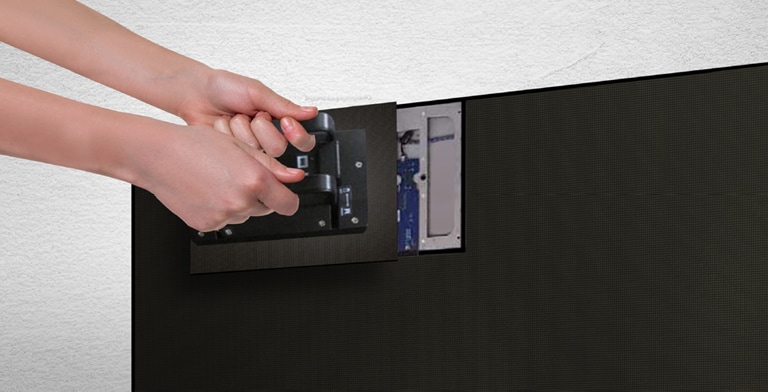

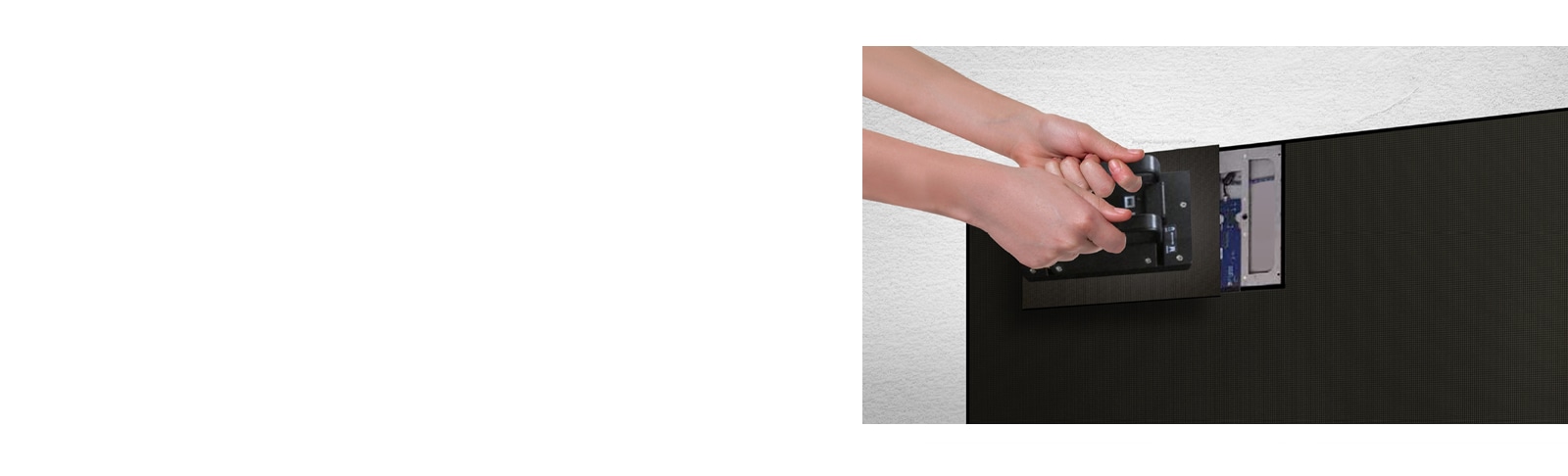

A person replaces one of the LED modules from the front by using the magnetic tool provided.

Quick Maintenance

In case of failure related to the LED module or the system board, it can be serviced from the front. The LED module can be simply detached by the provided magnetic tool and replaced quickly without cabling.

Easy Installation

The installation process of the 21:9 All-in-One series is simple. After securing three cabinets, attach each LED display module to them. Lastly, plug in the power cable. This simple installation saves time and labor, thereby makingusers handle the LED screen with ease.

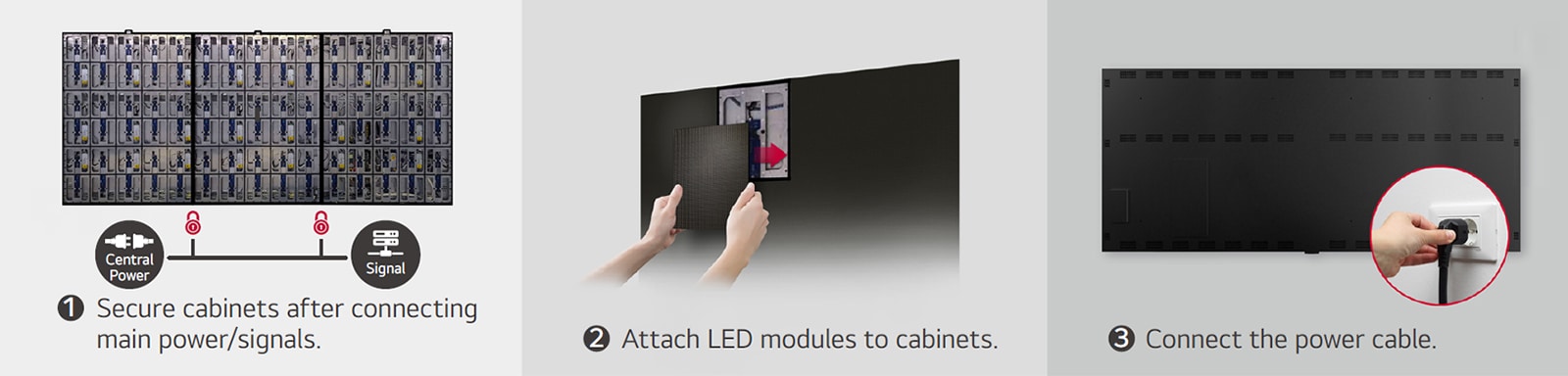

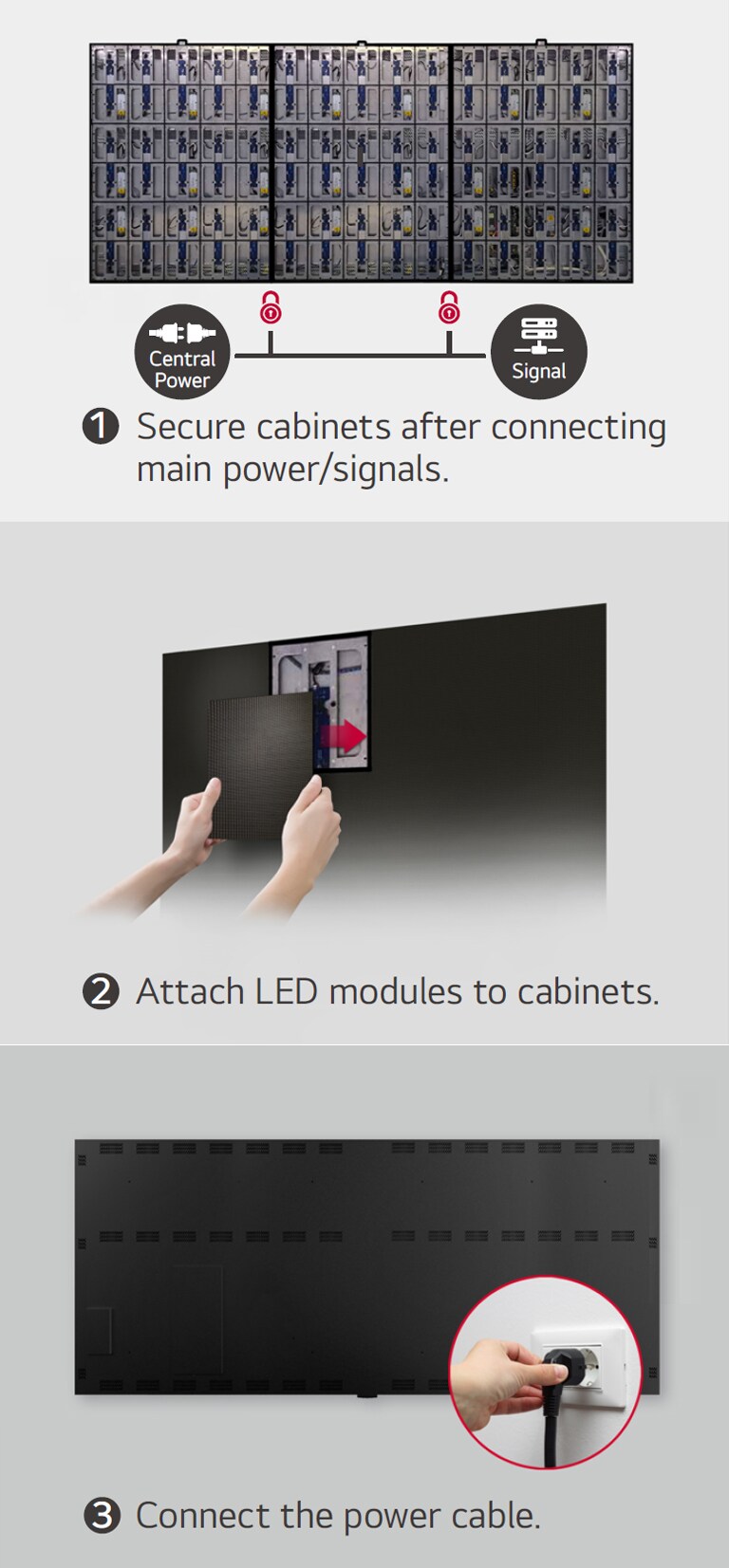

This consists of total 3 steps' images for securing three cabinets, attaching LED modules, and connecting the power cable.

* Fixing screws or installing wall mount/accessories is needed additionally.

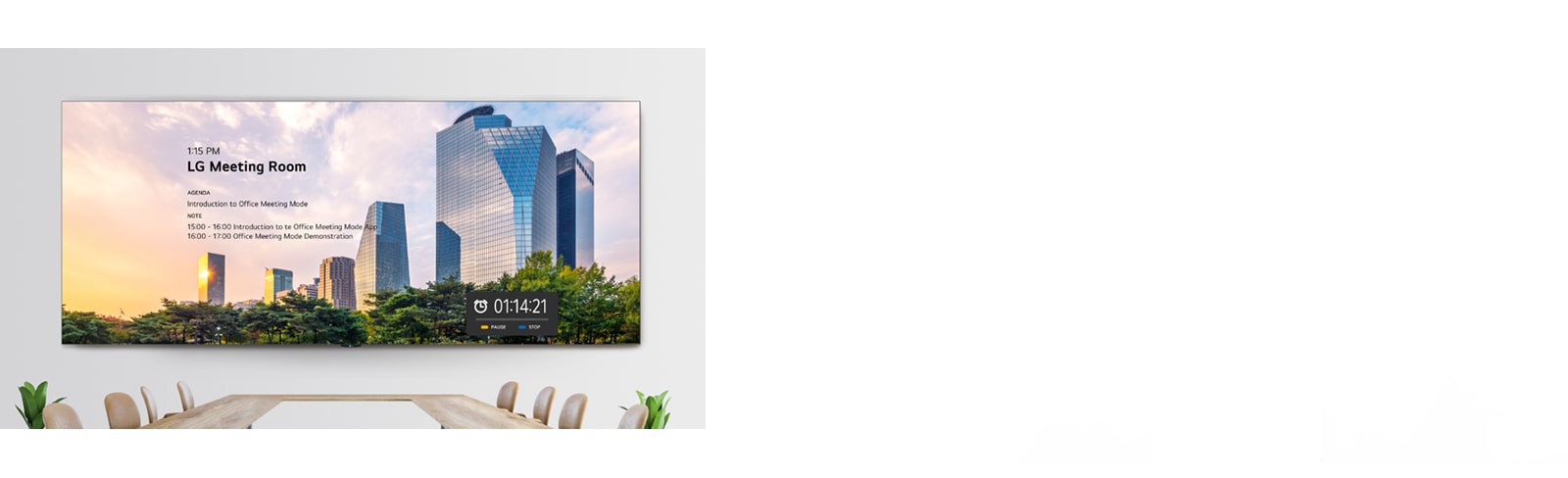

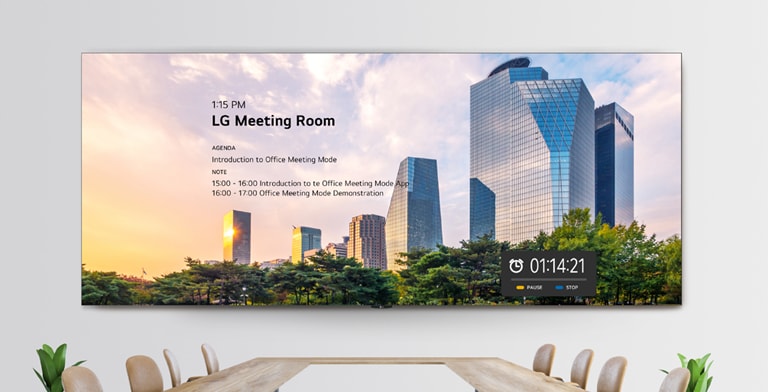

Office Meeting Mode

With Office Meeting Mode, easily configure meeting room details like the room number and current time. It also includes convenient features like automatic input switching, a presentation timer, and adjustable settings such as autobrightness and picture mode.

* Users can enable Office Meeting Mode at EZ Setting menu of the Signage.

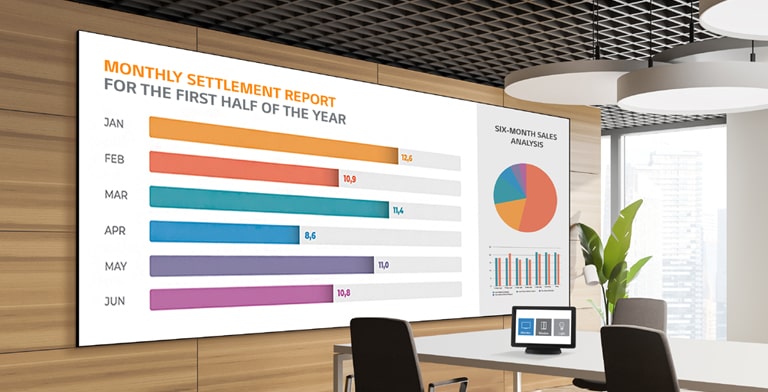

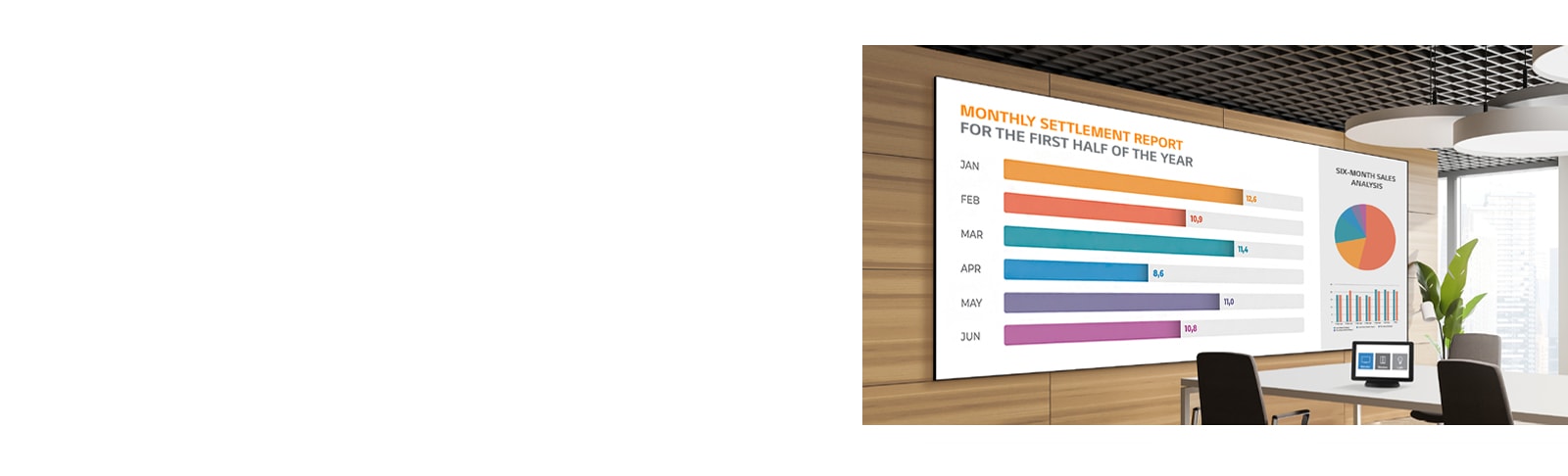

There are one in the meeting rooms with the signage and one of AV control system which helps users control the LAED series.

Compatible with
AV Control Systems

The LAED series supports Crestron Connected®* for high compatibility with professional AV controls to achieve seamless integration and automated control**, boosting business management efficiency.

* Initial setting from display is required for Crestron Connected® compatibility.
** Network based control
*** Crestron Connected® needs to be purchased separately.

Versatile Installation with Dedicated Accessories

The product is offered with the necessary component including the landscape wall mount and tools for installation. The dedicated stand* is provided as an option, so that you can easily place it depending on your installation sites.

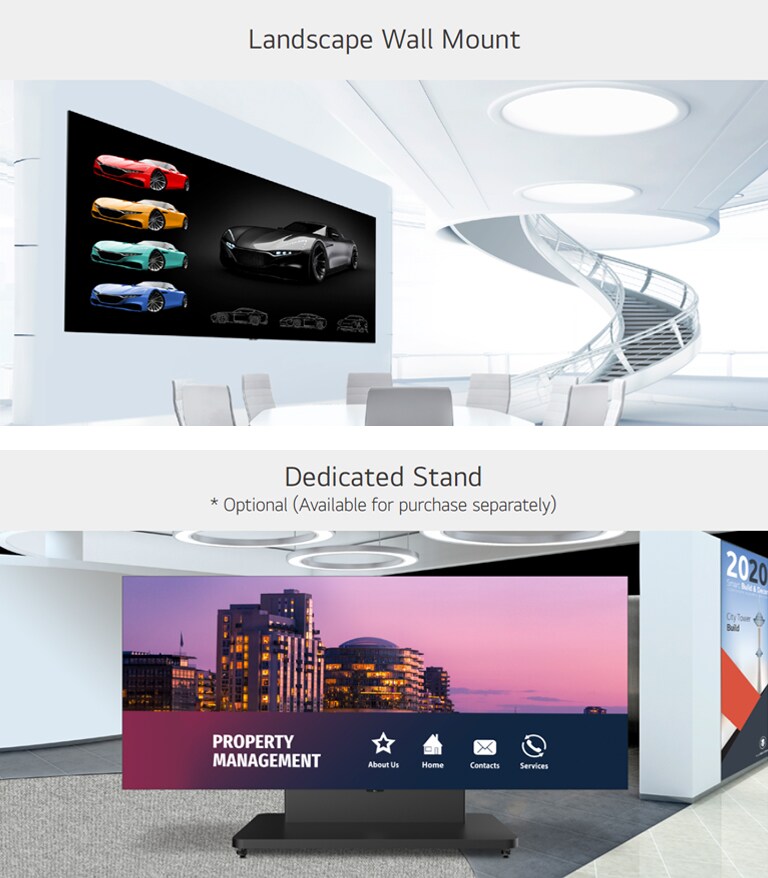

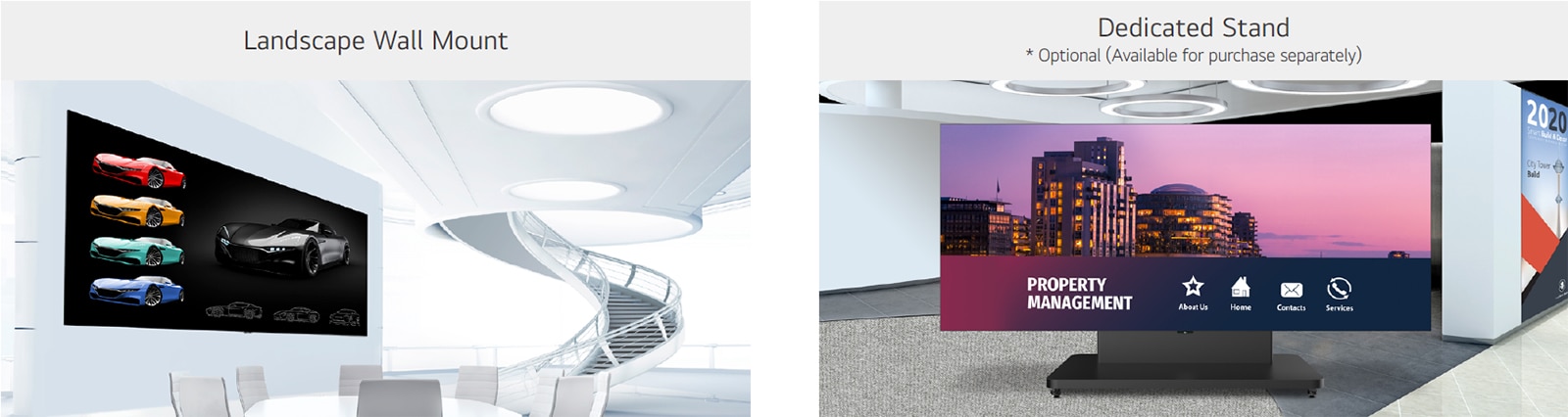

The LAED series installed on the wall of high-rise space with wall mounted, and installed with the dedicated stand are shown on the two different images.

* Stand accessories need to be purchased separately.

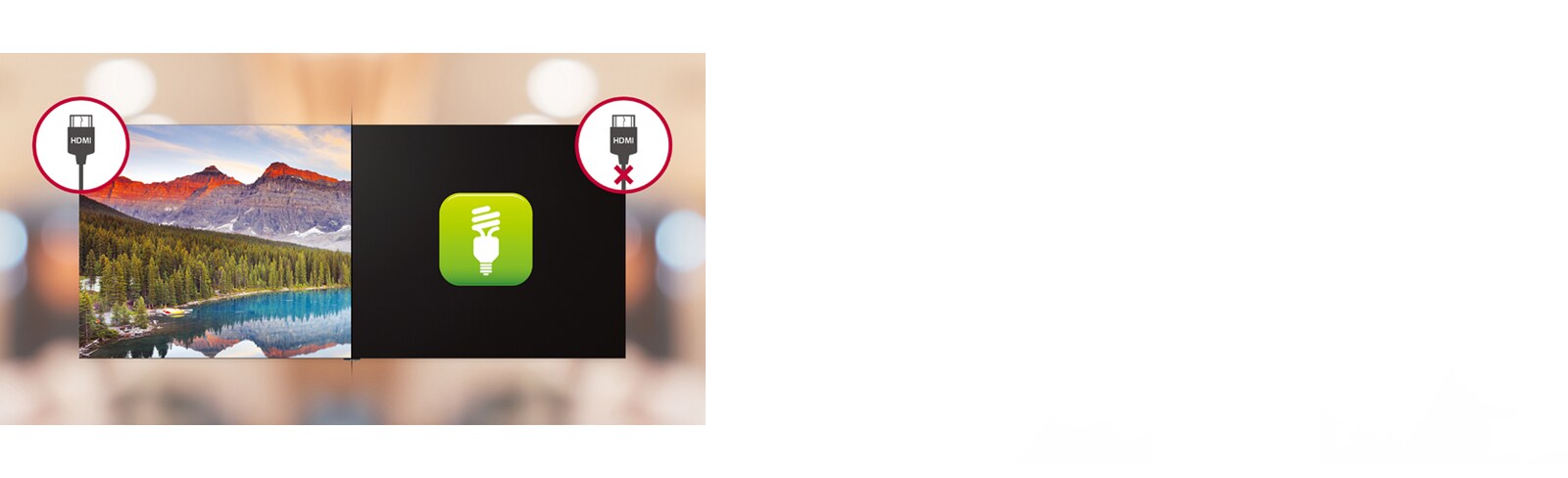

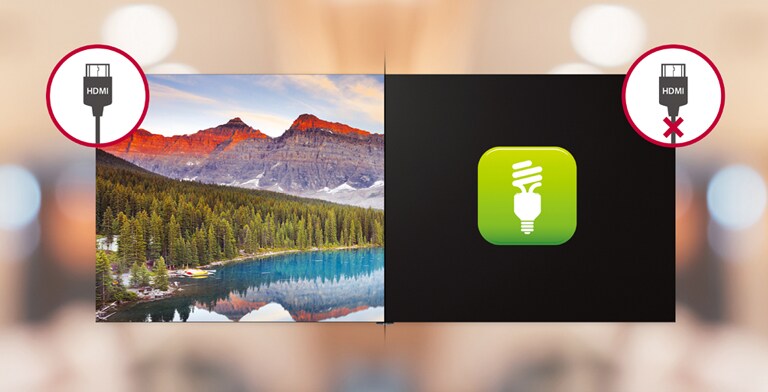

The LAED series can be set to be in standby mode when there is no signal from the input source device.

Display Power Management (DPM)

The DPM function of the LED screen allows it to enter a standby mode after a specific period of time when there is no signal from the input source device.

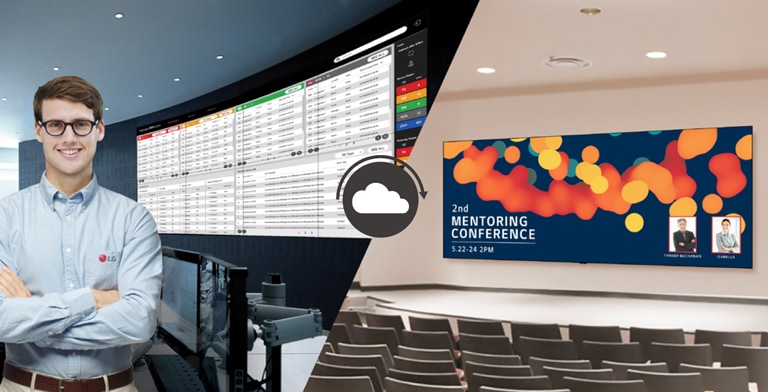

The one of LG employee is remotely monitoring the LAED LED screen installed in a different place by using cloud-based LG monitoring solution, called LG ConnectedCare.

Real-time
LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

* The availability of LG ConnectedCare differs by region.
** LG ConnectedCare Service needs to be purchased separately, and available on the basis of internet connection.

Physical

Pixel Configuration

Single SMD

Parameters

Pixel Pitch (mm)

1.56

Screen Resolution (W × H)

2,560 × 1,080
Module Dimensions (W × H, mm)

250 × 281.25

No. of Modules per Screen (W × H)

16 × 6 (Total 96)
Screen Dimensions (W × H × D, mm)

4,003.3 × 1,691.8 × 36.5 (Thickest 70)

Screen Surface Area (m²)

6.8
Screen Weight (kg)

176

Physical Pixel Density (pixels/m²)

409600
Flatness of Cabinet (mm)

±0.2

Cabinet Material

Aluminum
Service Access

Front

Optical

Max. Brightness (nit, after calibration)

500

Specifications

Color Temperature (K)

3,200-9,300

Visual Viewing Angle (Horizontal)

160
Visual Viewing Angle (Vertical)

160

Brightness Uniformity

98%
Color Uniformity

±0.015 Cx, Cy

Contrast Ratio

3,000 : 1
Processing Depth (bit)

16 (HDR10, HDR10 Pro)

Power Consumption (W/Screen, Avg.)

840
Power Consumption (W/m², Max.)

311

Power Consumption (BTU/h/Screen, Max.)

7165
Power Consumption (BTU/h/Screen, Avg.)

2866

Power Consumption (BTU/h/m², Max.)

1062
Power Supply (V)

100 to 240

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3960

Operating Temperature (°C)

0 to +40
Operating Humidity

10-90% RH

IP Rating (Front / Rear)

IP30 / IP20

Electrical

Power Consumption (W/Screen, Max.)

2100

Operation

Lifetime (Hours to Half Brightness)

100000

SPEAKER

Speaker

Built-in (9 W + 9 W)

CERTIFICATION

Certification

CE, FCC, ETL, CB

Environment

Environment

RoHS, REACH

CONTROLLER

Controller

Embedded

I/O PORT

I/O Port

HDMI (3), DP (1), USB, LAN, RS-232C In/Out, IR, Optical Digital Audio Out
