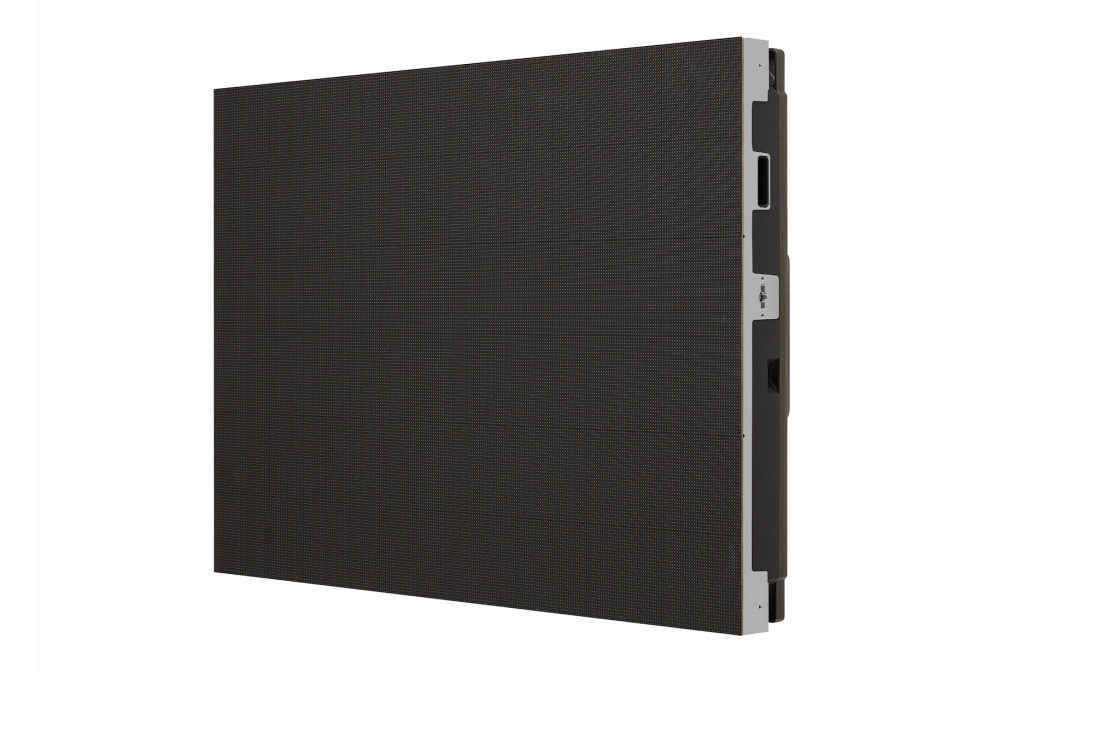

LG Miraclass, 4K Screen

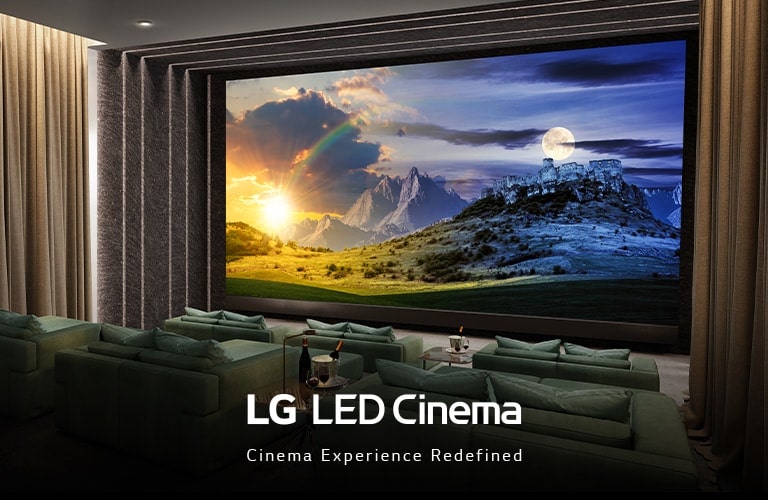

A large LED screen is showing a colorful and lively scene at the movie theater. A large LED screen is showing a colorful and lively scene at the movie theater.
* All images in this page are for illustrative purposes only.

Discover New Depths with
True Black Immersion

With its series of individual, self-emissive LEDs, the LG LED Cinema screen results in distinctive
and eye-catching contrast, taking the viewing experience to a whole new level.
The LED Cinema embodies a distinct black color, showing the contrast between the dark shadow and bright sky. The LED Cinema embodies a distinct black color, showing the contrast between the dark shadow and bright sky.

Feast Your Eyes
on a Festival of Color

With 24-bit color processing, capable of displaying 16.7 million color variants, the LED Cinema
from LG reproduces DCI-P3 colors just as the content creators intended.
The audience at the theater are watching a racing scene that shows the colors the filmmaker intended. The audience at the theater are watching a racing scene that shows the colors the filmmaker intended.

Brightness Brings Detail to Life

The LG LED Cinema is made up of self-emissive LEDs working independently.
The result is bright and brilliant picture quality, with no corner dimming or image distortion.
A person is standing on a snowy mountain. In this scene, the edges of the screen are darkened using Single Light Source Projection, while the Self-emissive LED Screen shows the color distinctly and clearly. A person is standing on a snowy mountain. In this scene, the edges of the screen are darkened using Single Light Source Projection, while the Self-emissive LED Screen shows the color distinctly and clearly.

Brightness to Illuminate
and Inspire

Adjust the brightness to your preferred setting, with five stages ranging from 48 to 300 nits.
Personalize your viewing experience and make your media the highlight.
Screens of various brightness ranging from 48 to 300 nits are being shown, which can support not only movie screenings but also corporate events. Screens of various brightness ranging from 48 to 300 nits are being shown, which can support not only movie screenings but also corporate events.

Take Picture Quality
to Another Dimension

With consistent brightness and clarity from corner to corner of the screen, audiences can fully
immerse themselves in the 3D viewing experience, wherever they sit.
In the movie theater, people are watching the movie wearing 3D glasses, and the 3D screen’s liveliness is being conveyed to the audience. In the movie theater, people are watching the movie wearing 3D glasses, and the 3D screen’s liveliness is being conveyed to the audience.
* 3D active glasses (Volfoni, XpanD) are required.

Easy Operation with
Intuitive Software

Dedicated management software is on hand to help operators run the new LED screens smoothly
and with confidence. Various functions can now be accessed at the touch of a button.
Movie theater manager is simply adjusting movie theater screen settings in the office. Movie theater manager is simply adjusting movie theater screen settings in the office.
* The above image is for illustration purposes only. Actual GUI may differ.

Dolby-Compatible LED Screen

The new LG LED Cinema can be quickly and seamlessly integrated into theaters, thanks to its compatibility with Dolby. Dolby IMS supports stable and professional content operation, while the combination of Dolby Atmos sound and LG picture quality makes movies truly memorable.
LG LED Cinema screen is compatible with Dolby. LG LED Cinema screen is compatible with Dolby.
* Dolby, Dolby Atmos and the double-D symbol are registered trademarks of Dolby Laboratories.
Close
PIXEL
  • Pitch
    1.25mm
    LED Type
    SMD
  • Life time (Typical)
    100,000 Hours

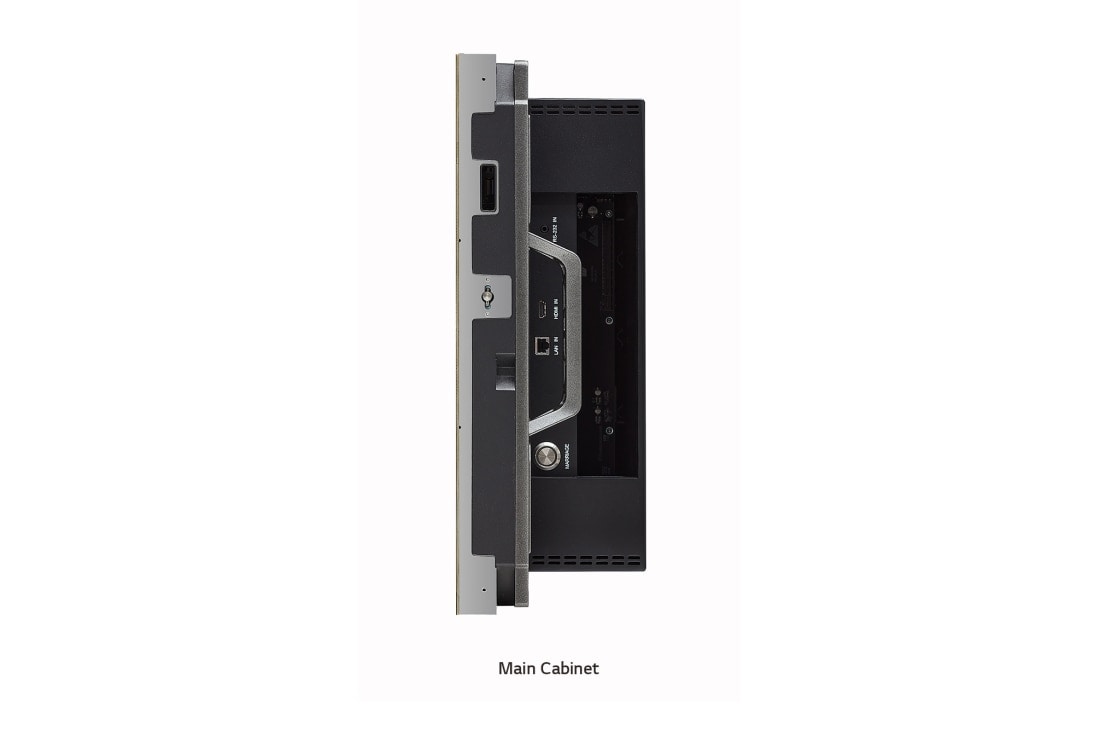

CABINET
  • Modules (W×H, ea)
    6 (2×3)
    Resolution (W×H, px)
    512×360
  • Material
    Aluminum
    Dimension (W×H×D, mm)

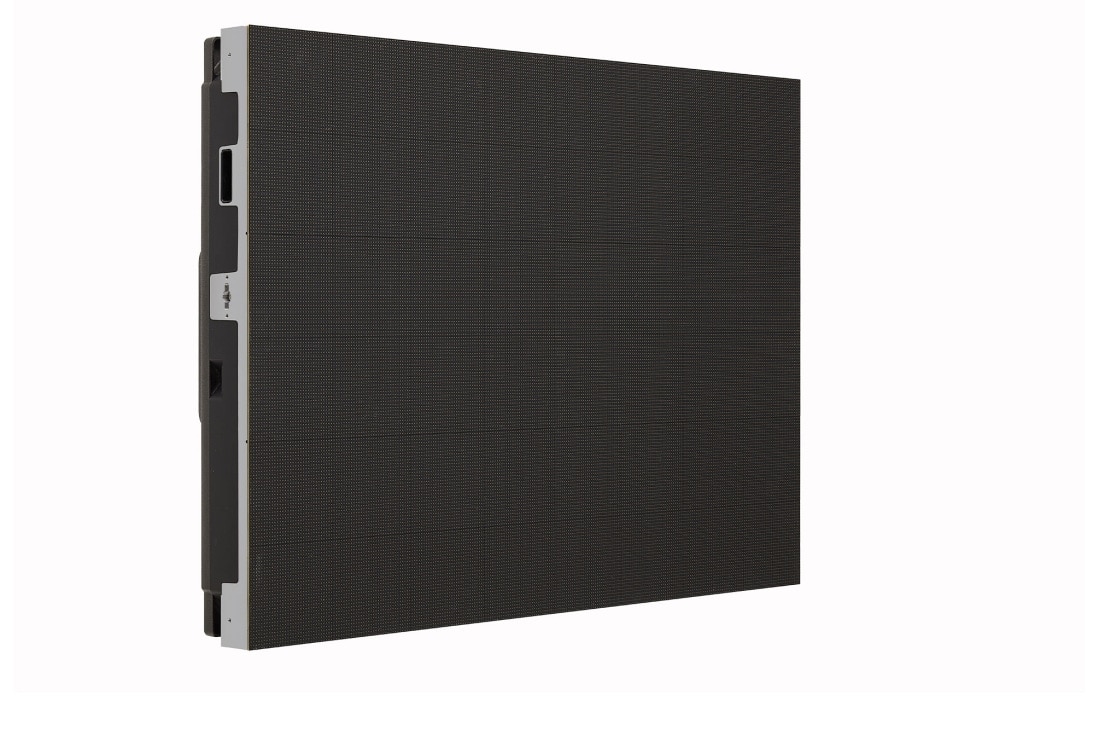

    Main : 640×450×59 (163 w/ Back cover)

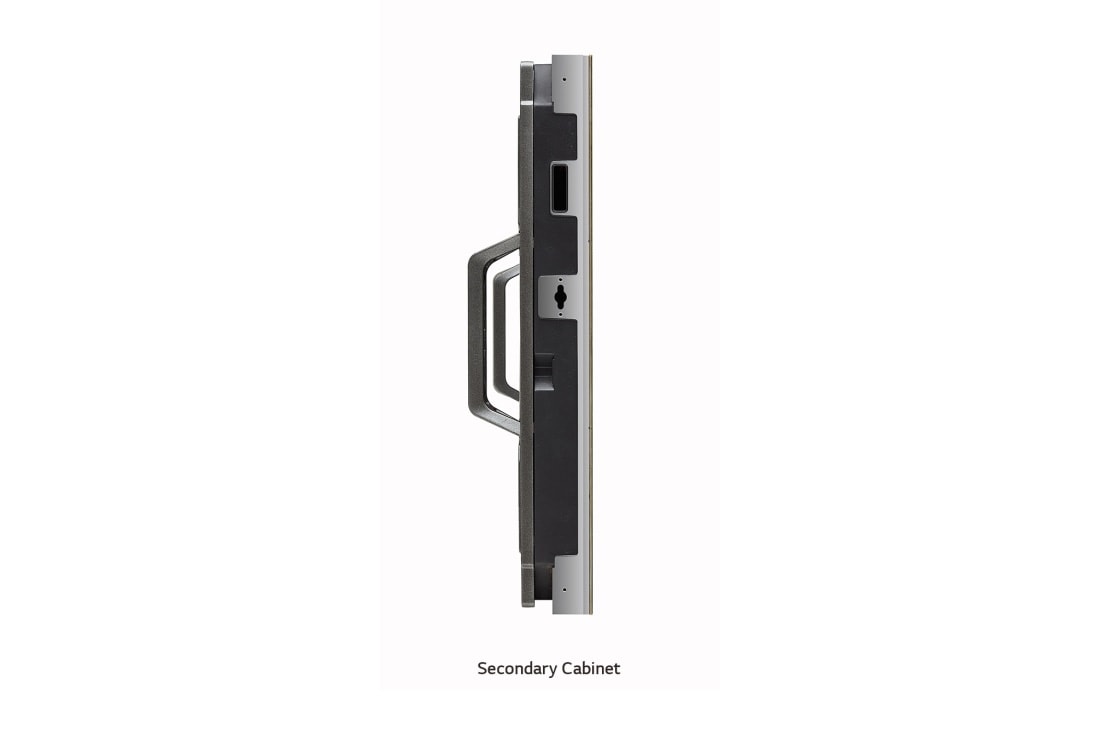

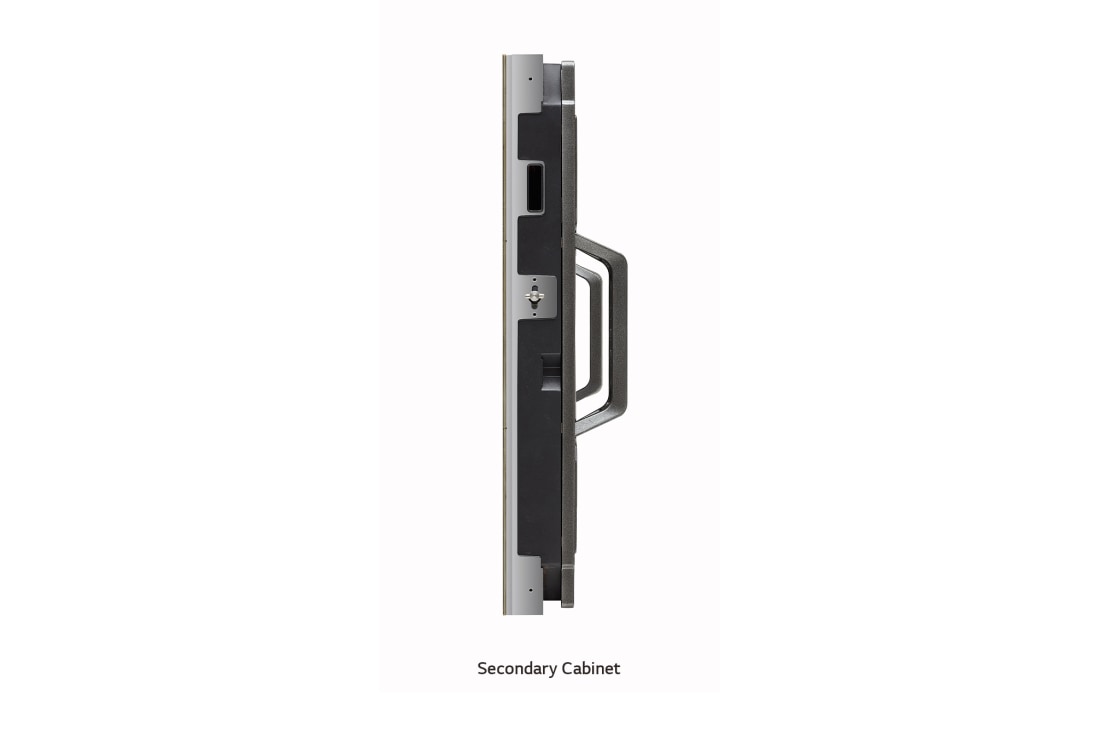

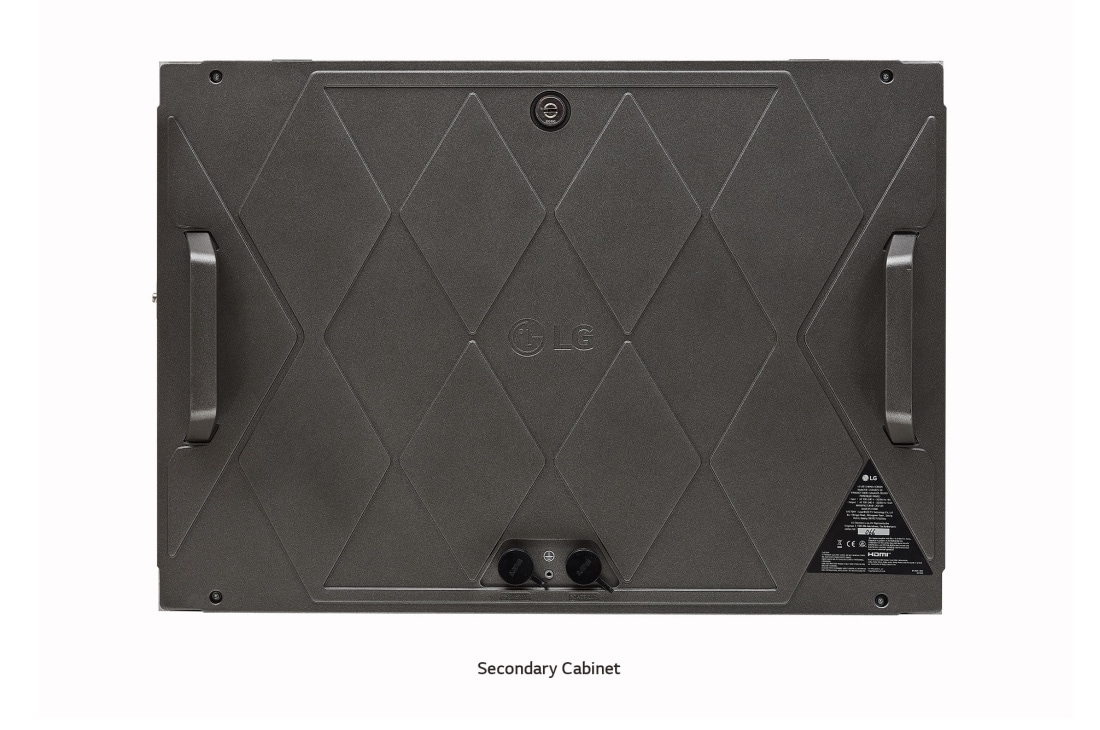

    Secondary : 640×450×59 (101 w/ Handle)
  • Weight (kg)
    13.8 (Main), 7.5 (Secondary)
    Power Consumption - typical (watts, 48nit)
    180 (Main) / 80 (Secondary)
  • Power Consumption - (watts, 300nit)
    300 (Main) / 200 (Secondary)
    Service access
    Rear only
SET(4K)
  • Pixels (W×H, Native)
    4096×2160
    Resolution (W×H, Active area)
    4096×2160
  • Pixel Density (px/SQM)
    640,000
    Cabinets (W×H, ea)
    48 (8×6)
  • Dimension (W×H, mm)
    5,120×2,700 (14sqm)
    Weight (kg)
    465
  • Power Supply
    AC100-240 V ~, 50/60 Hz
    Power Type
    Built-in Power
  • Power Consumption - typical (watts, 48nit)
    3,940
    Power Consumption - (watts, 300nit)
    9,700
  • Operation Temperature
    0℃ to 40℃
    Operation Humidity
    10% to 80%
  • Storage Temperature
    -20℃ to 60℃ (-4℉ to 140℉)
    Storage Humidity
    5% to 85%
GENERAL
  • Frame(Video) Rate (hz)
    24, 25, 30, 48, 50, 60, 144@3D
    Refresh Rate (@24hz)
    3072@24Hz, 3840@60Hz
  • Brightness (nit, w/calibration)
    48(DCI)/ 100 / 130 / 260 / 300
    Contrast Ratio
    ≥4000:1
  • Color Space (Gamut)
    DCI P3
    Viewing Angle (H , V)
    160, 160
  • Bit rate (Grey scale depth)
    15bit@24/48/50Hz
    Bit rate (Color Processing / color)
    24 (72 / total)
  • Chromaticity Uniformity
    White Uniformity:
    within ±0.015 x, ±0.015 y
    Color Temperature (white)
    (x, y) = (0.314, 0.351) / DCI-P3 theater
  • Certification
    DCI, CB, CE-LVD/EMC, FCC, ETL/UL, RoHS, REACH
    Cinema server compatibility
    Dolby IMS3-L
  • Interface
    RJ45, 2*HDMI, RS232C
