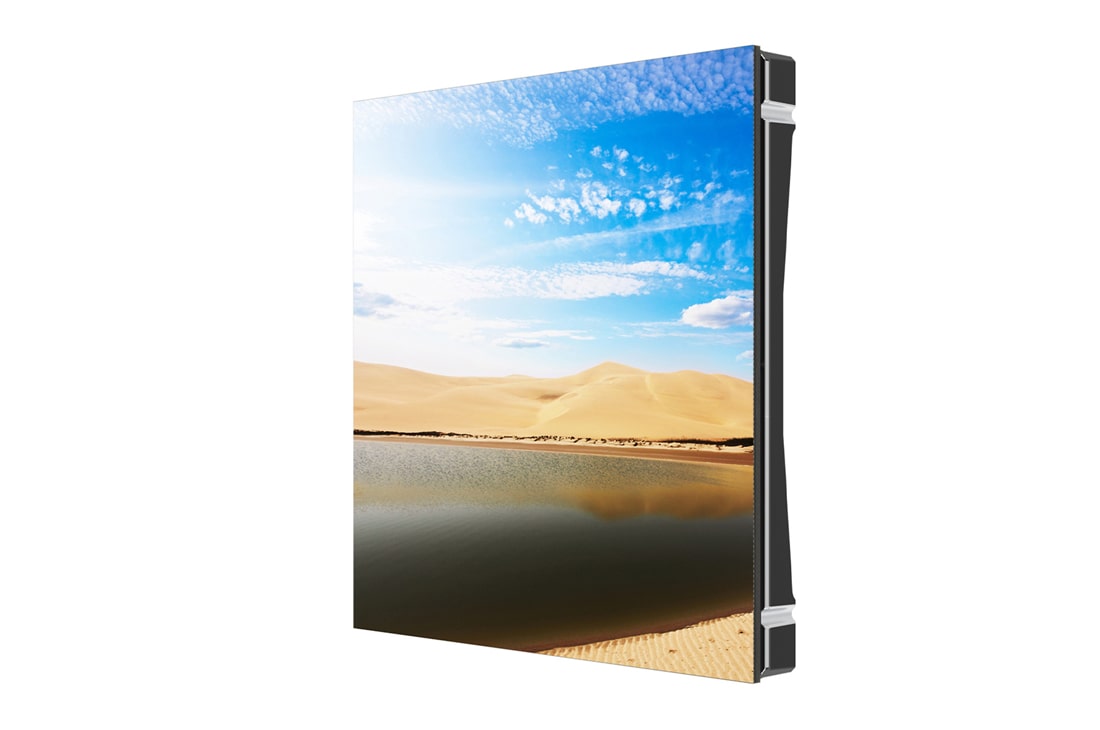

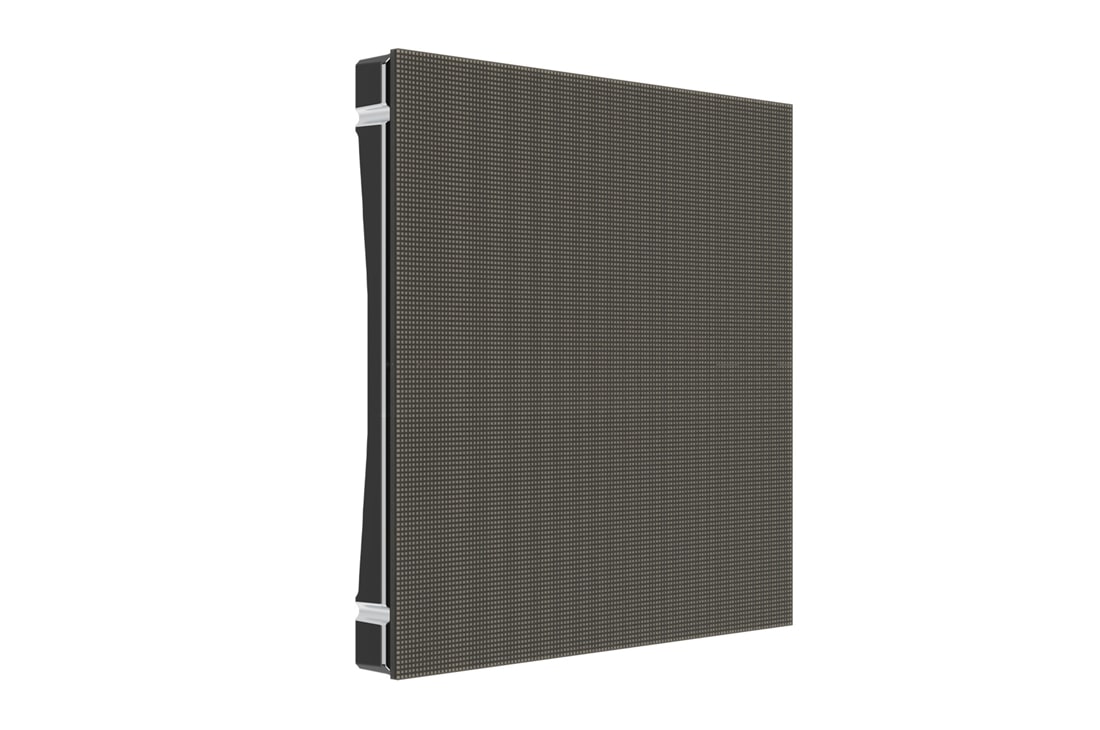

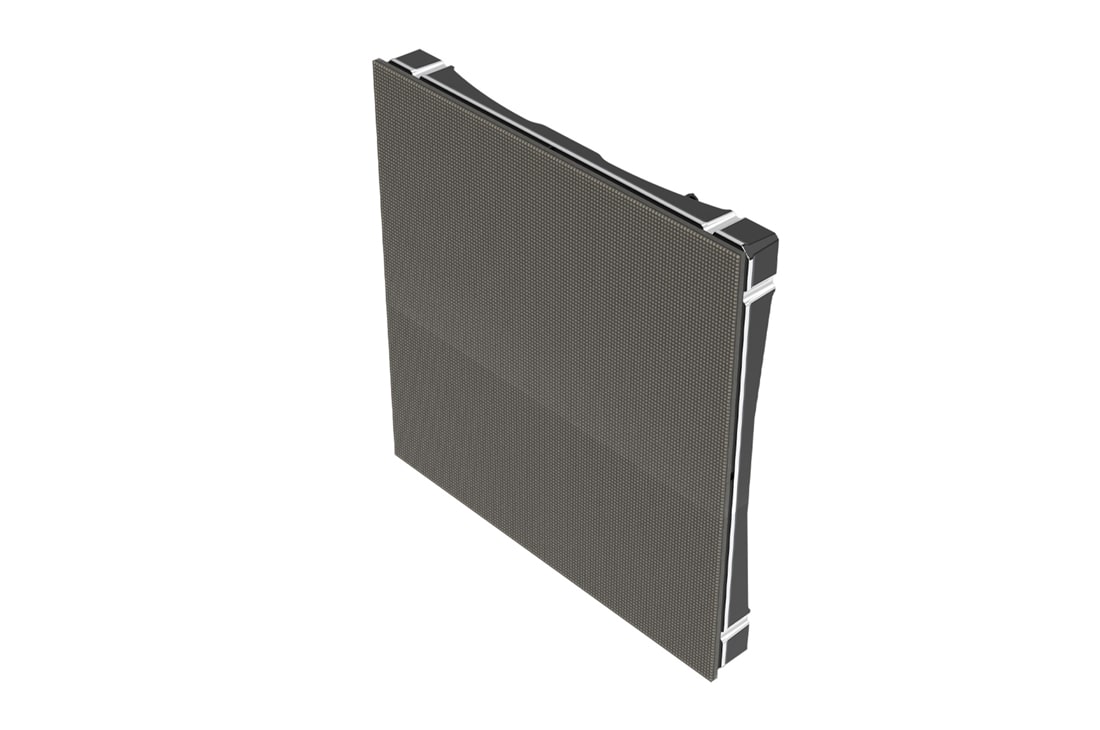

Floor LED Display for Virtual Production

Floor LED Display
for Virtual Production

A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery. A virtual production studio with curved LED walls and ceiling and floor LEDs is filming a video of snowy mountain scenery.
* All images in this page are for illustrative purposes only.

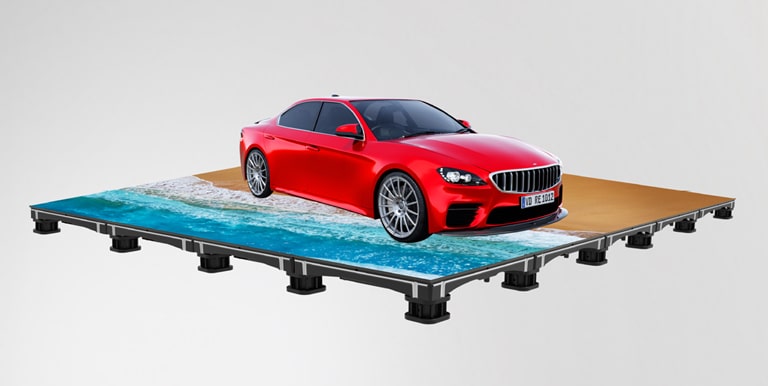

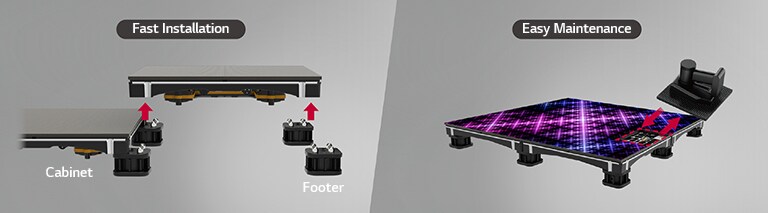

Easy Installation and Maintenance

Its simple product structure allows for easy installation and quick maintenance. You can quickly deploy and connect the cabinets with the foot support system without any tools. A simple flush control mechanism design is applied to keep the height level regardless of floor type. In addition, magnets attached to the LED module allow for easy maintenance, and hot-swapping* is able during the display operation.
It is easy to install LFCL by simply fixing the cabinet with the footer, and the magnets attached to the LED module allow for easy maintenance with the screen on. It is easy to install LFCL by simply fixing the cabinet with the footer, and the magnets attached to the LED module allow for easy maintenance with the screen on.
* Hot Swapping : Swap module on-site during screen’s on the operation.
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch(mm)
    3.906
  • Module Resolution (WxH)
    64x64
    Module Dimensions(WxH,mm)
    250x250
  • Weight per Module (kg)
    0.90
    No. of Modules per Cabinet (WxH)
    2 x 2
  • Cabinet Resolution (WxH)
    128 x 128
    Cabinet Dimensions (W x H x D, mm)
    500x500x84.5
  • Cabinet Surface Area (㎡)
    0.250
    Weight per Cabinet (kg/unit)
    10.5
  • Weight per Square Meter (kg/m²)
    42.0
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet (mm)
    ±0.5
    Cabinet Material
    Die-casting Aluminum
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    3,000
    Color Temperature (K)
    2,000-11,000
  • Visual Viewing Angle (Horizontal)
    120
    Visual Viewing Angle (Vertical)
    120
  • Brightness Uniformity
    ≥97%
    Color Uniformity
    ±0.003Cx,Cy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14 (PQ, HLG)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    240
    Power Consumption (W/Cabinet, Avg.)
    80
  • Power Consumption (W/m², Max.)
    960
    Heat Dissipation (BTU/h/Cabinet, Max.)
    819
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    273
    Heat Dissipation (BTU/h/m², Max.)
    3,276
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10℃ to +45℃
  • Operating Humidity
    0-80%RH Non-condensing
    IP rating Front
    IP65
  • IP rating Rear
    IP65
CERTIFICATION
  • Certification
    CE,FCC,ETL

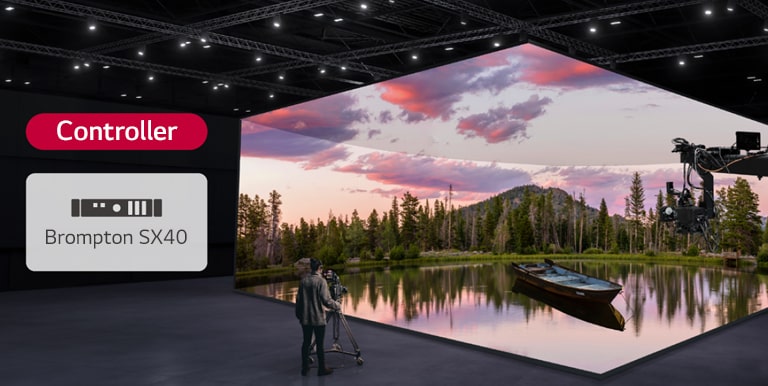

CONTROLLER
  • Controller
    Brompton SX40

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
