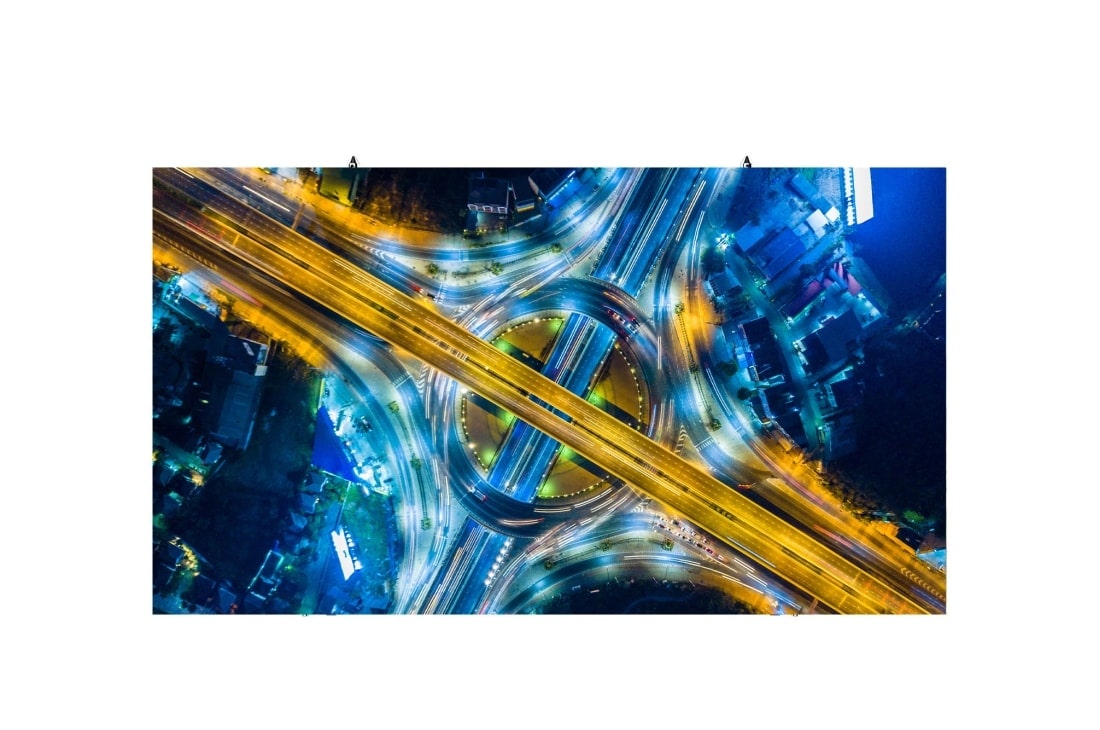

LG Fine-pitch Essential Series, front view with inscreen, LSBB009-GD, thumbnail 1

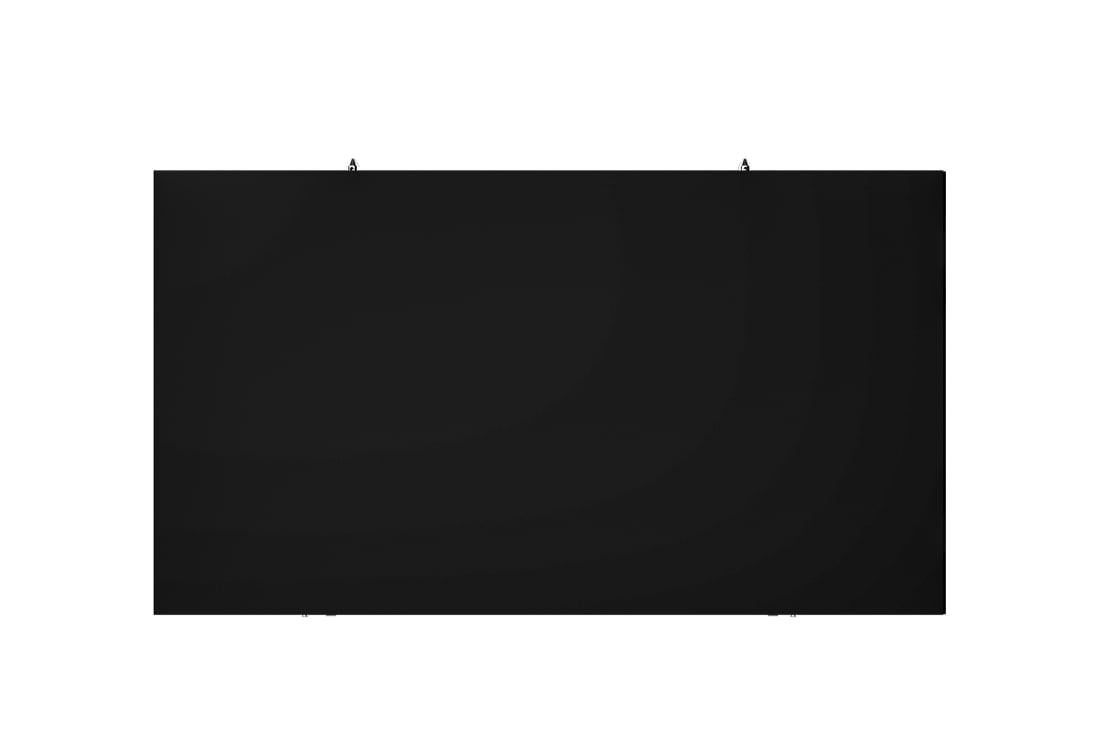

LG Fine-pitch Essential Series, front view, LSBB009-GD, thumbnail 2

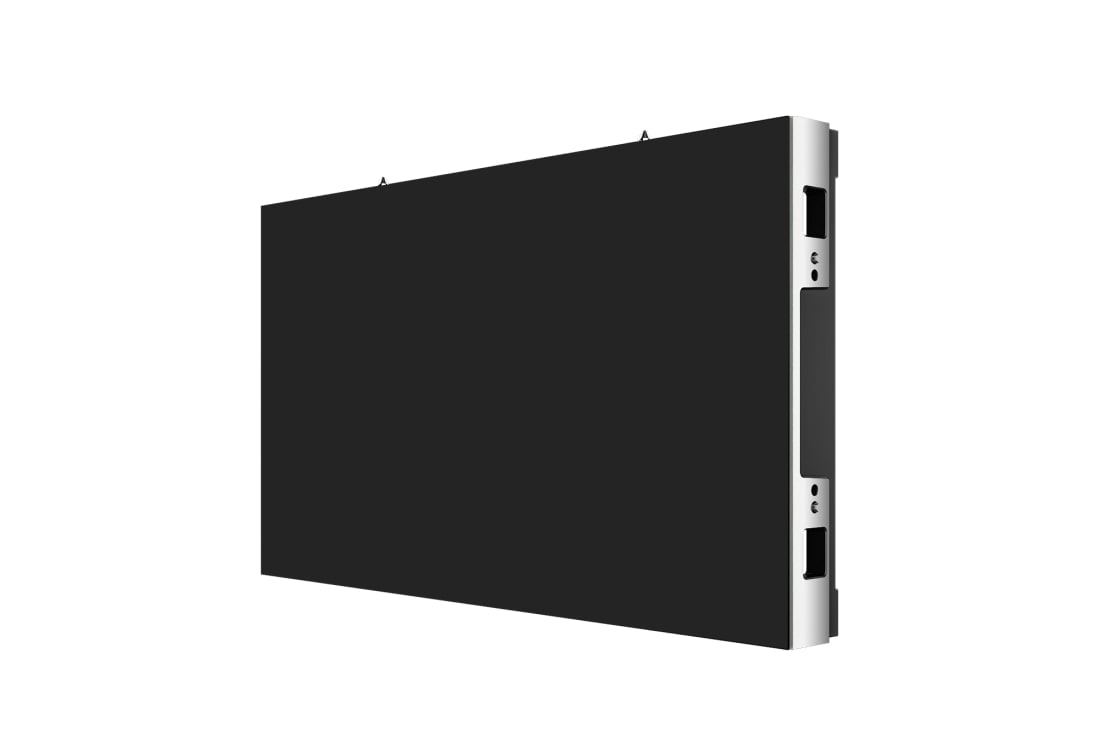

LG Fine-pitch Essential Series, -45 degree side view, LSBB009-GD, thumbnail 3

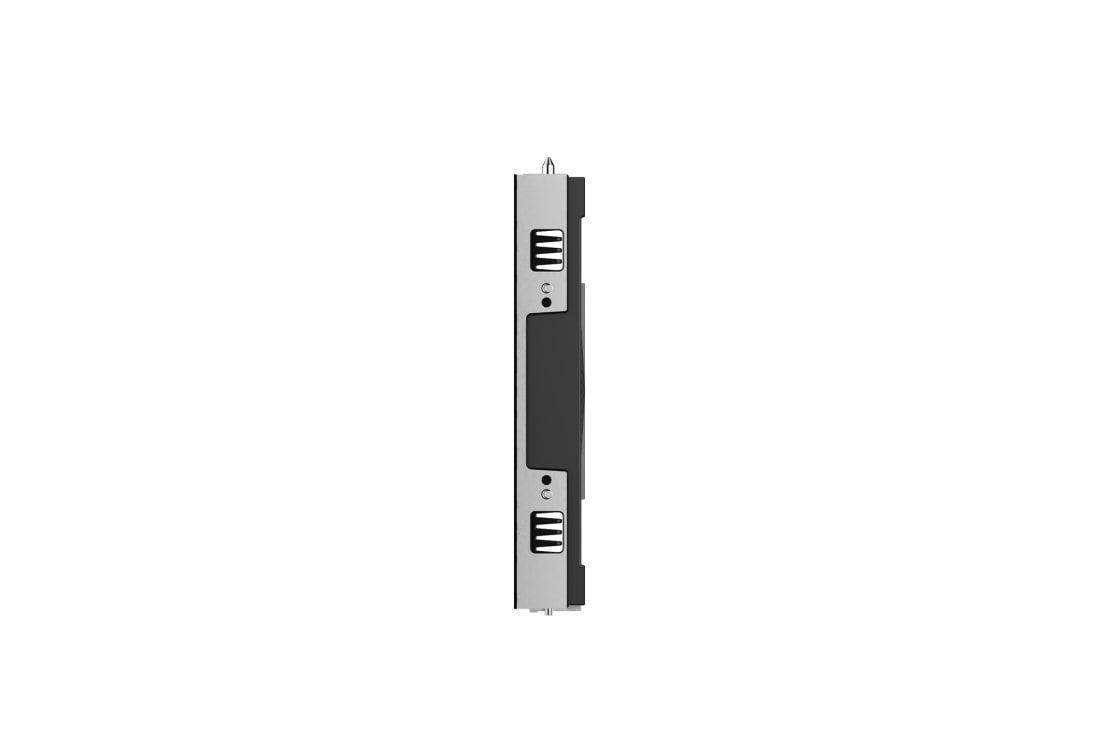

LG Fine-pitch Essential Series, -90 degree side view, LSBB009-GD, thumbnail 4

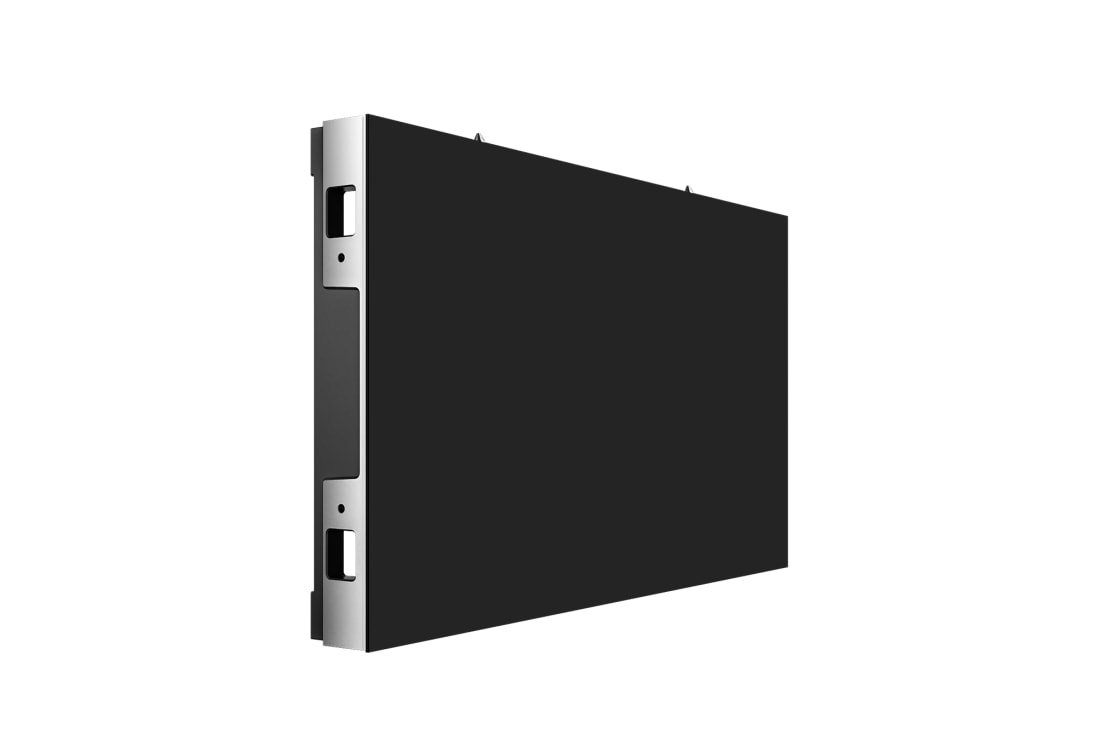

LG Fine-pitch Essential Series, +45 degree side view, LSBB009-GD, thumbnail 5

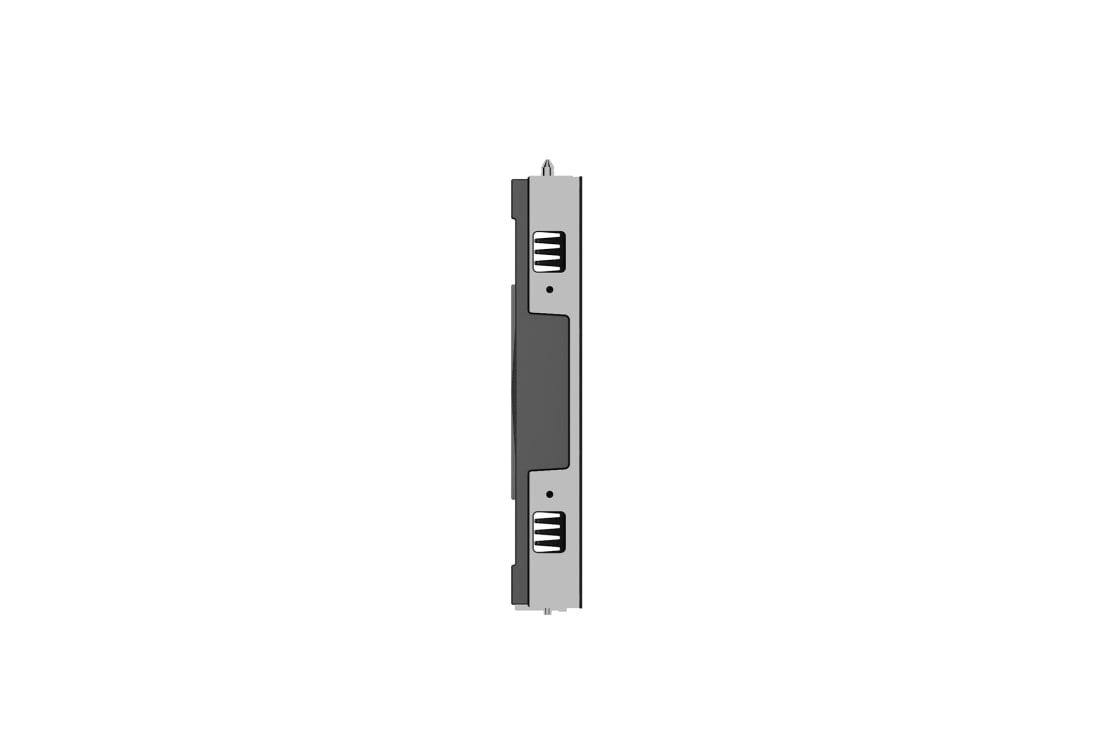

LG Fine-pitch Essential Series, +90 degree side view, LSBB009-GD, thumbnail 6

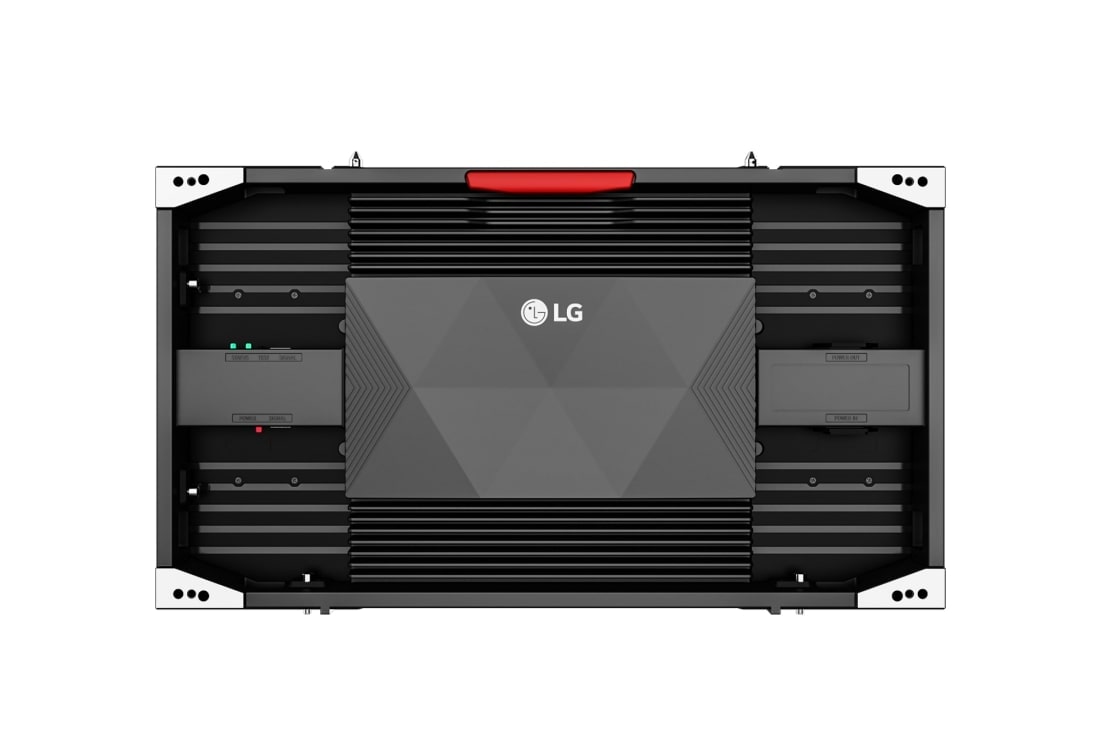

LG Fine-pitch Essential Series, rear view, LSBB009-GD, thumbnail 7

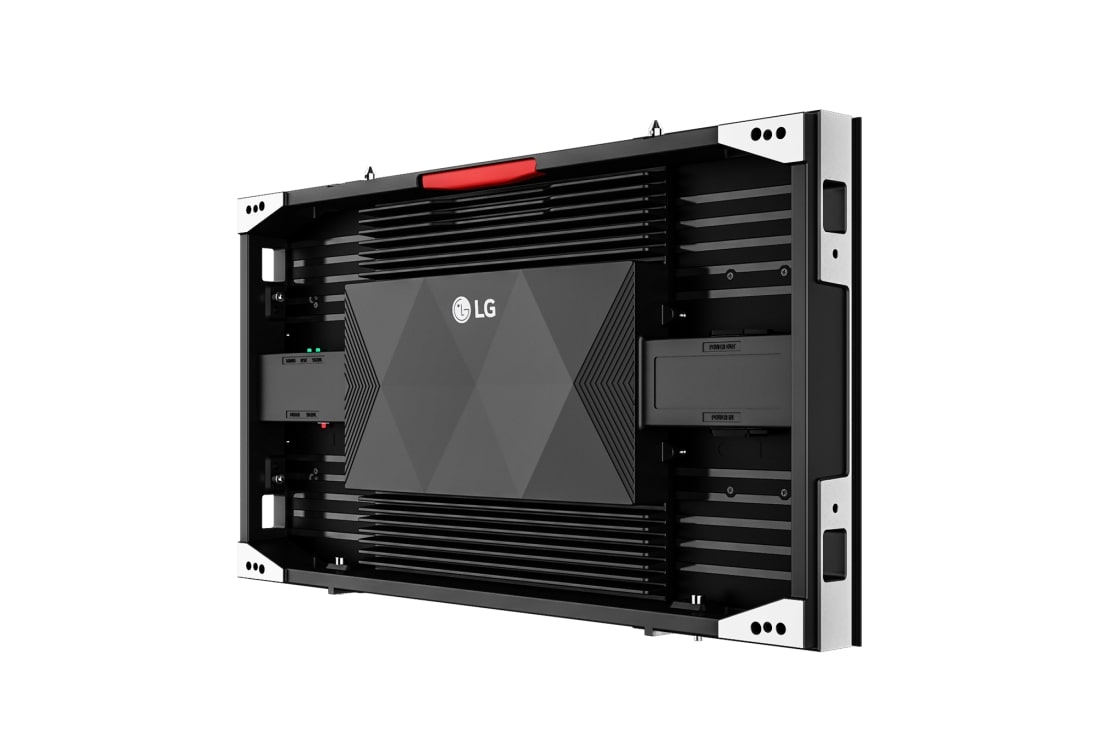

LG Fine-pitch Essential Series, -45 degree rear view, LSBB009-GD, thumbnail 8

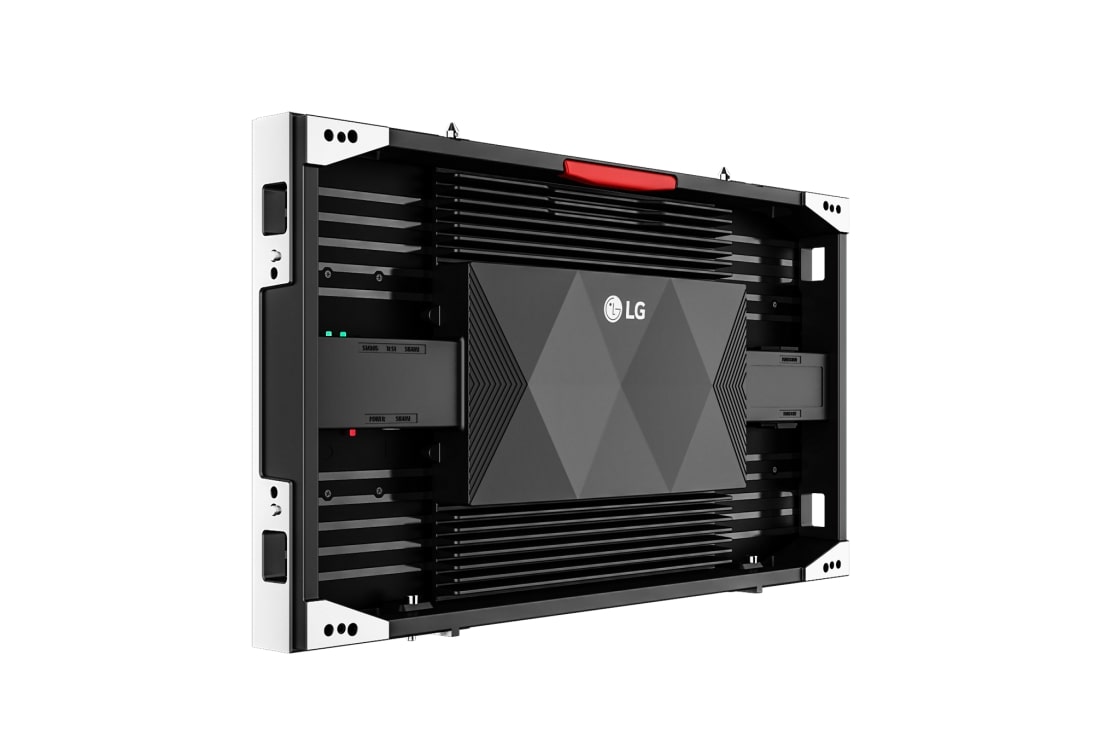

LG Fine-pitch Essential Series, +45 degree rear view, LSBB009-GD, thumbnail 9

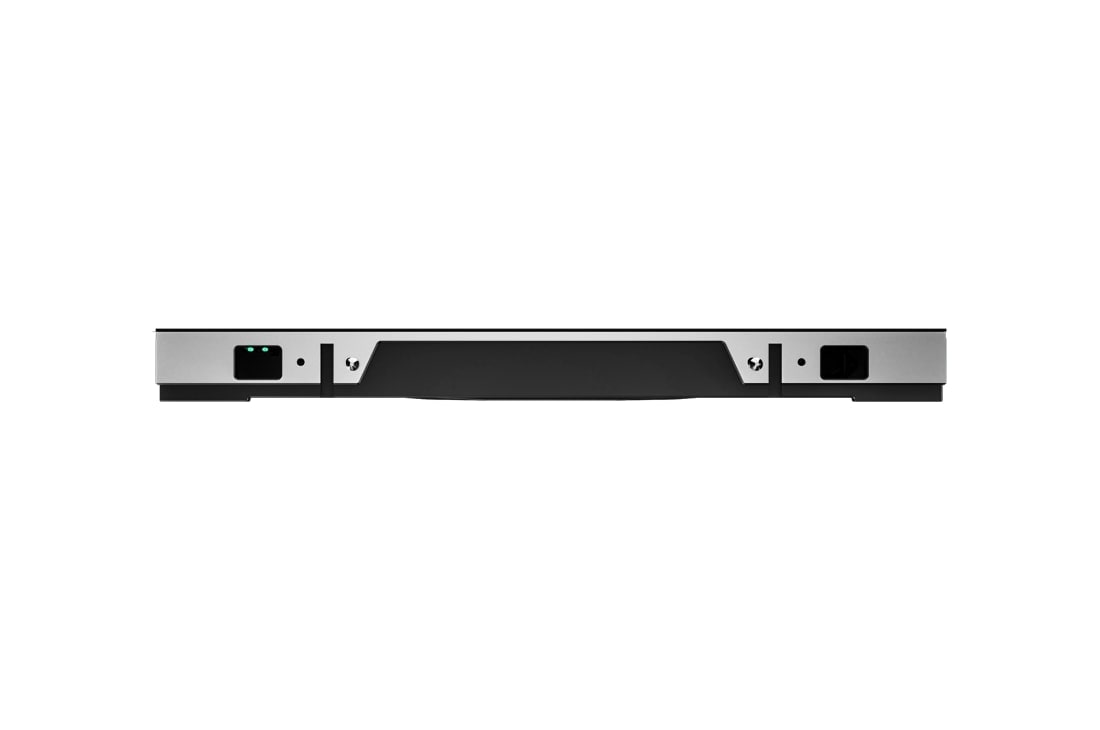

LG Fine-pitch Essential Series, top view, LSBB009-GD, thumbnail 10

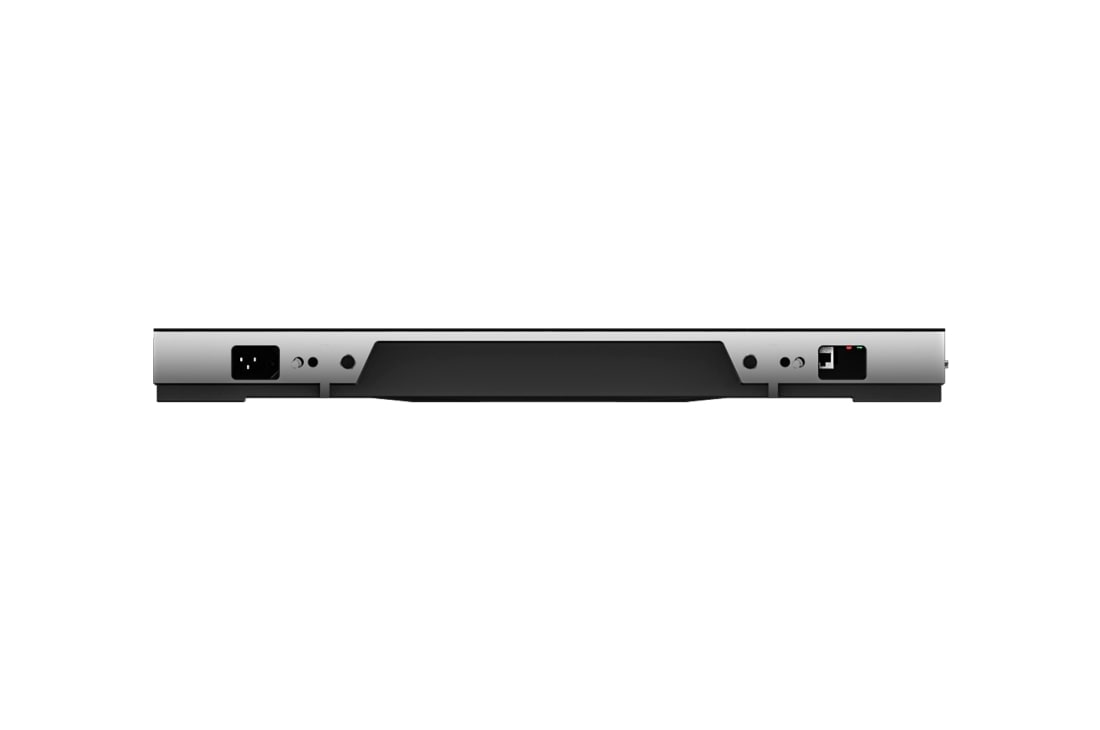

LG Fine-pitch Essential Series, bottom view, LSBB009-GD, thumbnail 11

ADD TO WISHLIST

Discontinued

LSBB009-GD component-copyModelName

Fine-pitch Essential Series

Name: Fine-pitch Essential Series
Brand: LG UAE
SKU: LSBB009-GD
Rating: 0 (0 reviews)

Key Features

Pixel Pitch: 0.94 mm
Brightness: 600 nit
Status Indicator of Signal Detection
Front Serviceability
Easy-handling Lightweight Cabinet
Compatibility with LG Software Solutions

Choose your Pitch

Find a Dealer

Add to Compare

component-OBScountrySelectDesc

Key Features

Pixel Pitch: 0.94 mm
Brightness: 600 nit
Status Indicator of Signal Detection
Front Serviceability
Easy-handling Lightweight Cabinet
Compatibility with LG Software Solutions

Choose your Pitch

Add to Compare

component-OBScountrySelectDesc

component-copyModel-toastMsg

Fine-pitch Essential Series

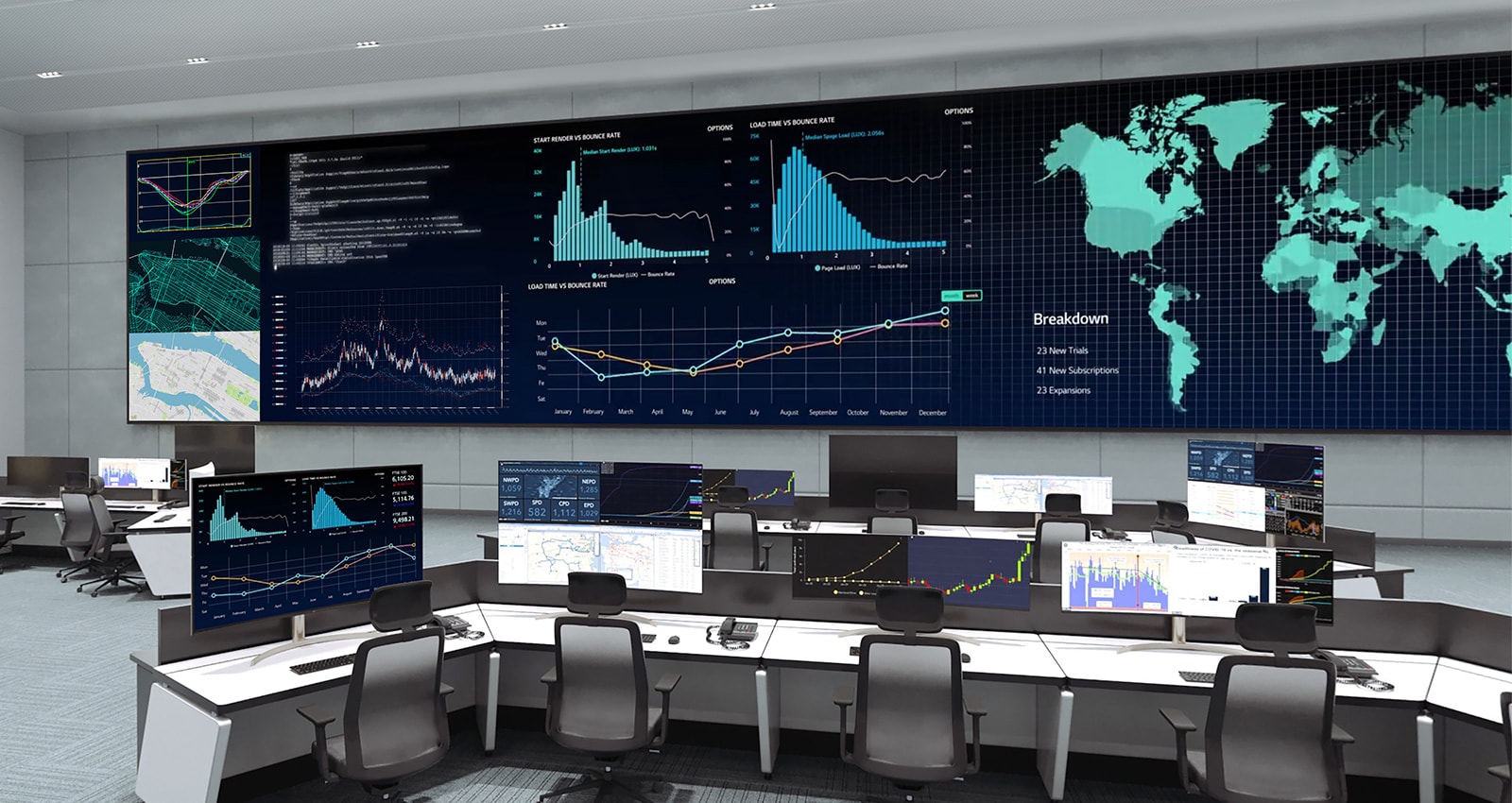

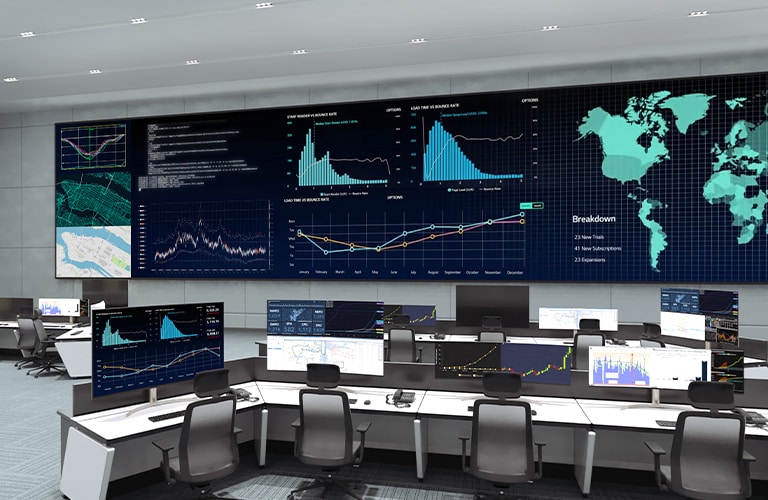

Monitors the graphs on the LED screens installed on the wall of the control room.

* All images in this web page are for illustrative purposes only.

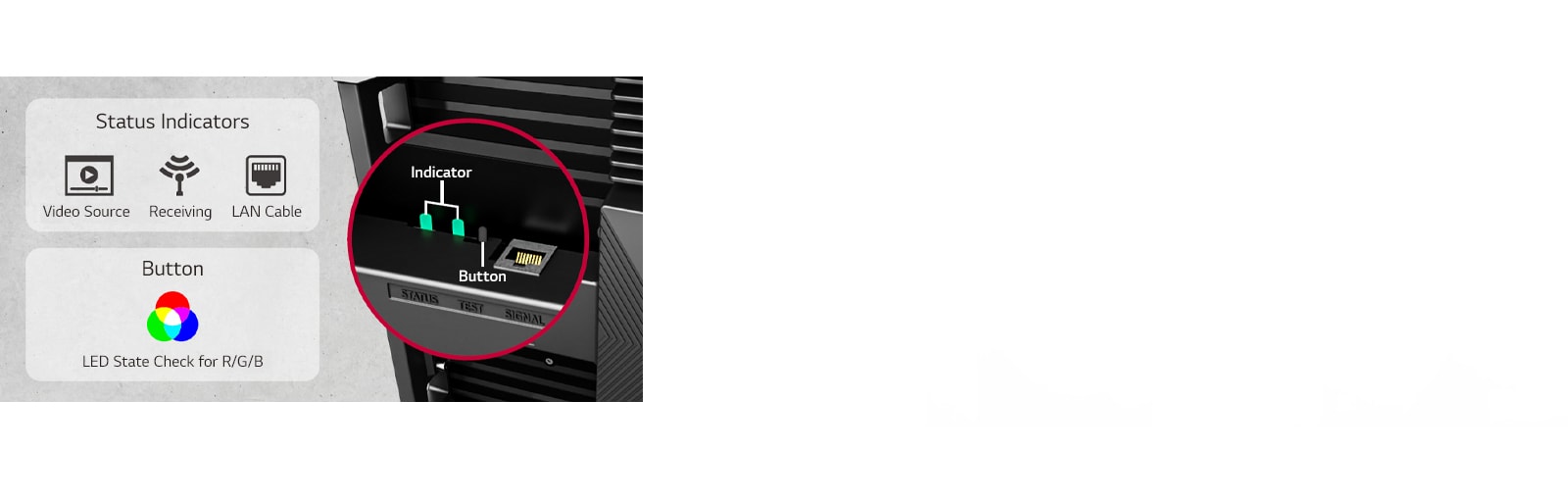

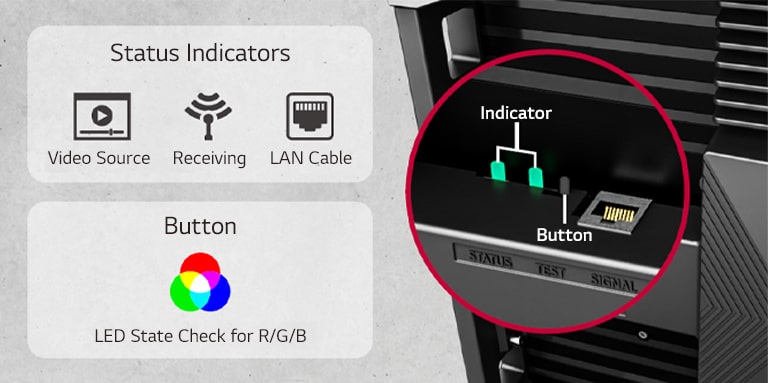

Shows Status Indicators and a button for the LED State Check.

Status Indicator of Signal Detection

Status indicators and button are in the main frame of the cabinet structure, and can be accessed from both front and back.

* Visit LSBB user manual for more details of the status indicators and button.

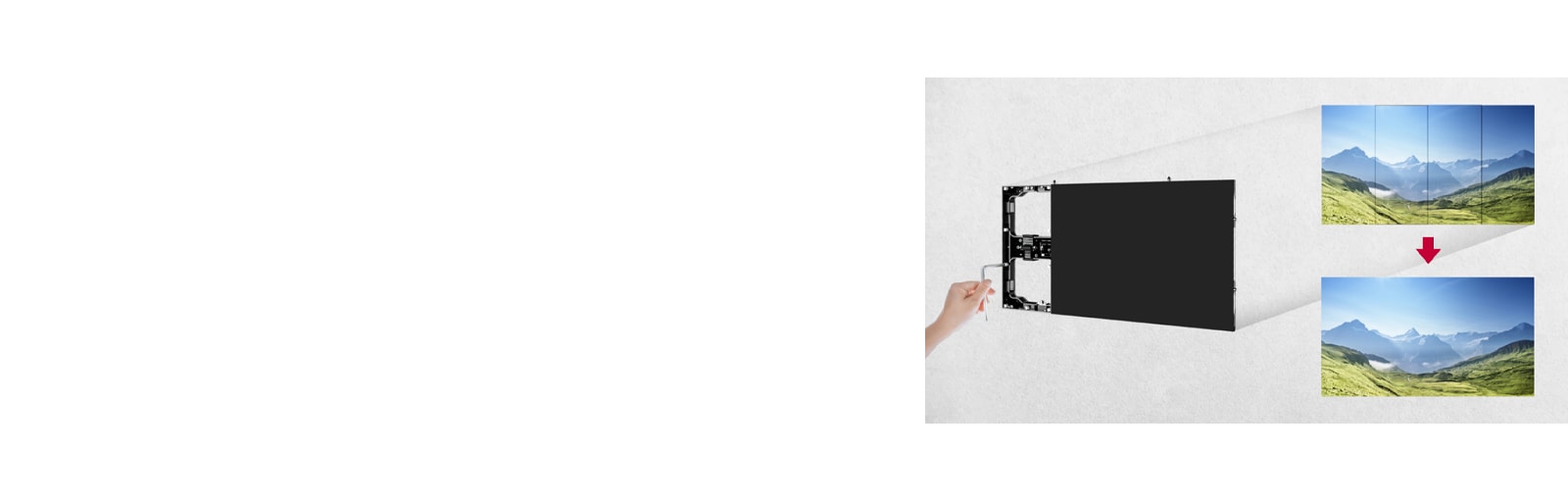

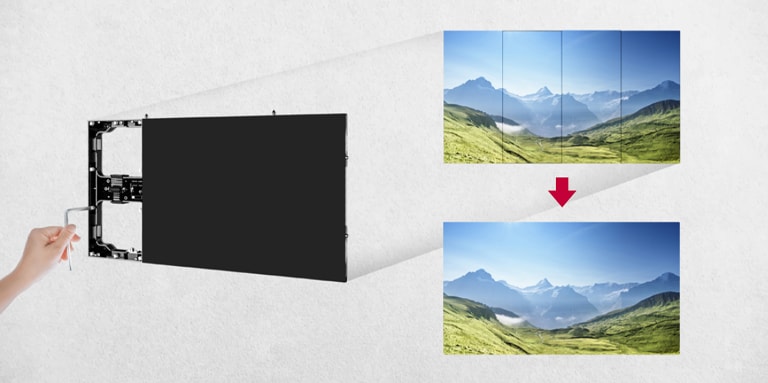

Controlling the X/Y/Z 6-axis between panels with a uniform tool.

Easy Alignment in Z-direction

A uniform tool can be used for X/Y/Z 6-axis adjustment between panels. Module can be easily adjusted in Z-direction, and flatness can be optimized again.

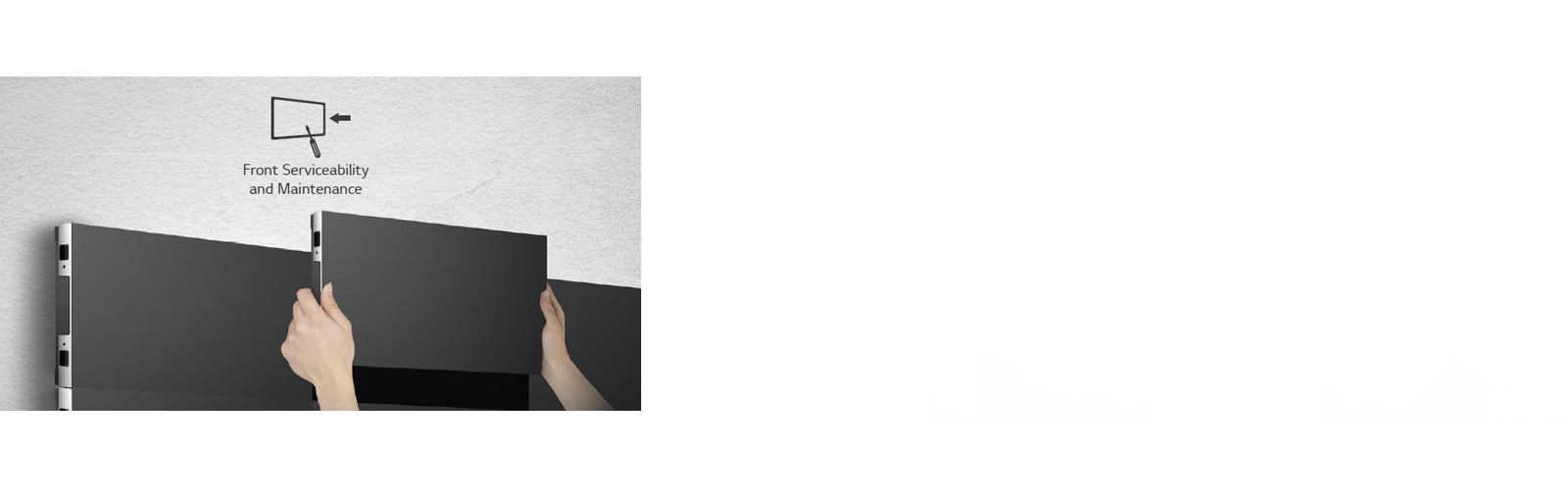

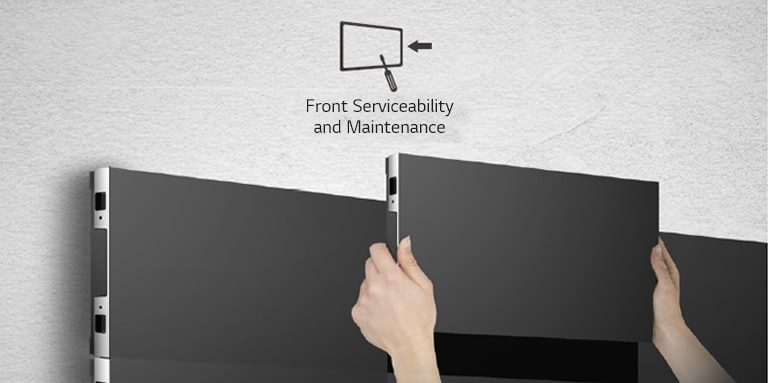

LSBB series is demonstrating its convenient installation from the front side.

Front Serviceability

The product offers front access, freeing customers from needing rear access space.

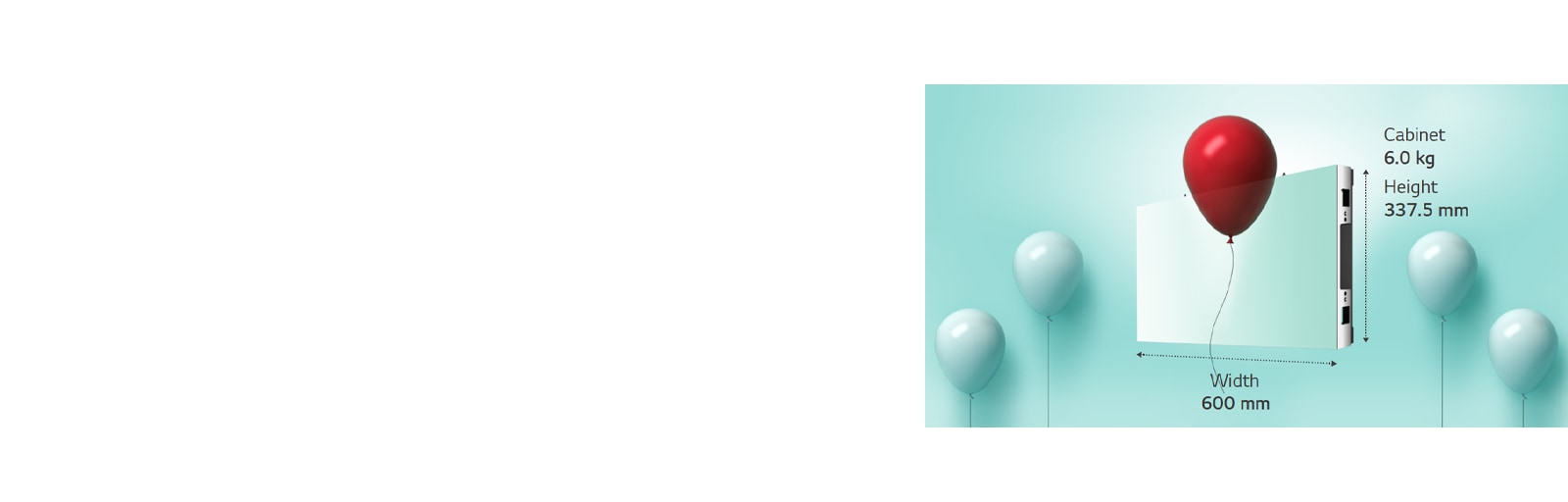

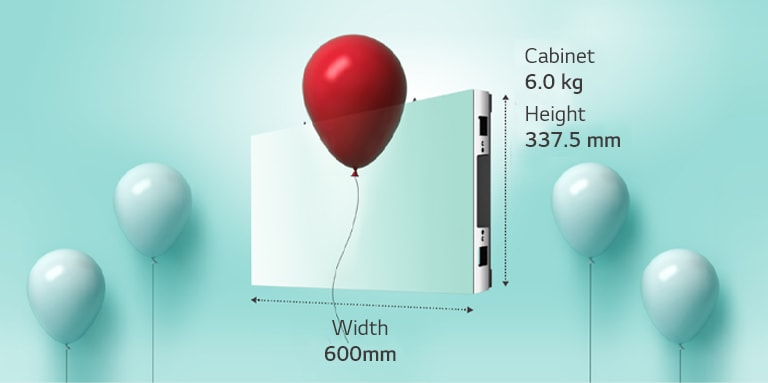

Shows that the cabinet is light with a balloon.

Easy-handling Lightweight Cabinet

It’s lightweight and easy to install, effectively reducing the risk of damage during installation. A full set of LED screens is still light, reducing strain on the structure holding the screens.

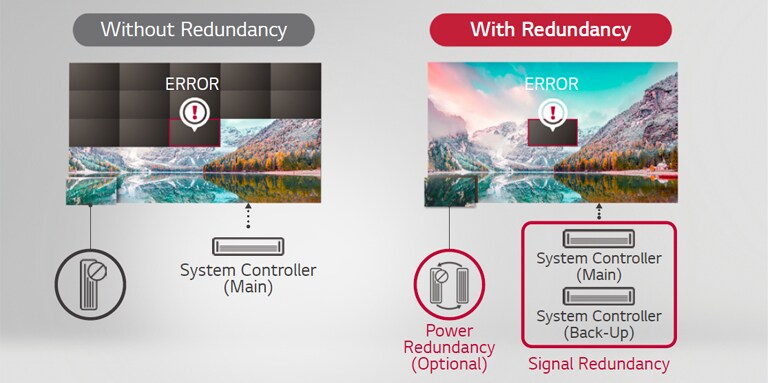

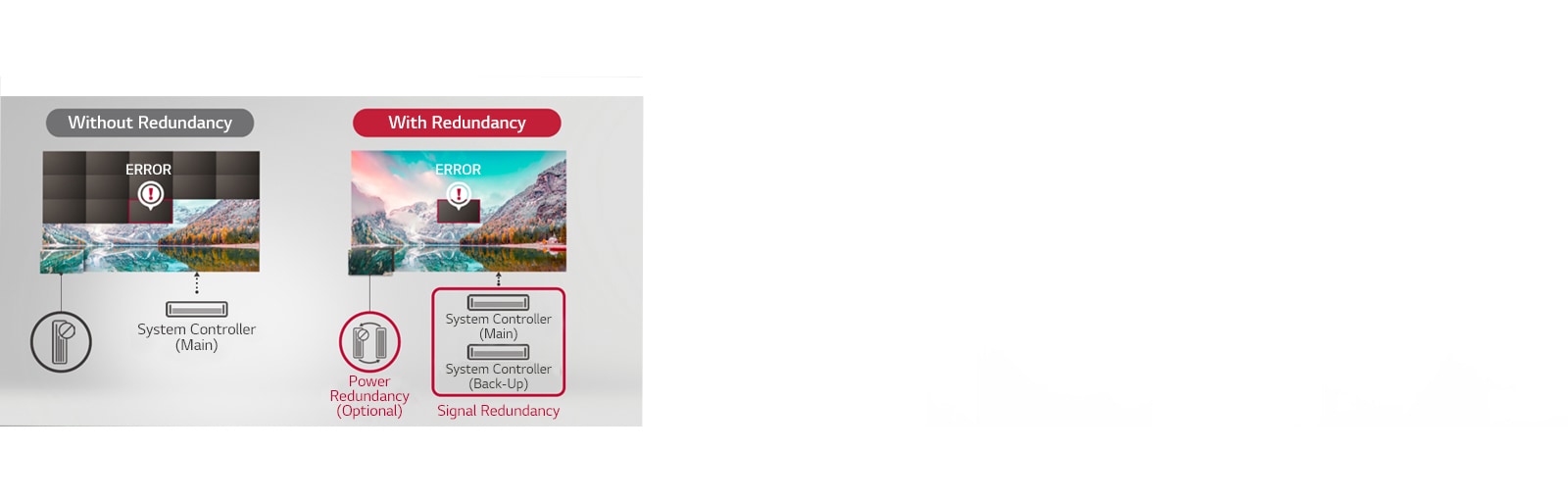

In the case of “Without Redundancy” even more than the error is blacked out, but in the case of “With Redundancy” only the error is blacked out and displayed.

Signal / Power Redundancy

With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option.* Two power units are provided in single LED cabinet one activates to provide power when the other fails.

* In the case of Power Redundancy, additional options are available as add-ons while ordering and will incur additional costs.

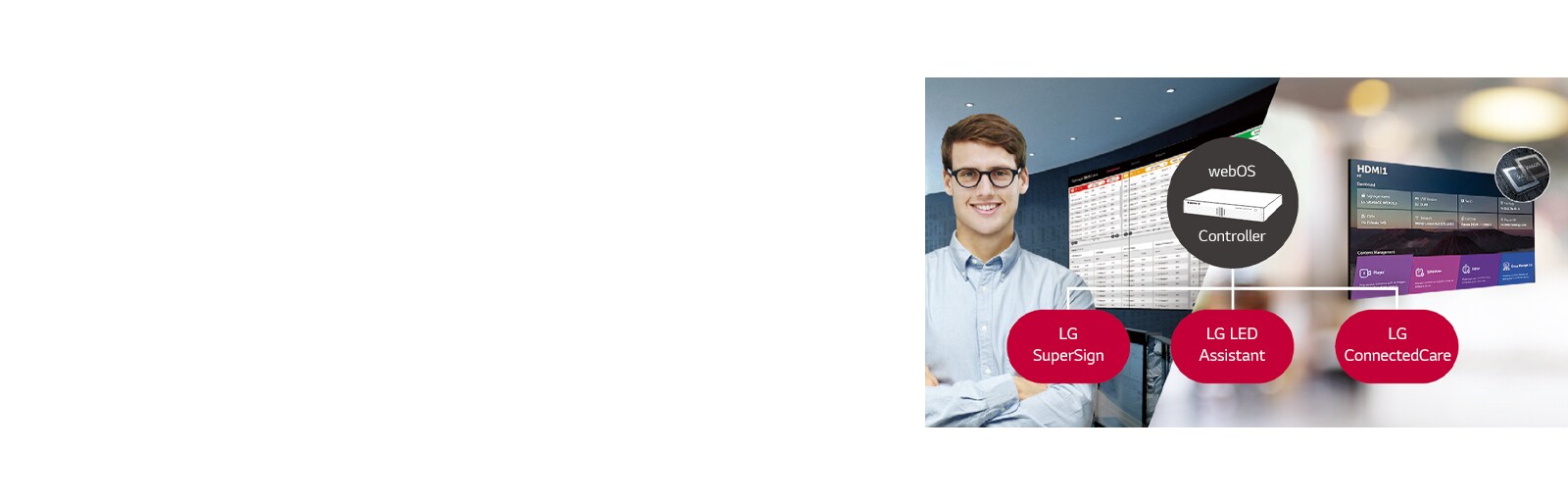

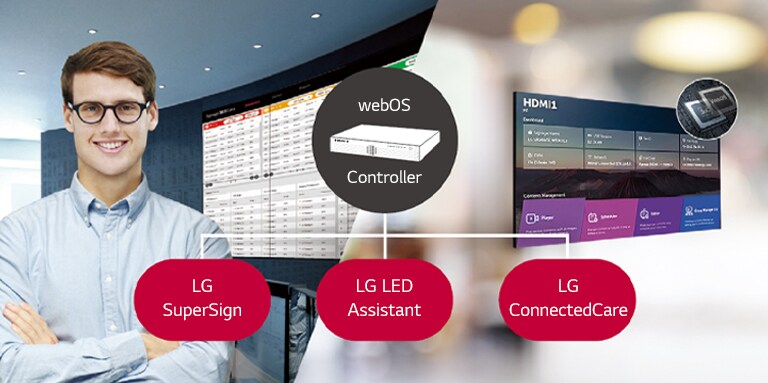

"The LG employee is remotely monitoring the LSBB series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBB series to be compatible with LG software solutions."

Compatibility with LG Software Solutions

Powered by LG’s high performance system controller, the LSBB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

PHYSICAL PARAMETERS

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm)

0.938
Module Resolution (W x H)

160 × 360

Module Dimensions (W x H, mm)

150 × 337.5
Weight per Module (kg)

0.50

No. of Modules per Cabinet (WxH)

4 × 1
Cabinet Resolution (WxH)

640 x 360

Cabinet Dimensions (W x H x D, mm)

600 × 337.5 × 56
Cabinet Surface Area (m²)

0.203

Weight per Cabinet (kg/Cabinet)

6.0
Weight per Square Meter (kg/m²)

30.0

Physical Pixel Density (pixels/m²)

1,137,777
Flatness of Cabinet (mm)

0.5

Cabinet Material

Die Casting Aluminum
Service access

Front

OPTICAL SPECIFICATIONS

Max. Brightness (After Calibration)

600

Color Temperature (K)

3,200-9,300
Visual Viewing Angle (H × V)

160 × 140

Brightness Uniformity

97%
Color Uniformity

±0.003 Cx,Cy

Contrast Ratio (Typ.)

5,000 : 1
Processing Depth (bit)

16 (HDR10, HDR10 Pro)

ELECTRICAL SPECIFICATIONS

Power Consumption (W/Cabinet, Max.)

120

Power Consumption (W/Cabinet, Avg.)

40
Power Consumption (W/m², Max.)

600

Power Consumption (BTU/Cabinet, Max.)

409
Power Consumption (BTU/Cabinet, Avg.)

136

Power Consumption (BTU/㎡, Max.)

2,047
Power Supply (V)

AC 100-240 V (50-60 Hz)

Frame Rate (Hz)

50 / 60
Refresh Rate (Hz)

3,840

OPERATION SPECIFICATIONS

Lifetime (Half brightness)

100,000

Operating Temperature(℃)

-20 to +40
Operating Humidity

10-80%RH

IP Rating Front / Rear

IP5X / IP5X
