LSBC Compact Series

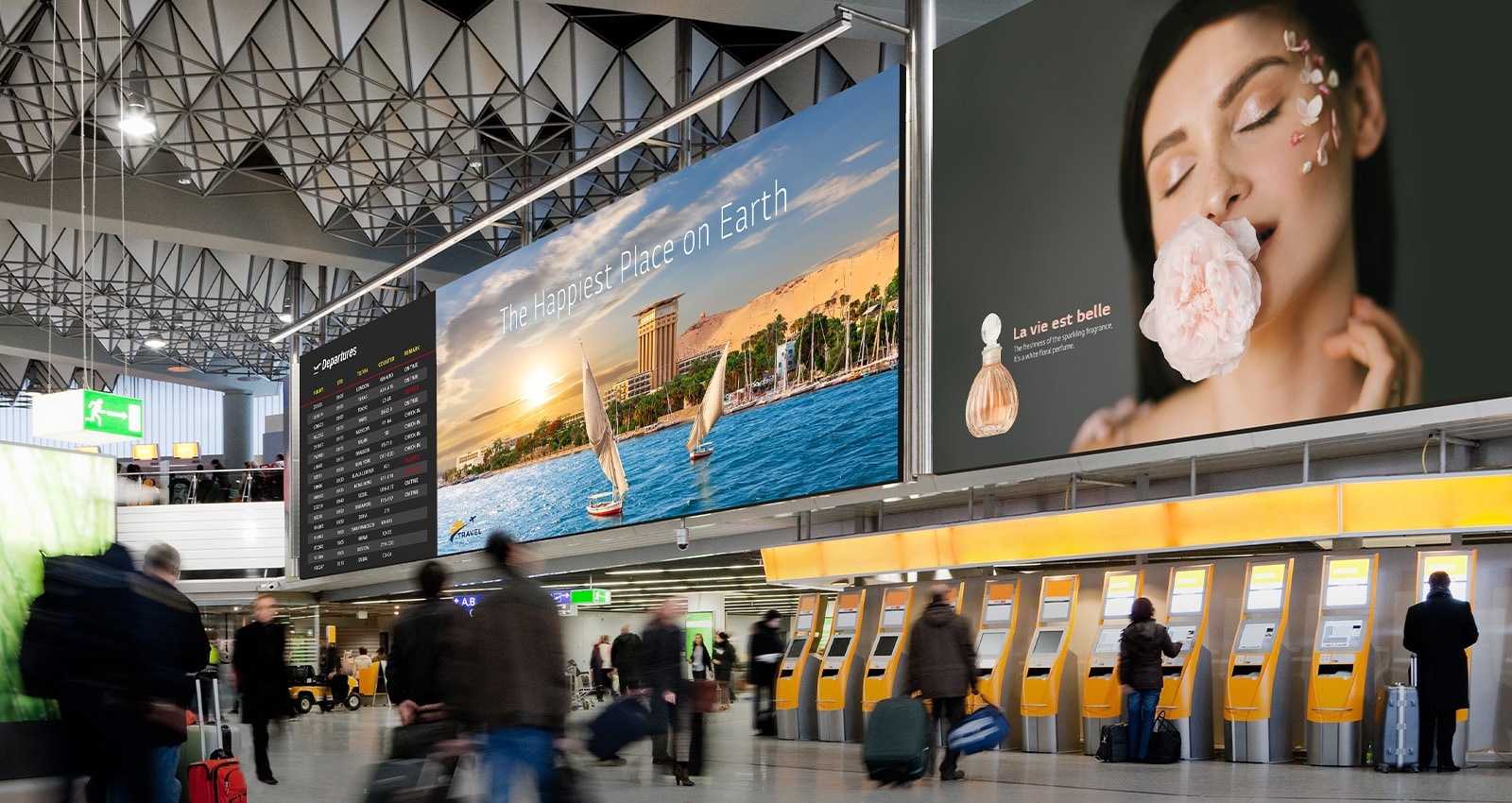

Large LEDs inside an airport show passengers’ departure schedules and advertisements. Large LEDs inside an airport show passengers’ departure schedules and advertisements.
* All images in this web page are for illustrative purposes only.
The content of HDR look more vivid and realistic than SDR. The content of HDR look more vivid and realistic than SDR.

Vivid Color Expression Powered by HDR

With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact. The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.
* HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.

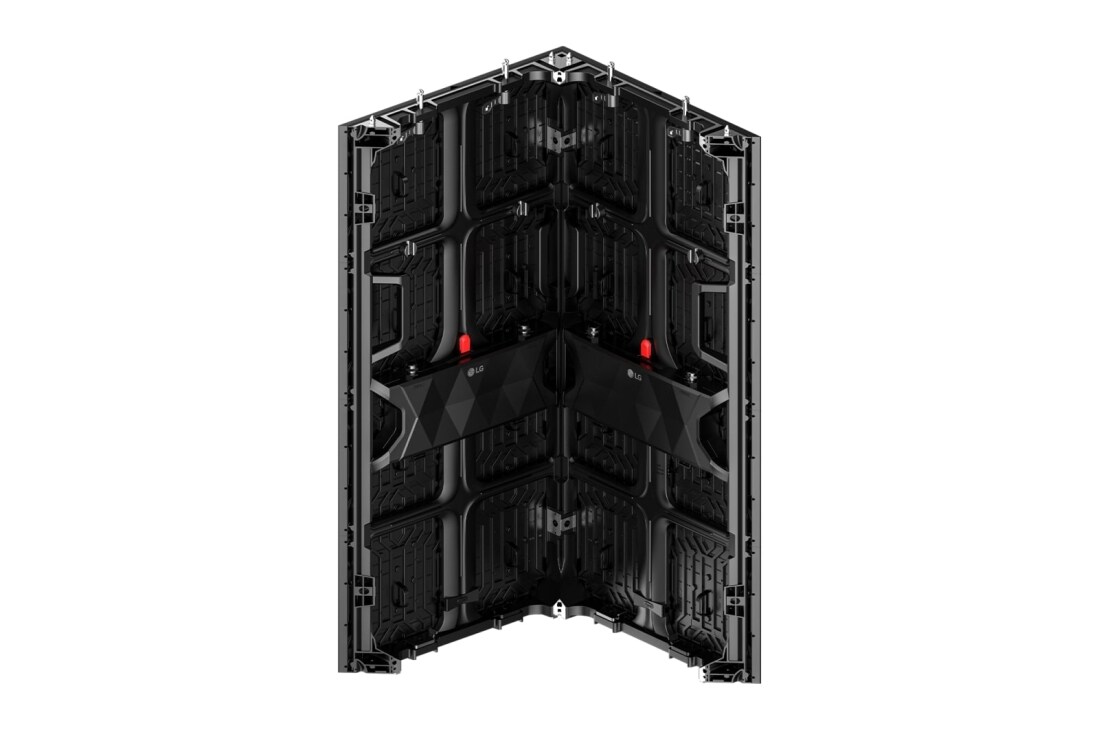

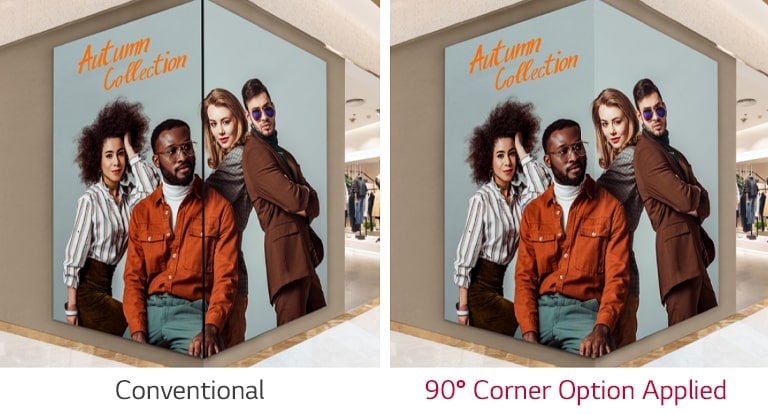

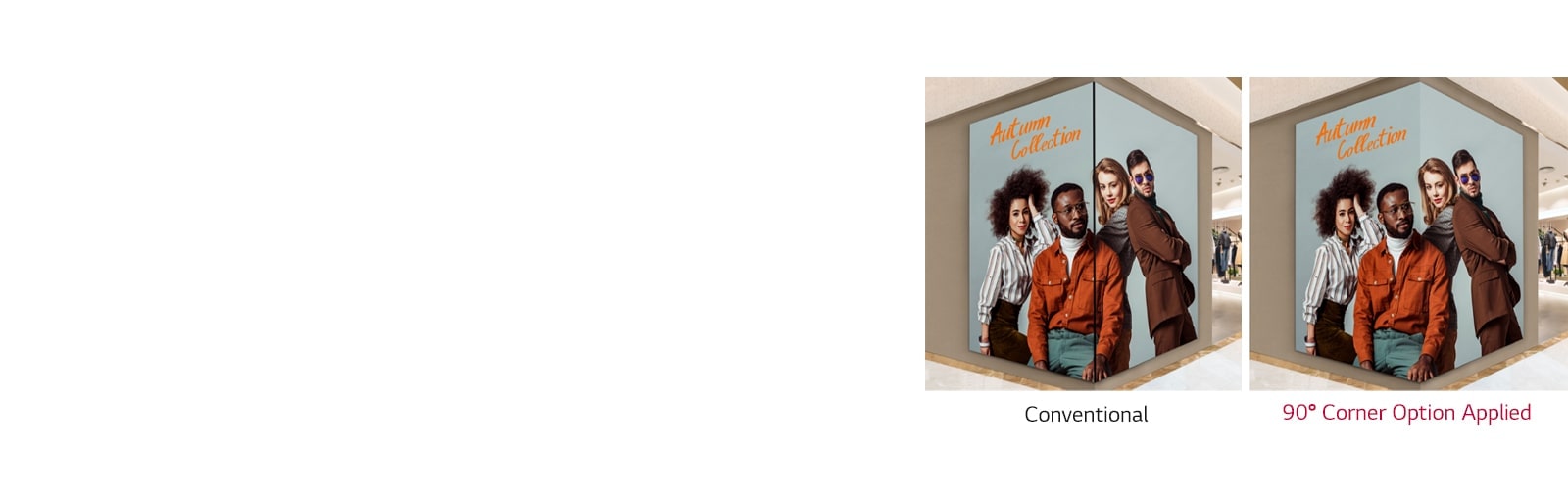

Content is effectively displayed, even when the screen is installed on a 90° corner. Content is effectively displayed, even when the screen is installed on a 90° corner.

90° Corner Installation Available

Considering the use of corners, the cabinet is designed to stitch out a seamless 90 degree corner screen.
* Corner option is available as add-ons without additional costs. The option should be included in an ordering form.

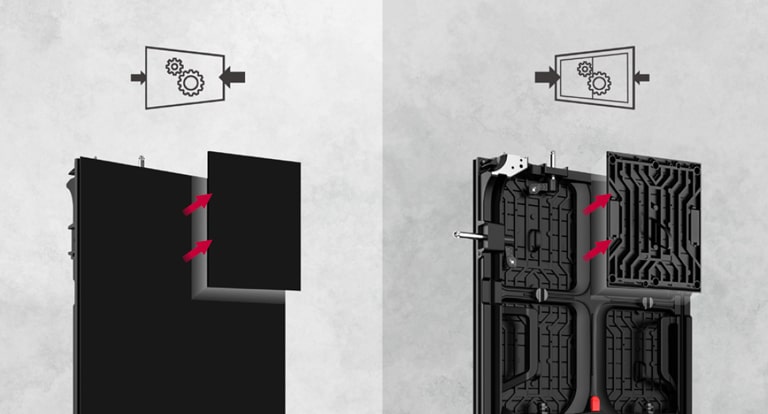

Capable of front or rear installation depending on the customers' needs. Capable of front or rear installation depending on the customers' needs.

Front or Rear Installation & Maintenance

Easy access to front or rear cabinet for maintenance.

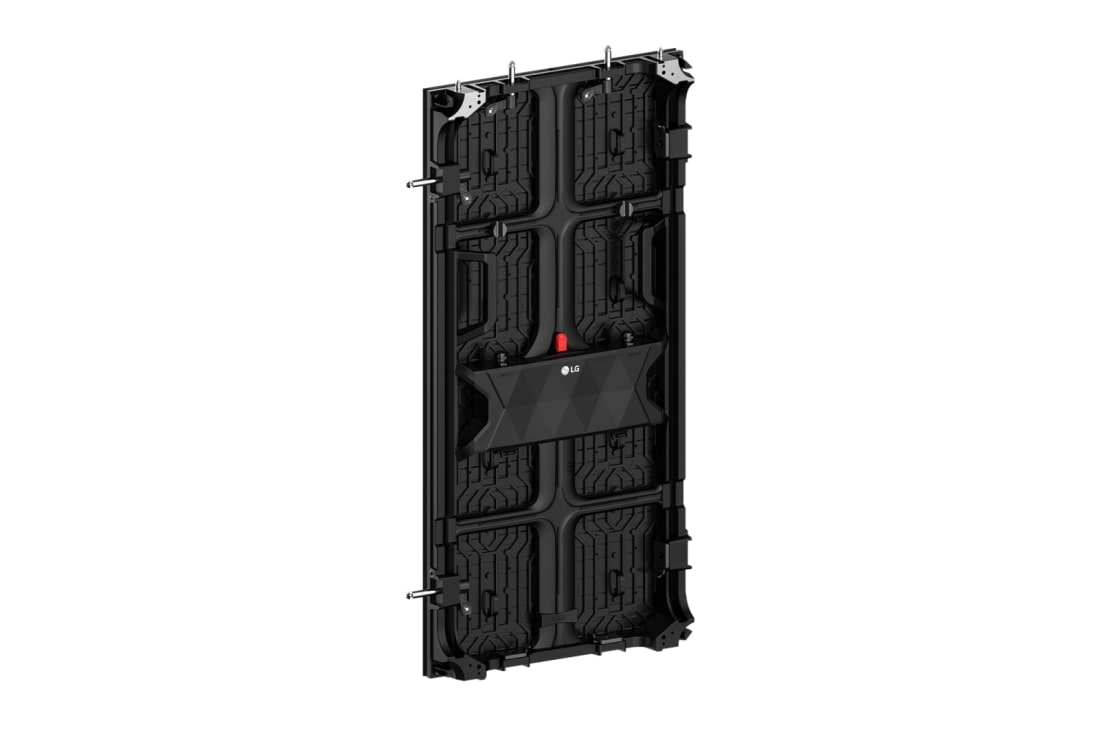

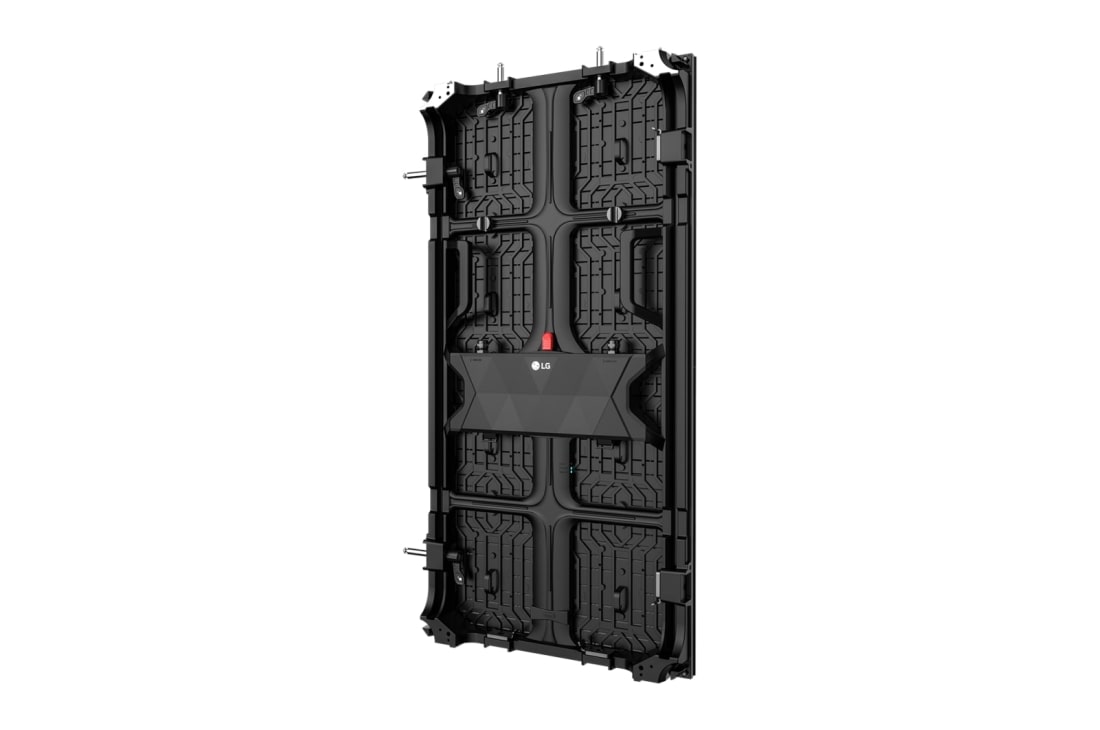

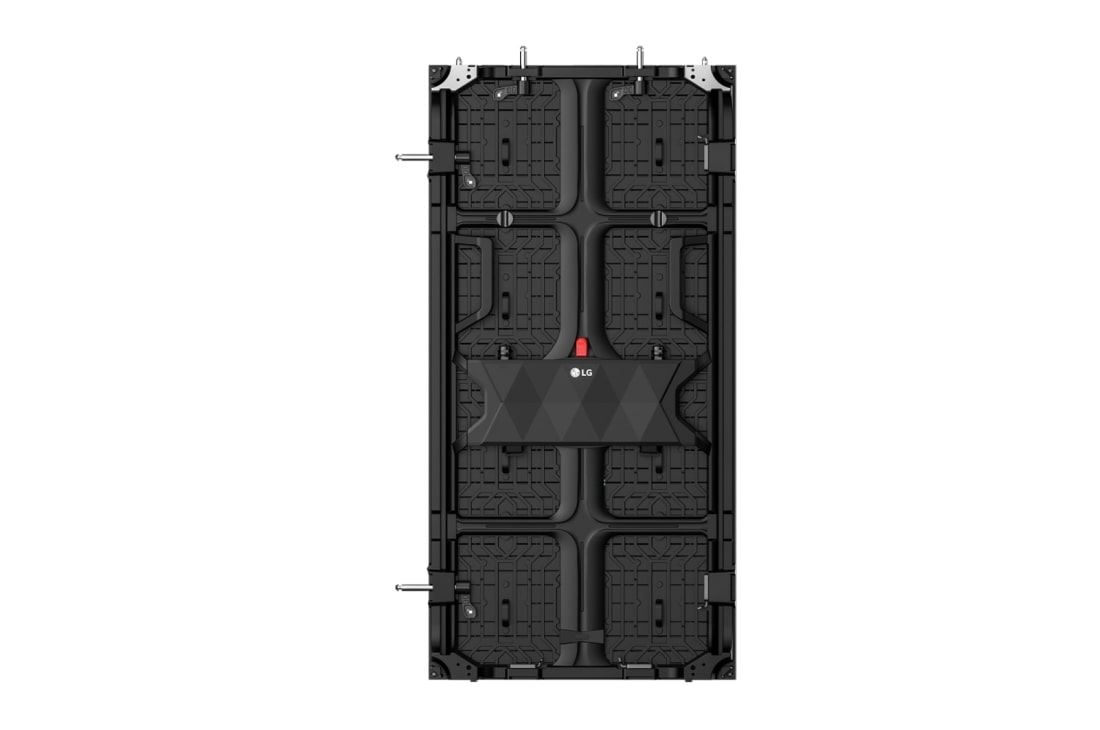

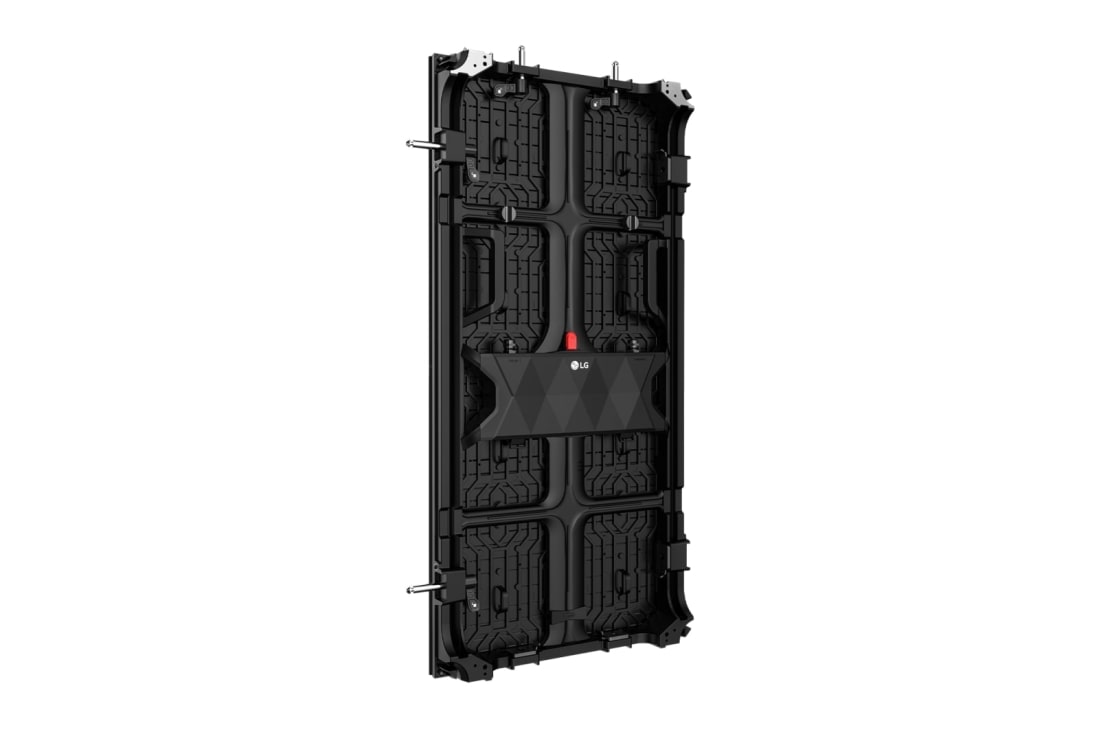

An enlarged view of the “Quick Lock” and “Flip Design” on the back of the cabinet. An enlarged view of the “Quick Lock” and “Flip Design” on the back of the cabinet.

Quick Lock & Flip Design

Easy installation with quick lock system and maintains an outstanding alignment. Also the flip design makes easy repair and replace of integrated power system and reception card.

Compatibility with
LG Software Solution

Powered by LG’s high performance system controller, the LSBC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly.

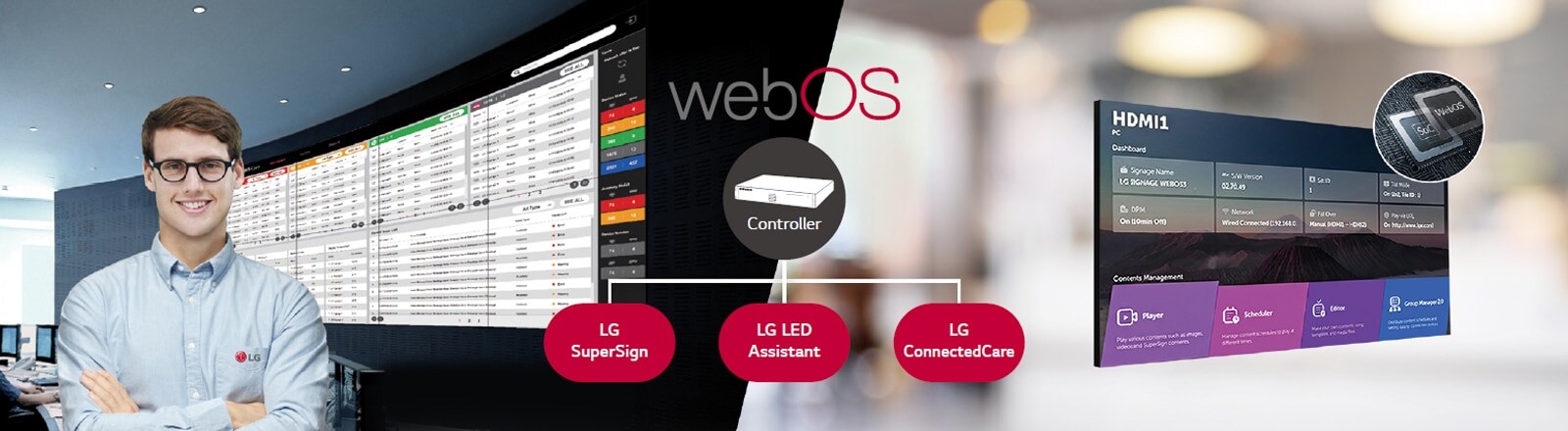

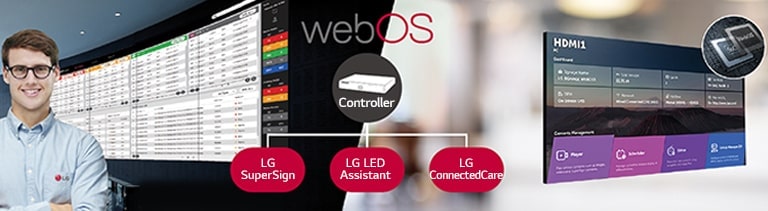

The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSBC series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBC series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    1.953
  • Module Resolution (W × H)
    128 × 128
    Module Dimensions (W × H, mm)
    250 × 250
  • Weight per Module (kg, ±0.003 kg)
    0.70
    No. of Modules per Cabinet (W × H)
    2 × 4
  • Cabinet Resolution (W × H)
    256 × 512
    Cabinet Dimensions (W × H × D, mm)
    500 × 1,000 × 68
  • Cabinet Surface Area (m²)
    0.500
    Weight per Cabinet (kg/Cabinet)
    12.0
  • Weight per Square Meter (kg/m²)
    24.0
    Physical Pixel Density (pixels/m²)
    262,144
  • Flatness of Cabinet (mm)
    0.5
    Cabinet Material
    Die Casting Aluminum
  • Service access
    Front or Rear
OPTICAL SPECIFICATIONS
  • Max. Brightness (After Calibration)
    800
    Color Temperature (K)
    3,200-9,300
  • Visual Viewing Angle (H × V)
    160 × 140
    Brightness Uniformity
    97%
  • Color Uniformity
    ±0.003 Cx,Cy
    Contrast Ratio (Typ.)
    5,000 : 1
  • Processing Depth (bit)
    16 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    300
    Power Consumption (W/Cabinet, Avg.)
    100
  • Power Consumption (W/m², Max.)
    600
    Power Consumption (BTU/Cabinet, Max.)
    1,024
  • Power Consumption (BTU/Cabinet, Avg.)
    341
    Power Consumption (BTU/m², Max.)
    2,047
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    ≥3,840
OPERATION SPECIFICATIONS
  • Lifetime (Half brightness)
    100,000
    Operating Temperature (°C)
    -20 to +40
  • Operating Humidity
    10-90% RH
    IP Rating Front / Rear
    IP5X / IP5X

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
