2023 LG Indoor LED Series, 1.88mm Pixel Pitch

Key Features

Choose your Pitch

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSBE018-GD)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSBE018-GD)
    AED
    AED
    LG Members Price
Total
2023 LG Indoor LED Series, 1.88mm Pixel Pitch
Find a Dealer

LSBE Indoor LED Series

A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen. A large LED is installed on the wall of the shopping mall, displaying fashion advertisements vividly on the LED screen.
* All images in this page are for illustrative purposes only.

Brightness

With a great brightness of 600 nits, it clearly delivers content and attracts public attention, making it ideal for achieving bright indoor visibility.

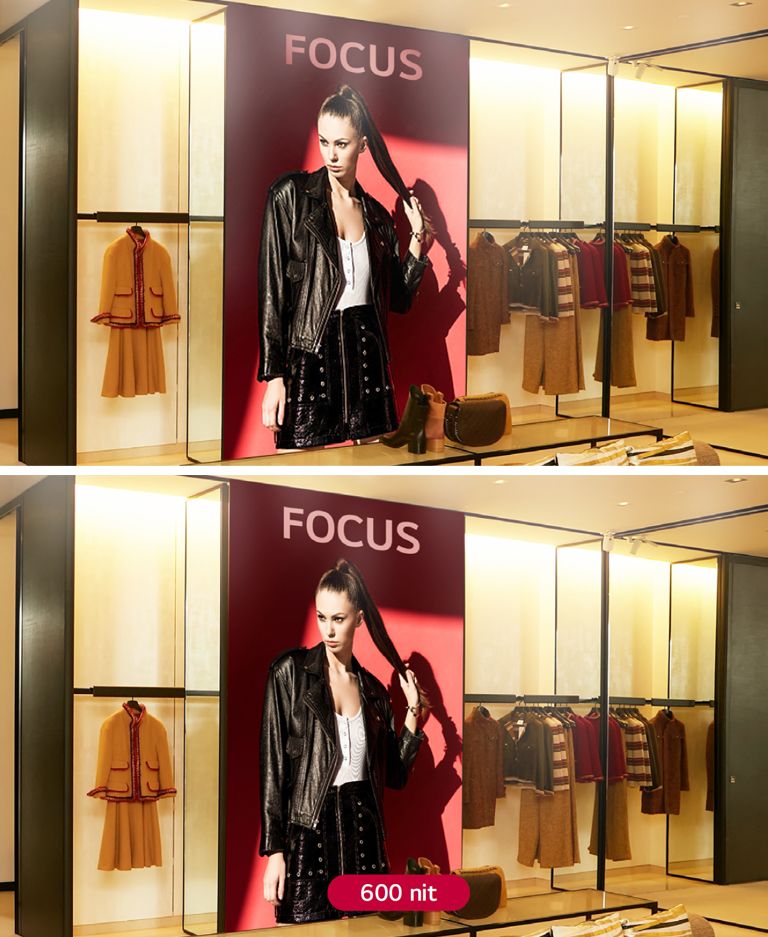

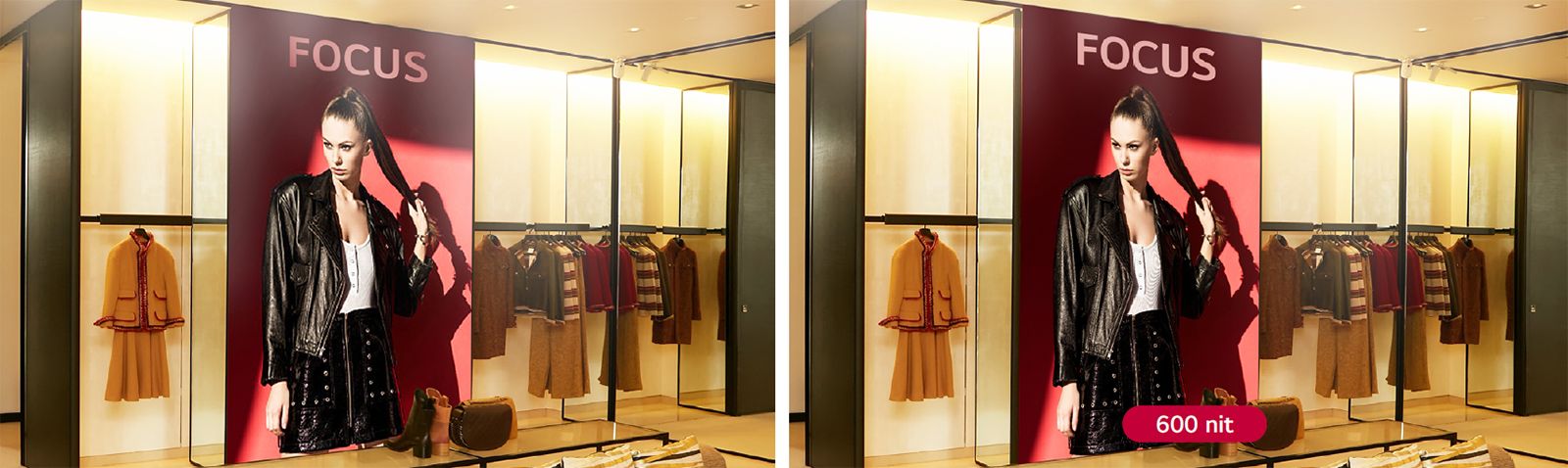

LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light. LSBE has a brightness of 600 nits, so it is clearly visible, even under strong light.

90° Corner Design Available

If you add 90° corner option, the LSBE series fits naturally into the space and delivers smooth content to customers.

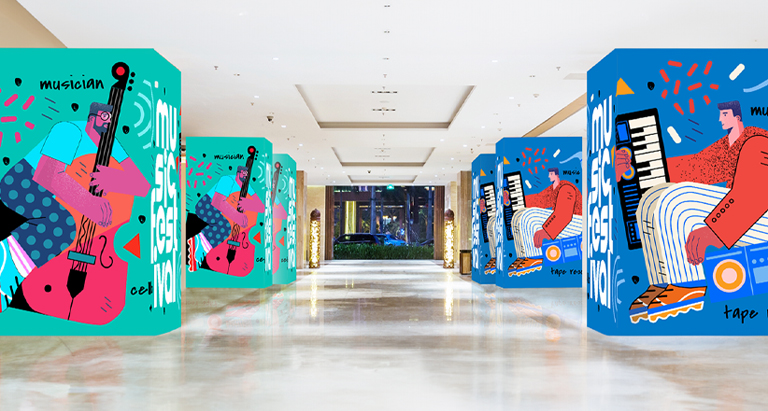

The content with the 90° corner option is shown without any interruptions even when installed on a corner. The content with the 90° corner option is shown without any interruptions even when installed on a corner.

Improved Flatness and
Easy Maintenance

LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. Moreover thanks to its structural advantage, LSBE allows for easy maintenance.
LSBE uses only two modules to create one cabinet. LSBE uses only two modules to create one cabinet.

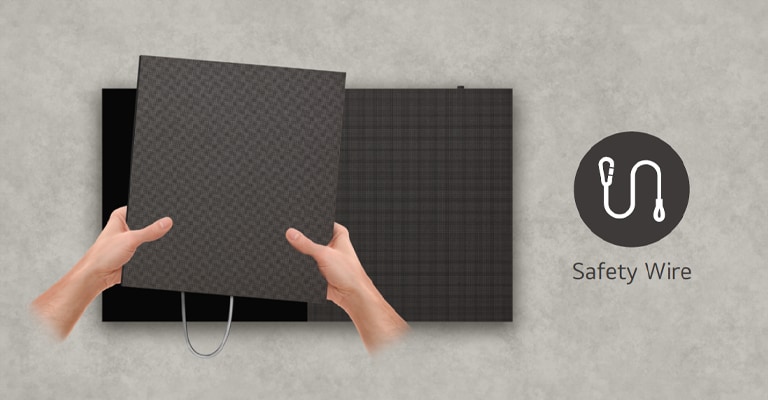

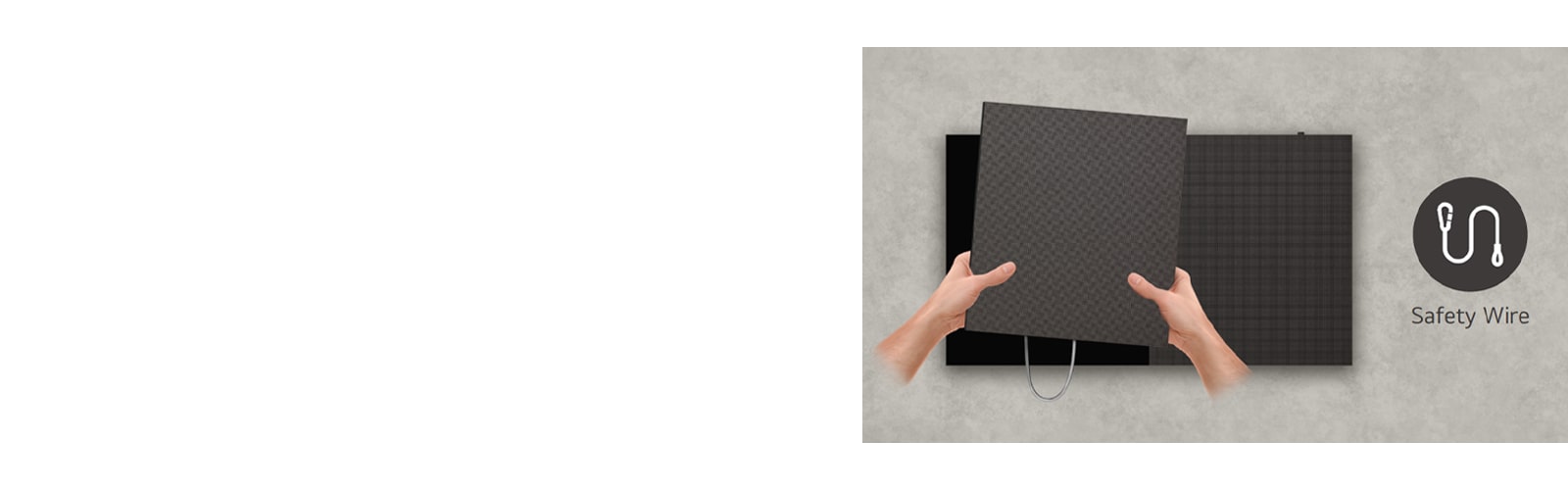

The module is being moved safely using Safety Wire. The module is being moved safely using Safety Wire.

More Secure Maintenance with the Use of Safety Wire

When removing a module from the cabinets, the safety wire helps secure maintenance by preventing screen and module drops.

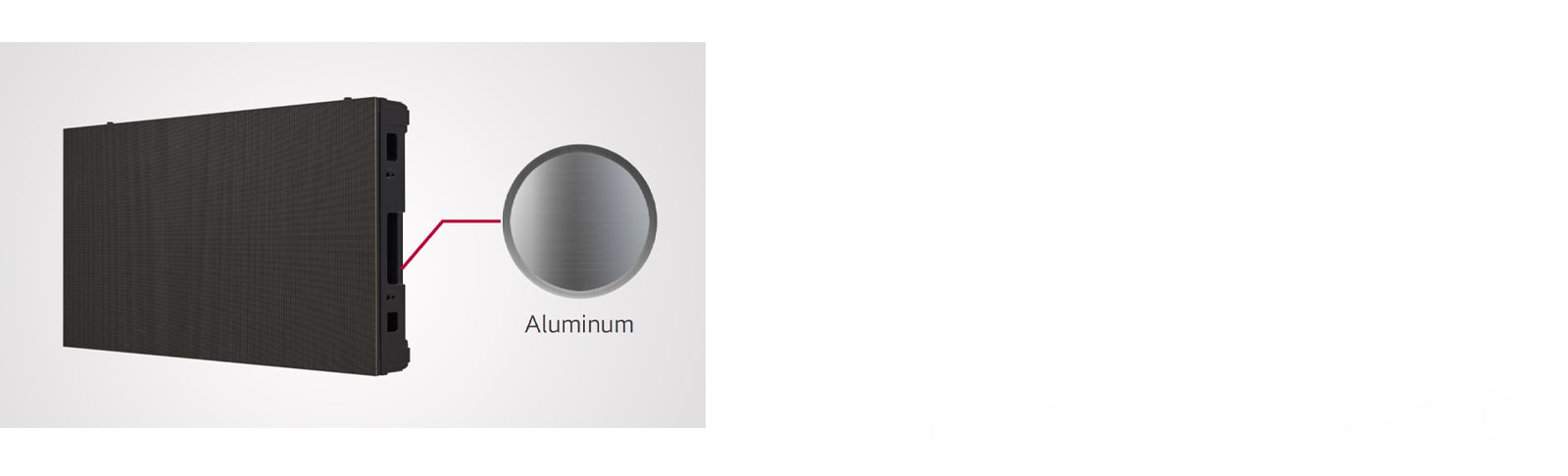

The frame of LSBE is composed of aluminum. The frame of LSBE is composed of aluminum.

Durable Frame Design

LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame, surpassing that of plastic, allows for stable operation.

Flame Spread Protection

LSBE is compliant with the standard for assessing flame spread, receiving a Class C rating according to the EN 13501-1:2018 test. With its fire resistance, LSBE contributes to the safety of your space.
The LSBE series is designed to be resistant to fire. The LSBE series is designed to be resistant to fire.
* The test was conducted by SGS-CSTC Standards Technical Services (Shanghai) Co., LTD on Aug. 21 to 24, 2023, in accordance with the EN 13501-1:2018 standard. The LED module with product number (LSBE XX-XXX) was used as the test subject. The test results confirmed its compliance with the EN 13501-1:2018 Class C-s2, d0 rating.

Compatibility with LG Software Solutions

When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

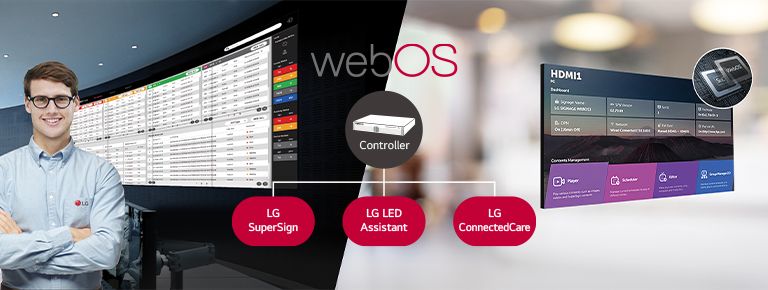

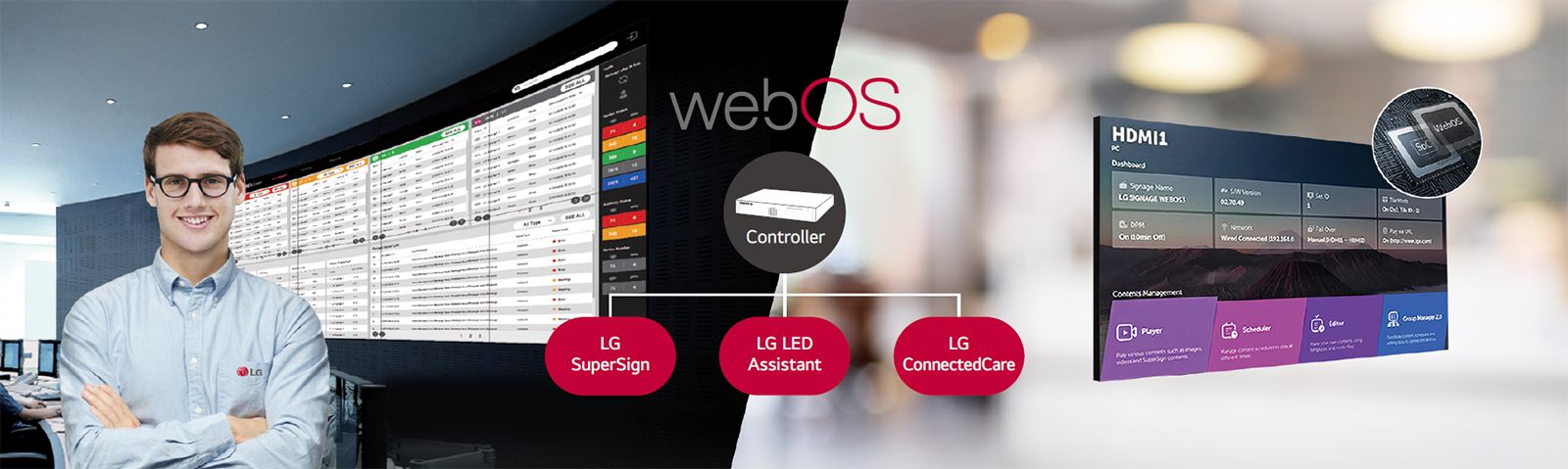

The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions. The LG employee is remotely monitoring the LSBE series installed in a different place by using a cloud-based LG monitoring solution. System controller with webOS enables LSBE series to be compatible with LG software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)
* Actual GUI may vary in different webOS versions.
* LG Software solutions needs to be purchased separately.
Close
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch(mm)
    1.88
  • Module Resolution (WxH)
    160x180
    Module Dimensions(WxH,mm)
    300x337.5x13
  • Weight per Module (kg)
    0.95
    No. of Modules per Cabinet (WxH)
    2x1
  • Cabinet Resolution (WxH)
    320x180
    Cabinet Dimensions (W x H x D, mm)
    600x337.5x72
  • Cabinet Surface Area (㎡)
    0.203
    Weight per Cabinet (kg/unit)
    6.5
  • Weight per Square Meter (kg/㎡)
    32.0
    Physical Pixel Density (pixels/㎡)
    284,089
  • Flatness of Cabinet (mm)
    ±0.3
    Cabinet Material
    Die-casting Aluminum
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    600
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    150
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.003Cx,Cy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    103
    Power Consumption (W/Cabinet, Avg.)
    41
  • Power Consumption (W/㎡, Max.)
    510
    Heat Dissipation (BTU/h/Cabinet, Max.)
    351
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    140
    Heat Dissipation (BTU/h/m², Max.)
    1,740
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -20℃ to +40℃
  • Operating Humidity
    10~80%RH
    IP rating Front
    IP50
  • IP rating Rear
    IP50
Standard
  • Certification
    CE, FCC, cTUVus, CB, KC, CCC
Environment
  • Environment
    RoHS, REACH
CONTROLLER
  • Controller
    CVBA
90 degree corner cut
  • 90 degree corner cut
    O

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.
