LSCB025-CKF component-copyModelName
LG Ultra Slim Series, 2024

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSCB025-CKF)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LSCB025-CKF)
    AED
    AED
    LG Members Price
Total
LG Ultra Slim Series, 2024
The depth of the LSCB cabinet is comparable to the diameter of a table tennis ball, showing its similar depth.

Ultra Slim Depth

Its ultra-slim design with 41 mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings.

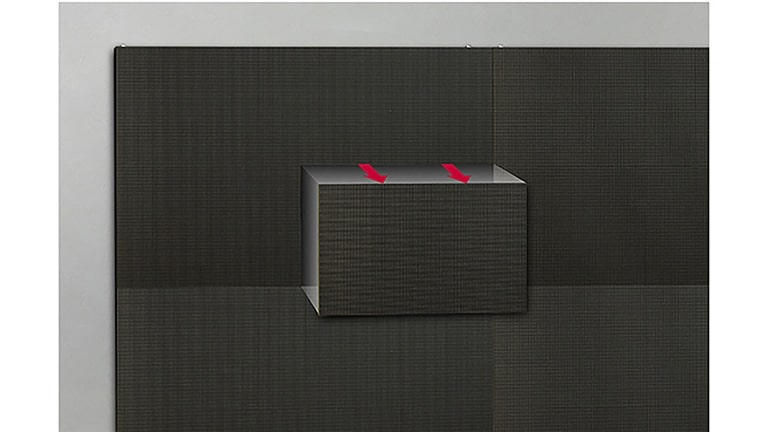

The cabinet is easily detached from the screen.

Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.
The UHD and FHD resolutions are described as having a 16:9 aspect ratio.

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to keep using existing content without additional cost and time for editing.

90° Corner Design Available

If you add 90°corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.
The content with the 90° Corner Option is shown without any interruptions even when installed on a corner. The content with the 90° Corner Option is shown without any interruptions even when installed on a corner.
The EMC Class B and BS 476 Part7 Class1 certifications are described.

EMC Class B Certified & Fire Resistant Design

The LSCB series is safe from electromagnetic waves, which are harmful to the environment and human body, with EMC Class B certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.

Compatibility with
LG Software Solution

When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSignCMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

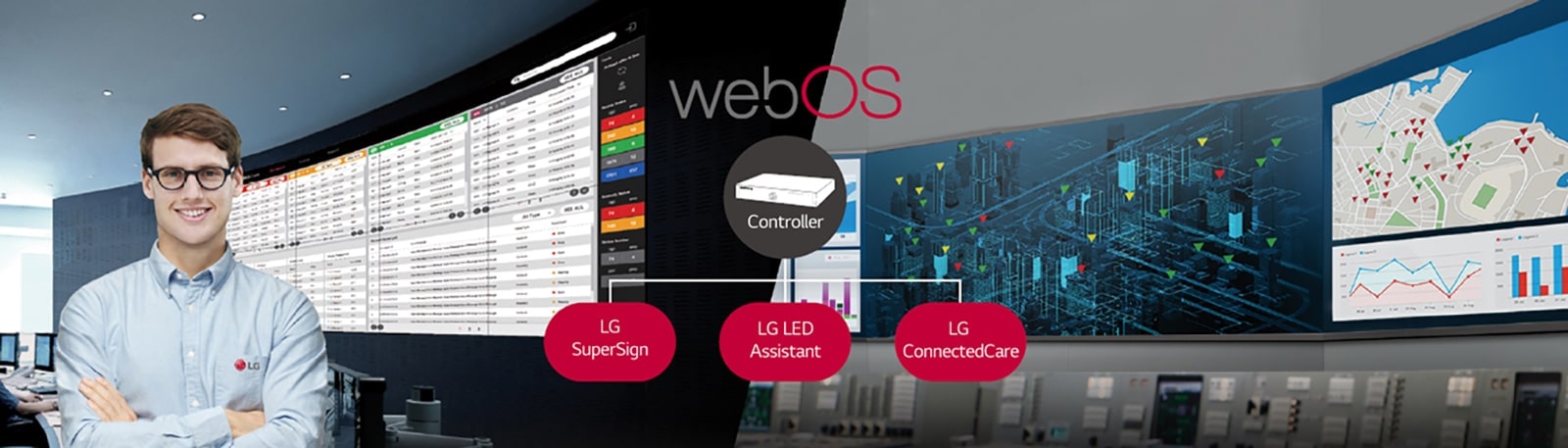

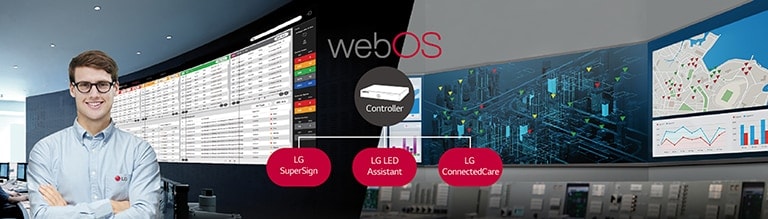

An LG service man is monitoring the status of the LED screen through the LG webOS controller and software solutions. An LG service man is monitoring the status of the LED screen through the LG webOS controller and software solutions.
* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare: Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Flexible Curve LED Display

The LSCB-CKF, a specially-designed flexible curved LED display, supports true concave and convex curvatures up to 383 mm*. This greatly enhances the design’s flexibility, which allows users to freely create the curved screen as they want.

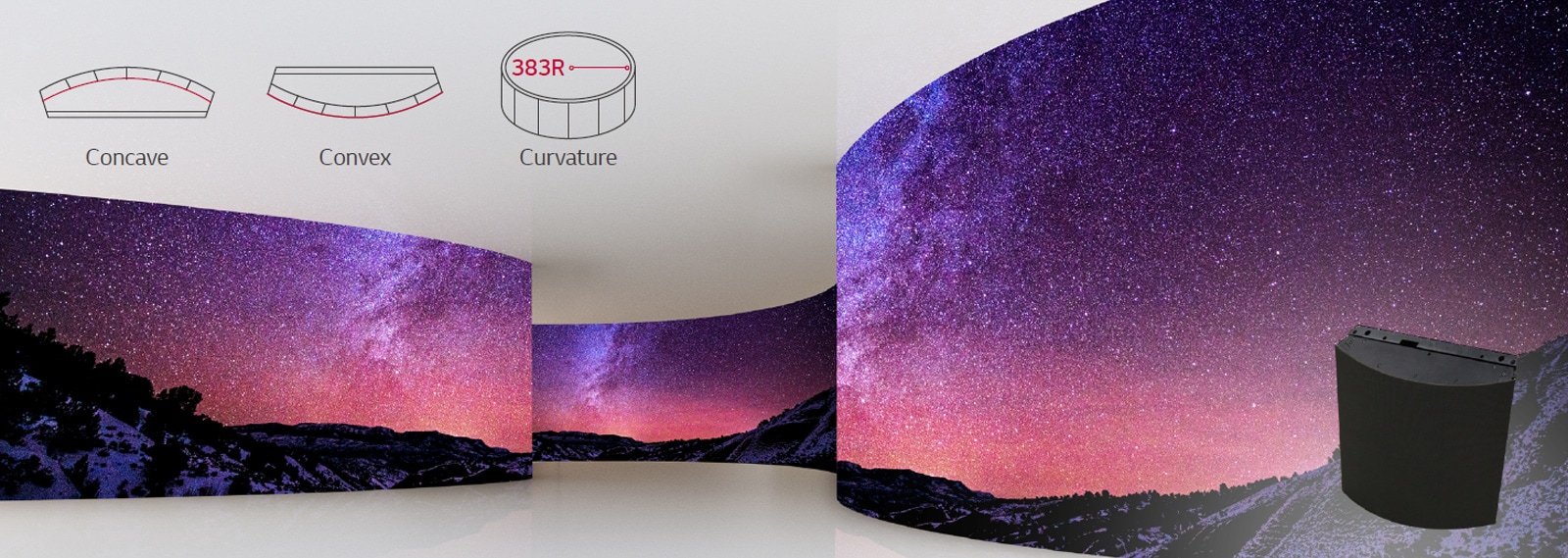

Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall. Both walls of the indoor hallway are curved, and LEDs are installed along the entire wall.
* Applied to the LSCB15-CKF, LSCB18-CKF, and LSCB25-CKF models only. The LSCB12-CKF supports curvatures of up to 1,720 mm.

Power / Signal Redundancy Support

The LSCB series is designed to support redundancy of signal and power, providing users with comfort. With an optional embedded backup power supply unit and signal redundancy, customers may experience the continuous operation of the screen without power failure, while the dual controllers can reduce screen failures with bi-directional signal input.

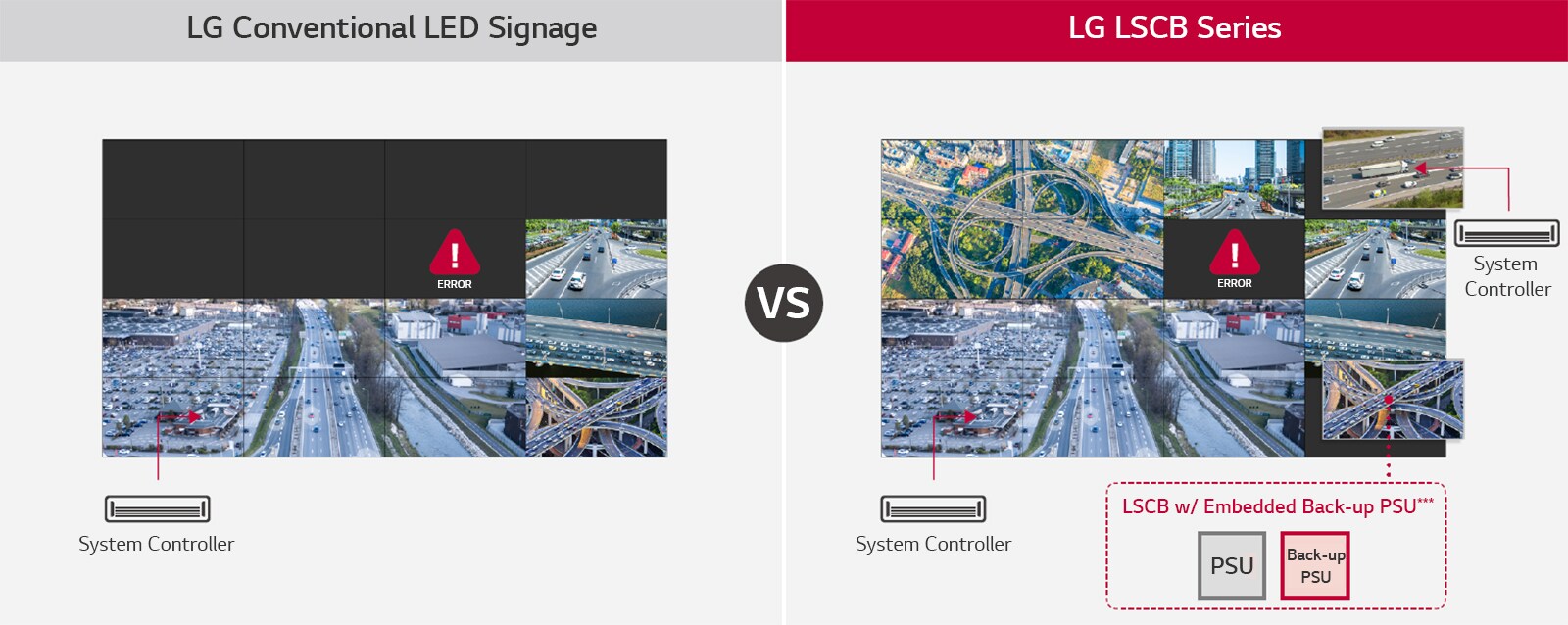

In the case of “LG Conventional LED Signage” even more than the error is blacked out, but in the case of “LG LSCB Series” only the error is blacked out and displayed. In the case of “LG Conventional LED Signage” even more than the error is blacked out, but in the case of “LG LSCB Series” only the error is blacked out and displayed.
* The “Conventional” shown above refers to LED displays which do not support the power/signal redundancy mode.
** The power redundancy model is optional.
*** In the case of power redundancy, additional costs can be added.
Close
PITCH NAME
  • Pitch Name
    P2.50
PHYSICAL PARAMETERS
  • Pixel Configuration
    Single SMD
    Pixel Pitch(mm)
    2.5
  • Module Resolution (WxH)
    120x135
    Module Dimensions(WxH,mm)
    300x337.5
  • Weight per Module (kg)
    0.64
    No. of Modules per Cabinet (WxH)
    1x1
  • Cabinet Resolution (WxH)
    120x135
    Cabinet Dimensions (W x H x D, mm)
    300x337.5x58 (Cabinet Mounting depth changs for different curve)
  • Cabinet Surface Area (㎡)
    0.1
    Weight per Cabinet (kg/unit)
    2.5（weight changs for different curve）
  • Weight per Square Meter (kg/㎡)
    24.79
    Physical Pixel Density (pixels/㎡)
    '160,000
  • Flatness of Cabinet (mm)
    ±0.1
    Cabinet Material
    Die-casting Aluminum
  • Service access
    Front
OPTICAL SPECIFICATIONS
  • Max Brightness (After Calibration, nit)
    800
    Color Temperature (K)
    3,200~9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    0.97
    Color Uniformity
    ±0.003Cx,Cy
  • Contrast Ratio
    5,000:1
    Processing Depth (bit)
    14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
  • Power Consumption (W/Cabinet, Max.)
    55
    Power Consumption (W/Cabinet, Avg.)
    18
  • Power Consumption (W/㎡, Max.)
    543
    Heat Dissipation (BTU/h/Cabinet, Max.)
    188
  • Heat Dissipation (BTU/h/Cabinet, Avg.)
    62
    Heat Dissipation (BTU/h/m², Max.)
    1,854
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840
OPERATION SPECIFICATIONS
  • LED Lifetime (Half brightness)
    100,000
    Operating Temperature(℃)
    -10℃ to +45℃
  • Operating Humidity
    0~80%RH
    IP rating Front
    IP30
  • IP rating Rear
    IP30
Standard
  • Certification
    CE, FCC, ETL, EMC Class-B
    Certification (Fire Protection)
    BS476 Part7 Class1, EN13501-1
Environment
  • Environment
    'RoHS, REACH
CONTROLLER
  • Controller
    CVCA
90 degree corner cut
  • 90 degree corner cut
    O
Remark : Service access
  • Remark : Service access
    Minimum Radius : 382.5mm
    ※ The Cabinet dimensions/weight for the curved model changes depending on its curvature and radius.
Remark : Considerations and Precautions
  • Remark : Considerations and Precautions
    Global certification is EMC Class-B, but KC is certified only EMC Class-A
Receiving Card
  • Receiving Card
    A5s Plus
RV Card Manufacturer
  • RV Card Manufacturer
    NovaStar
