LTAK140-GW component-copyModelName
Transparent LED Film with High Brightness

Key Features

Choose your Pitch

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LTAK140-GW)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (LTAK140-GW)
    AED
    AED
    LG Members Price
Total
Transparent LED Film with High Brightness
Find a Dealer

Your Imaginative Space Discovered by Transparent Displays

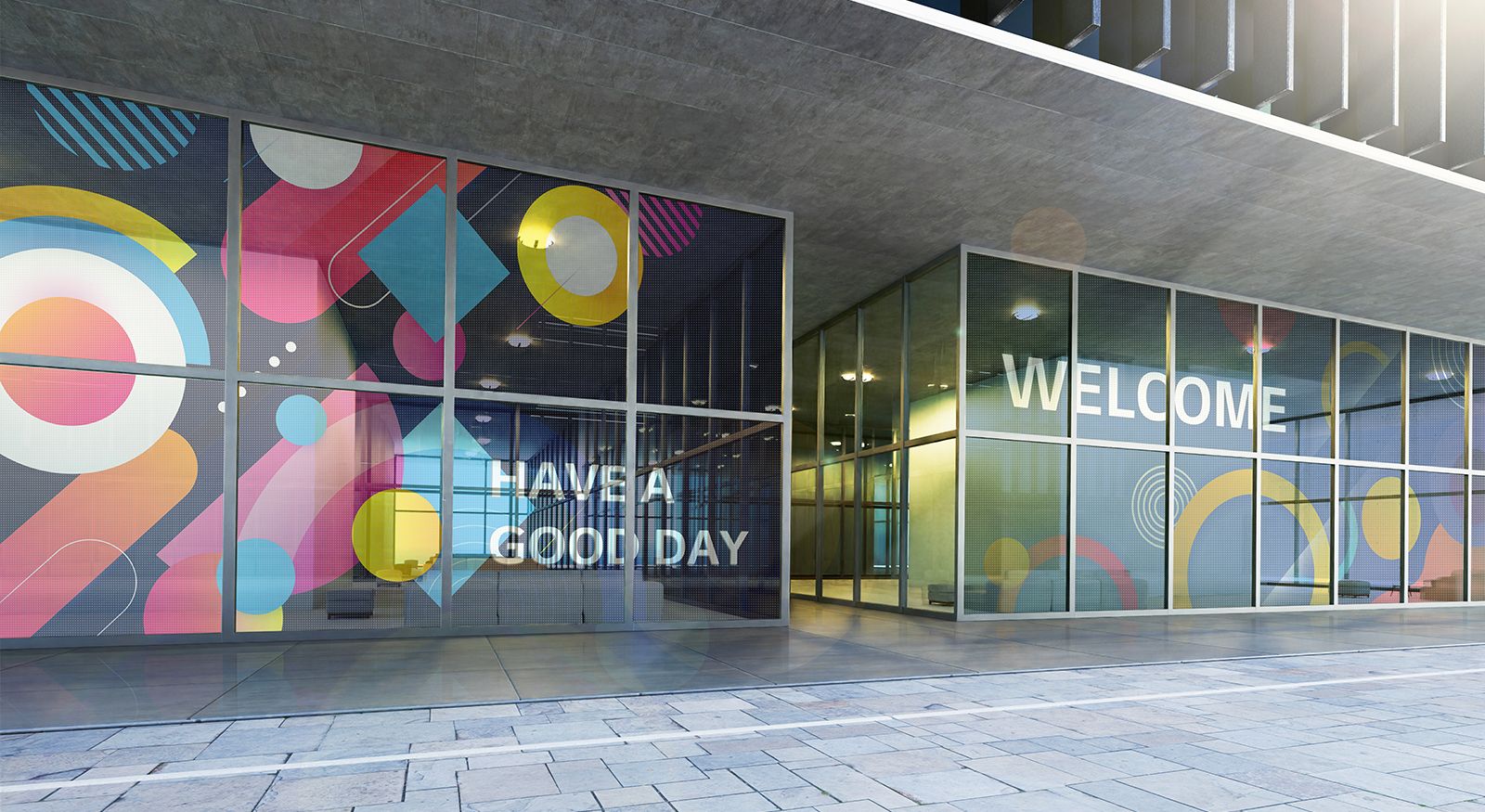

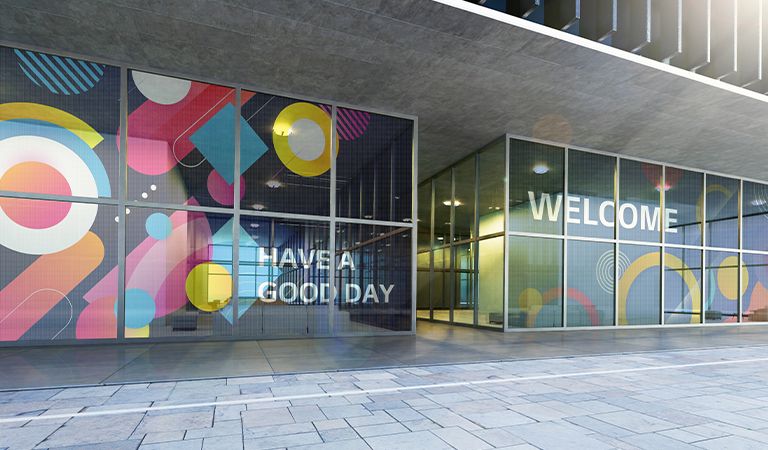

The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen. The transparent LED films installed on the glass wall at the building's entrance show content welcoming visitors. Some of the content shows the color well, and some of it looks transparent enough for the background behind the LED films to be seen.
* All images in this page are for illustrative purposes only.

Transformation to a Splendid Atmosphere

Transparent displays with high brightness enable the implementation of media art in space, transforming an ordinary space into a more artistic space, thereby allowing customers to increase the space’s value and arouse interest in it.

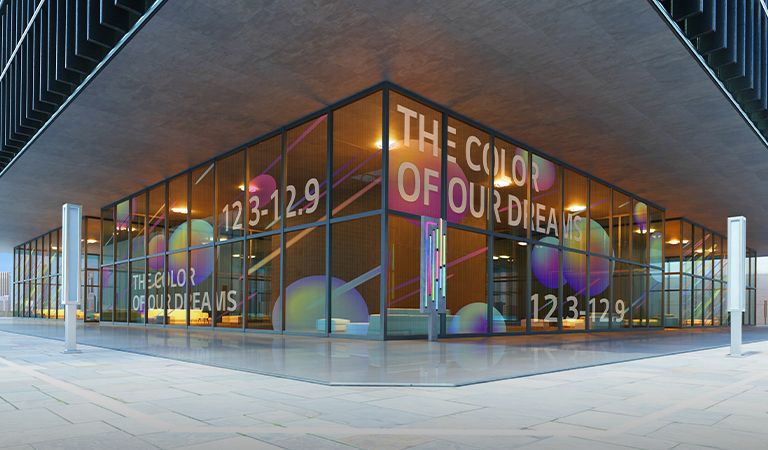

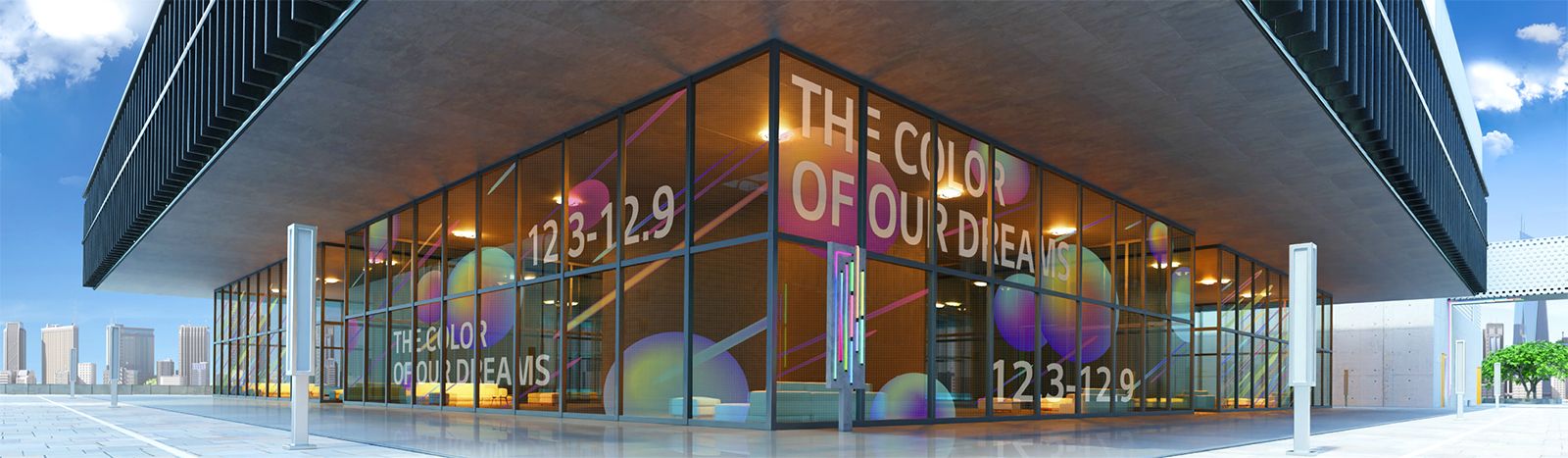

Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen. Transparent LED film is installed on the building's first floor glass wall. The content is shown in vivid colors, while at the same time, the part lacking color is transparent, so the inside of the building behind the LED film can be seen.

Superb Transparency

The LG Transparent LED film reflects the object behind the product even after the product is attached and turned off. This offers a wide-open view while blending into existing interior design smoothly and delivers various information effectively by attracting the attention of passersby.

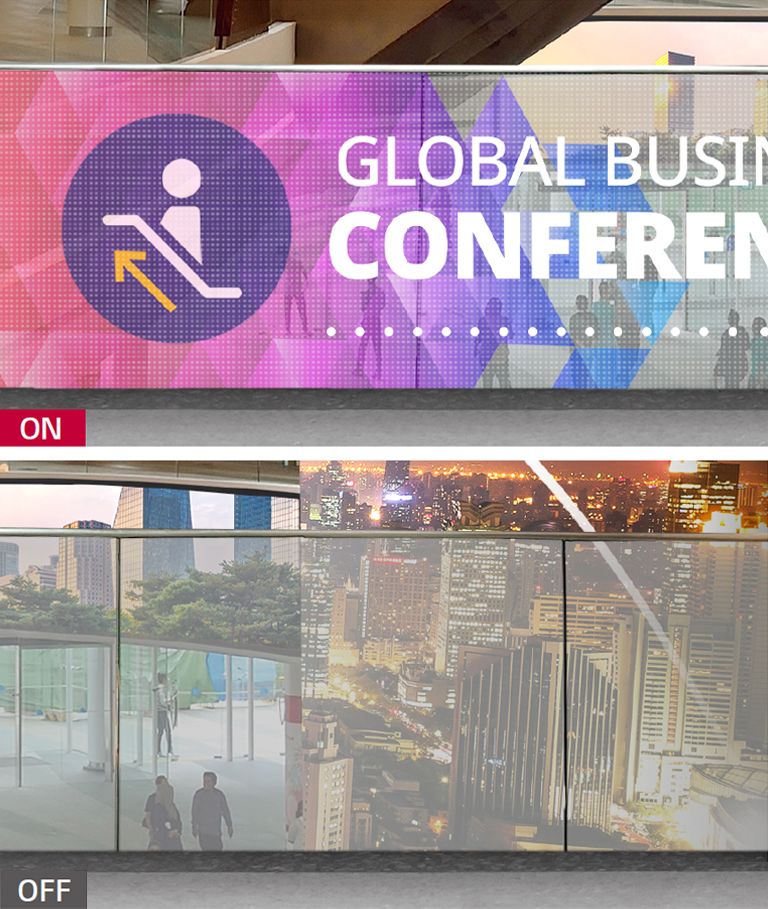

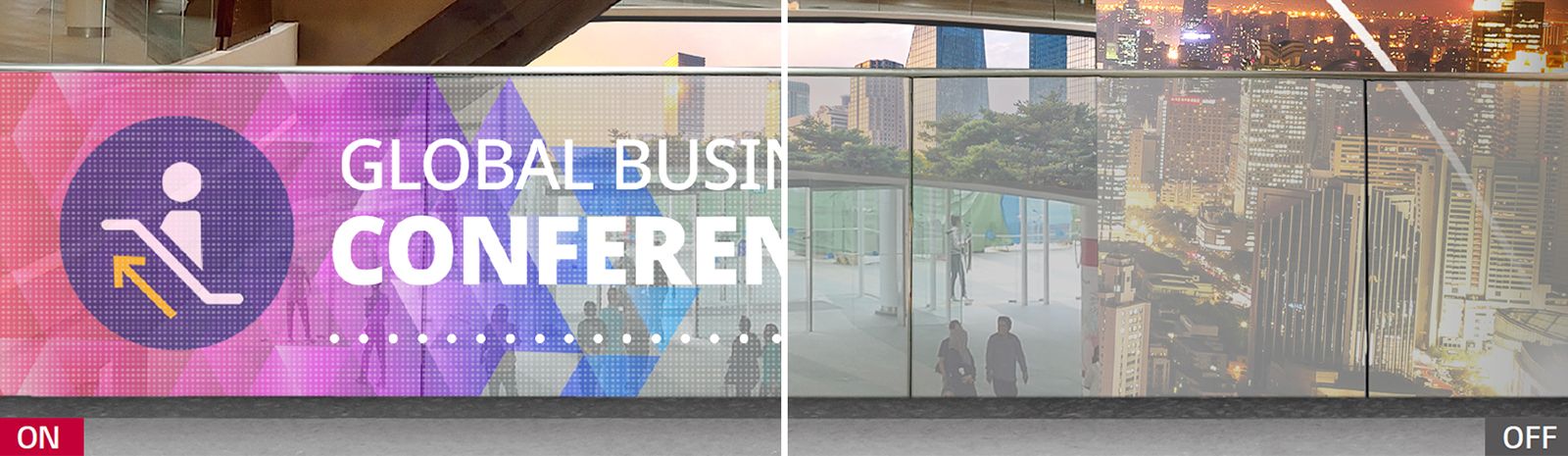

LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off. LG Transparent LED film shows information when the power is turned on, and reflects the background behind the product when the power is turned off.
* Transparency : Typ. 53%

Fitting in with Flats and Curves

The LG Transparent LED film supports curvatures up to 2,000R convex and concave for curved glass or window applications, and offers even surface by durable, transparent layers. This allows a wide range of venues to be redesigned with the LTAK140 as a landmark.

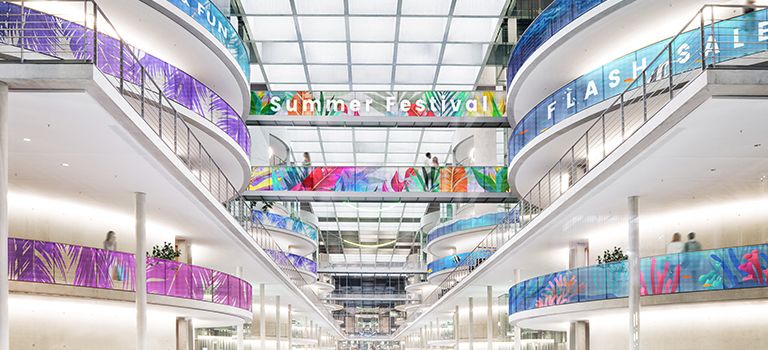

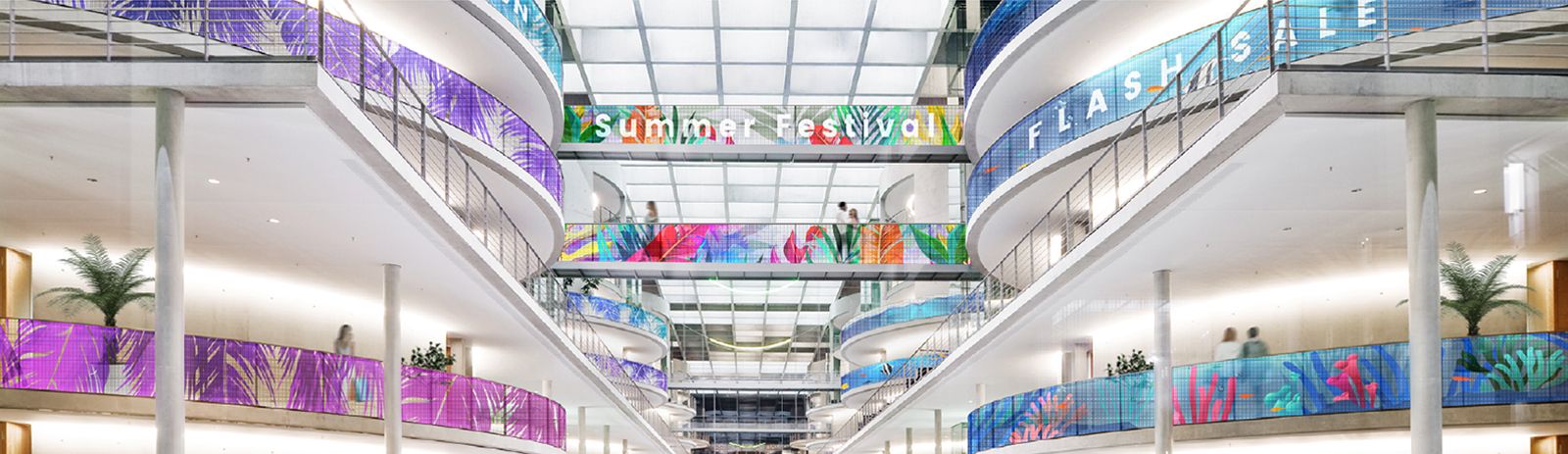

Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly. Transparent LED films are installed on the railings of several floors in the building. Even where the railing curves, the content of the transparent LED films is shown smoothly.

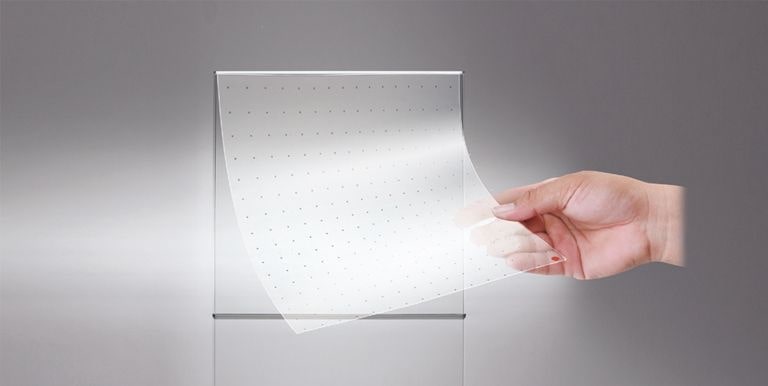

LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily. LG Transparent LED film is self-adhesive, so it can attach to the surface of the window easily.

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

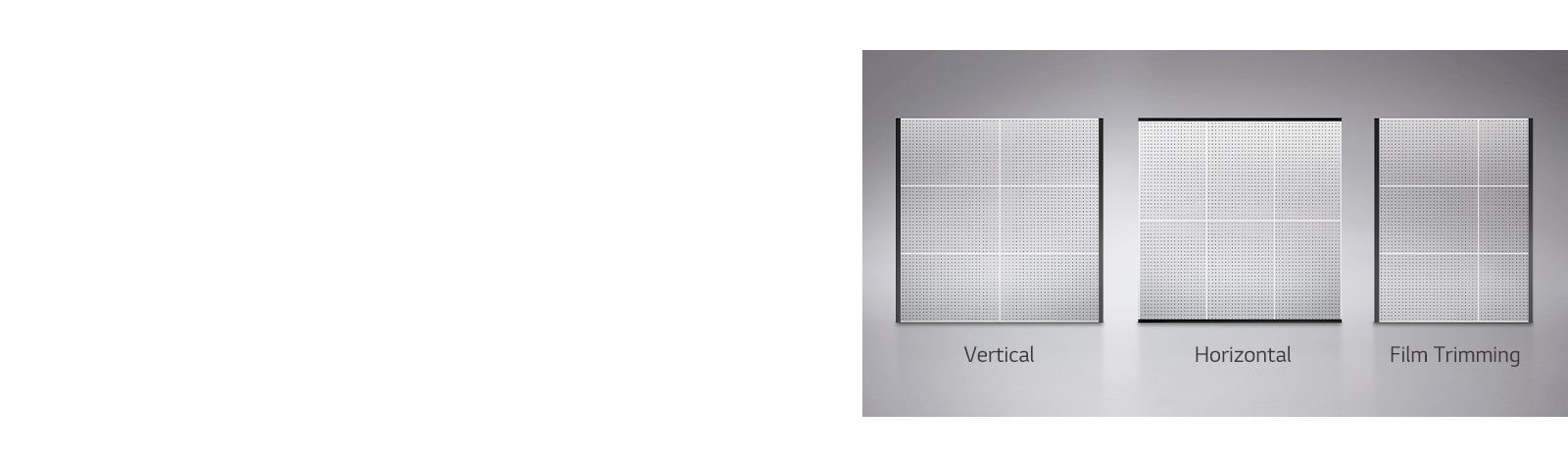

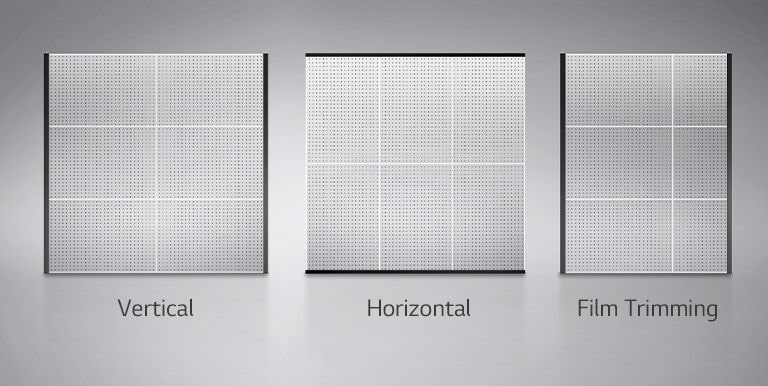

By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized. By adding film vertically or horizontally, or by trimming film, the film can be flexibly resized.

Outstanding Expandability and Flexibility

The size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

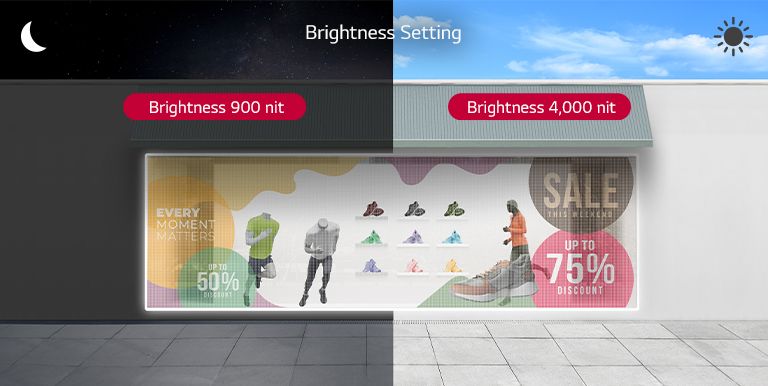

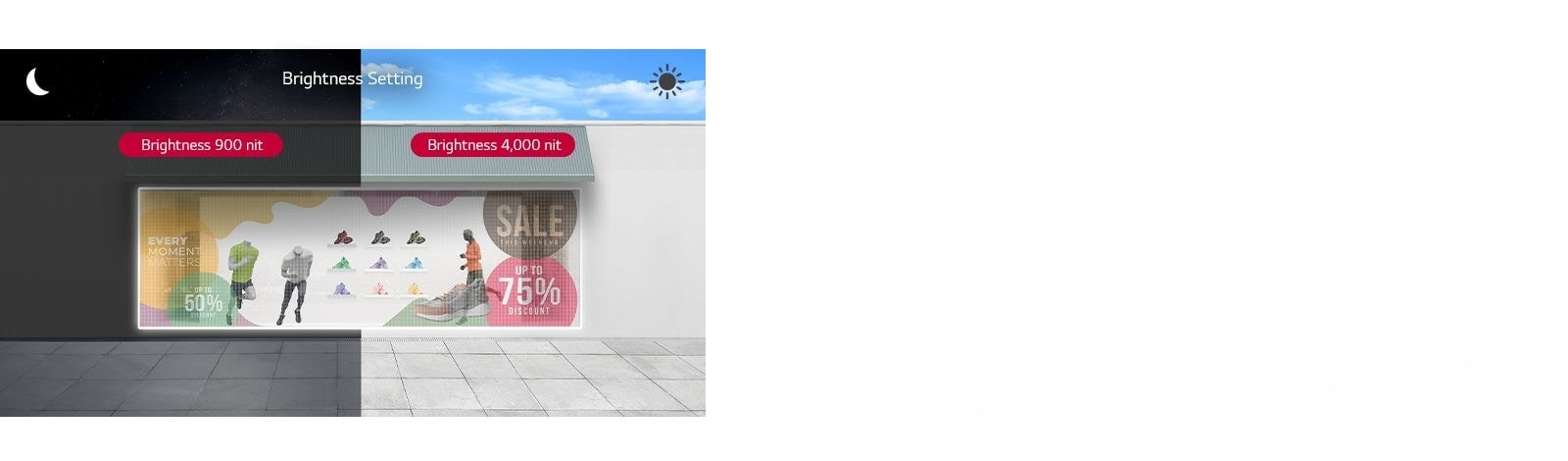

Transparent film of store window has been adjusted to 4,000 nits in bright day and 900 nits in dark night. Transparent film of store window has been adjusted to 4,000 nits in bright day and 900 nits in dark night.

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 4,000nit(cd/m²)* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

* The examined brightness may differ from testing environments including a photometer.

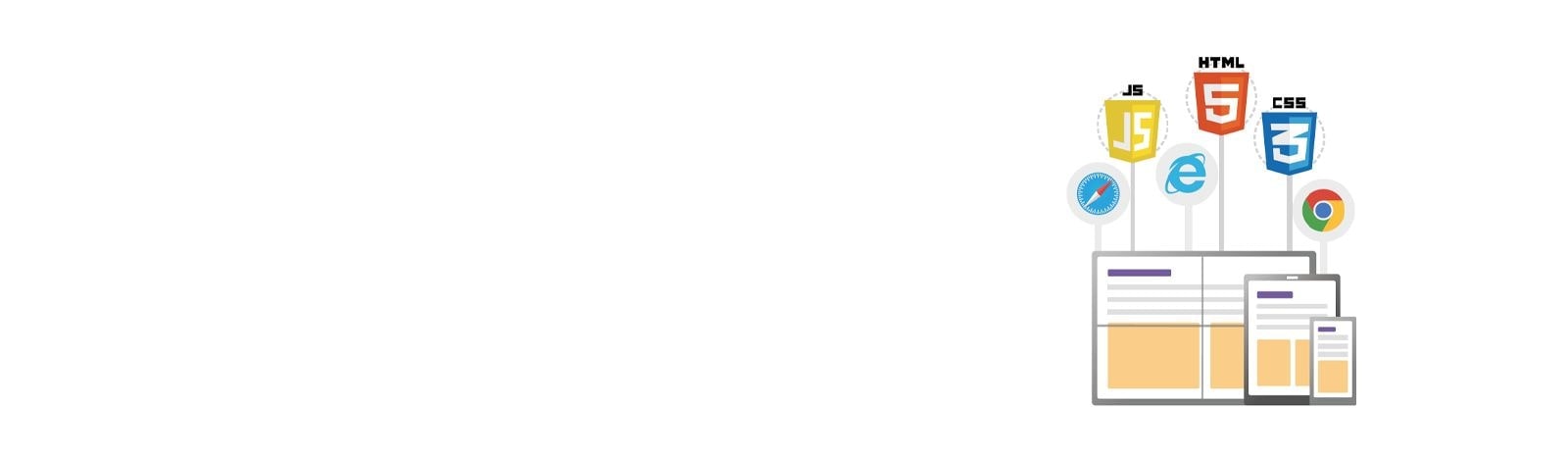

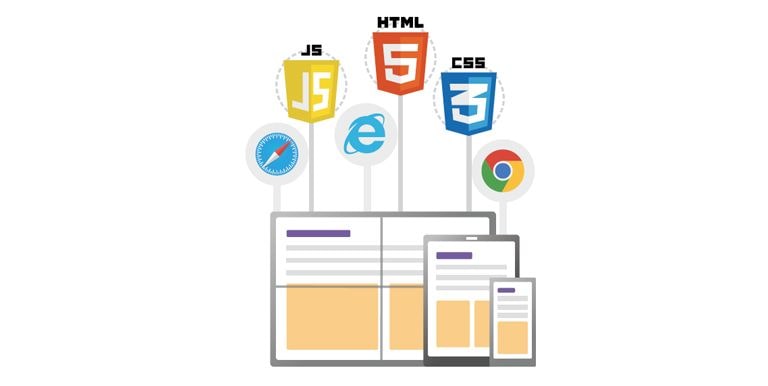

LG webOS is compatible with SCAP, HTML, CSS and JavaScript. LG webOS is compatible with SCAP, HTML, CSS and JavaScript.

webOS Smart Platform

LG webOS is a web-centric platform, making it easier for SIs and developers to build web-based solutions according to various environments. By supporting SCAP and compatibility with HTML, CSS, and JavaScript, you can save time and labor costs.

* webOS API will be provided to authorized SIs and developers.
* SCAP : Signage Common Application Platform. API interface service for SIs.
* CSS : Cascading Style Sheets

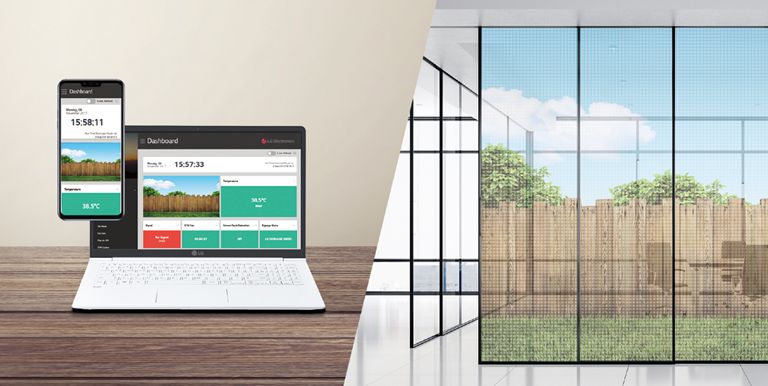

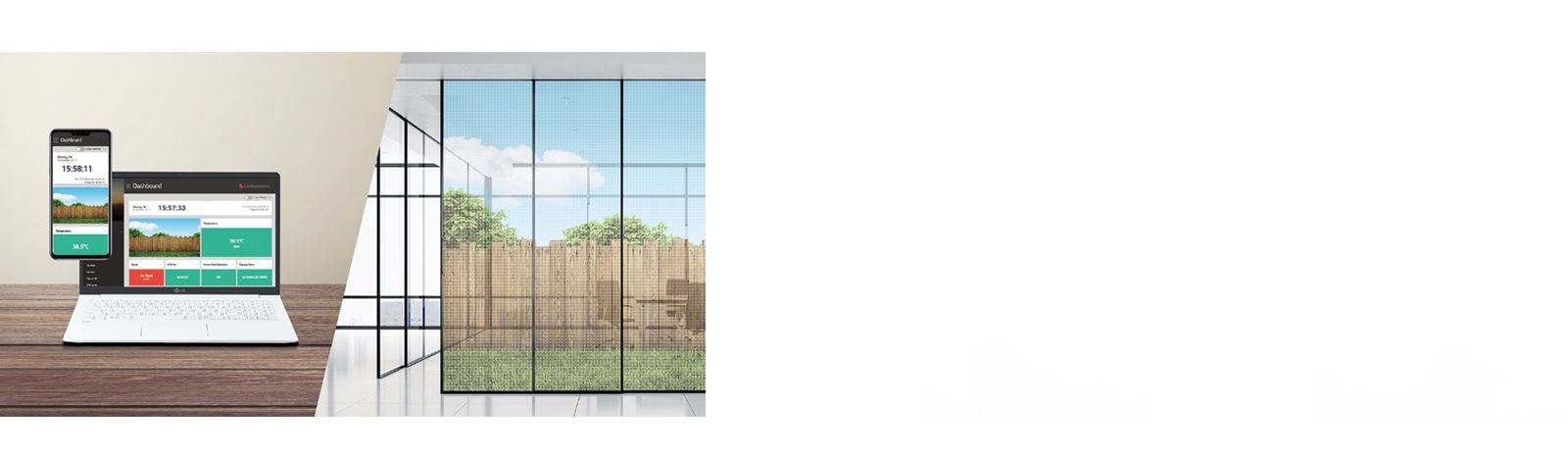

Through the Control Manager, it manages transparent film of wall of office with mobile phone and laptop. Through the Control Manager, it manages transparent film of wall of office with mobile phone and laptop.

Control Manager

Through the Control Manager, available on internet-connected devices, you can set, control contents and monitor the status of multiple displays in different locations in real time. Especially for LG Transparent LED film installed on large area, the Control Manager helps you to play and check contents in easier way.
Through ConnectedCare service, display status of the workplace can be managed remotely. Through ConnectedCare service, display status of the workplace can be managed remotely.

Real-time LG ConnectedCare Service

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, supporting the stable operation of clients' businesses.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
Close
LTAK140-GW
  • Pixel Pitch
    13.7±0.2mm (14)
    LED Type
    R, G, B 3in1 Color Package (SMD2020)
  • Resolution
    48 x 36
    Pixels per Film
    1,728
  • Physical Pixel Density(pixels/㎡)
    5,102
    Brightness
    Typ.4,000nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Viewing Angle (H x V)
    120 x 120
  • Life Time (Brightness 50%)
    50,000 Hrs
    Daily Usage
    24h / 7days
  • Warranty
    2 year
    Transparency
    Typ 53%
  • Operating Temperature
    0℃ ~ 45℃ (Instaliling at indoor glass)
    Curved Installation
    2,000 R (Concave and Convex available on Glass)
  • Film Trimming
    Yes (horizontal direction according to Bezel only)
    Color Processing
    (9bit) 500/500/500 Level ( R, G, B)
  • Colors
    125,000,000 Colors
    Color Chromaticity
    Cx: 0.25±0.03, Cy : 0.33±0.03
  • Dimension (W x H x D)
    655 x 492 x 2.9mm
    (with front & back protection film)
    Weight
    1kg
  • Power Consumption
    75W(Transparent panel 1EA + Common Bezel kit 2EA)
1ST BEZEL
(ACC-LTAK14W1)
  • Interface
    Input : RGMII
    Output : Differential Serial
    Dimension (W x H x D)
    69.4 x 492 x 25mm
  • Weight
    0.4Kg
    Power Consumption
    75W(Transparent panel 1EA + First(1EA) & Common(1EA) Bezel kit)
  • Accessory
    DC Jack Connection cable(1100mm) 1ea, DC Jack Connection cable(240mm) 1ea Screw 2 type, Gasket Rubber 3 type, Cable hole cover 1 type, ESG, Regulation book, Warranty Card
COMMON BEZEL
(ACC-LTAK14W2)
  • Interface
    Input : Differential Serial
    Output : Differential Serial
    Dimension (W x H x D)
    51.4 x 492 x 25mm
  • Weight
    0.3Kg
    Power Consumption
    75W(Transparent panel 1EA + Common Bezel kit 2EA)
  • Accessory
    DC Jack Connection cable(240mm) 2ea, Screw 2 type, Gasket Rubber 2 type, Cable hole cover 2 type, ESG, Regulation book, Warranty Card
UNIT CONTROLLER
(LCLG141U)
  • Resolution
    960x540 (1/4 FHD)
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100m (Cable type: CAT5E, CAT6)
    Dimension (W x H x D)
    293 x 188.7 x 37mm
  • Weight
    1.5Kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W
    Accessory
    Power cord, LVDS MCX cable, ESG, Regulation book, Warranty Card
SYSTEM CONTROLLER
(LCLG002-T)
  • Video - Max. Input Resolution
    DP : 1920x1080@60Hz
    HDMI : 1920x1080@60Hz
    DVI-D : 1920x1080@60Hz
    Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
  • Interface - Digital (w/ HDCP) - DP
    Input : 1EA
    Output : 1EA
    Interface - Digital (w/ HDCP) - DVI-D
    Input : 1EA
  • Interface - Comm. Port - RS-232C
    Input : 1EA (Phone Jack Type)
    Output : 1EA (Phone Jack Type)
    Interface - Comm. Port - RJ-45
    Input : 1EA (without LED indicator)
    Output : 1EA (without LED indicator)
  • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
    Interface - USB3.0
    1EA
  • Interface - LVDS
    Output : 1EA
    Dimension (W x H x D mm)
    293 x193.3 x 40.1mm
  • Weight (Head, Kg)
    1.6kg
    Temperature Sensor
    Yes
  • Light Sensor
    Yes
    Source Selection
    HDMI, DVI-D, DP
  • TPC (Temporal Peak luminance Control)
    Yes
    Motion Eye Care
    Yes
  • Power Consumption
    17W
    CMS S/W
    Yes (2.9)
  • Signage365care
    Yes (2.7)
    Accessory
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book , Warranty Card
ADAPTOR
(ACC-LATP1)
  • Model No.
    ACC-LATP1
    Dimension (W x H x D)
    183*86*28mm
  • Weight
    769g
    Input
    100~240V, 50~60Hz
  • Output
    19.5V/10.8A (210W)
    Color
    White
  • DC output cable
    14AWG, 1.5m
    Type
    L Type
  • Accessory
    Power Cord, Regulation Book
ONE-BOX CONTROLLER(UNIT + SYSTEM CONTROLLER)
(CTAA-140G)
  • Resolution
    480x270 (1/16 FHD)
    Maximum Transmission Length
    100m (Cable type : CAT5E, CAT6)
  • Dimension (W x H x D)
    333 x186.8 x 40.1mm
    Weight
    1.8.2Kg
  • Video - Max. Input Resolution
    HDMI : 1920x1080@60Hz
    Interface - Digital (w/ HDCP) - HDMI
    Input : 1EA
  • Interface - Comm. Port - RS-232C
    Input : 1EA (3.5⌀ headphone jack type)
    Output : 1EA (3.5⌀ headphone jack type)
    Interface - Comm. Port - RJ-45
    Input : 1EA
    Output : 2EA (1EA to connect film with LED Indicator)
  • Interface - Comm. Port - IR Receiver (w/ Light Sensor)
    1EA (Phone Jack Type) : Used for installation
    Interface - USB3.0
    1EA
  • Interface - LVDS
    -
    Temperature Sensor
    Yes
  • Light Sensor
    Yes
    TPC (Temporal Peak luminance Control)
    Yes
  • Motion Eye Care
    Yes
    Power Consumption
    30
  • CMS S/W
    Yes (3.0)
    Signage365care
    Yes (2.7)
  • Accessory
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book Warranty Card
