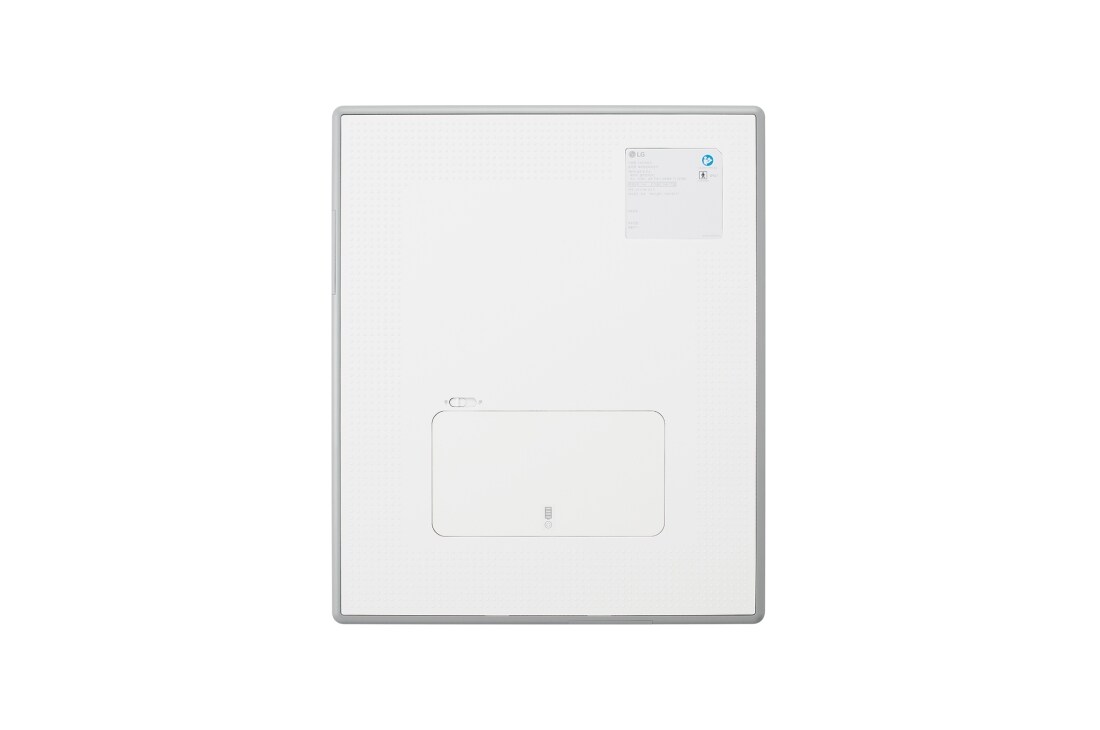

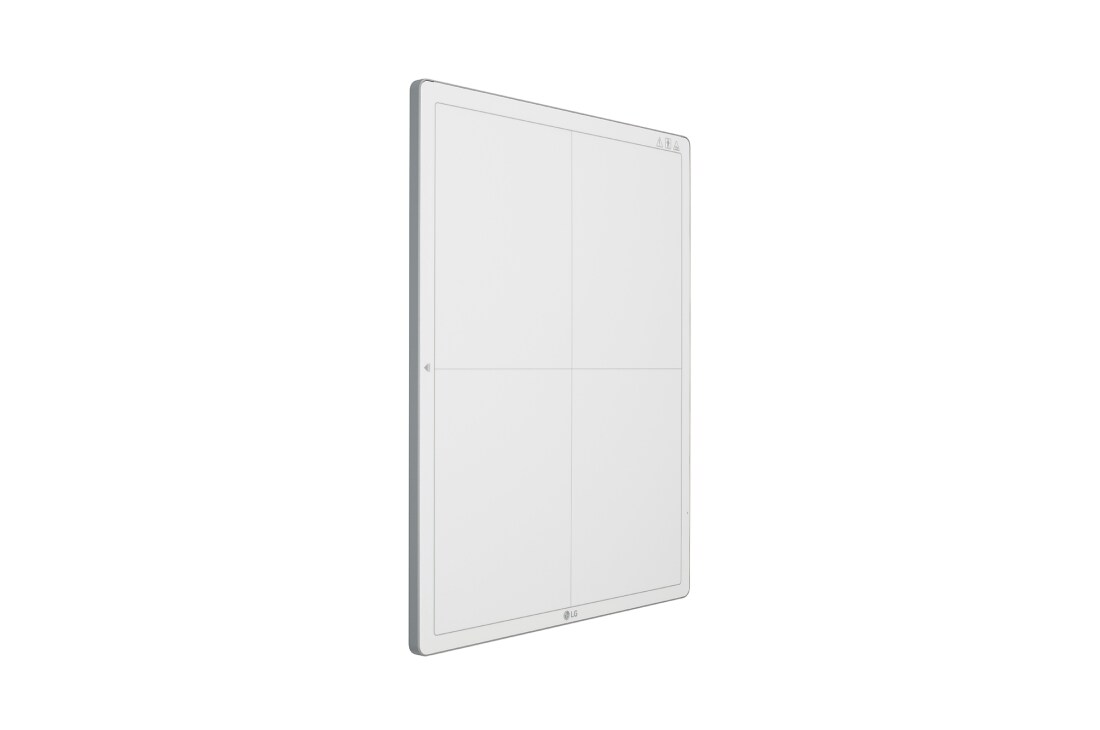

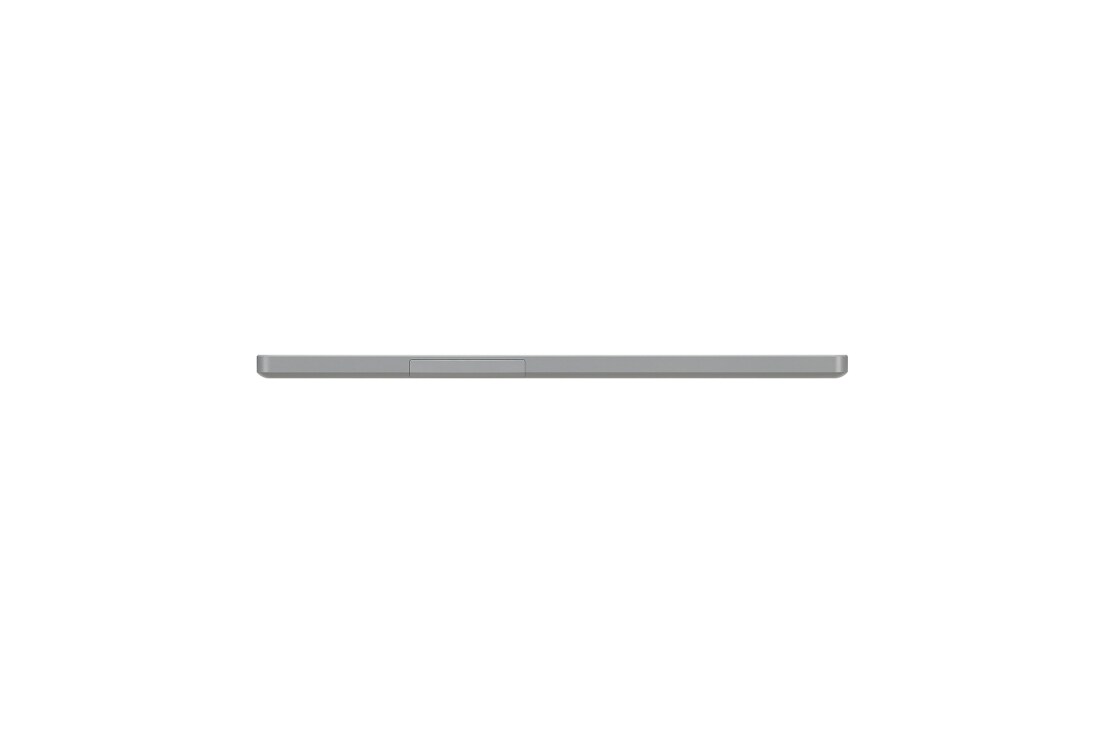

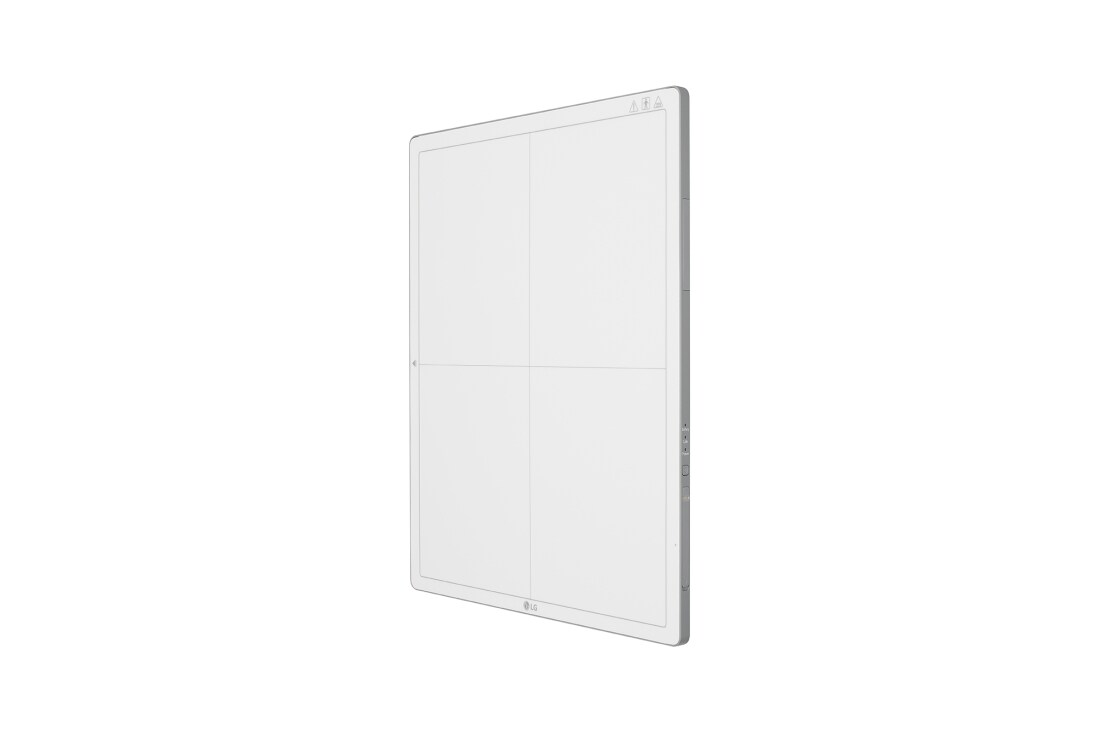

Digital X-Ray Detector (DXD)

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HK701G-WP)
    AED
    AED
    LG Members Price
Total

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (14HK701G-WP)
    AED
    AED
    LG Members Price
Total
Digital X-Ray Detector (DXD)
* IP: Ingress protection
* Maximum load weight: uniform load 150kg (331lb), point load 100kg (220lb)
BATTERY
  • Charging Time
    3hrs.
    Duration in Standby Status
    (Typ.) 13hrs.
  • Operating Time
    (Typ.) 220 shots / 5.5hrs. (@ Cycle Time 90sec.)
    Type
    Detachable
COMMUNICATION
  • AED (Auto Exposure Detection)
    Support
    Type
    Wired / Wireless
  • Wireless
    IEE802.11a/b/g/n/ac, 2.4GHz / 5GHz
DQE
  • DQE @ 0.1lp/mm
    (Typ.) 72%

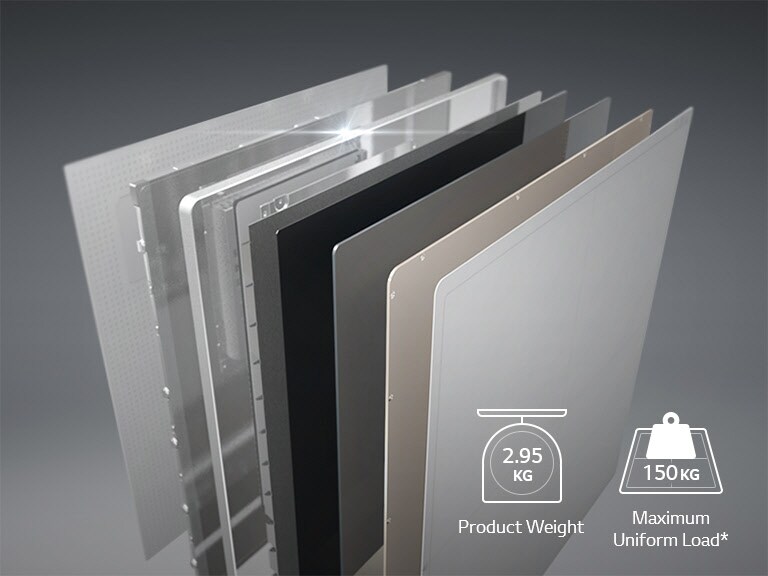

DURABILITY

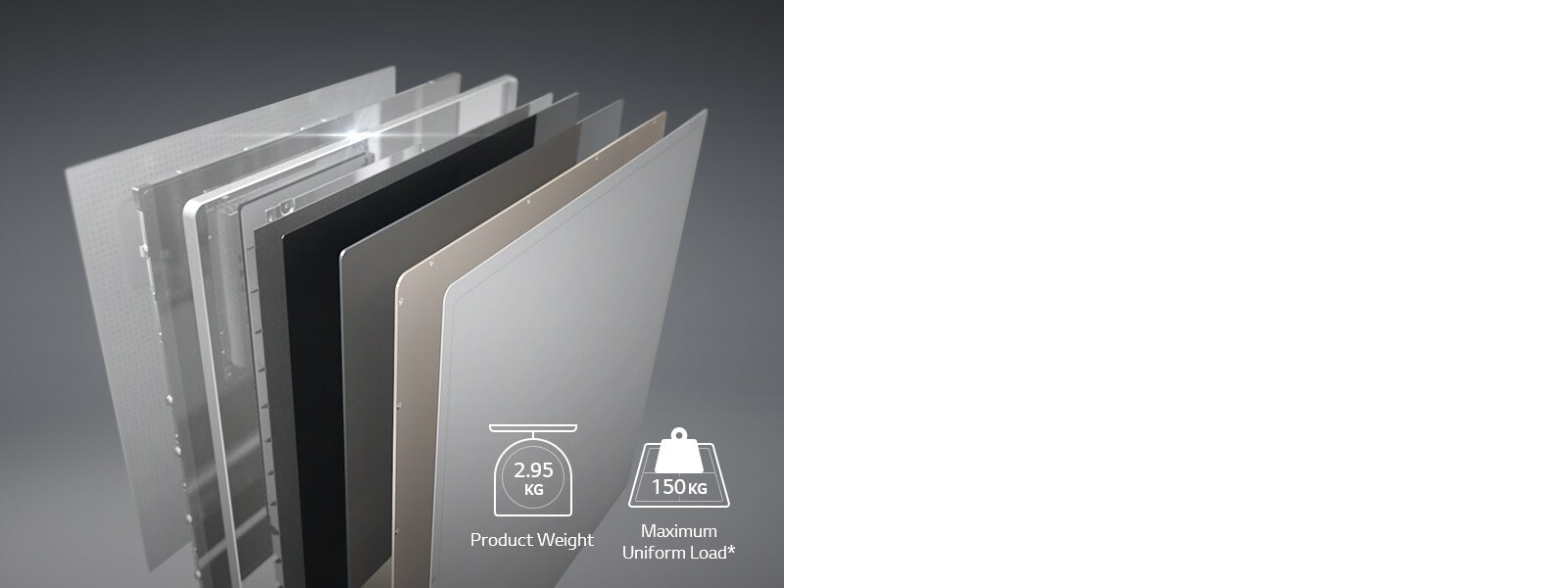

  • Maximum Load Weight
    Full (Uniform Load) : 150kg, 331Ib ; Local (Point Load) : 100kg, 220Ib

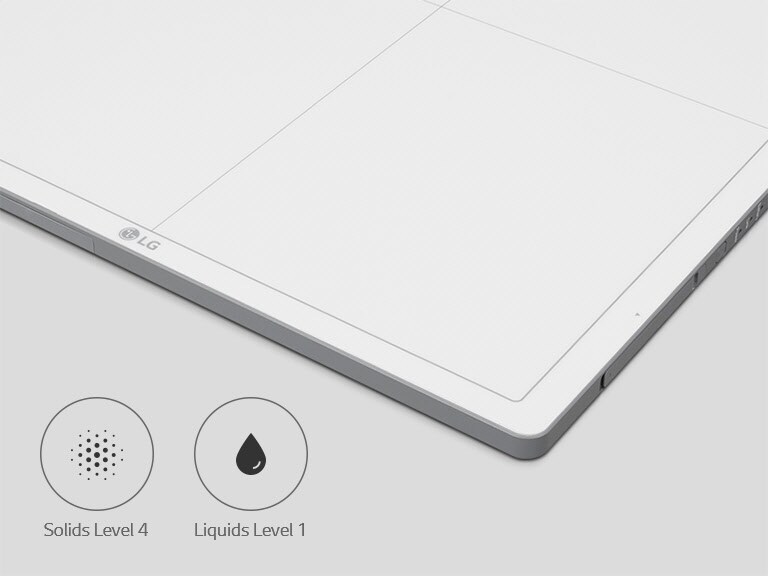

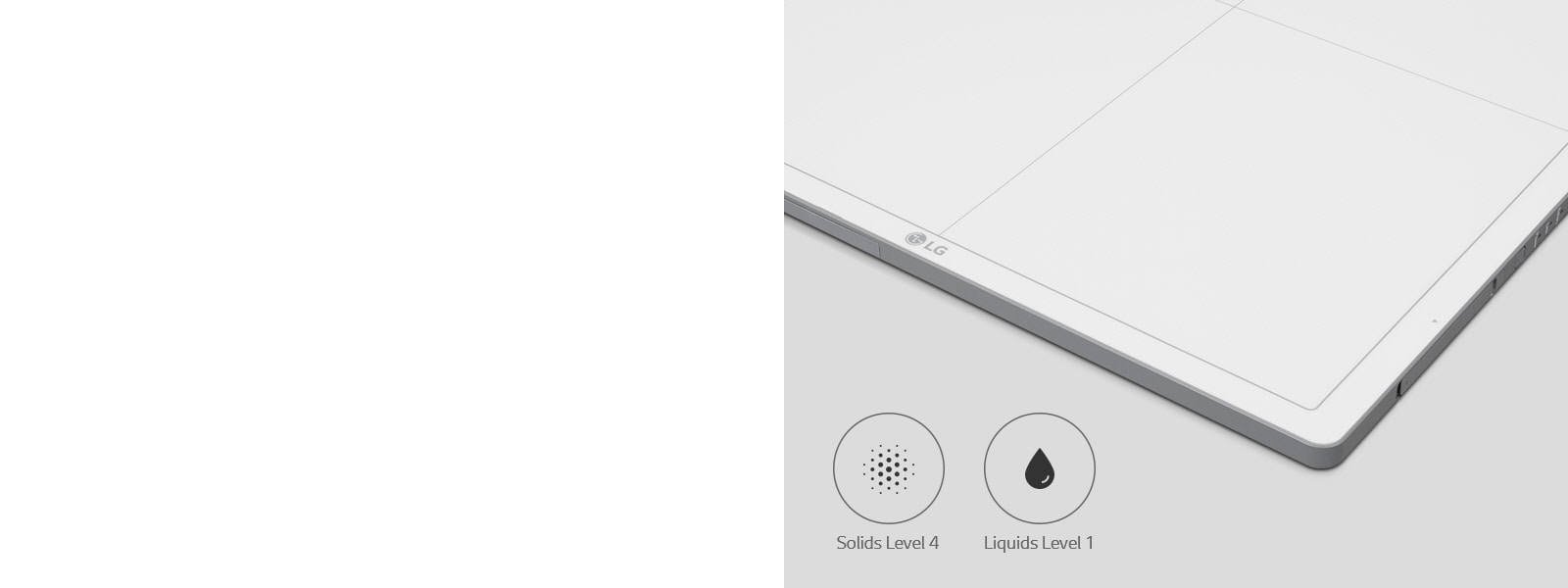

    Resistance Rating
    IP41
  • Sensor Protection Plate
    Carbon Fiber Plate
IMAGE AREA
  • X-ray Sensitive Area
    350 x 427.28 mm
    X-ray Sensitive Pixel
    2500 x 3052 pixels
MTF
  • MTF @ 0.5lp/mm
    (Typ.) 89%
SPECIFICATION
  • A/D Conversion
    16bit
    Cycle Time
    8sec. (Wired) / 11sec. (Wireless)
  • Data Output
    16bit
    External Dimension
    14 x 17 inch

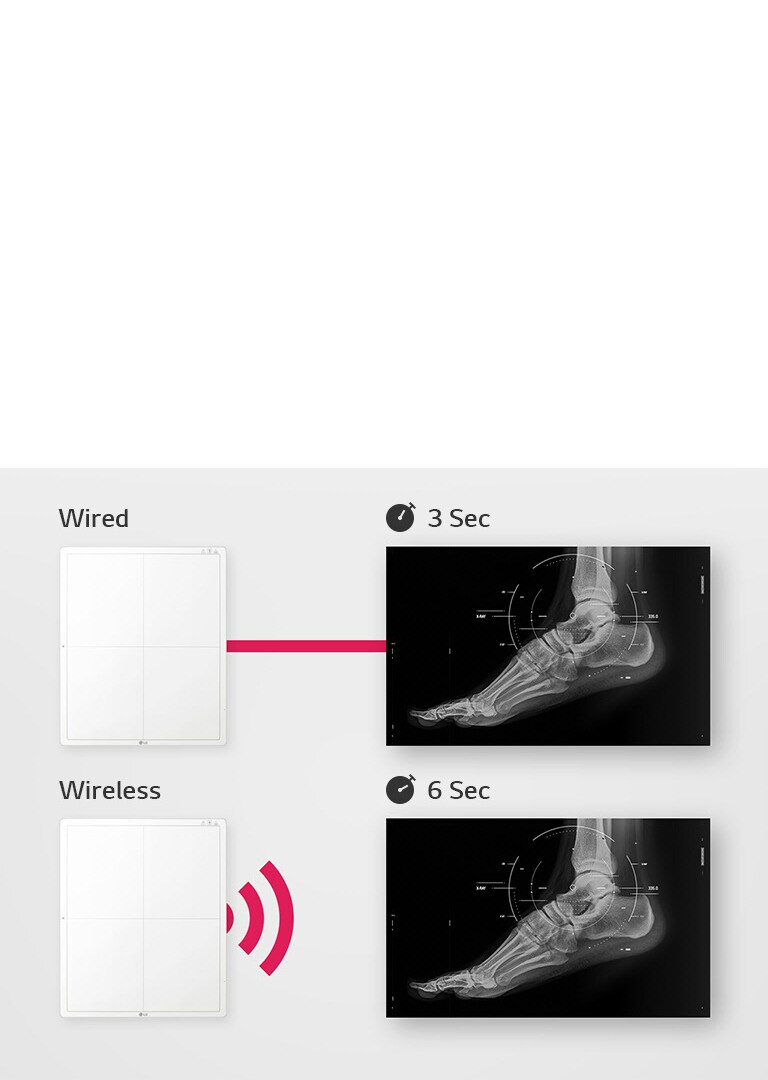

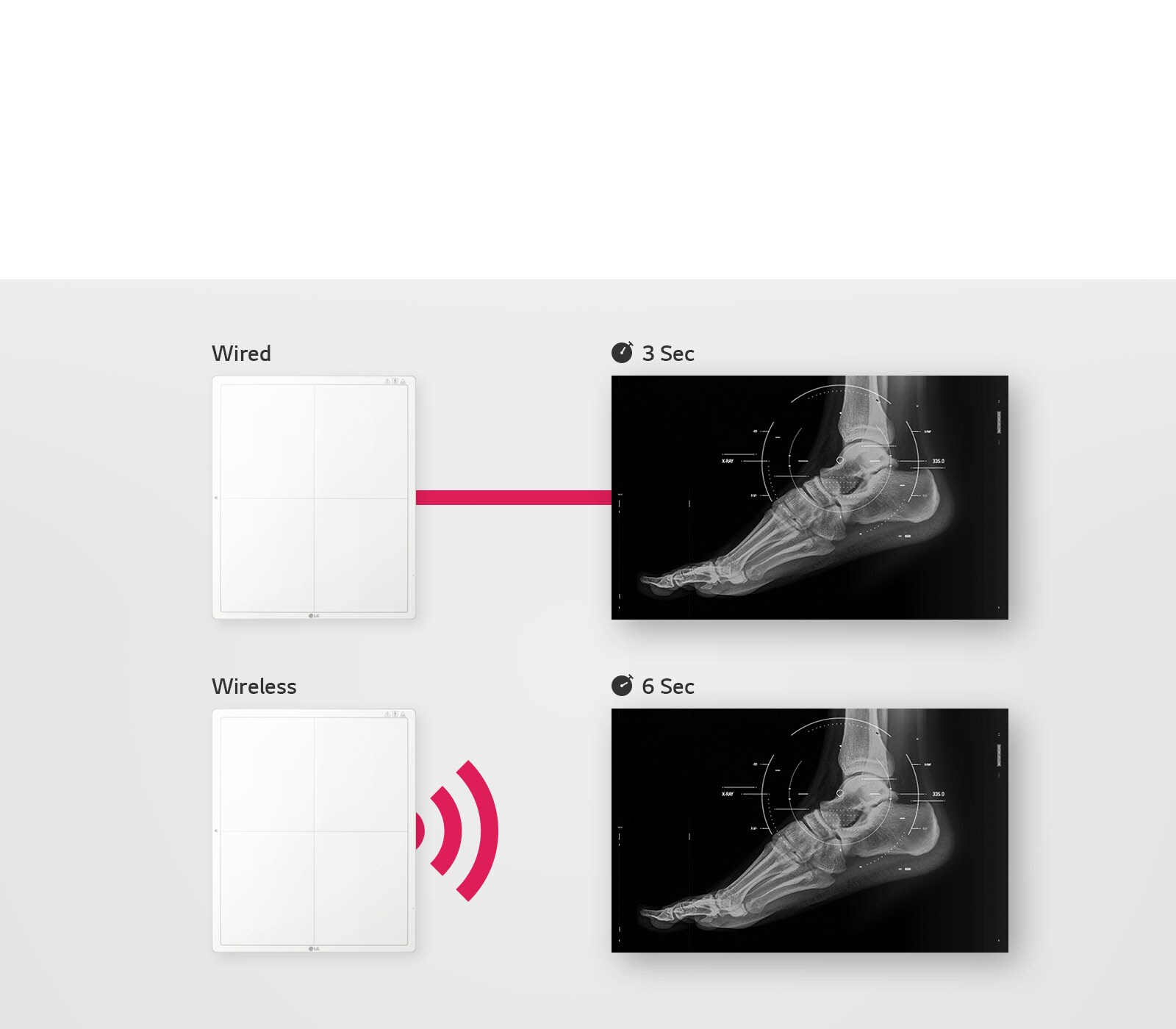

  • Full Image
    3sec. (Wired) / 6sec. (Wireless)
    Intended Use
    General Radiography
  • Pixel Size
    140μm
    Scintillator
    CsI
  • TFT Type
    A-si
    Weight
    2.95kg, 6.5lb (Icld. Battery)
