17HK700G-WP component-copyModelName

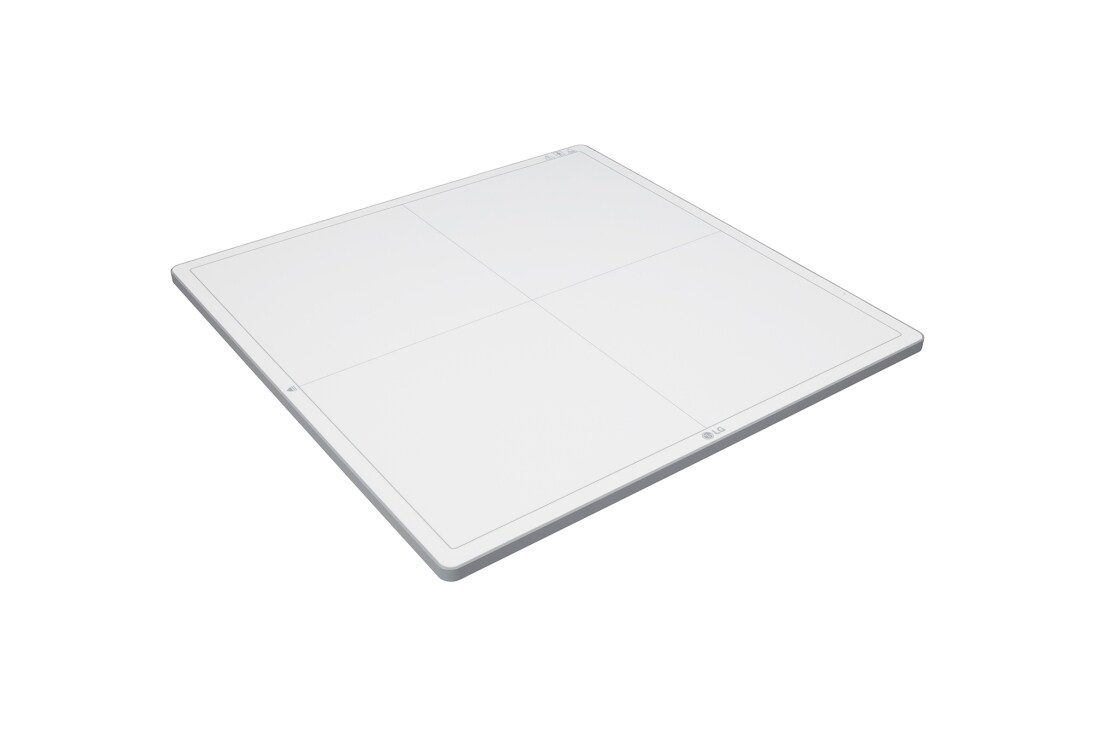

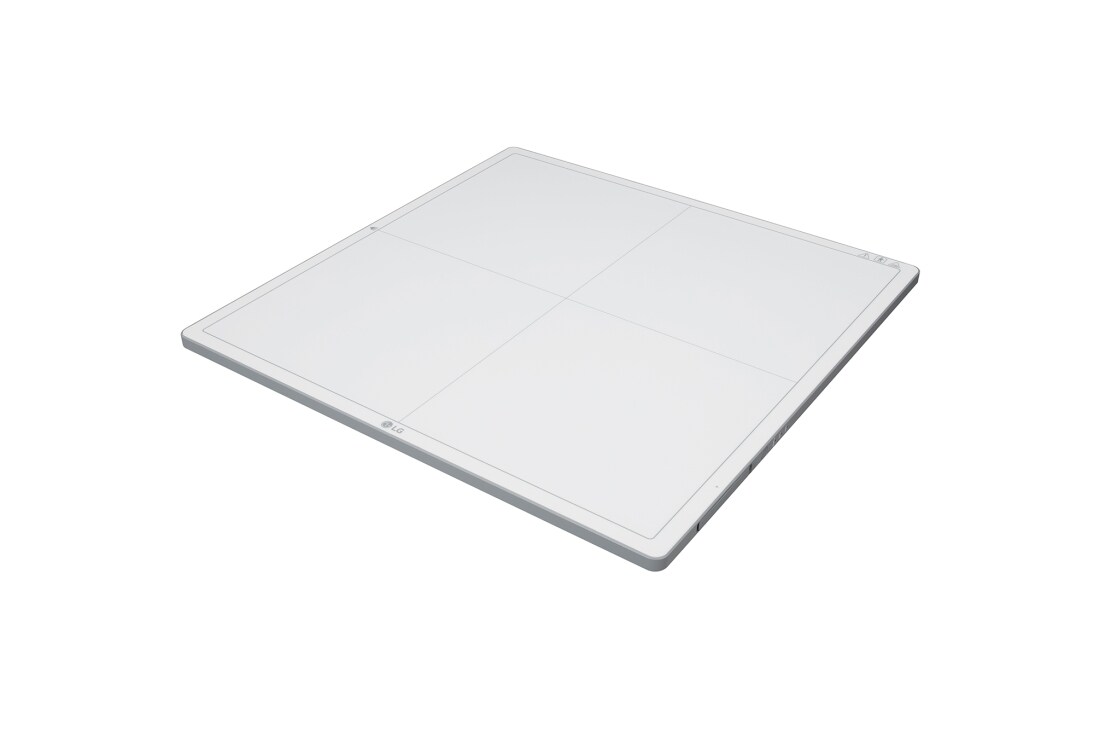

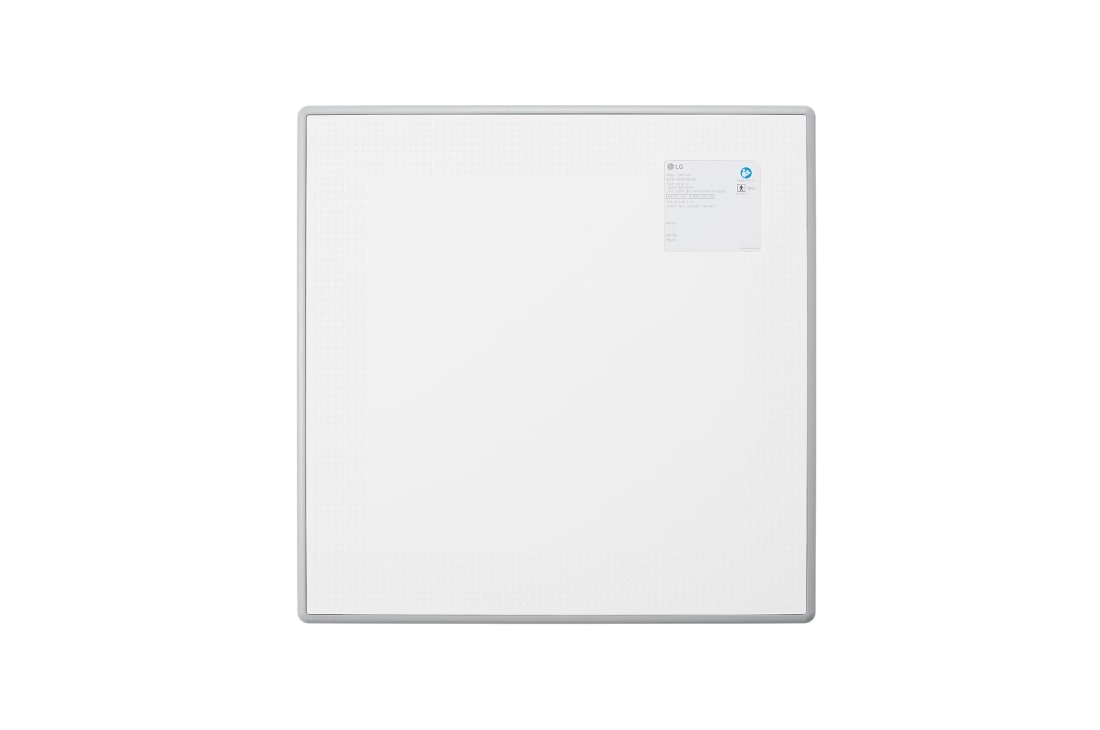

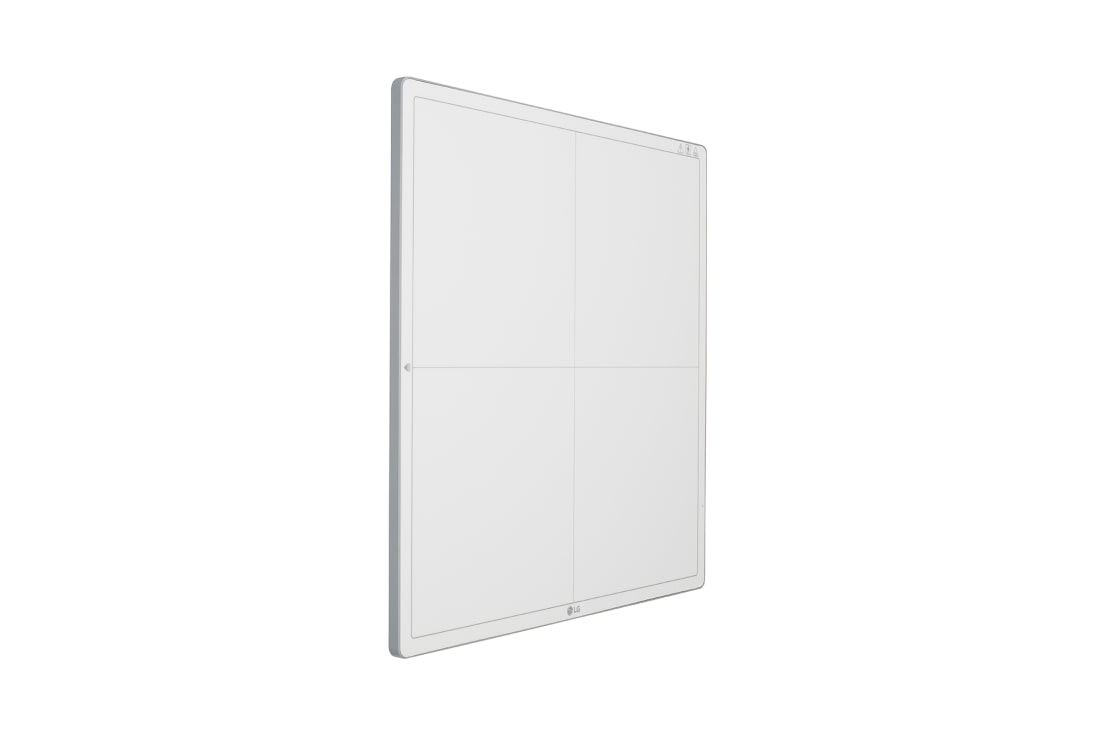

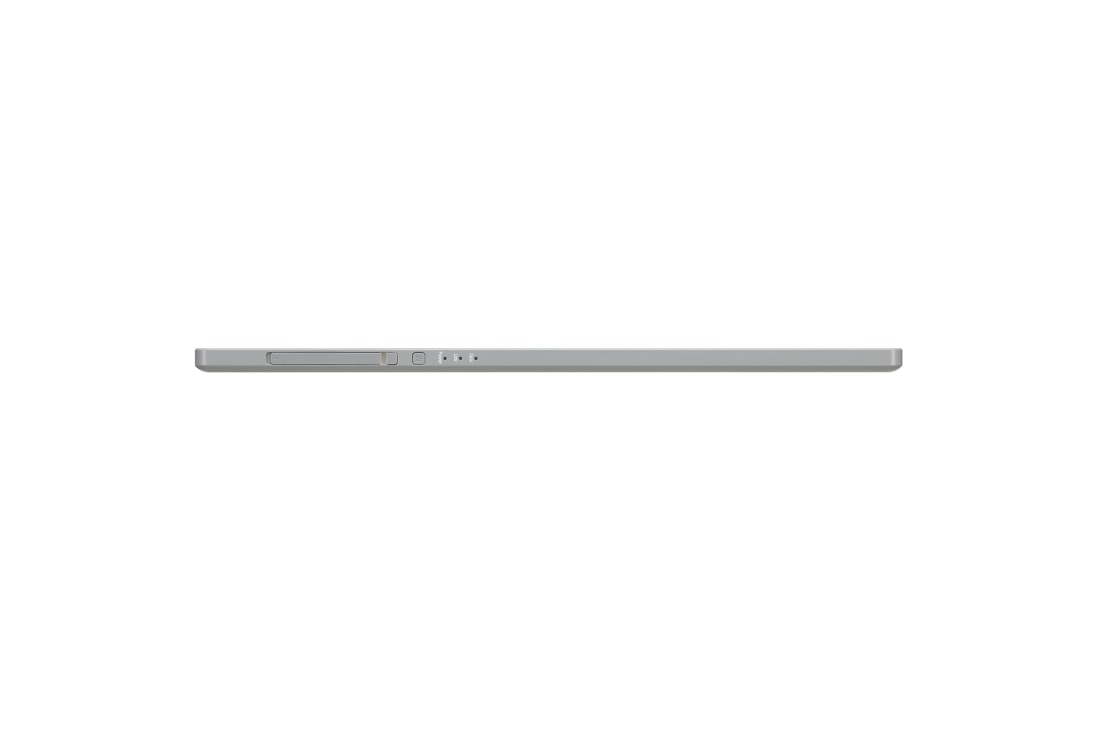

Wired Digital X-ray Detector

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK700G-WP)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (17HK700G-WP)
    AED
    AED
    LG Members Price
Total
Wired Digital X-ray Detector
Find a Dealer
Superior Image Quality3 Superior Image Quality4
Ensure Diagnostic Accuracy

Superior Image Quality

LG DXD guarantees high resolution and clear image quality without image distortion through 16bit image processing. Plus, it also supports ideal pixel pitches of 140㎛ for high resolution images.
Watch the Full Movie
Light yet Durable1 Light yet Durable2

Light yet Durable

IP41: Waterproof and Dustproof1 IP41: Waterproof and Dustproof2

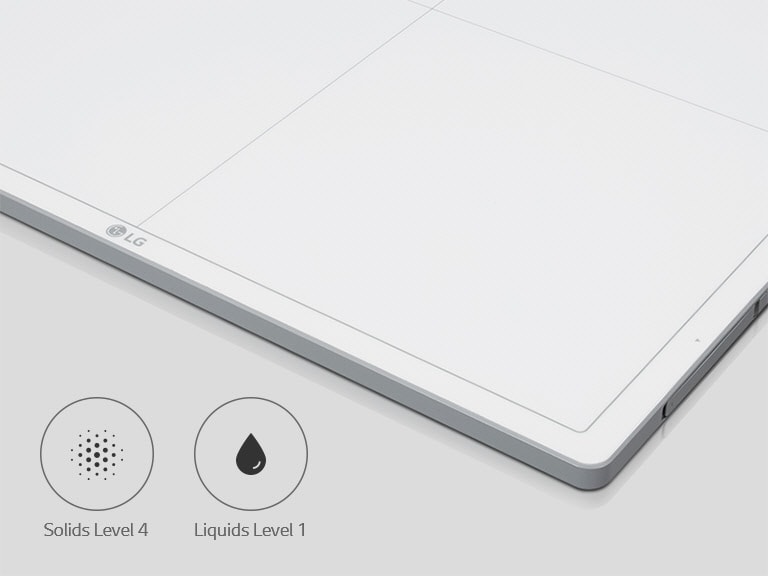

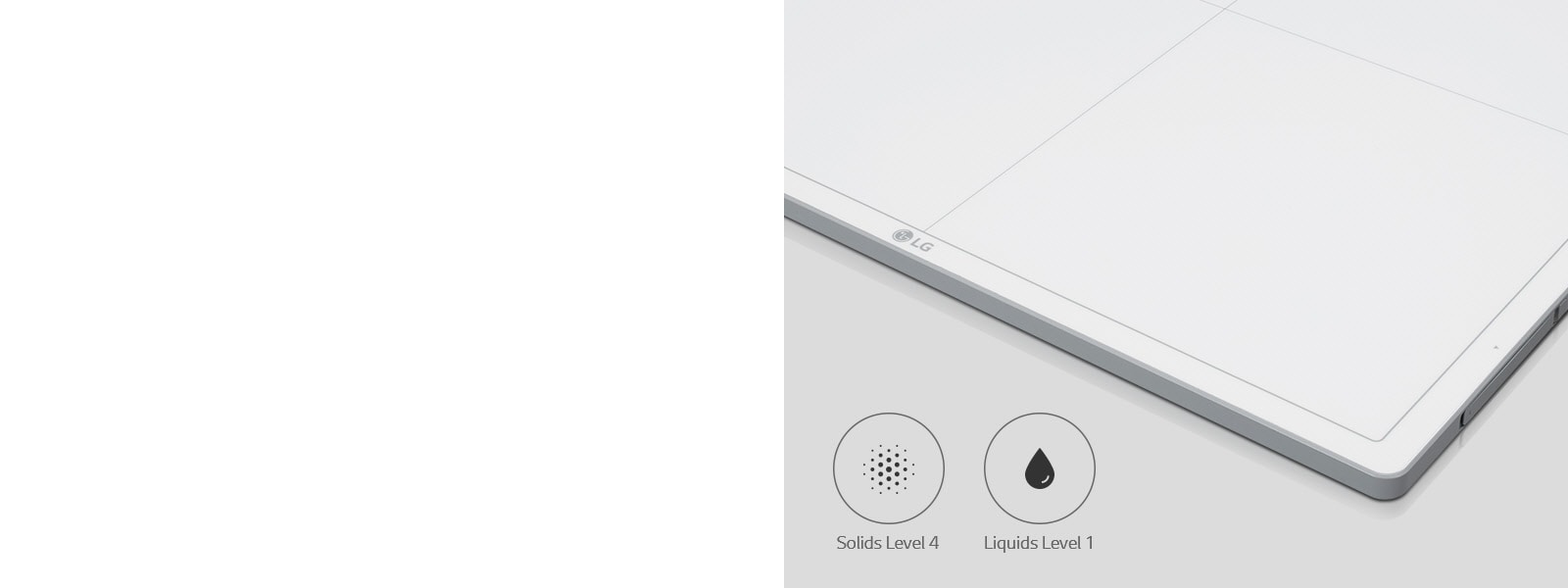

IP41: Waterproof and Dustproof

IP*41 resistance rating ensures that LG DXD will be protected against objects of 1mm or larger and dripping liquids such as blood and bodily fluids.
* IP: Ingress protection

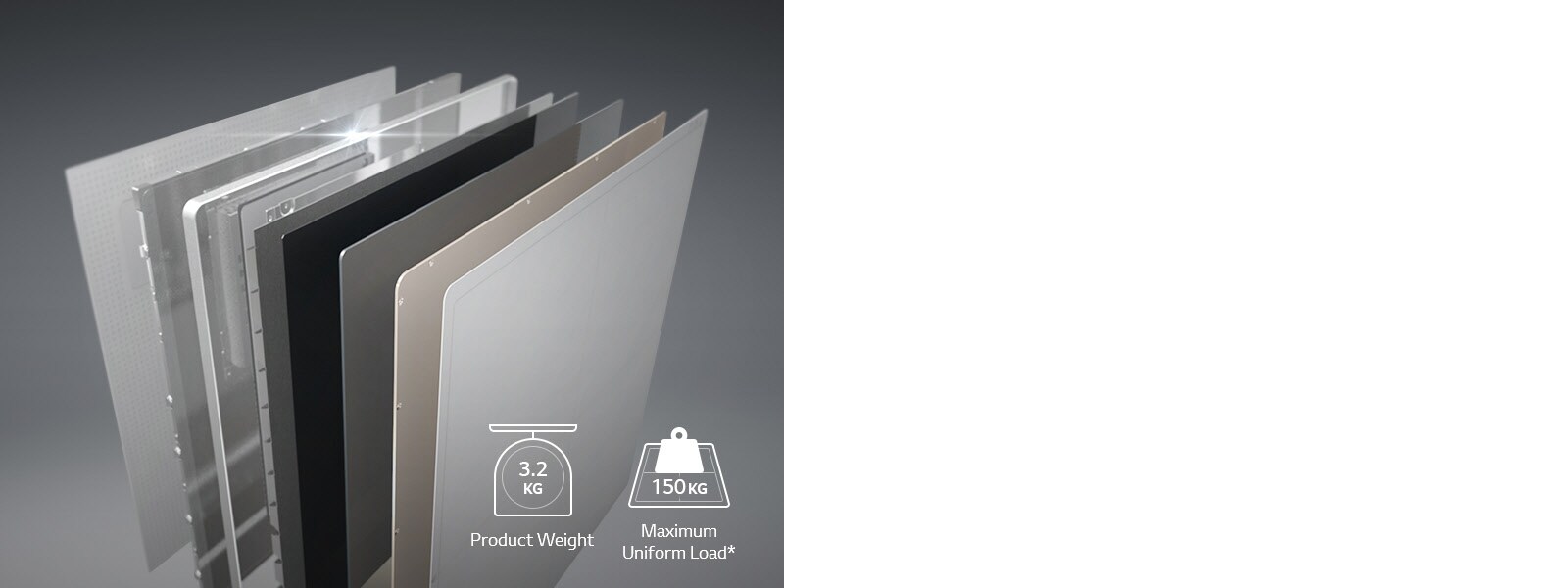

Magnesium & Carbon-fiber Body1 Magnesium & Carbon-fiber Body2

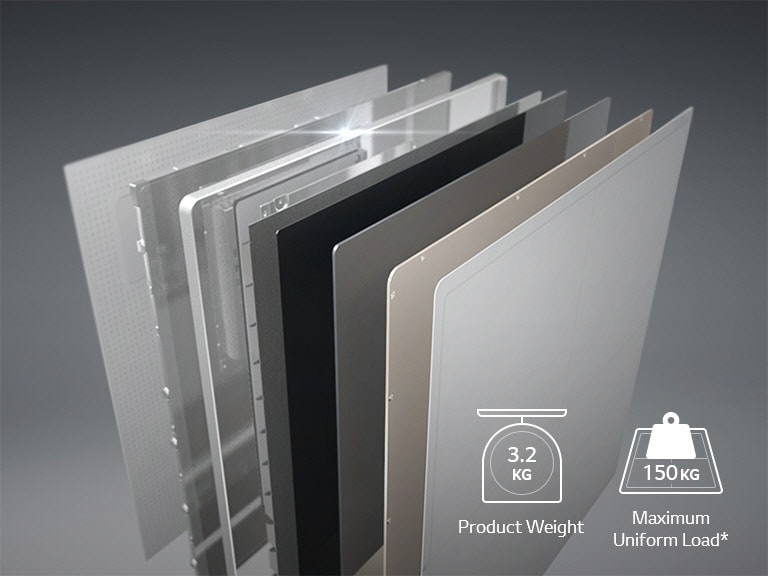

Magnesium & Carbon-fiber Body

With a super strong body that combines carbon-fiber with magnesium, LG DXD is not only lightweight, but also exceptionally strong.
* Maximum load weight: uniform load 150kg (331lb), point load 100kg (220lb)

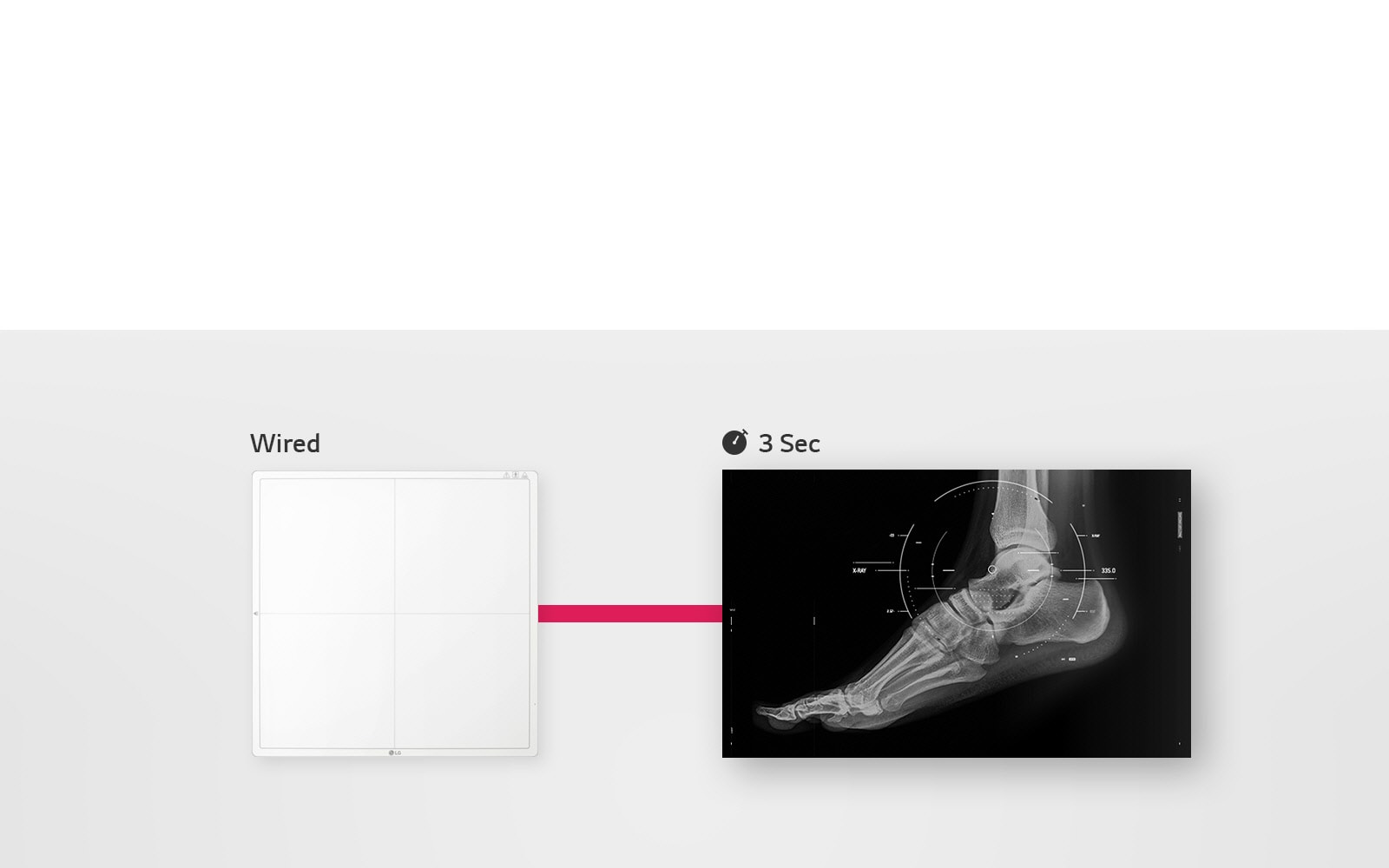

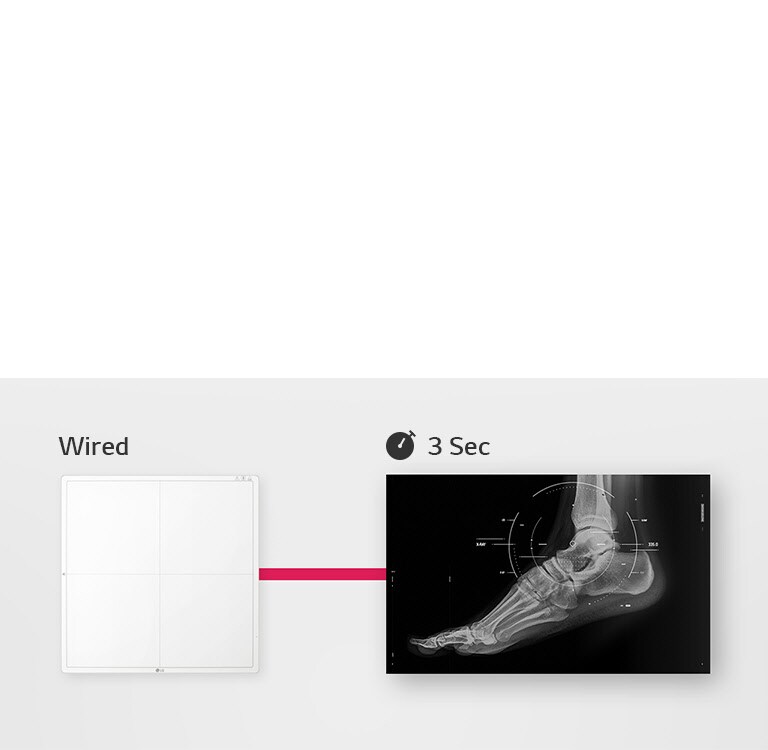

Rapid Image Availability1 Rapid Image Availability2
Improve Work Efficiency

Rapid Image Availability

LG DXD increases productivity with a fast-processing. It takes only 3 seconds to get a raw image.
Close
PANEL
  • Size

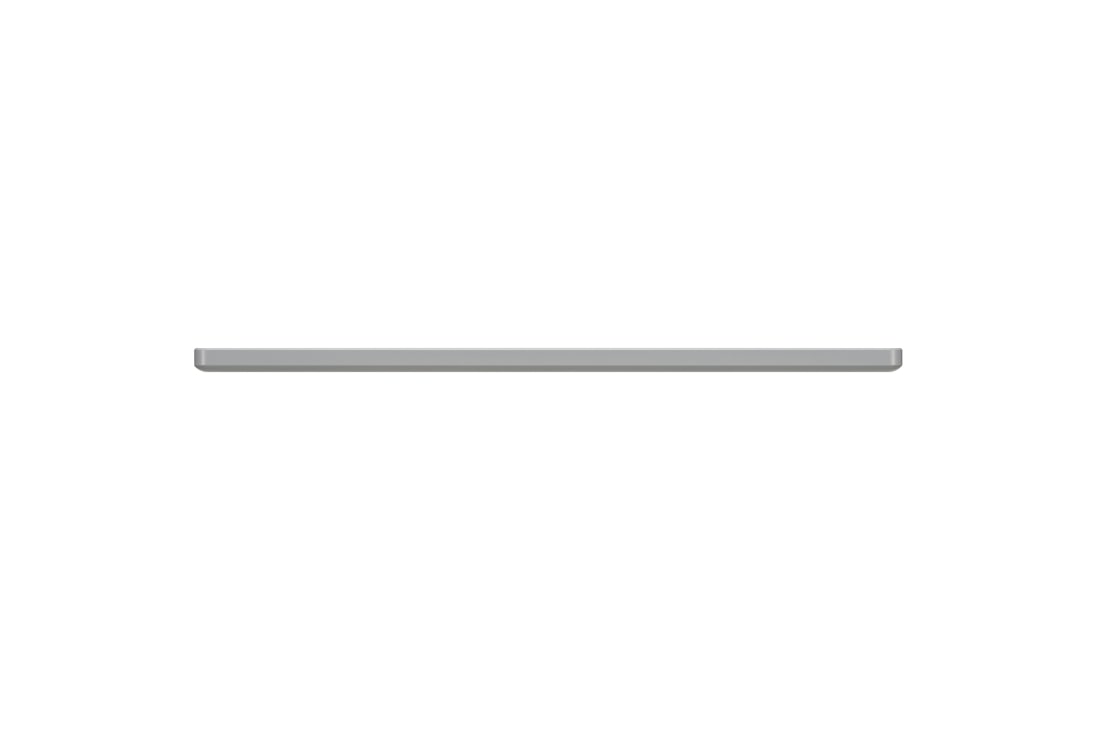

    17” x 17” x 0.61”
    Panel Type
    General Radiography
  • Scintillator
    Csl
    Pixel Size
    140 µm
  • X-ray Sensitive Area (pixels)
    3,072 x 3,072
    X-ray Sensitive Area (inches)
    16.9” x 16.9”
  • MTF @ 0.5 lp/mm
    89% (Typ)
    DQE @ 0.1 lp/mm
    72% (Typ)
COMMUNICATION
  • A/D Conversion
    16 bit
    Data Output
    16 bit
  • Communication Method
    Wired
    Total Cycle Time
    8 seconds
  • AED (Auto Exposure Detection)
    Supported
    Full Image Time
    3 seconds
DURABILITY
  • Resistance Rating
    IP41 (dust/liquid)
    Sensor Protection Plate
    Carbon Fiber
  • Maximum Load Weight
    331 lbs. (Full Uniform Load) / 220 lbs. (Local Point Load)

To access more technical documentation and downloads, please visit the LG B2B Partner Portal.

Find a dealer to help with service for sales, installation, and after sales.
