21HQ513D-S component-copyModelName

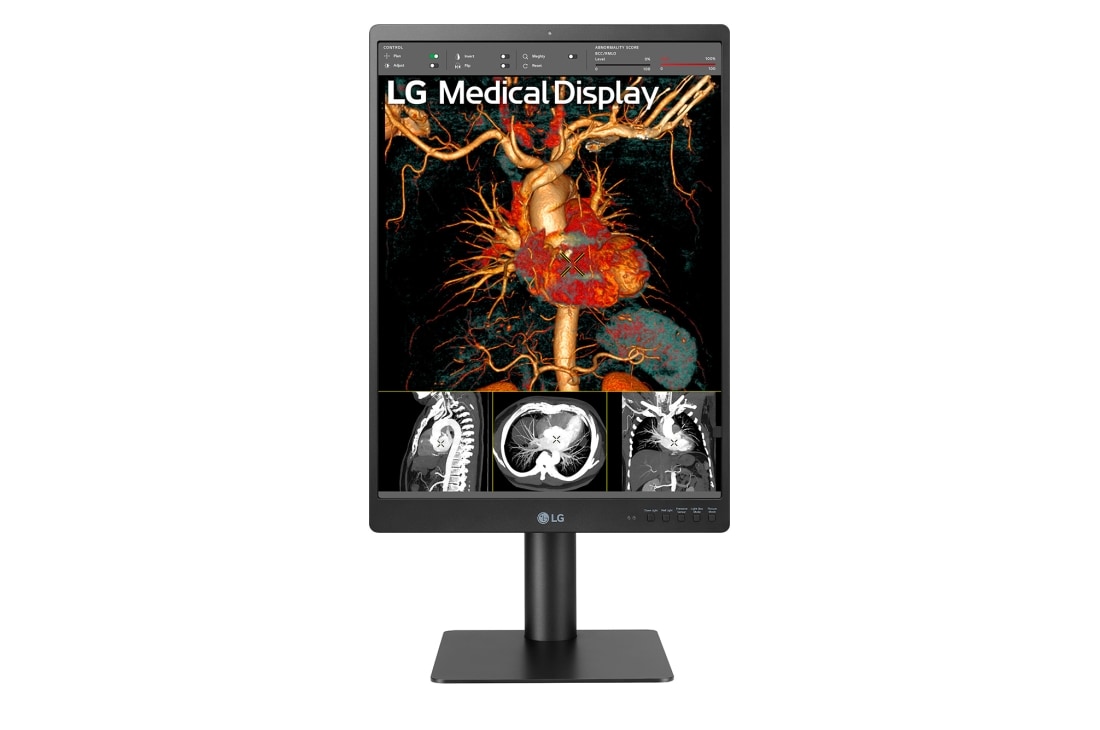

LG 21.3'' 3MP IPS Diagnostic Monitor

Key Features

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HQ513D-S)
    AED
    AED
    LG Members Price
Total
Add to CompareAdd to CompareRemove Compare

component-OBScountrySelectDesc

See Retailer for Pricing

Limited Quantity Sale

Available QTY 0
  • vip-price-message
    (21HQ513D-S)
    AED
    AED
    LG Members Price
Total

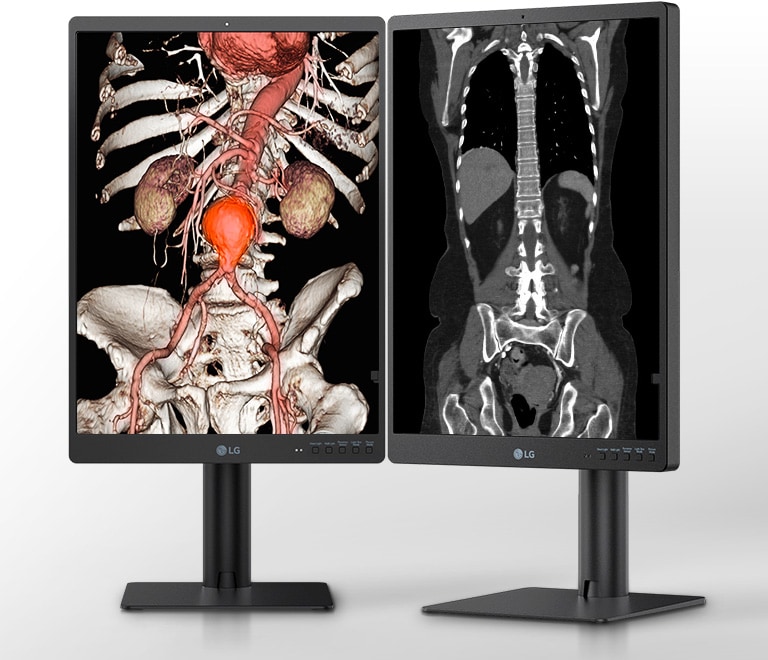

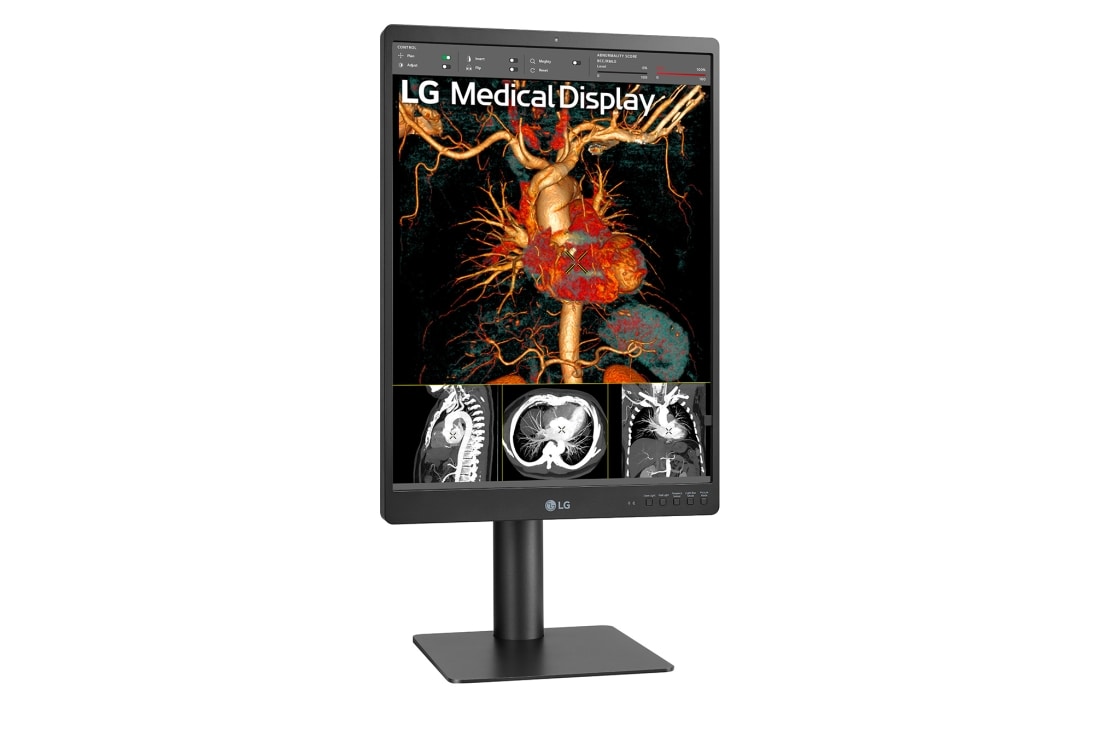

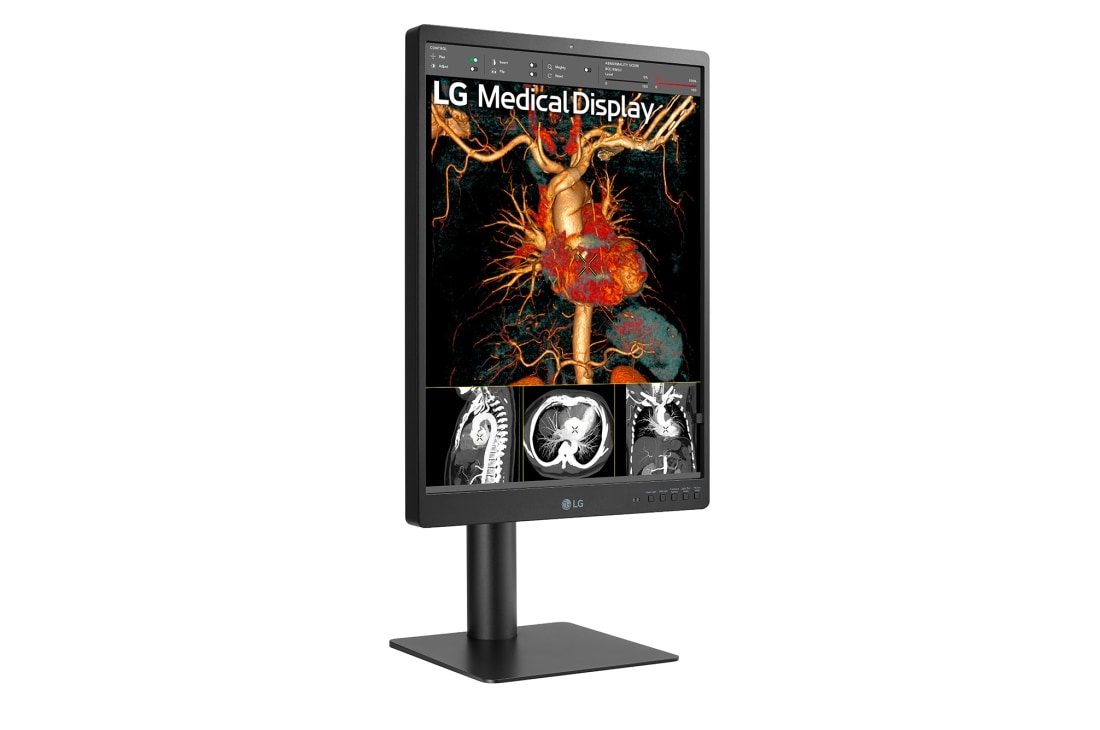

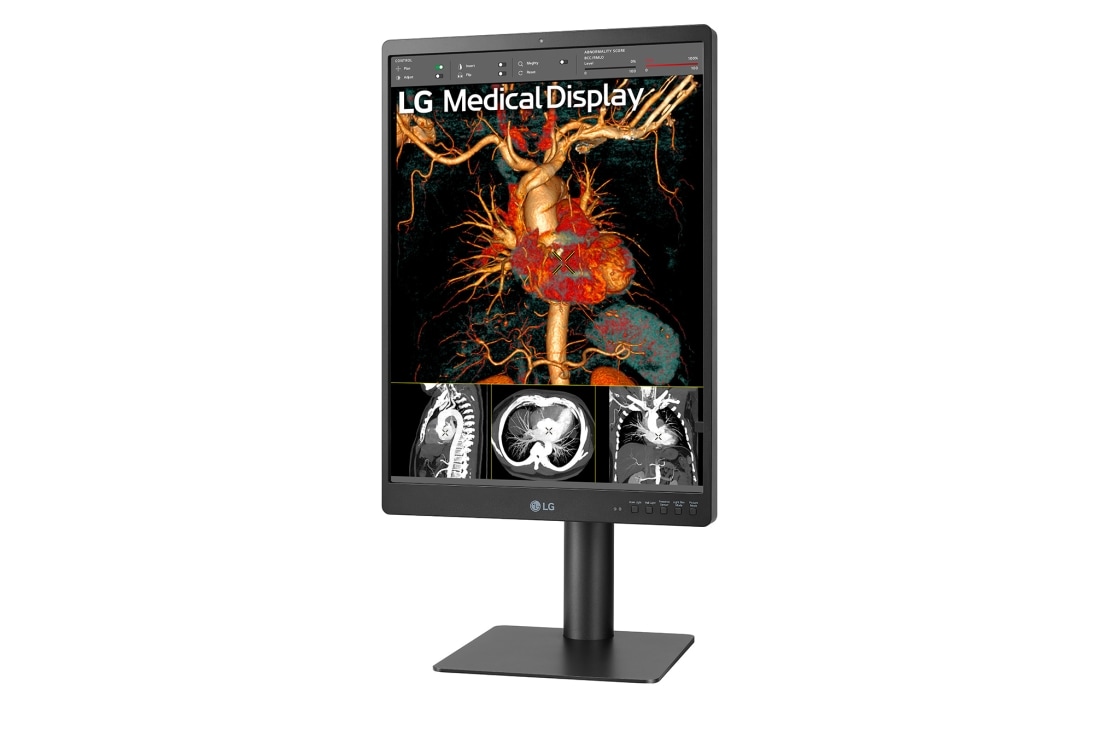

LG 21.3'' 3MP IPS Diagnostic Monitor
LG 21.3'' 3MP IPS Diagnostic Monitor LG 21.3'' 3MP IPS Diagnostic Monitor
21.3-inch 3MP IPS Display

Clear Images for Diagnostic Reviews

Watch the Full Movie

  • Accuracy

    21.3-inch 3MP IPS Display
    Easy Calibration with Front Sensor

  • Efficiency

    Focus View
    5 Hot Keys & Lighting

  • Comfort

    Daisy Chain
    Ergonomic Design

Accurate Imaging

the monitor equipped with the front-sensor offering for easy-calibration.
Integrated Front Sensor

Manage Effortless Quality Control

The Integrated Front Sensor allows easy calibration ​without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.

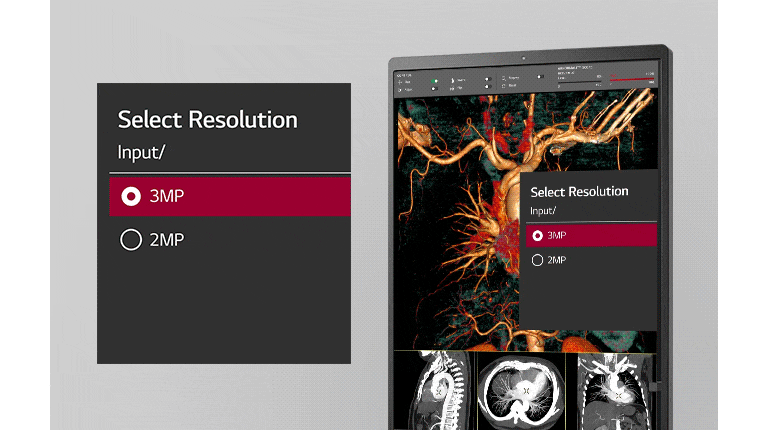

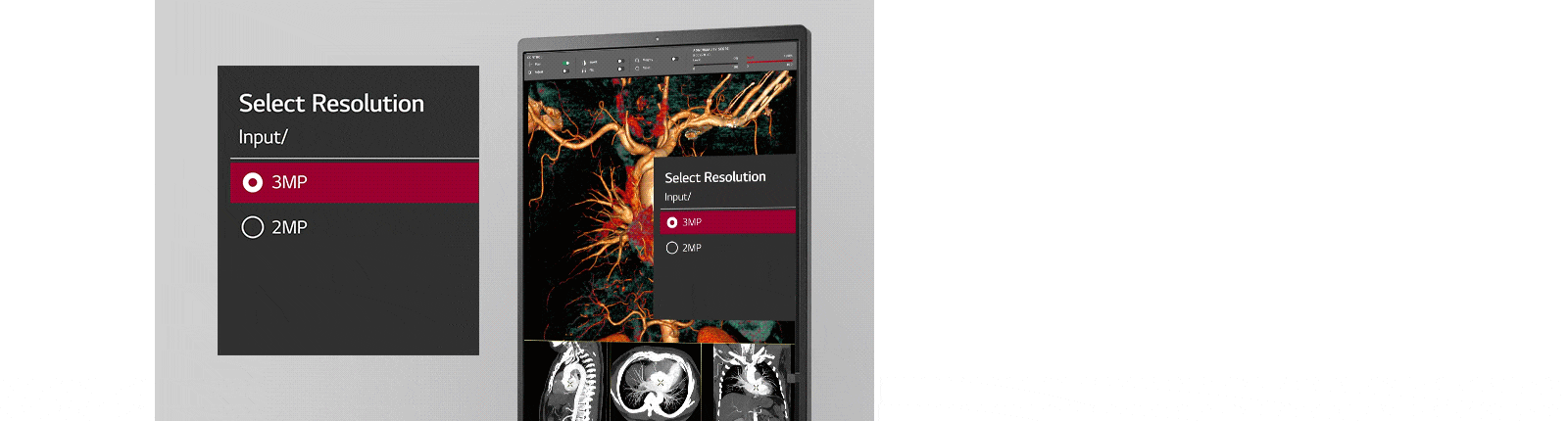

multi-resolution mode offering for users to select resolution between input of 3mp and of 2mp. multi-resolution mode offering for users to select resolution between input of 3mp and of 2mp.
Multi-resolution Mode

Compatible with Various Device

Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
pathology mode offering imaging results as detailed and accurately colored as seen under a microscope. pathology mode offering imaging results as detailed and accurately colored as seen under a microscope.
Pathology Mode

True-to-Life Color Reproduction

In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.

Streamlined and Efficient Workflow

presence sensor detecting the motion of the user and having the screen turned off automatically when no motion. presence sensor detecting the motion of the user and having the screen turned off automatically when no motion.
Presence Sensor

Hassle-free Savings & Stronger Security

Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.

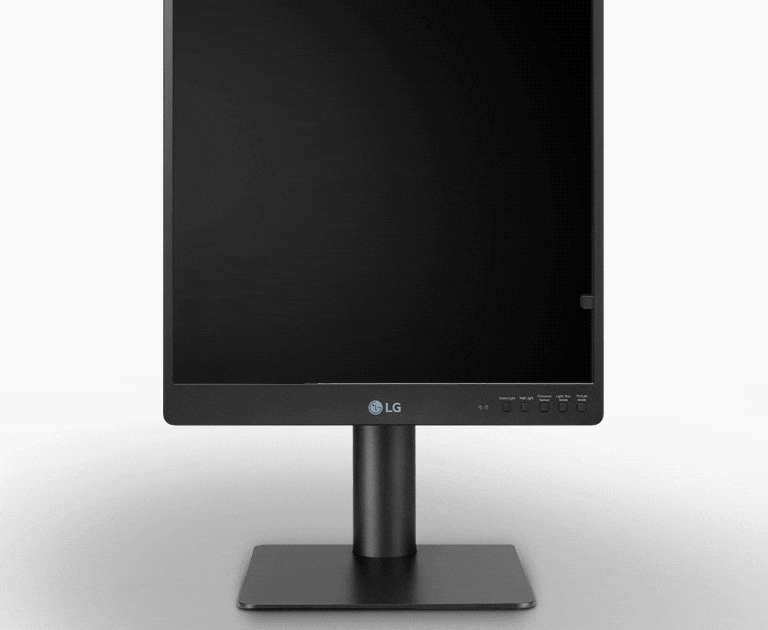

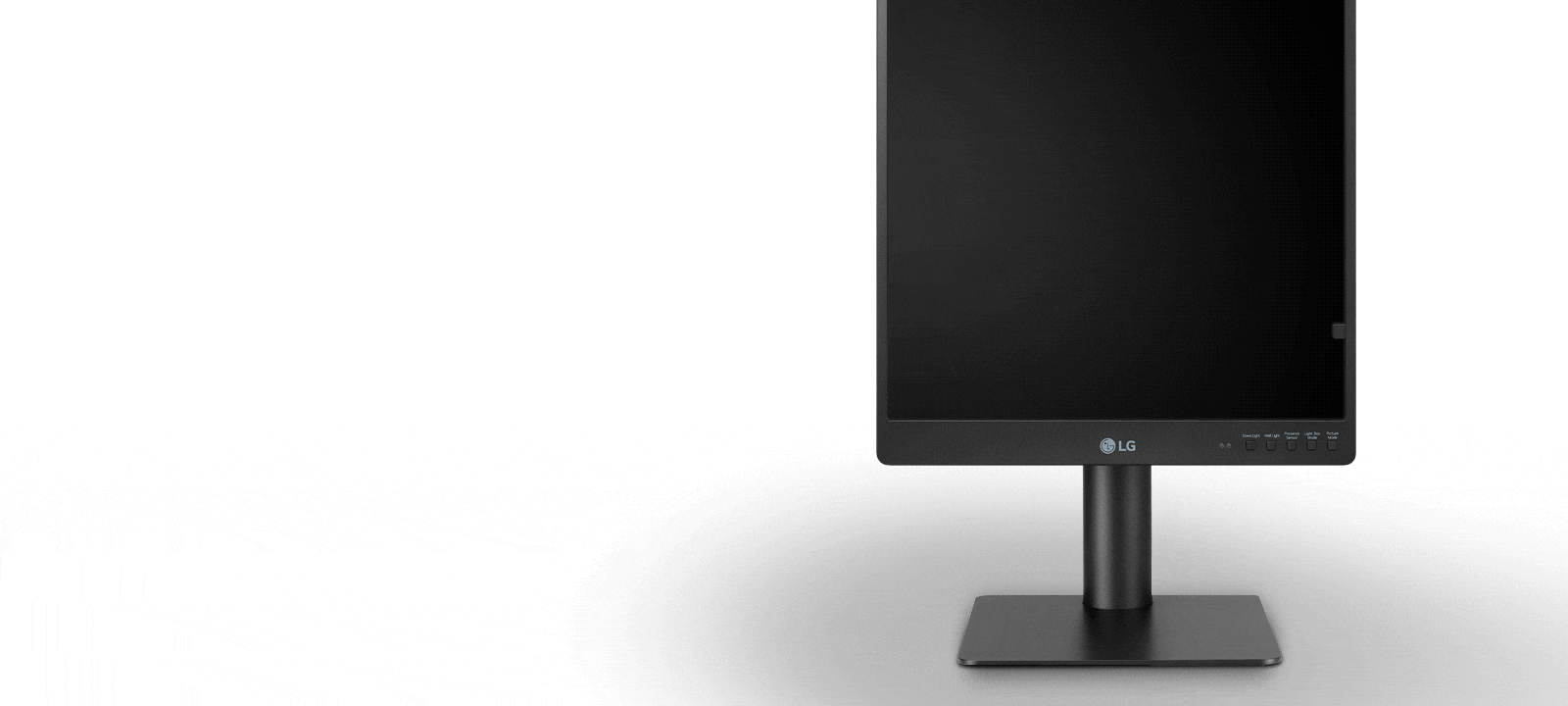

focus view offering for users to review a specific part of imaging. focus view offering for users to review a specific part of imaging.
Focus View

Fully Focus on the Region of Interest

LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.

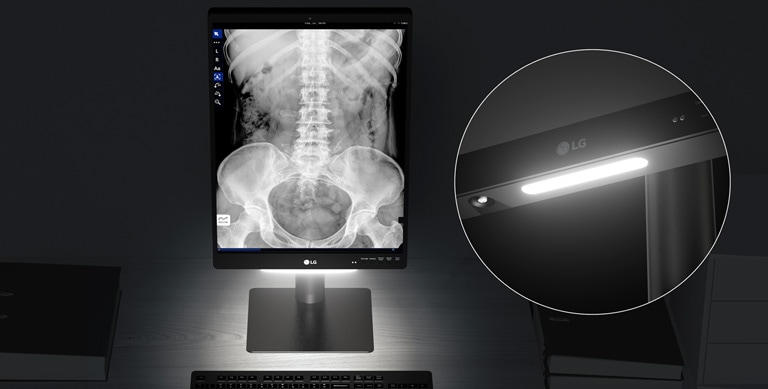

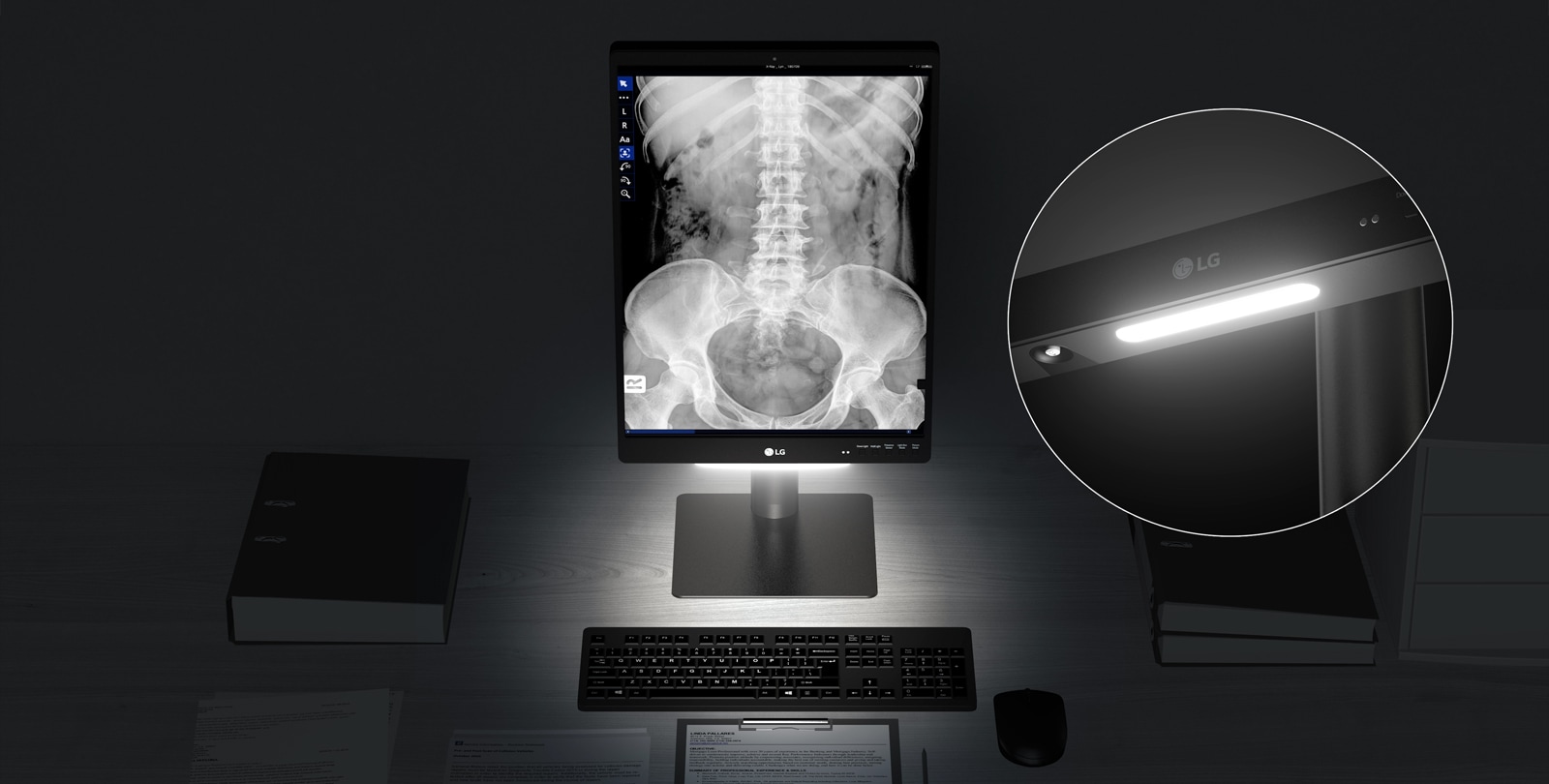

Down Lighting & Wall Lighting

Ideal Diagnostic Workspace

Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom. down lighting, and wall lighting offering users to view imaging results on the screen comfortably in the darkroom.

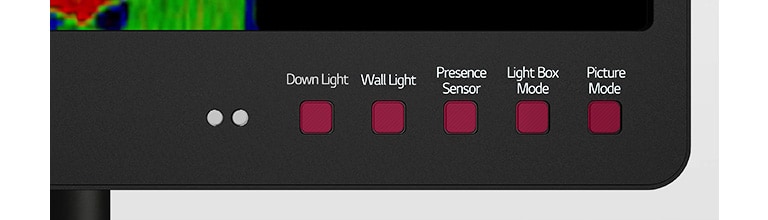

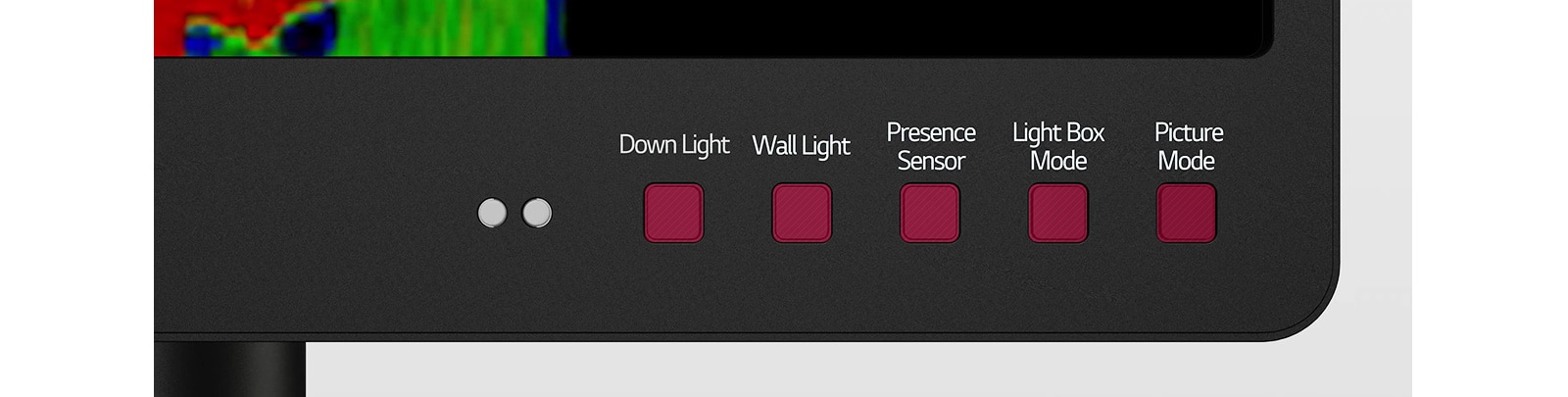

5 Hot Keys

Intuitive Control

The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode. 5 hot keys offering user's intuitive control consisting of down light, wall light, presence sensor, light box mode, and picture mode.

Ergonomic and Comfortable Workspace

auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions. auto luminance sensor offering automatic adjustment of screen brightness at the optimal level under ambient lighting conditions.
Auto Luminance Sensor

Reducing Eye Strain

LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

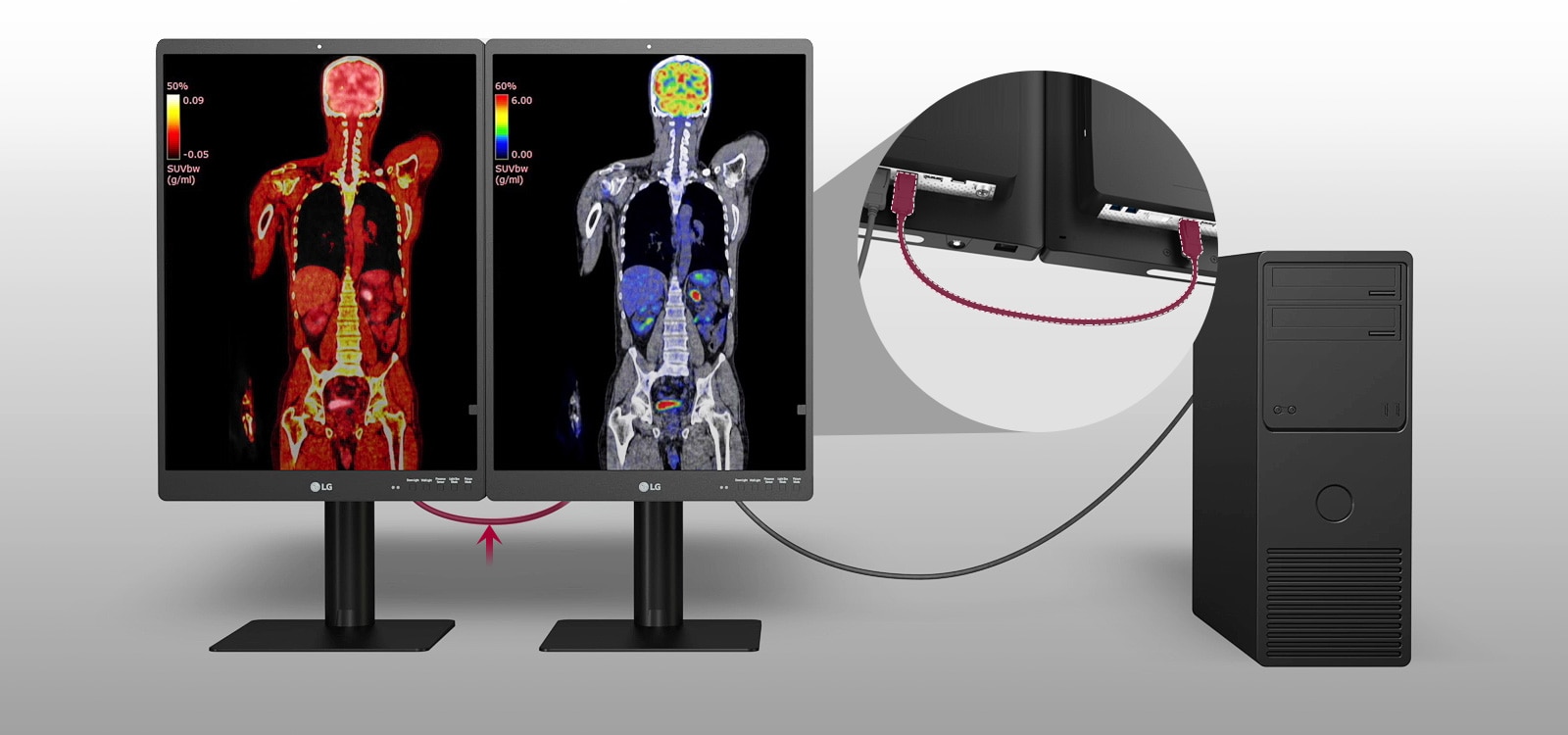

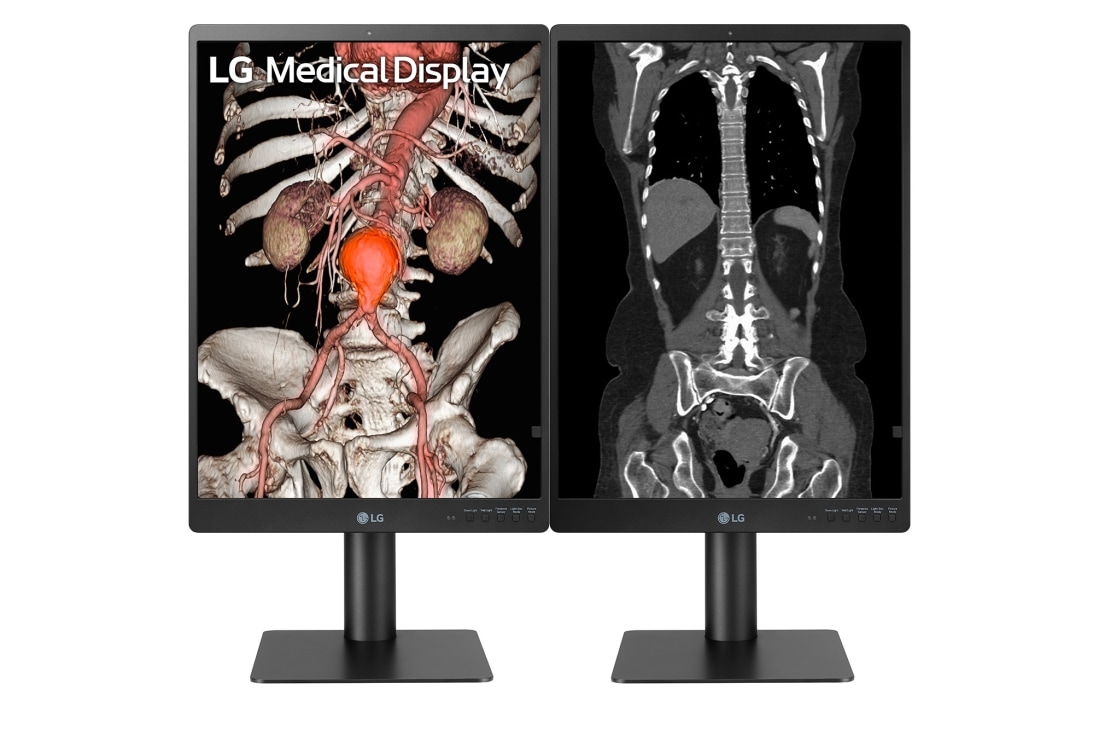

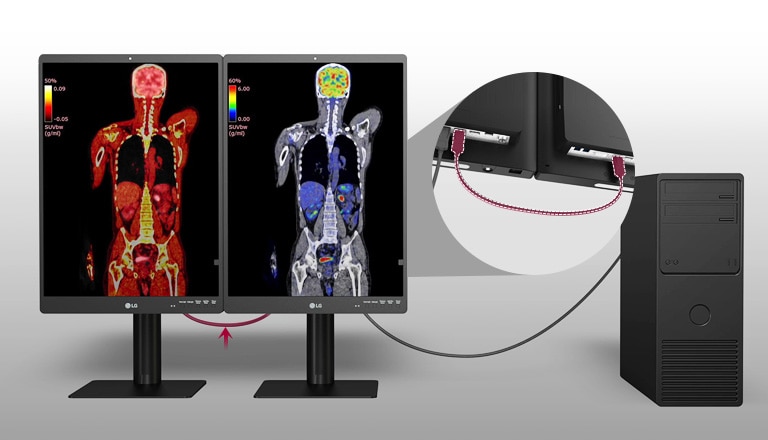

Daisy Chain

Reducing Clutter on Your Desk and Simplifying Cable Management

The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
productive workstation by connecting two diagnostic Monitors and a PC. productive workstation by connecting two diagnostic Monitors and a PC.

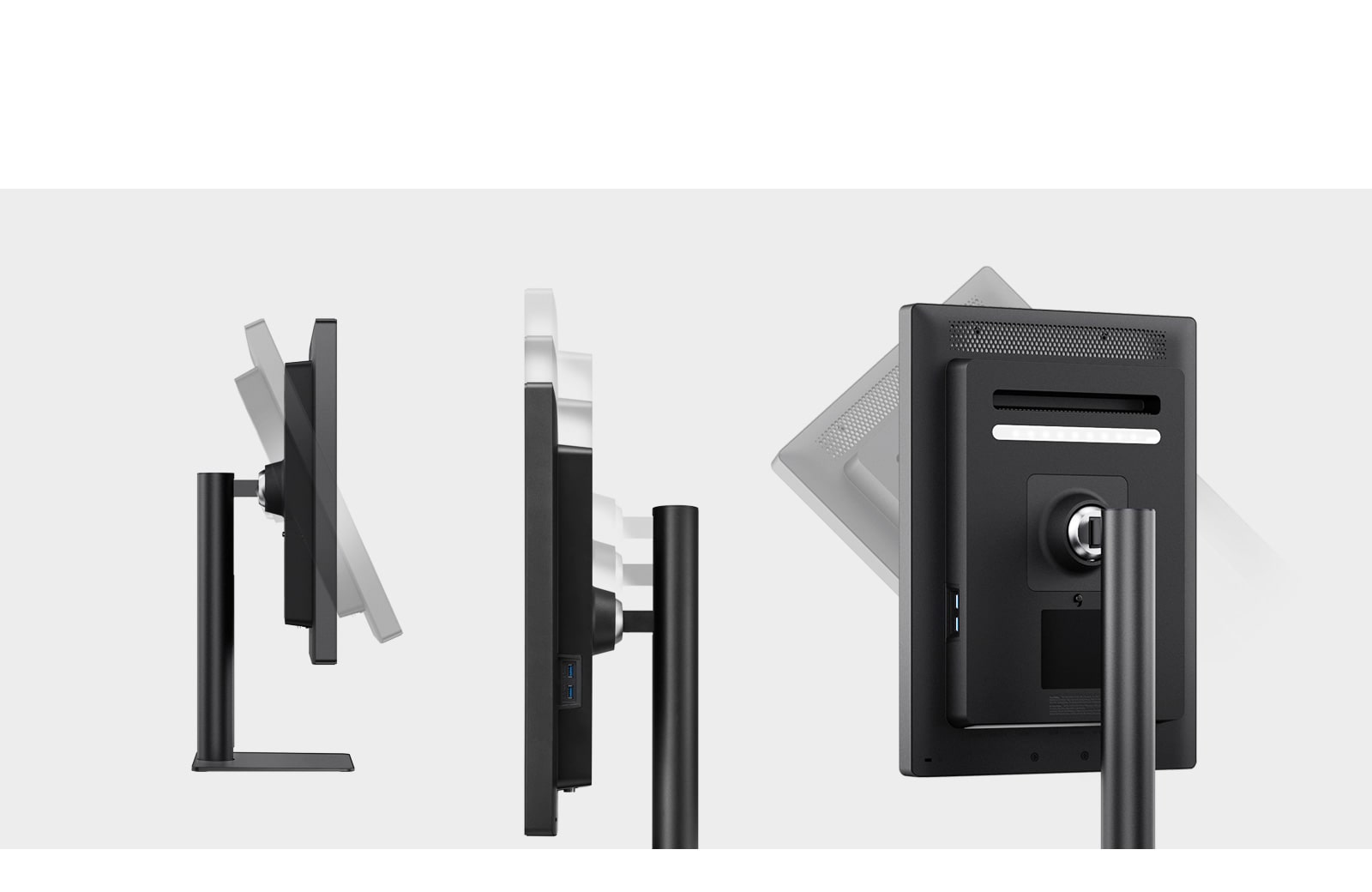

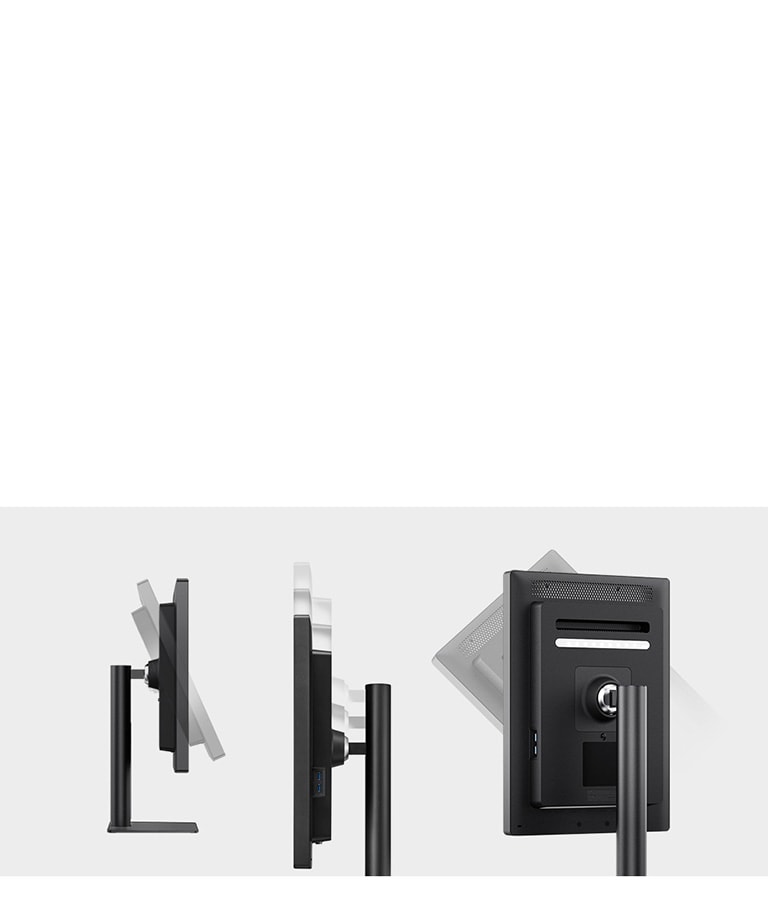

Ergonomic Design

Easy and Comfortable Workspace

The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.
Ergonomic design with features of pivot, height, and tilt adjustment. Ergonomic design with features of pivot, height, and tilt adjustment.
Stop

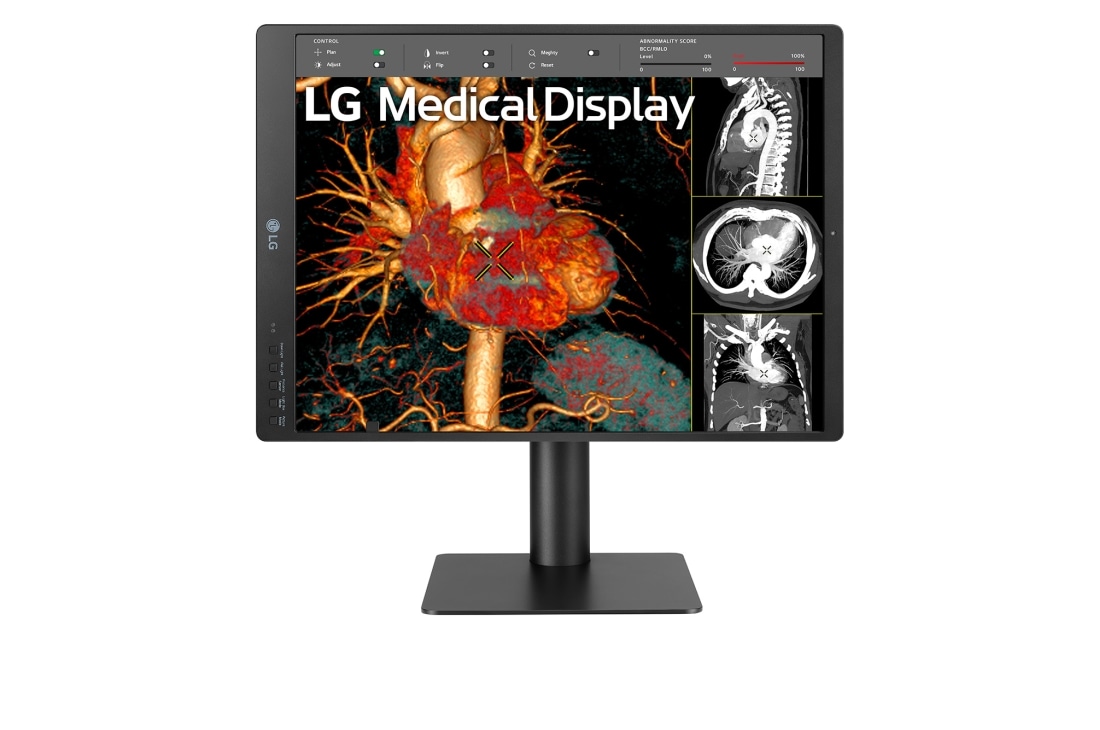

pivot adjustable Pivot Two-way

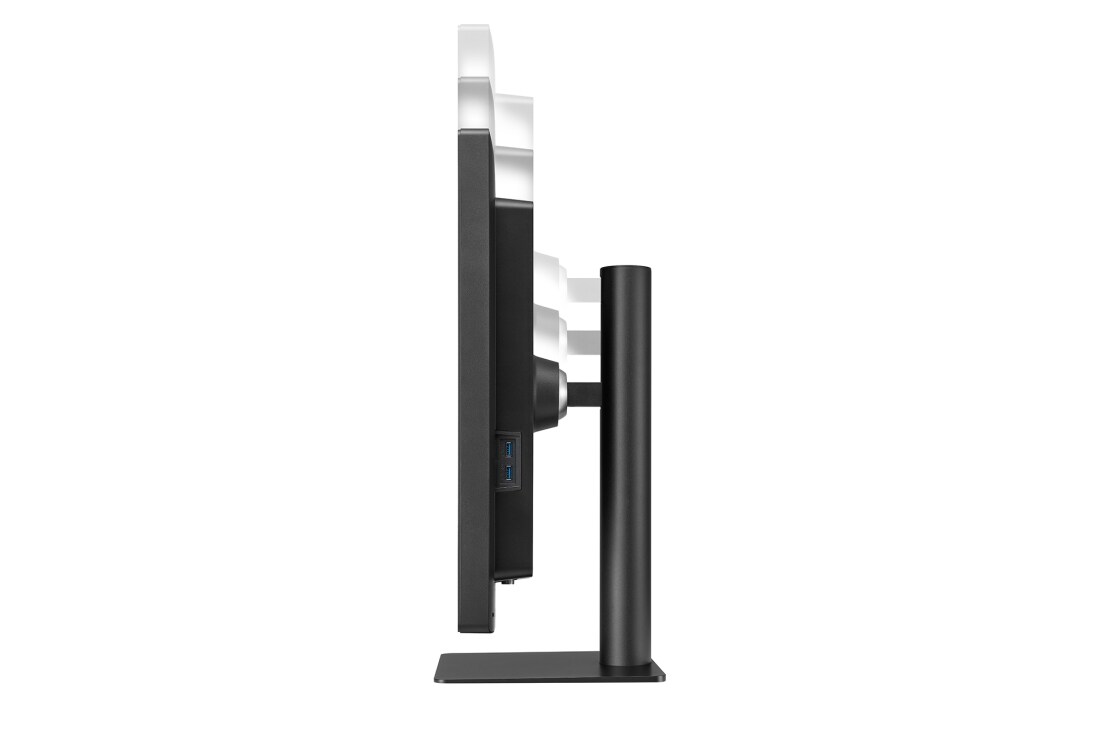

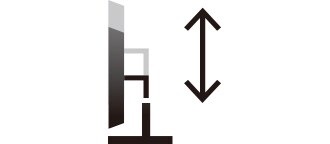

height adjustable stand within the range of 0m to 110mm Height 0~110mm

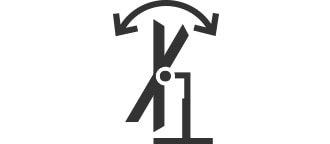

tilt adjustable stand within the range of -5 degrees to 20 degrees Tilt -5~20°

Close
DIMENSIONS/WEIGHTS
  • Dimension with Stand (W x H x D) [mm]
    343.1x640x234.6
    Dimension without Stand (W x H x D) [mm]
    343.1x484x72.4
  • Dimension in Shiping (W x H x D) [mm]
    567x187x652
    Weight with Stand [kg]
    7
  • Weight without Stand [kg]
    5
    Weight in Shipping [kg]
    10.5
FEATURES
  • DICOM Compliant
    YES
    Hot Key
    YES(5keys)
  • HW Calibration
    YES(PerfectLum)
    Auto Brightness
    YES
  • Brightness stabilization
    YES
    Flicker safe
    YES
  • Presence Sensor
    YES
    Front Sensor
    YES
  • Reader Mode
    YES(Text mode)
    Color Temperature
    6500K/7500K/9300K/Manual (5000K ~ 10000K)
  • Pathology Mode
    YES
    Super Resolution+
    YES
  • Focus View
    YES
    Light Box Mode
    YES
  • Lighting
    YES(Down/ Wall)
    Black Stabilizer
    YES
  • Smart Energy Saving
    YES

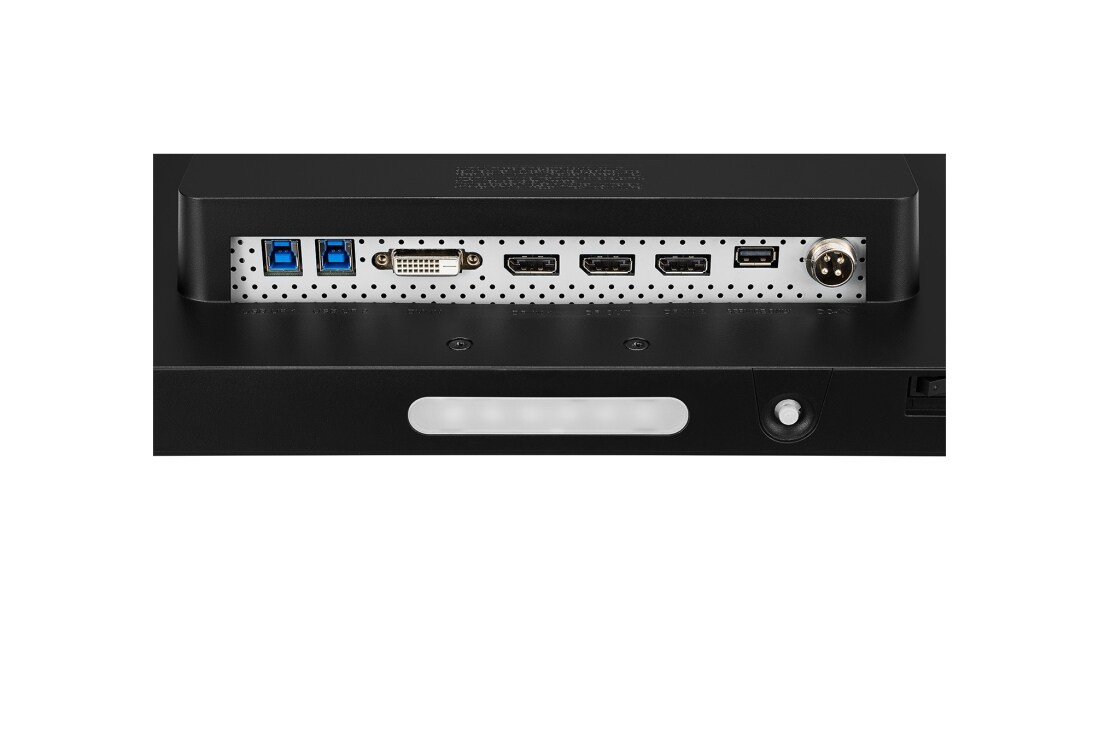

CONNECTIVITY
  • DisplayPort
    YES(In 2ea/Out 1ea)
    Daisy Chain
    YES(3MP/60Hz)
  • USB Upstream Port
    YES(2ea/ver3.0)
    USB Downstream Port
    YES(2ea/ver3.0)
POWER
  • Type
    External Power(Adapter)
    DC Output
    19V, 6.32A
  • AC Input
    100-240Vac, 50/60Hz
    Power Consumption (DC Off)
    Less than 0.3W
STANDARD
  • RoHS
    YES
    REACH
    YES
  • WEEE
    YES
    MFDS
    YES
  • UL (cUL)
    YES
    IEC (IEC 60601-1 / IEC 60601-1-2)
    YES
  • EN (EN 60601-1 / EN 60601-1-2)
    YES
    IEC (IEC 60950-1 / IEC 55032, 55024)
    YES
  • EN (EN 60950-1 / EN 55032, 55024)
    YES
    CE
    MDR
  • FDA
    510(k) (Class II)
    ISO13485
    YES
  • GMP
    YES
ACCESSORY
  • Power Cord
    YES
    Adapter
    YES
  • Calibration Report (Paper)
    YES
    DVI-D
    YES
  • Display Port
    YES
    USB A to B
    YES
DISPLAY
  • Size [Inch]
    21.3
    Resolution
    1536x2048
  • Aspect Ratio
    3:04
    Pixel Pitch [mm]
    0.2115x0.2115
  • Brightness (Typ.) [cd/m²]
    1100
    Color Gamut (Typ.)
    NTSC 72%
  • Color Bit
    10bit
    Contrast Ratio (Typ.)
    1800:01:00
  • Surface Treatment
    Anti-glare, 3H
    Response Time
    5ms (GtG at Faster)
  • Viewing Angle (CR≥10)
    178°(Right/Left), 178°(Up/Down)
MECHANICAL
  • Borderless Design
    Normal
    Machanical Power Switch
    YES
  • OneClick Stand
    YES
    Display Position Adjustments
    Tilt/Height/Pivot
  • Wall Mountable [mm]
    100x100
