New LG 24” 2MP IPS Clinical Review Monitor, 24HR513C-B, 2024

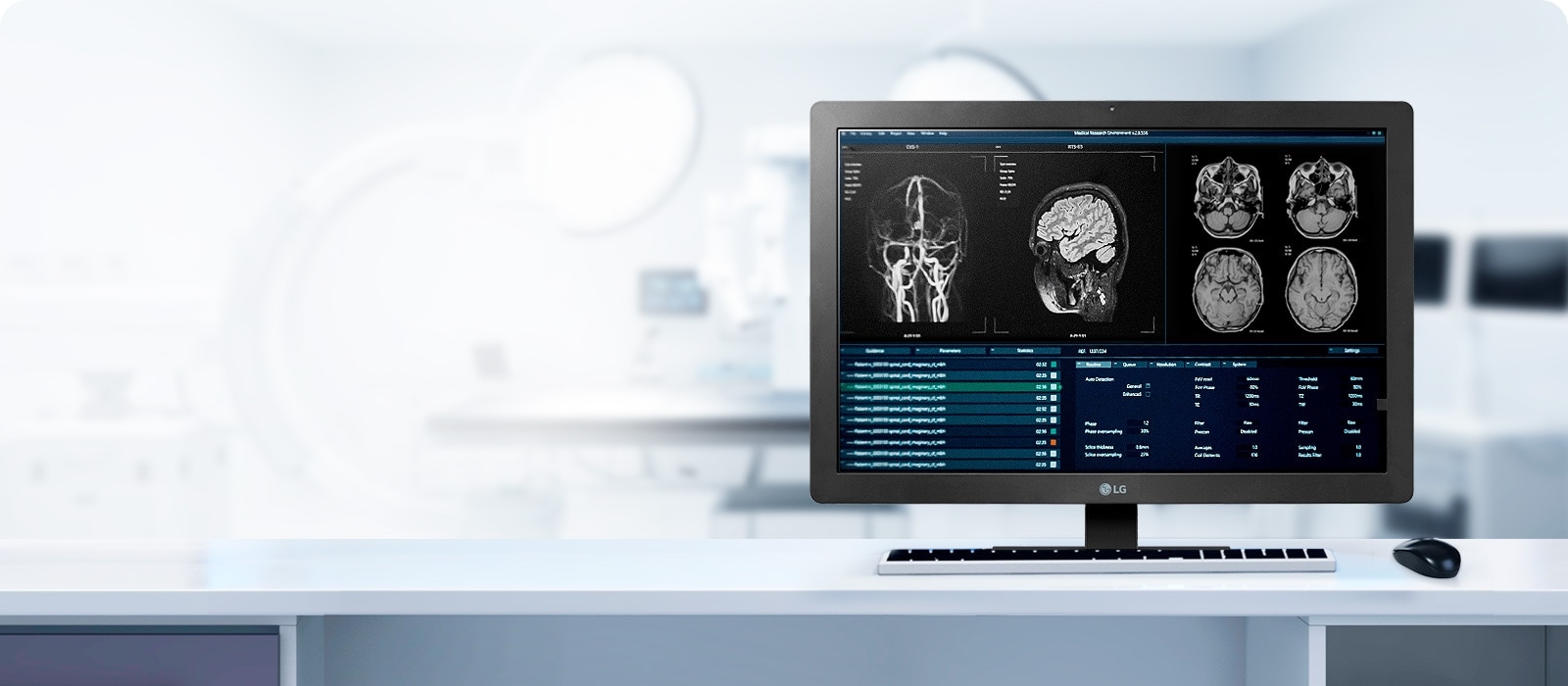

24” 2MP Clinical review monitor. 24” 2MP Clinical review monitor.
24” 2MP Clinical review monitor

Clinical review and Diagnosis in one display

Watch the Full Movie

Multi-purpose 600cd/m² Brightness (Typ.)
Internal Front Calibration Sensor

Efficiency Management with LCS Medical
Daisy Chain

Convenience Variety of interfaces including HDMI
Ergonomic Design

Multi-purpose

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes. With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes.
600cd/m² Brightness (Typ.)

High brightness suitable for Diagnosis

With high brightness of 600cd/m², this clinical review monitor is also suitable for diagnostic purposes, meeting the ACR standards for diagnostic monitors.
*According to ACR(American College of Radiology), maximum luminance of diagnostic displays used for interpretation should be at least 350cd/m².
*This display is not intended for mammography.
The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Internal front calibration sensor

Consistency in medical images

The front-sensor, supported by the calibration software, enables calibration without the need for additional measuring equipment, ensuring stable image quality.

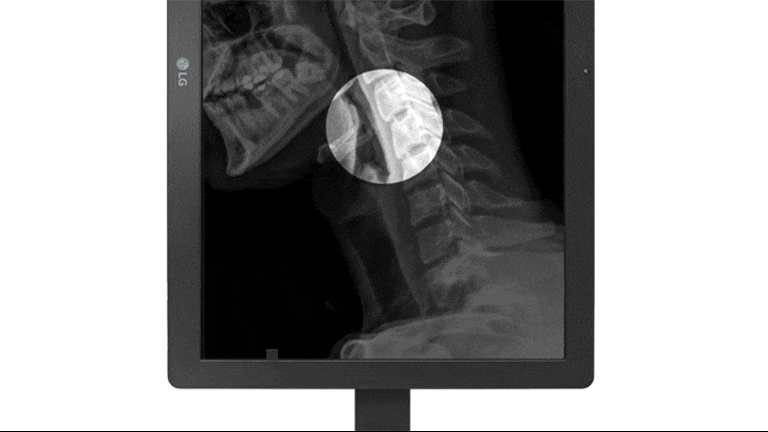

24HR513C features the Focus View Mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Focus view mode

Focus on the region of interest

24HR513C features the Focus view mode which highlights specific parts of the medical image. Users can easily select and focus on areas of concern while darkening the rest of the screen.

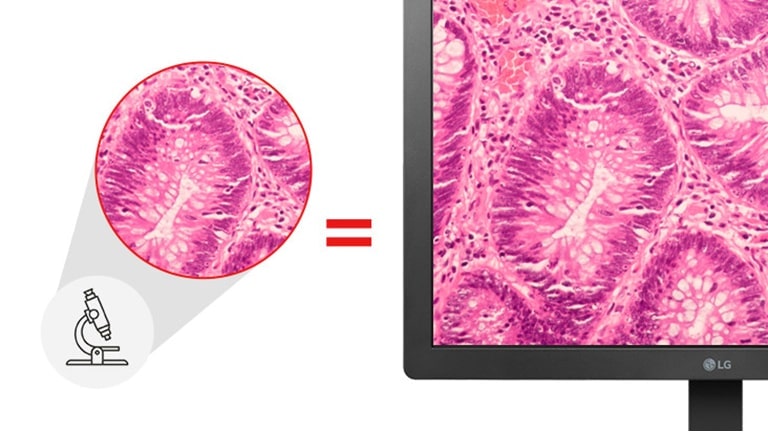

With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
Pathology mode

Just like looking at a microscope

With Pathology Mode, 24HR513C provides image clarity and accuracy as if you were looking at a microscope.

Streamlined and efficient workflow

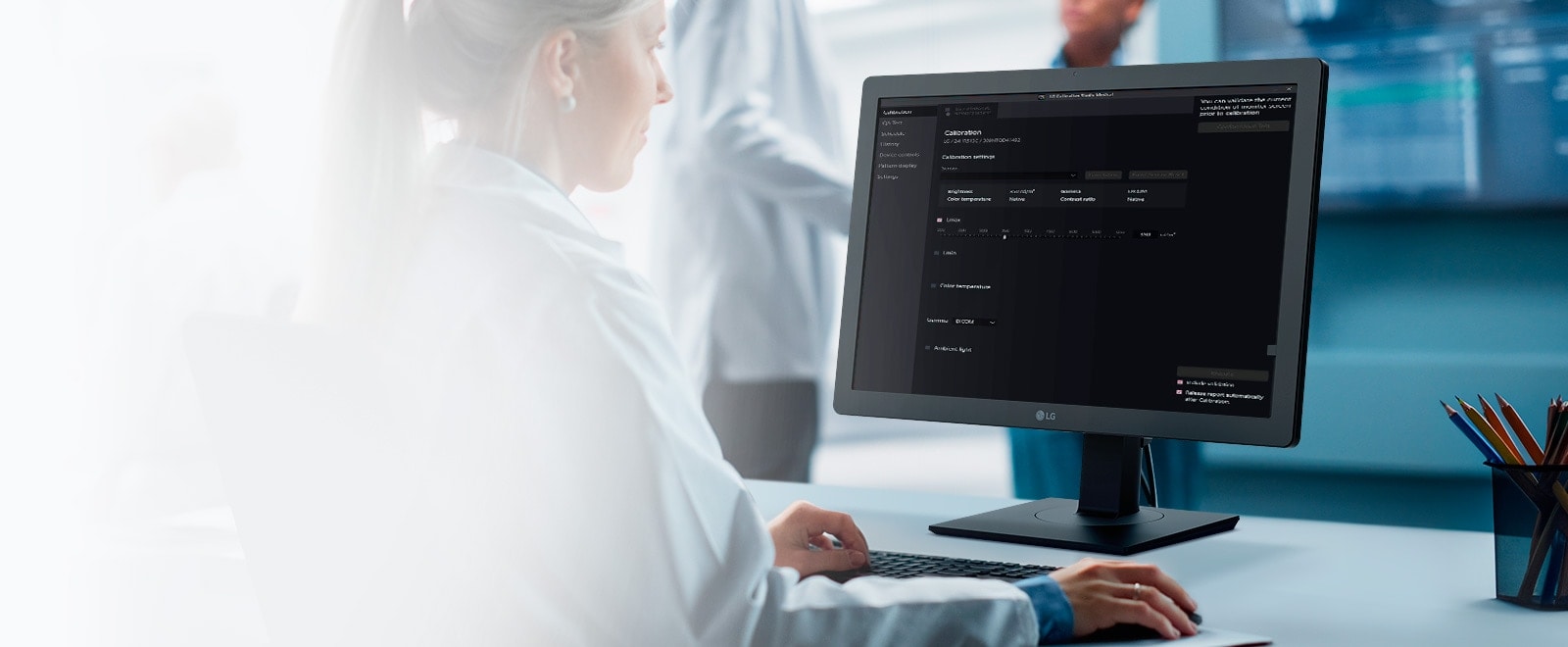

Convenient calibration and QA test. Convenient calibration and QA test.
LCS Medical*

Convenient calibration and QA test

Conveniently manage 24HR513C with LCS Medical. With calibration complying with DICOM Part 14, this software enables precise and consistent display of medical images. It also supports Quality Assurance Tests conforming to international QC Standards*.
  • Calibration. Calibration.

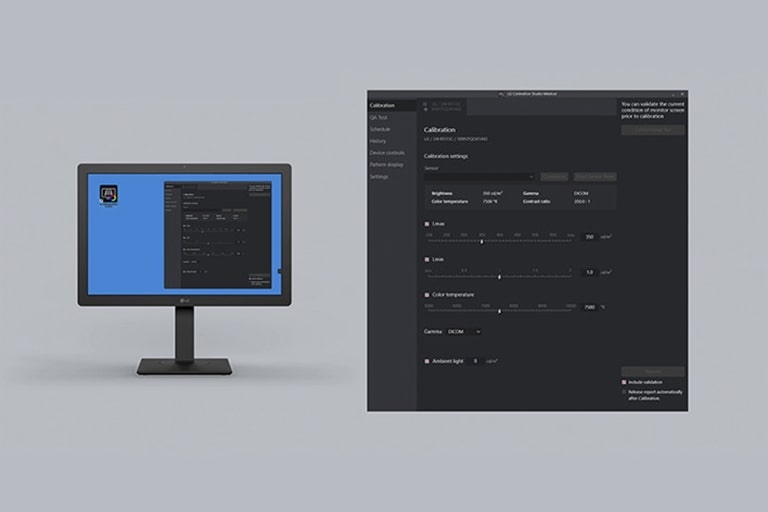

    Calibration

  • QA Test. QA Test.

    QA Test

*LCS Medical : LG Studio Calibration Medical
*LCS Medical supports Quality Assurance Tests that comply with international QC Standards including AAPM TG18, ACR, DIN-6868-157, IEC 62563-1, NYC PDM, JESRA X-0093, and RANZCR.

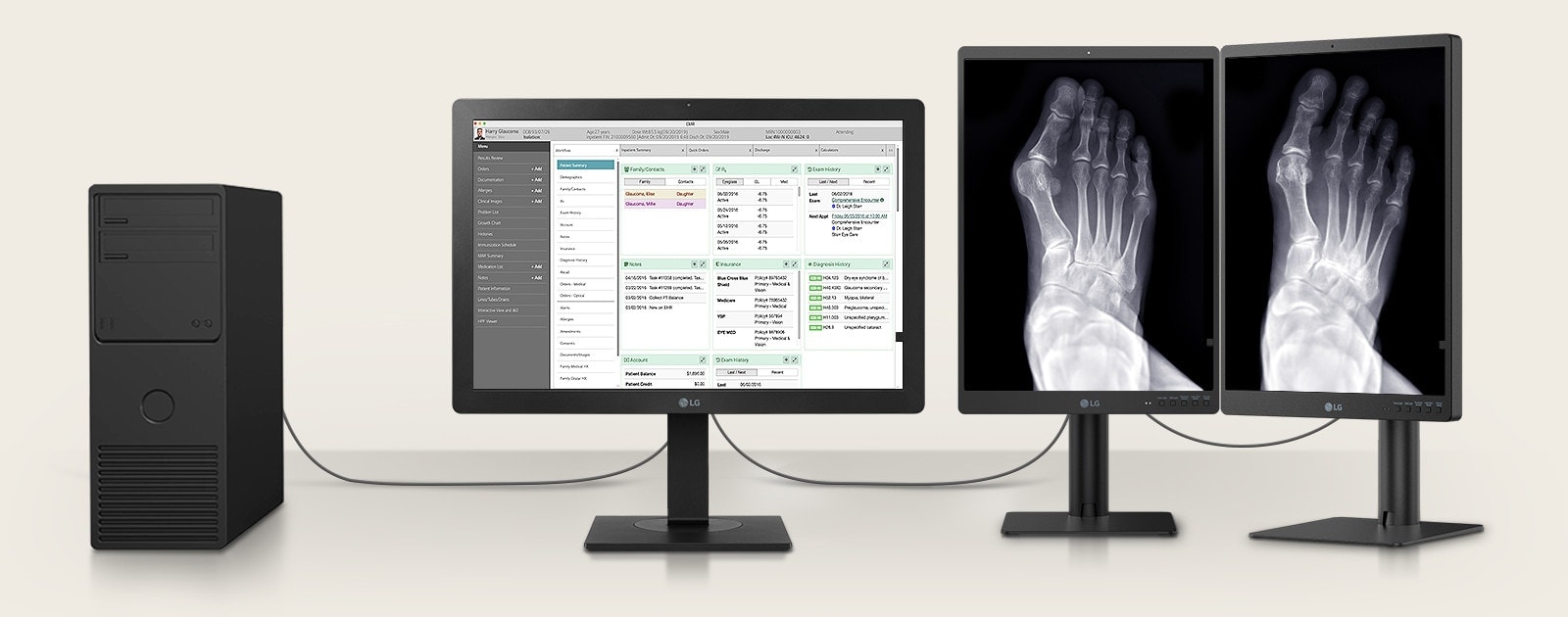

Daisy Chain

Simple connection for a clutter-free workspace

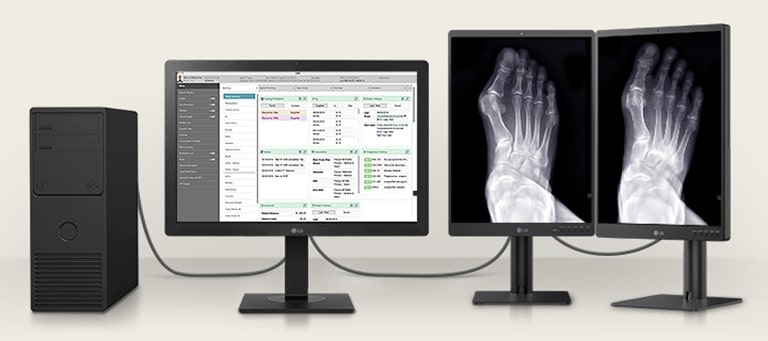

Make your workspace productive with Daisy Chain Setup. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors. You can connect a 24HR513C with two *3MP diagnostic monitors, displaying patient charts on a 24HR513C and medical images on two 3MP monitors.
*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*The 3MP diagnostic monitor featured in the image is 21HQ513D.

User convenience

Versatile connectivity

Variety of interfaces, including an HDMI Port

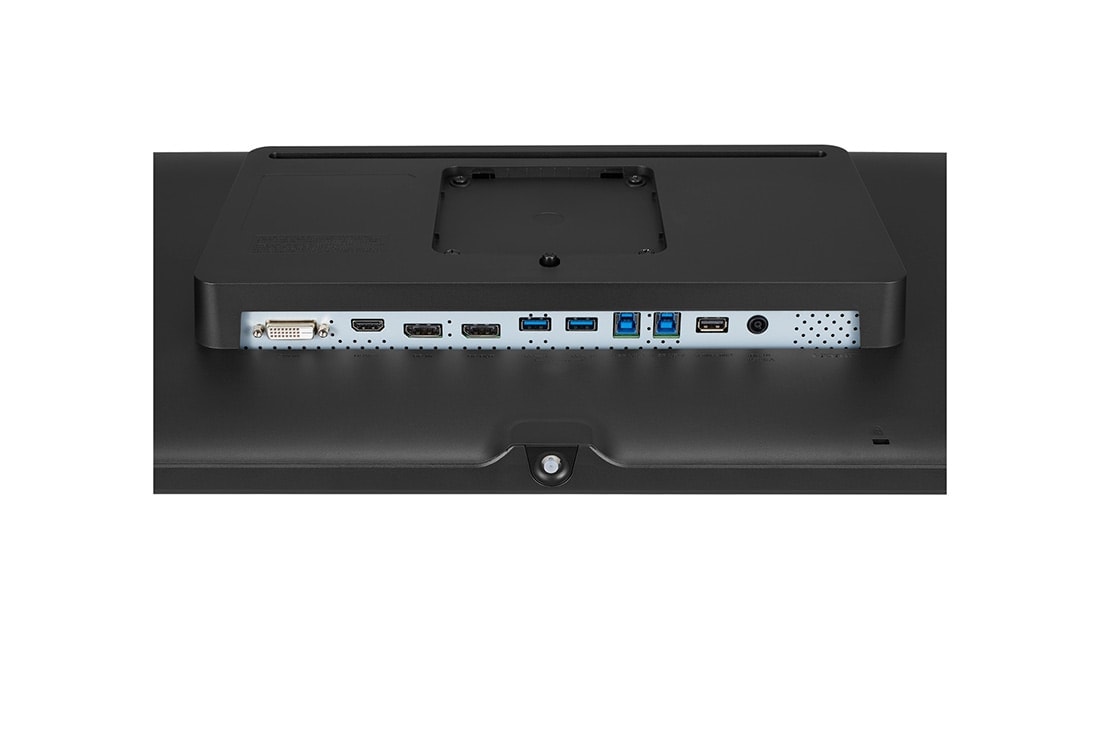

With HDMI, DisplayPort, and DVI-D input terminals, 24HR513C guarantees compatibility with a wide range of interfaces, enhancing user convenience.

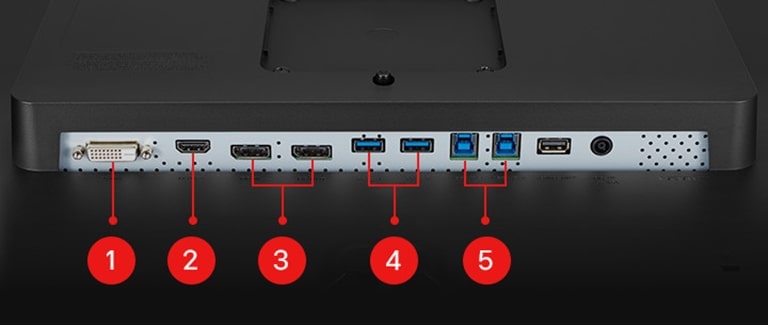

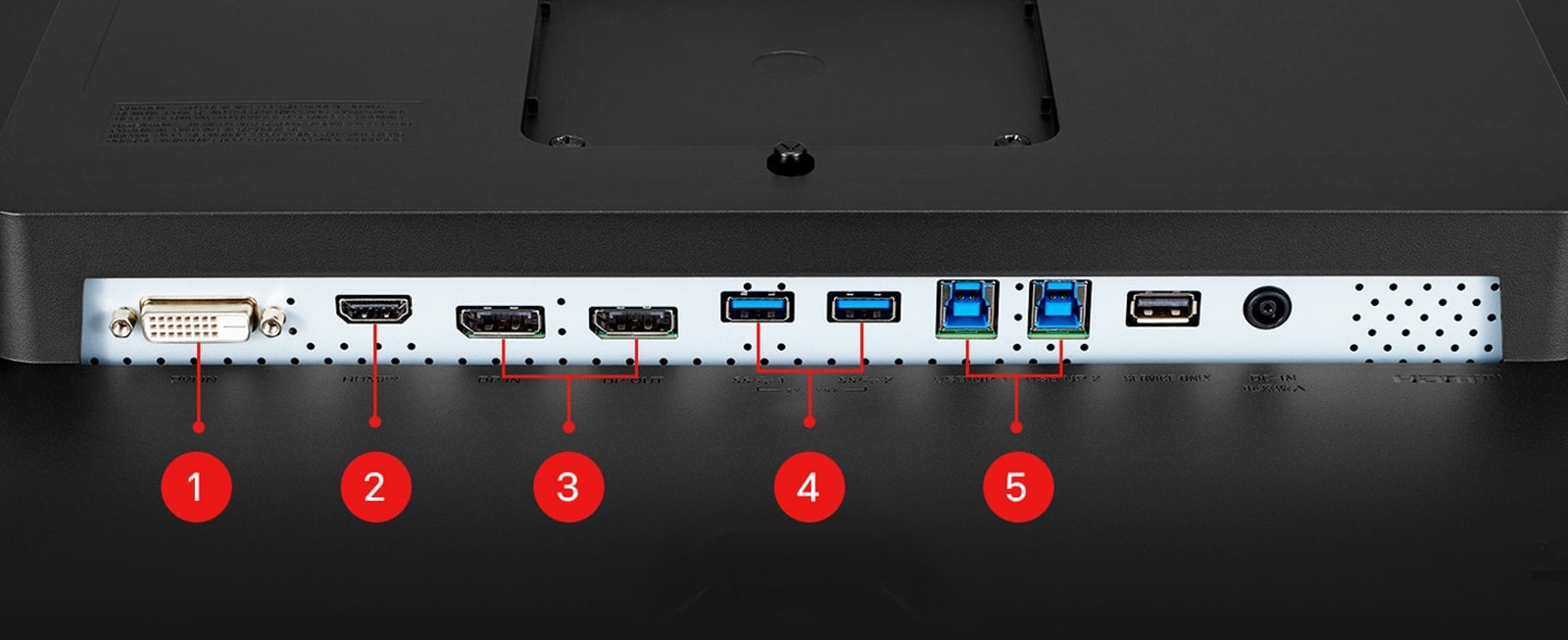

DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2. DVI IN, HDMI™, DisplayPort x 2, USB 3.0 Downstream x 2, USB 3.0 Upstream x 2.
1. DVI IN / 2. HDMI™ / 3. DisplayPort x 2 / 4. USB 3.0 Downstream x 2 / 5. USB 3.0 Upstream x 2
Ergonomic design

Customizable workstation for enhanced usability

24HR513C is designed to be adjustable for the posture of users' image review. The One-Click Stand makes the installation process simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel. It also features a bi-directional auto pivot function for added flexibility.
  • Bi-directional Auto Pivot.

    Bi-directional Auto Pivot

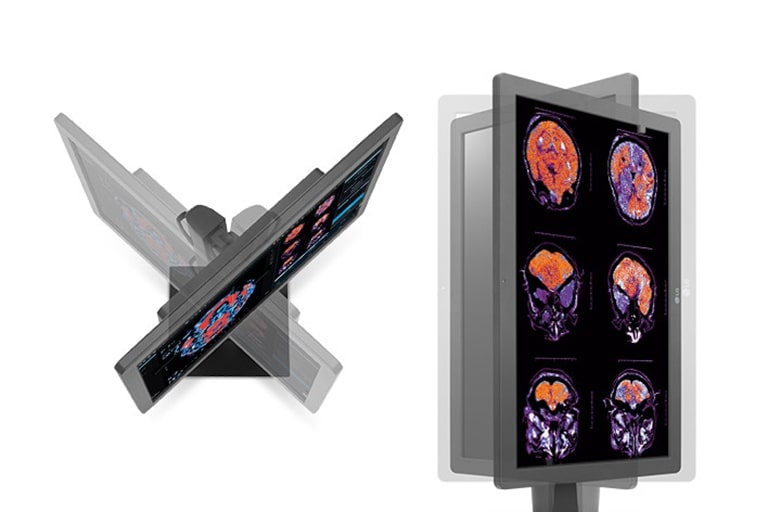

  • Swivel ±45°.

    Swivel ±45°

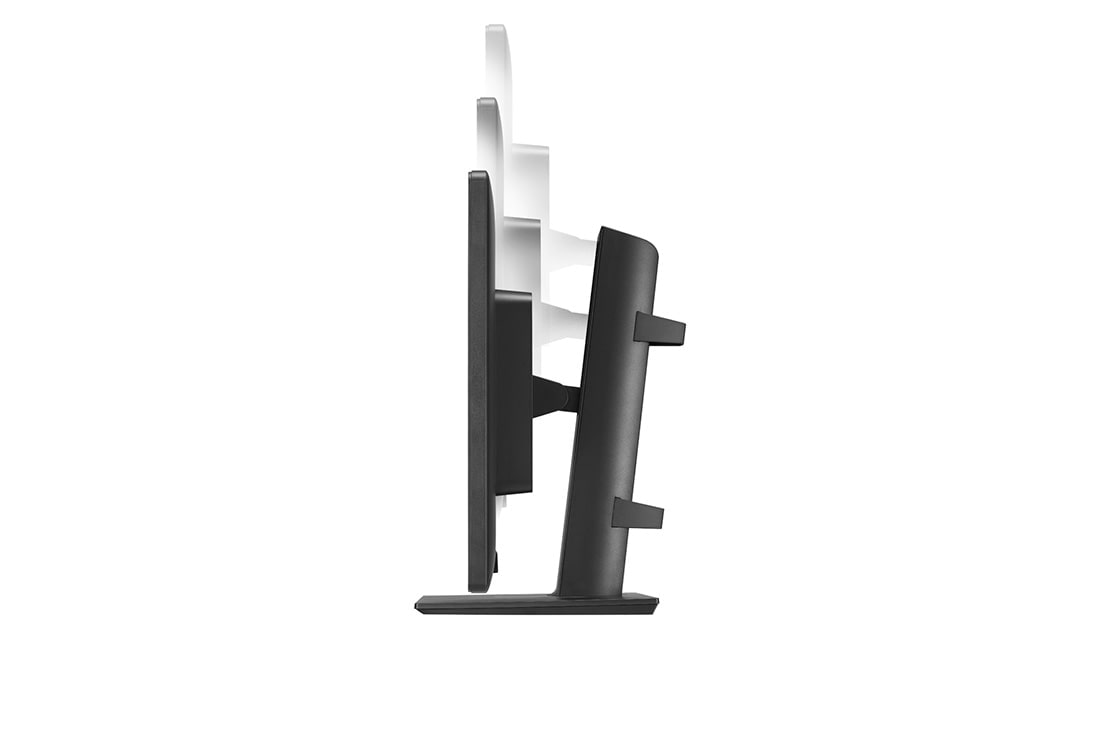

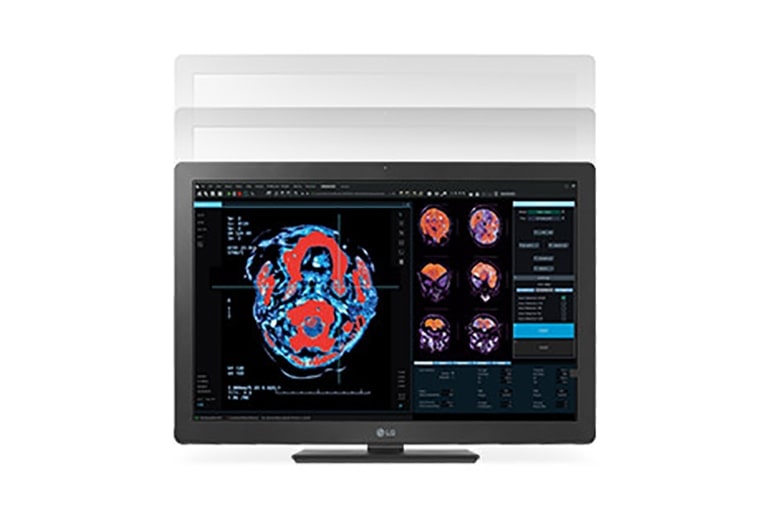

  • Height 0 ~ 150mm.

    Height 0 ~ 150mm

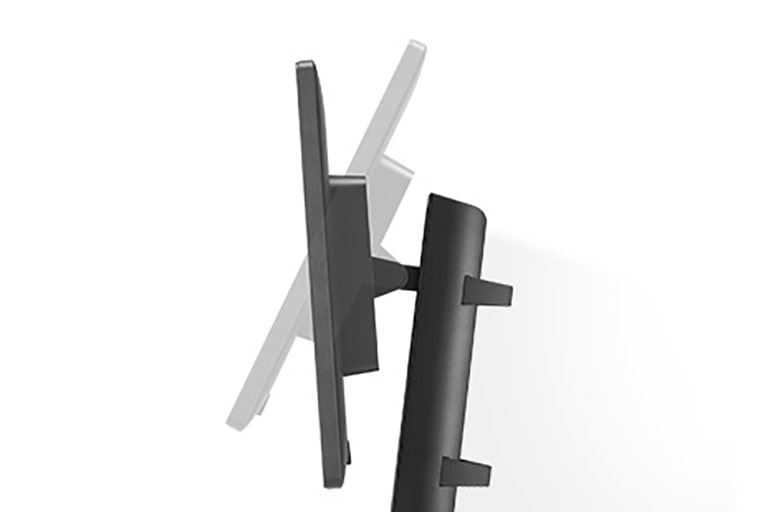

  • Tilt -5 ~ 25°.

    Tilt -5 ~ 25°

  • The One-Click Stand.

    The One-Click Stand

*All images are shown for illustrative purposes only and may vary from the actual product/usage.
*Auto Pivot refers to the automatic screen rotation function based on the pivot direction.
Automatically adjusts screen brightness 3
*All images are shown for illustrative purposes only and may vary from the actual product/usage.

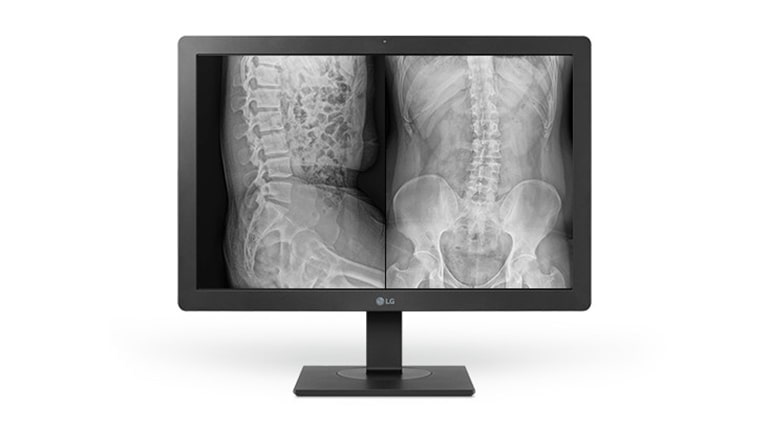

Auto luminance sensor

Automatically adjusts screen brightness

24HR513C features an Auto luminance sensor which sets screen brightness properly for the ambient lighting.
Close
Size/Ratio
  • Size
    24”
    Resolution
    1920 x 1200
Excellent Picture Quality
  • Panel
    IPS
    Surface
    Anti-glare
  • Brightness (Typ.)
    600 cd/m2
    Contrast Ratio (Typ.)
    1,000:1
  • Response Time (GTG)
    5ms
    DICOM Compliant
    Yes
  • Brightness Stabilization
    Yes
    Uniformity
    Yes
  • H/W Calibration
    Yes
Design
  • OneClick Stand
    Yes
    Adjustment
    Tilt / Swivel / Pivot / Height control
Eye Comfort
  • Reader Mode
    Yes (Text Mode)
    Flicker Safe
    Yes
Usability
  • Hot Key
    Yes (2 Keys)
    Sensor
    Yes (Front, Ambient)
  • Interface
    DisplayPort In x1 , Out x1
    HDMI™ in x 1, DVI In x1
    USB 3.0 (Up x2 / Down x2)
    Focus View
    Yes
  • Feature
    Auto pivot, Daisy chain
    Picture Mode
    Custom, Mono, Pathology, Text, DICOM, DICOM(Custom), Calibration 1, Calibration 2
